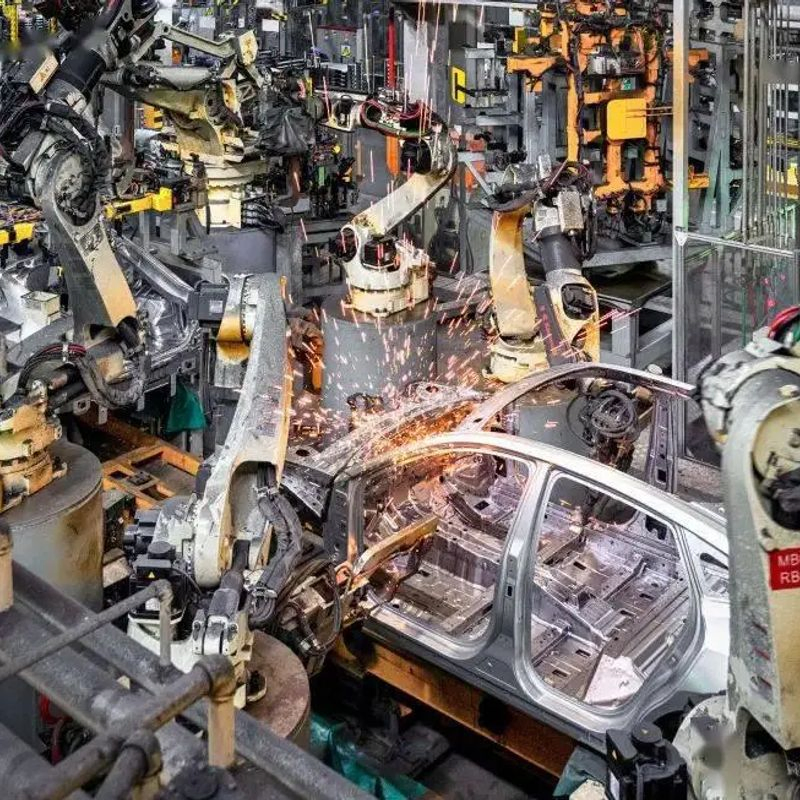

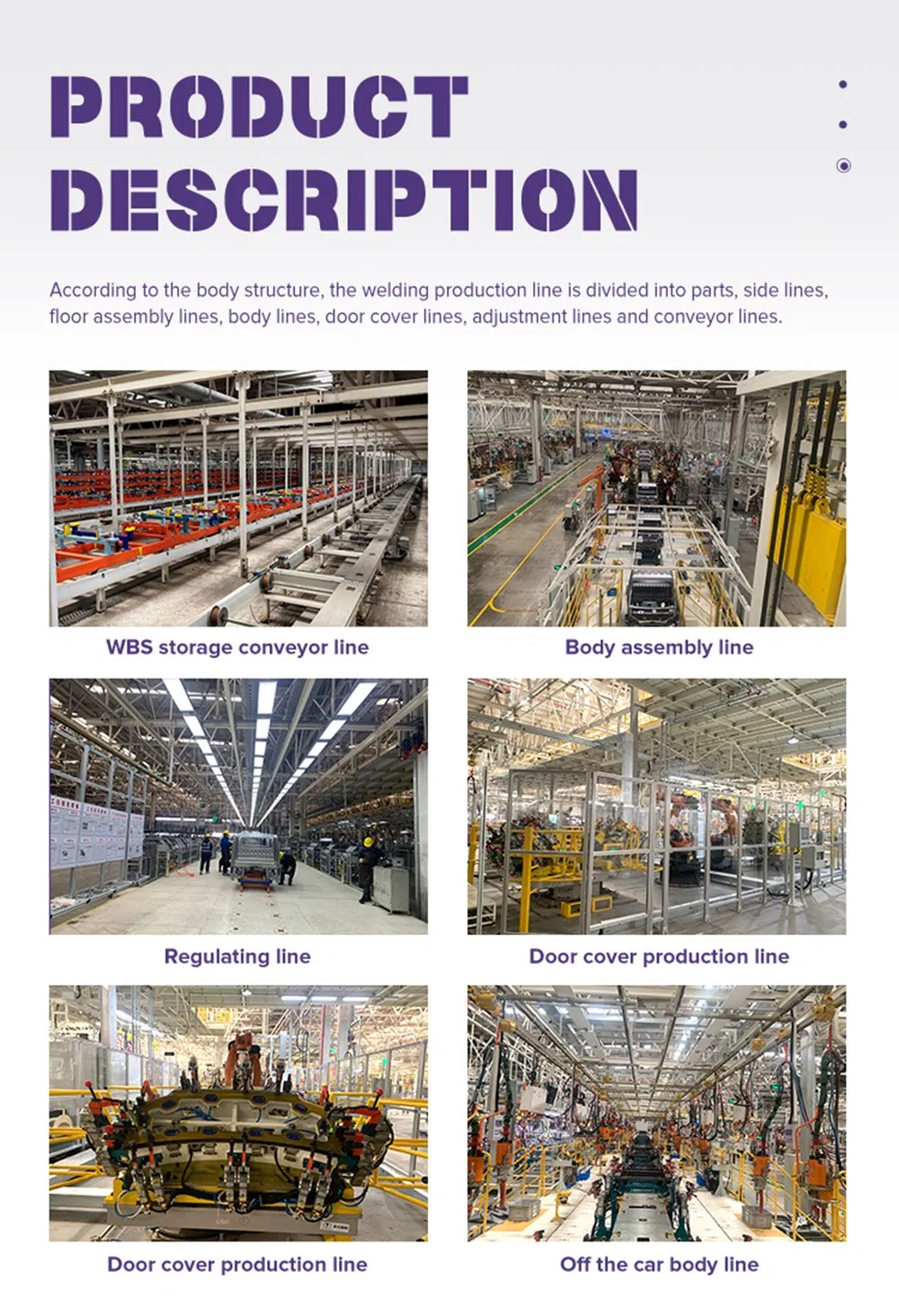

The automotive welding production line can be customized according to customer needs, mainly consisting of a body assembly line and many sub-assembly lines. According to the body structure, it can be divided into sub-assembly lines, side wall lines, floor assembly lines, body lines, door cover lines, adjustment lines, and conveyor lines.
The planning and layout of production lines not only need to consider various aspects such as accuracy assurance, production efficiency, distribution logistics, and warehousing, but are also limited by existing conditions such as factory area and structure, and painting corridors. We provide the most suitable layout plan based on your specific requirements.
| Components of Welding Line | ||
|---|---|---|
| Body Frame Assembly Machine | Assembly and welding on six body frame | Adjustable, and suitable for different types of vehicle. |
| Conveyor System | Automated transportation of the body frame among different stations | - |
| Power Truss | Truss used for the site layout (spot welder, fans, lighting, circuit, etc.) | - |
| Side Covering Stretching Machine (Hydraulic) | Stretch the body covering and welding onto the frame. | Stretching the body covering using hydraulic pressure till elastic deformation, then welding. |
| Side Covering Stretching Machine (Thermal) | Stretch the body covering and welding onto the frame. | Electrical Heating. Before cold-contraction, the body covering is welded onto the frame. |
| Body Frame Hanger | Can be lifted by crane for transport to the assembly workshop. | - |
| Process Carrier | Body frame is set upon the carrier for transport among stations. | With ground rails. |
