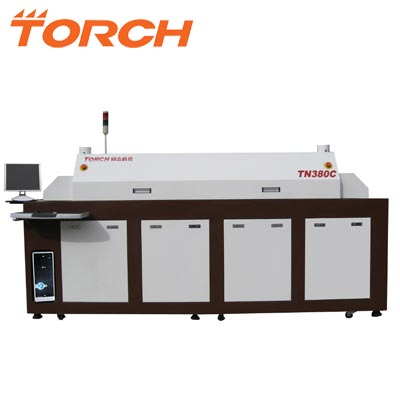

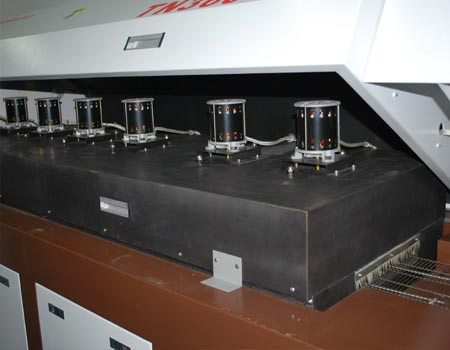

The TN380C is a high-performance SMT 8-Heating Zone Lead-free Reflow Oven designed for precision soldering. It utilizes a high-power SSR solid relay (450V) with non-contact output for enhanced safety and reliability. The system features advanced fuzzy control and data collection to monitor temperature fluctuations within the furnace chamber, ensuring rapid response and precise heating cycles.
| Parameter Item | Details |
|---|---|
| Heating System Parameters | |
| Model | TN380C |
| Heating Zone | 8 heating zones (8 upper, 8 lower) + 1 cooling zone |
| Heating Method | Full forced Hot air heating |
| Warm-up Time | ≤ 30min |
| Cooling Method | Transverse flow vortex centrifuge blower |
| Protection System | Built-in automatic relay to prevent over-pressure damage and protect components |
| Transmission Parameters | |
| PCB Board Width | ≤ 300mm |
| Conveyor Direction | L→R or R→L |
| Conveyor Material | Stainless steel mesh belt and chain-driven |
| Mesh Belt Width | 300mm |
| Conveyor Speed | 0-1600mm/min adjustable |
| Control & Power | |
| Power Supply | 380V (3 Ph, 4 Wires) 50/60Hz |
| Max / Working Power | 42KW / 23KW |
| Control System | PLC + Temp Control Module + IPC |
| Temperature Range | Room Temperature - 360 ºC |
| Control Precision | ± 2ºC (Distribution Error: ± 2ºC) |
| Physical Dimensions | |
| Net Weight | 860kg |
| Dimensions (L×W×H) | 3500 × 900 × 1390mm |
