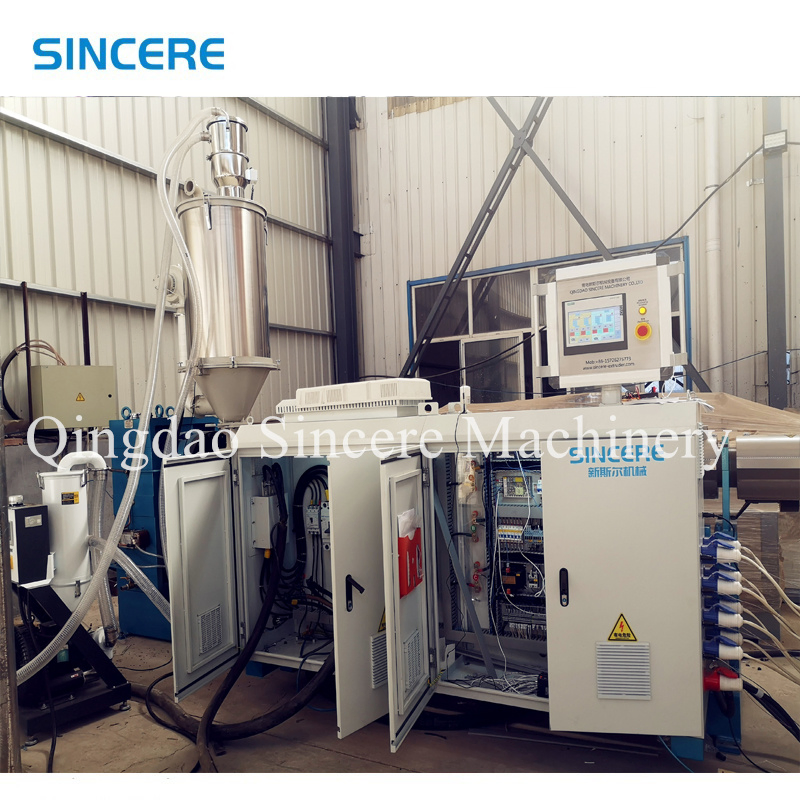

Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
1 / 5
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line
Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line

Hot Sale Steel Reinforced Spirally Wound Pilyethylene Drainage Pipe Production Line

Warranty: 1year
Product Type: PE Pipe
Screw No.: Single-screw
Send Inquiry

Product Description

Basic Specifications

Model NO.
200mm~4000mm
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Condition
New
Pipe Types
Drainage HDPE Pipe Reinforced by Steel Band
Processing Period
40-60 Days
Electrical Appliances
ABB, Rkc, Omron, Siemens
Output
300-1500kg/H
Production Capacity
50 Sets/Year

Product Description

🚀 High-Performance Production Line

Steel reinforced spirally wound polyethylene drainage pipe production line (200-3000mm). Designed for high-efficiency manufacturing of steel strap reinforced HDPE winding drainage pipes and hollowness wall spiral winding corrugated pipes.

  • Outer Diameter: 200mm ~ 4000mm
  • Material: High quality virgin or recycled PE100/PE80
  • Stiffness Classes: SN8, SN10, SN12.5, SN16

📍 Features & Applications

The steel-wireframe polyethylene composite pipe is reinforced through twisting high-intensity steel wire into a helix. The adhesive resin layer ensures a permanent bond between the steel and the PE material, preventing corrosion and enhancing structural integrity.

Main Applications:

  • Urban underground drainage and sewage
  • Factory sewage treatment plants
  • Venting systems and seawater transportation
  • Electric/optical cable sheath laying
  • Agricultural irrigation and chemical containers

Technical Parameters

Model SMFG-1200 SMFG-2000 SMFG-3000
Extruder SJ90/30 & SJ65/30 SJ120/30 & SJ65/30 SJ150/30 & SJ90/33
Motor Power 55KW 110KW 250KW
Output 330kg/h 600kg/h 1300kg/h
Installed Capacity 177kw 280kw 530kw

Equipment Showcase

Production Line 1

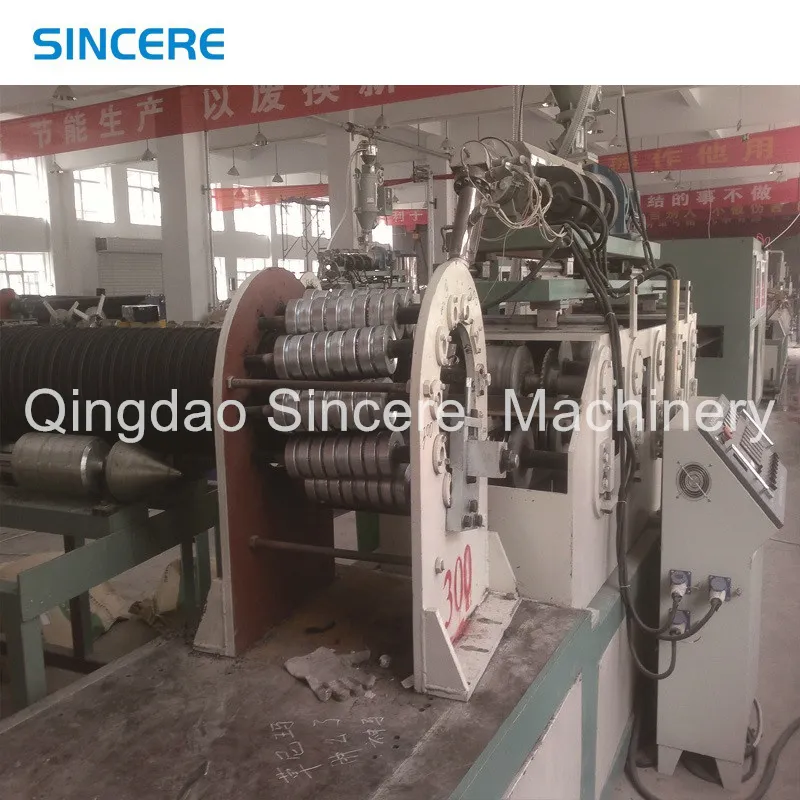

Production Line 2

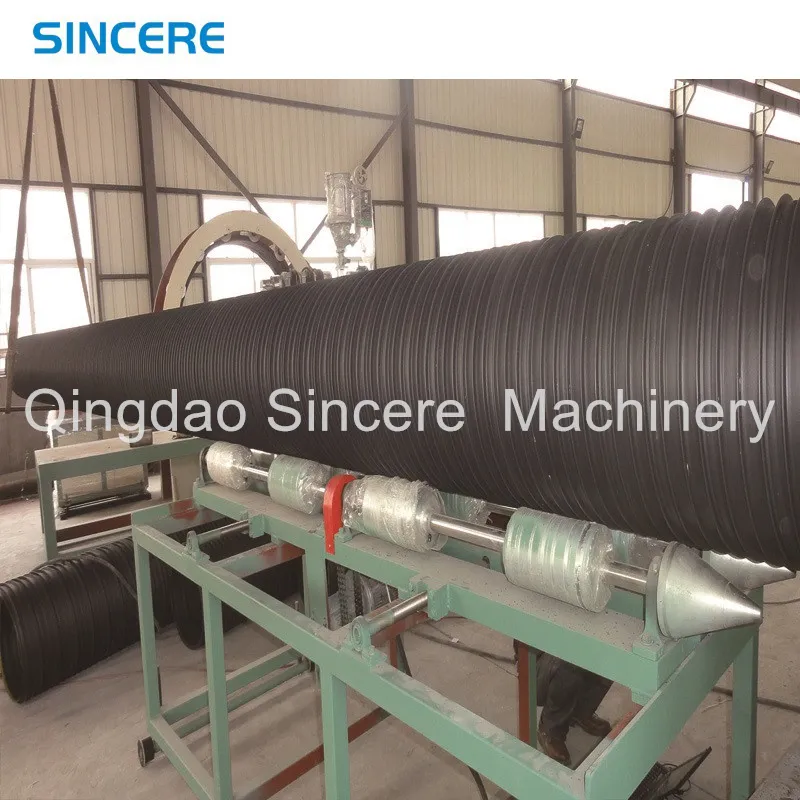

Production Line 3

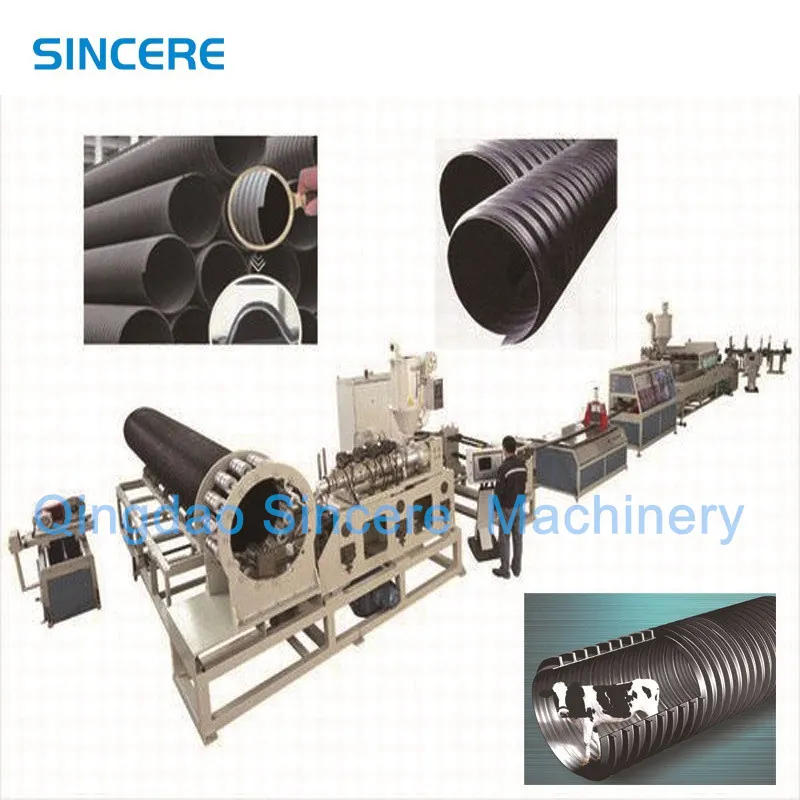

Production Line 4

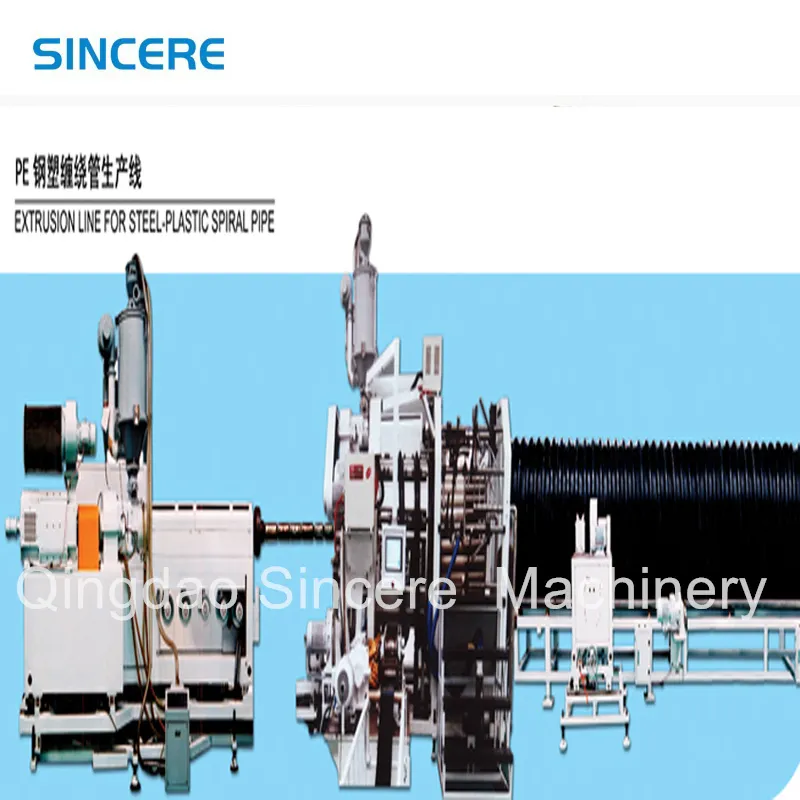

Production Line 5

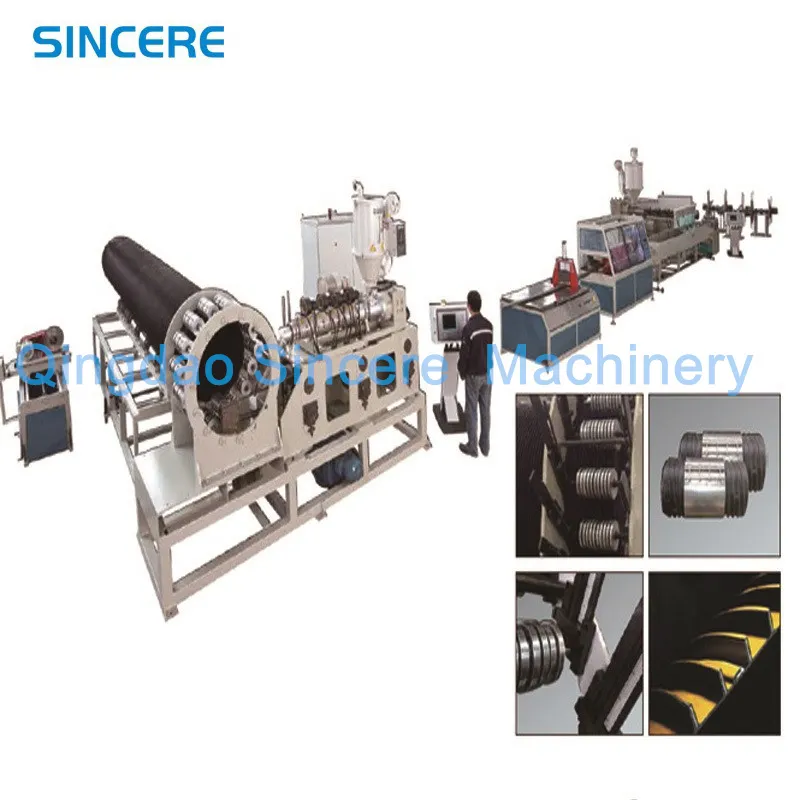

Production Line 6

Cooperation Process

Cooperation Process

Frequently Asked Questions

What is the diameter range of the pipes produced?
The production line can manufacture pipes with outer diameters ranging from 200mm up to 4000mm.
What materials are compatible with this equipment?
The machine works efficiently with high-quality virgin or recycled PE100 and PE80 polyethylene materials.
What are the advantages of steel-reinforced HDPE pipes?
These pipes offer no leakage, are fully recyclable, cause no pollution, and provide easy construction compared to traditional cement pipes.
What electrical components are used in the machine?
We integrate world-class components including ABB motors, Siemens PLC systems, and Omron/Rkc controllers for stability.
What is the production capacity of the line?
Depending on the model, the output ranges from 300kg/h to 1500kg/h, with an annual capacity of approximately 50 sets.
Do you provide after-sales technical support?
Yes, we provide permanent technical support and can send engineers to assist with machine installation and testing.
