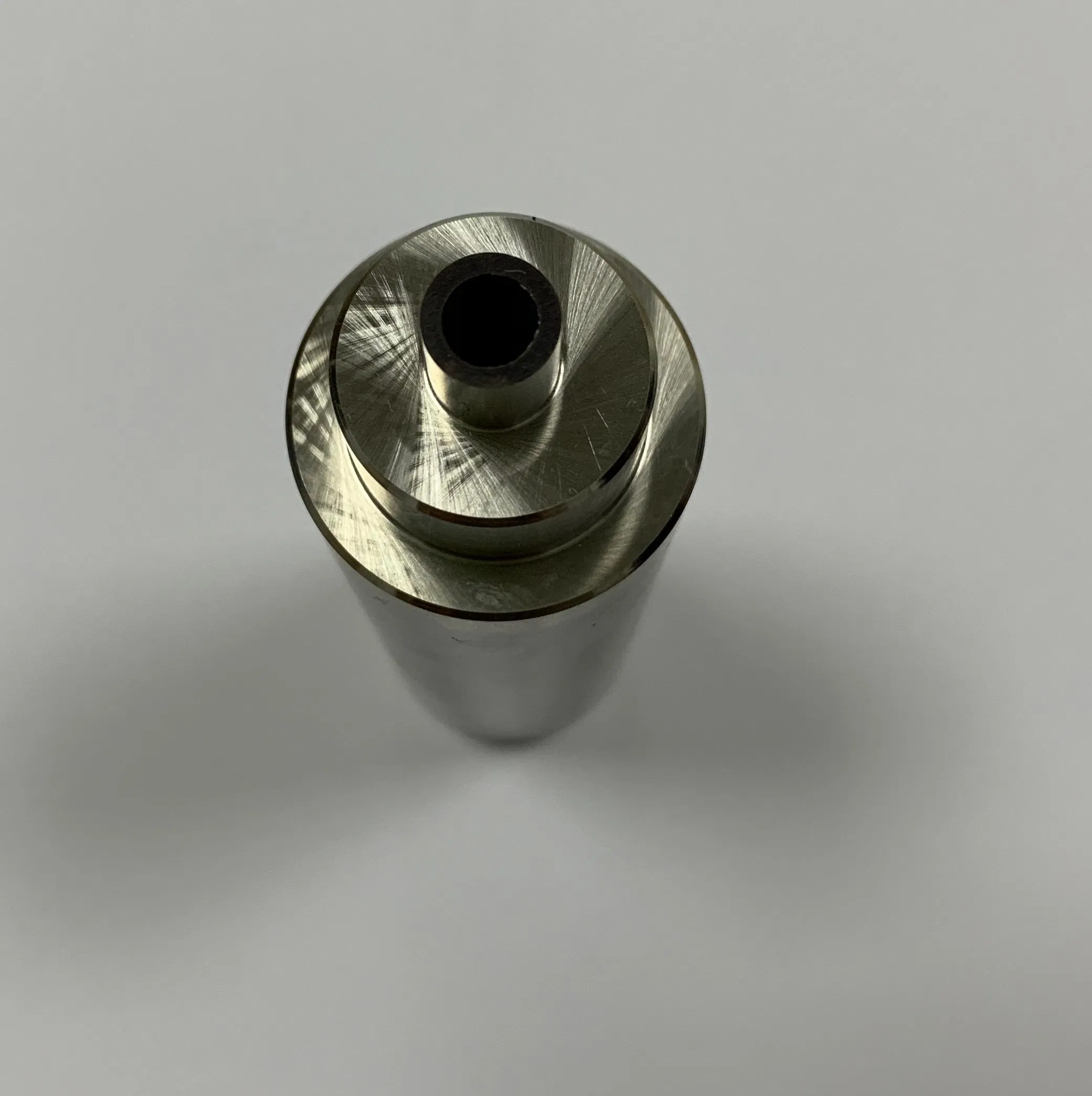

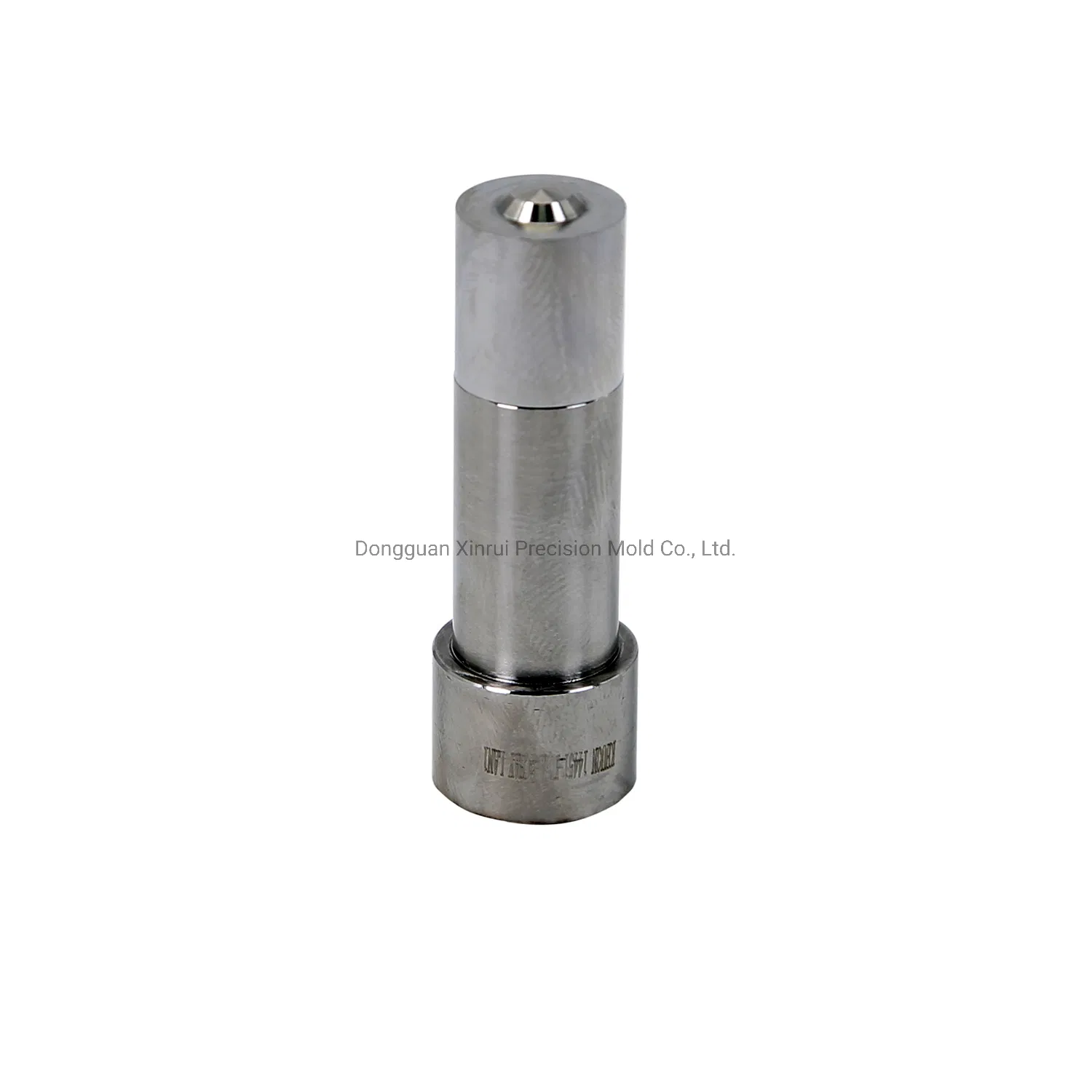

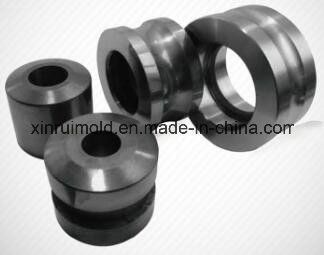

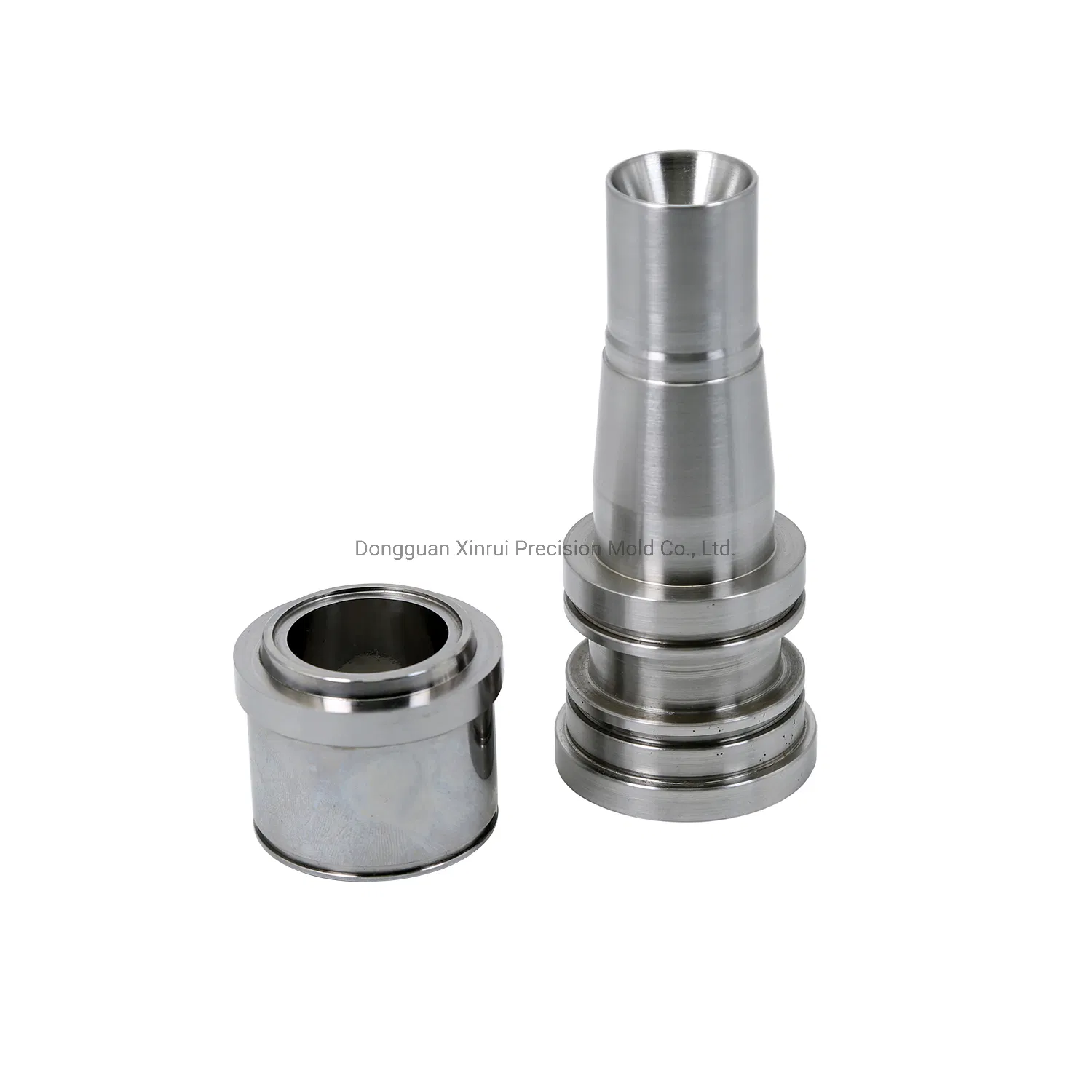

Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
1 / 5
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable
Multi Cavity Core Plastic Mold Inner Core for Earphone Cable

Multi Cavity Core Plastic Mold Inner Core for Earphone Cable

Customization: Available
Shaping Mode: Injection Mould
Surface Finish Process: Mirror Polishing
Send Inquiry

Product Description

Basic Specifications
Model NO.
XR-0112
Mould Cavity
Multi Cavity
Plastic Material
ABS
Process Type
Compound Die
Runner
Hot Runner
Design Software
UG
Certification
CE, ISO, SGS
Standard
HASCO
Tolerance
±0.005
Origin
China
Capacity
500,000 PCS/Year
HS Code
8480719090
Product Description
Product NameMold cavity plates
FunctionFixed into the mold centre, shape up of plastic surface pattern.
MaterialMold steel (S136, SKD61, SKH-51, HPM38, STAVAX, 1.2343, 1.2344, 1.2767, 8407, etc.)
Surface TreatmentMirror polished, Technical Polished, Mold Tech texture, Nitriding, Plating, VDI texture, etc.
EquipmentCNC lathe, Wire cutting, EDM, Stamping punching machines, CNC machining, Automatic lathe, Grinder, Drilling Milling Machines, Profile projector, etc.
Quality Control100% inspection before shipment.
MOQ2 PCs, depending on detailed orders. Accept order for small batches.
Product Showcase

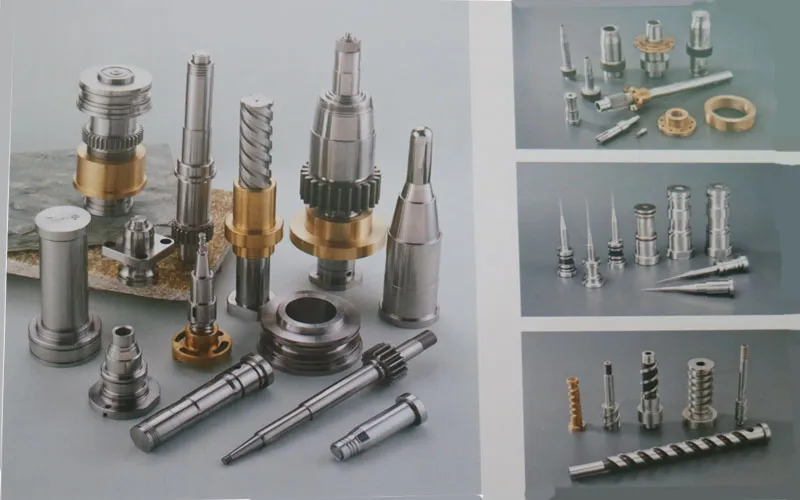

Multi Cavity Core Plastic Mold Inner Core

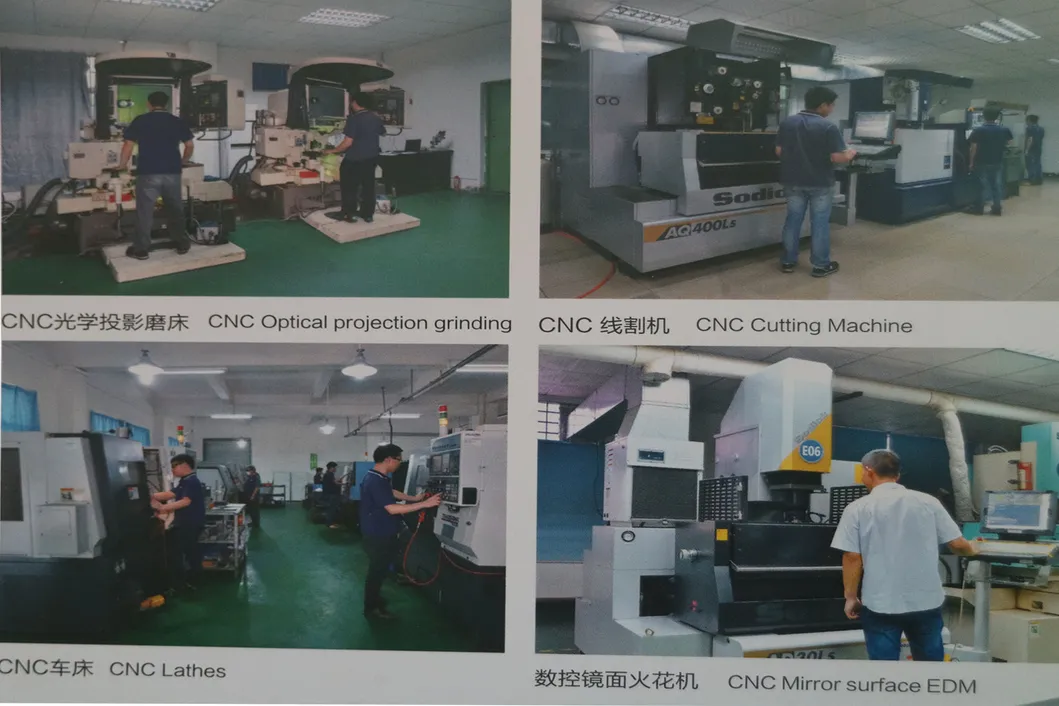

Mold Part 1

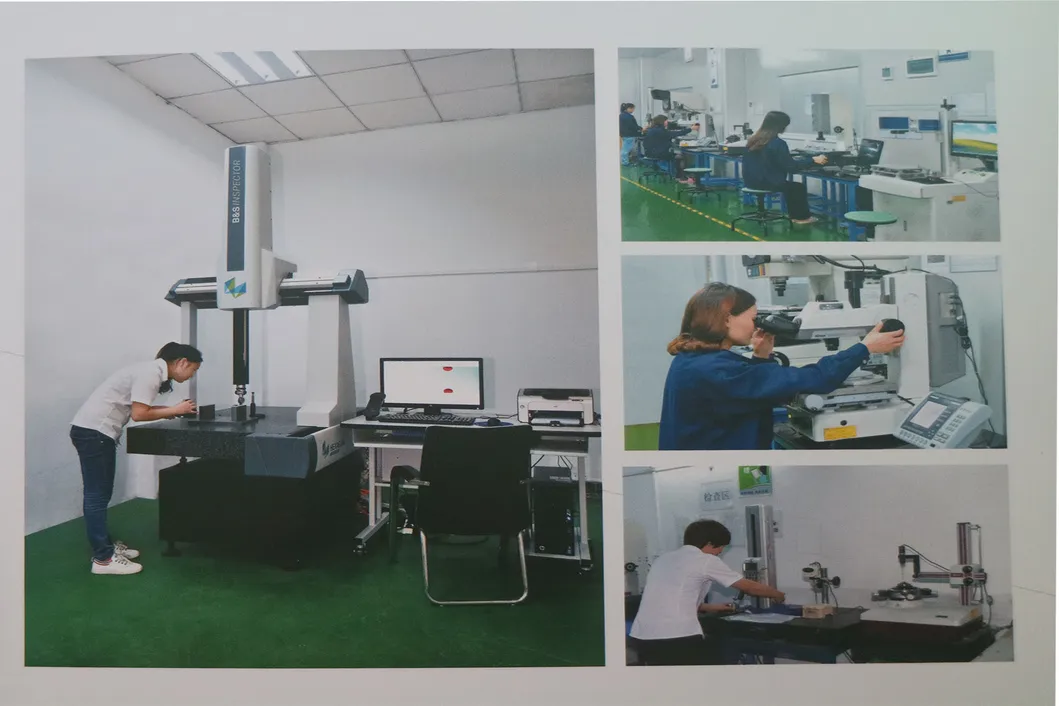

Mold Part 2
Mold Part 3
Shipping & Package

Shipping: For urgent or small quantities, we advise Express (DHL, FEDEX, UPS, TNT, EMS). For large quantities, sea or air shipping via Shenzhen port is recommended.

Shipping Methods

Package: Customized based on requirements: foam/wooden box, anti-rust paper, anti-rust oil + plastic bag + carton.

Packaging Details
Why Choose Us
✓ Quality: Qualified original materials and strict QC.
✓ Technology: Integrated production lines and mature processing.
✓ Expertise: Skilled employees with years of experience.
✓ Price: Competitive pricing with reasonable margins.
✓ Service: 24-hour inquiry response and fast delivery.
✓ Warranty: One-year no-condition warranty.
Frequently Asked Questions
What materials are used for the mold cavity plates?
We use high-quality mold steel including S136, SKD61, SKH-51, HPM38, STAVAX, 1.2343, 1.2344, 1.2767, and 8407 to ensure durability and performance.
What is the precision tolerance for your customized parts?
Our advanced CNC and EDM equipment allows us to achieve a profile tolerance of up to ±0.005MM.
How long is the typical delivery time?
Standard delivery time is 10-15 days after payment is confirmed, depending on the complexity and quantity of the order.
Do you support small batch orders?
Yes, our Minimum Order Quantity (MOQ) starts from 2 pieces, and we welcome trial samples and small batch production.
What surface treatments can you provide?
We offer a wide range of treatments including mirror polishing, technical polishing, Mold Tech texture, nitriding, plating, and VDI texture.
What drawing formats do you accept for customization?
We can work with various formats including PDF, DWG, DXF, IGS, and STEP to meet your specific design requirements.
