2024 Hot One Station Multi-Layer Filter Media Hot Melt Bonding Machine

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

i

Basic Specifications

Model NO.
PLRZ-1000
Type
Paper Bonding Machine
Product Capacity
15 PCS/Min
Min Pleat Height
12 mm
Hot Melt Capacity
10 Kg
Heat Power
6 Kw
Power Supply
380 V / 50 Hz
Transport Package
Wooden Packing
M/C Size (L*W*H)
1865*806*2037 mm
Trademark
PLM

Product Description

Banner
PLRZ-1000

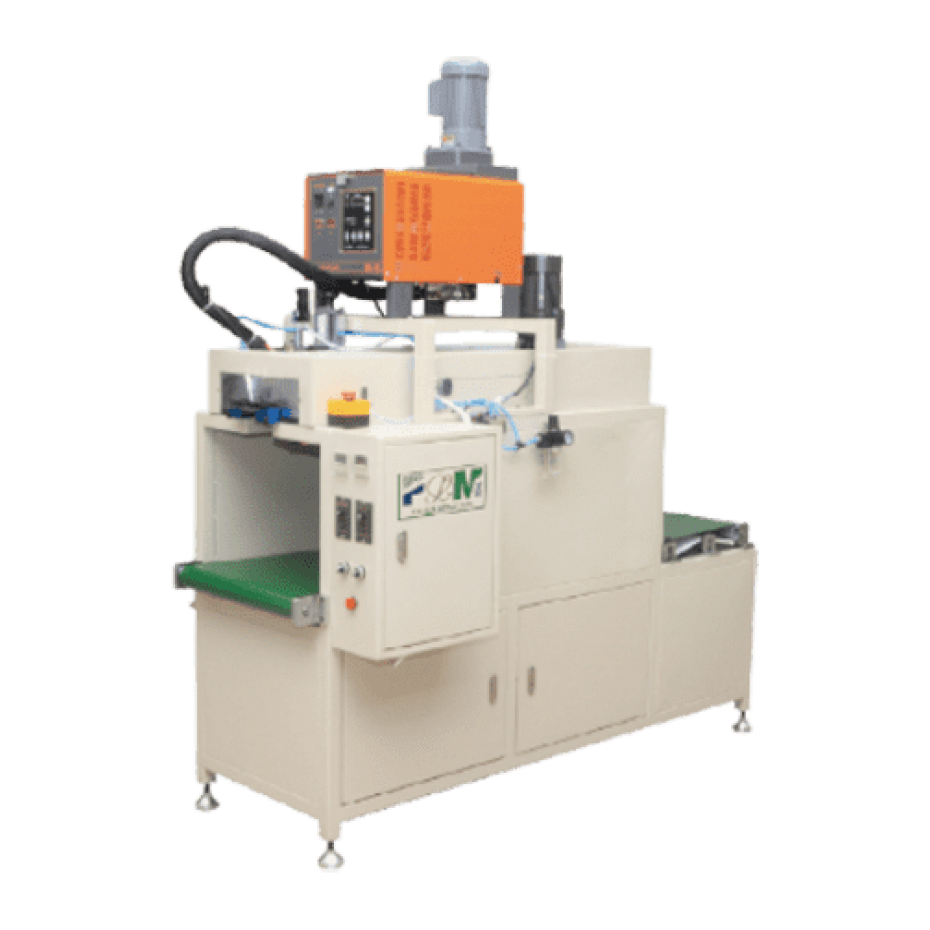

One Station Multi-layer Filter Media Hot Melt Bonding Machine

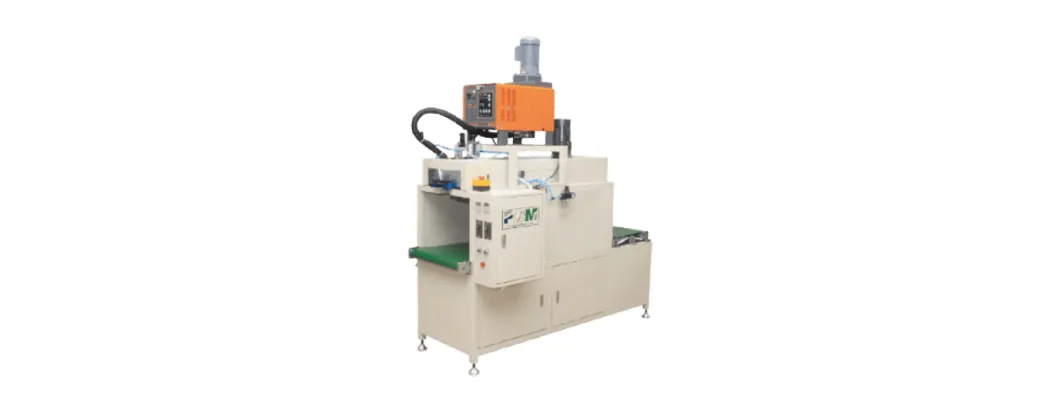

Product View
Production capacity15 pcs/min
Filter Paper Height≤1000 mm
Min Pleat Height12 mm
Hot Melt Applicator Capacity10kg
Hot Melt Applicator Heat Power6kw
Working Air Pressure0.6 MPa
M/C Size (L × W × H)1865 × 806 × 2037 mm
Detail 1
Detail 2
Detail 3
Detail 4

Key Technologies

Process 1
Process 2
Process 3
Paperboard Gluing Machine

Used to glue folded filter paper by applying uniform coating. Ensures filter paper layers are tightly bonded, preventing separation or delamination. Features adjustable coating thickness and automated operation for high consistency.

Paperboard Clamping Machine

Clamps hot-melt iron or metal materials on the edge of filter paper. Provides strong pressure and heat to form a solid bond. Features a quick heating/cooling cycle to improve production efficiency across various filter types.

Ultrasonic Welding Machine

Utilizes ultrasonic vibration heat energy to bond filter paper parts quickly. No glue or external materials required, ensuring product purity and hygiene. Ideal for complex shapes and high-quality bonding requirements.

Footer Image
?

Frequently Asked Questions

1. What is the production capacity of the PLRZ-1000?
The machine has a production capacity of approximately 15 pieces per minute, depending on the specific filter requirements.
2. What is the minimum pleat height this machine can handle?
The PLRZ-1000 is designed to handle a minimum pleat height of 12 mm.
3. Does the ultrasonic welding process require additional glue?
No, the ultrasonic welding machine uses vibration heat energy to bond parts together, avoiding contamination and ensuring product purity.
4. What are the power requirements for installation?
The machine requires a power supply of 380 V / 50 Hz and has a heat power of 6 Kw.
5. Can the glue coating thickness be adjusted?
Yes, the Paperboard Gluing Machine allows for adjustments in coating thickness and glue amount to adapt to different filter specifications.
6. Is the machine suitable for multi-layer filter media?
Yes, it is specifically designed as a One Station Multi-layer Filter Media Hot Melt Bonding Machine, ensuring tight bonding between multiple layers.
