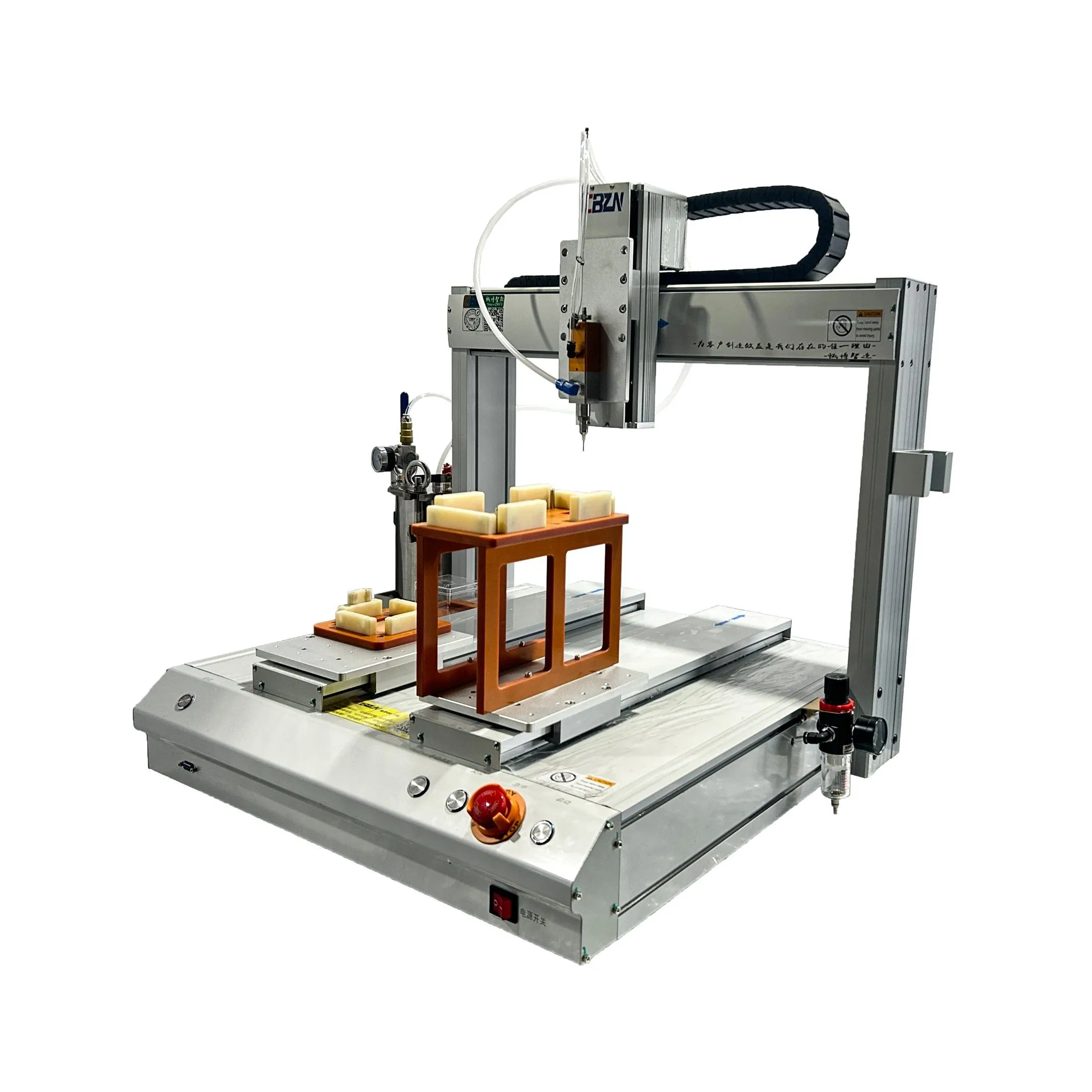

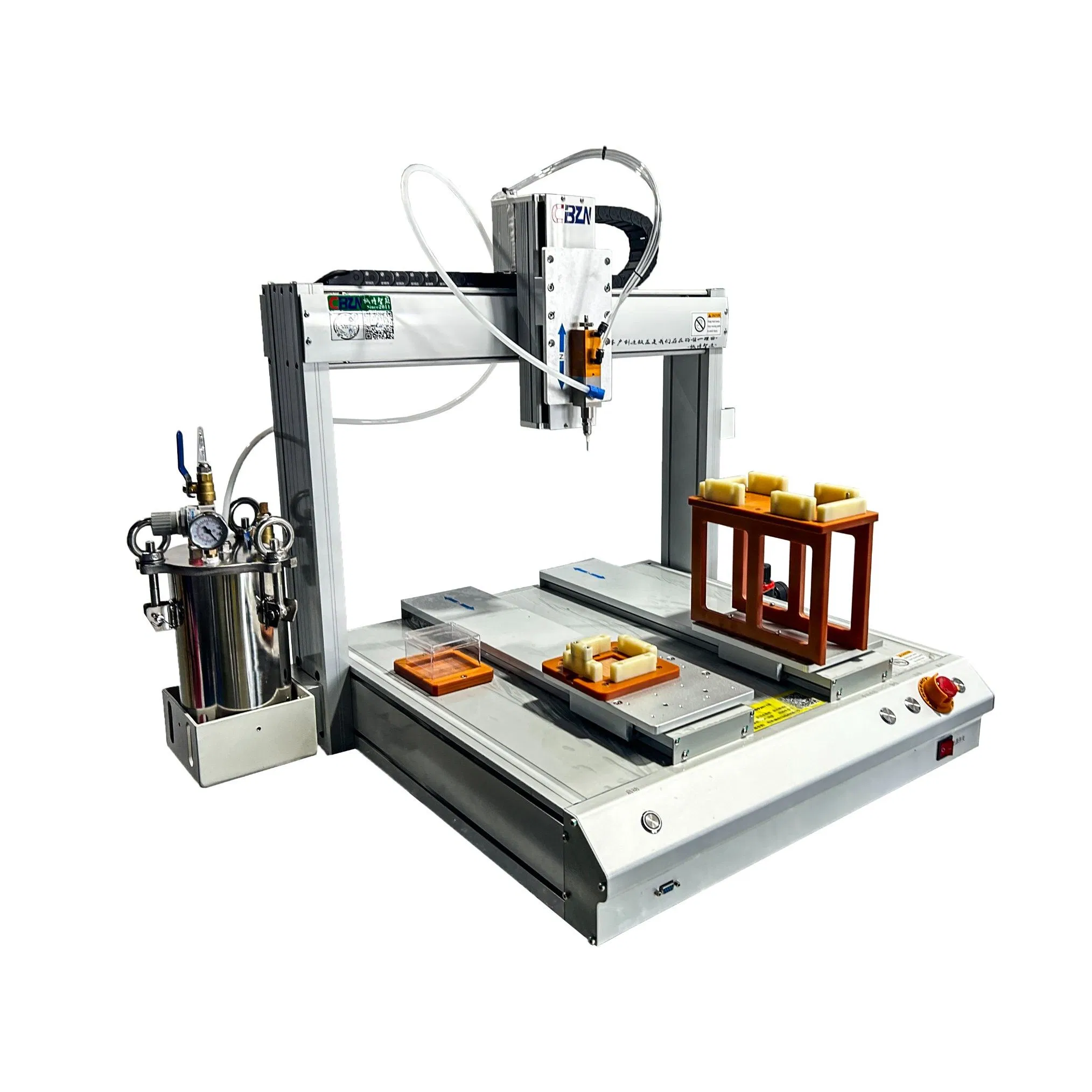

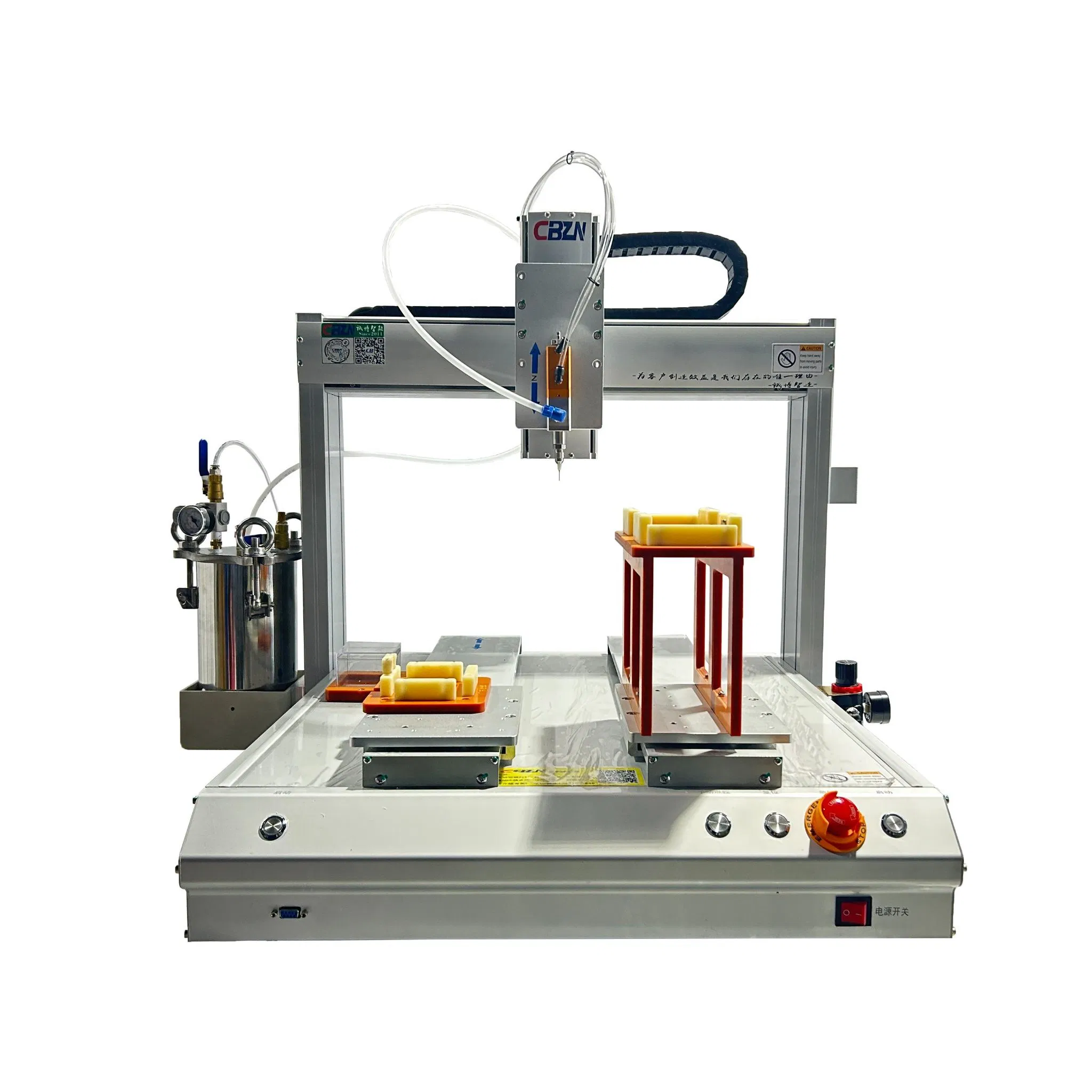

Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
1 / 5
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor
Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor

Ra Multi-Station Automatic Desktop Dispenser / Double-Head Liquid Glue Equipment / PCB Assembly Glue Coating Machine / Programmable Dispensing System for Factor

Certification: CE, ISO
Warranty: One Year
Product Name: Automatic Glue Dispensing Machine
Send Inquiry

Product Description

Basic Info & Specifications

Model NO.
CB-DJ5331
Program Capacity
999 Groups/1000 Points Per Group
Repeat Accuracy
+/-0.02 mm/Axis
Control Panel
Teaching Pendant with Display Screen
Maximum Load
8 Kg
Air Pressure
0.5-0.7 MPa
Working Area
500*300*300*100 mm
Motor System
Micro Precision Stepping Motor
Glue Type
Ab, Hot Melt, Epoxy, Silicon etc
Moving Speed
800 mm/S

Product Description

Model CB-DJ5331 (Single Y) CB-311R (Double Y) Customized
Power Supply AC 220V 50/60HZ
Range X/Y/Z 300/300/100mm 500/300/100mm To Order
Position Accuracy ±0.05mm/axis
Transmission Precision toothed belt + guide rail
Single head double platform fully automatic glue dispensing machine
The automatic glue dispensing machine is suitable for dispensing solder resist glue, COB black glue, red glue, tin paste, UV glue, Silicon, EPOXY, silver glue, AB glue, conductive glue, heat dissipation aluminum glue, instant glue, etc.

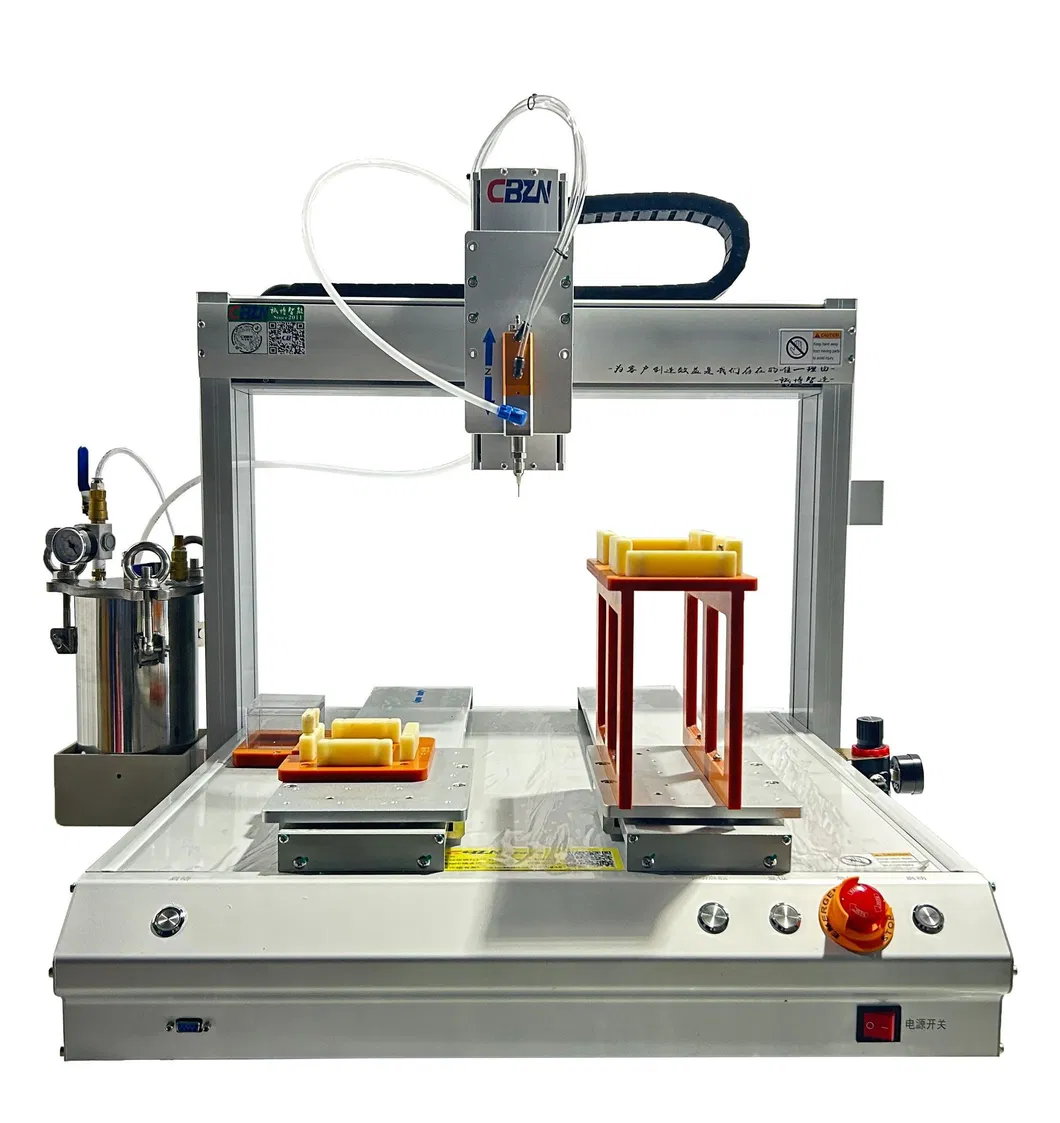

Automatic Dispensing Machine

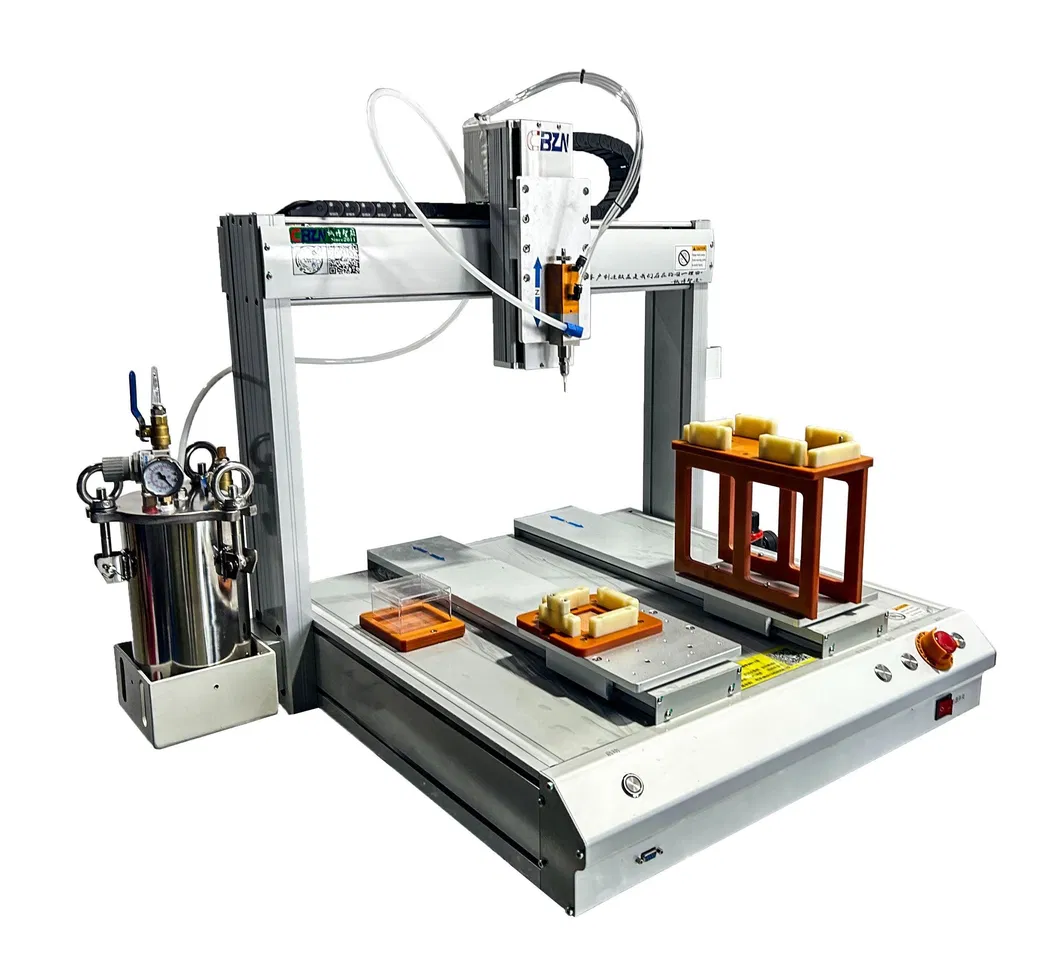

Glue Equipment
  • Adhesive epoxy dispensing system with easy programming via teaching pendant.
  • Applicable for wide application of electronic products and home appliances.
  • Optional 300CC large rubber barrel or pressure barrel for glue storage.
  • Integrated XYZ movements for precise glue dispensing.
Programmable Dispensing System

Product Details

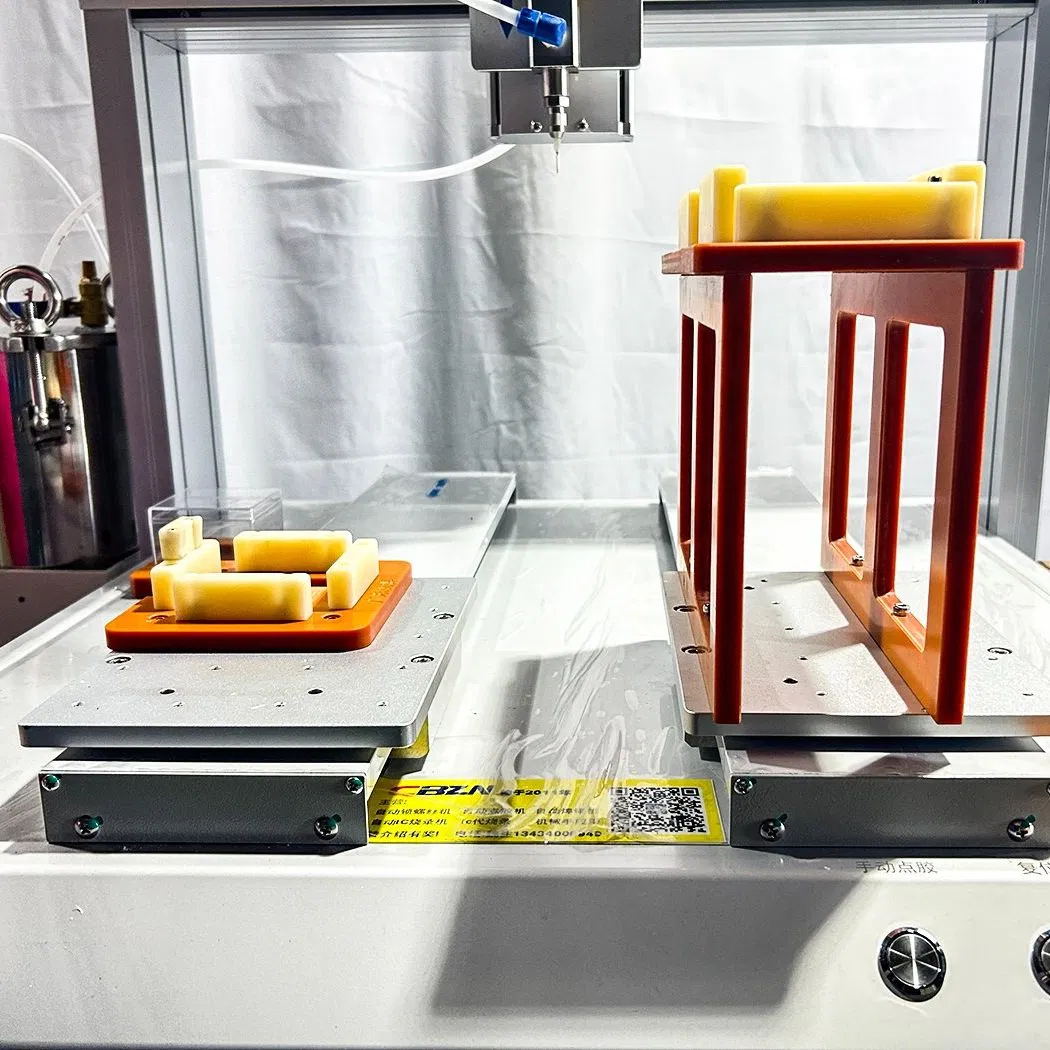

Detail 1

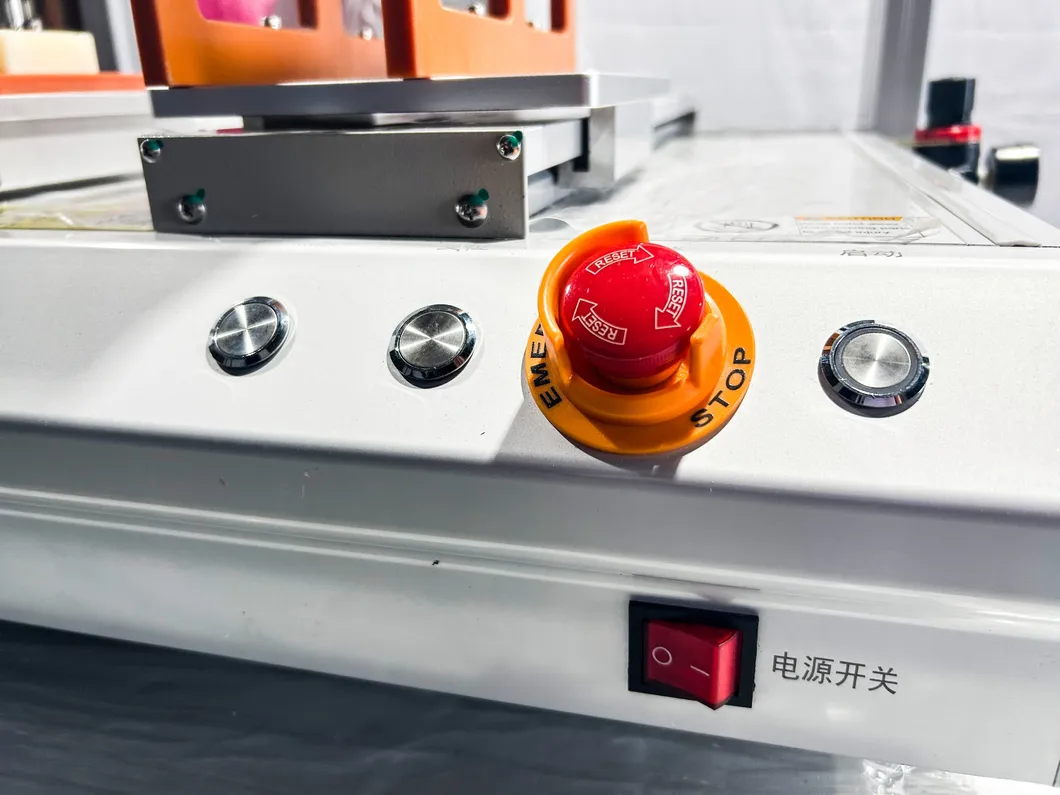

Detail 2

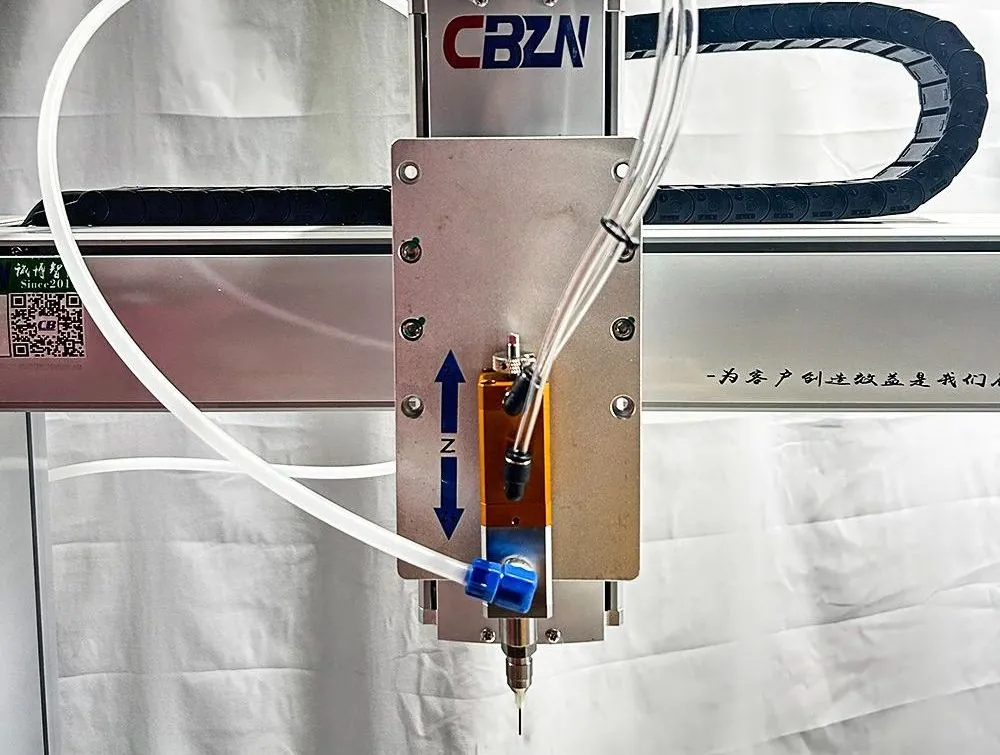

Detail 3

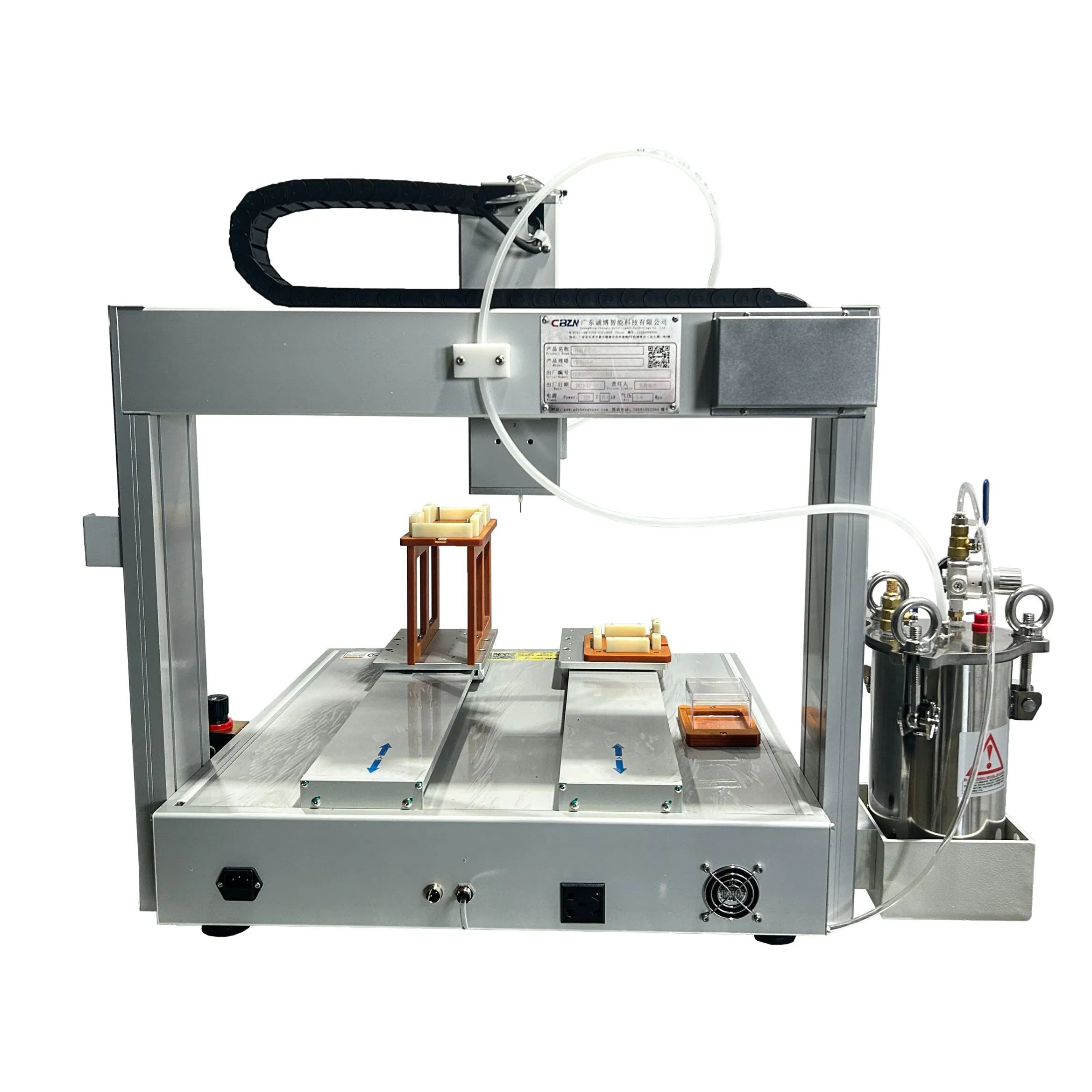

Equipment View

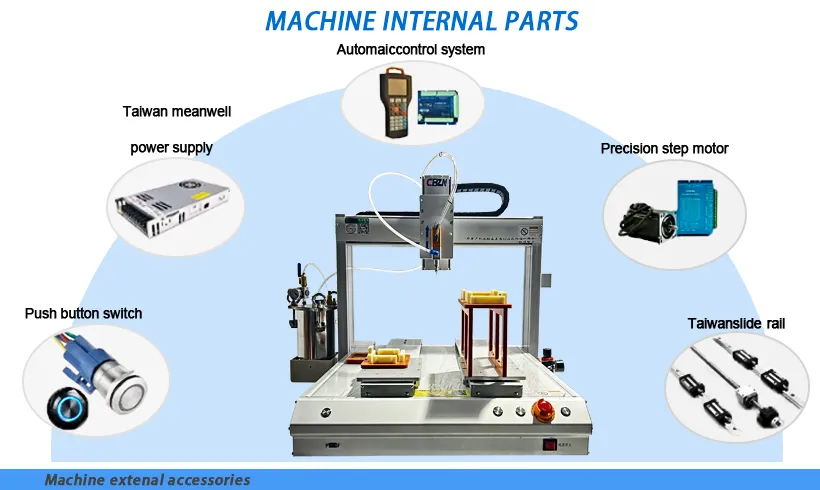

Machine Structure

Other Solutions

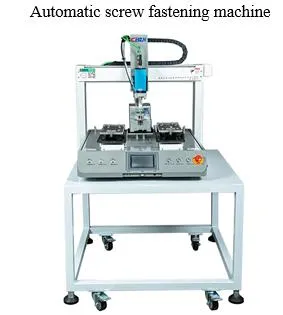

Screw Fastening

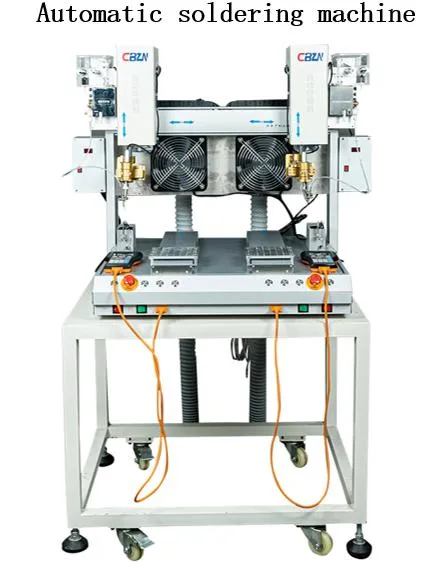

Soldering Machine

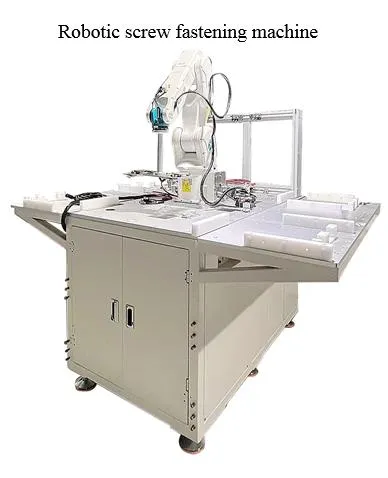

Robot Arm

Our Advantages

As a manufacturing plant and a global enterprise, we insist on quality, focus on service, and continuous core technology innovation. We are committed to providing:
  • Serialization and diversification of products to meet varied needs.
  • High-quality and durable products creating maximum value.
  • Professional and efficient problem-solving solutions.
  • Free test samples and expert technical explanations.
Quality Control
Service Support
Innovation

Company Profile

Established in 2005, we have been at the forefront of innovation in the industrialization hub. We specialize in the development, production, and sales of intelligent machines, offering advanced solutions for the electronics and glasses industries.

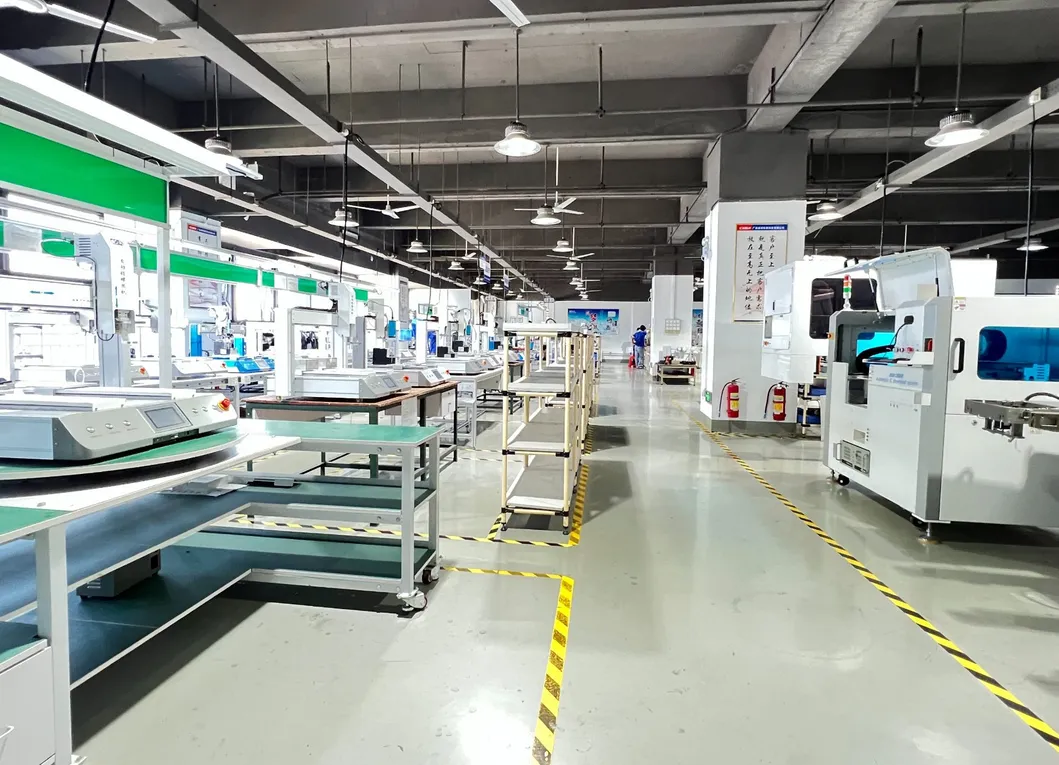

Factory Overview
Production Line

Frequently Asked Questions

Why choose us?
We are a factory providing overall solutions for processing equipment. Our standard equipment is complete and in stock for quick shipping. We can fully customize equipment size, appearance, and branding to meet customer requirements.
Is the machine easy to operate for first-time users?
Yes. We provide free installation guidance and operator training. Our engineers set up the programming based on your samples. You simply press "start." We also provide full English manuals and operating videos.
How do you guarantee quality?
We implement strict incoming materials inspection and perform 100% testing on every machine before shipment.
What is the warranty and support policy?
We provide a 2-year warranty and lifetime technical support. Technical feedback is provided within 10 hours of receiving a notice. If the machine cannot be fixed upon initial inspection, we promise a refund.
What products can I buy from you?
We offer screw fastening machines, soldering/welding machines, glue dispensing machines, IC programming machines, SMT laser marking machines, and PCB board lead pin cutting machines.
Do you support international clients?
Yes, we provide comprehensive support and durable products for global customers, helping transition from labor-intensive to automated production.
