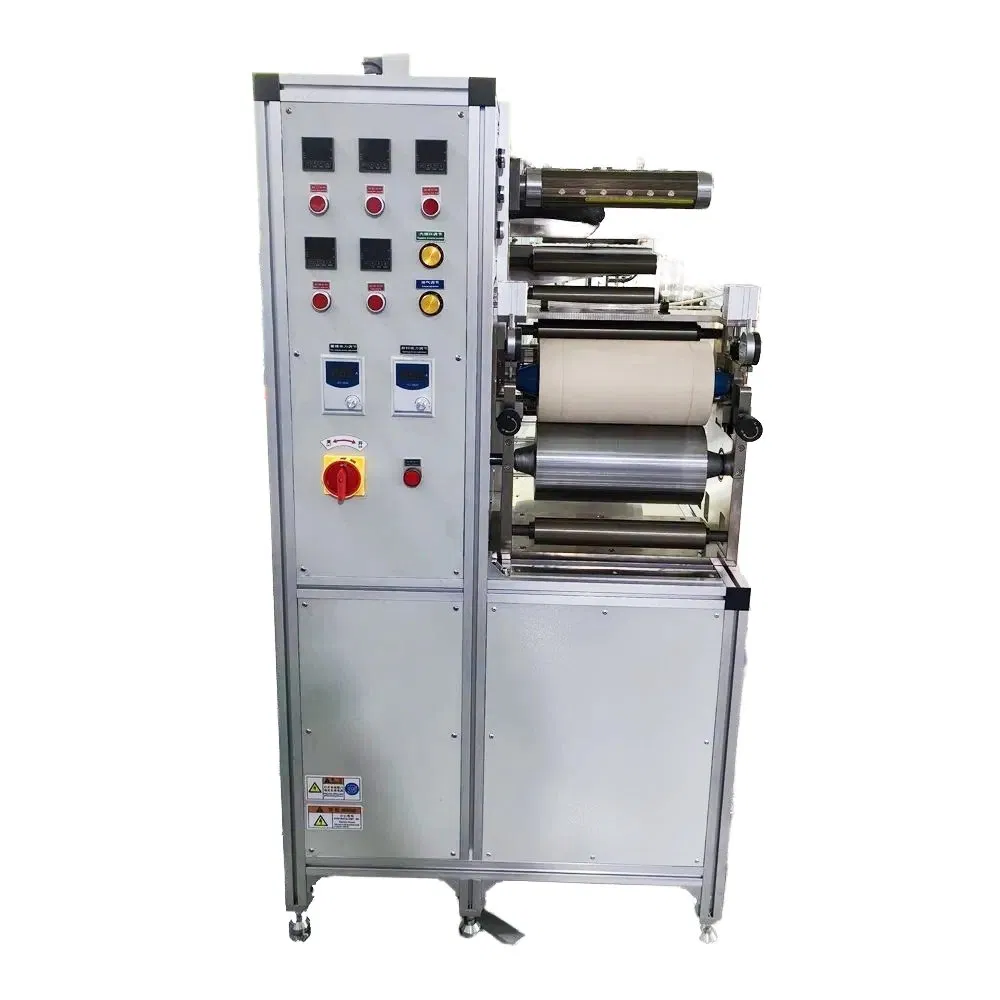

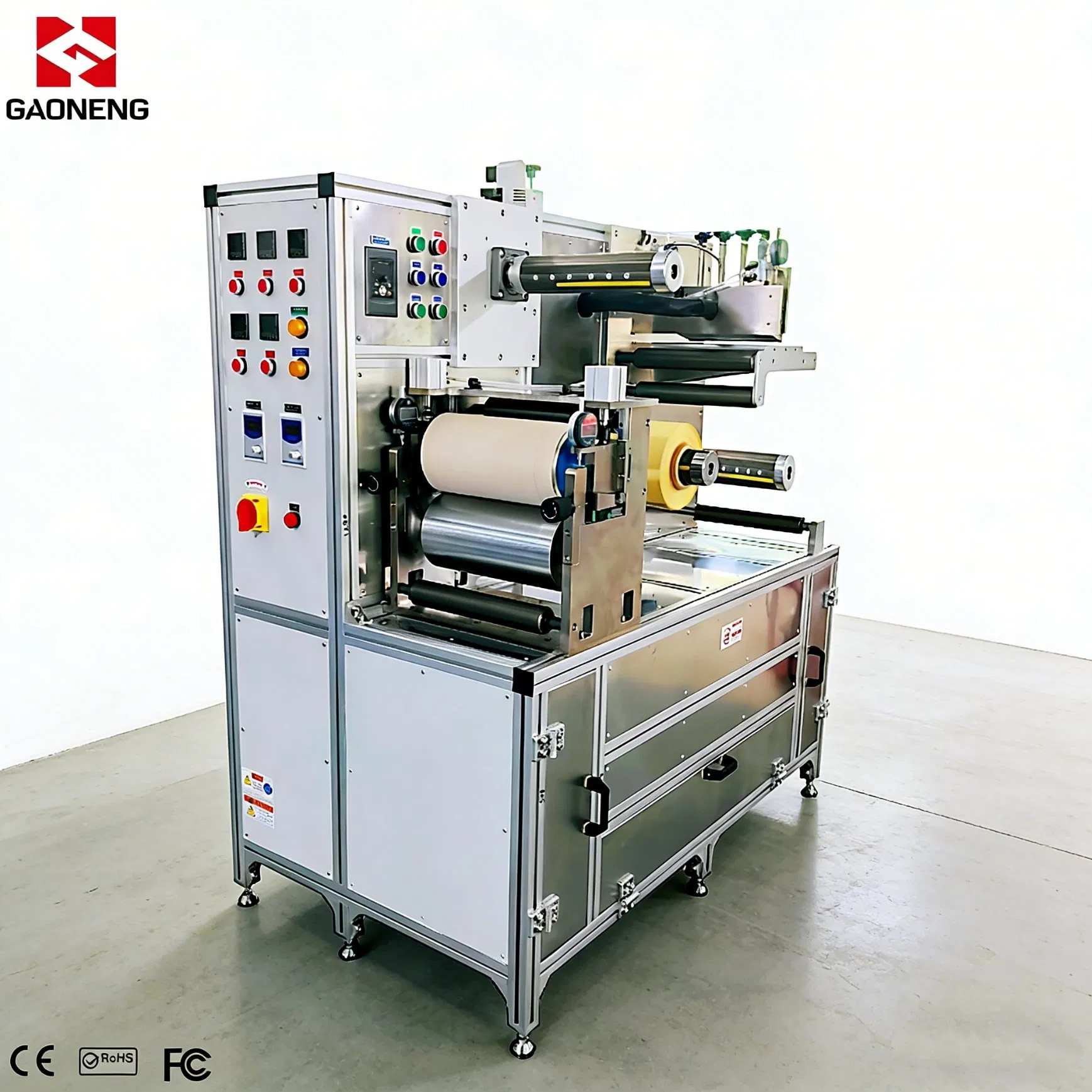

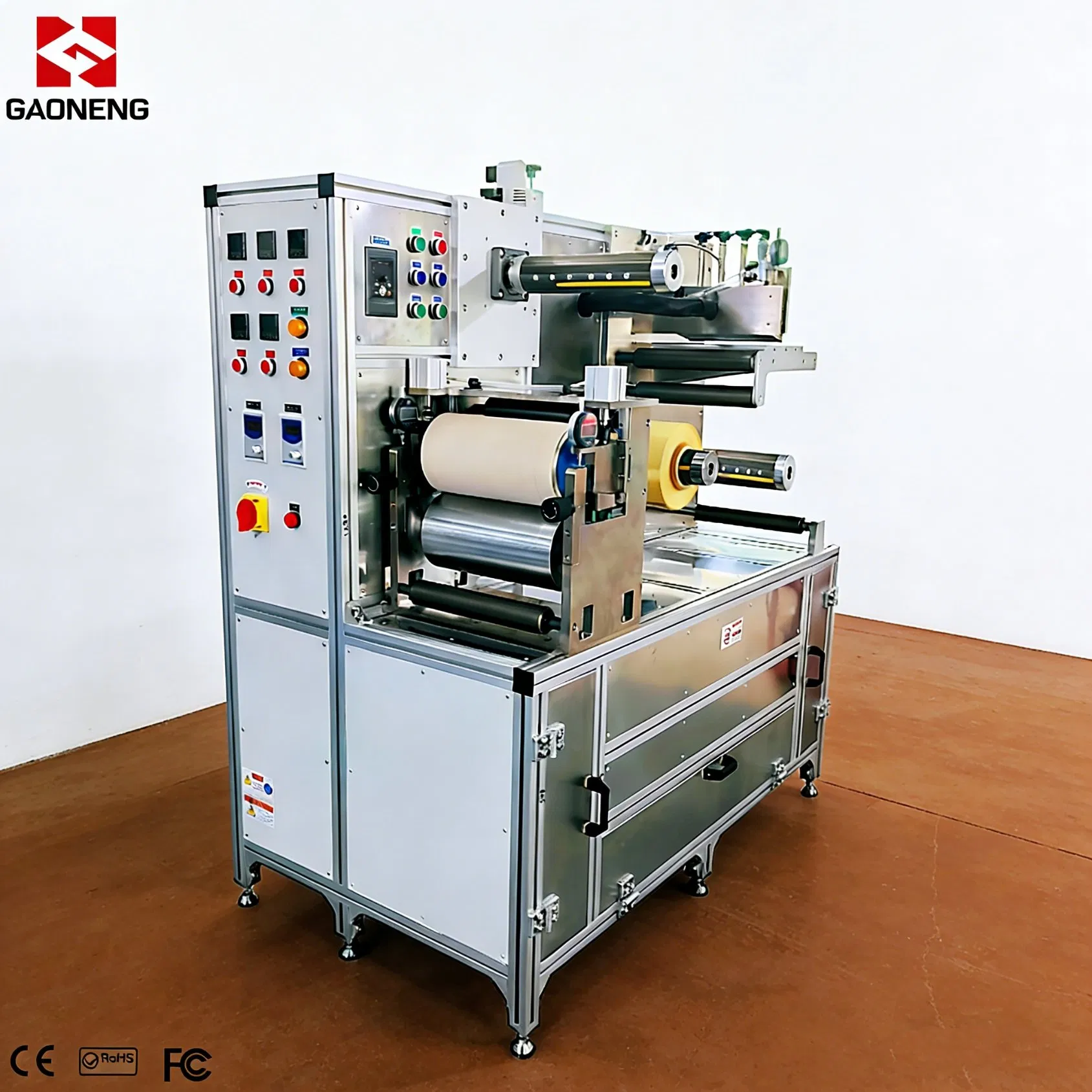

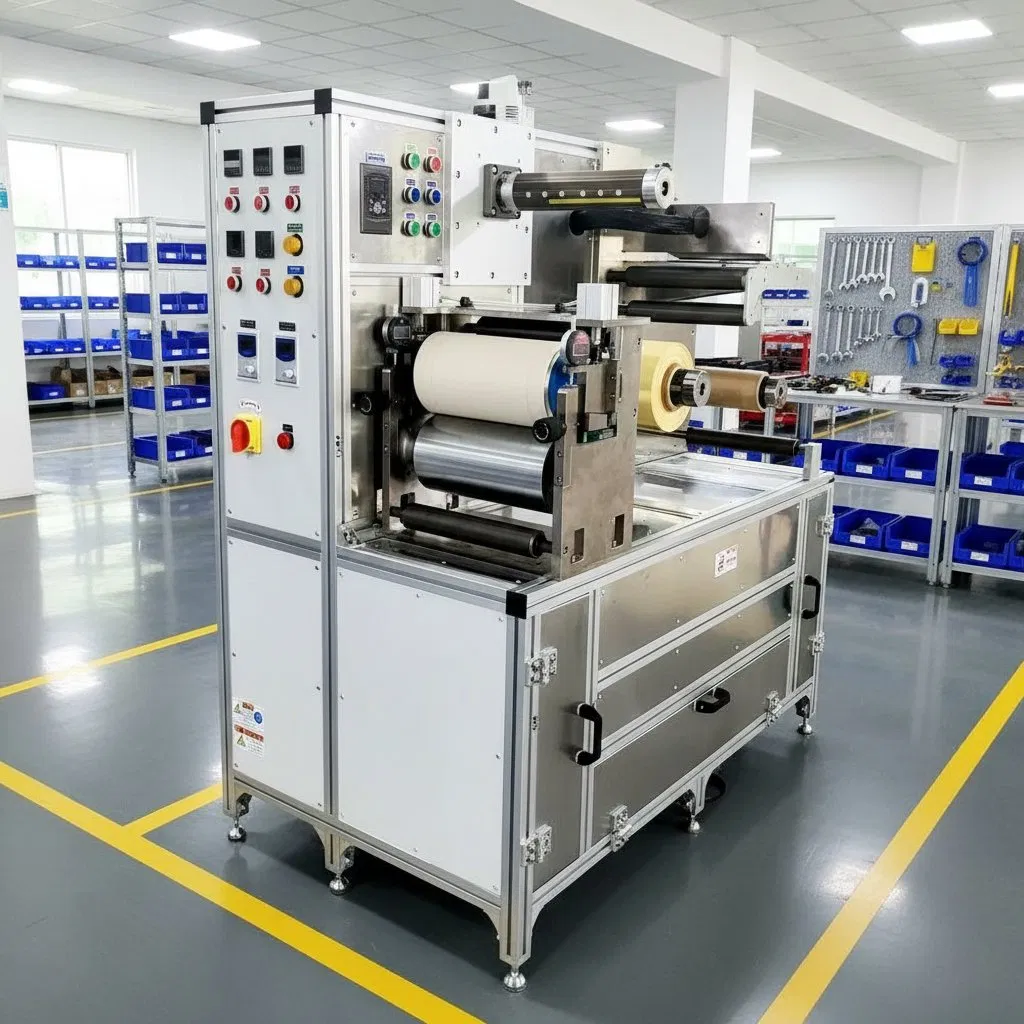

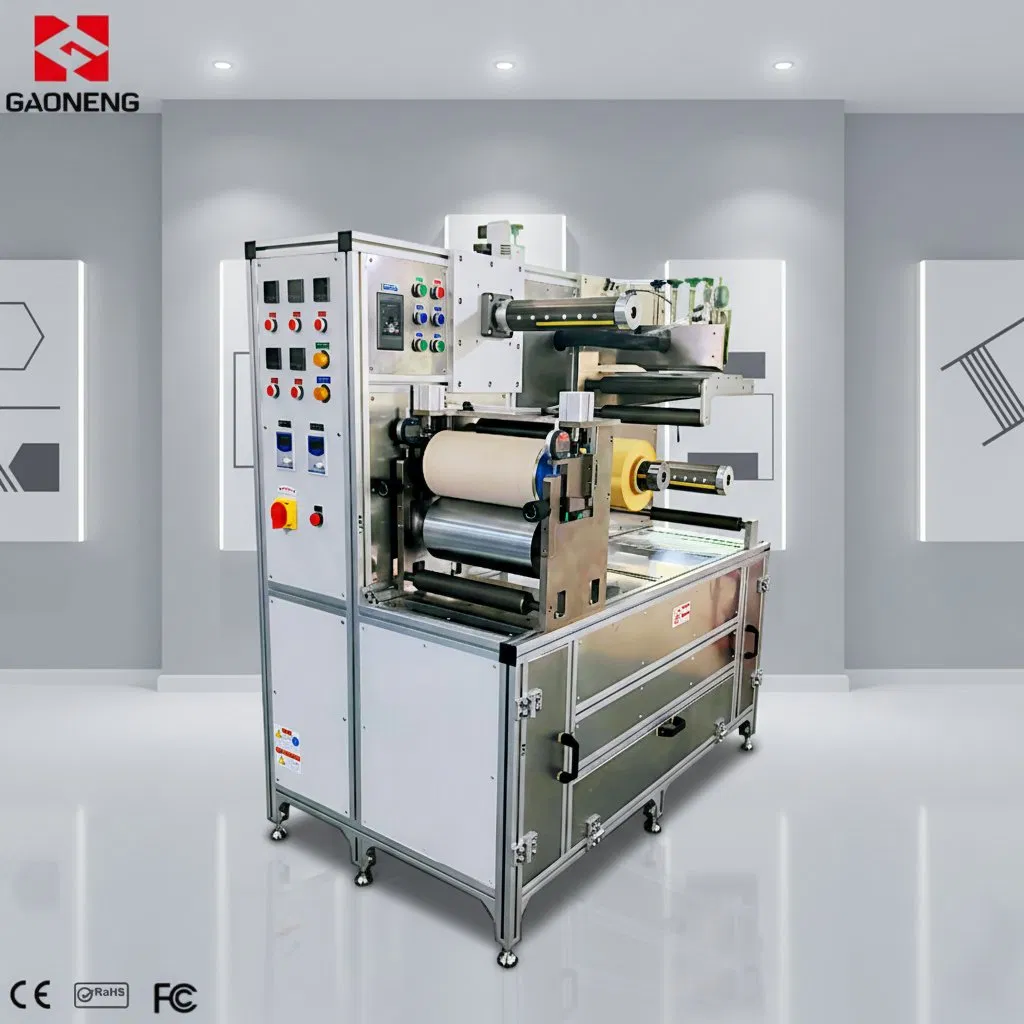

2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
1 / 5
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine
2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine

2026 Small Laboratory Hot Melt Adhesive Pressure-Sensitive Adhesive Film Coating Machine

Customization: Available
Certification: CE
Coating Application: Automotive Industry, Electronics Industry, Medical Industry
Send Inquiry

Product Description

Basic Information
Model NO.
GN-K302
Coating Color
Black, Blue, White
Warranty
1 Year
Coating Width
300mm
Coating Thickness
0.01-1mm
Glue Container
1L
Adjustment Method
Micrometer
Transport Package
Wood Package
Specification
90*120*110
Coating Machine Banner
Key Advantages
01
Versatile Coating Options Suitable for full-width and strip coating, using high-quality coating heads for accurate glue amounts. Supports double-sided coating and composite functions.
02
Smart Control Technology Utilizes microcomputer control to automatically synchronize glue spraying rates with production speeds.
03
Advanced Sol System Features an online glue-making system with high-precision double-layer gear pump synchronous control for simultaneous glue production and coating.
04
Precise Temperature Control Employs electric heating or heat transfer oil circulation. Output systems include isolation insulation or heat medium heating for accurate thermal management.
05
Stable Operation Equipped with automatic tension control and correction systems for rewinding/unwinding. Inverter stepless speed regulation and synchronous belt drive ensure stability.

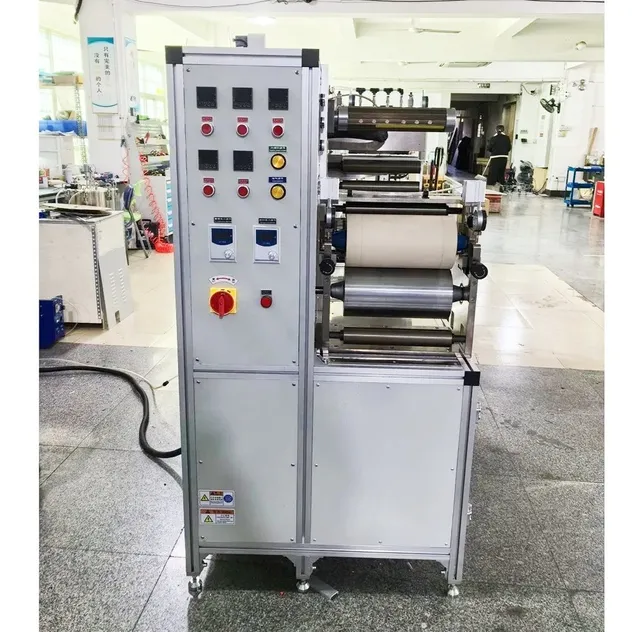

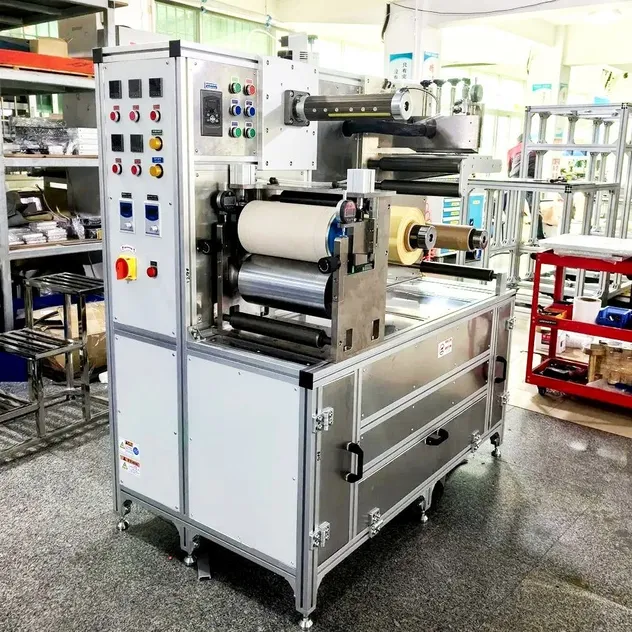

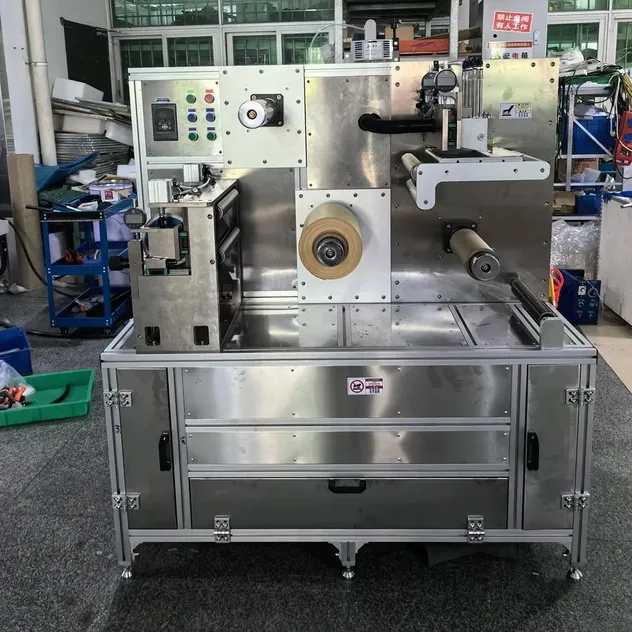

Machine Detail 1 Machine Detail 2 Machine Detail 3
Technical Specifications
Control SystemPLC with touchscreen
Coating Width300mm
Coating MethodHot Melt Adhesive Extrusion Head / Continuous Coating
Coating Thickness0.01-1mm
Adjustment MethodMicrometer
Blade Base PlateHeated (RT to 180 Degrees)
Tension ControlAdjustable Tension
Alignment DeviceManual Adjustment Rollers
Laminating DeviceAutomatic Laminating (Rubber Roller + Steel Rod)
Rewind Diameter300mm
Glue Supply SystemAutomatic Glue Supply (1L Container)
Equipment Speed1-10 Meters/Minute (Adjustable)
Power SupplyAC 220V
Peak Power8000W
Technical View 1
Technical View 2
Technical View 3
Technical View 4
Technical View 5
Technical View 6
Frequently Asked Questions
What is the maximum coating width of the GN-K302?
The machine supports a maximum coating width of 300mm, making it ideal for laboratory and small-scale production.
How precise is the coating thickness adjustment?
The coating thickness ranges from 0.01mm to 1mm and is adjusted using a high-precision micrometer system.
What type of heating system does the machine use?
It features a heated blade base plate that can maintain a constant temperature from room temperature up to 180 degrees Celsius.
Is the coating speed adjustable?
Yes, the equipment speed is adjustable between 1 and 10 meters per minute to meet specific glue coating requirements.
Does the machine support automatic laminating?
Yes, the machine is equipped with an automatic laminating device using a combination of rubber rollers and steel rods.
What are the power requirements for this equipment?
The machine operates on an AC 220V power supply with a peak power consumption of 8000W.
