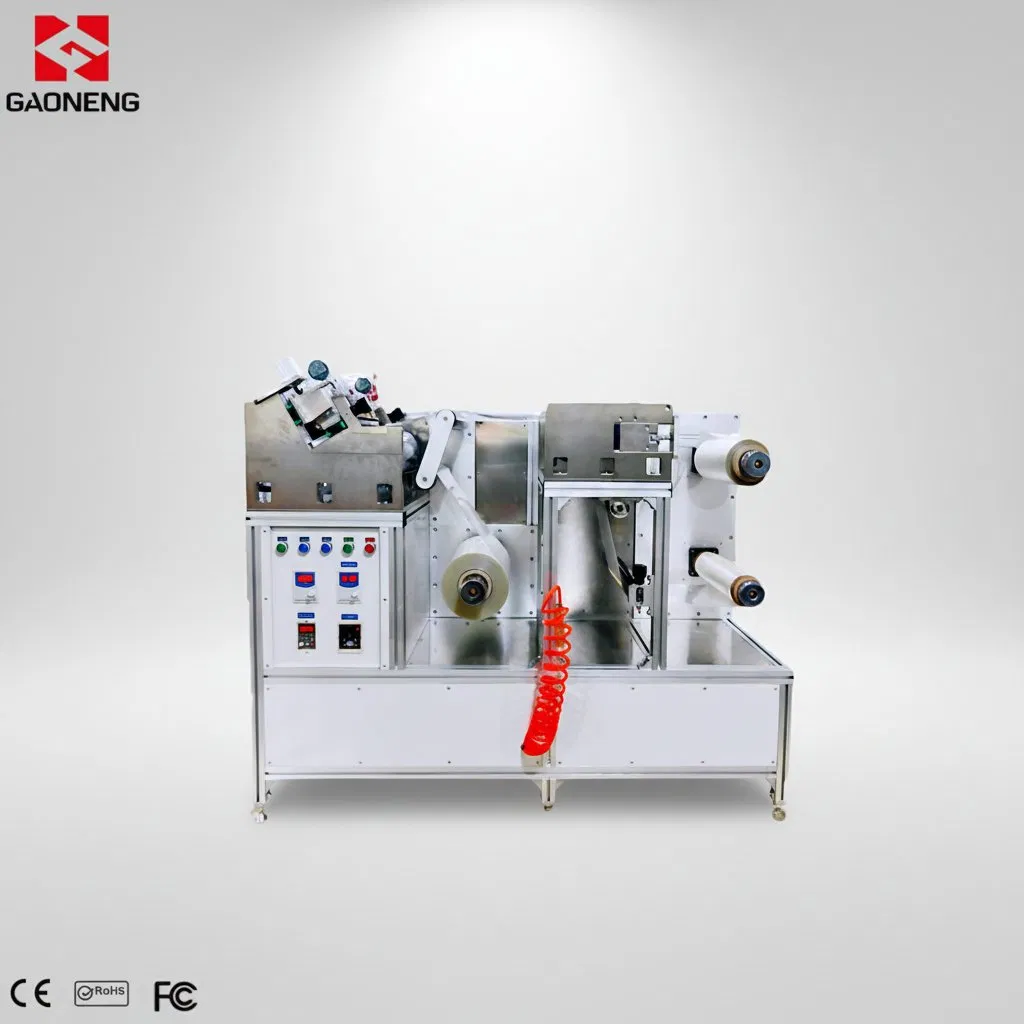

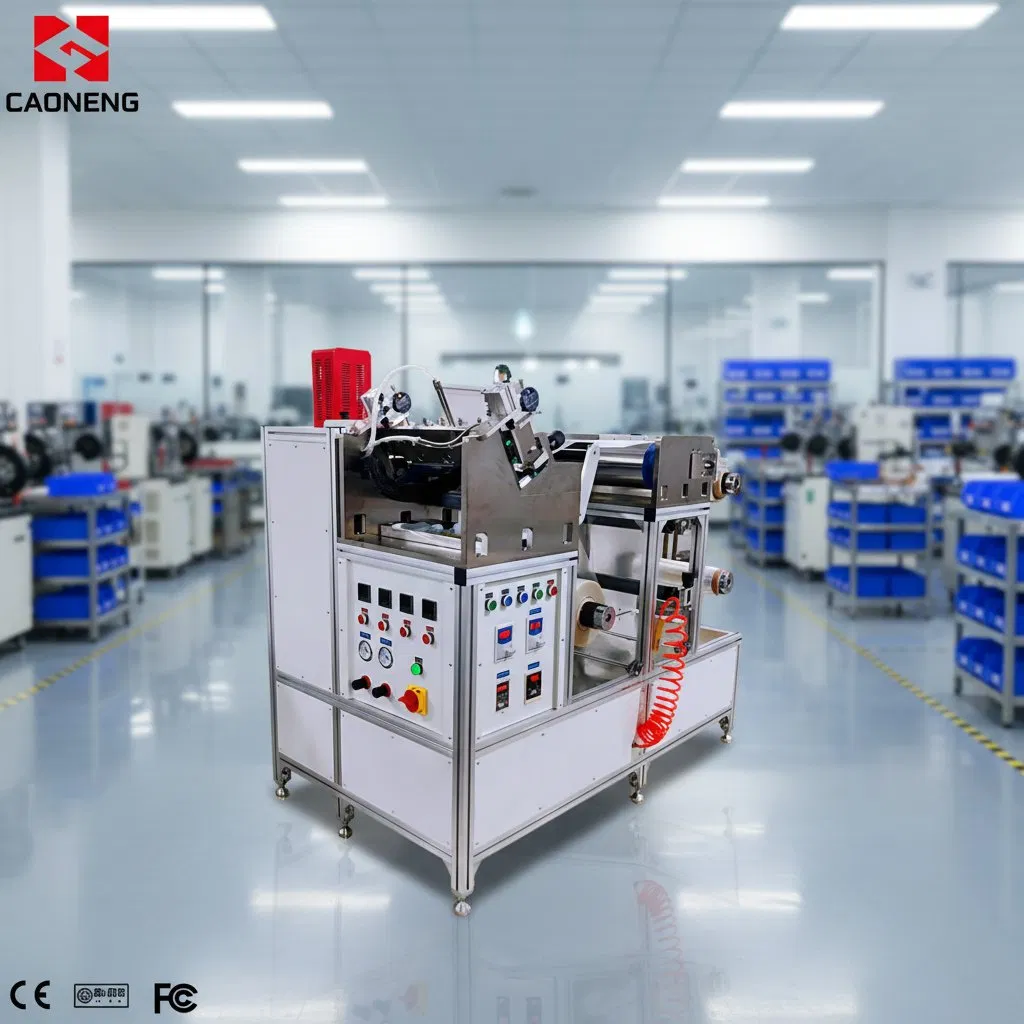

Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
1 / 5
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive
Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive

Roll-on Film Coating Machine for Small Lab Use Solid Hot Melt Adhesive

Customization: Available
Certification: CE
Coating Application: Aerospace Industry, Automotive Industry, Construction Industry, Electronics Industry
Send Inquiry

Product Description

📋 Basic Information
Model NO.
GN-K300
Coating Color
White
Warranty
1 Year
Coating Width
300mm (Effective)
Coating Method
Hot Melt Adhesive Extrusion Head
Coating Thickness
0.01-1mm
Adjustment Method
Micrometer
Transport Package
Wood Package
Specification
Custom Made
🚀 Product Description

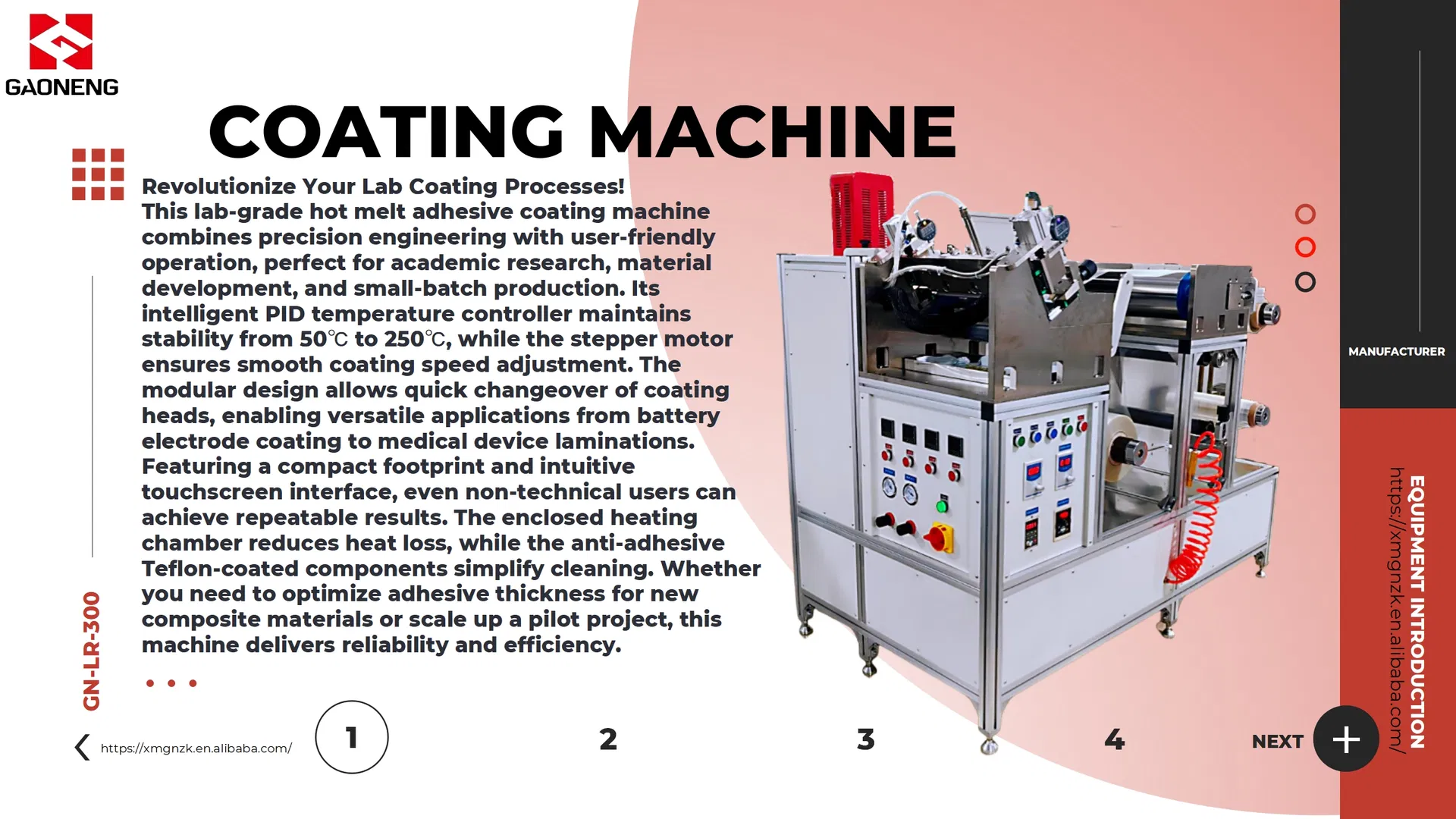

Roll-on Film Coating Machine
✔
High Precision Coating Suitable for full-width and strip coating, using domestic or imported coating heads, accurate glue coating amount; can be coated on both sides, can have composite function.
✔
Synchronized Control It can use microcomputer control technology, glue spraying rate, and production speed to keep synchronization automatically.
✔
Advanced Sol System Adopt advanced sol coating system, or online glue making system, glue making and coating at the same time, high-precision double-layer gear pump synchronous control.
✔
Temperature Management The glue-making system adopts an electric heating system or heat transfer oil circulation heating. Accurate temperature control with isolation insulation.
✔
Stable Operation Rewinding and unwinding adopt manual or automatic correction, automatic tension control system; inverter stepless speed regulation.

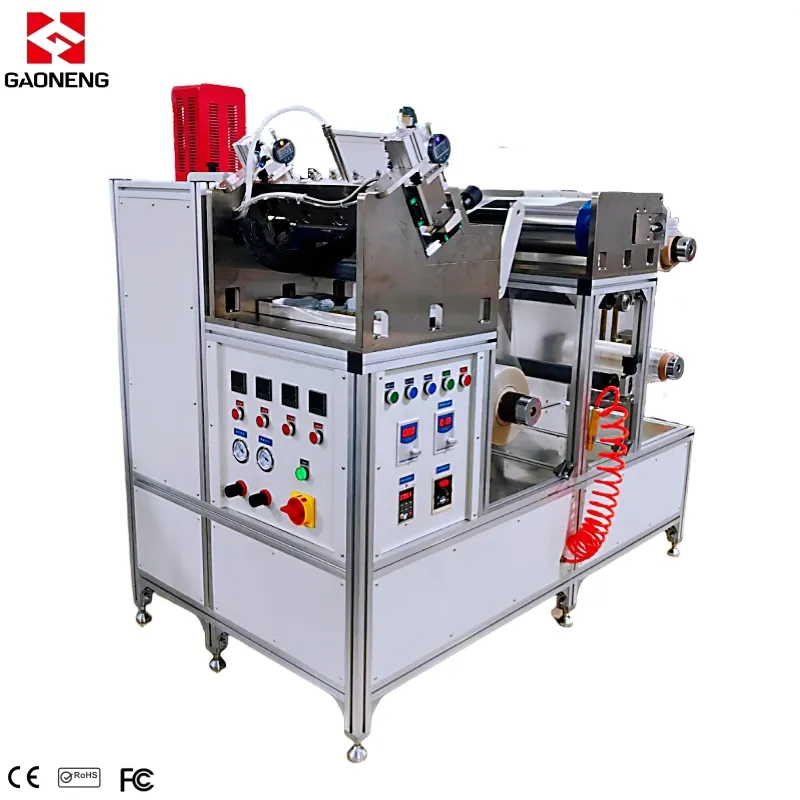

Coating Machine Detail 1

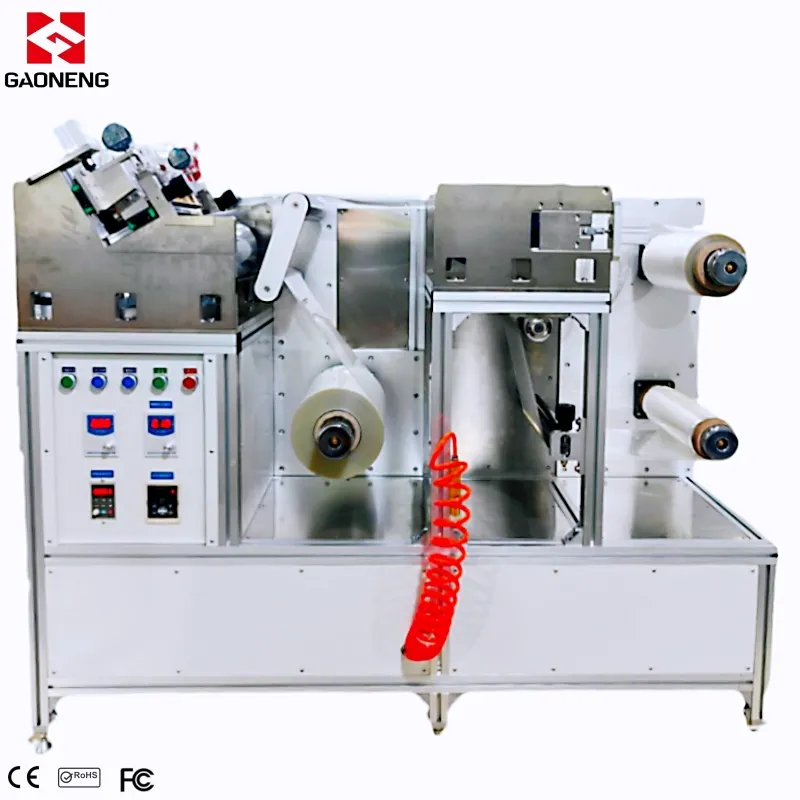

Coating Machine Detail 2
⚙️ Technical Specification
Control SystemHigh-energy autonomous R&D
Coating Width300mm
Coating MethodHot melt adhesive extrusion head
Coating Thickness0.01-1mm
Adjustment MethodMicrometer
Blade Base PlateHeated (room temp to 180 degrees)
Tension ControlAdjustable tension
Alignment DeviceManual adjustment of alignment rollers
Laminating DeviceAutomatic laminating
Laminating RollersRubber roller + steel rod
Rewind Diameter300mm
Glue Supply SystemAutomatic glue supply
Glue Container1L
Equipment Speed1-10 meters/minute (adjustable)
Power SupplyAC 220V
Peak Power8000W
🖼️ Product Showcase
Machine View 1
Machine View 2
Machine View 3
Machine View 4
Machine View 5
Machine View 6
Machine View 7
Machine View 8
❓ Frequently Asked Questions
What is the maximum coating width for this machine?
The effective coating width for the GN-K300 model is 300mm.
What range of coating thickness can be achieved?
The machine supports a high-precision coating thickness range from 0.01mm to 1mm, adjustable via a micrometer.
What type of heating system does the blade base plate use?
The blade base plate features a constant temperature heating system that can be adjusted from room temperature up to 180 degrees Celsius.
Can the machine handle different production speeds?
Yes, the equipment speed is adjustable between 1 to 10 meters per minute based on your specific glue coating requirements.
What are the power requirements for installation?
The machine operates on a standard AC 220V power supply with a peak power consumption of 8000W.
Does the machine support automatic laminating?
Yes, it is equipped with an automatic laminating device using rubber rollers and steel rods for consistent results.
