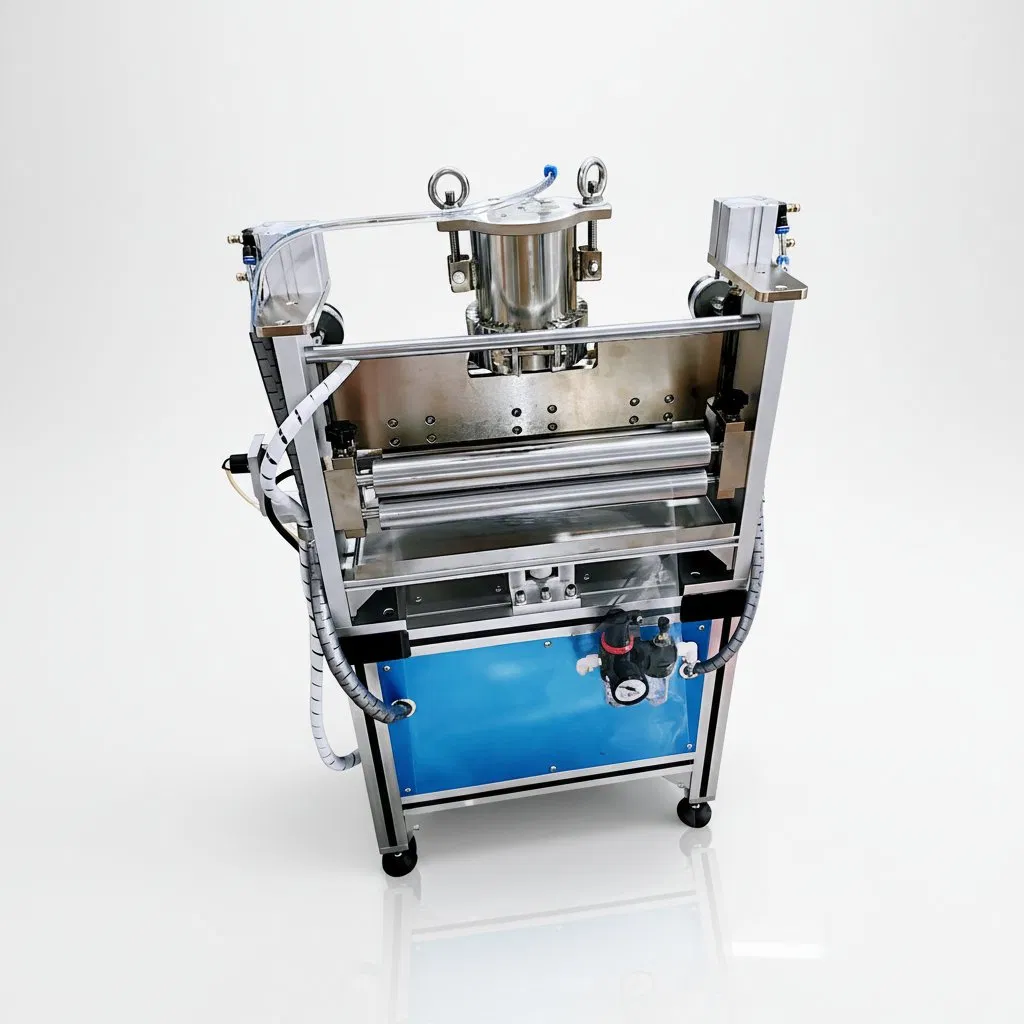

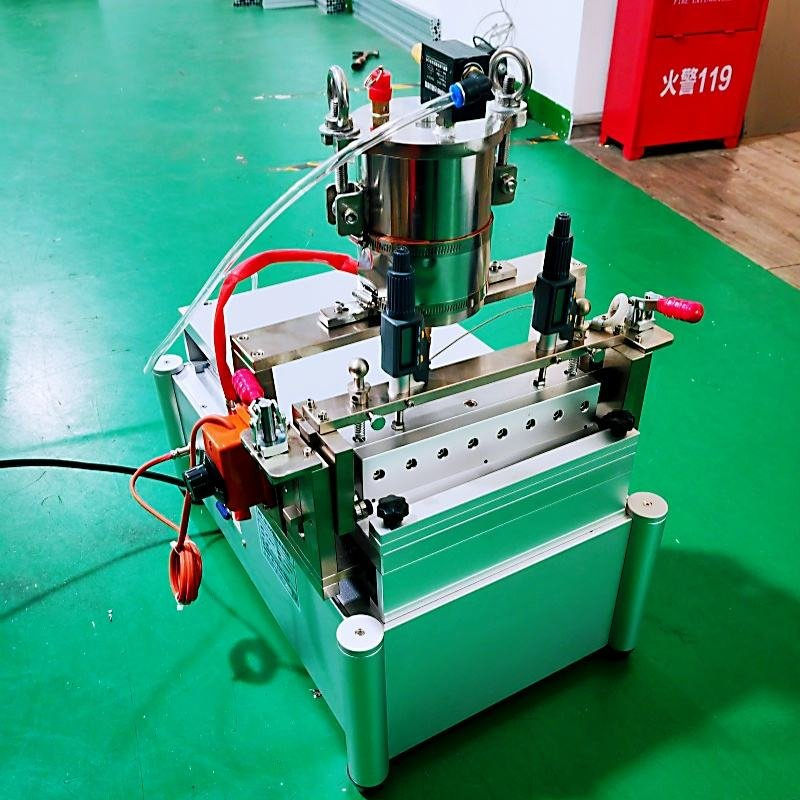

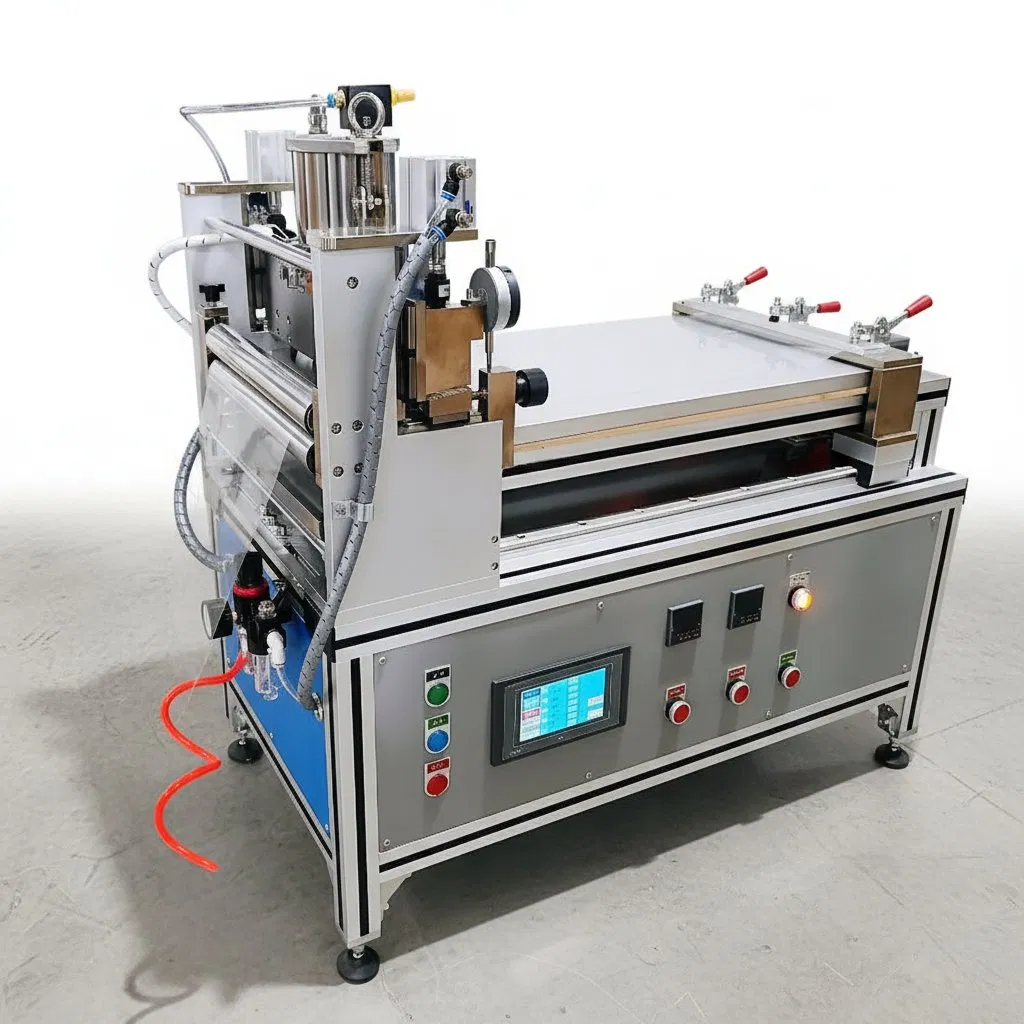

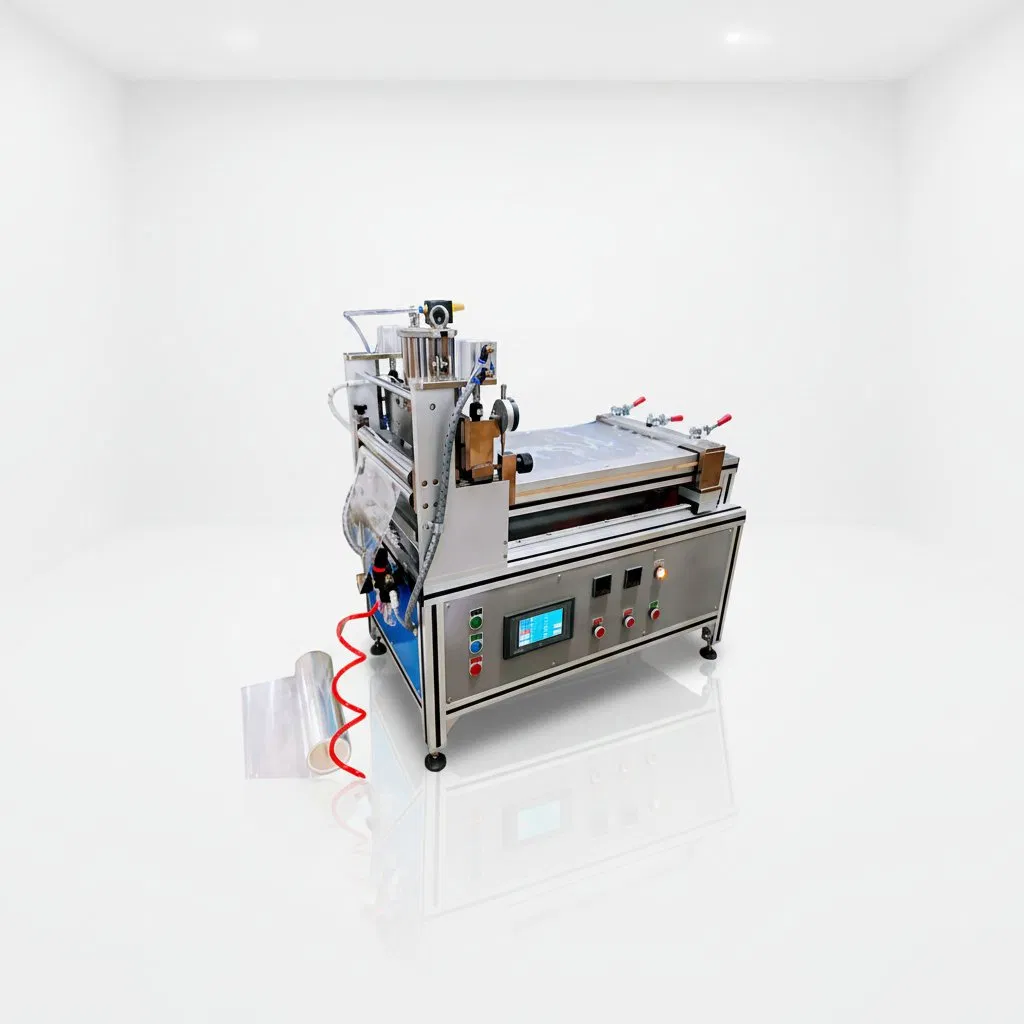

Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
1 / 5
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine
Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine

Small High-Precision Laboratory Sheet Hot Melt Adhesive Coating Machine

Customization: Available
Certification: CE
Coating Application: Aerospace Industry, Automotive Industry, Construction Industry, Electronics Industry
Send Inquiry

Product Description

i
Basic Information
Model NO.
GN-K251
Coating Color
White
Warranty
1 Year
Coating Thickness
0.005-3 mm Wet Film
Coating Uniformity
±6μm
Coating Width
200X250mm
Heating Temperature
Ambient to 100℃
Transport Package
Wood Package
Origin
China, Fujian
Laboratory Sheet Hot Melt Adhesive Coating Machine
★
Key Advantages
✔
FEATURES-1 Suitable for full-width and strip coating, using domestic or imported coating heads, accurate glue coating amount; can be coated on both sides, can have composite function.
✔
FEATURES-2 It can use microcomputer control technology, glue spraying rate, and production speed to keep synchronization automatically.
✔
FEATURES-3 Adopt advanced sol coating system, or online glue making system, glue making and coating at the same time, high-precision double-layer gear pump synchronous control, high-precision coating.
✔
FEATURES-4 The glue-making system adopts an electric heating system or heat transfer oil circulation heating. The output system has isolation insulation type or heat medium heating insulation type, accurate temperature control.
✔
FEATURES-5 Rewinding and unwinding adopt manual or automatic correction, automatic tension control system; inverter stepless speed regulation, synchronous gear belt drive, stable operation.

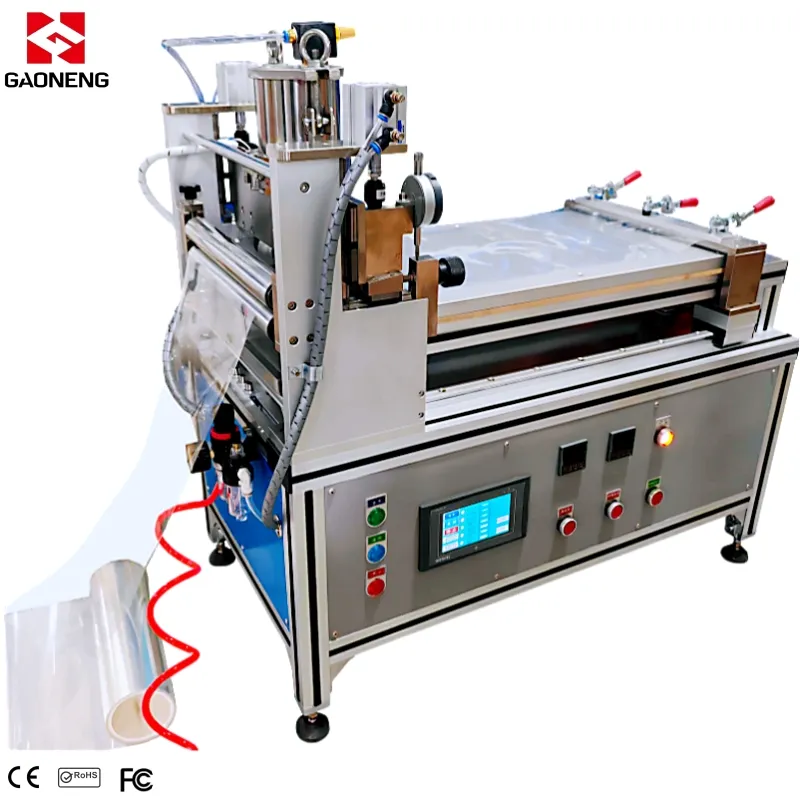

Product Detail View
⚙
Technical Specifications
Control System5-inch PLC touch screen
Coating Thickness0.005-3 mm wet film
Coating Uniformity±6
Power Supply220V, 50Hz
Power Consumption2000W
Equipment Speed0.5-3 m/min (digitally preset)
LengthDigitally preset
Coating Width200x250mm
Heating TemperatureAmbient to 100℃ (constant temperature setting)
Coating MethodExtrusion scraper (metal plating + heating pipe)
Scraper ShieldIncludes side shields
Heating and Melting Tank1L with heating (air pressure glue supply)
Packaging WeightApproximately 70 kg
📷
Product Gallery
Coating Machine View 1 Coating Machine View 2 Coating Machine View 3
Component Detail 1 Component Detail 2
Operation View 1 Operation View 2 Operation View 3
?
Frequently Asked Questions
What is the range of coating thickness for this machine?
The machine supports a wet film coating thickness ranging from 0.005 mm to 3 mm.
What is the maximum heating temperature?
The heating temperature can be set from ambient temperature up to 100℃ with constant temperature control.
Does the machine support automatic speed control?
Yes, the equipment speed can be digitally preset between 0.5 and 3 m/min and uses microcomputer control for synchronization.
What type of control system is used?
The machine is equipped with a 5-inch PLC touch screen for intuitive and precise control of all operations.
What are the power requirements for installation?
The machine requires a 220V, 50Hz power supply and has a power consumption of 2000W.
Is it suitable for double-sided coating?
Yes, the machine is designed to handle both full-width and strip coating and can be configured for double-sided coating functions.
