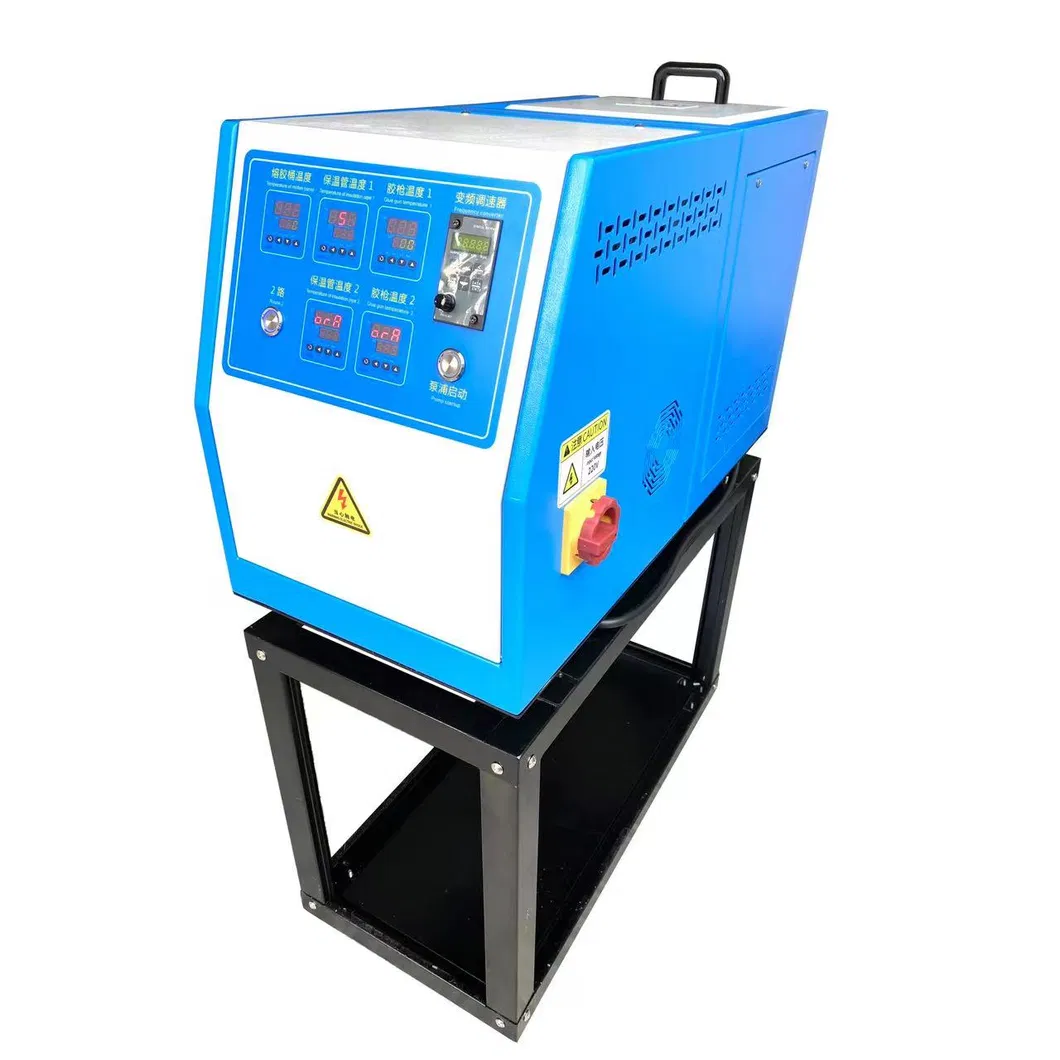

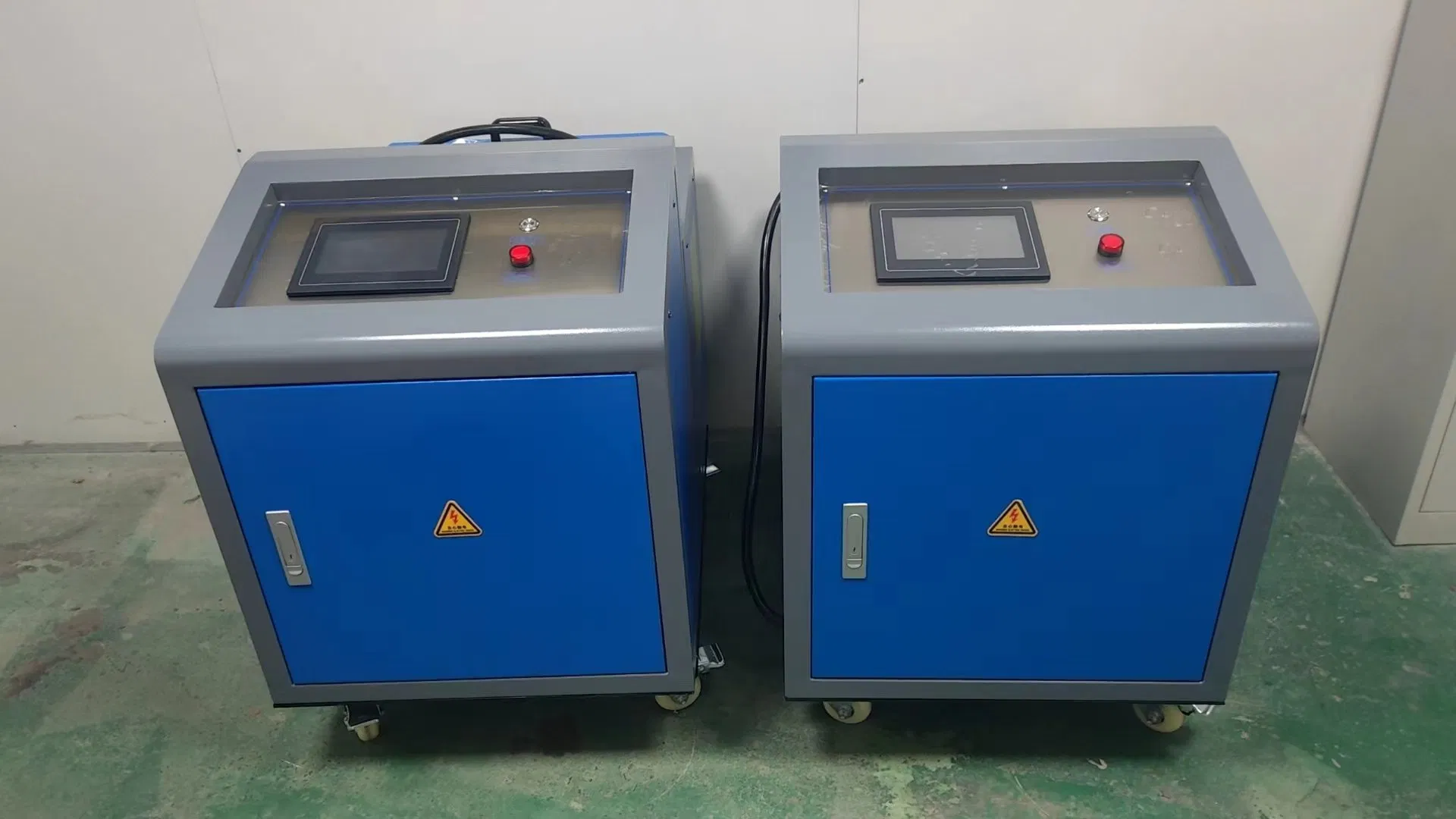

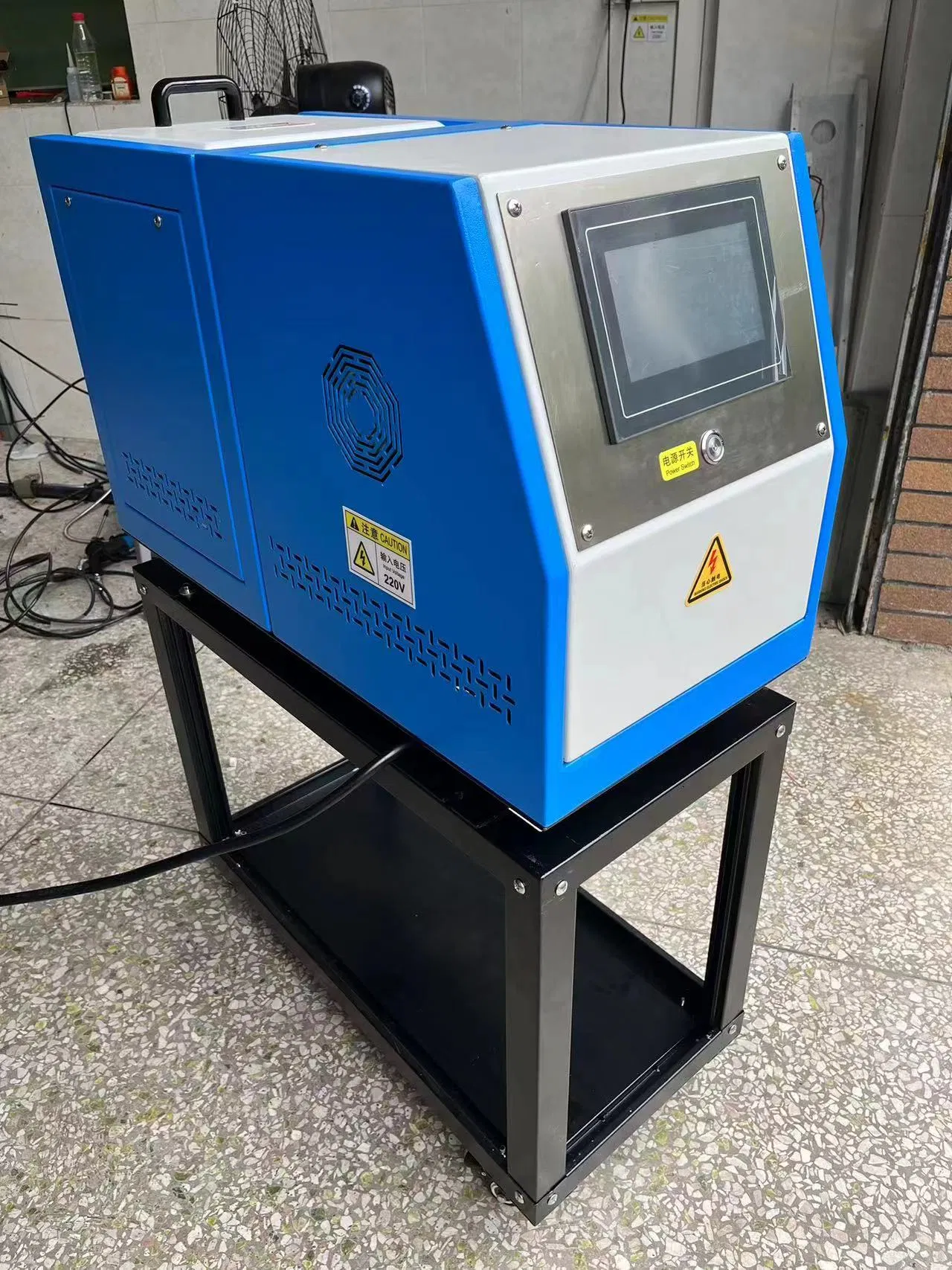

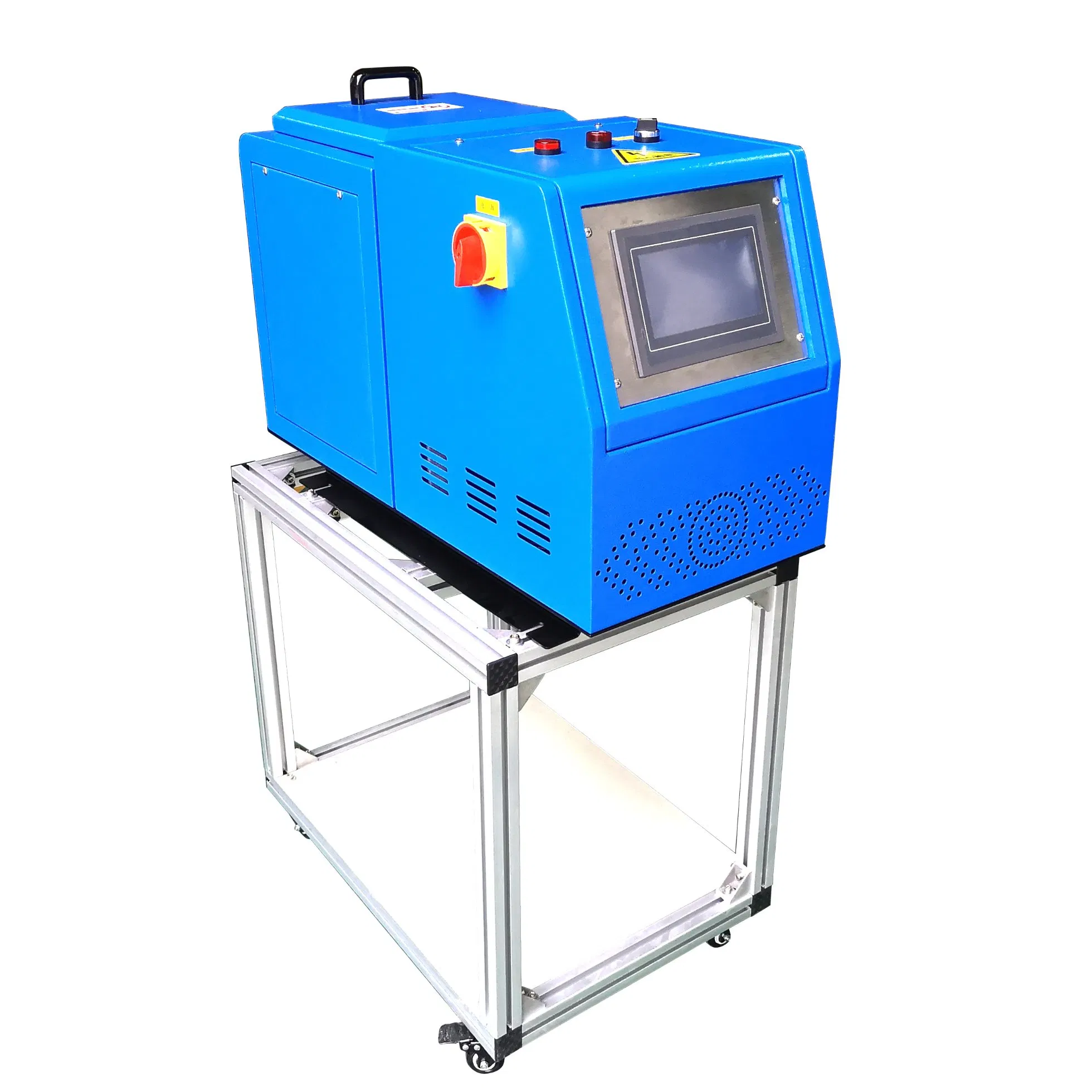

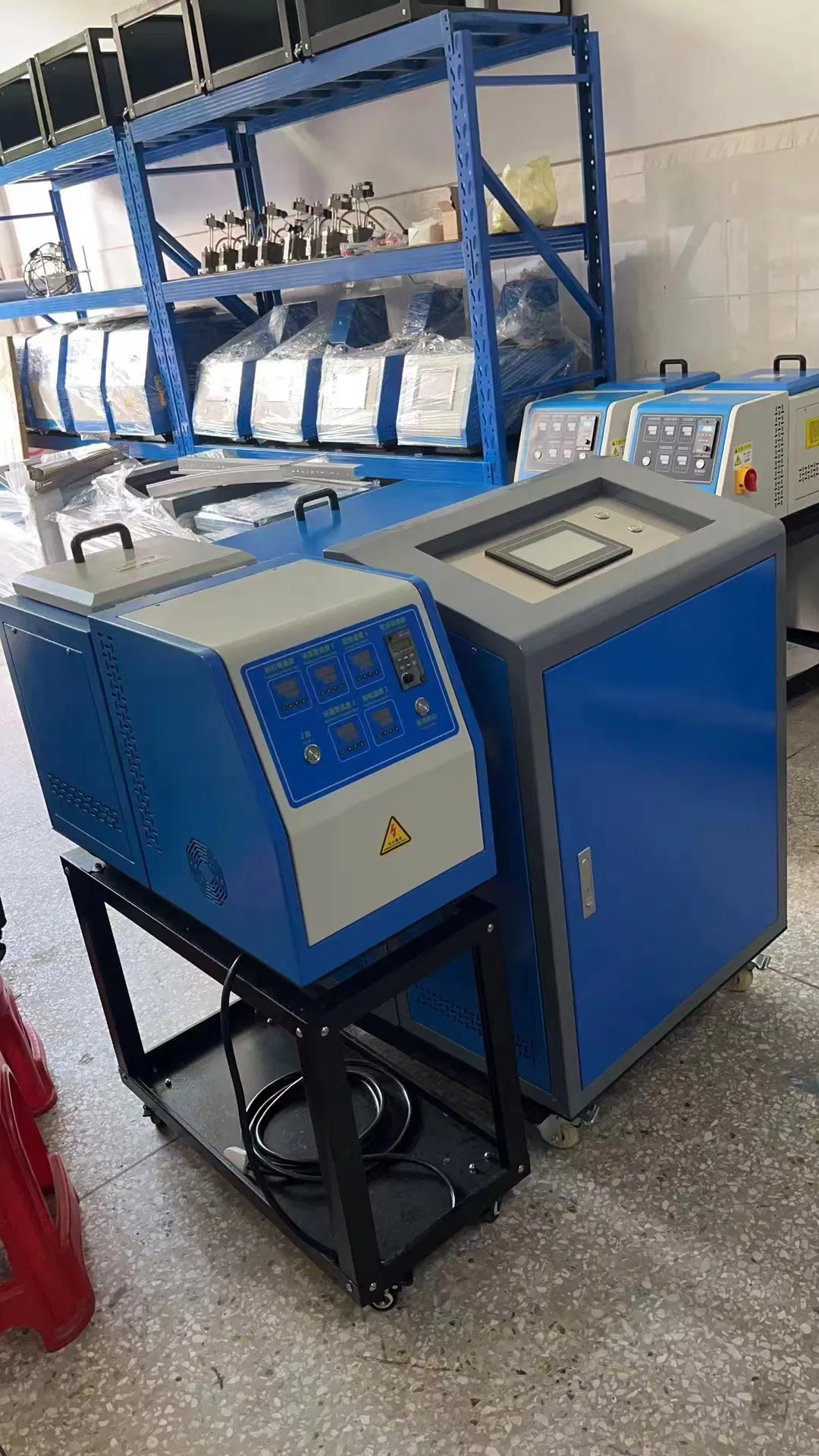

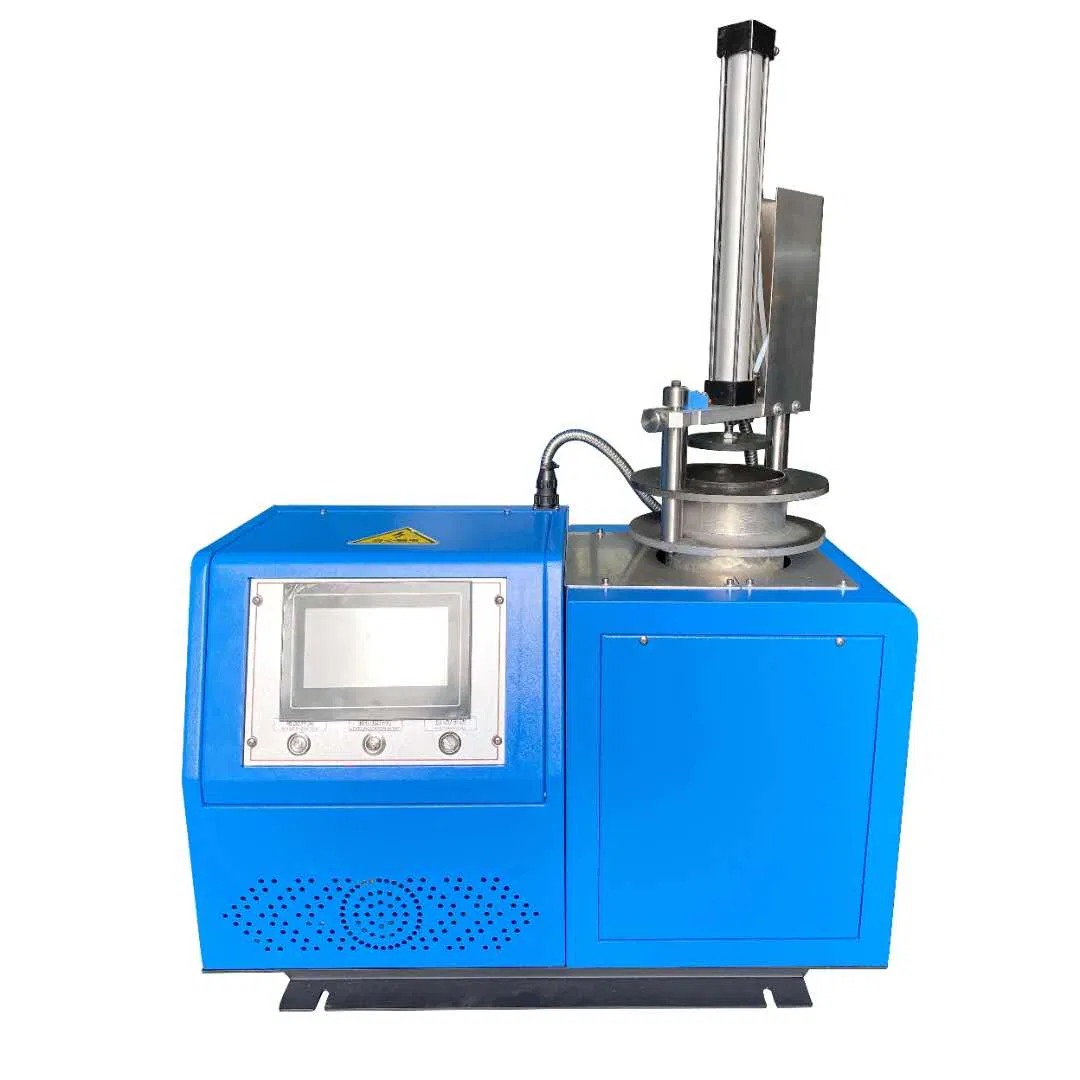

5L Small Hot Melt Coating Machine Gear Pump Hot Melt Adhesive Machine

1 / 5

5L Small Hot Melt Coating Machine Gear Pump Hot Melt Adhesive Machine

Customization:	Available
After-sales Service:	Video Call Assisting
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Automatic Grade

Semi-Automatic

Gluing Mode

Spraying

Packaging Material

Paper

Glue Type

Hot Melt Adhesive

Driven Type

Mechanical

Tank Size

10L

Glue Melting Speed

10kg/H

Motor Power

200W

Weight

65kg

Specification

944*690*1078

HS Code

8419899090

Production Capacity

30 Sets Per Month

Product Description

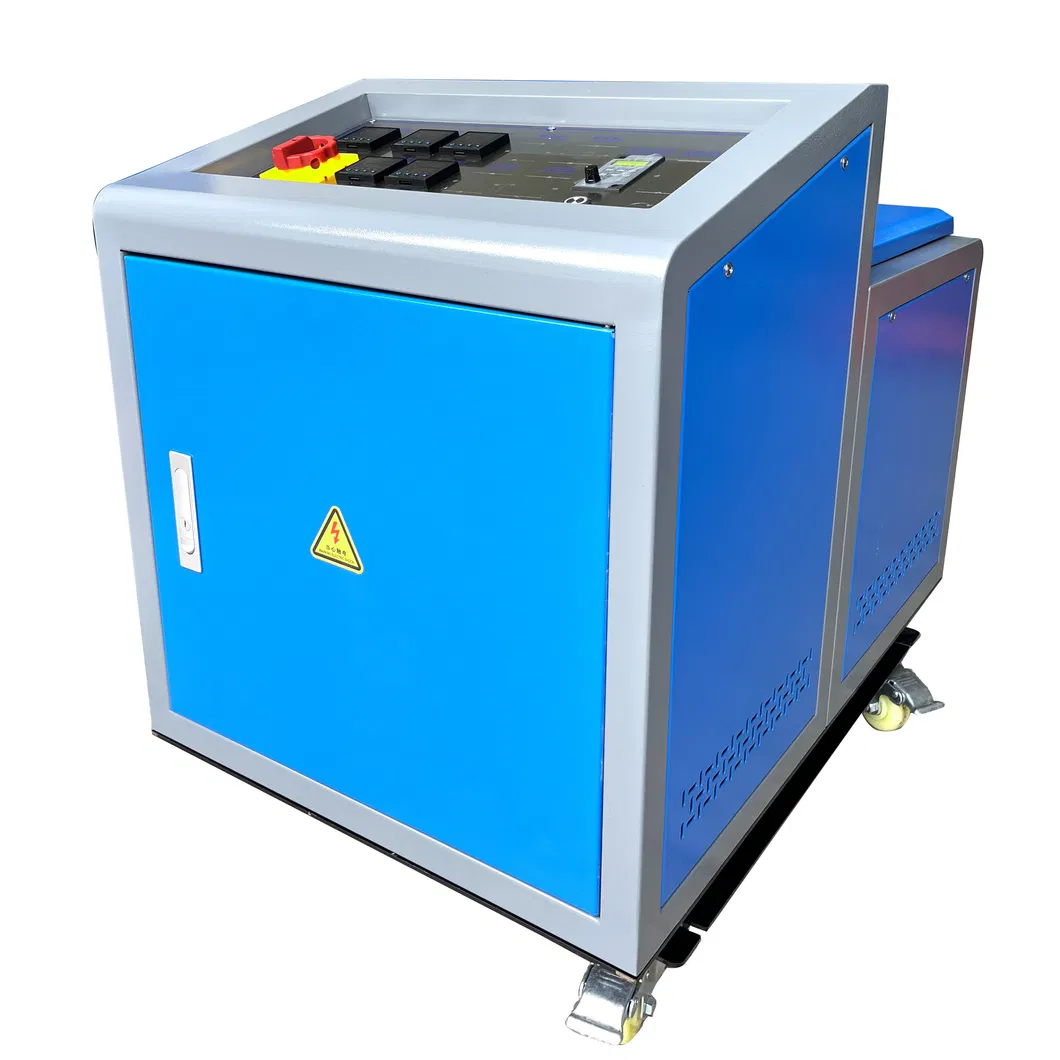

5L/10L Hot Melt Coating Machine with High Precision Gear Pump

A hot melt glue machine is essential equipment designed to heat hot melt adhesive and apply it precisely to various bonding materials. Composed of a rubber drum, heating elements, an intelligent control system, and specialized glue guns, it operates by melting the adhesive in a cylinder and delivering it through a pressure device to the coating head.

✓
Teflon Coated Layer: The surface of the rubber box is coated with Teflon to prevent carbonization, ensuring optimal glue quality and reducing nozzle blockage.
✓
Frequency Conversion Speed Regulation: The gear pump utilizes frequency control for precise output, meeting diverse process requirements.
✓
Precision Filtration: Built-in precision filtering devices remove impurities, effectively preventing downtime caused by nozzle clogs.
✓
PID Intelligent Control: Advanced PID temperature management ensures heat stability, significantly improving bonding performance.

Technical Parameters

System Specifications		Operating Limits
Model No.	Intelligent Type S10	Max Temperature	250 ºC
Machine Size	8204201130mm	Max Viscosity	500-20000 CPS
Motor Power	200W	Total Power	4KW
Tank Volume	10L	Melting Speed	10kg/h

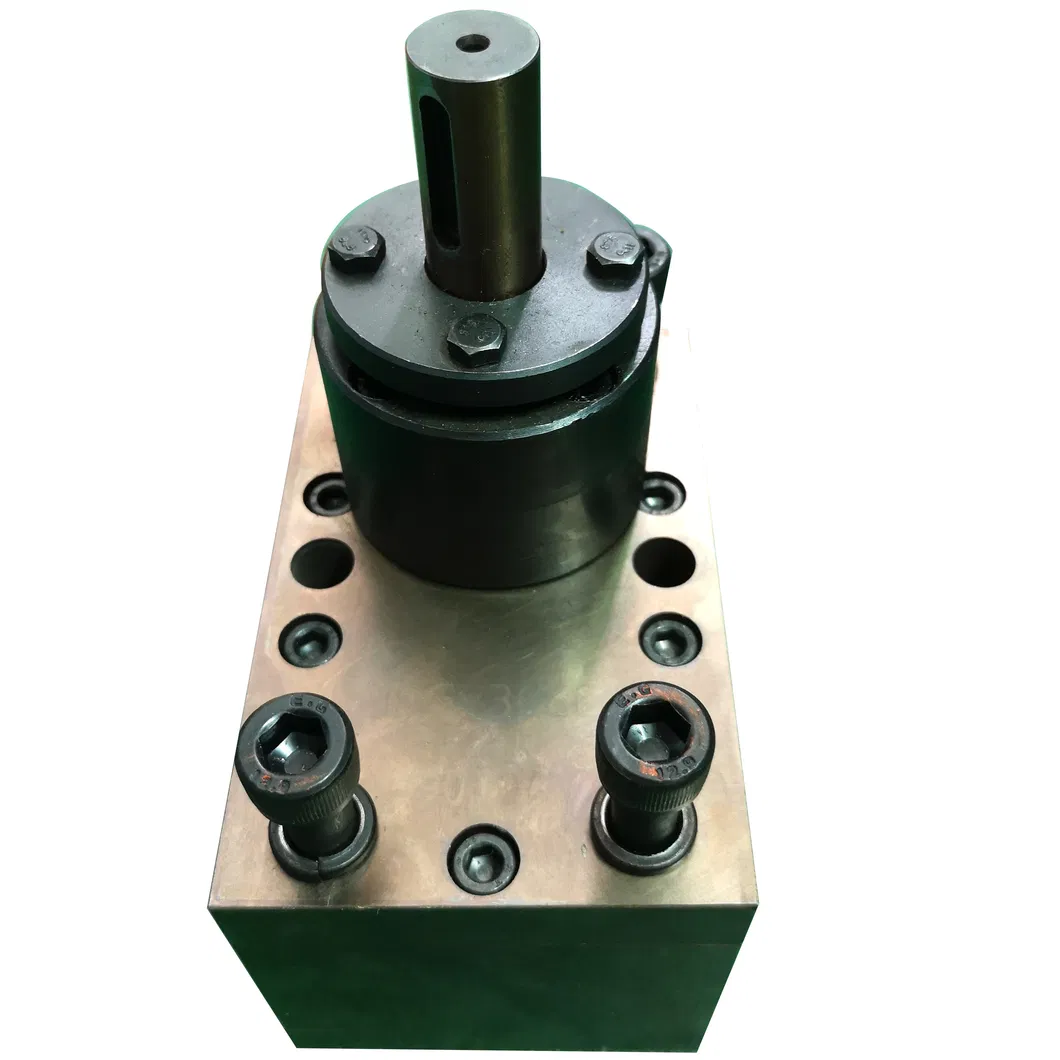

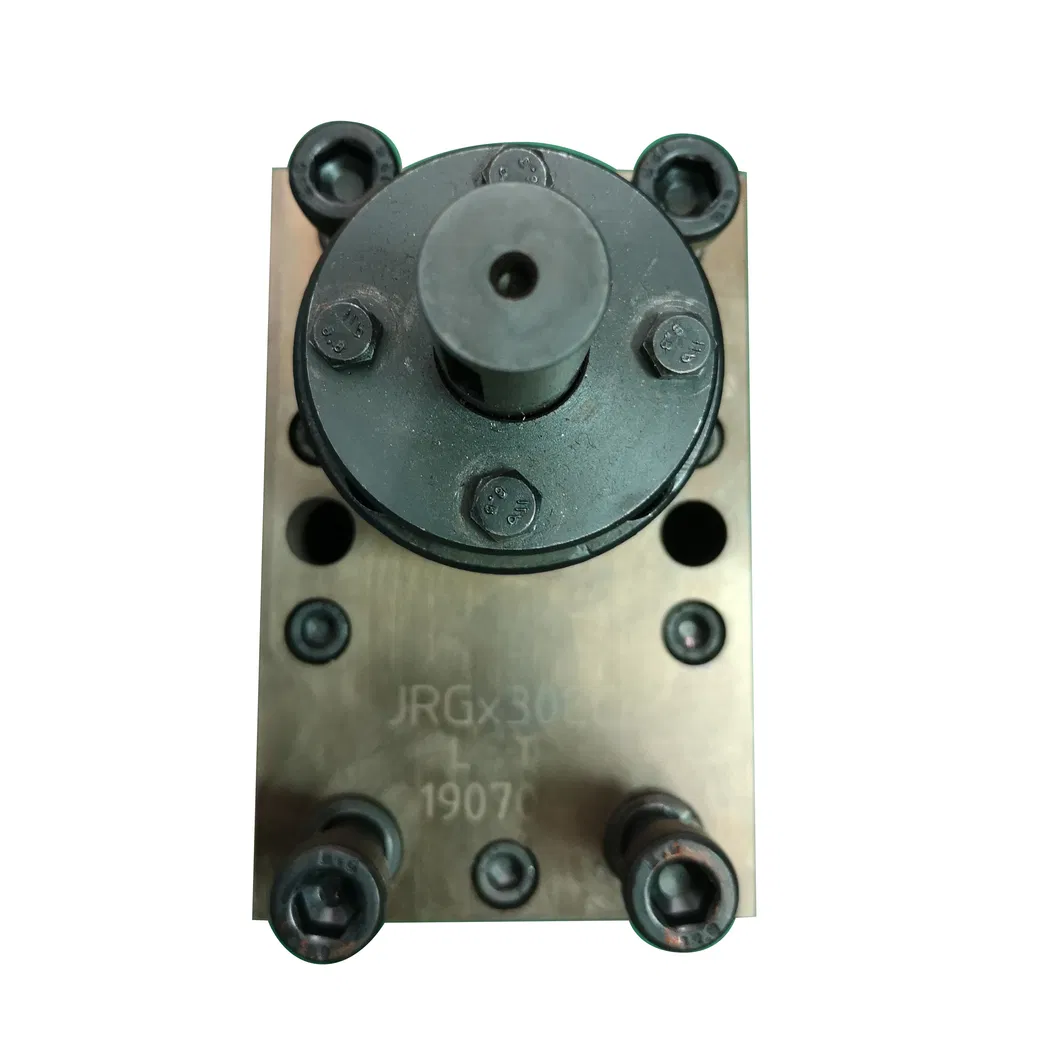

Gear Pump Parameters	Details
Displacement	6-35cc(ml)/rpm
Working Speed	10-80r/min
Output Pressure	< 20Mpa
Accuracy	±0.5g

Hose & Gun Components

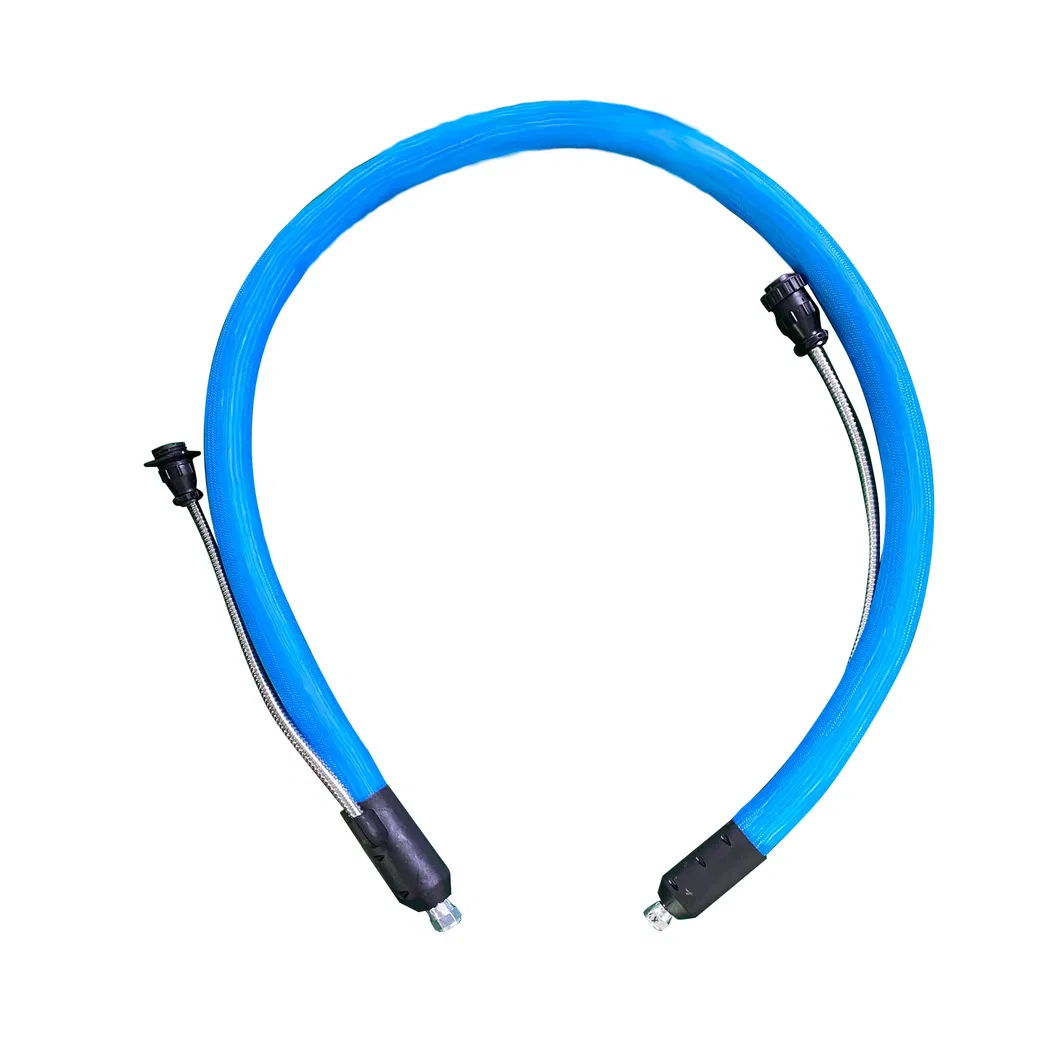

Hot Melt Hose Details:

1 100% imported thickened coating pipe (8MM diameter).
2 Multiple insulation layers using high-grade fireproof cotton.
3 High-reliability AMP aviation plugs.

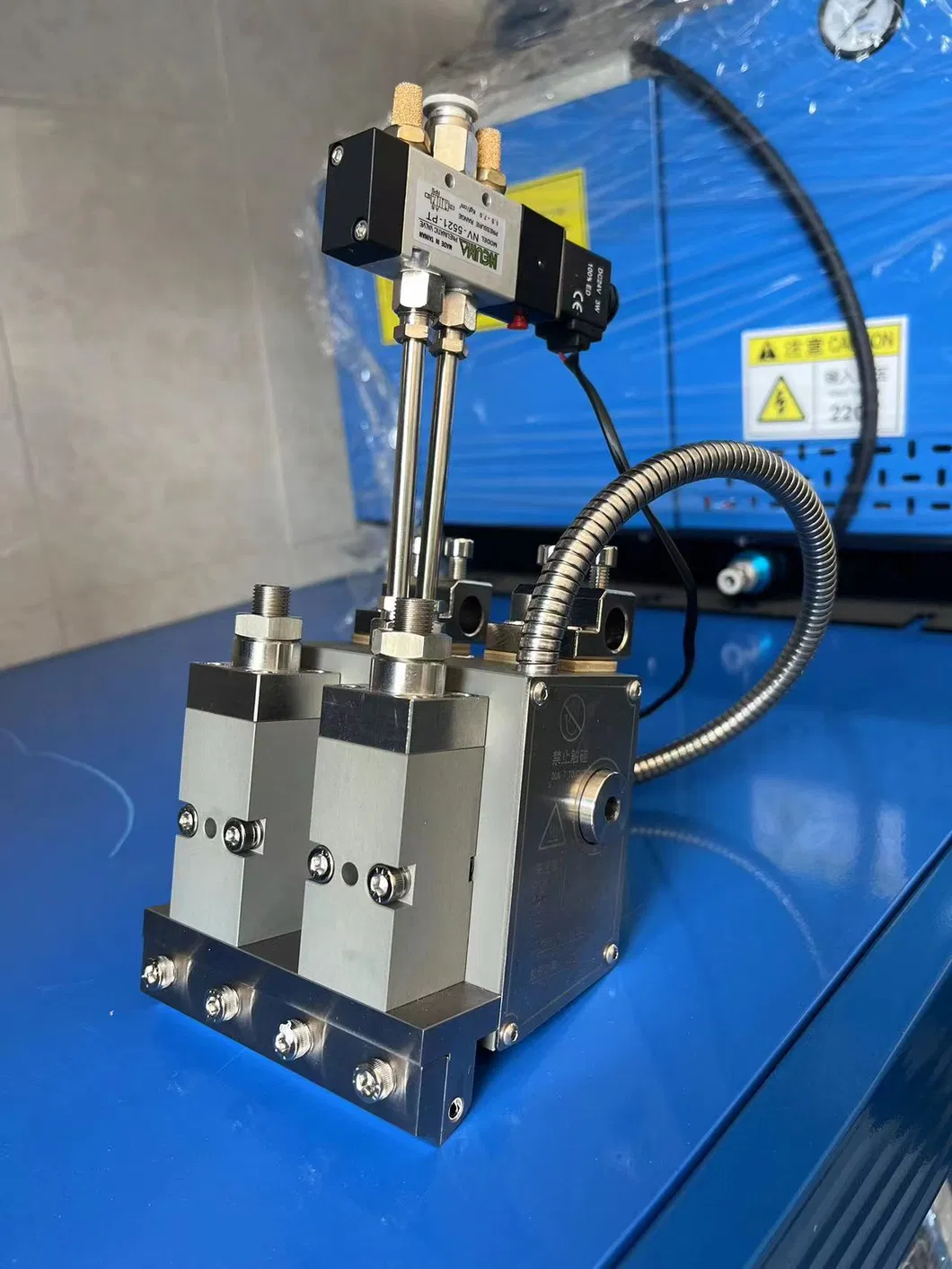

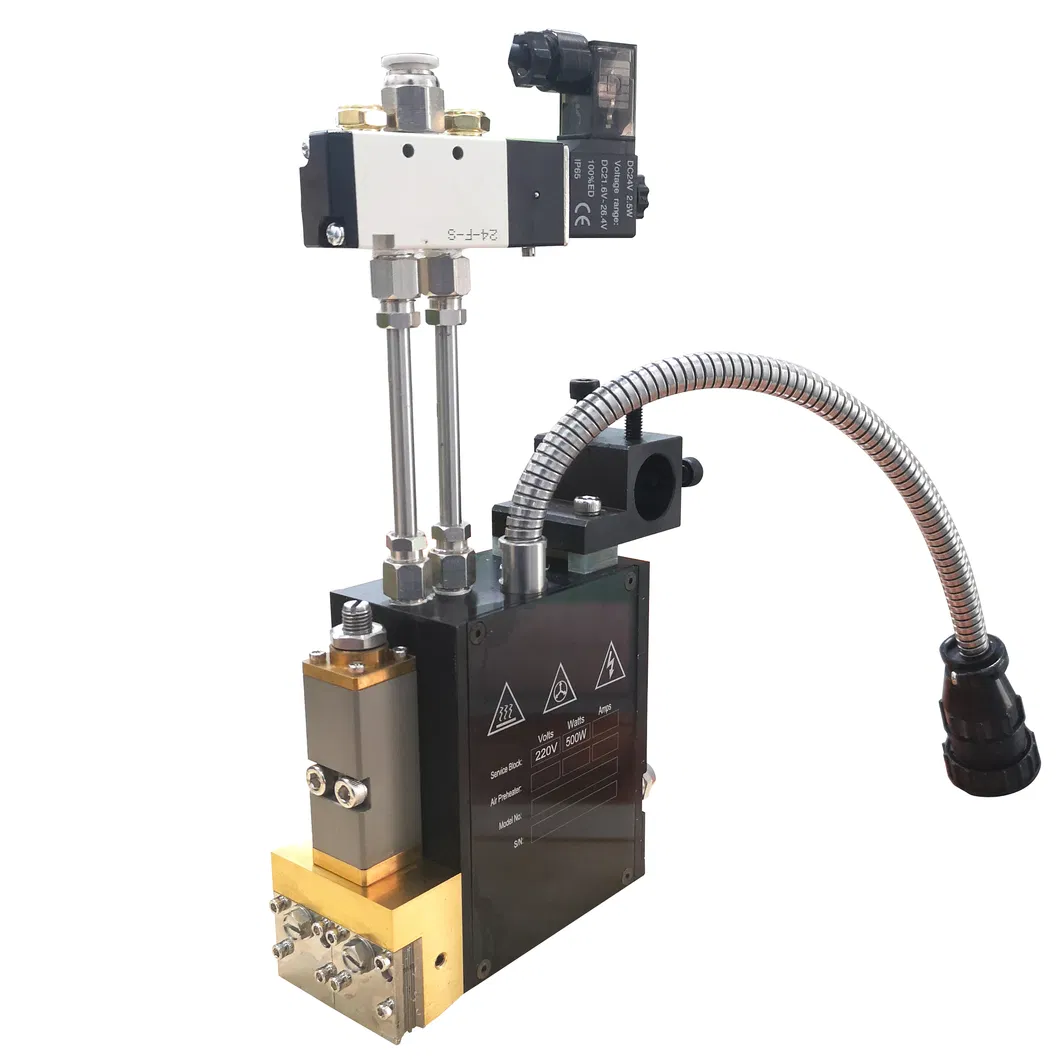

Spray Gun Characteristics:

✓ Spiral heating for double tube intake atomization.
✓ SKD51 material construction with imported bowl seal rings.
✓ High edge control accuracy (±1.0mm).

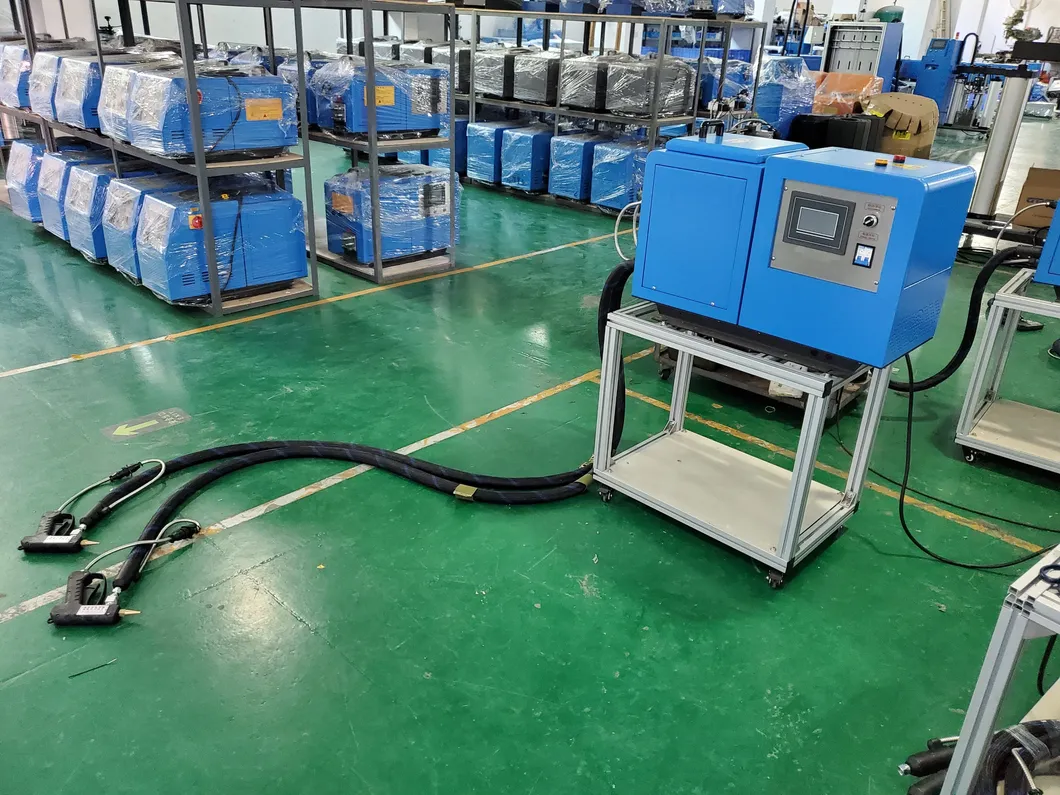

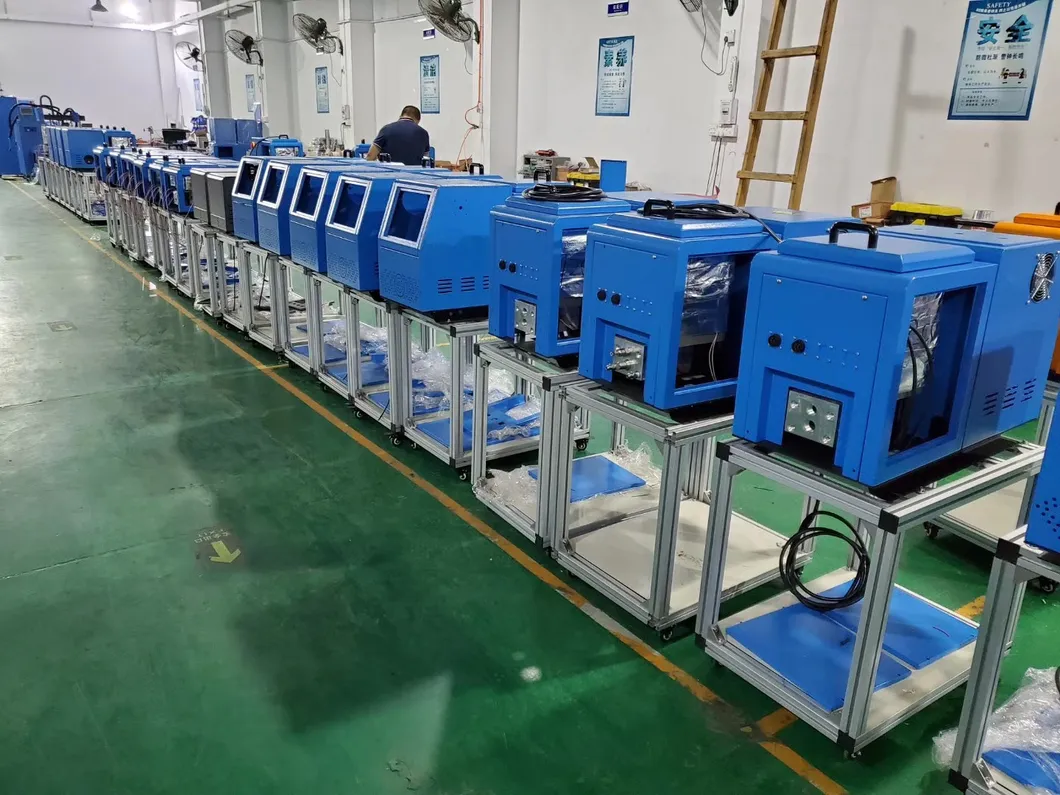

Manufacturing & Quality

Frequently Asked Questions

What industries can use this hot melt machine?

This equipment is widely used in packaging, furniture decoration, automotive parts, non-woven fabrics, shoe making, and bookbinding.

How does the Teflon coating benefit the operation?

The Teflon layer prevents adhesive from sticking and carbonizing on the tank walls, which ensures smooth glue flow and significantly reduces maintenance requirements.

Is the temperature control accurate?

Yes, the system utilizes high-precision PID intelligent control to maintain temperature stability within the tank, hoses, and spray guns.

What is the advantage of using a gear pump?

The gear pump, combined with frequency conversion speed regulation, allows for extremely precise control of the glue volume output, suitable for high-accuracy industrial applications.

Does the machine have safety protection features?

Yes, the control system includes high and low temperature protection functions to prevent equipment damage and ensure operator safety during use.

What type of packaging is provided for shipping?

The machine is securely packaged in a standard wood case to ensure protection against impacts and moisture during international transport.
