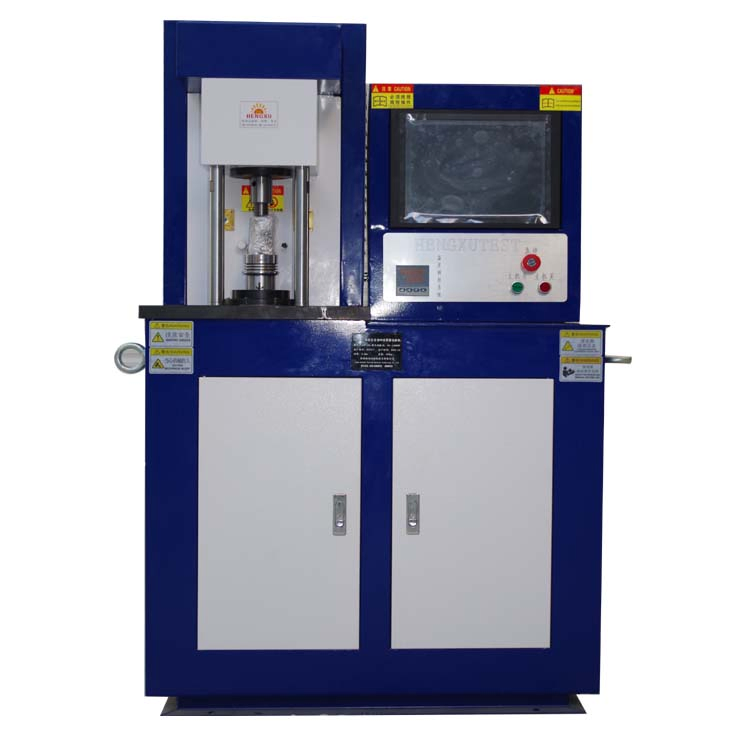

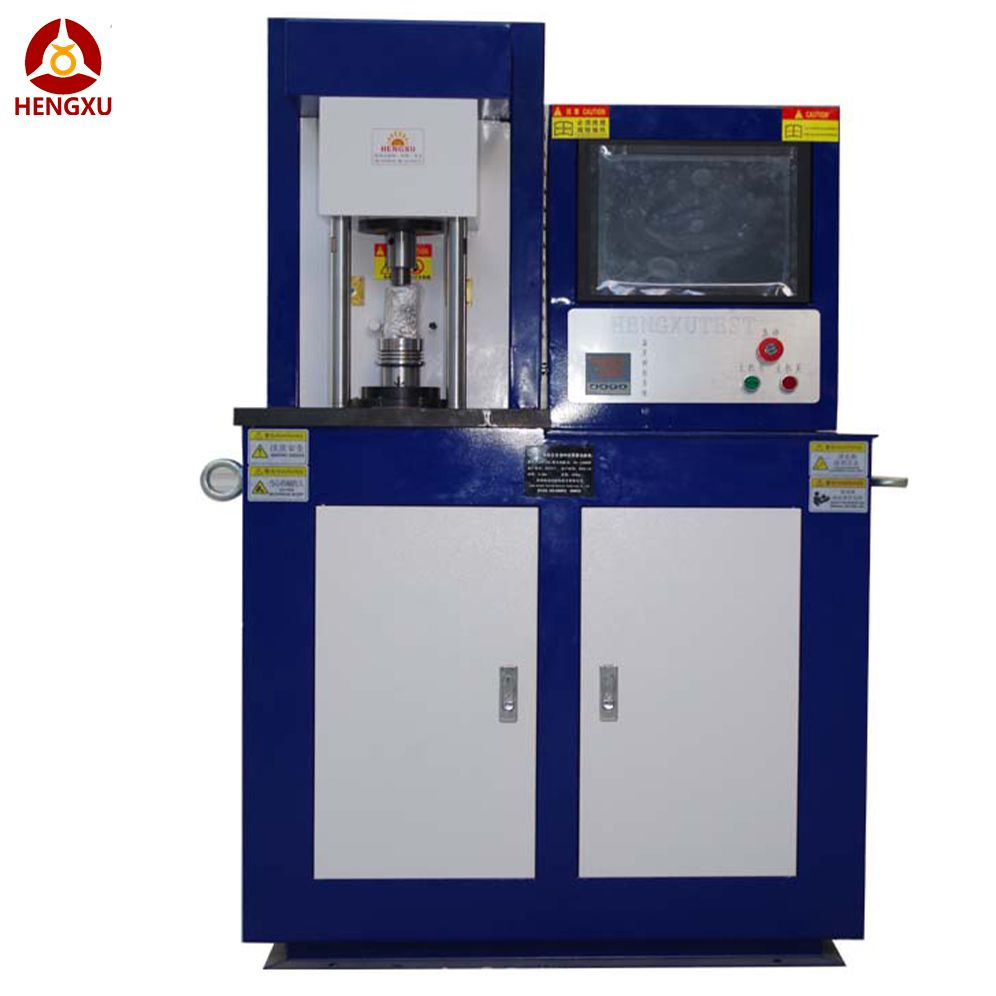

Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards
1 / 5
Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards
Advanced Lubricant Testing Machine for ASTM D4172 Standards

Advanced Lubricant Testing Machine for ASTM D4172 Standards

Customization: Available
After-sales Service: Online
Warranty: 15 Months
Send Inquiry

Product Description

Basic Information
Model NO.
SGW-10A
Type
Friction Testing Machine
Accuracy Grade
0.5
Load Way
Electronic Load
Display
Computer
Power Source
AC380V
Axial Test Force
40~10000N
Spindle Speed
10~2000r/min
Temp Range
RT~250ºC
Steel Ball Diameter
12.7mm
Product Description

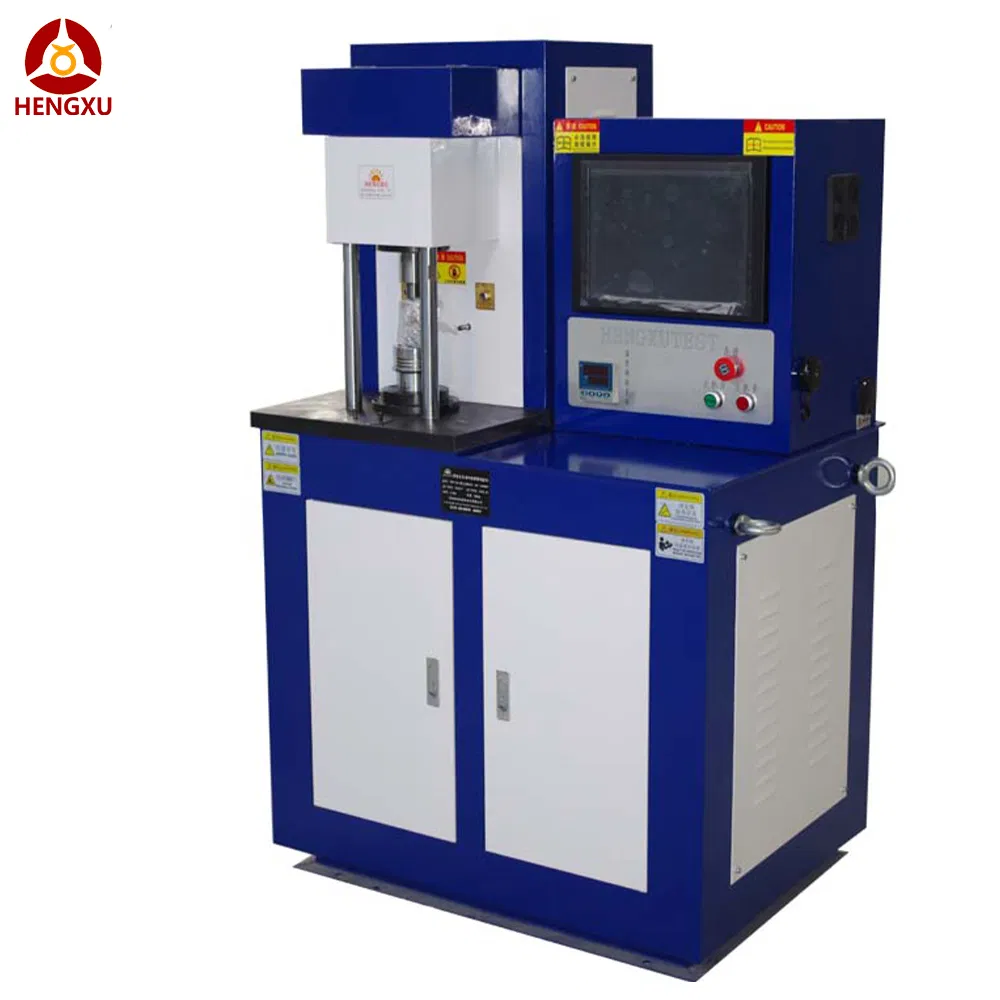

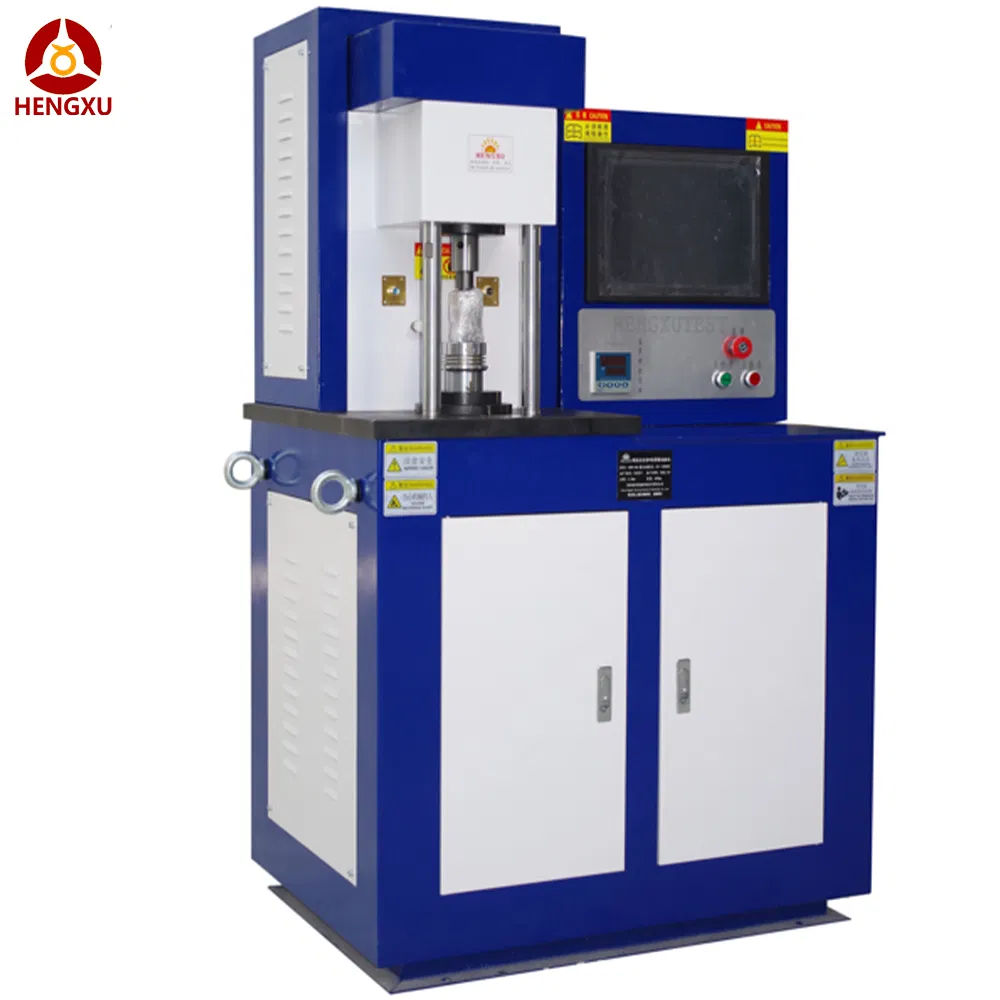

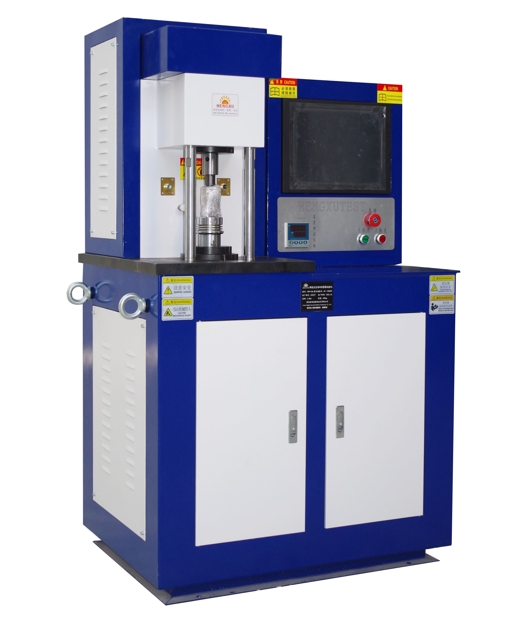

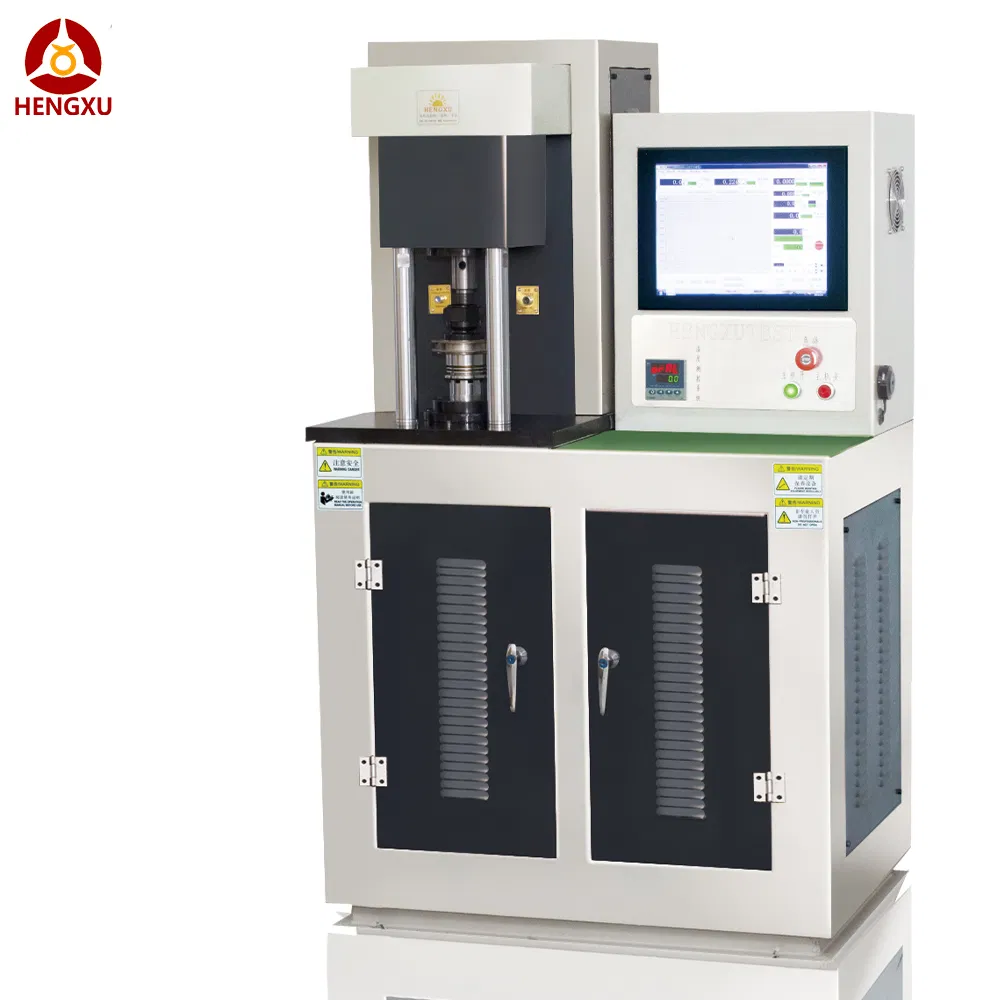

Four-Ball Friction Tester

SGW-10A MICRO-CONTROLLED FULLY AUTOMATIC FOUR-BALL FRICTION TESTER

The four-ball tribometer is used to determine the friction and wear properties of lubricant, including oil and grease, under varying load conditions. It accurately assesses the load-bearing capacity of lubricants through several key metrics: maximum non-seizure load (Pb), sintering load (Pd), and comprehensive wear value (ZMZ).

Standards: ASTM D4172, ASTM D2266-01, ASTM D2783-2003 (2009), ASTM D2596-2010

Applications: Widely used in evaluating lubricating oils, greases, and components such as tapered roller bearings.

Key Features & Functions
  • Fully Automatic: High degree of automation; start tests with just 2 keys after sample installation.
  • High Accuracy: Self-calibrating load and friction force; optional dual sensors for absolute precision.
  • Real-time Judgment: PB and PD multi-directional online judgment to protect equipment (ms level protection).
  • Grinding Spot Measurement: Direct display of reference values without the need for a microscope.
  • Versatile Testing: Supports friction coefficient step tests (SH0762/ASTM5183) and KRL lubricant shear tests (SH0845).
Technical Parameters
Project Name Technical Indicators
Axial test force working range40~10000N
Test force indication relative error±1%(0.5)
Loading methodFully automatic loading (non-hydraulic)
Friction torque measurement range0~13500N.mm
Spindle speed regulation range10~3000r/min
Heater working temperature rangeRoom temperature~250ºC
Temperature control accuracy≤ 2ºC
Control methodFull process touch screen / Microcomputer
Rated power2KW
Detailed Gallery

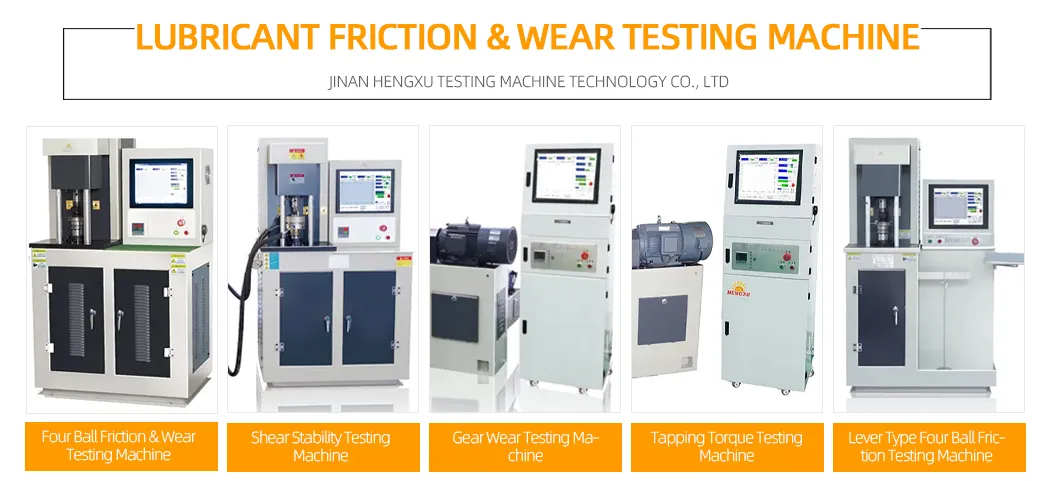

Product Detail 1
Product Detail 2
Factory View
Exhibition
Certifications
Service & Support
After Sales Service
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with extensive experience. Our facility is equipped with advanced production technology and a skilled team dedicated to high-quality testing solutions.
How long does production and delivery take?
Typically 10-20 days depending on the model. Customized requirements may extend delivery to approximately 4 weeks. Priority production can be arranged for urgent orders.
How is the equipment protected during transport?
We use shock-proof and moisture-proof export-grade wooden crates. Precision components are secured with foam and protective film to ensure safety during sea or air transit.
What is the warranty and after-sales policy?
We provide a 1-year warranty and lifelong technical support. Services include remote guidance, on-site commissioning (if required), and supply of maintenance parts.
Can I verify the test results before delivery?
Yes, we offer remote video acceptance, on-site factory visits, or sample testing where we provide detailed reports and videos of your specific samples being tested.
Do you provide training for first-time users?
Absolutely. We provide comprehensive operation manuals, video tutorials, remote installation support, and optional on-site training to ensure your team is proficient.
