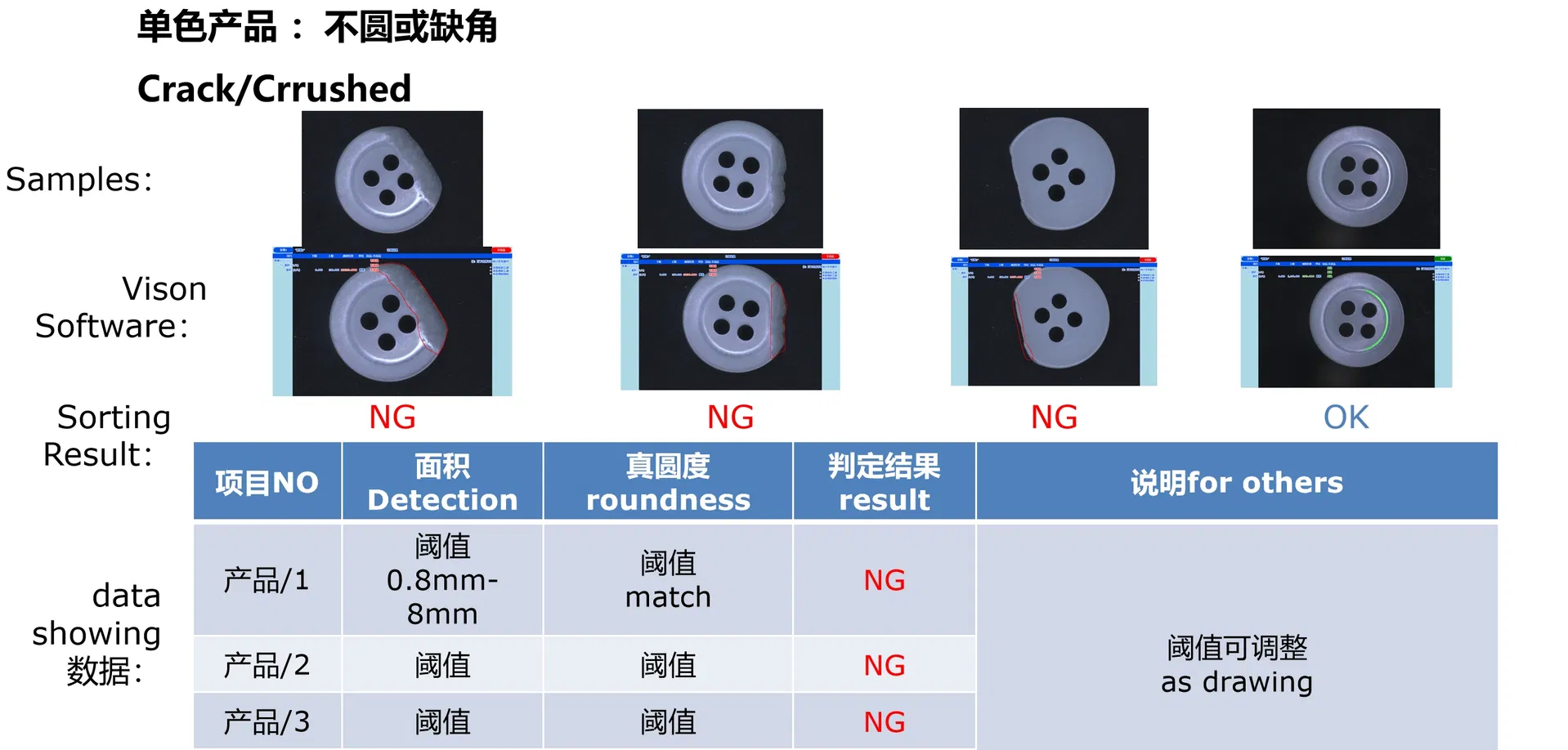

Automatic vibration disk and hoist fastener vision inspection machine. This machine uses a vibrating disc for feeding, equipped with artificial intelligence visual inspection software and 7 CCD industrial cameras. It detects key dimensions (outer diameter, height) and appearance defects (slag blockage, missing teeth). Detection speed: 400pcs/min; Accuracy: ± 0.01mm.

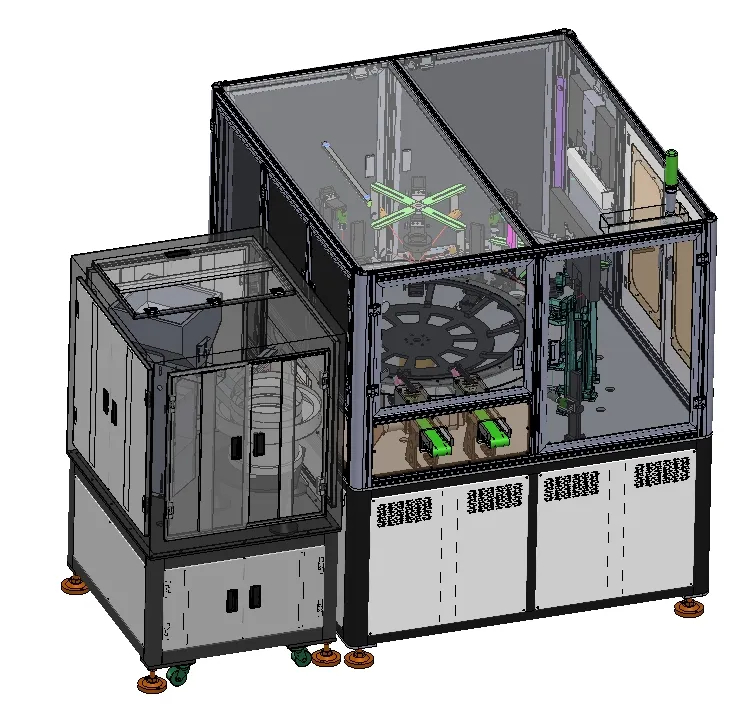

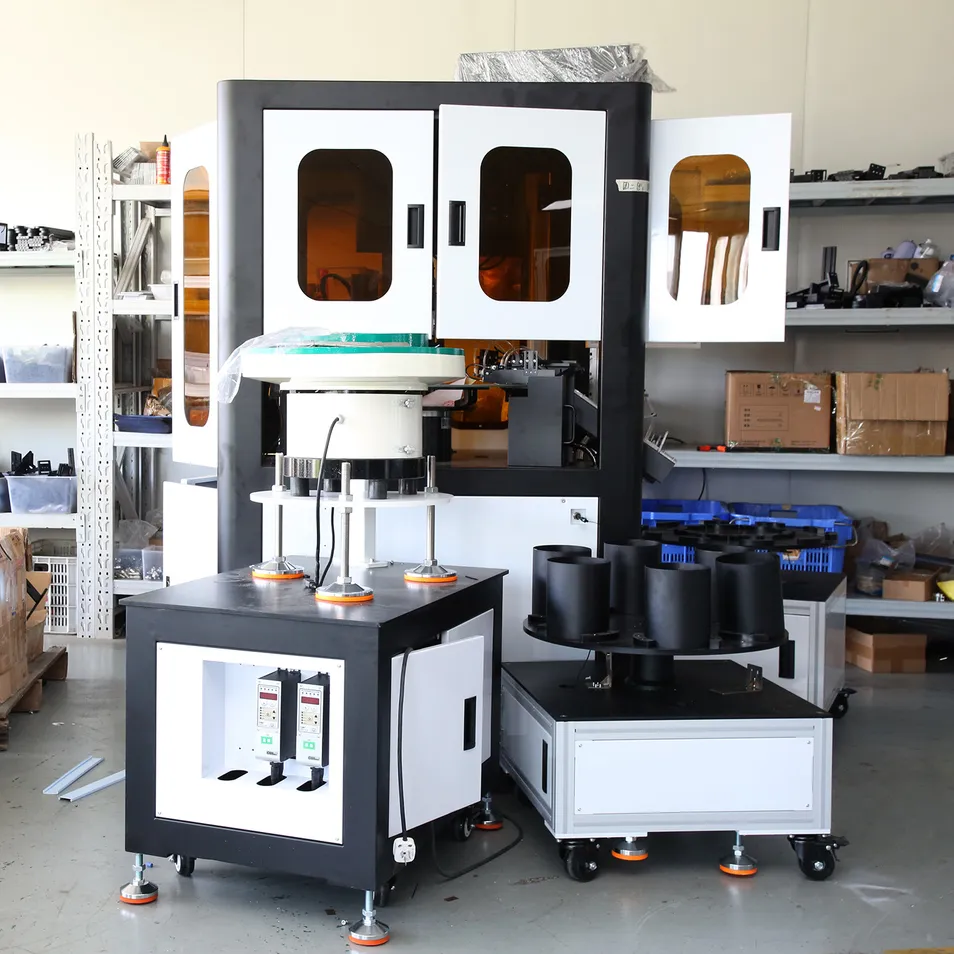

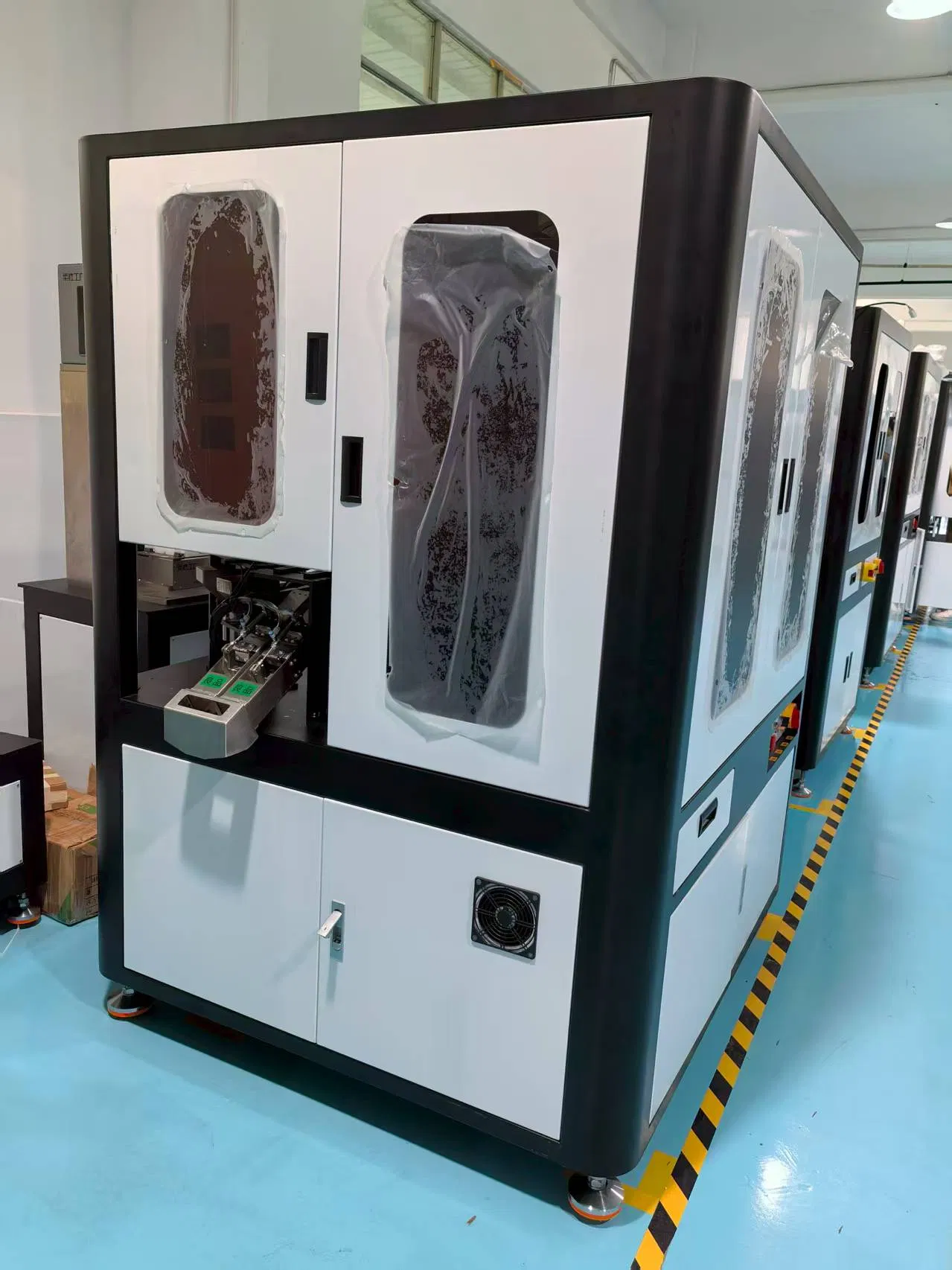

Machine with feeding device

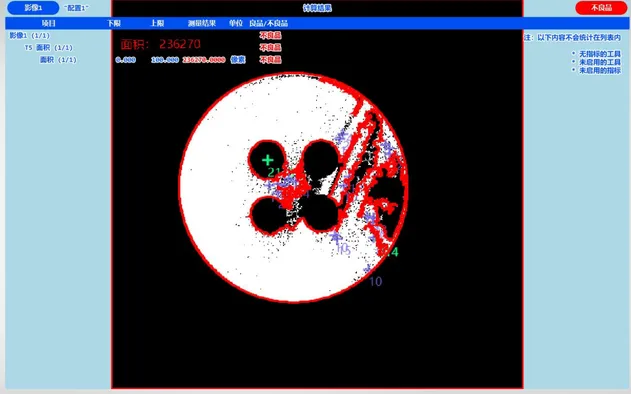

CCD inspection plate

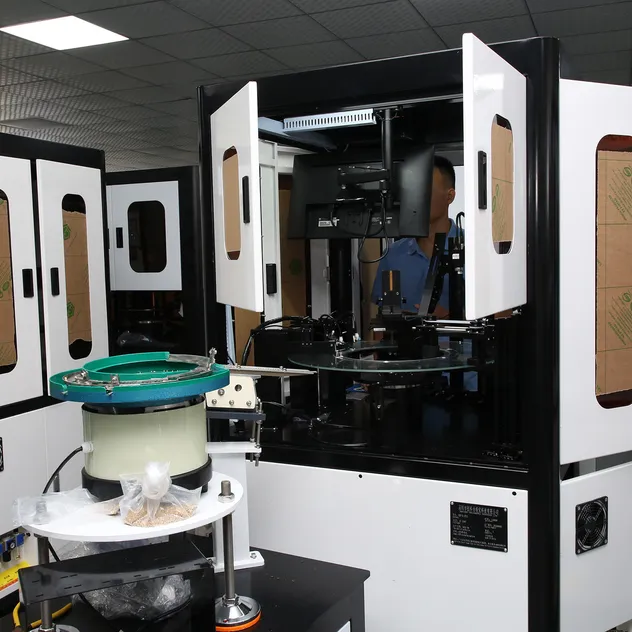

Assemble design
| No. | Component | Specification | Qty | Function |
|---|---|---|---|---|
| 1 | Main device | L1350*W1100*H1800 | 1 | Inspection |
| 2 | Solenoid valve | American MAC- 24VDC | 1 | Blowing Out-let |
| 3 | Optical sensor | wll180t-l432 Japan keyence | 1 | Sensor system |
| 4 | HD CCD Camera | Basler | 7 | Vision Detect |
| 5 | Camera Lens | Original Industry Lens | 7 | Automatic detect |
| 6 | LED Source | 50*50MM light source | 7 | Lighting |
| 7 | Source control | CKW control | 1 | Control sources |
| 8 | DD MOTOR | CKW motor | 1 | For more accuracy |
| 9 | IC CARD | Gugao IO card | 1 | Control system |
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

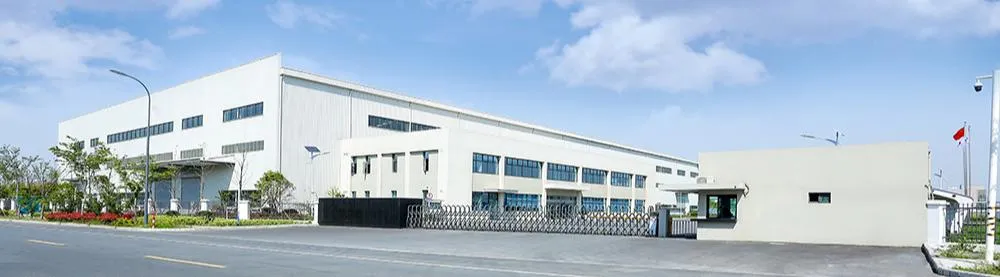

The group is a leader in optical & visual inspection and automation. With over 130 professional optical and debugging engineers, the vision team focuses on AI, laser, CCD, and industrial robotics. Equipment is widely applied in 3C electronics, automotive parts, aerospace precision components, semiconductors, and medical fields.
OEM/ODM capabilities with newest AI software.
Over 10 years of experience.
Fast shipping & customs clearance support.
Custom project solutions.

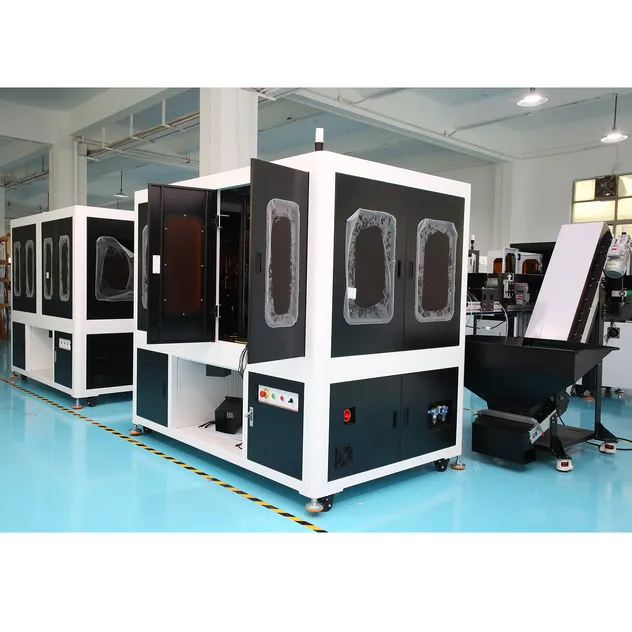

1. Automatic feeding device
2. Vibrating device
3. Automatic Packing device
