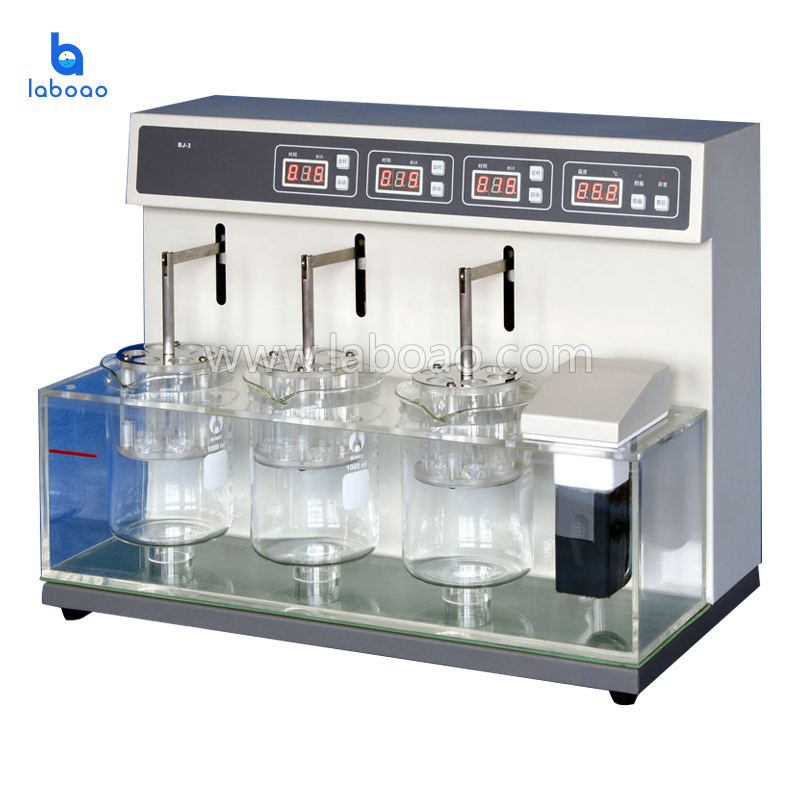

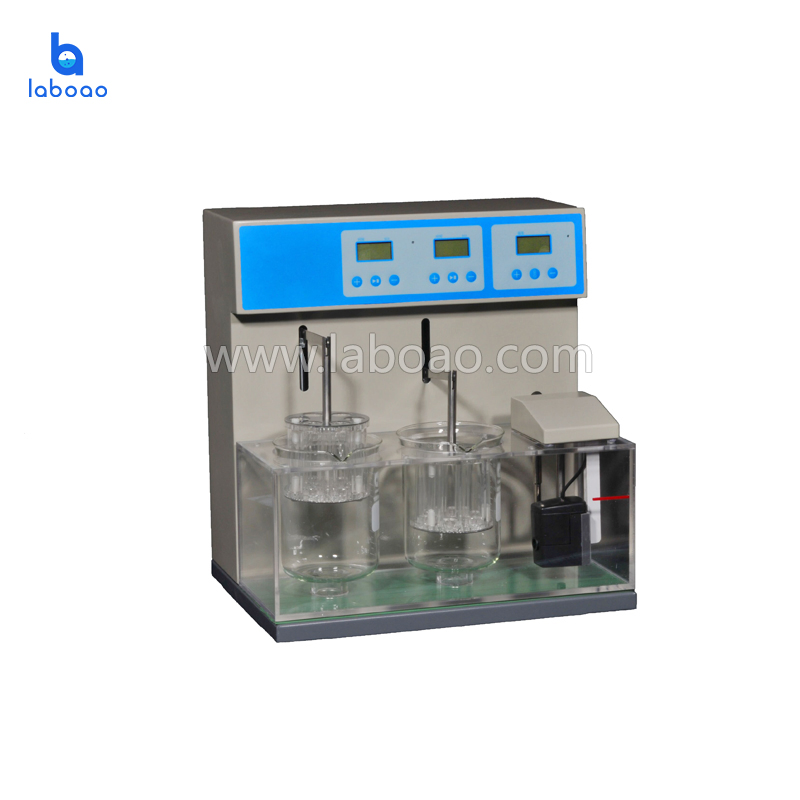

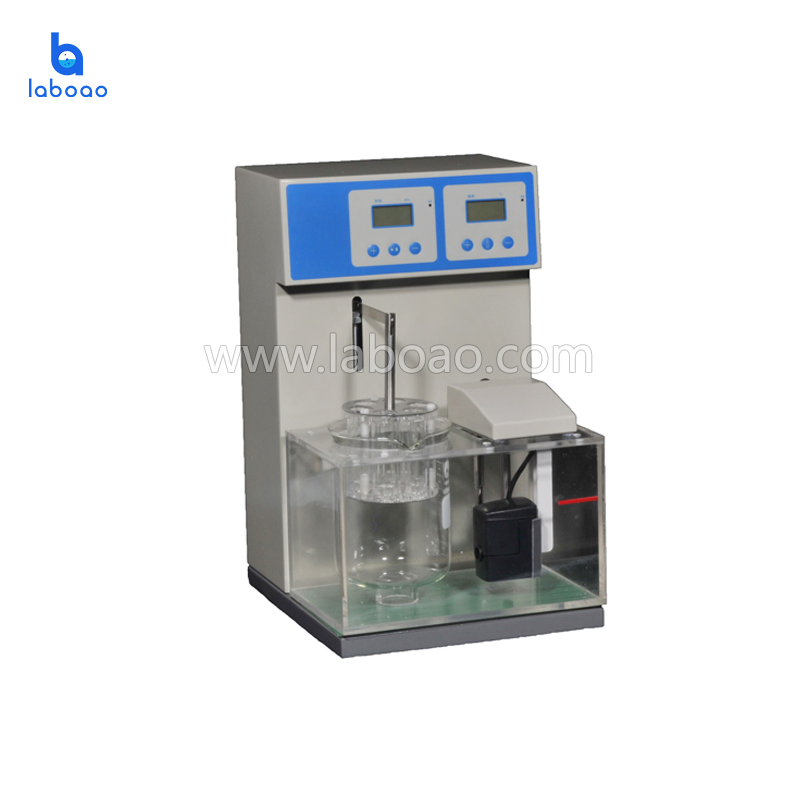

Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing
1 / 5
Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing
Medical Laboratory Equipment Tablet Disintegration Testing

Medical Laboratory Equipment Tablet Disintegration Testing

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Medical Laboratory Equipment Tablet Disintegration Testing

Basic Information

Model NO.
BJ-1, 2, 3
Product Name
Medical and Pharmaceutical Disintegration Tester
Basket Assembly
1, 2, 3 Units
Glass Tubes
6, 12, 18 Units
Beaker Volume
1000ml
Frequency
30~32 Min
Temperature
20~45°C Preset
Accuracy
±0.5°C
Timing Range
1~900 mins
Usage
Pills and Capsule Disintegration
Power
600W
Origin
China

Product Description

BJ series of instruments are high-precision medical laboratory equipment used for detecting the disintegration of solid preparations under prescriptive conditions.

Applicable Standards:
• National standard (Chinese codex) / 2015
• Industry standard (Disintegration tester)

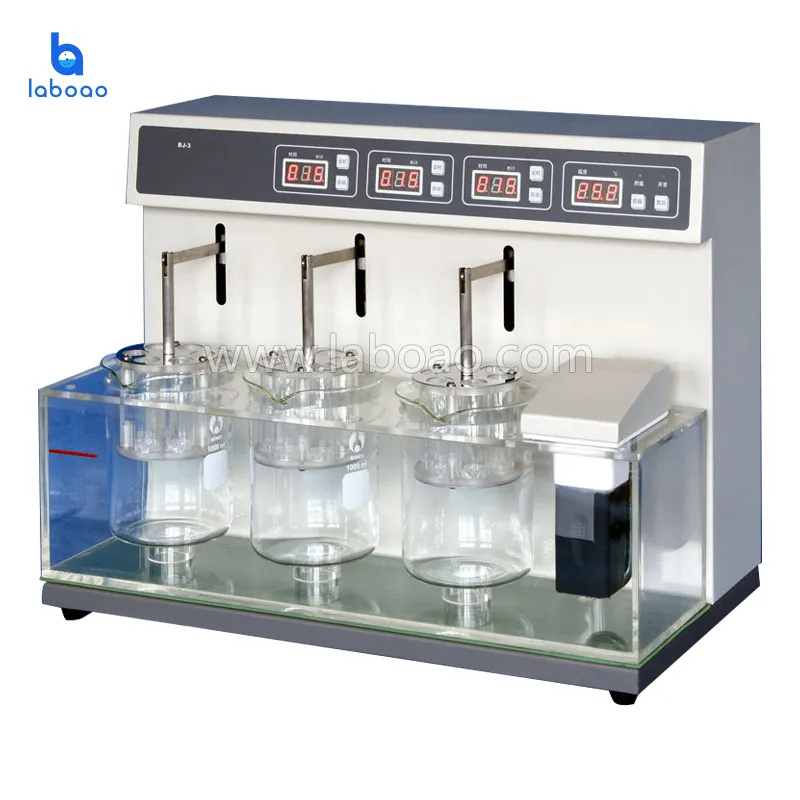

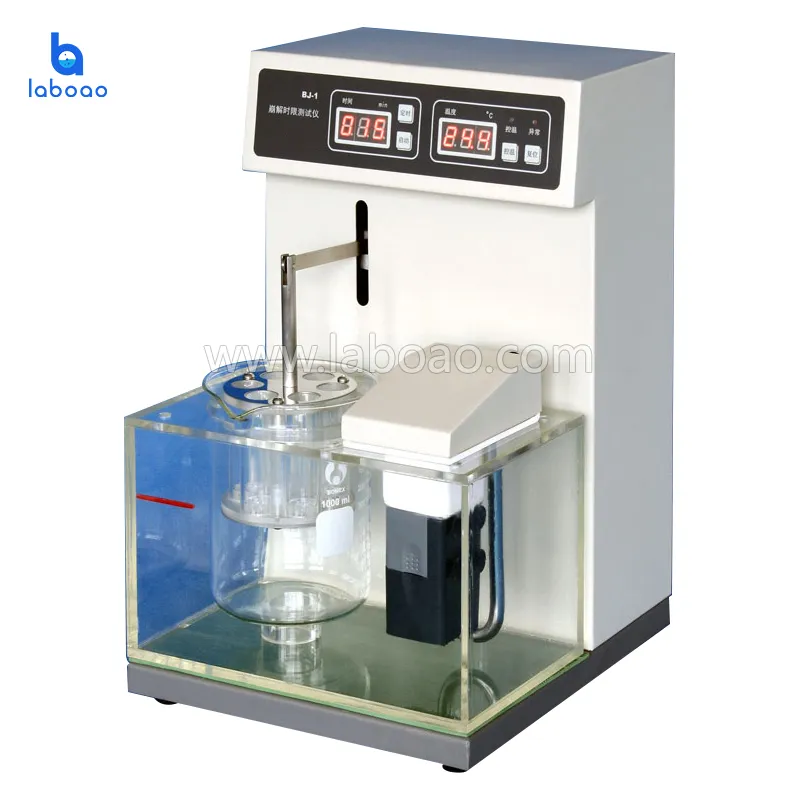

Disintegration Tester View 1 Disintegration Tester View 2

Key Features

✔ Six tubes integrated in one basket assembly for efficient testing.
✔ Auto stop function at the preset timing point.
✔ Bath liquid achieves and maintains a perfectly even temperature.
✔ MPU control for automatic temperature, time, and nacelle frequency.
✔ Alternate display of preset and real-time data for easy monitoring.
✔ Full automation: auto-test, auto-diagnose, and auto-alarm systems.

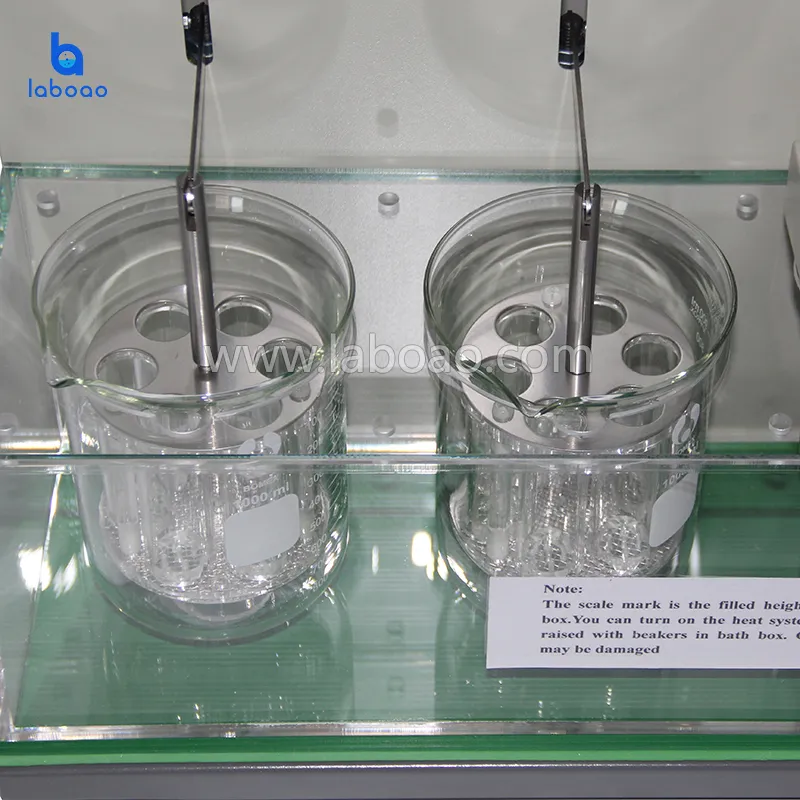

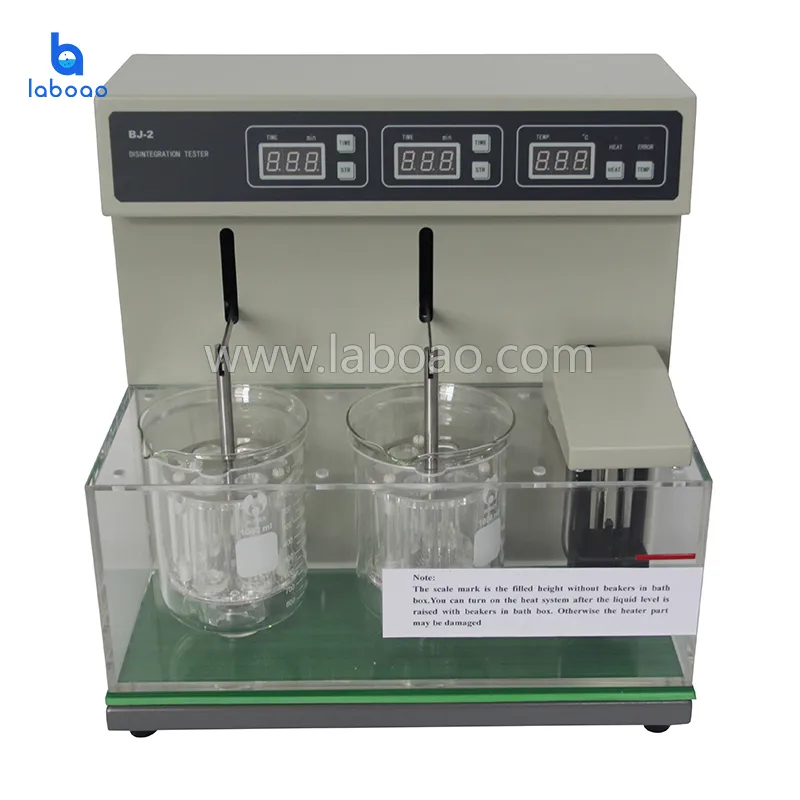

Testing Feature 1 Testing Feature 2 Testing Feature 3

Technical Specifications

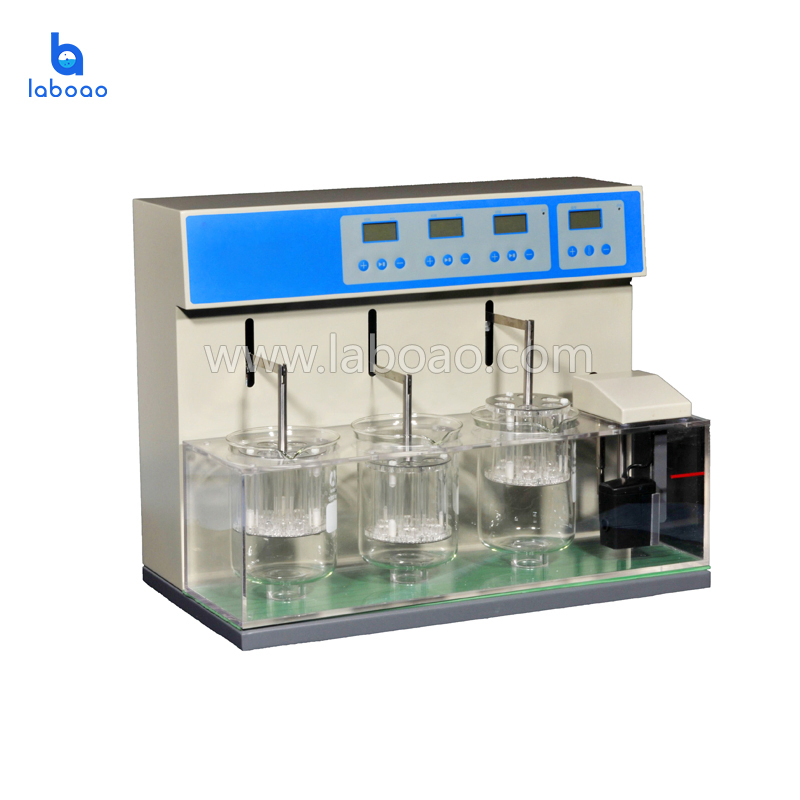

Model BJ-1 BJ-2 BJ-3
Basket assembly 1 2 3
Nacelle Frequency (30~32) /min (30~32) /min (30~32) /min
Nacelle Range (55±2)mm (55±2)mm (55±2)mm
Time Range (1~900)min (1~900)min (1~900)min
Temp Accuracy (37±0.5)ºC (37±0.5)ºC (37±0.5)ºC
Power Supply 220V/50Hz/600W or 110V/60Hz/600W
Dimension 260×300×420mm 400×300×420mm 540×300×420mm
Detailed Technical Drawing 1 Detailed Technical Drawing 2 Operation Display

Frequently Asked Questions

What pharmaceutical standards does the BJ series comply with?
The BJ series disintegration testers fully comply with the National Standard (Chinese Codex) 2015 and current industry standards for disintegration testing.
How many tubes are included in each basket assembly?
Each basket assembly consists of six glass tubes, allowing for simultaneous testing of multiple tablet or capsule samples.
What is the temperature control accuracy of the machine?
The instrument features an automatic temperature control system with an accuracy of ±0.5ºC, ensuring a stable environment (preset typically at 37ºC).
Does the machine support automated operation?
Yes, it includes advanced automation features such as auto-test, auto-diagnose, and auto-alarm, along with an auto-stop function at the end of the timing point.
Can it be used for both tablets and capsules?
Absolutely. The BJ series is specifically designed to test the disintegration of solid preparations, including various types of pills and capsules.
What are the power requirements for this equipment?
The device is versatile and can be configured for 220V/50Hz/600W or 110V/60Hz/600W depending on your regional power specifications.
