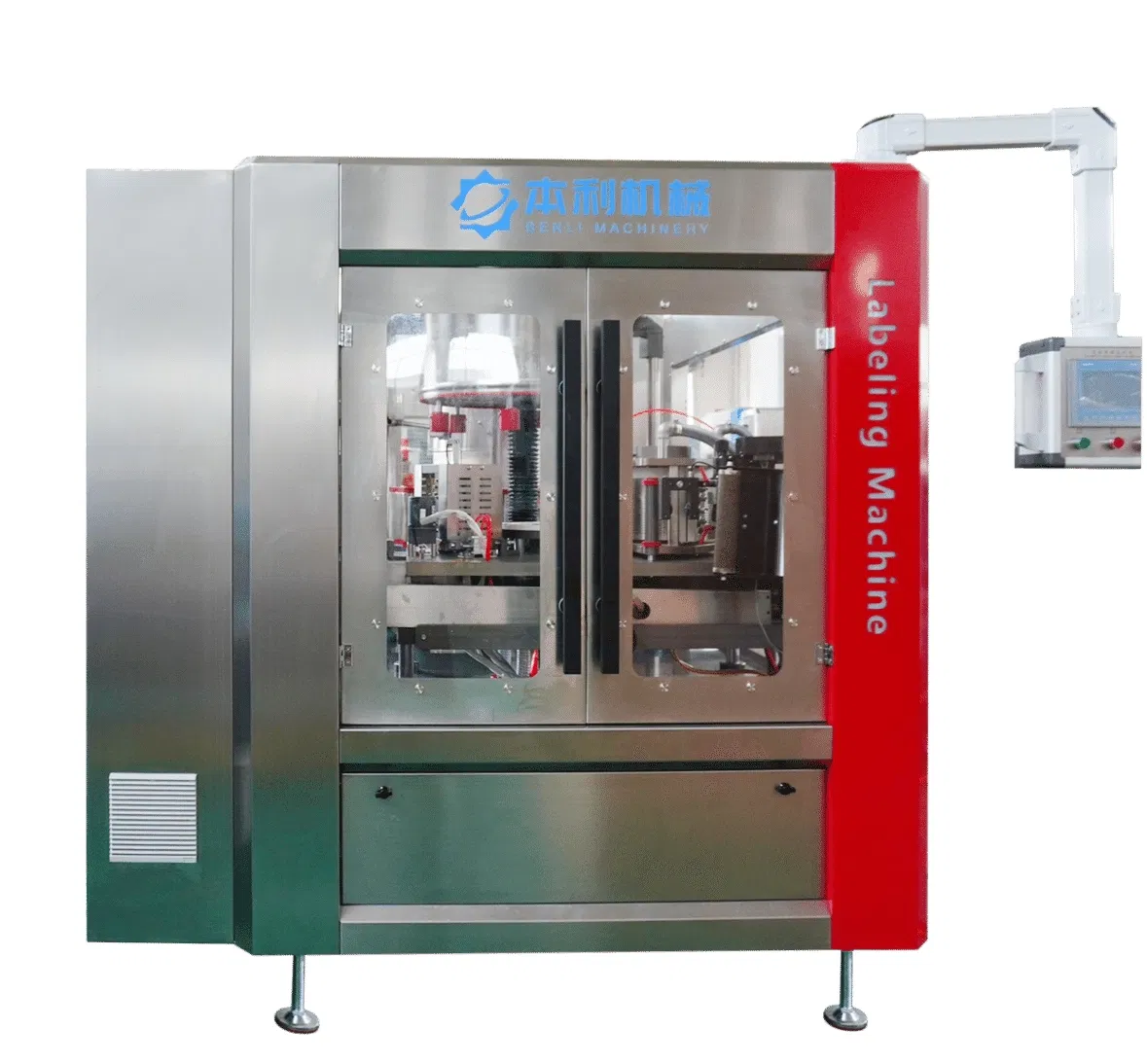

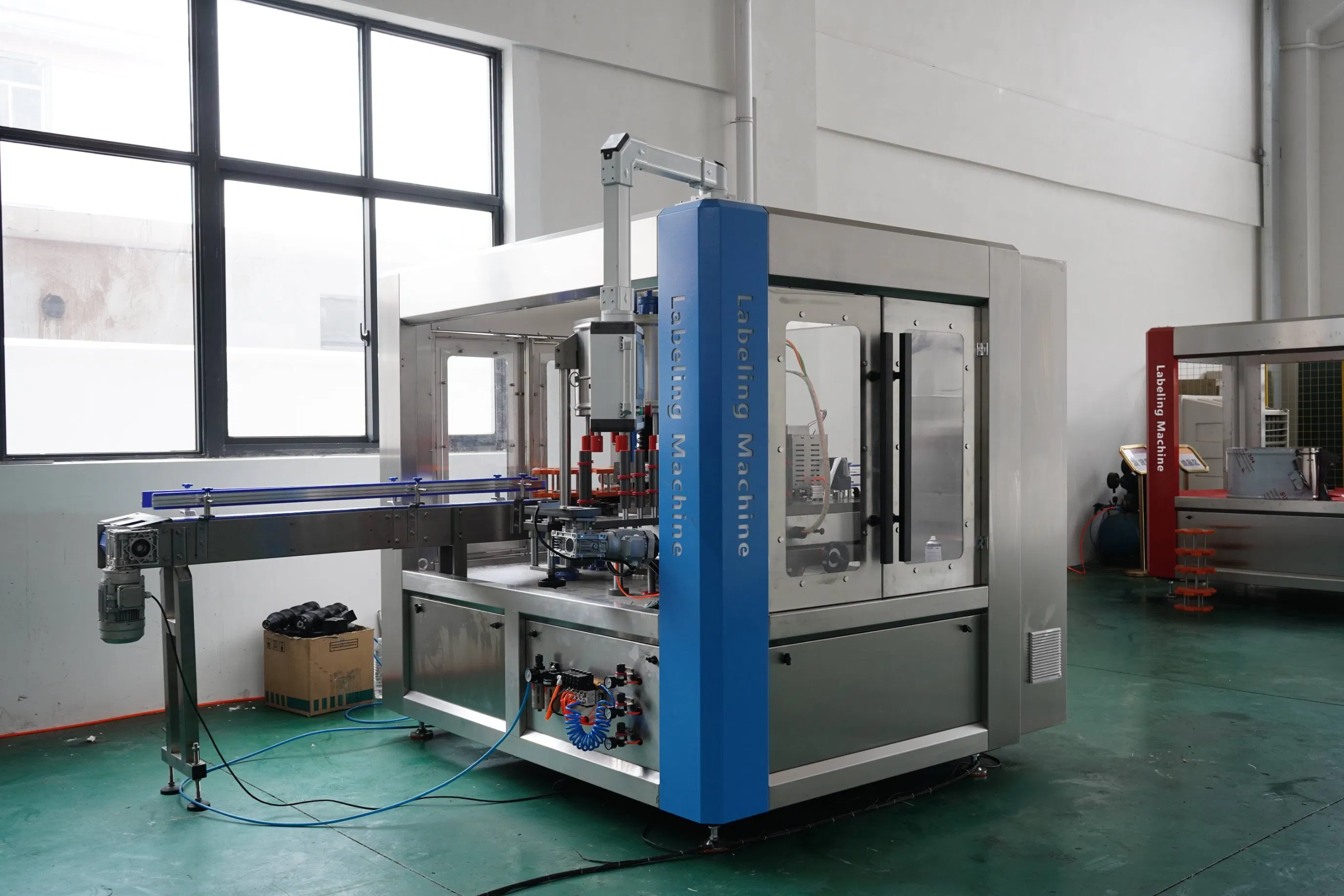

Advanced Small Business Labeling Machine with OPP Hot Melt Adhesive

Customization: Available
After-sales Service: Yes
Automatic Grade: Automatic

Product Description

📋

Product Overview

Application
Cosmetics, Drinks, Cleaning, Detergent, Skin Care, Food, etc.
Type
Automatic Labeling Machine
Driven Type
Electric
Classification
Automatic Vertical Round Bottle Labeling Machine
Feature
OPP Hot Melt Adhesive
Control System
PLC Control
⚙️

Product Description

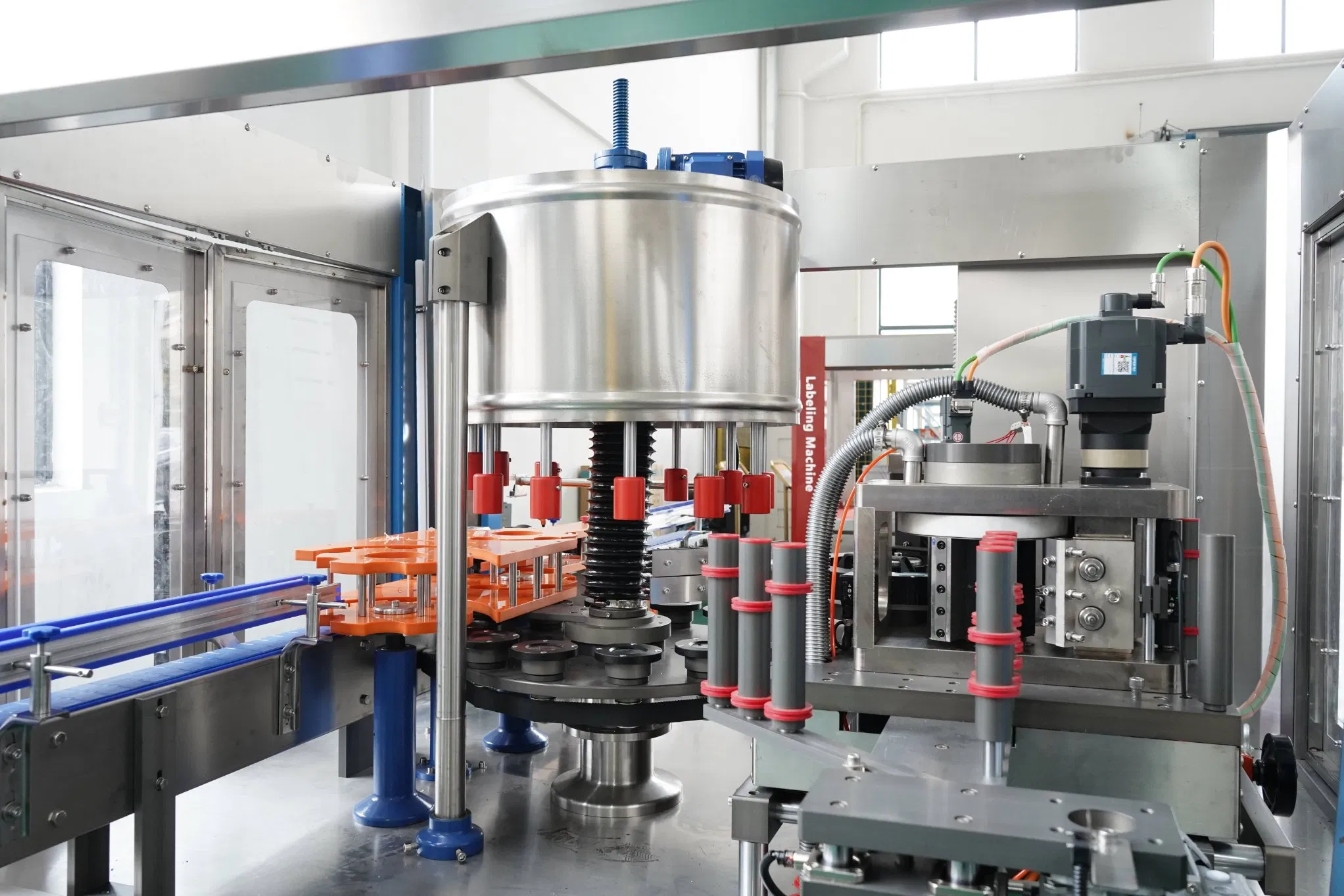

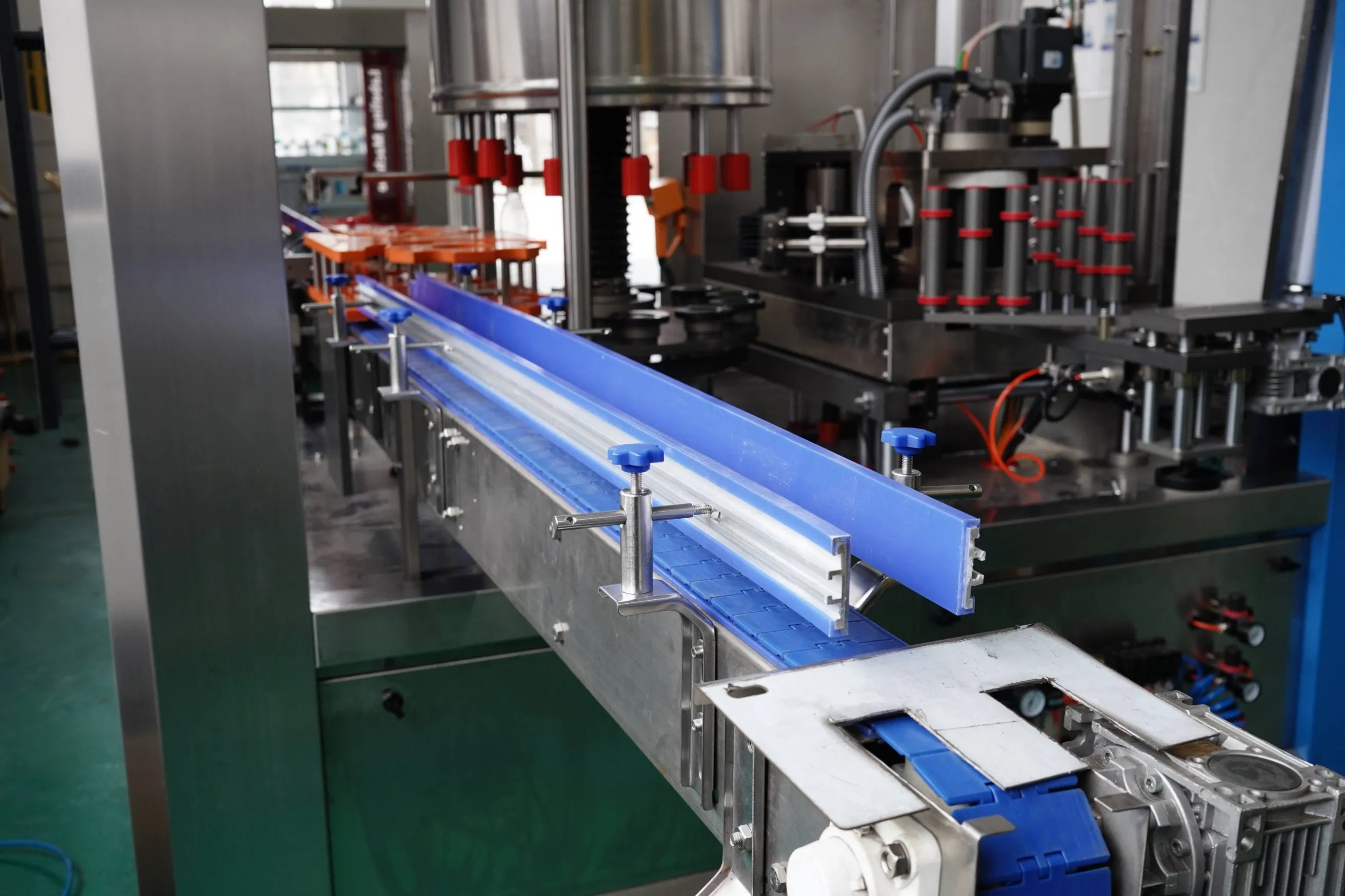

Our rotary, continuous operation label applicator is designed for OPP hot melt adhesive. The equipment automatically adjusts input and output transmission conditions. Products are evenly spaced by a bottle screw and transported via an imported star wheel to the rotary disc. Fixed by a bottle pressing mechanism, products rotate while labels are applied according to precise mechanical trajectories.

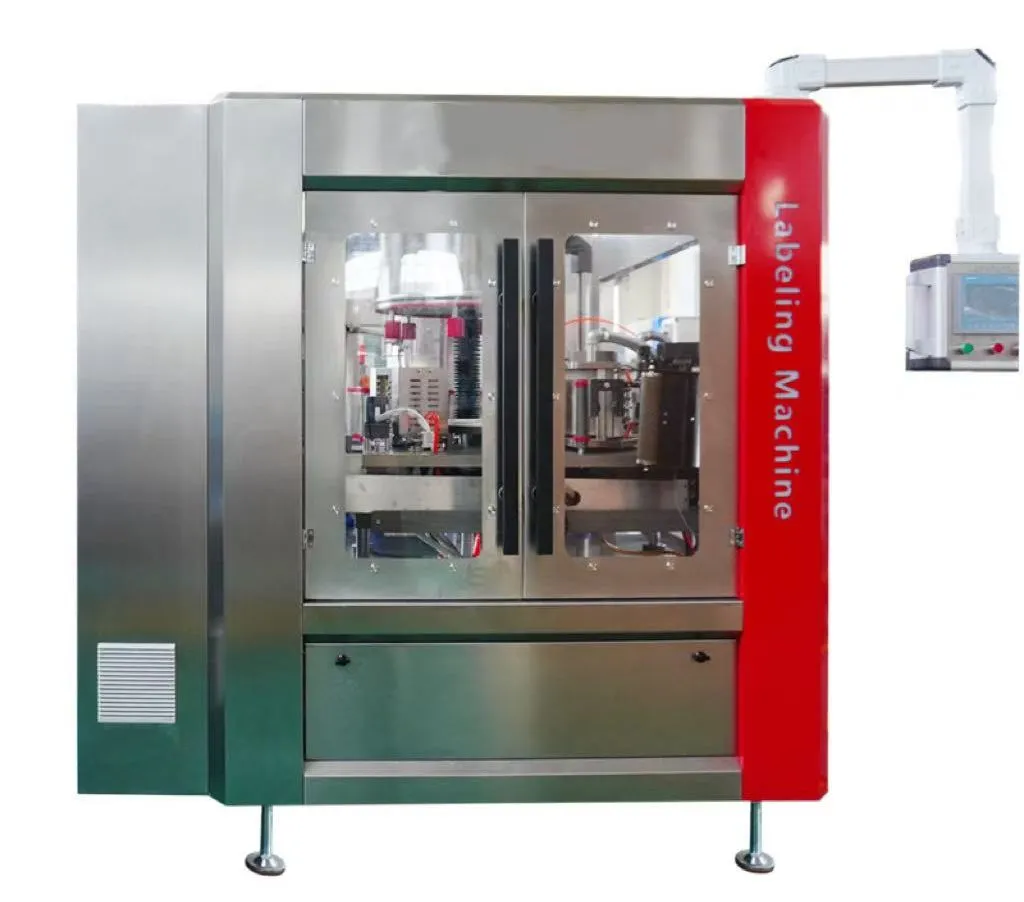

Labeling Machine Operation

Utilizing high-speed Japanese servo motors, the feeding process is dynamically adjusted for maximum accuracy. The glue application system applies adhesive only to the front and back edges of labels, significantly minimizing hot melt adhesive consumption. The labels adhere smoothly and tightly, forming a professional overlap seal.

🚀

Product Superiority

  • High Speed: Continuous operation with speeds ranging from 6,000 to 20,000 bottles/hour depending on requirements.
  • Modular Design: Reduced mechanical parts and modular structure lower maintenance costs by more than 50%.
  • Precision Labeling: Servo control combined with color mark detection ensures cutting accuracy within ±0.5mm~1mm.
  • Instant Curing: Hot melt glue sets in just 0.3 seconds, preventing edge lifting even on thin-walled containers.
  • Intelligence: 7-inch touch screen for real-time monitoring, parameter memory, and automated tension adjustment.
  • Compatibility: Handles various container shapes including round, square, and ellipsoidal bottles.

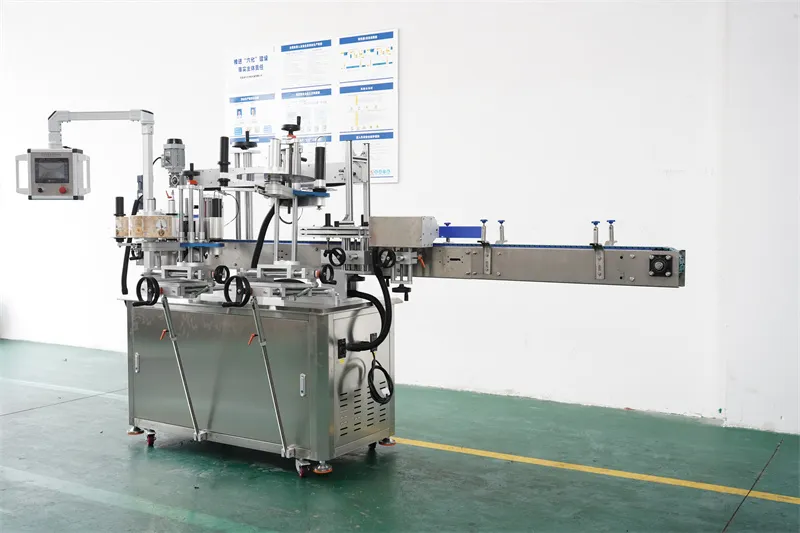

Machine Detail 1

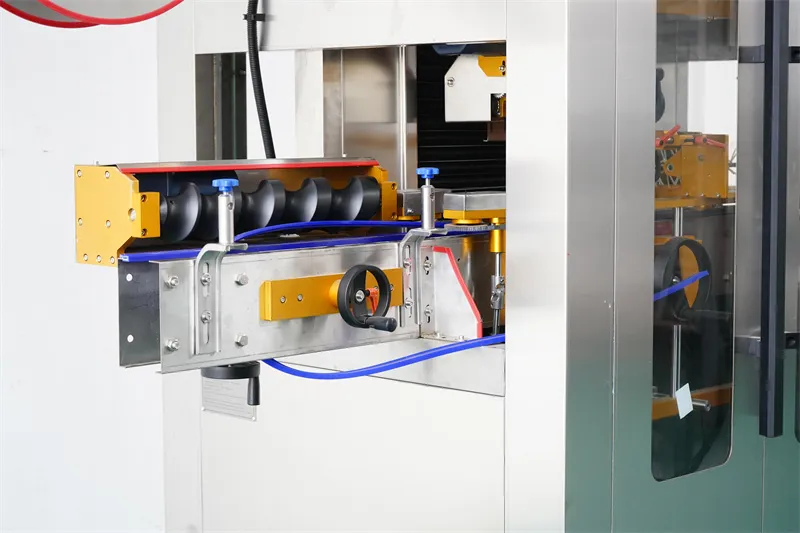

Machine Detail 2

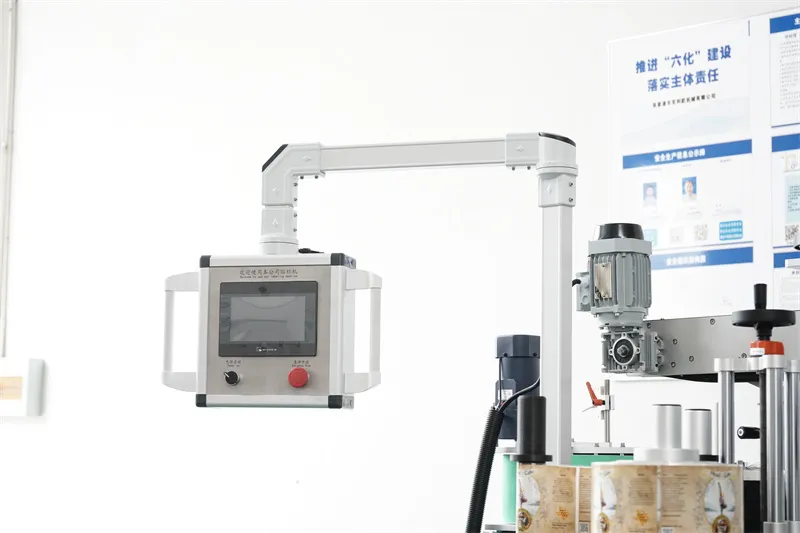

Machine Detail 3
📊

Product Parameters

Use PowerAC380V 60HZ 14KW
Labeling Station8, 12, 15, 18, 24 (Customizable)
Speed AdjustmentInfinitely variable speeds
Bottle DiameterΦ 30-110mm (Round) / L30-160mm (Square)
Max Label Height210mm
Label Core SizeInner Φ152.4mm / Outer Φ 600mm
Type of ColloidHot melt glue (two-end application)
Solvay Temperature120-160ºC
📦

Main Product Range

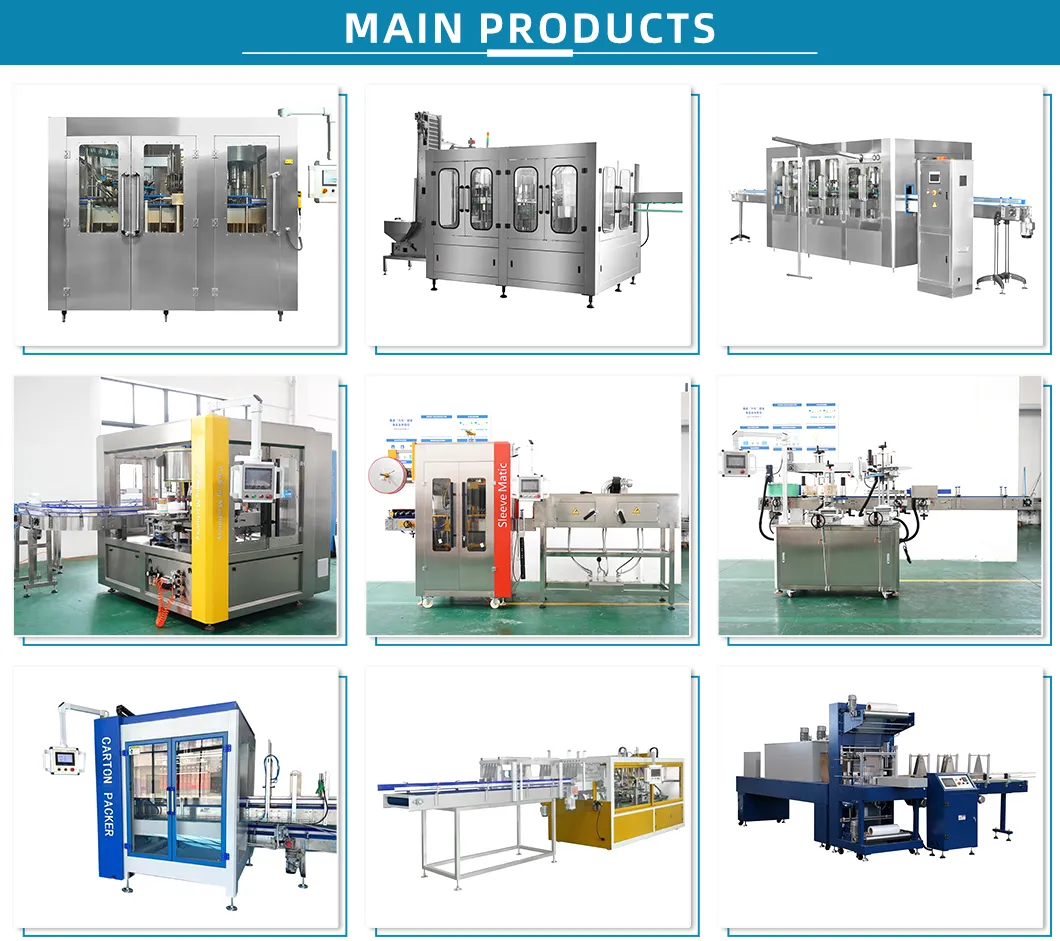

Product Lineup
🏢

Professional Manufacturing

Production Facility

Our facility is a leading beverage machinery manufacturer that integrates R&D, production, and sales. With advanced technology and robust R&D capabilities, we have established a pioneering position in the packaging market. We excel in providing high-quality design and manufacturing for bottle washing, filling, capping, and labeling solutions serving global customers.

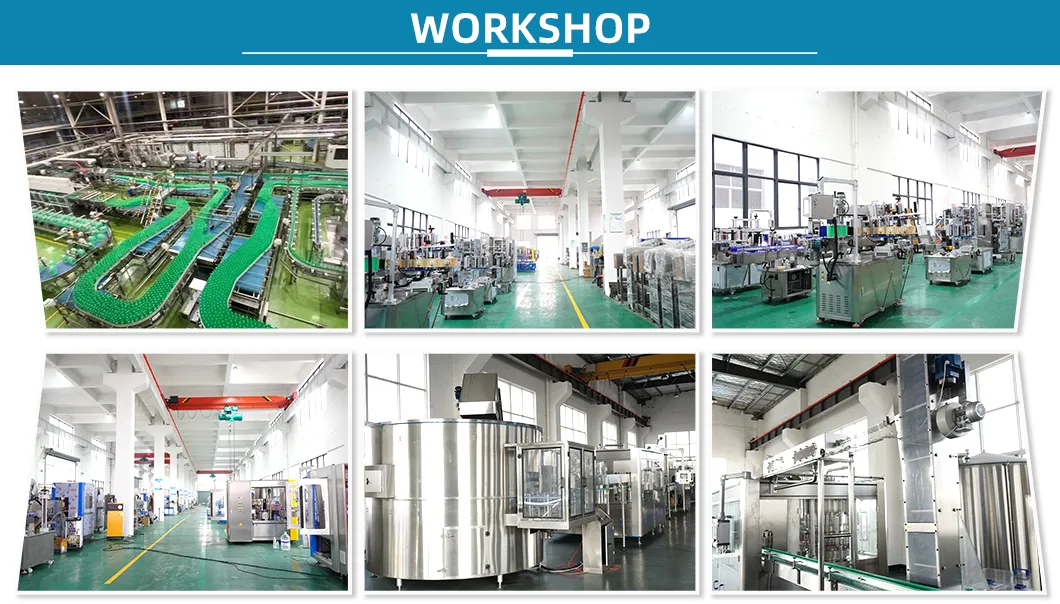

Workforce

Our core business focuses on washers, fillers, and labelers. We aim to present the most suitable and reliable solutions in the packaging industry, listening to client needs to provide tailored troubleshooting and smooth equipment operation.

🛡️

Certifications & Shipping

Certifications
🤝

Partners & Exhibitions

Partners
Exhibition
🚢

Packaging & Delivery

Packaging

Frequently Asked Questions

Q1: What is the production capacity of this labeling machine? The running speed ranges from 6,000 to 20,000 bottles per hour, depending on the specific model and container size.
Q2: Which bottle shapes are compatible with the equipment? It is highly versatile and supports round bottles, square bottles, and ellipsoidal containers through specialized cam curves and multi-wedge belts.
Q3: How does the machine ensure labeling accuracy? We use a high-precision servo control system combined with color mark detection, achieving a cutting accuracy of ±0.5mm to 1mm with no cumulative error.
Q4: What are the benefits of using hot melt adhesive for labeling? Hot melt glue provides instant curing in 0.3 seconds. Our system only applies glue to the front and back edges, ensuring a tight bond while minimizing adhesive consumption.
Q5: Is the machine easy to maintain? Yes, key components like brushes and cutting knives are modular. We use wear-resistant materials like silicone rollers and self-lubricating parts to extend service life and reduce mechanical failure.
Q6: What control system is used for operation? The machine is powered by a PLC control system with a 7-inch touch screen that monitors status in real time and supports parameter memory and fault alarms.
