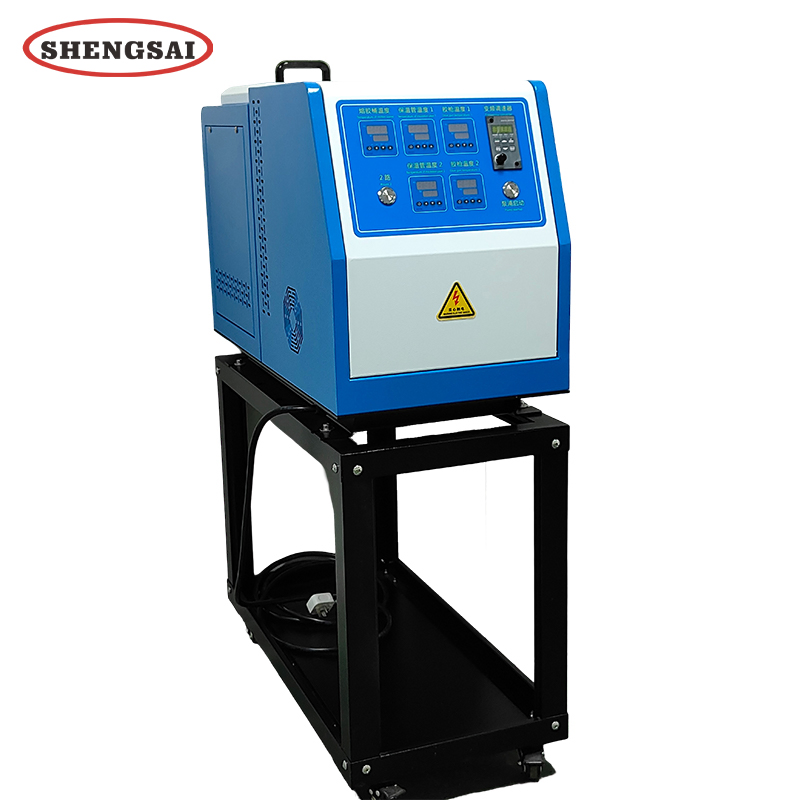

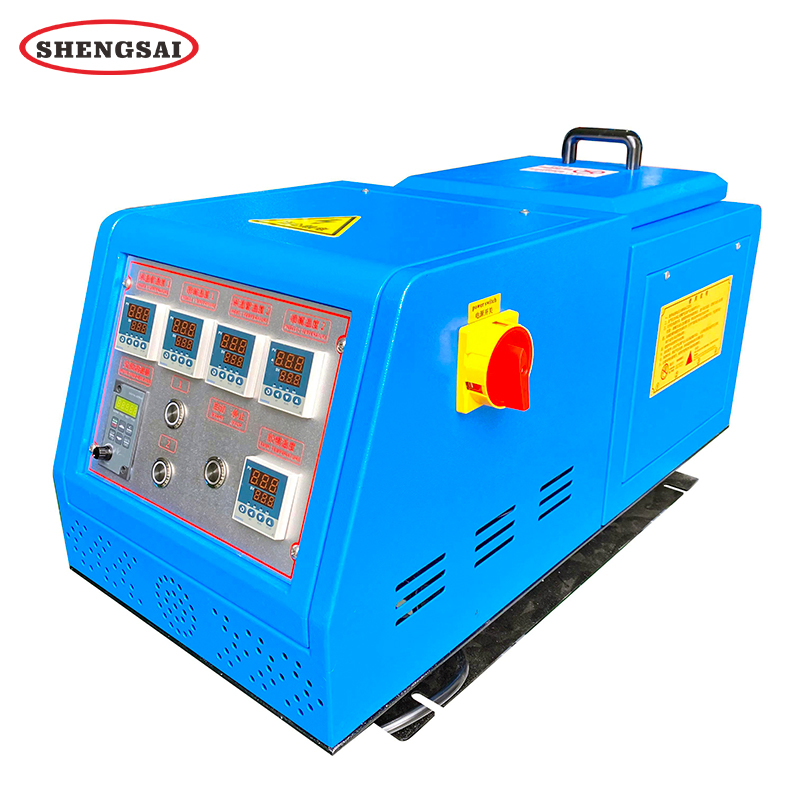

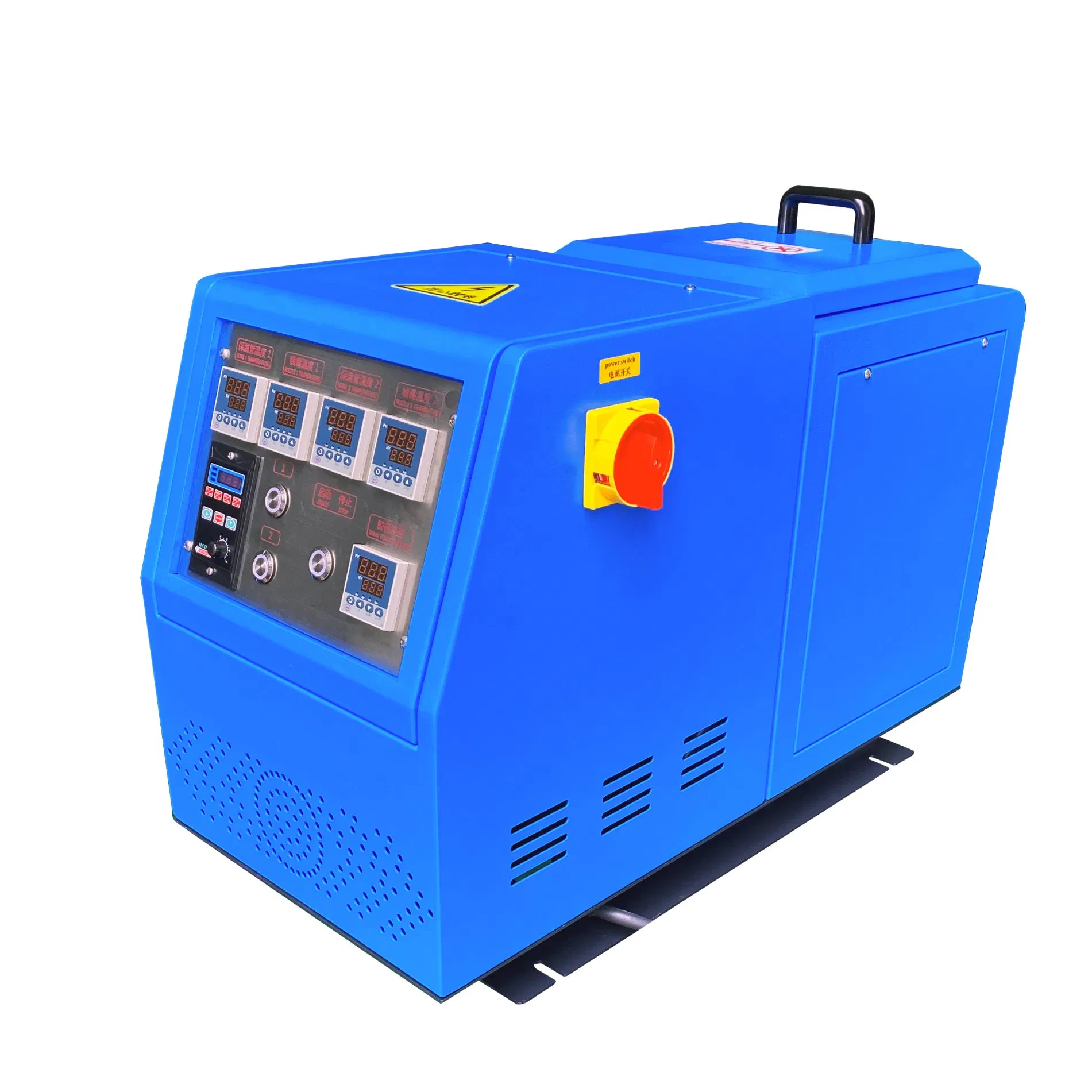

Auto Gluing Machine for Hardcover Books Small Capacity 10 Liter Hot Melt Adhesive Paper Box Dispensing Machine

Customization: Available
After-sales Service: Provide
Warranty: 12 Months

Product Description

i

Basic Information

Product Name
Hot Melt Glue Machine S10
Automatic Grade
Semi-Automatic
Glue Type
Hot Melt Adhesive
Glue Tank Capacity
10L
Driven Type
Mechanical
Weight
65kg
Temperature Range
0-250ºC
Glue Melting Speed
15kg/H
Power Supply
220V/50Hz
Pumping Mode
High Precision Metering Pump 6cc/9cc/12cc

Overview & Video

Machine Video Cover
Full View Machine

Technical Specification

Machine ModelS10
Power supplyAC50HZ/220V
Total power4KW
Motor power200W
Machine dimension820*420*1130mm
Machine weight65kg
Melter tank capacity10L
Glue melting speed10kg/h
Applicable viscosity500-20000CPS
Glue guns outputs1-4 guns
Operating temperatureMAX 220 Deg.C.

Product Description

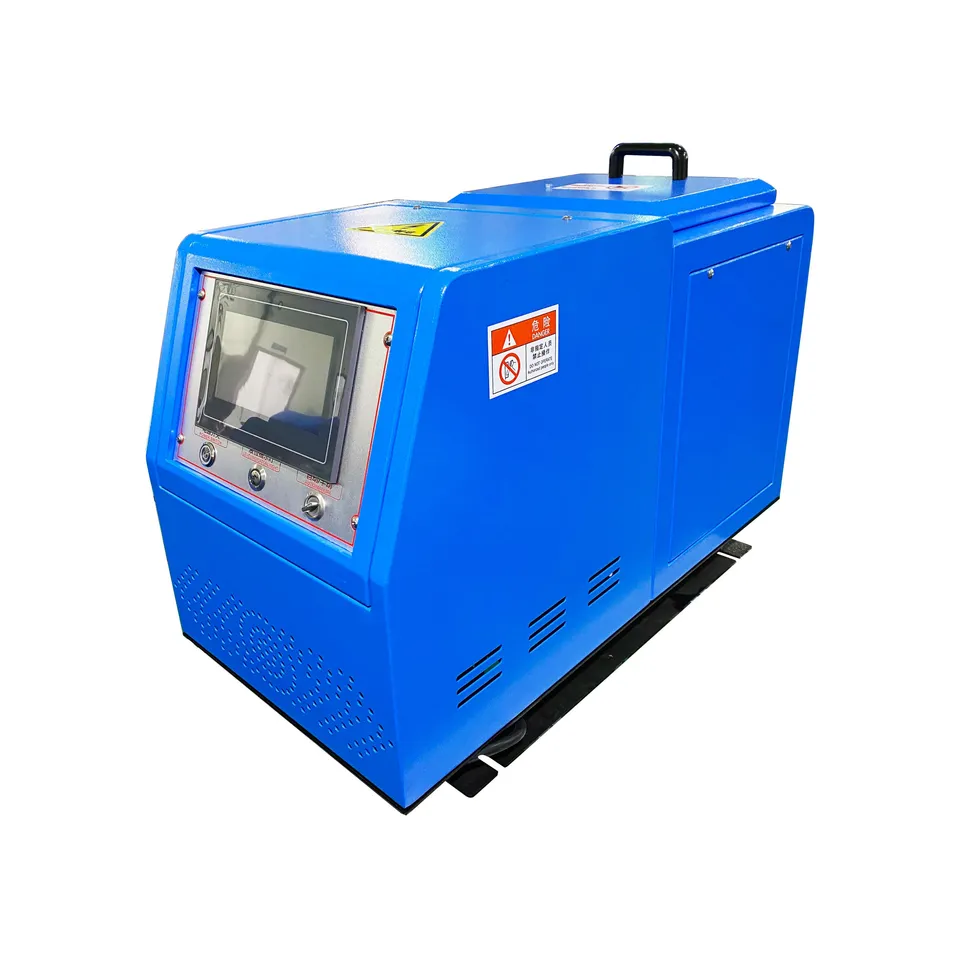

Machine Front View
HOT MELT ADHESIVE MACHINE INTRODUCTION

Hot melt adhesive machines are an innovative solution designed to simplify the bonding process in a variety of industrial applications. These machines utilize thermoplastic adhesives, which are heated to a molten state before being precisely injected into the assembly area, ensuring a strong and durable bond.

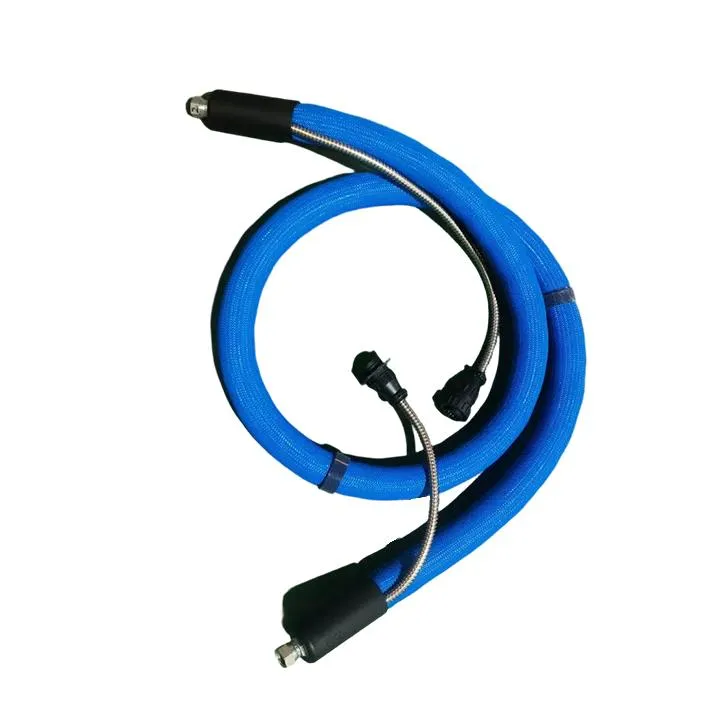

Hose Details

1. The inner pipe adopts 100% imported thickened coating pipe with a diameter of 8MM.
2. Multiple layers of coating as an insulating protective layer using high-grade fireproof cotton.
3. Aviation plug adopts high-quality AMP connectors.

Machine Hose

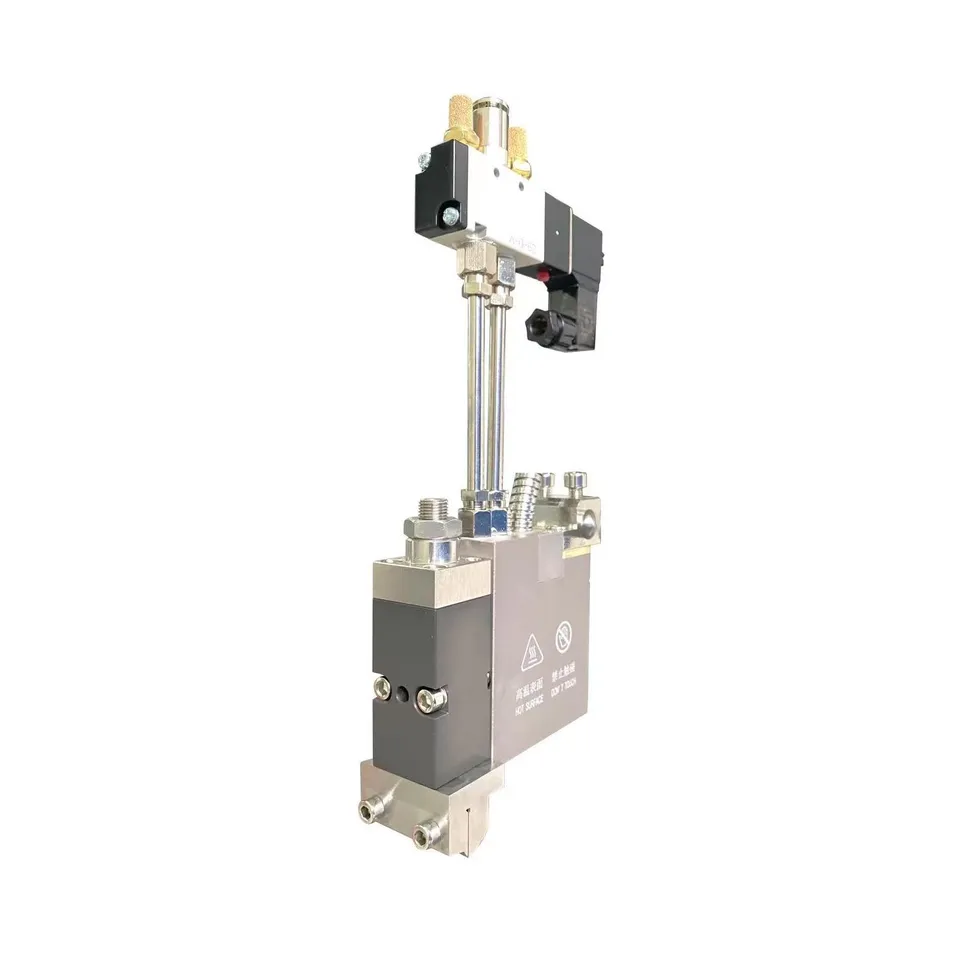

Glue Gun
Glue Guns Details

1. Adopt imported bowl seal ring.
2. High-efficiency heating pipe.
3. Aviation plug AMP.
4. Components made of premium SKD51 material.

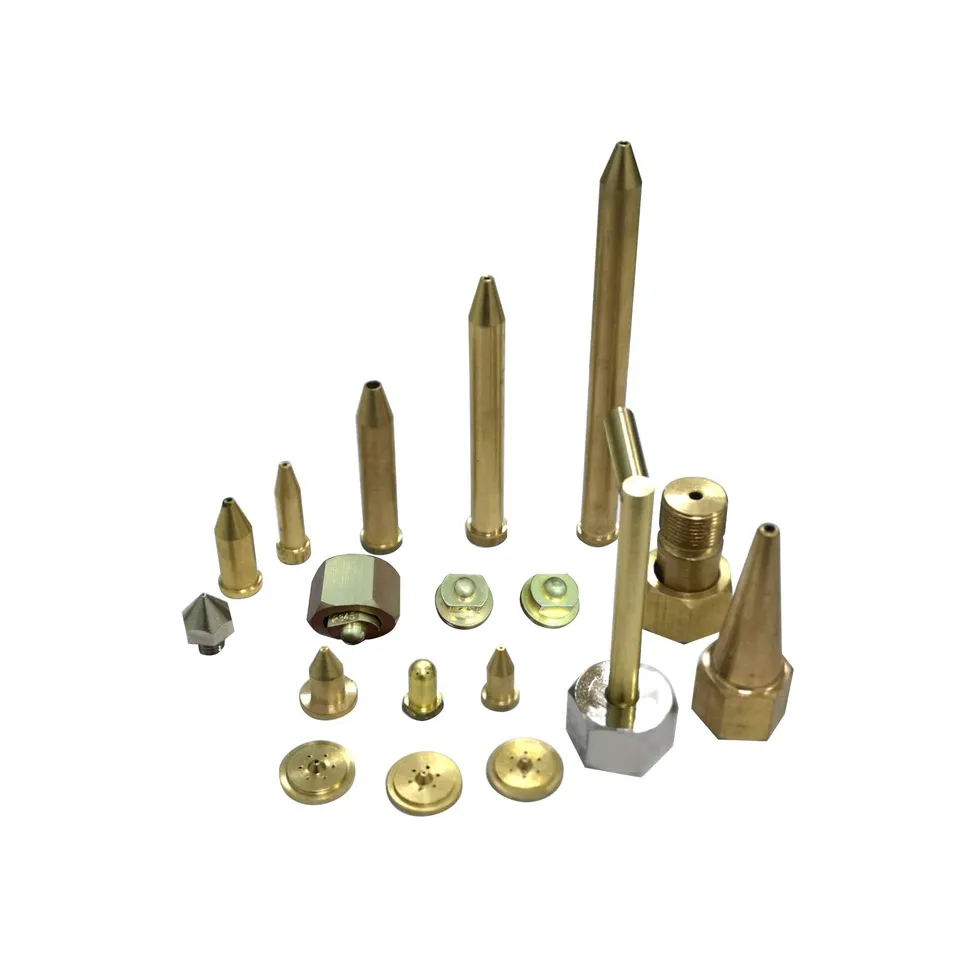

Adhesive Nozzle

The nozzle is responsible for ejecting hot melt adhesive to form precise shapes. Made of high-temperature corrosion-resistant materials, its design ensures consistent flow rate and coating thickness.

Nozzle Detail
📷

Product Gallery

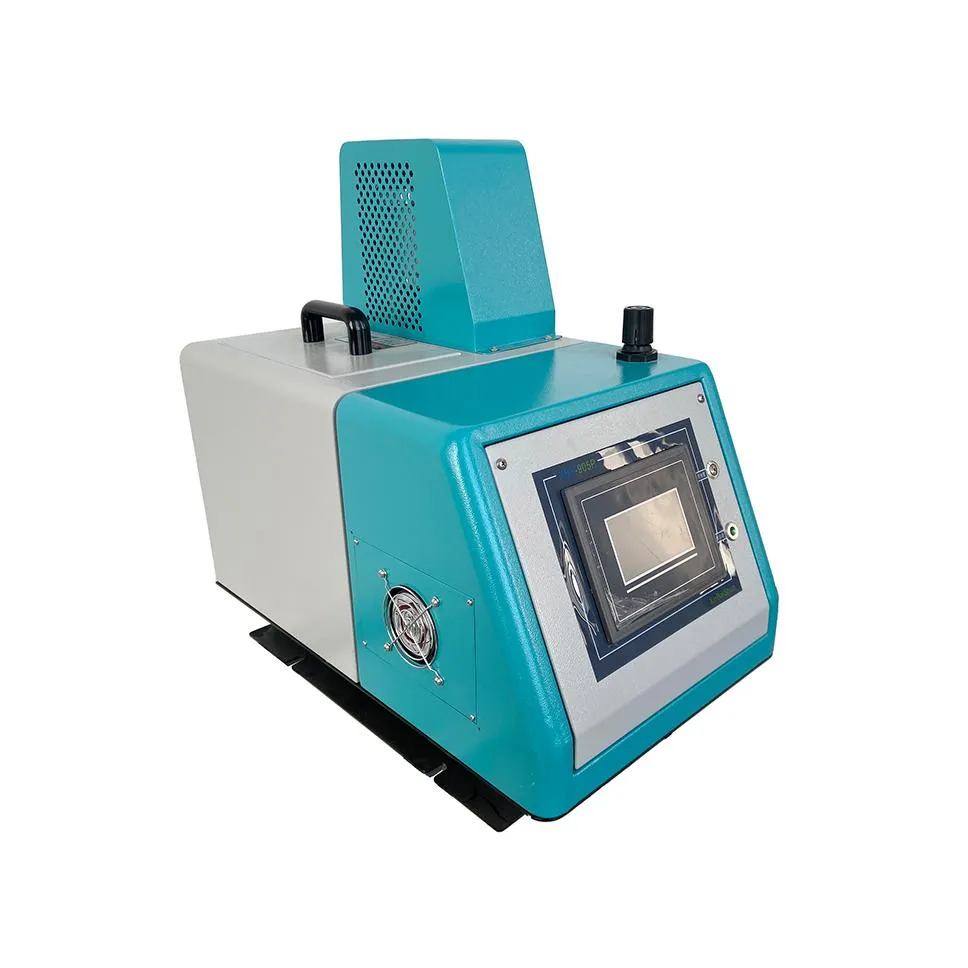

Machine Detail 1

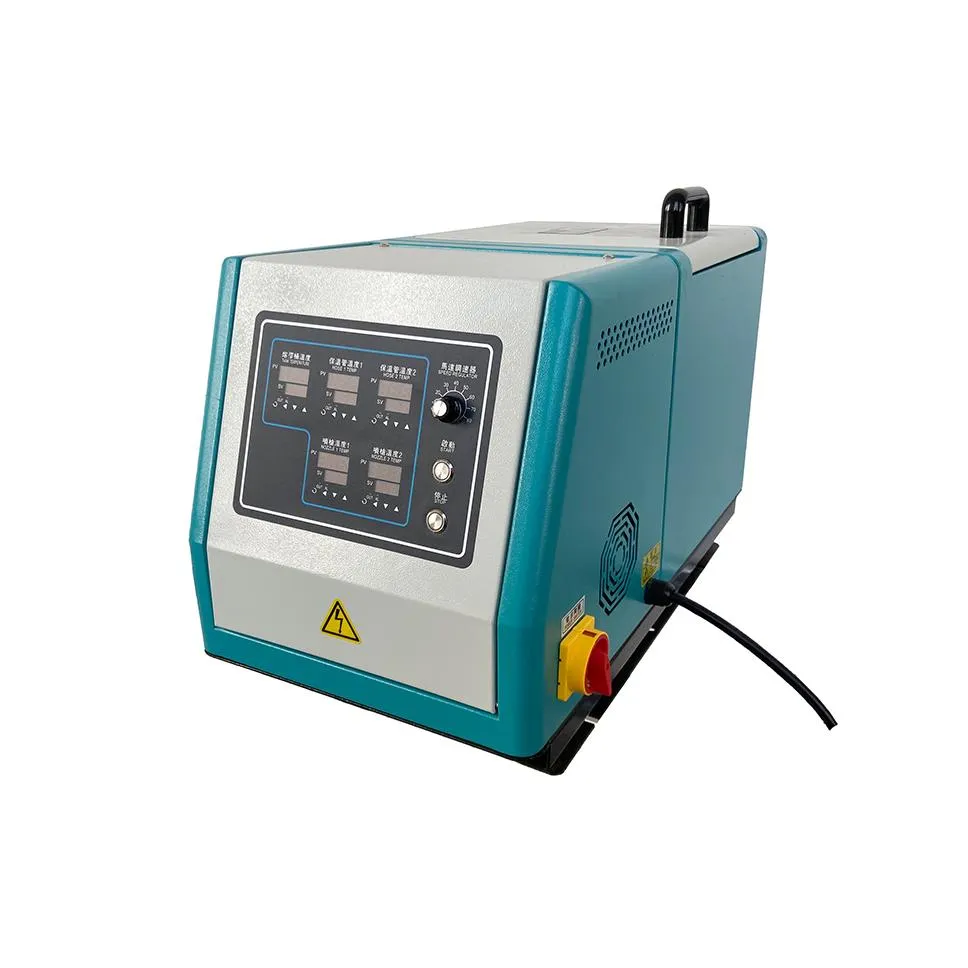

Machine Detail 2

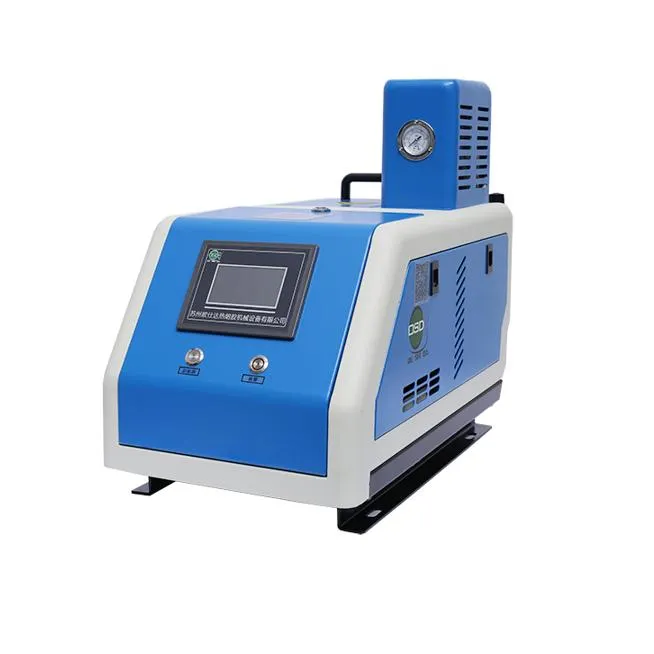

Machine Detail 3

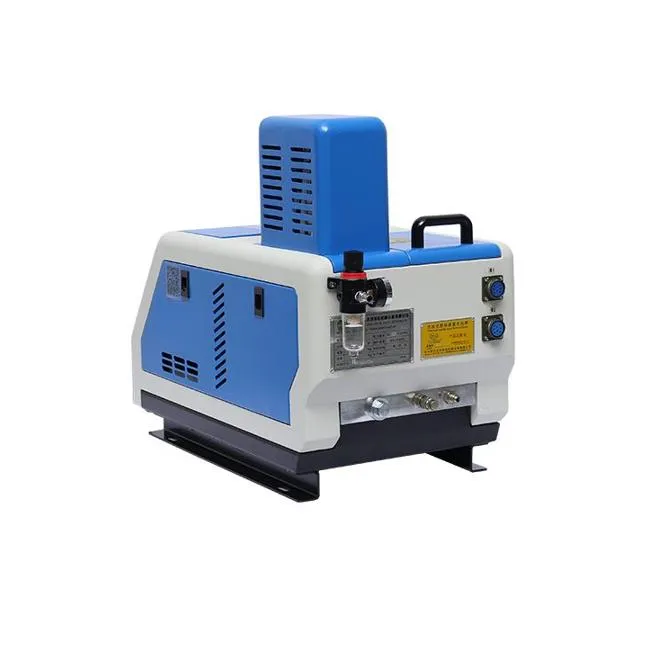

Machine Detail 4

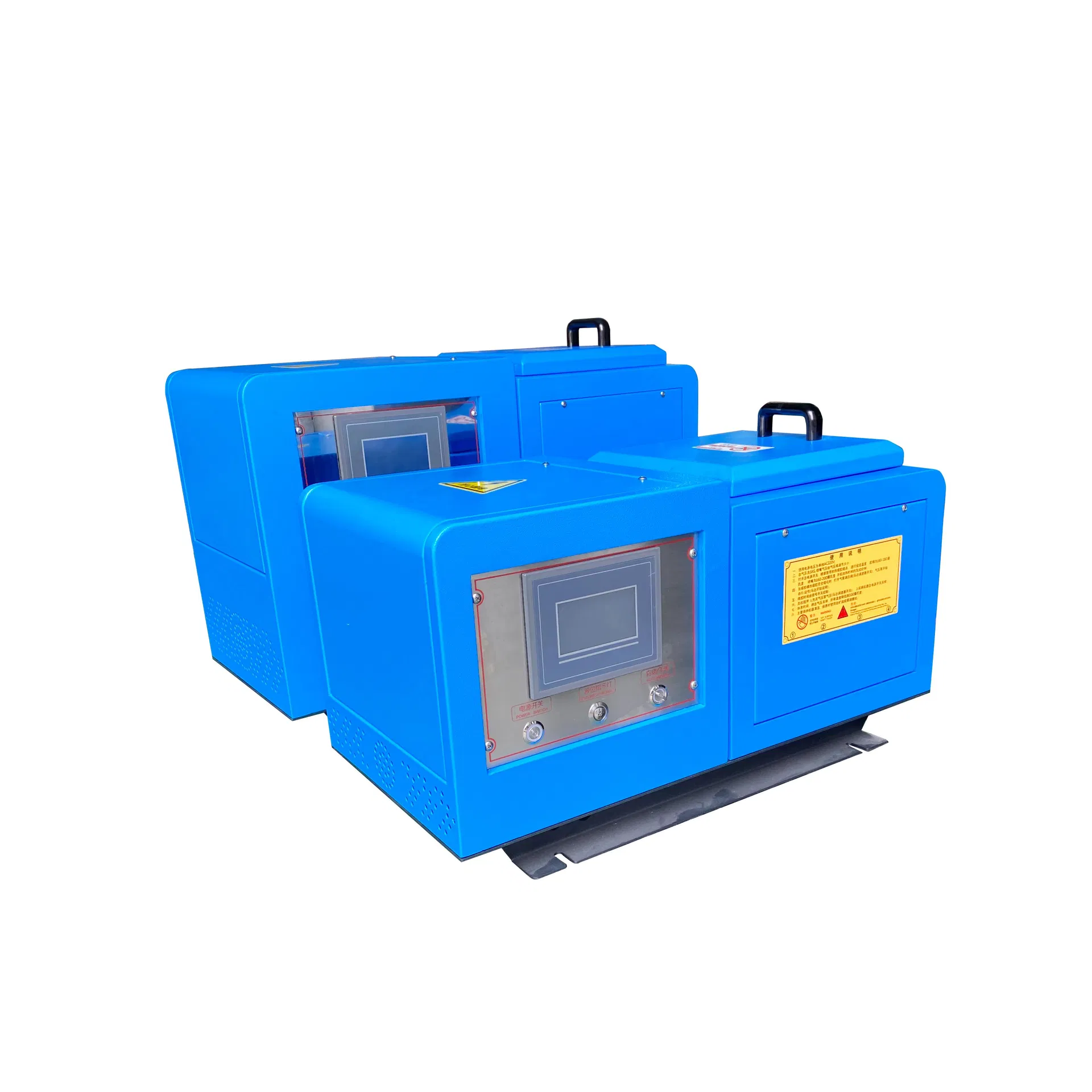

Machine Detail 5

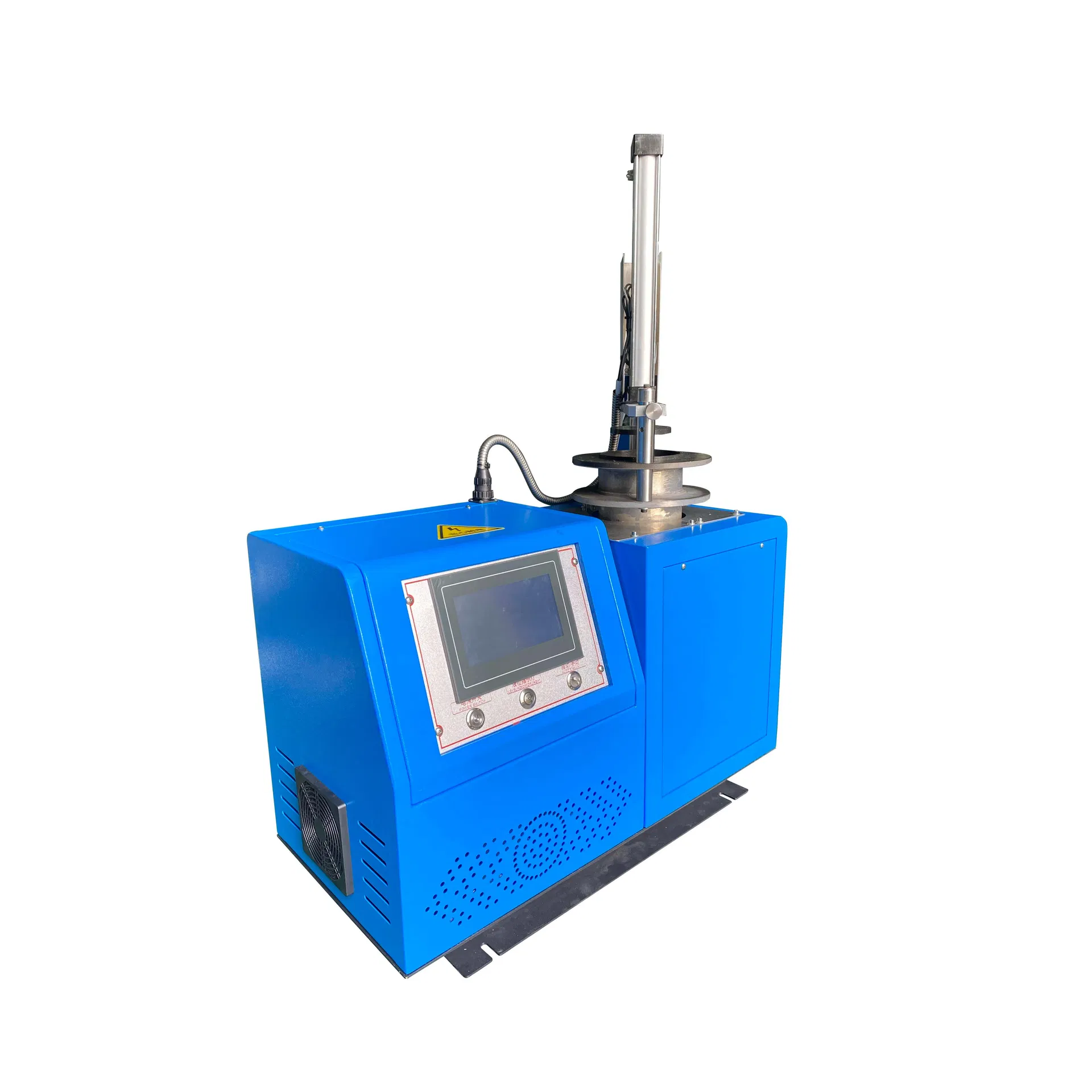

Machine Detail 6

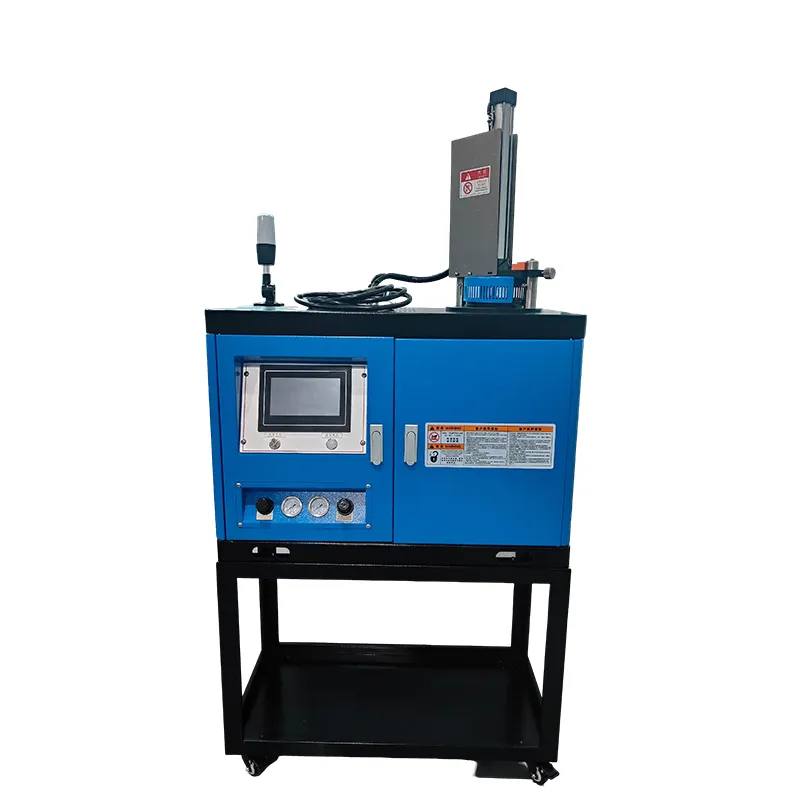

Machine Detail 7

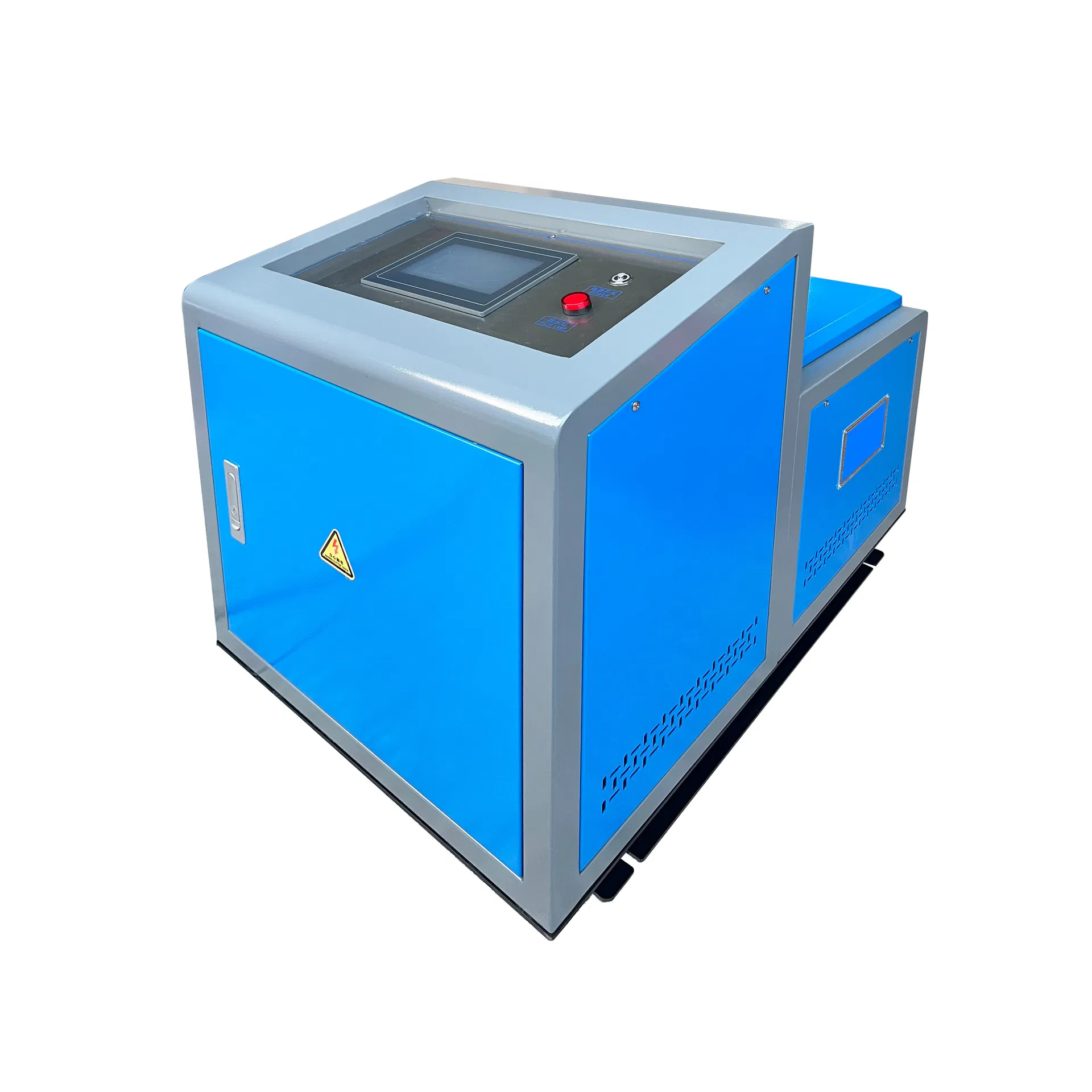

Machine Detail 8

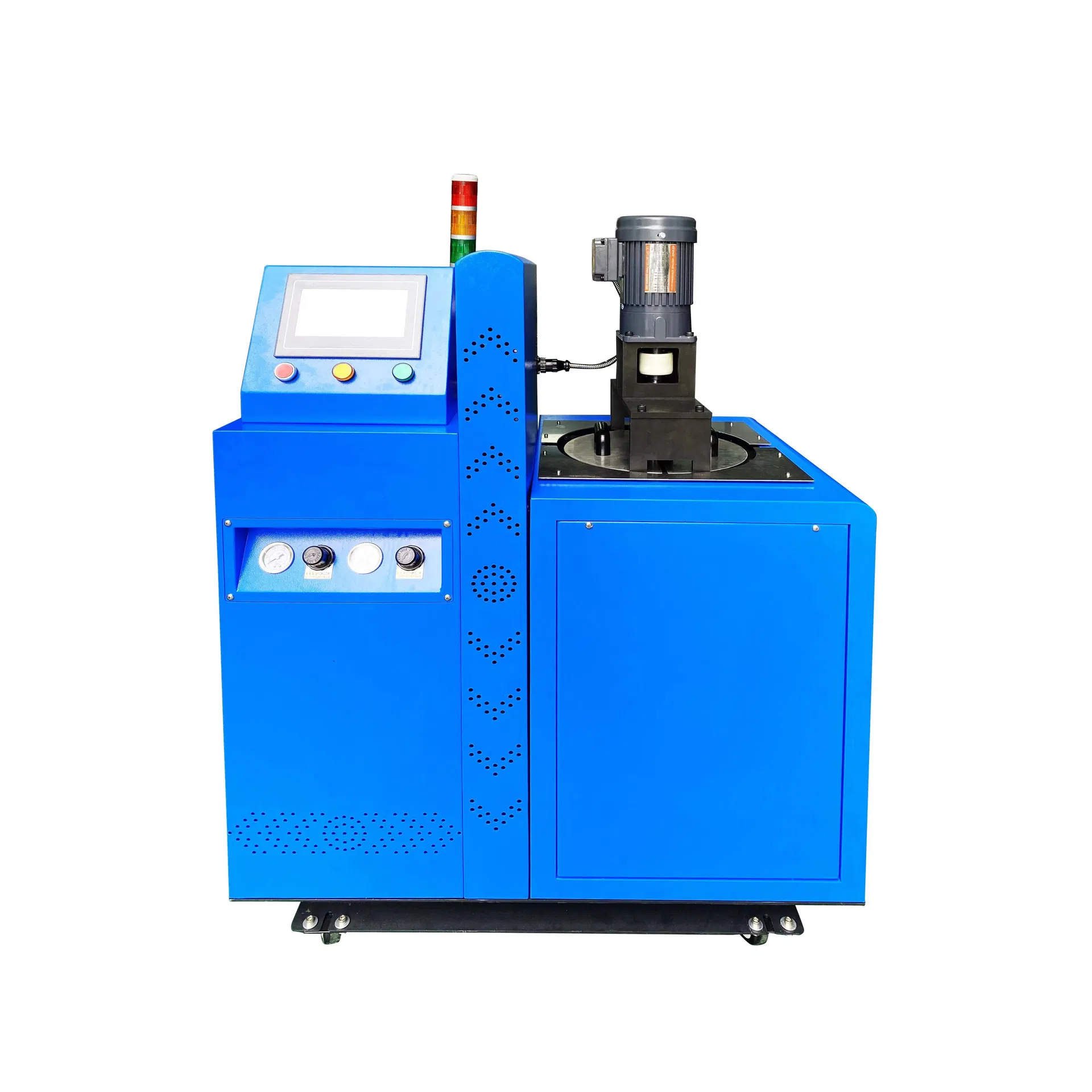

Machine Detail 9
📜

Certifications & Packaging

Certification

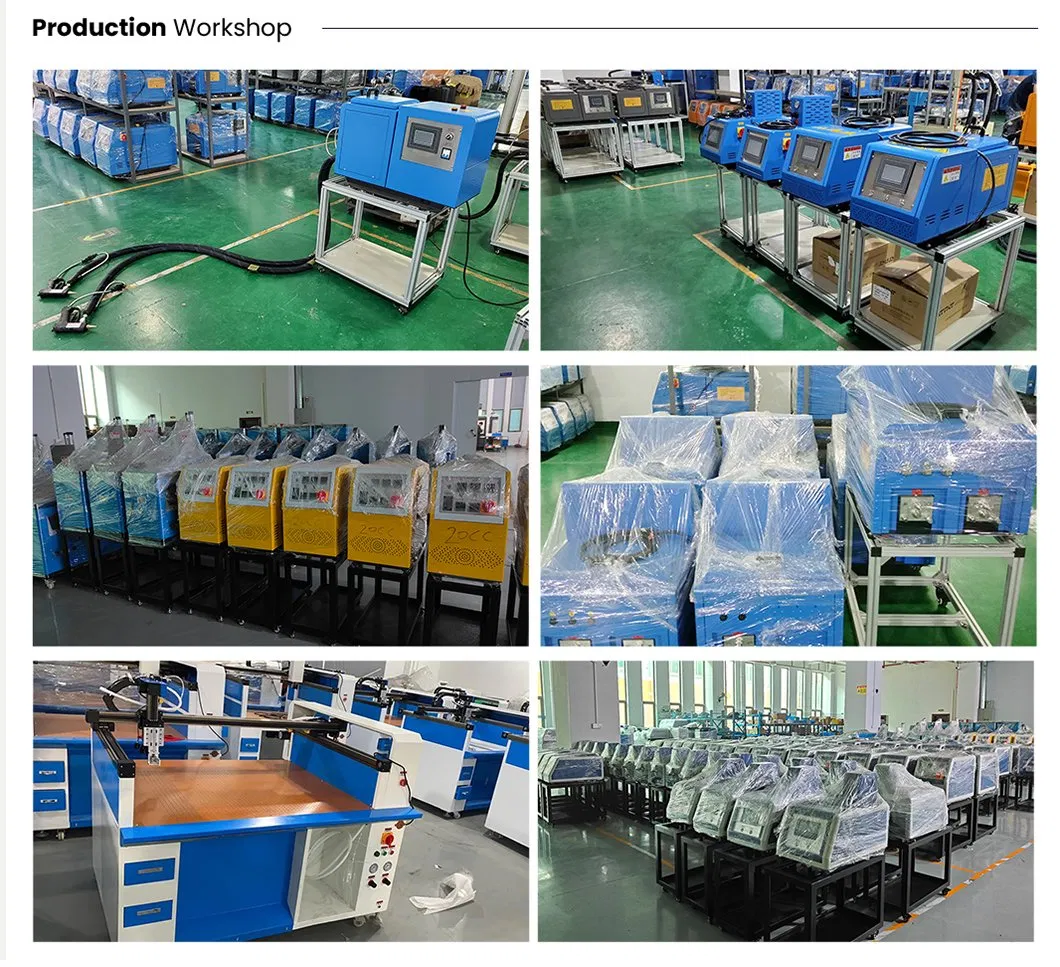

Packaging Box
Shipping Logistics
?

Frequently Asked Questions

What is the capacity of the S10 glue tank?
The S10 model features a large 10-liter melter tank capacity with a melting speed of approximately 10-15kg/h.
What materials are suitable for this machine?
It is widely used for machinery, hardware, shoes, chemicals, textiles, apparel, and leather belt applications.
How many glue guns can be used simultaneously?
The machine is designed to support 1 to 4 glue gun outputs depending on your production requirements.
What is the maximum operating temperature?
The temperature range is 0-250ºC, with a standard operating max of 220ºC.
What kind of power supply does it require?
This machine operates on a standard 220V/50Hz power supply with a total power consumption of 4KW.
Do you provide technical support?
Yes, we provide high-quality machines with a one-year warranty and lifetime technical support for all our customers.
