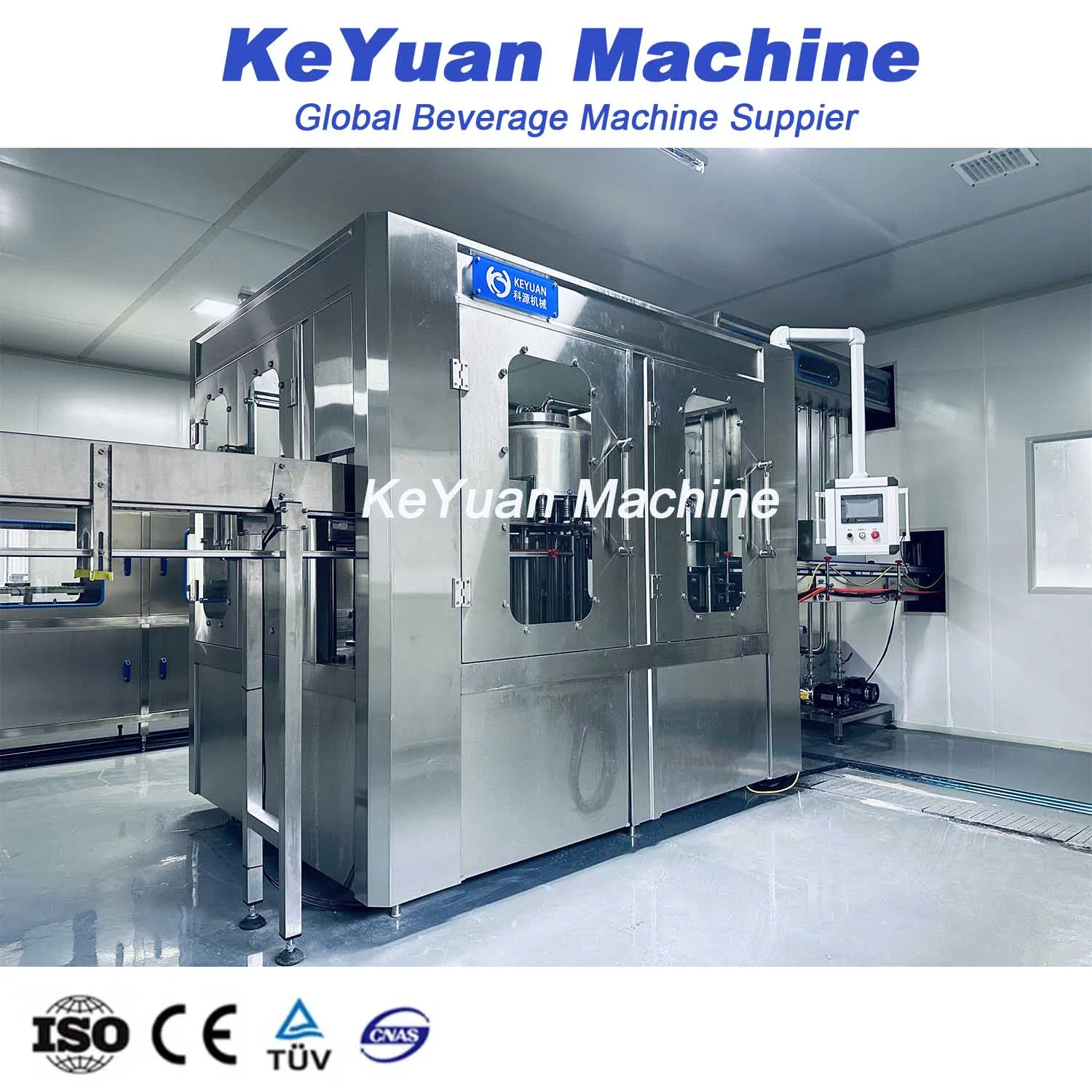

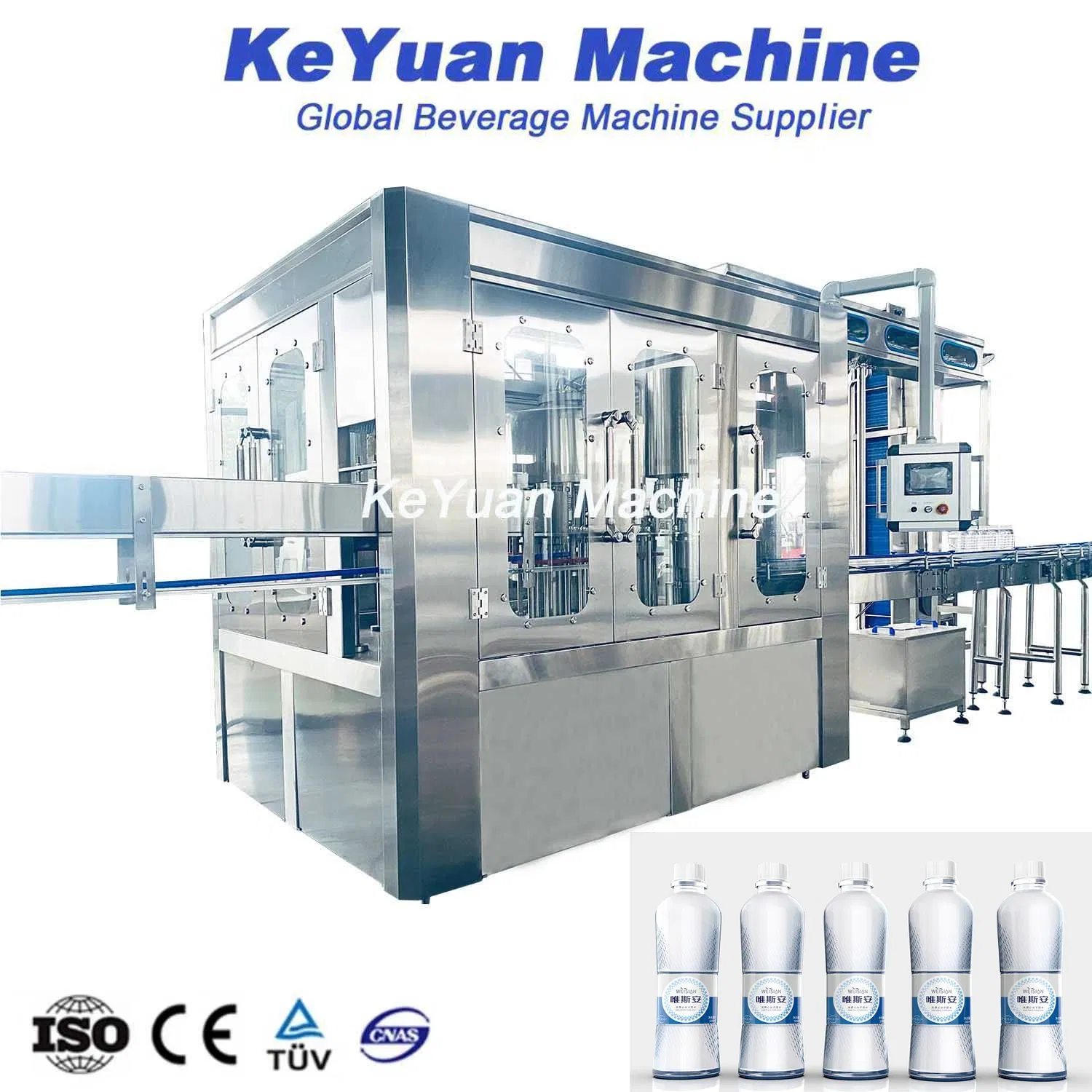

This equipment integrates three functions: bottle rinsing, quantitative filling and constant-torque capping. Made of food-grade SUS304 stainless steel, it is suitable for carbonated drinks, bottled water, and fruit juice. With a capacity of 5000-12000 BPH, it fits 300ml-2000ml PET/glass bottles.
| Model | XGF8-8-3 | XGF12-12-6 | XGF18-18-6 | XGF24-24-8 | XGF32-32-12 |
|---|---|---|---|---|---|
| Capacity(500ML) | 2000bph | 5000bph | 8000bph | 12000bph | 15000bph |
| Washing heads | 8 | 12 | 18 | 24 | 32 |
| Filling heads | 8 | 12 | 18 | 24 | 32 |
| Capping heads | 3 | 6 | 6 | 8 | 12 |
| Weight | 1500kg | 2000kg | 4000kg | 4500kg | 6000kg |
| Main motor | 3kw | 4kw | 5kw | 6kw | 7kw |

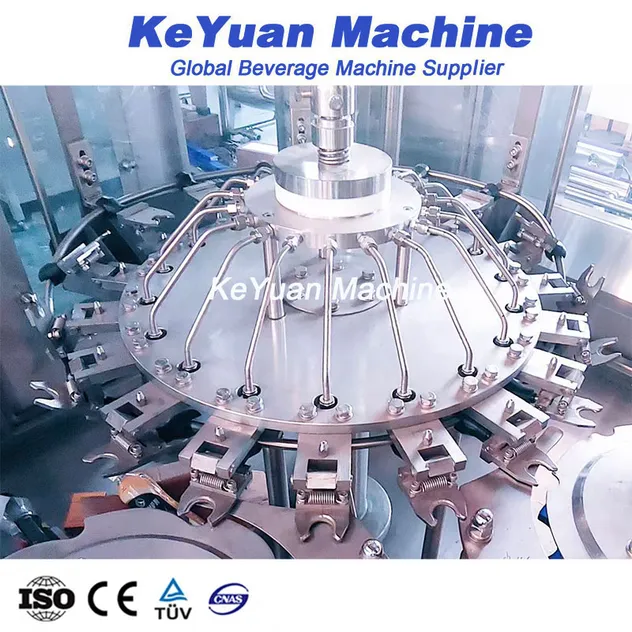

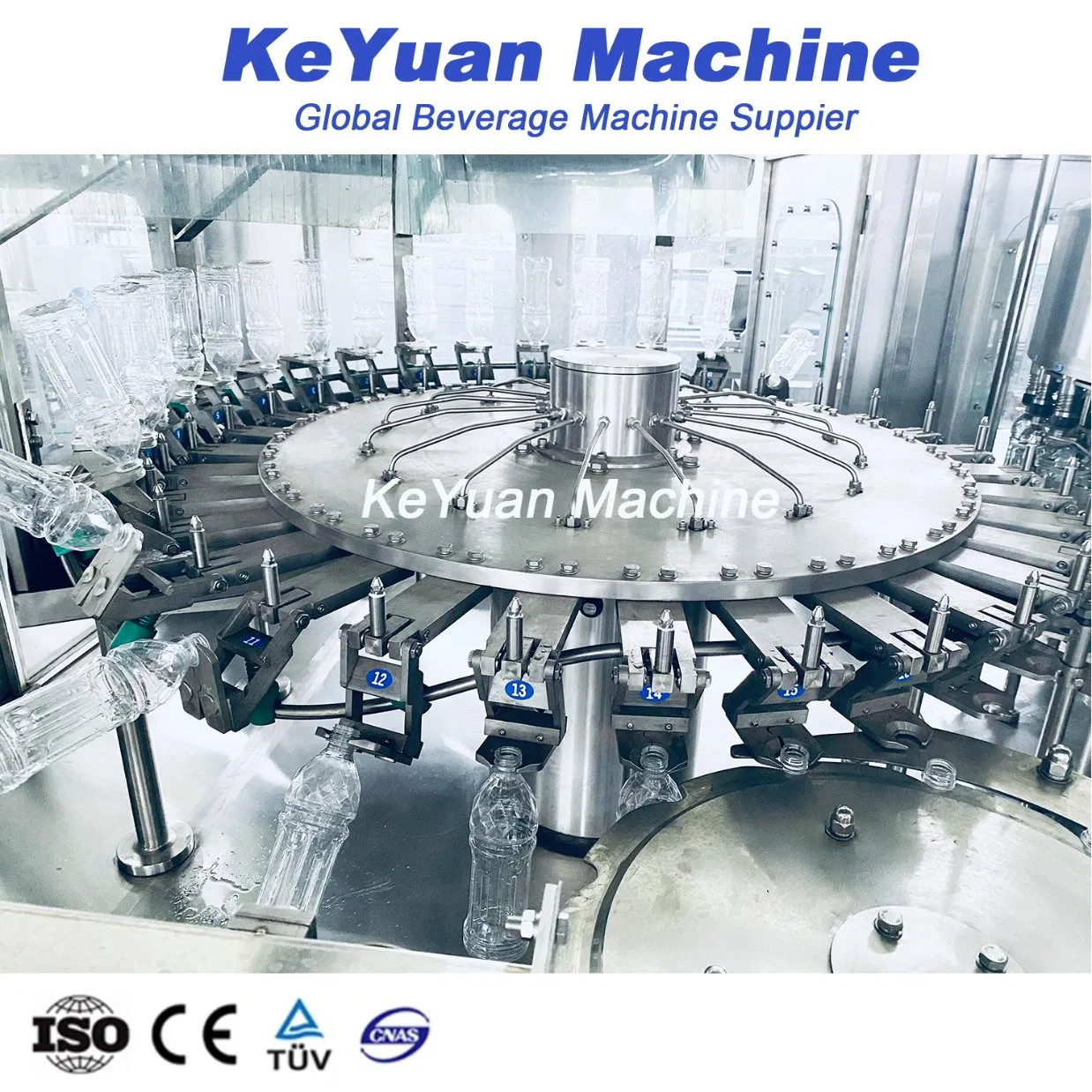

Multi-station sterile water rinsing, completes cleaning in < 2 seconds.

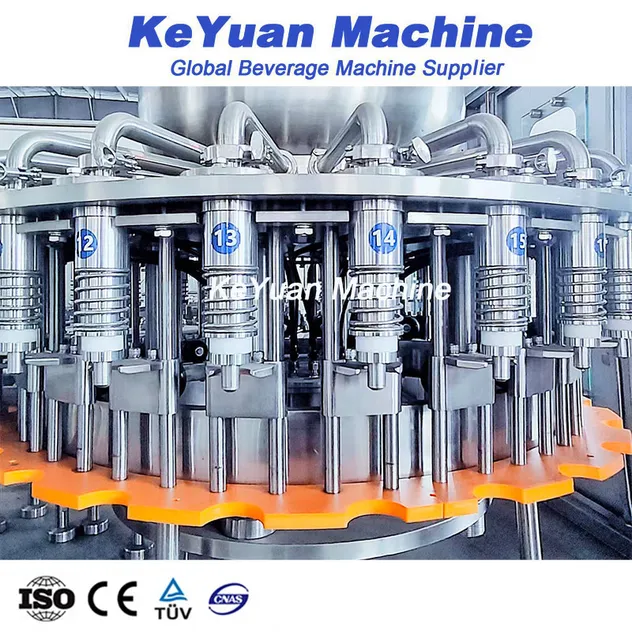

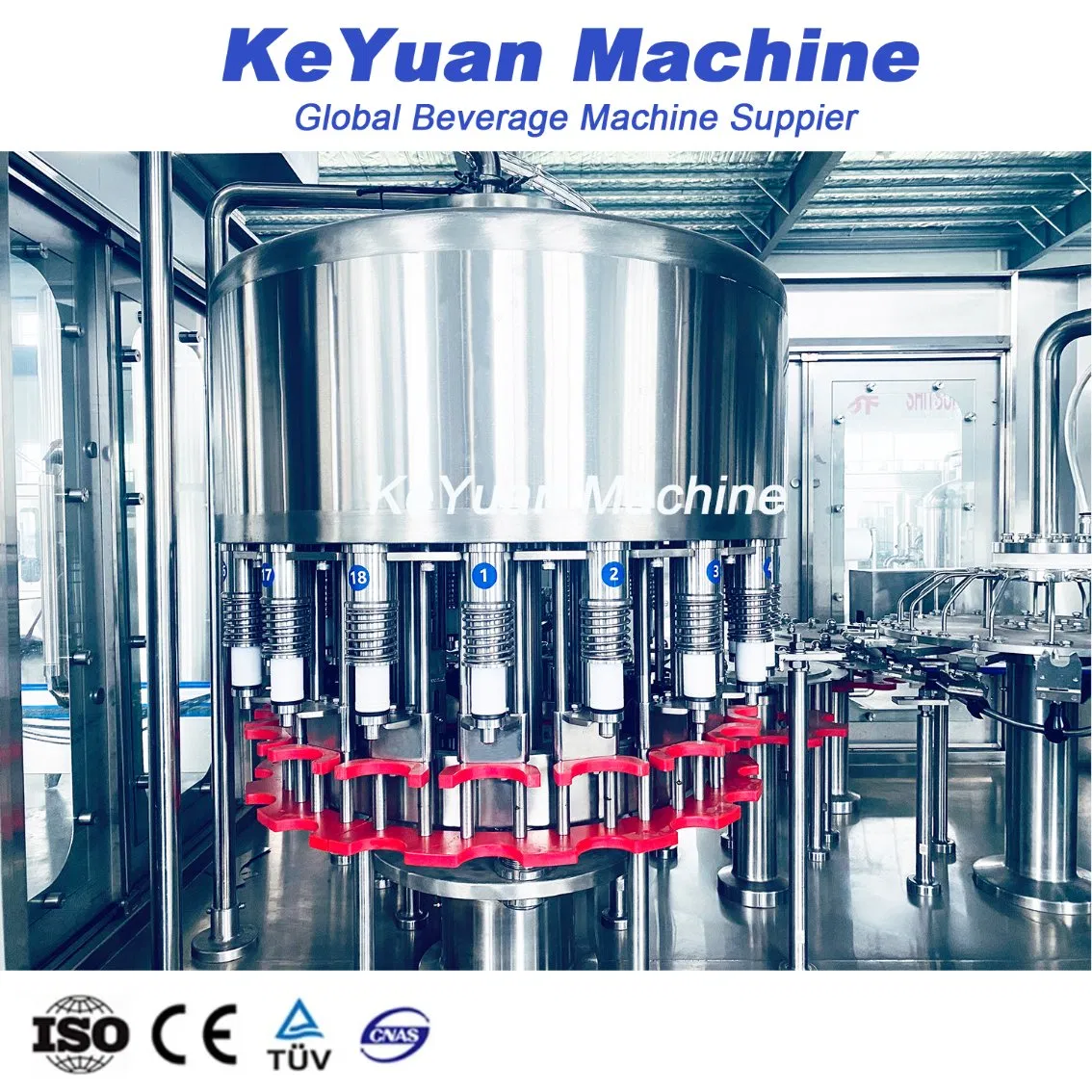

Gravity/isobaric filling with liquid level error ≤±1mm.

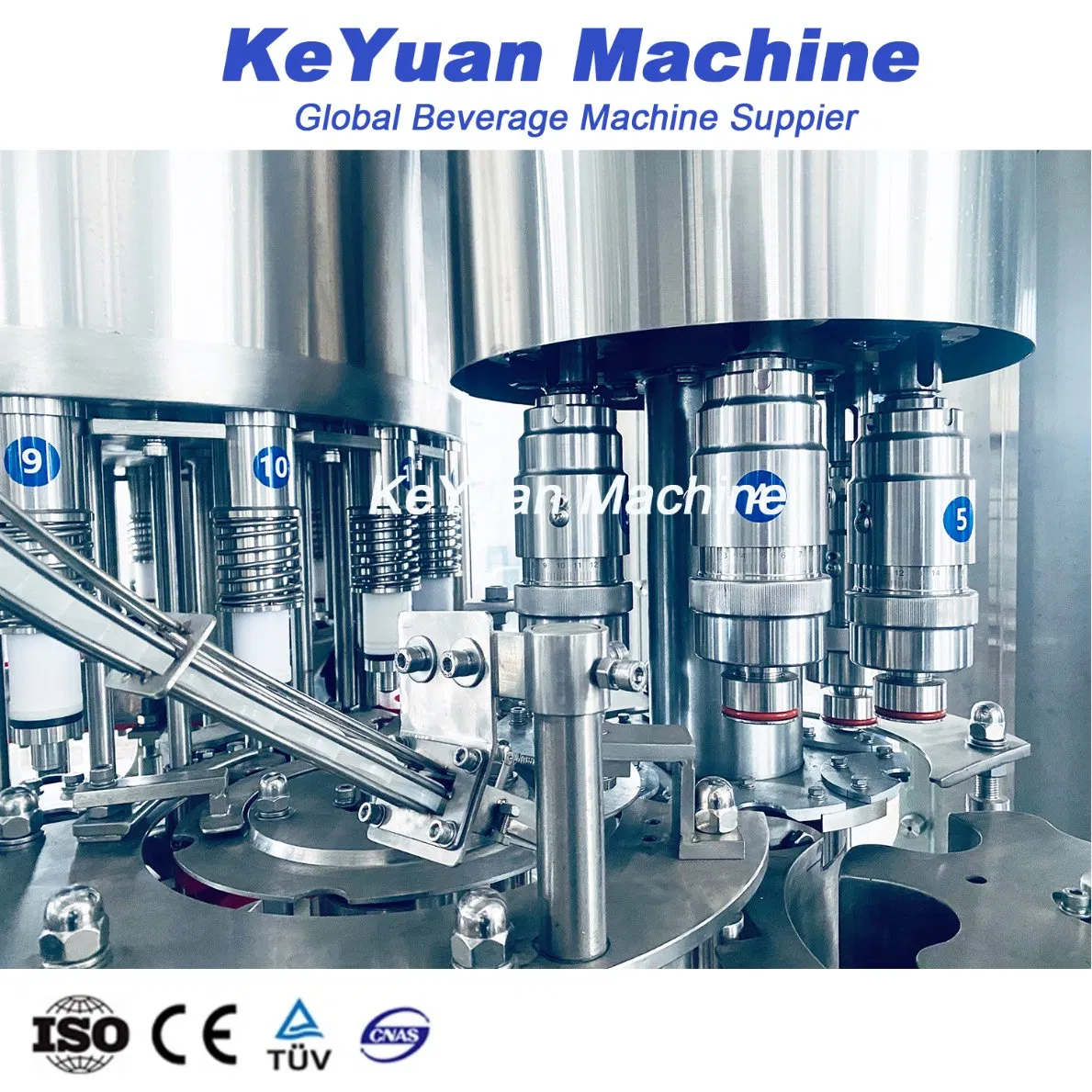

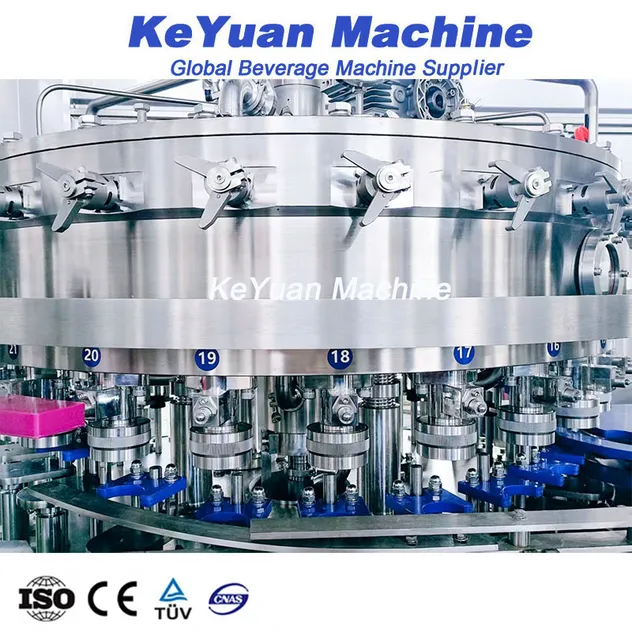

Constant-torque capping with leakage rate < 0.1%.
