Heping Mechanical
1 / 5
| Model NO. | DC-PFS01 |
| Type | Piston Filling Machine |
| Automatic Grade | Fully Automatic |
| Material Type | Paste |
| Filling Valve Head | Multi-Head |
| Feed Cylinder Structure | Single-Room Feeding |
| Dosing Device | Plunger |
| Filling Principle | Atmospheric Pressure |
| Structure | Rotary |
| Packaging | Bottle |
| Packaging Material | Plastic |
| Tube Type | Aluminum Plastic, Laminate Tube |
| Voltage | 220V 50Hz |
| Power | 2.3kw |
| Production Rate | 16-32PCS/Min |
| Tube Diameter | 16-60mm |
| Tube Length | 40-230mm |
| Filling Capacity | 1-350ml |
| Filling Accuracy | 1-20ml:+-0.03, 25-350ml:+-0.5 |

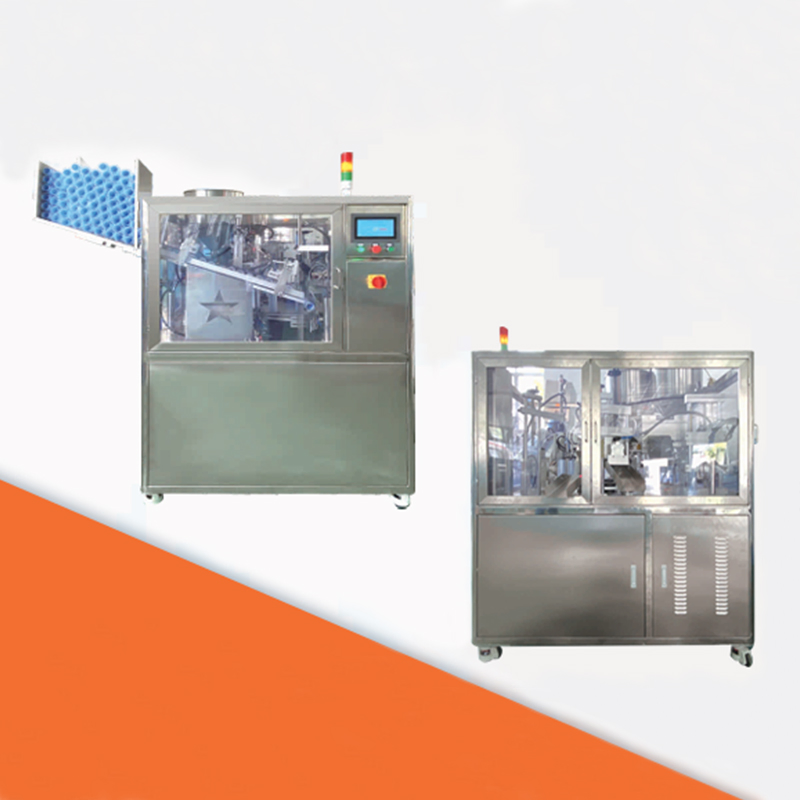

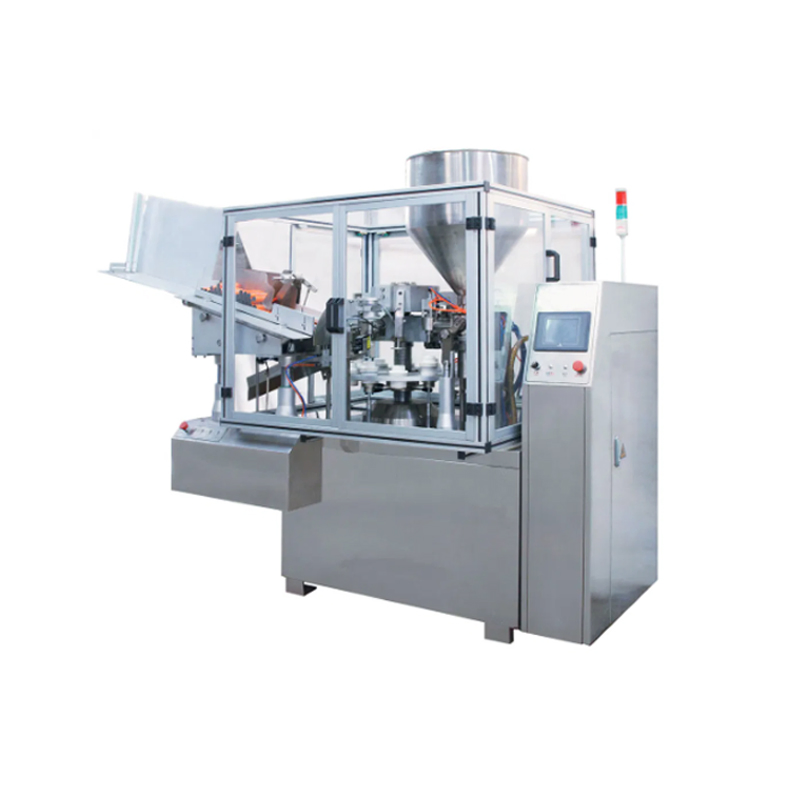

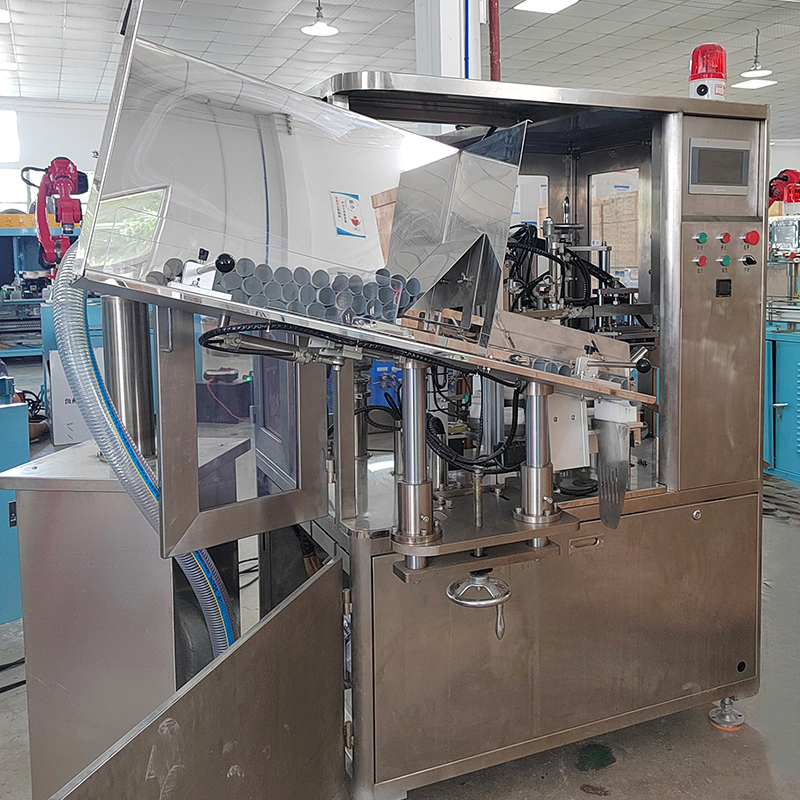

Automatic Cosmetic Soft Tube Filling and Sealing Bottling Machine
Application: Suitable for medical chemicals, daily necessities, cosmetics, health products, and other filling and sealing methods.
Process Flow:
Pipe bin (hose container) → automatic pipe loading → marking and positioning → filling → tail hot melt → pressing and sealing tail → Typing Code → hose positioning → cutting → finished product discharge

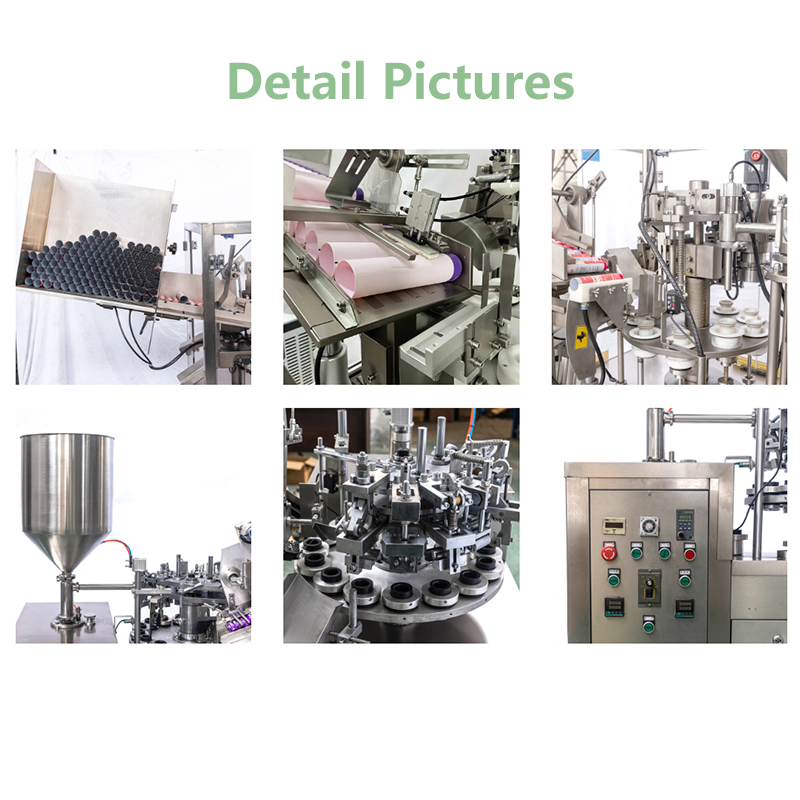

This high-tech equipment is designed strictly to meet GMP requirements. Utilizing a PLC controller and color touch screen, it handles ointment, cream jellies, or high-viscosity materials. Features include 12 stations with a manipulator for various tail folding and sealing requirements.
| Power Supply | 220V/50HZ |
| Power | 2.3 KW |
| Tube Diameter | Ø16-60mm |
| Tube Length | 40-230mm |
| Filling Capacity | 1-350ml |
| Filling Accuracy | 1-20ml:±0.03, 25-350ml:±0.5 |
| Productivity | 16-32 pcs/min |

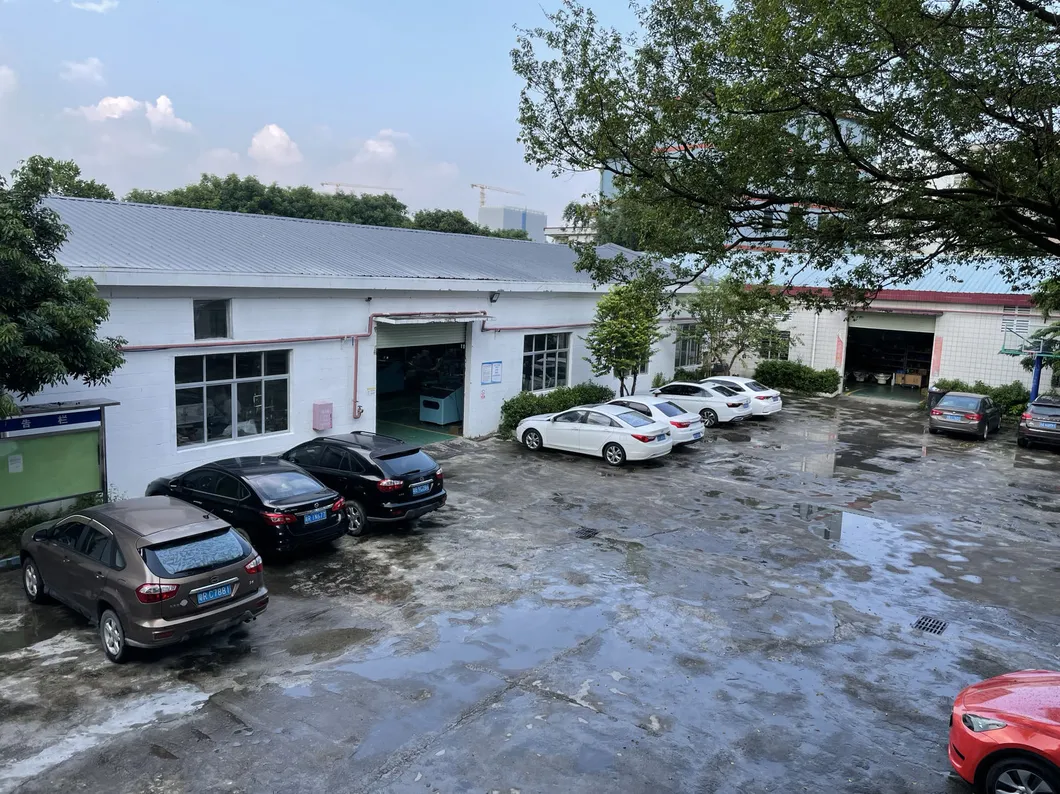

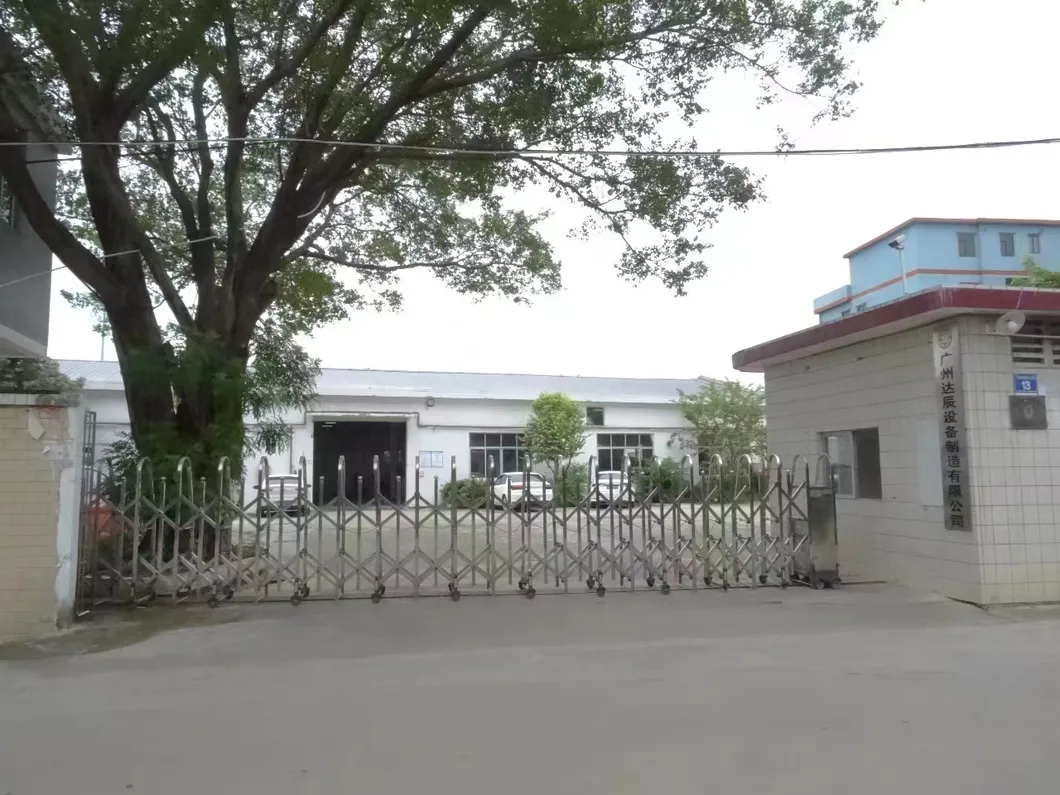

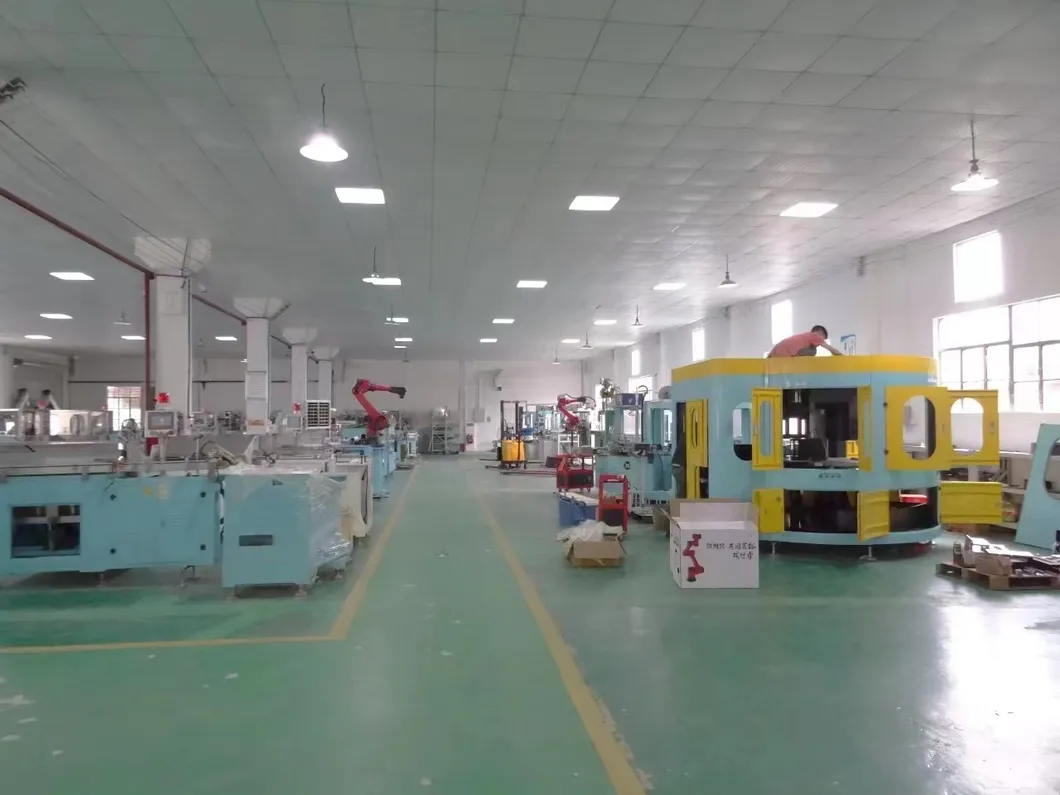

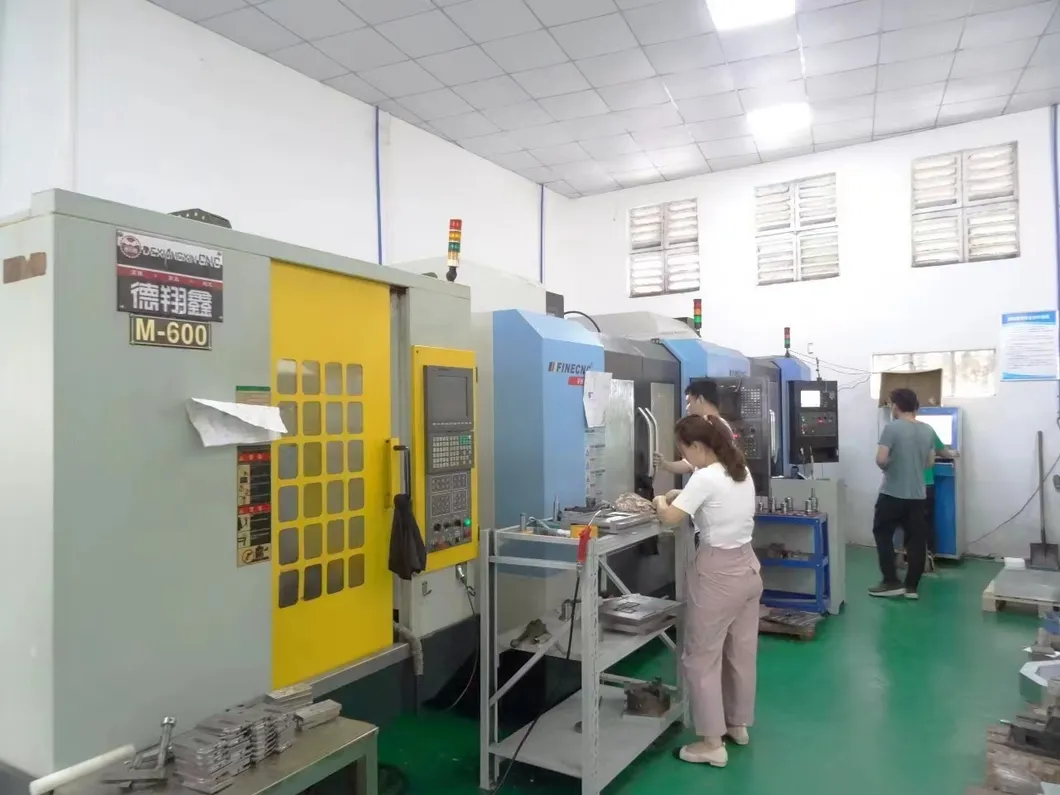

Founded in 2017, we are a creative company specialized in the R&D, production, and sales of various automatic equipment for soft tube packaging. Our machines are widely used in the cosmetic, food, and pharmaceutical industries.

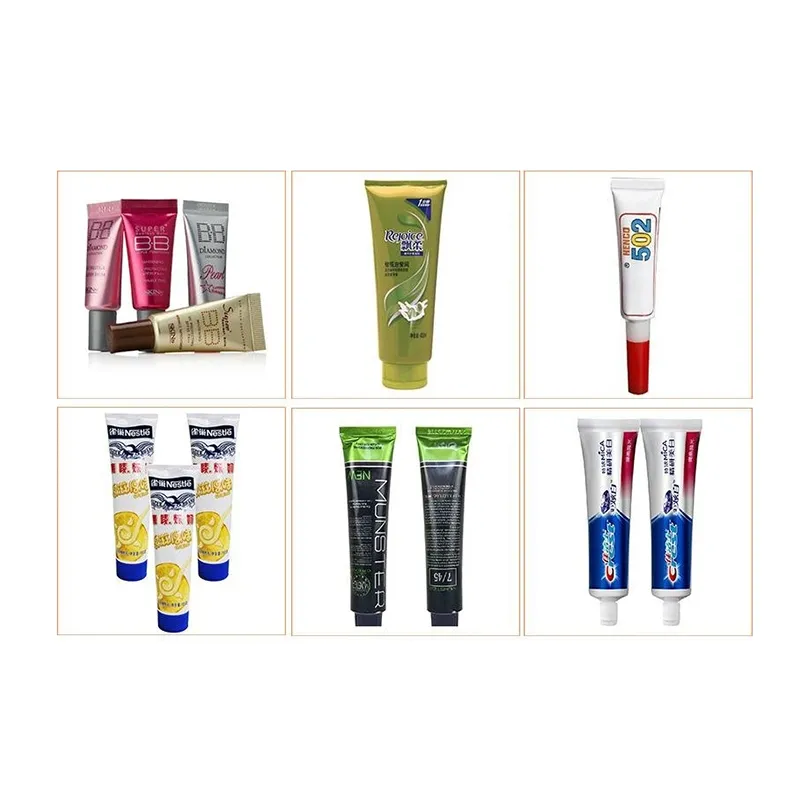

Mainly used for products requiring soft tubes, aluminum-plastic pipes, PE, and hoses. Common applications include pharmaceutical ointments, toothpaste, shampoo, facial cleanser, hand cream, sunscreen, and BB creams.
