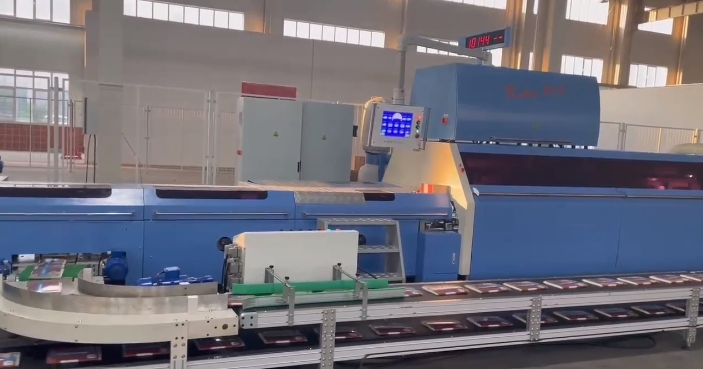

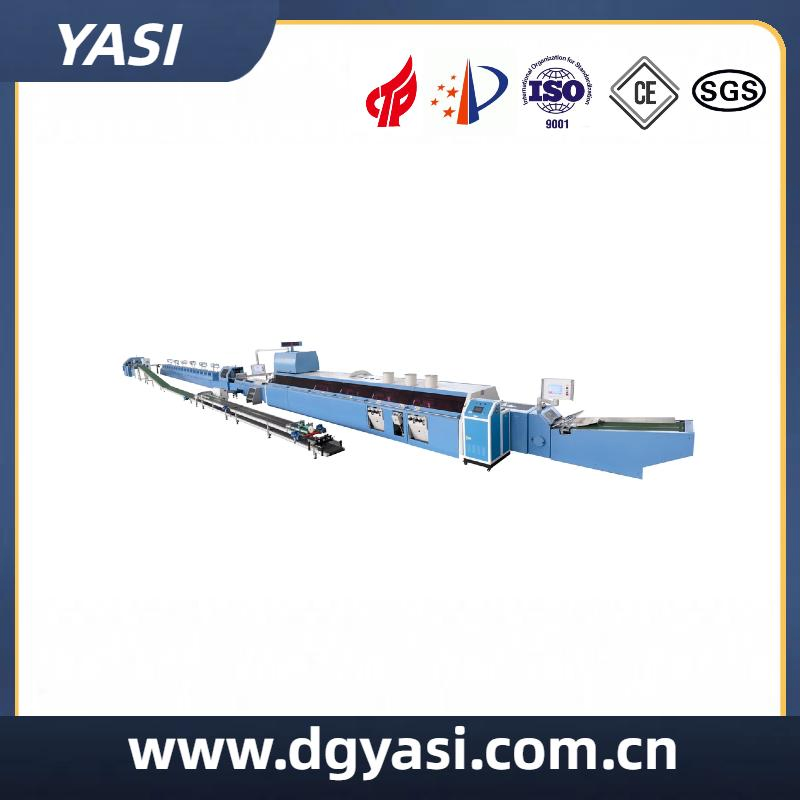

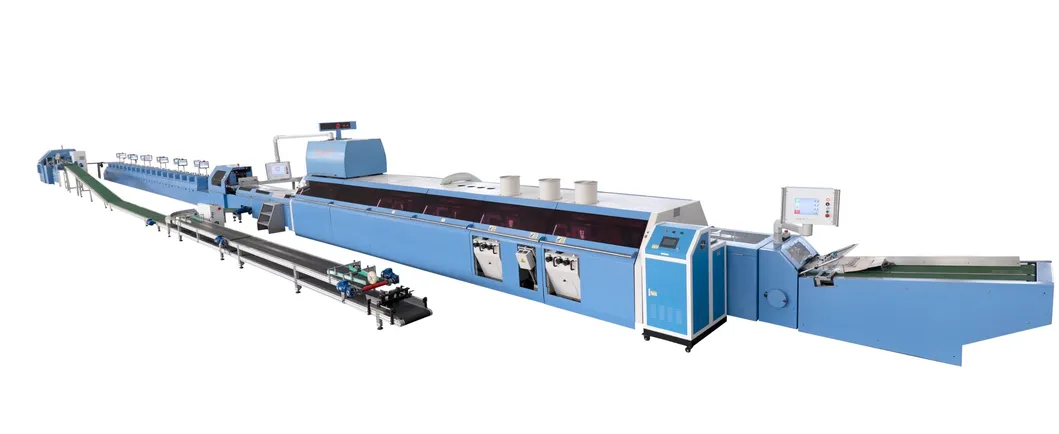

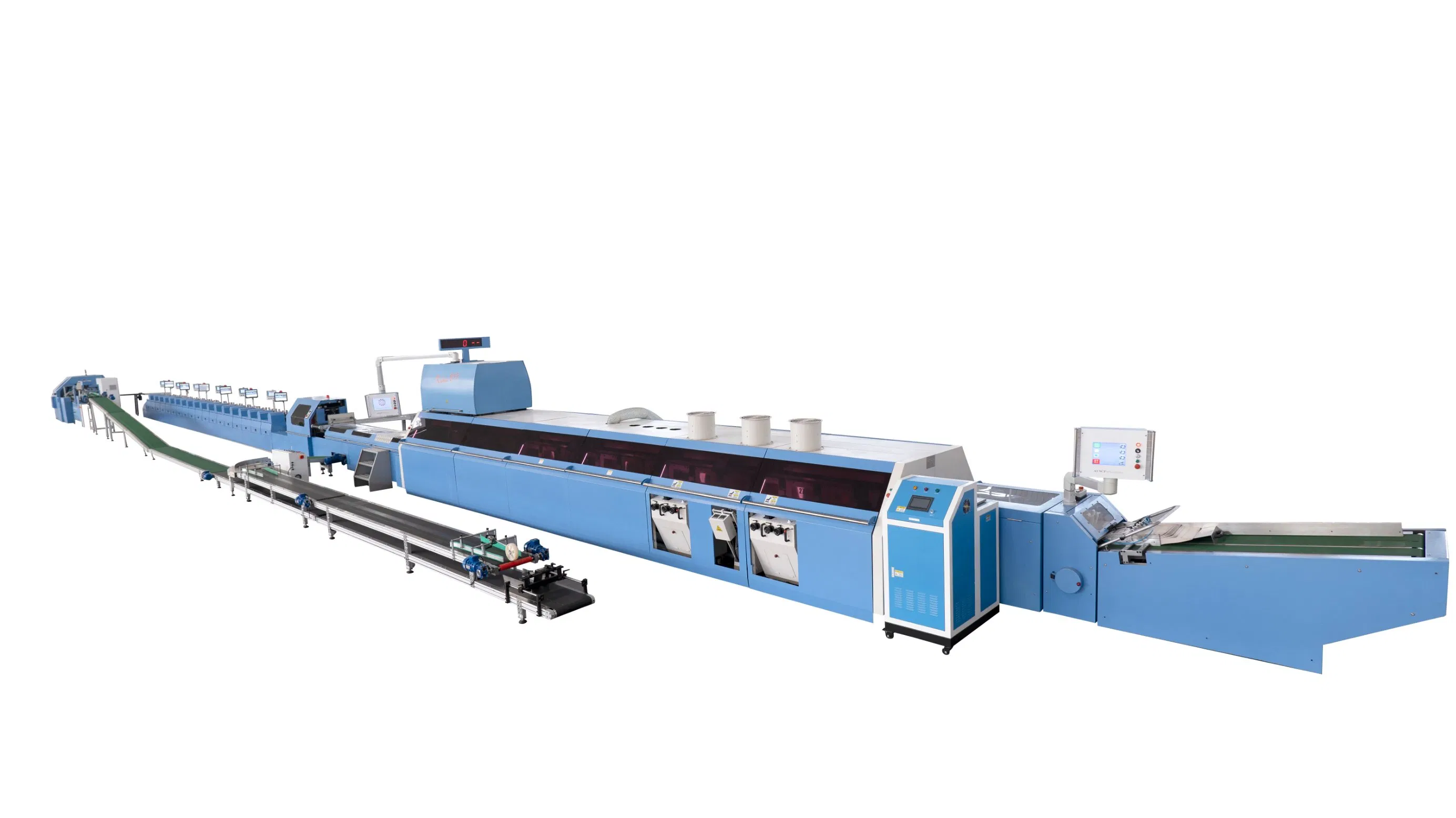

This model is a large-scale automatic production line designed for high efficiency. It combines gathering and glue binding functions with a maximum speed of 13,000 cycles per hour. The gathering station incorporates a sleek and streamlined design, ensuring stability and reliability. The main machine utilizes a double-bottom glue and two support towers, guaranteeing that the pages remain secure, resulting in sturdy and neatly aligned books.

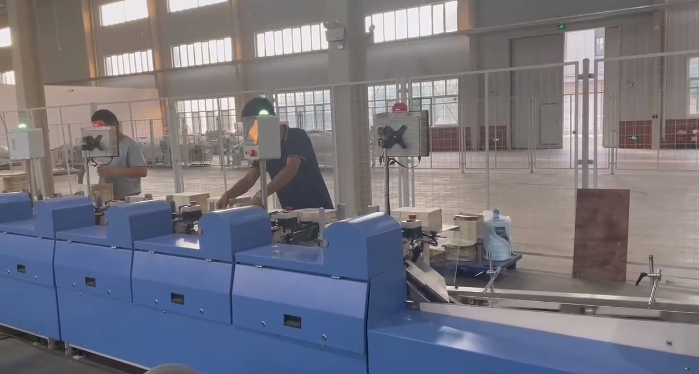

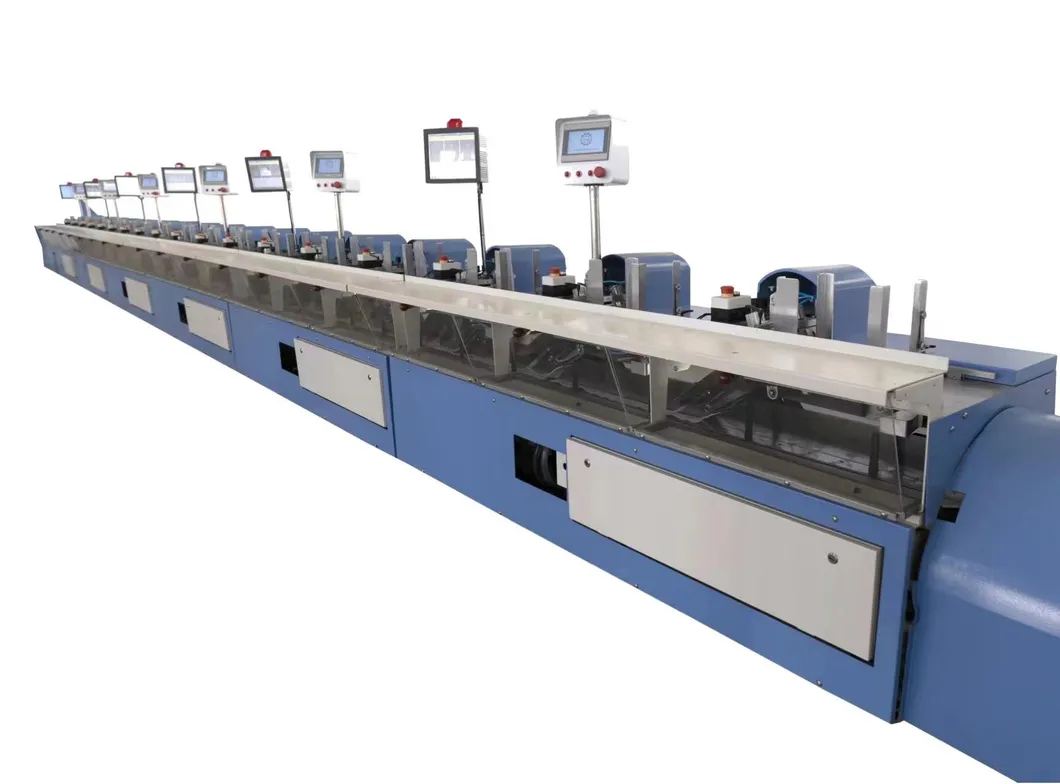

Latest design: Streamlined gathering station operating smoothly
| Specification Item | Parameter Details | ||
|---|---|---|---|
| Model | KUBUS B13/400 | Quantity of Clamps | 40 |
| Max Operating Speed | 13000 cycles/hour | Gathering Stations | 18 |
| Max Book Block Size | 400×305mm | Power Consumption | 70 KW |
| Min Book Block Size | 140×120mm | Standard Voltage | 380V/220V, 50 Hz |
| Book Block Thickness | 3-60 mm | Air Consumption | 0.35 m3/min (10 bar) |

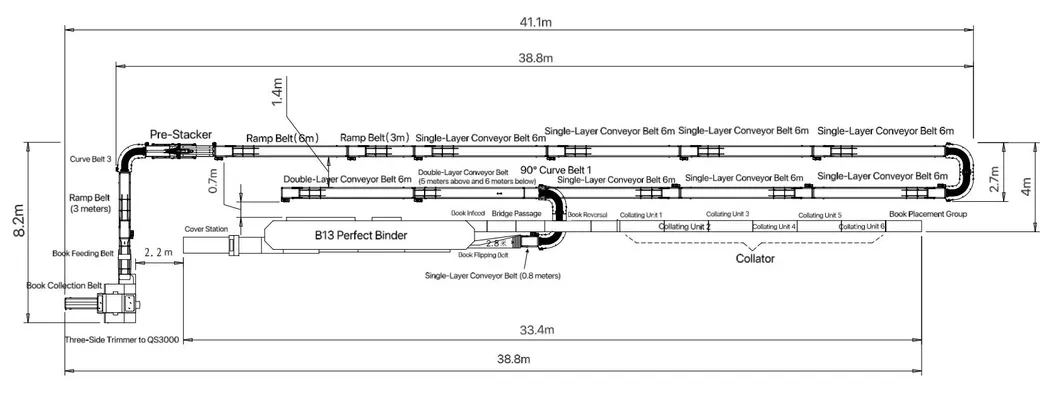

| Cover Length | 140-400mm | Dimensions (L×W×H) | 41100×8200×2900mm |
| Cover Width | 240-630mm | Net Weight | 12000kg |
Max size: 430x305x60mm | Min size: 140x120x3mm
