| Model NO. | HY-200 | Coating Color | Black, Gray, Red, White, Yellow, Customizable |
|---|---|---|---|
| Warranty | 1 Year | Coating Width | 200mm |
| Coating Amount | 7-120G/M² | Coating Speed | 50-150m/Min |
| Max Substrate Diameter | 600mm | Transport Package | Plastic Film/Wooden Box |
| Specification | Stainless steel | Origin | China |

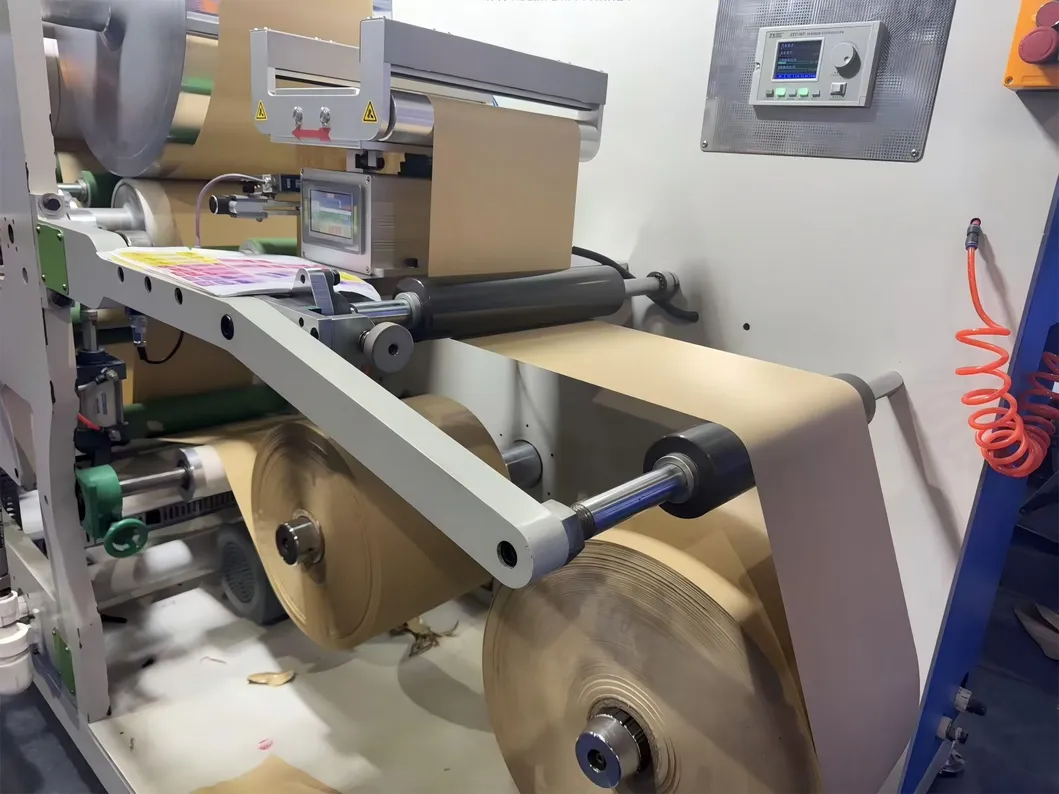

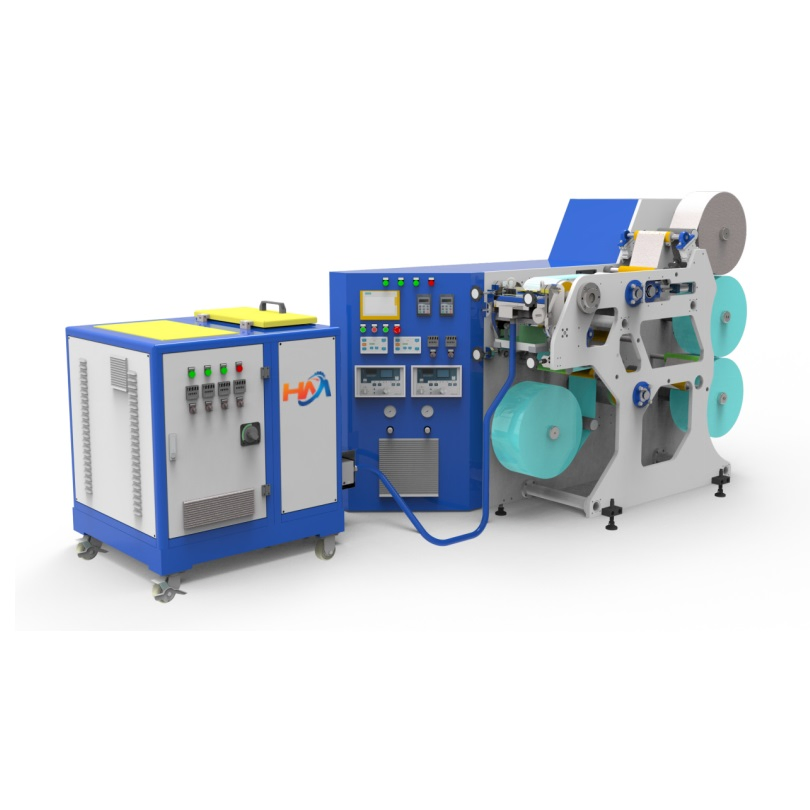

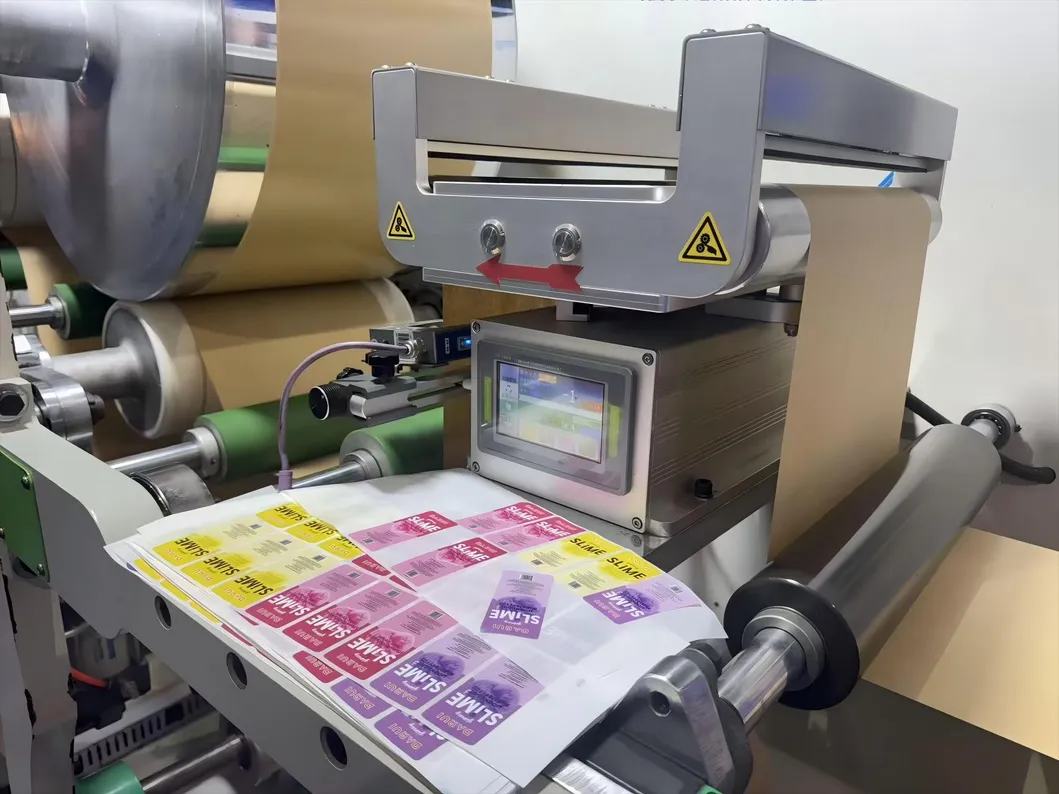

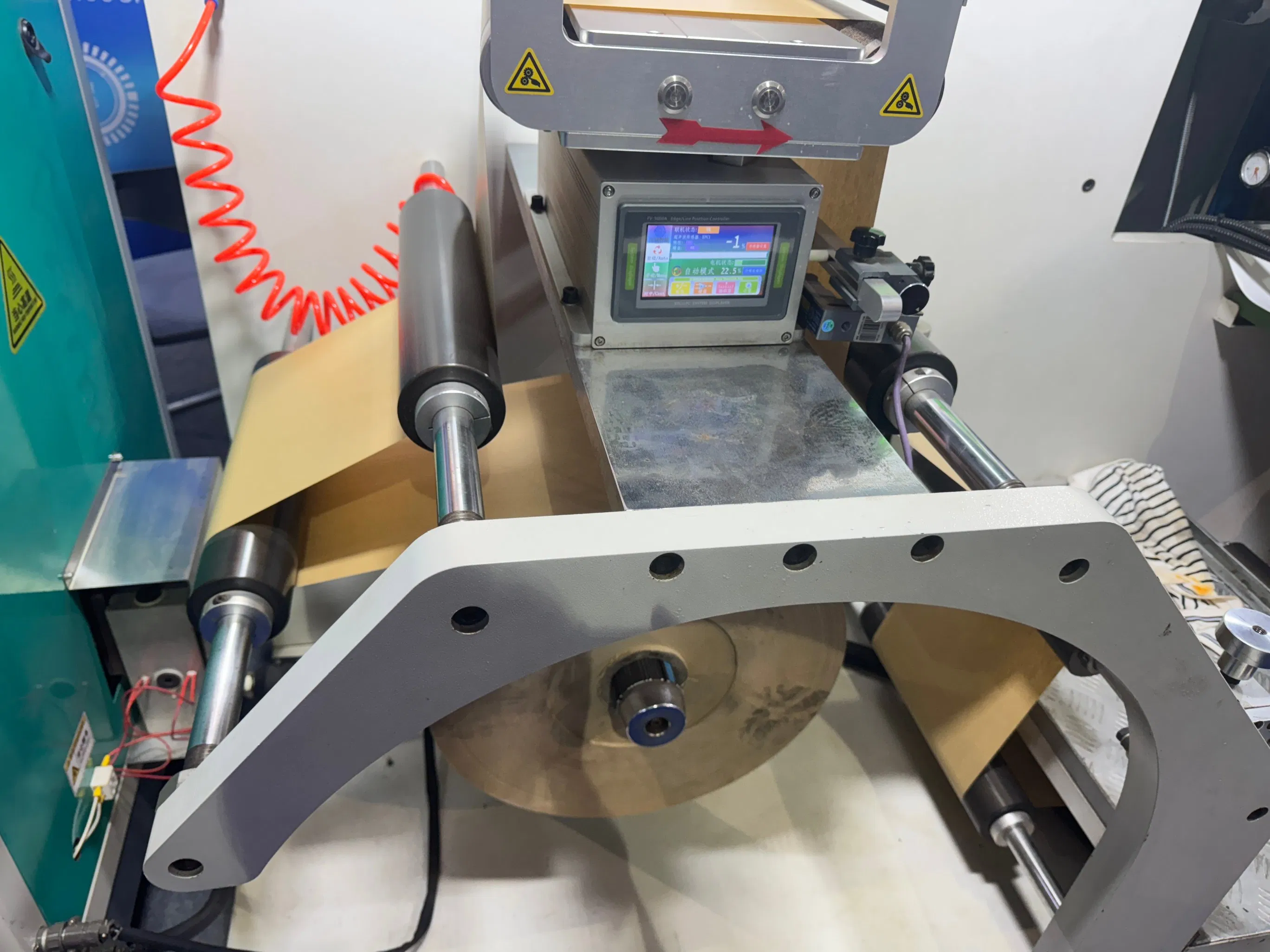

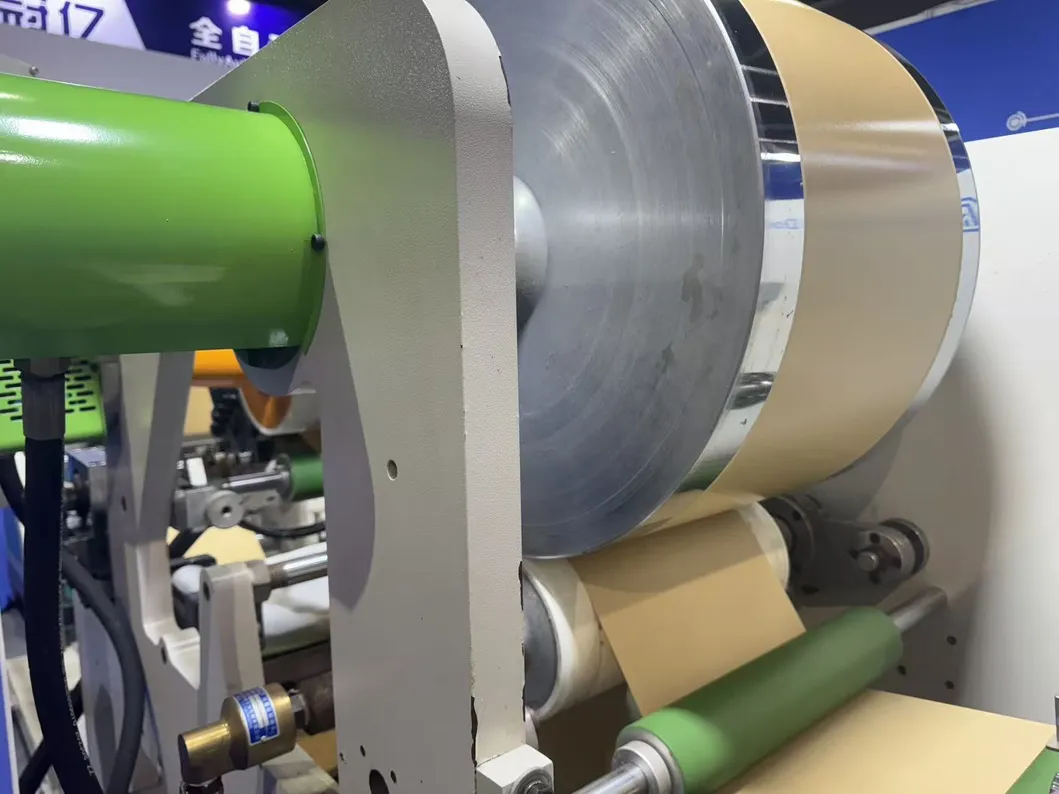

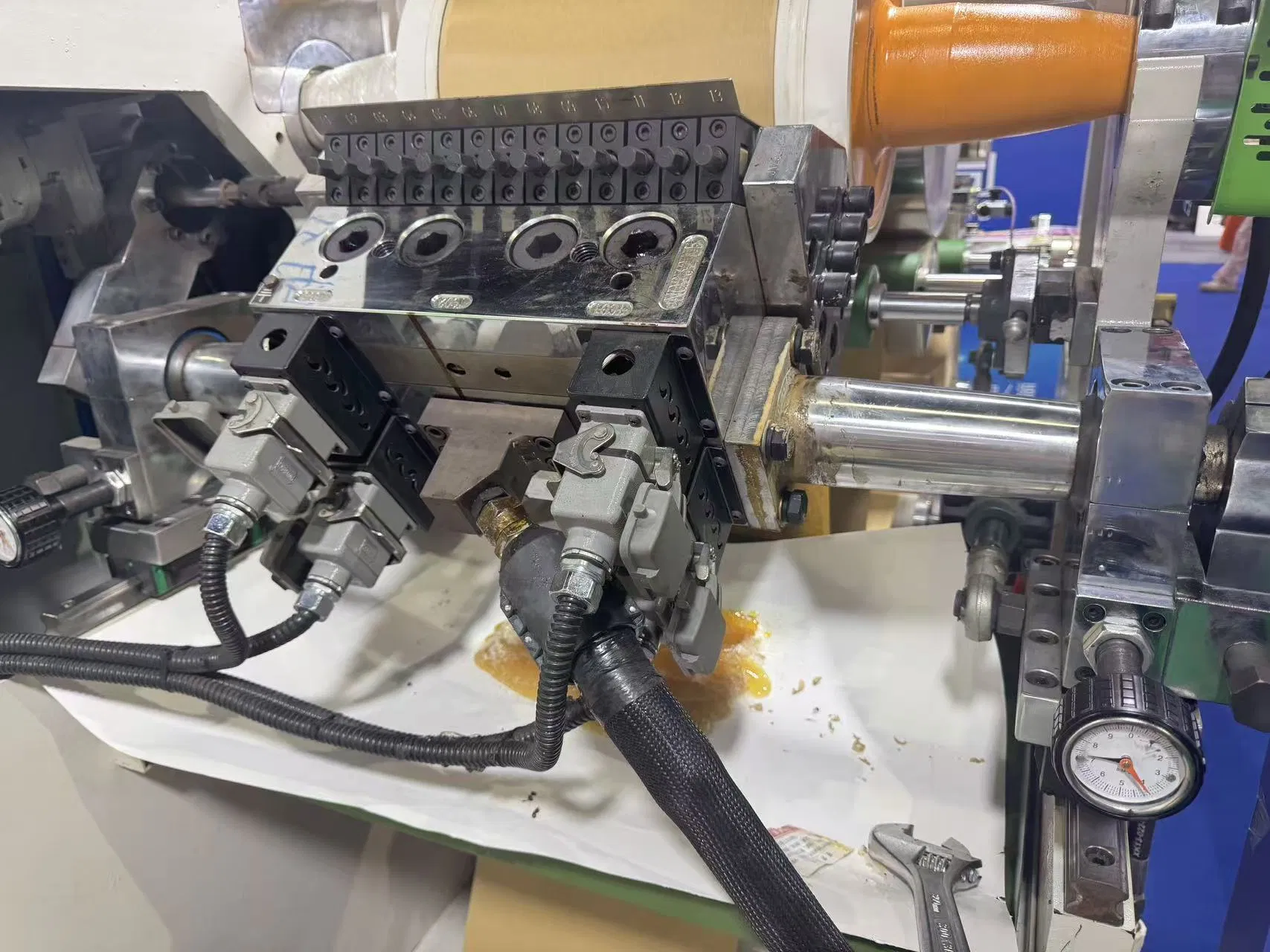

The Small Hot Melt Label Coating Machine is designed for precision coating applications in industries such as label production, adhesive tapes, zippers, and hot melt coating. It is ideal for R&D and small-scale production, allowing the testing of various adhesives or the development of new products. Featuring a single-arm structure and an auxiliary cantilever support frame, it offers easy material handling and an ideal solution for single-operator use. It can coat widths up to 500mm and is highly adaptable to diverse production needs.
| Model | HY-200 | HY-320 | HY-500 |
|---|---|---|---|
| Width of Roller | 240mm | 370mm | 550mm |
| Max Coating Width | 200mm | 320mm | 500mm |
| Max Substrate Diameter | 600mm | 600mm | 600mm |
| Paper Core Diameter | 76mm | 76mm | 76mm |
| Unwind Device | 2 sets | 2 sets | 2 sets |
| Rewind Device | 1 set | 1 set | 1 set |
| Coating Weight | 7-120g/m² | 7-120g/m² | 7-120g/m² |
| Max Speed | 50-150m/min | 50-150m/min | 50-150m/min |
| Dimensions (L*W*H) | 2200*980*1300mm | 2200*1080*1300mm | 2200*1180*1300mm |
| Max Power | 8KW | 9.5KW | 11KW |
