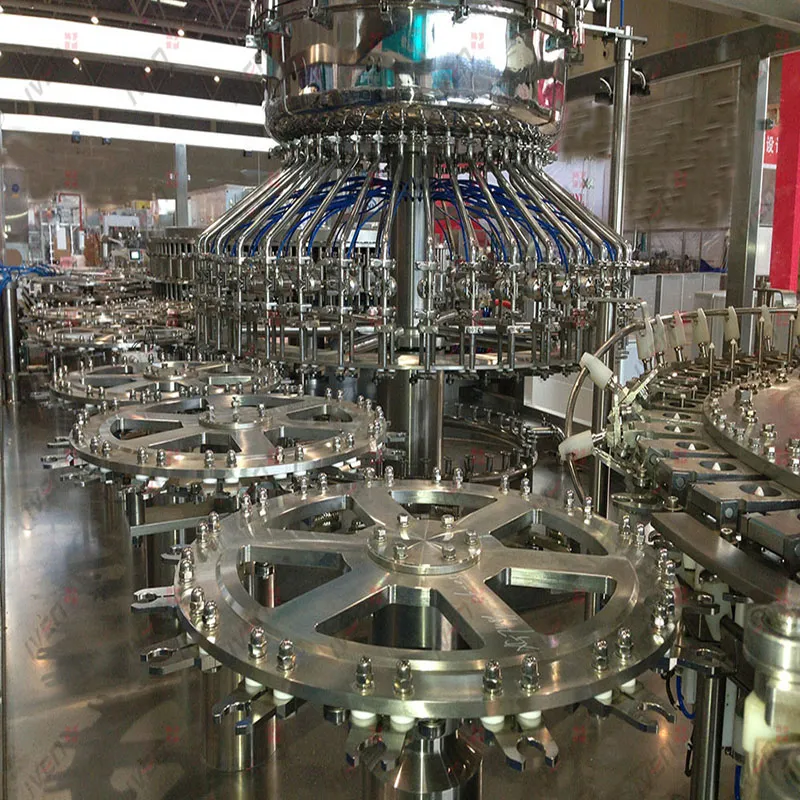

It adopts direct link between conveying track and bottle feeding dial wheel, clamps the bottleneck to convey, with clean compressed air to accelerate the delivering, no scratching.
Clean compressed air is blown into the pipe to clean the bottle interior; simultaneously sucks particles out of the airflow from the bottle.

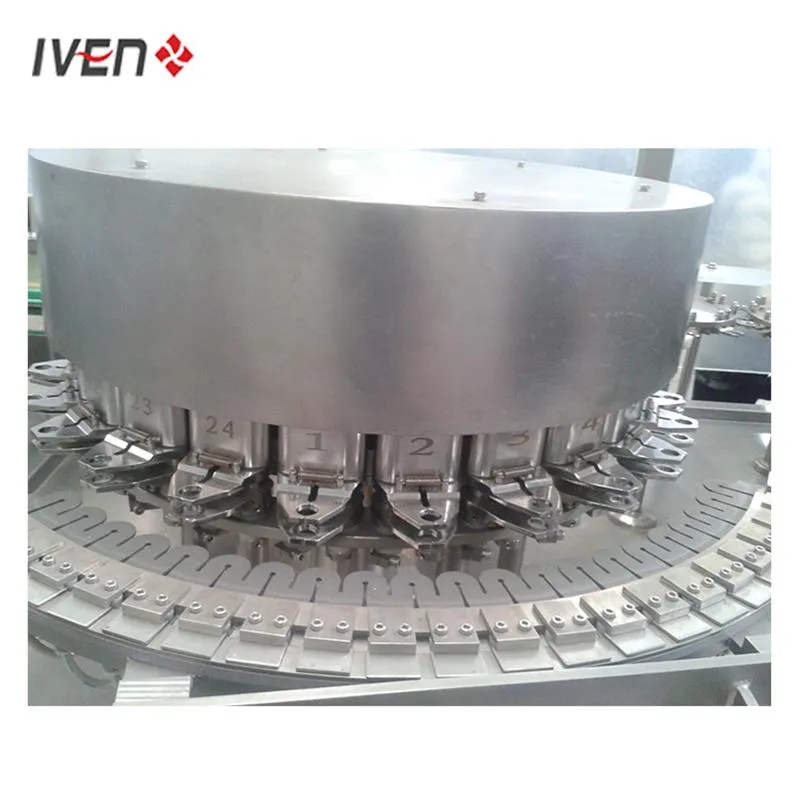

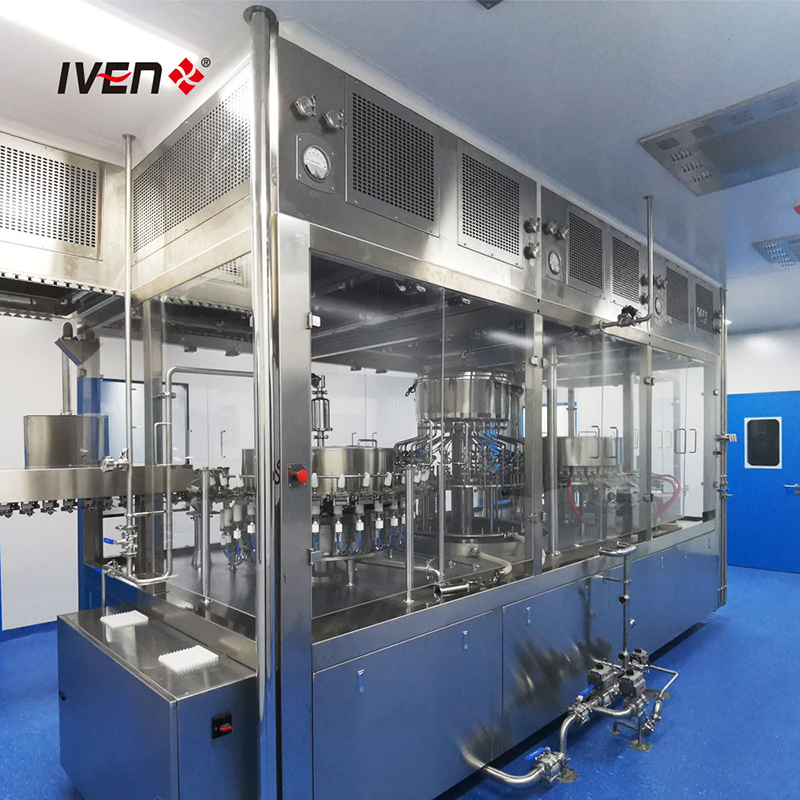

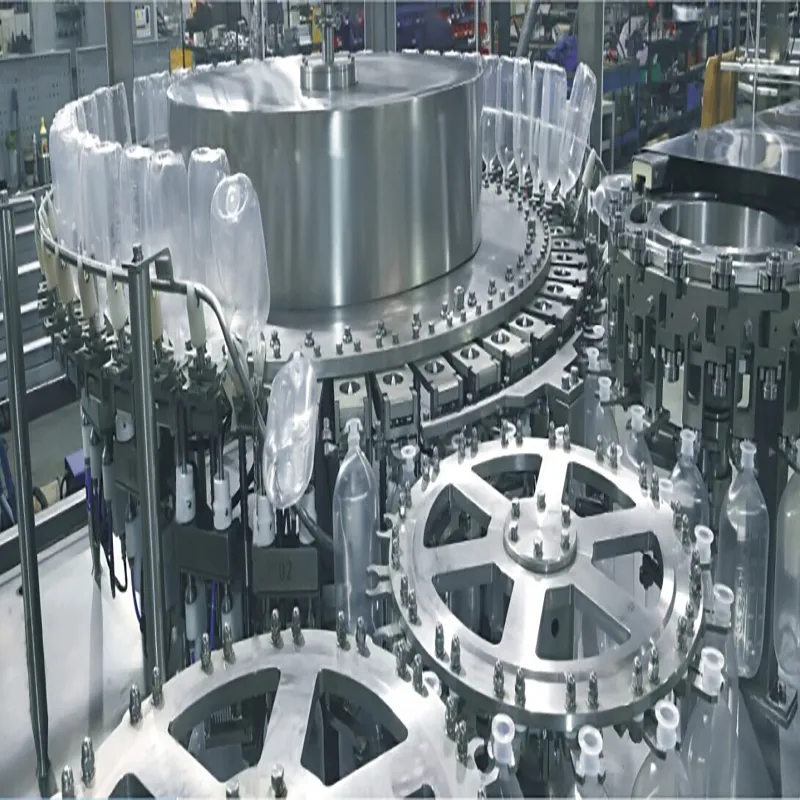

Washed bottles are conveyed by manipulators. The filling nozzle tracks bottles for precise filling with a constant-pressure liquid balance tank system.
Uses double heating plates to weld-seal caps and bottle ports. Features non-contact hot-melt technology with adjustable temperature and time.

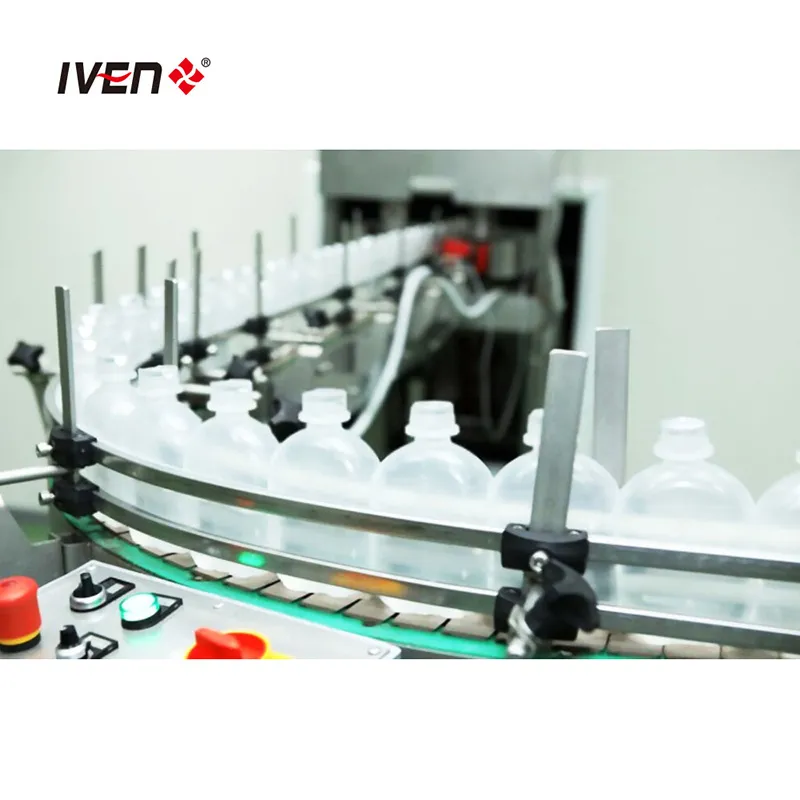

Sealed bottles are safely conveyed to the output track, proceeding to the next stage of the production cycle.

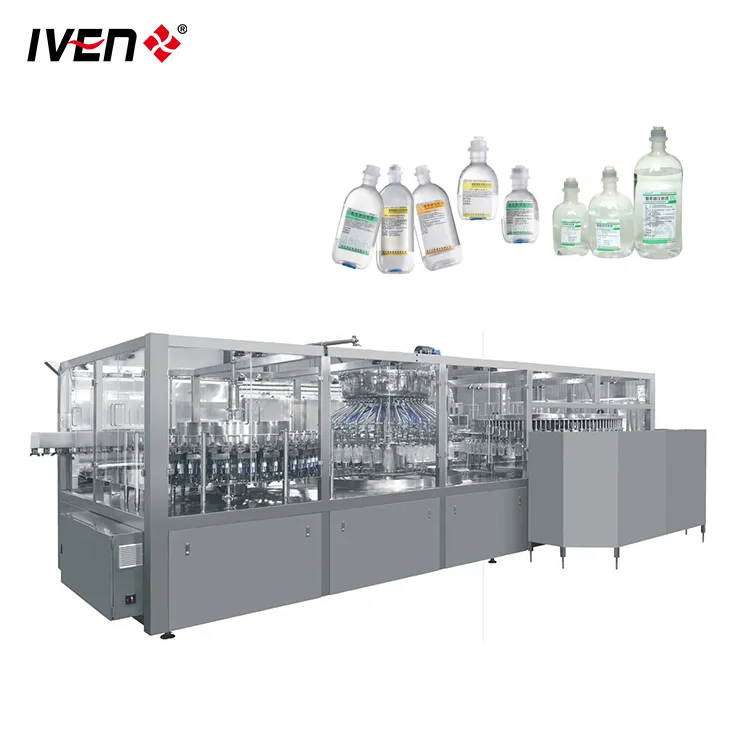

| Item | Model CPS 4 | Model CPS 6 | Model CPS 8 | Model CPS 10 | Model CPS 12 |
|---|---|---|---|---|---|
| Capacity (500ml) | 4000 BPH | 6000 BPH | 8000 BPH | 10000 BPH | 12000 BPH |
| Max Bottle Height (mm) | 240 | 240 | 240 | 240 | 230 |
| Compressed Air (8-10bar) | 3 m³/min | 3 m³/min | 4.2 m³/min | 4.2 m³/min | 4.5 m³/min |
| Chilled Water (10°C) | 4 m³/h | 4 m³/h | 7.87 m³/h | 7.87 m³/h | 8-10 m³/h |
| Weight (T) | 7.5 | 11 | 13.5 | 14 | 15 |
