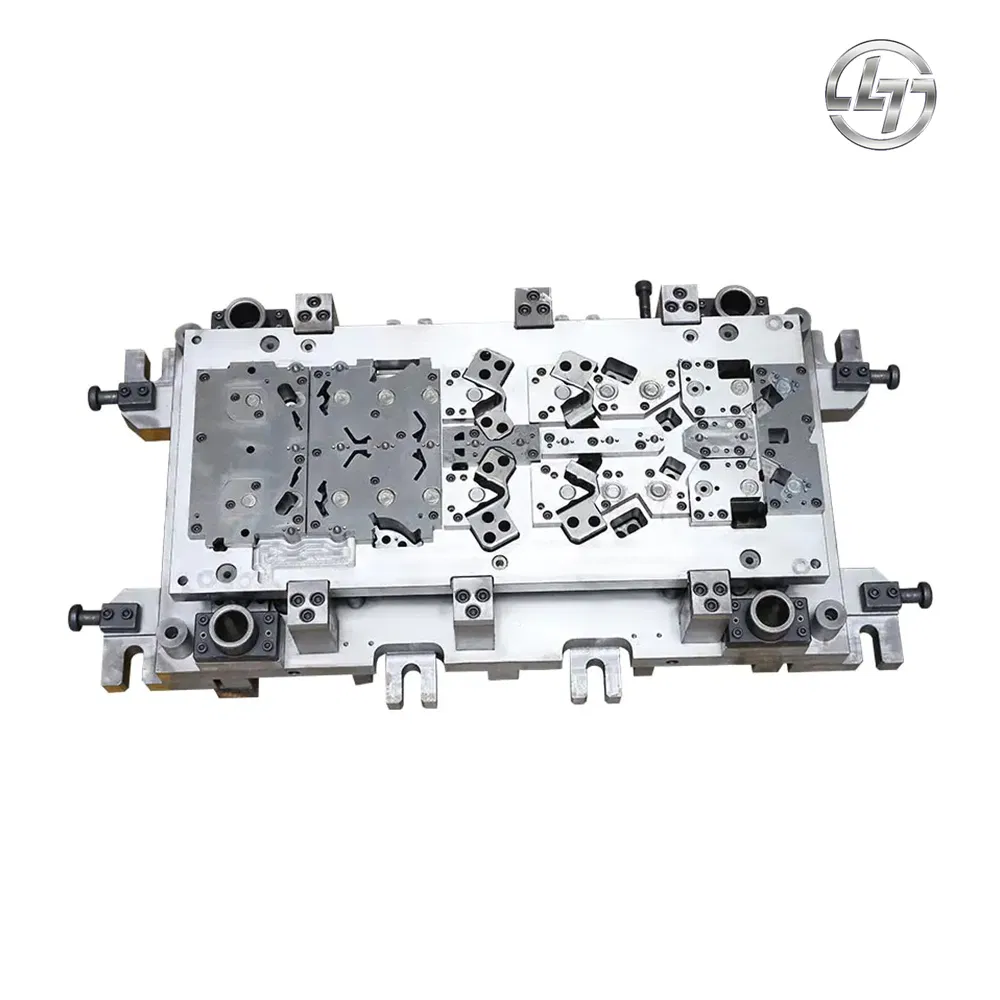

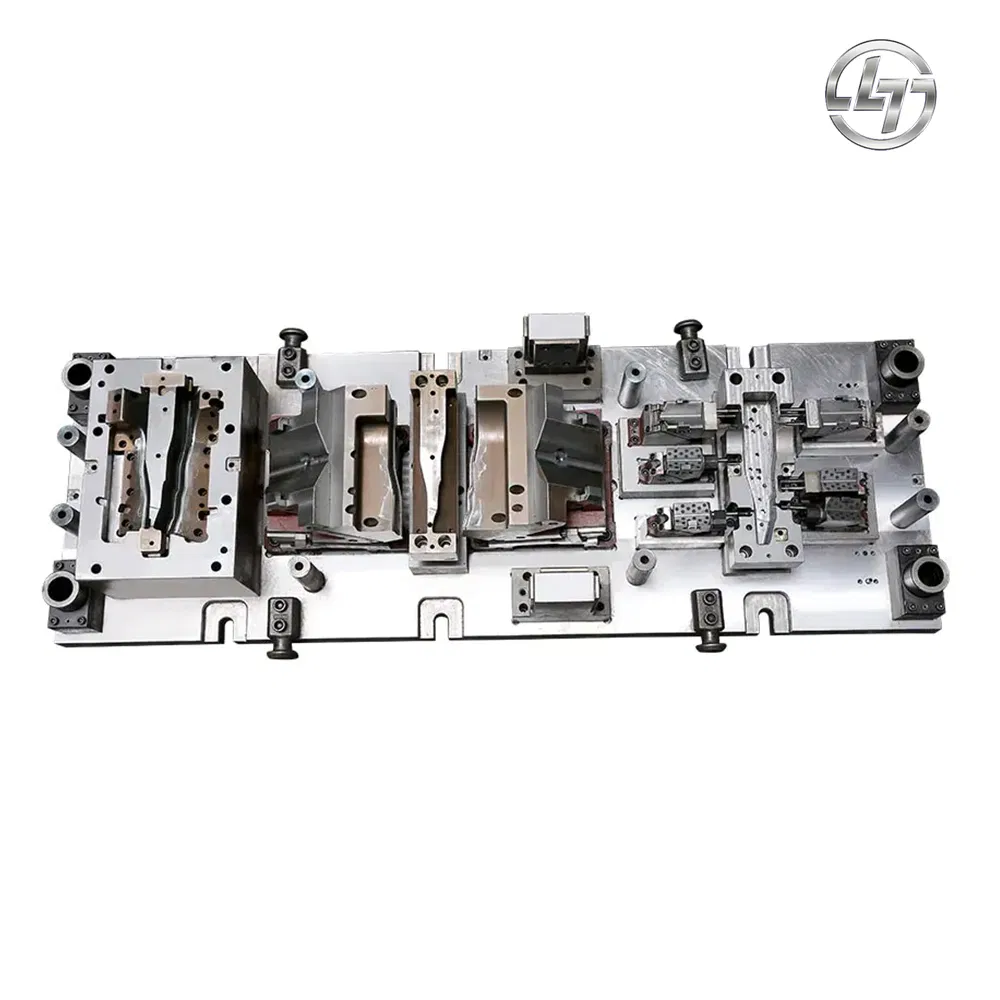

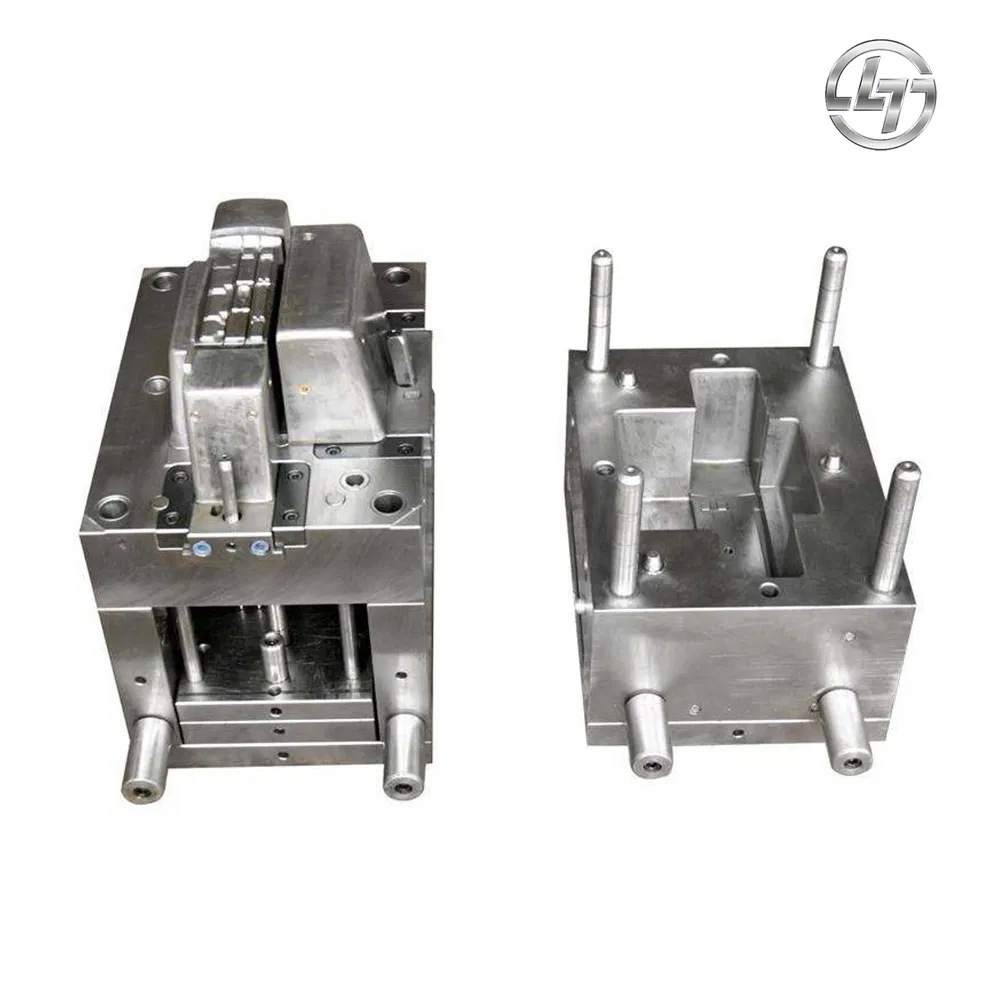

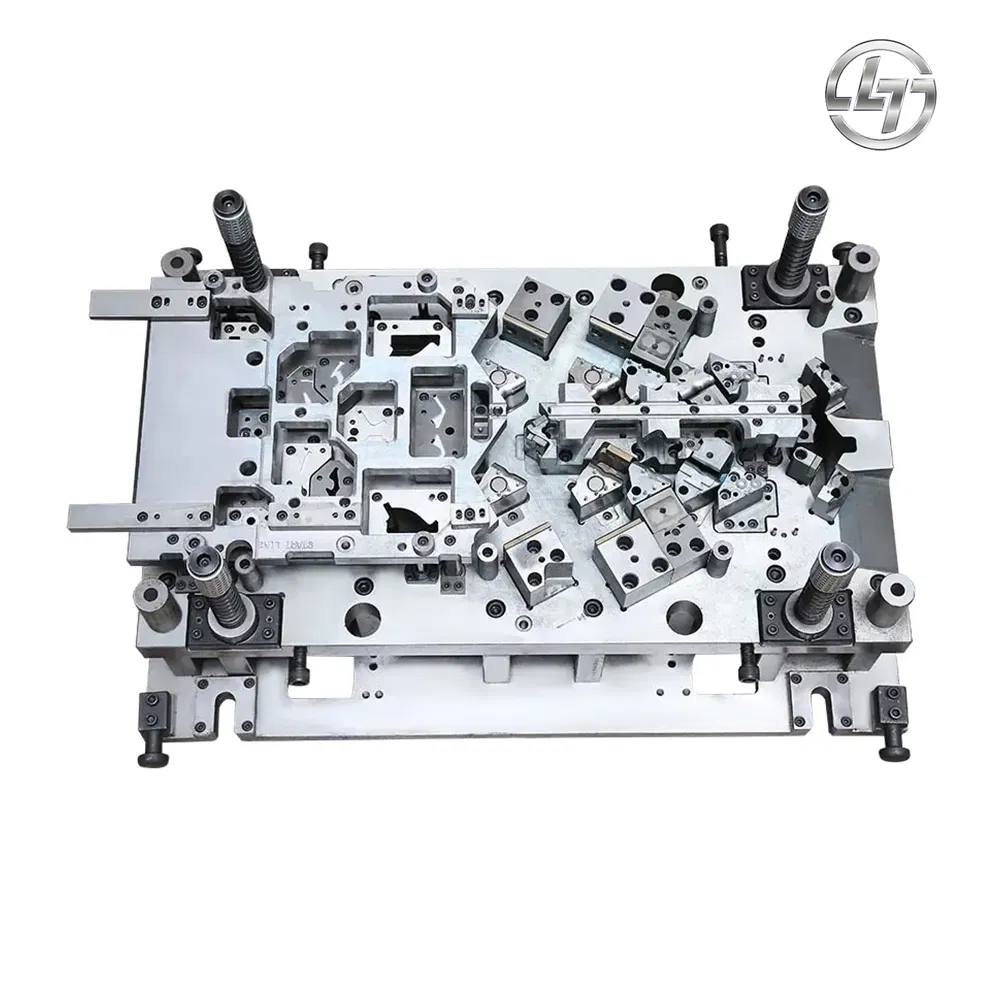

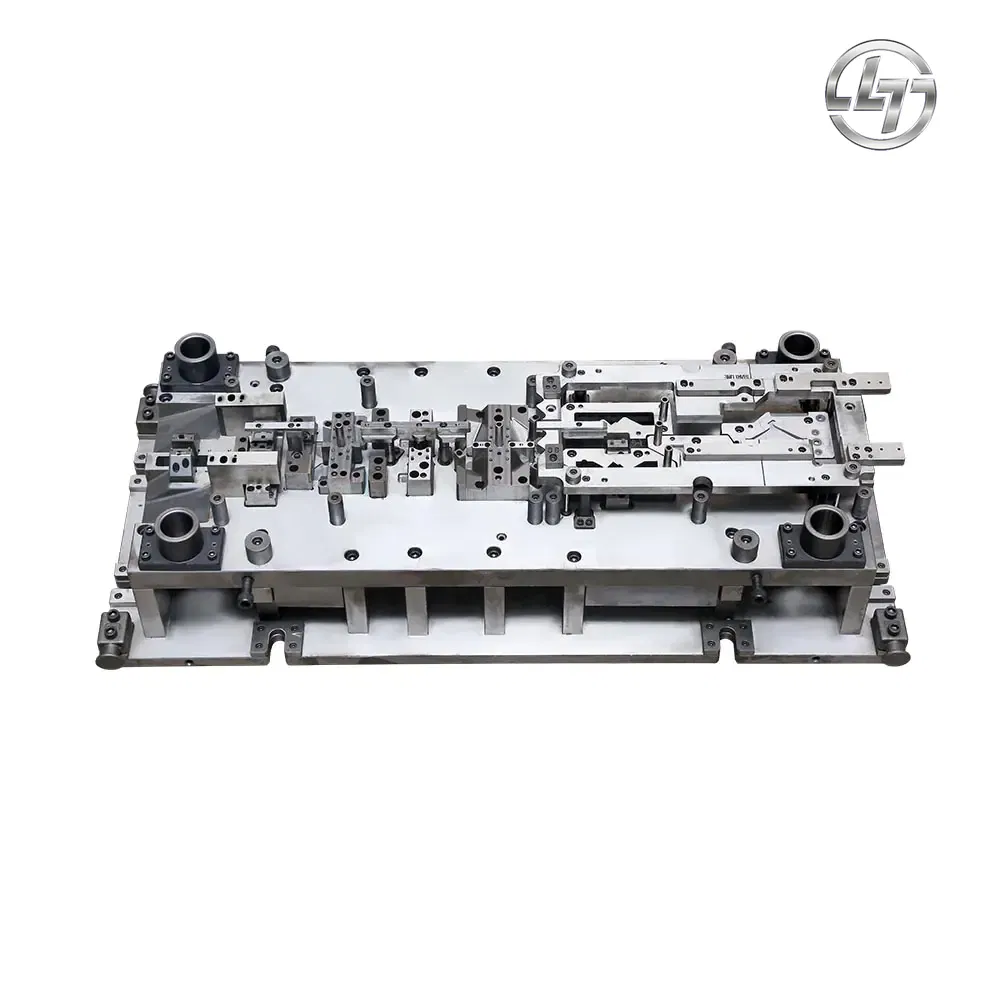

High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
1 / 5
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts
High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts

High Precision Multi-Cavity Custom Plastic Mould for Metal Insert Over Moulding Parts

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
JLT04-S001
Surface Treatment
Polishing
Production Type
Mass Production
Machining Method
CNC Machining
Material
Nylon, Steel, Plastic, Brass, Alloy, Aluminum
Product Type
Custom Mould
Lead Time
15-30 Days
Certification
ISO9001, CE
Precision Custom Plastic Mould Banner
⚙️ Product Parameters
Precision mold & fixture manufacturing: custom molds (for forming) and fixtures (for positioning/inspection). Utilizing CNC-driven precision machining, we process metal or engineering-grade materials to create durable, precision-engineered tooling.
Product NameMold & fixture
Mould Material3Cr13, 3Cr17, 3Cr17NiMoV mould steel or Din 1.2316
SizeCustom made
Products & ServicesProduct Design; Molding Design; Injection Molds; Hardware Molds; PCB & SMT; OEM Services
MOQOne set
Types of MoldsStamping molds, injection molds, metal injection molding molds
Types of JigsMachining jigs, welding jigs, assembly jigs, test inspection jigs
🔍 Sample Display

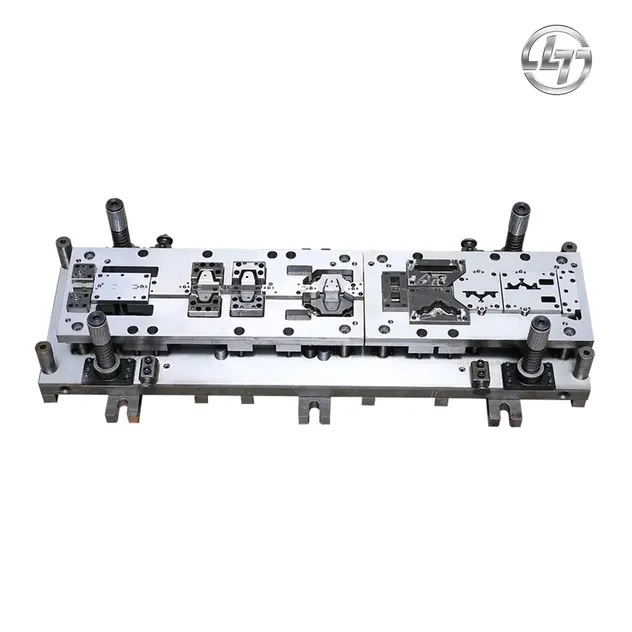

Sample 1
Sample 2
Sample 3

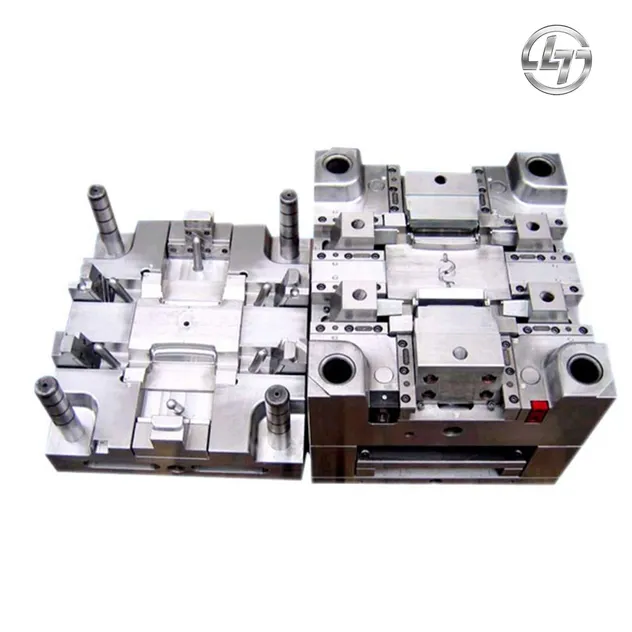

Sample 4

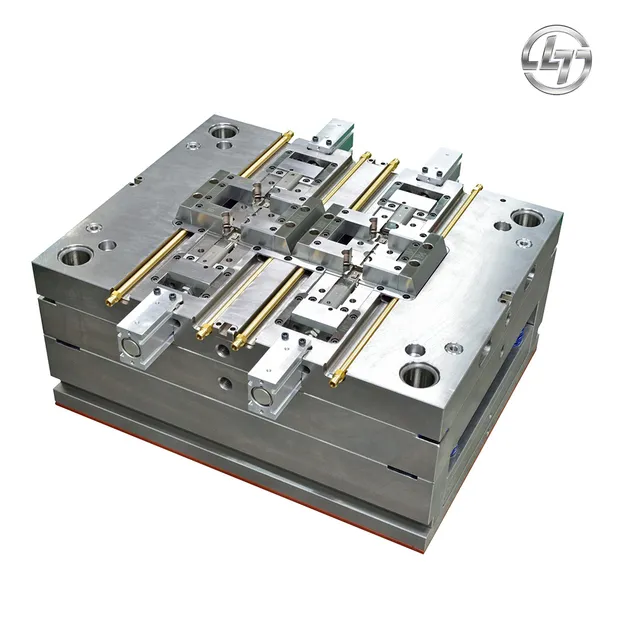

Sample 5

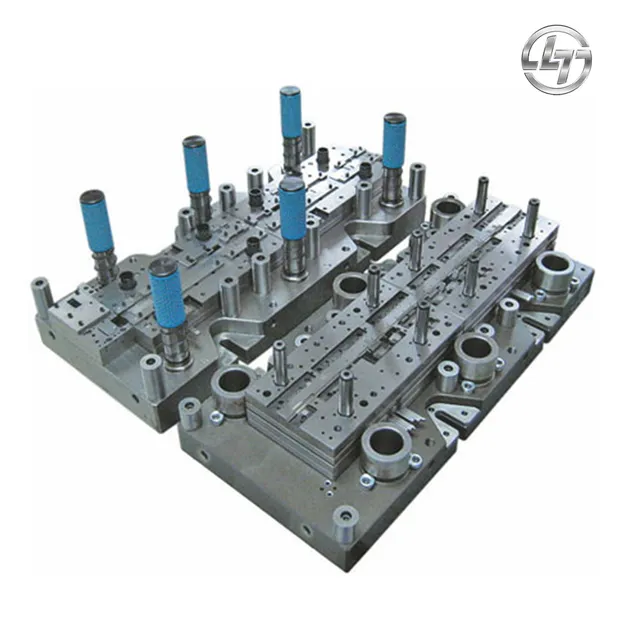

Sample 6
🛠️ Material Selection
In mold and fixture manufacturing, material selection directly defines service life and precision. We deliver tailored material solutions:
  • H13/S136 Steel: Excellent wear resistance for high-cycle injection molds.
  • P20 Steel: Cost-effective for medium-volume stamping.
  • 4140 Alloy / 7075 Aluminum: High strength and lightweight options for fixtures and clamps.
All materials are SGS-verified and meet ISO 9001 standards.
Material Selection Analysis
🏭 Production & Treatment
Production Process 1

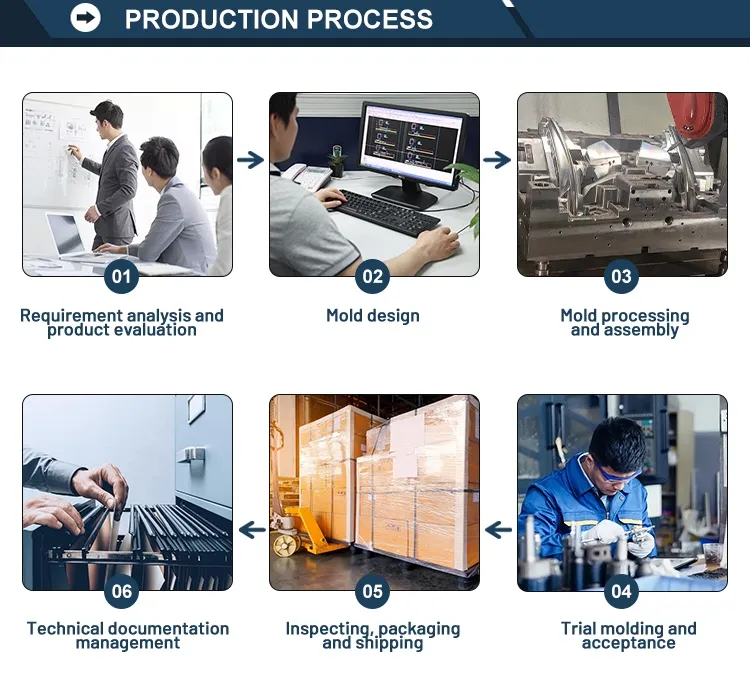

Production Process 2
📦 Packaging & Shipping
Our packaging prioritizes protection and functionality. We use high-strength cardboard boxes, tailored cushioning (foam, bubble wrap), and specialized wooden crates for fragile items. All exports include clear labels for identification and follow eco-conscious standards by using recyclable materials.
Packaging Box
Shipping Logistics
🏢 Professional Manufacturing Partner
We are a leading provider of precision component machining and tailored technical solutions. Serving industries including Defense, Automotive, Medical, and Robotics, our expertise ensures precision and cost-effective solutions from concept to mass production.

Quality Assurance: Full inspection with CMM and optical equipment to ensure 100% compliance.

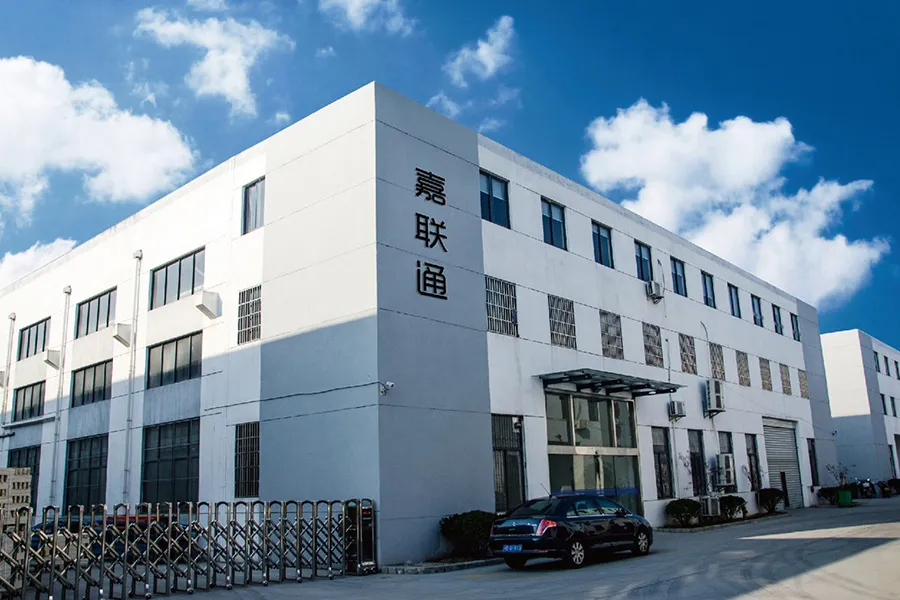

Facility 1

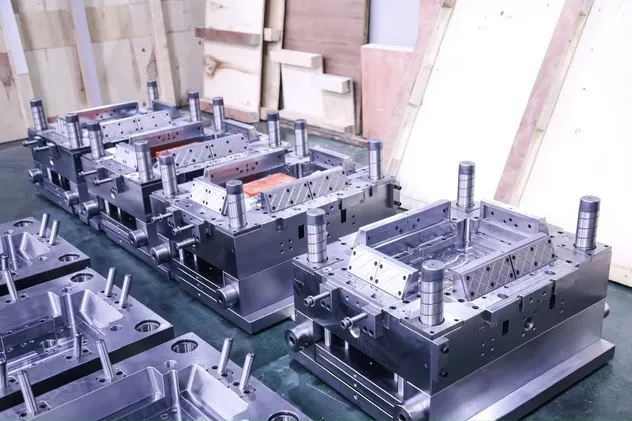

Facility 2

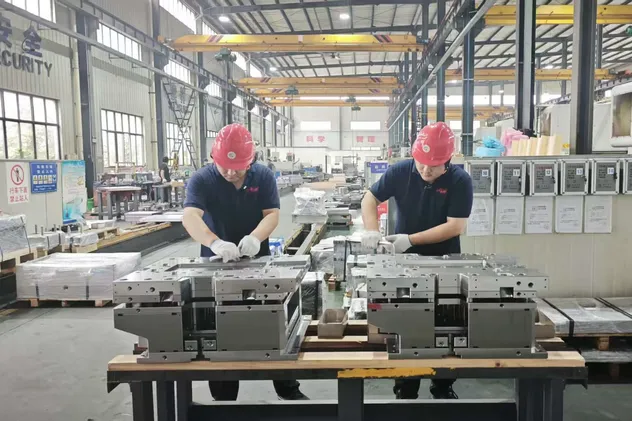

Facility 3
❓ Frequently Asked Questions
What core info is needed for customization?
Please provide 3D models (STP/IGS), 2D CAD drawings, material specs, tolerance requirements, and any DFM demands.
What is the typical lead time?
Standard fixtures usually take 15–20 days, while complex molds with simulation may require 30–45 days.
Which materials are best for high-performance molds?
We recommend NAK80/718H pre-hardened steel or H13 modified hot-work steel depending on your production volume and cycle needs.
How do you ensure IP security?
We sign tooling ownership agreements and add unique identifiers to prevent unauthorized reuse.
Can fixtures be reused across different projects?
Modular fixtures with adjustable clamping are reusable; however, specific mold cavities usually require reworking for mismatched specs.
Who is responsible for maintenance?
We provide a 1-year warranty for non-human damage and offer professional surface remelting services post-warranty.
