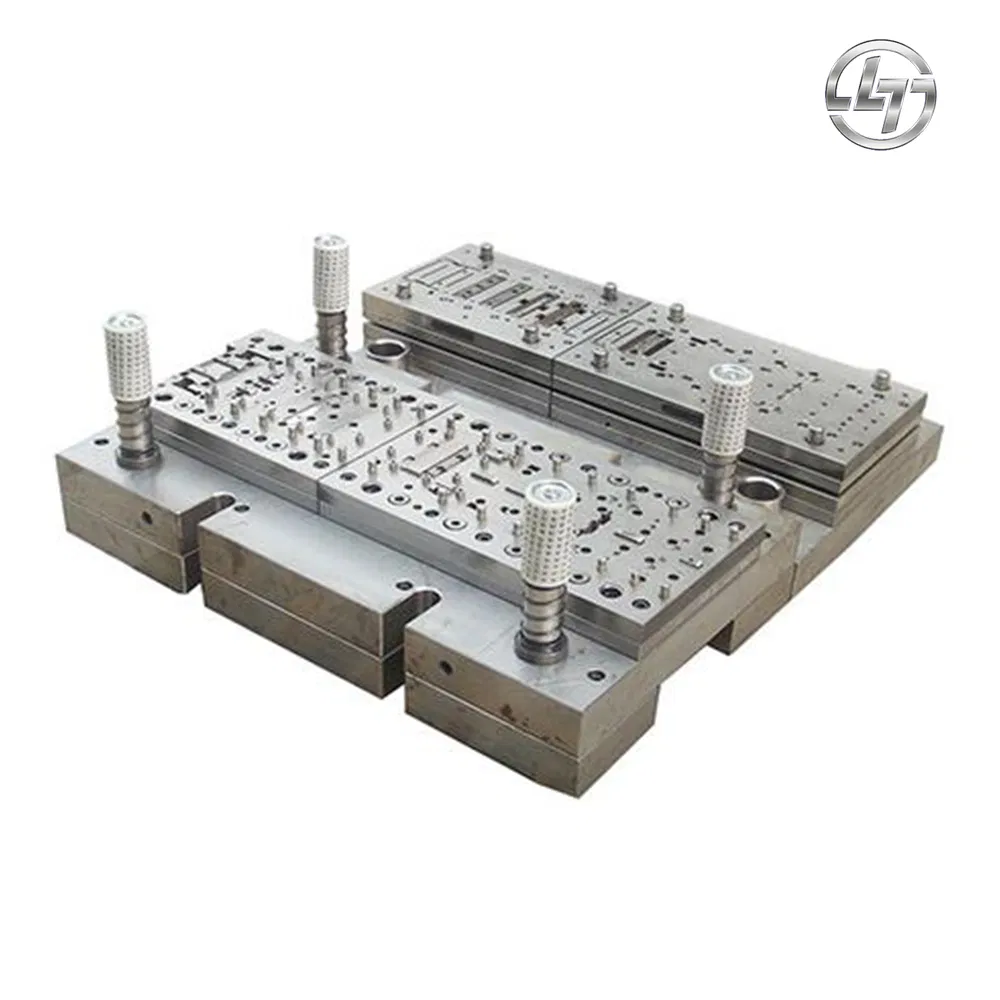

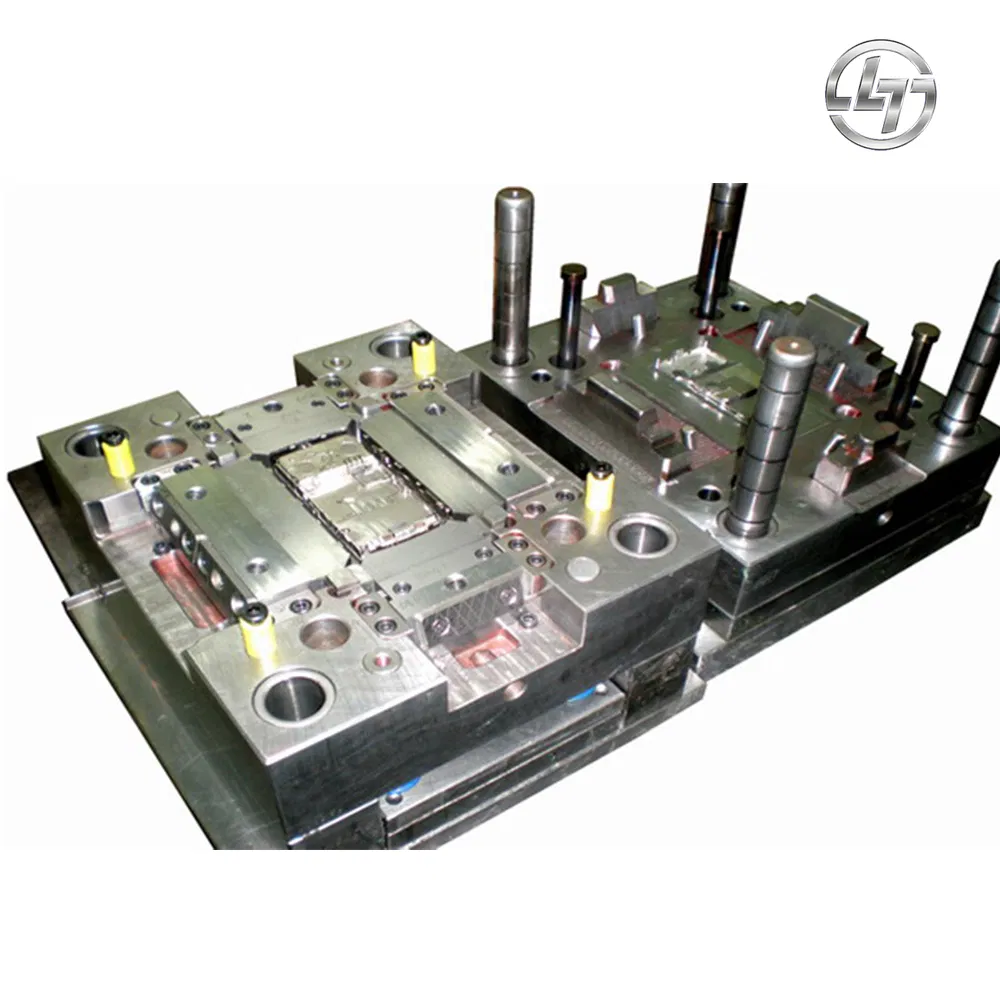

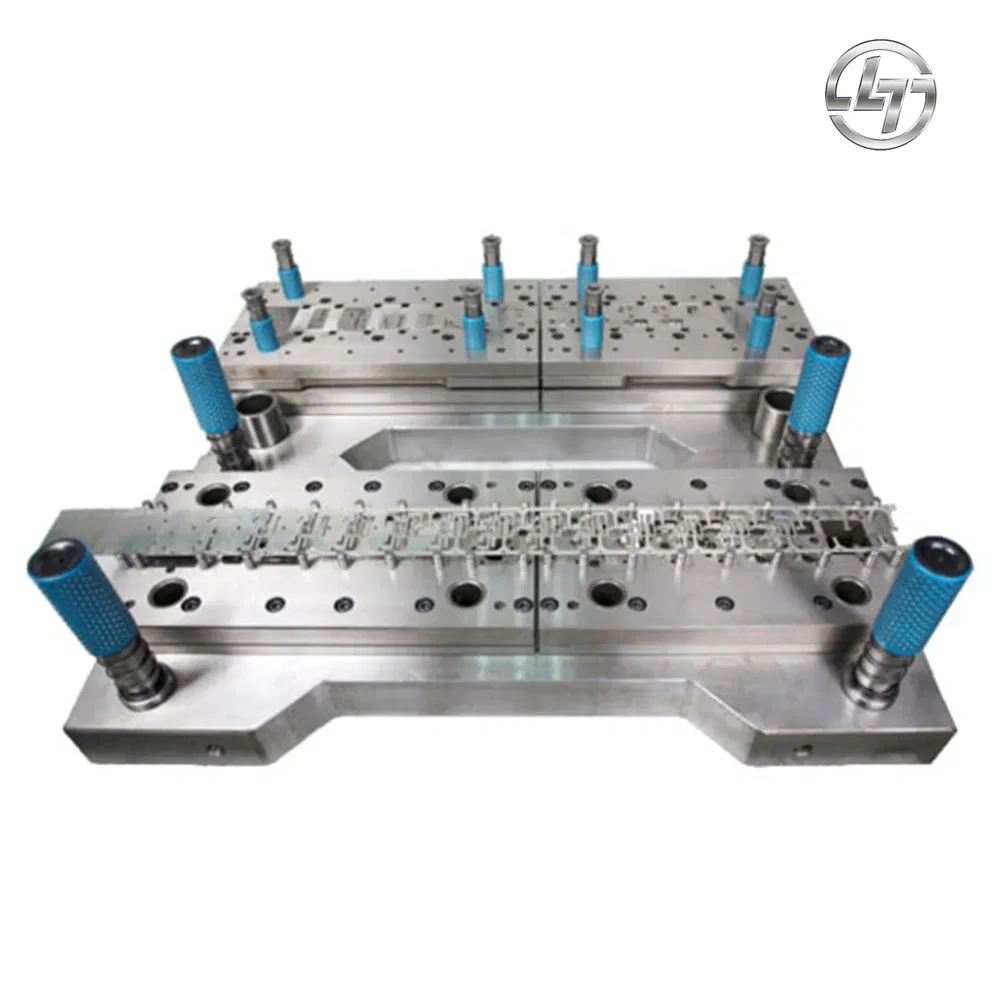

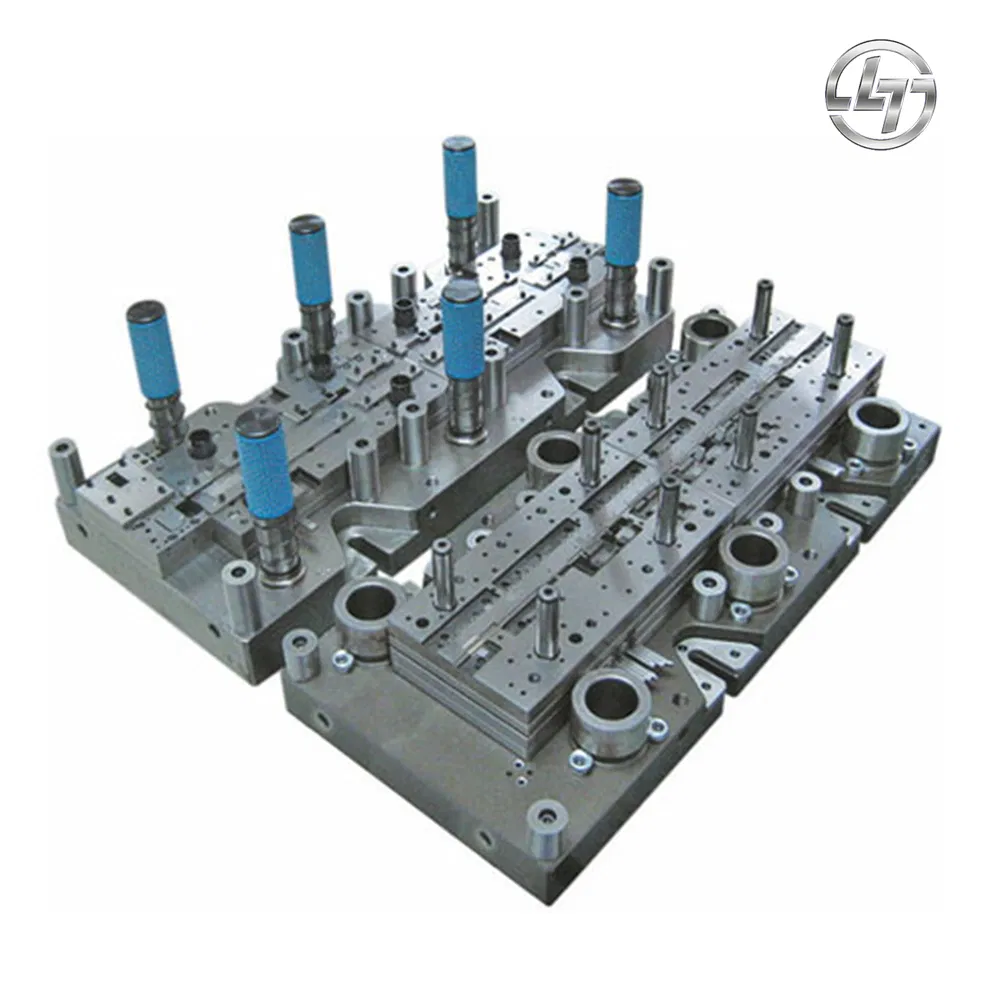

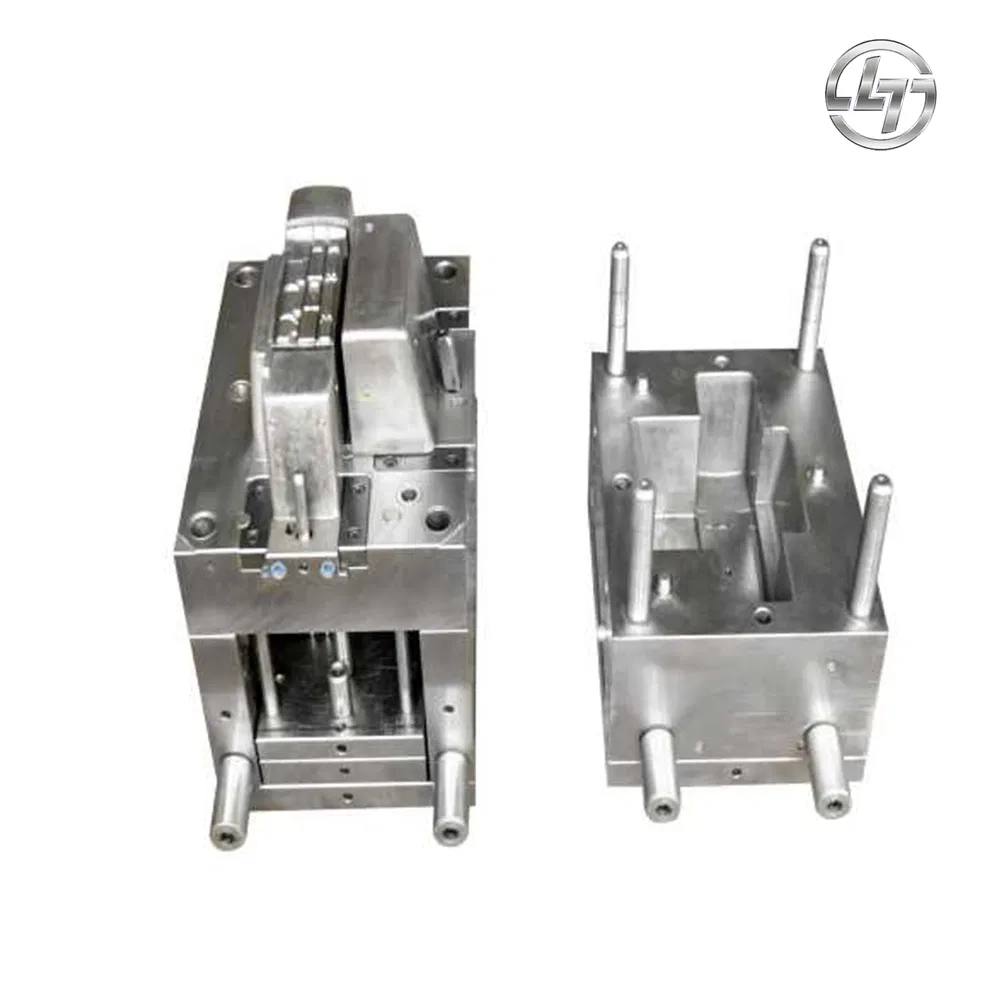

Multi Cavity Mould Auto Parts Plastic Mould Precision Automotive Connectors Mould

Still deciding? Get samples of $ !
Order Sample

Product Description

Banner
Basic Information
Model NO.JLT04-S001
Surface TreatmentPolishing
Production TypeMass Production
Machining MethodCNC Machining
MaterialNylon, Steel, Plastic, Brass, Alloy, Copper, Aluminum, Iron
Lead Time15-30 Days
CertificationISO9001, CE
Production Capacity100000PCS/Month
Product Parameters

Precision mold & fixture manufacturing: custom molds (for forming) and fixtures (for positioning/inspection). Utilizing CNC-driven precision machining (mills, lathes), we process metal or engineering-grade materials to create durable, precision-engineered tooling that ensures reliability and boosts efficiency in high-volume production.

Product NameMold & fixture
Mould Material3Cr13, 3Cr17, 3Cr17NiMoV mould steel or Din 1.2316
Products & ServicesProduct Design Services; Molding Design; Injection Molds; Hardware Molds; PCB & SMT; Injection Mold OEM; Hardware OEM
Types of moldsStamping molds, injection molds, metal injection molding molds
Types of jigsMachining jigs, welding jigs, assembly jigs, test inspection jigs
Sample Display

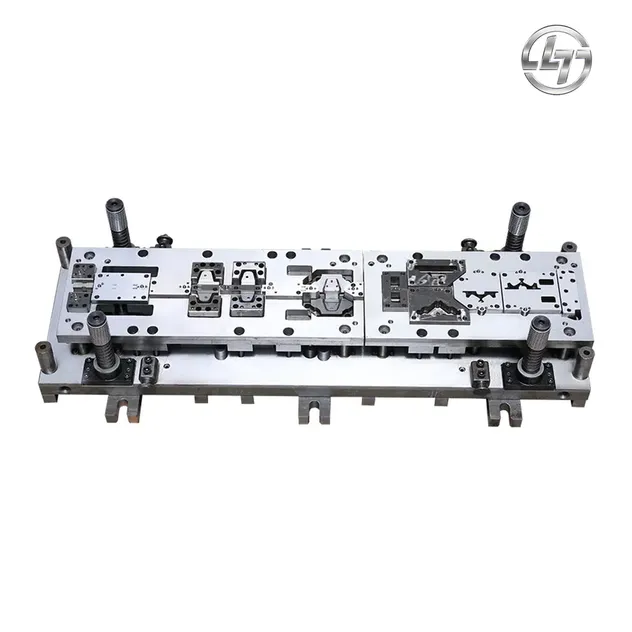

Sample 1

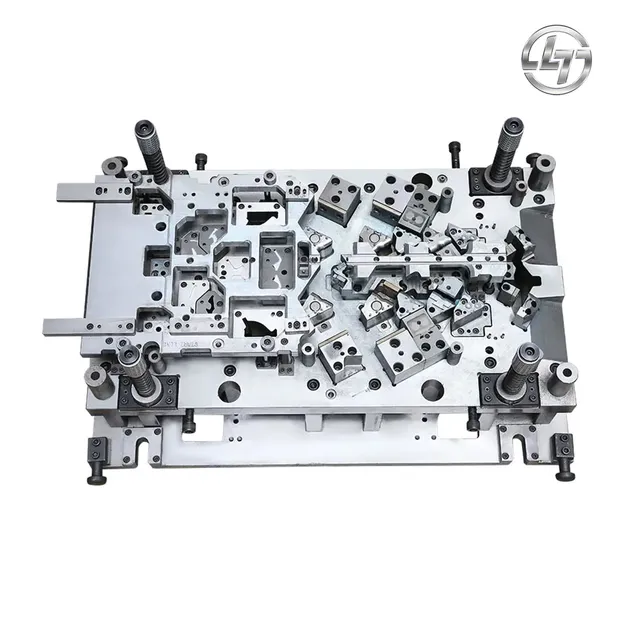

Sample 2

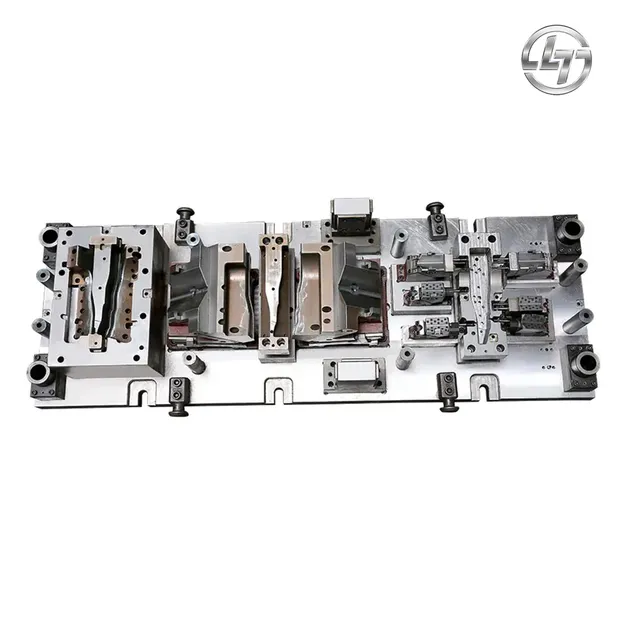

Sample 3

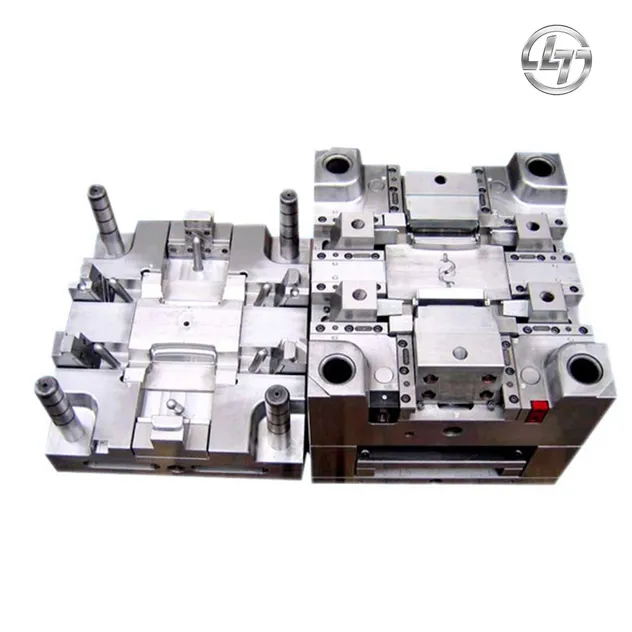

Sample 4

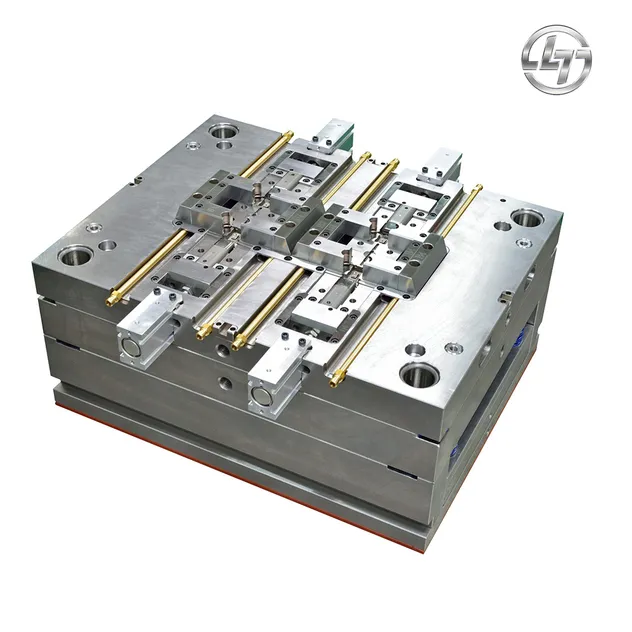

Sample 5
Sample 6
Material Selection

Professionalism You Can Rely On: In mold and fixture manufacturing, material selection directly defines service life and precision. We deliver tailored material solutions that balance performance, cost, and manufacturability.

H13/S136 mold steel for high-cycle molds
P20 pre-hardened steel for medium-volume
4140 alloy steel for CNC machining clamps
7075 aluminum for lightweight fixtures
Material Testing
Surface Treatment & Process
Process 1

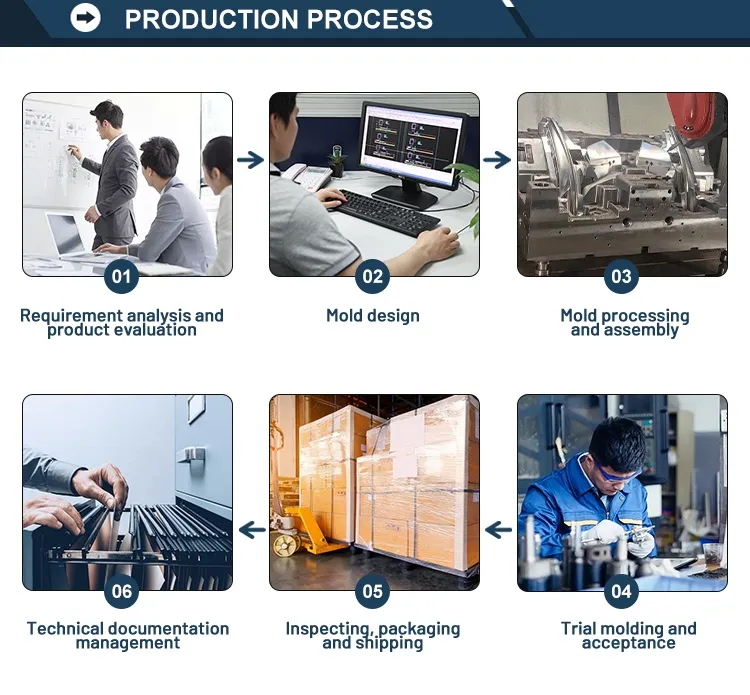

Process 2
Hot Sales

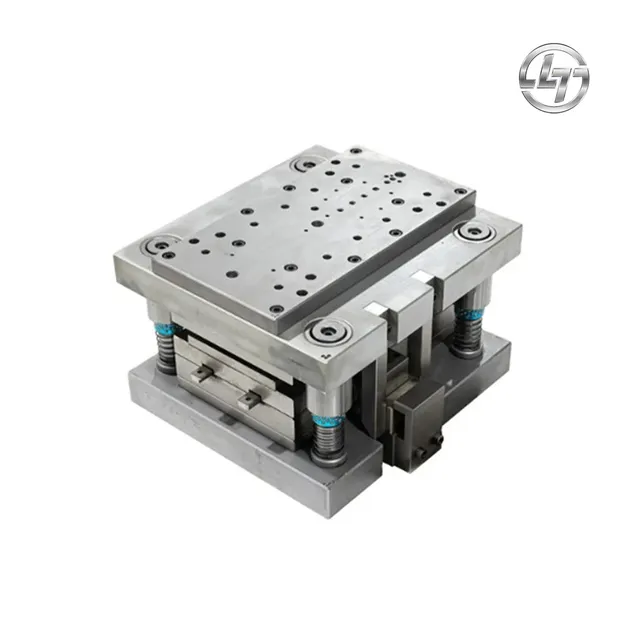

Hot Sale 1

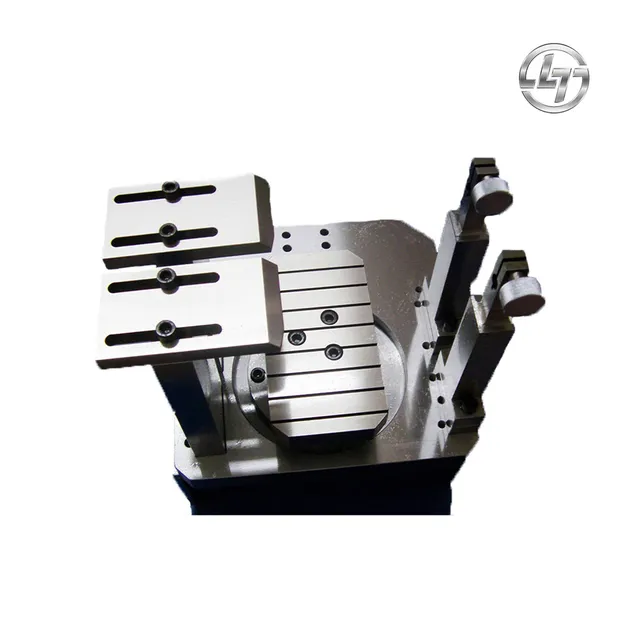

Hot Sale 2

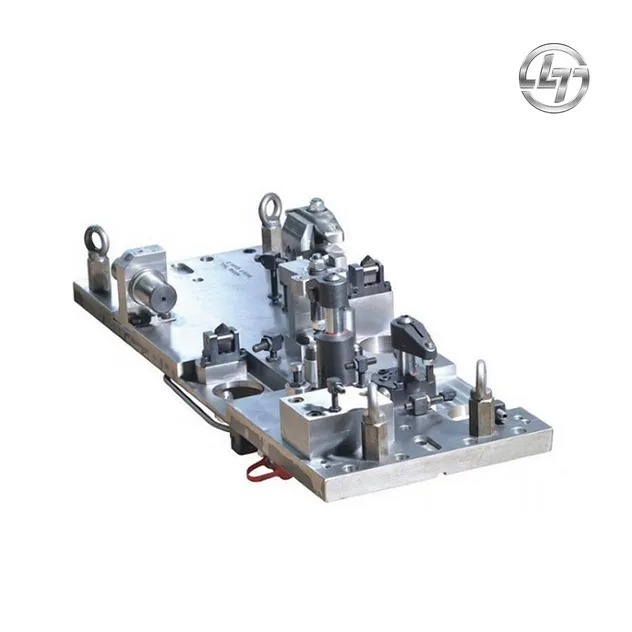

Hot Sale 3
Packaging & Shipping
Packaging 1
Packaging 2

Our product packaging is crafted with meticulous care, prioritizing protection and functionality. We use high-strength materials like robust cardboard boxes and tailored cushioning (foam, bubble wrap) to prevent shifting and shield against shocks. For fragile items, we adopt specialized solutions like wooden crates to ensure maximum safety during international transit.

Our Profile & Feedback

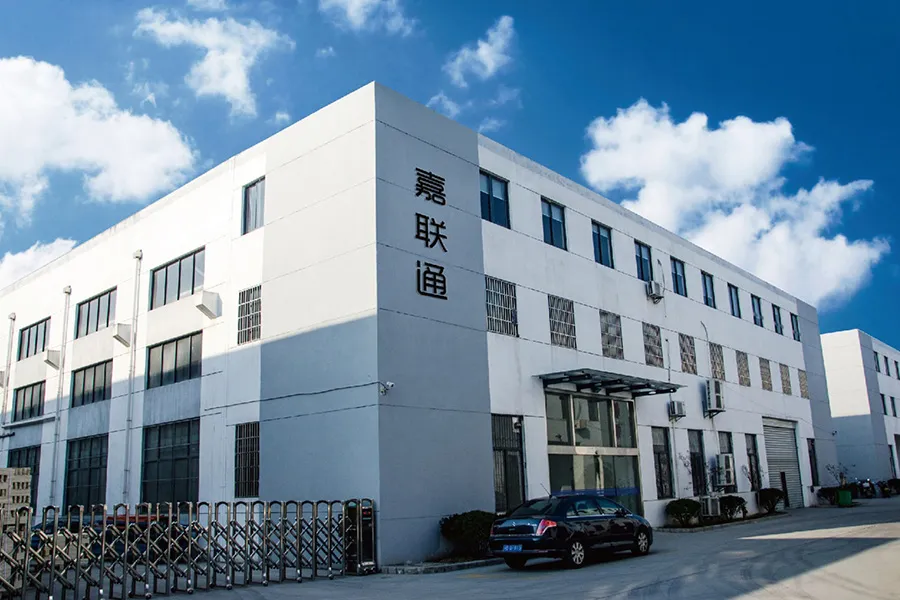

Facility

We are a leading provider of precision component machining and tailored technical solutions, dedicated to industries worldwide including Defense, Automotive, Medical, and Robotics. Our expertise ensures precision, quality, and cost-effective solutions from concept to volume production.

Customer Endorsement: Endorsed by leading manufacturers worldwide, our CNC molds & fixtures receive glowing 5-star feedback for exceptional precision (±0.002mm-±0.006mm) and premium-grade materials.

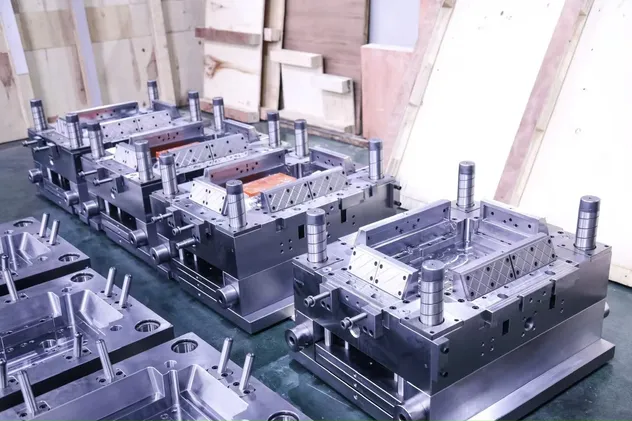

Quality 1

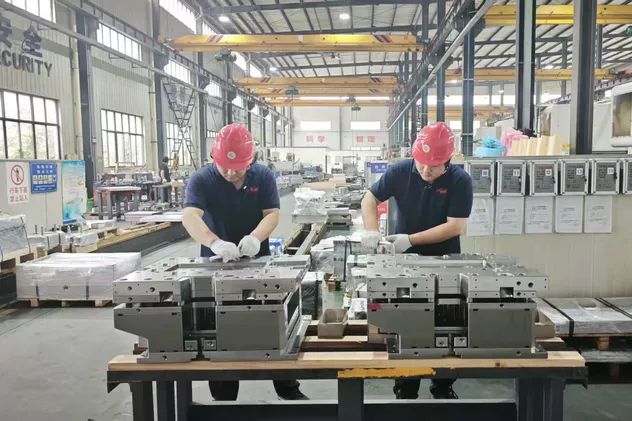

Quality 2

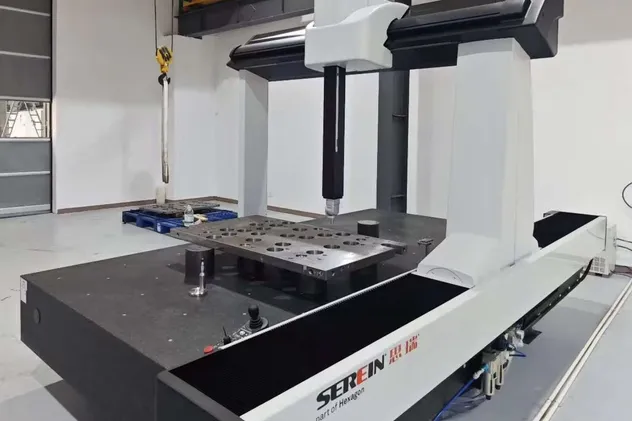

Quality 3
Frequently Asked Questions
What core info is needed for customization?
Please provide 3D models (STP/IGS), 2D CAD drawings, workpiece material specs, tolerance requirements, and DFM demands.
What's the typical lead time?
Lead times range from 15–45 days: Standard fixtures take 15–20 days, while complex molds with digital twin simulation require 30–45 days.
Which materials are best for high-performance molds?
We recommend NAK80/718H pre-hardened steel, H13 modified hot-work steel, and CMC (ceramic matrix composites) for durability.
How do you ensure precision and resolve deviations?
We calibrate CNC/EDM equipment regularly, optimize cooling channels, and apply PVD surface treatments to ensure tolerances of ±0.002mm.
Who is responsible for maintenance?
We provide a 1-year free warranty for non-human damage. For post-warranty needs, we offer LSR (laser surface remelting) services.
How can fixture management costs be reduced?
By adopting digital management systems with one-code tracking, automatic maintenance reminders, and smart scheduling.
