PP Bottle Washing-Filling-Sealing Machine High-Speed PP Bottle Washing, Filling, and Sealing Equipment

After-sales Service:	Video Technical Support,Field Maintenance and Repa
Warranty:	1 Year
Automatic Grade:	Fully Automatic

Basic Info.

Material Type

Liquid

Filling Valve Head

Multi-Head

Feed Cylinder Structure

Multi-Room Feeding

Dosing Device

Capacity Cup

Filling Principle

Atmospheric Pressure

Structure

Rotary

Packaging

Bottle

Packaging Material

Plastic

Applicable Industries

Manufacturing Plant, Pharmaceutical

Feature

Durable, Quick Changeover

Filling Volume

50 - 5000 Ml

Filling Accuracy

±2%

Packaging & Delivery

Package Size

200.00cm * 150.00cm * 180.00cm

Package Gross Weight

2200.000kg

Product Description

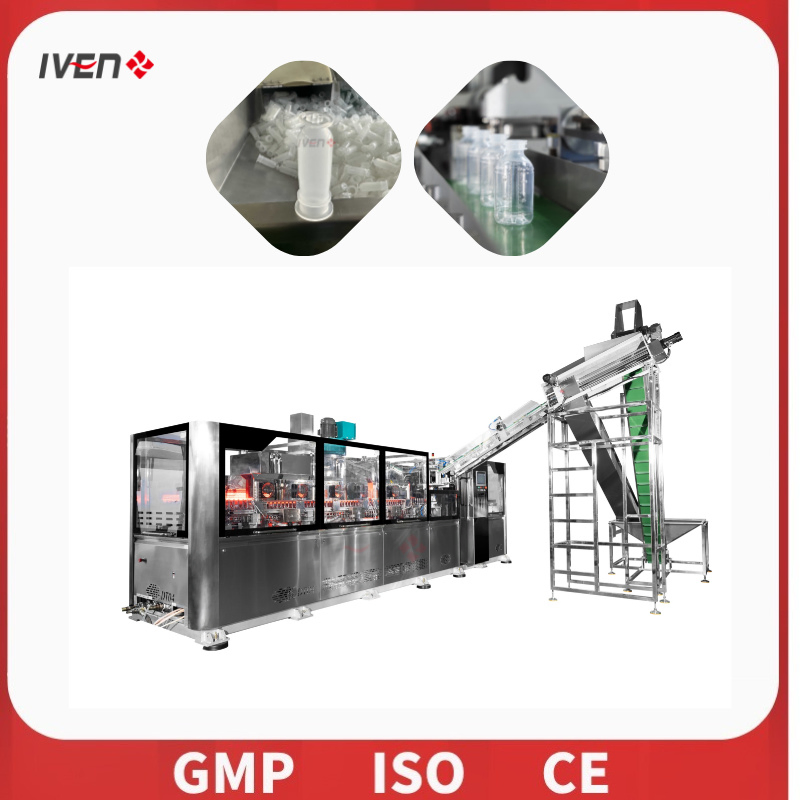

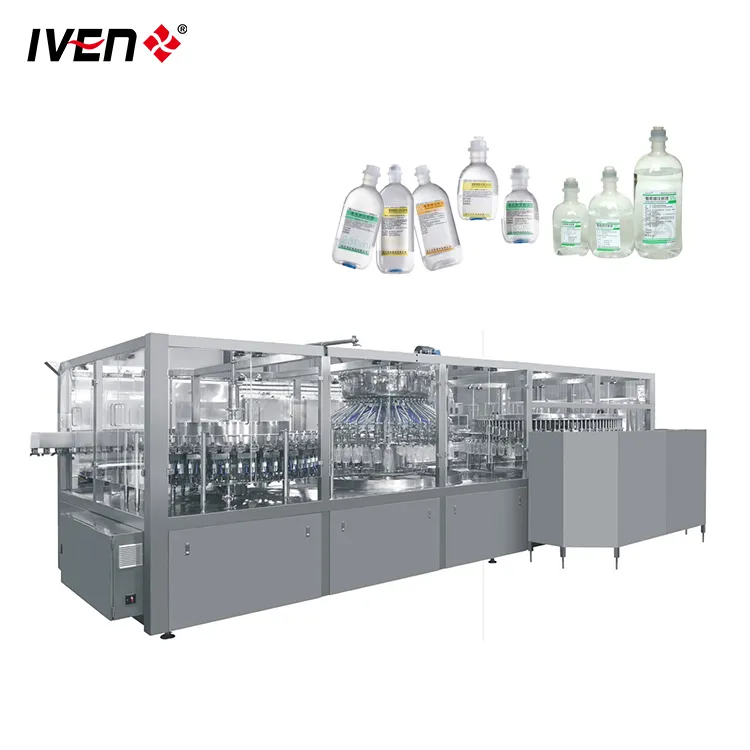

Automatic PP bottle IV solution production line includes 3 set equipment: Preform/Hanger Injection machine, Bottle blowing machine, and Washing-Filling-Sealing machine. The production line is automatic, humanized, and intelligent with stable performance and quick maintenance.

PP Bottle Washing-Filling-Sealing Machine

Step 1: Bottle feeding station

It adopts direct link between conveying track and bottle feeding dial wheel, clamps the bottleneck to convey, with clean compressed air to accelerate the delivering, no scratching.

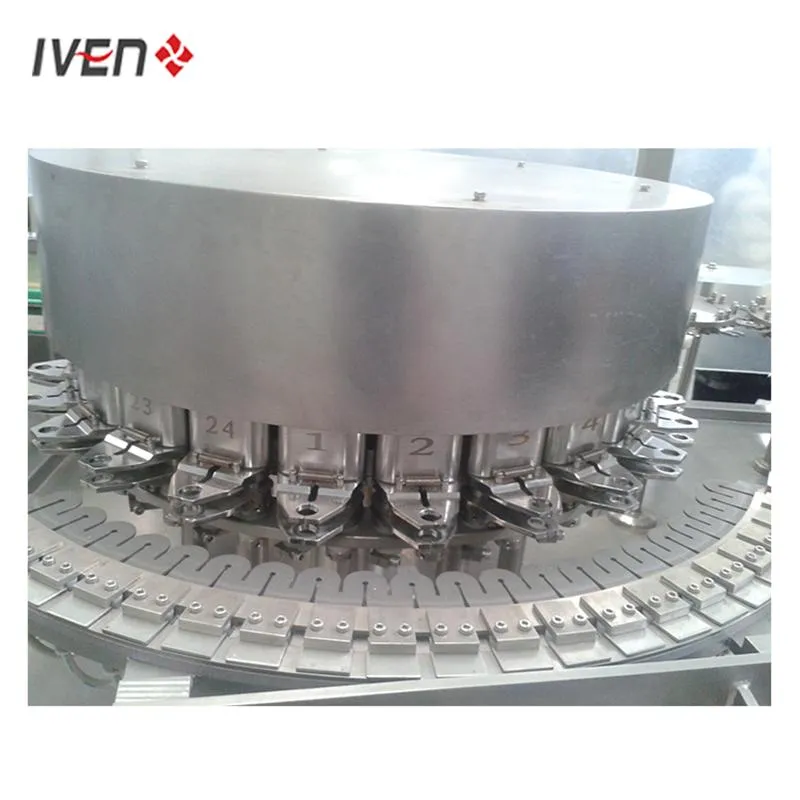

Step 2: Bottle ionic air washing station

Cleaning process: overturn the bottle; suction pipe rises to cover the bottle mouth; ionic air pipe rises to clean the bottle with compressed air; simultaneously suck particles out of the bottle.

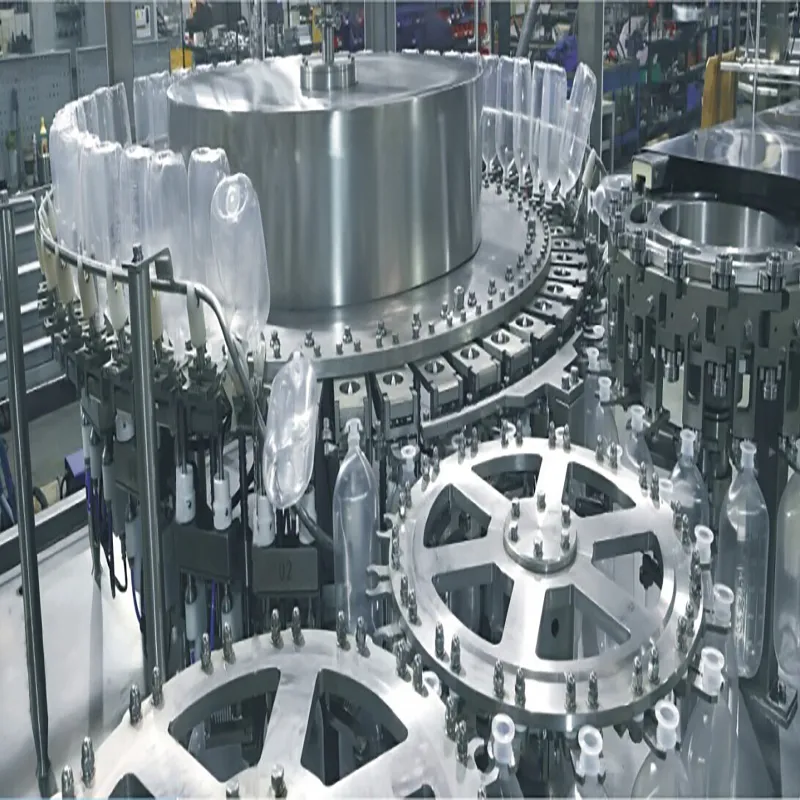

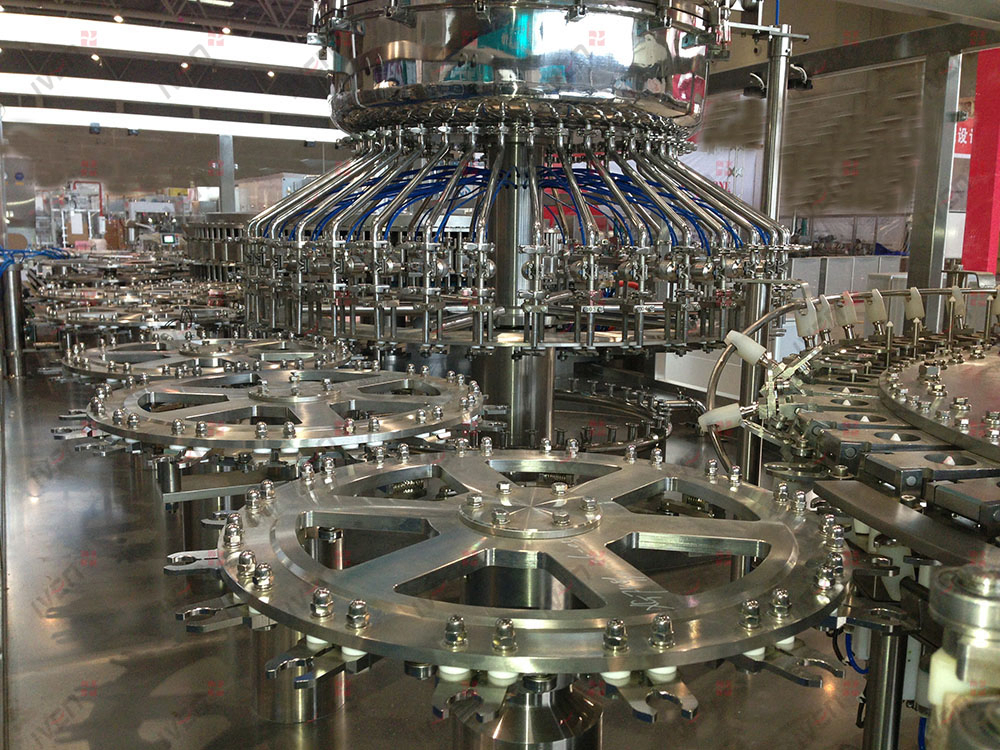

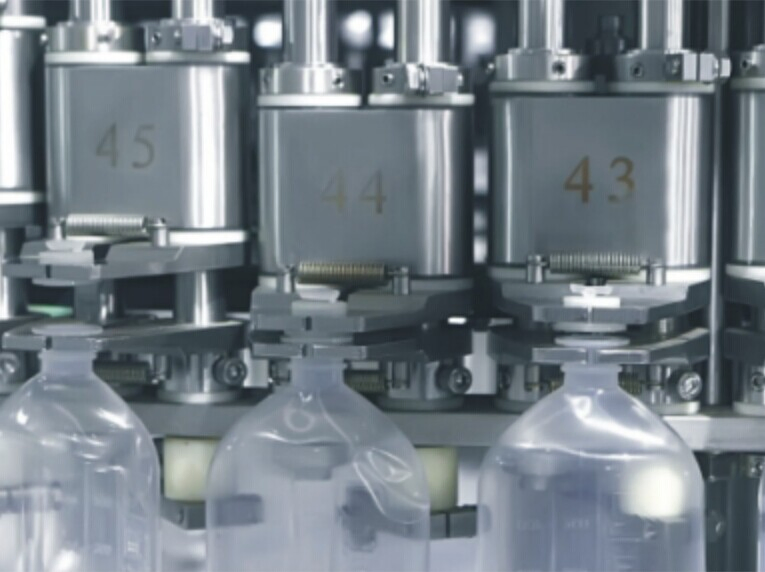

Step 3: Filling station

Washed bottles are conveyed by manipulator. Filling nozzles trace bottles for filling. Equipped with a constant-pressure liquid balance tank and pneumatic diaphragm valve control.

Step 4: Hot melting sealing station

Mainly used to weld-seal the cap after filling. Adopts double heating plates to heat caps and bottle ports separately in a non-contact hot-melt type. Adjustable temperature and time.

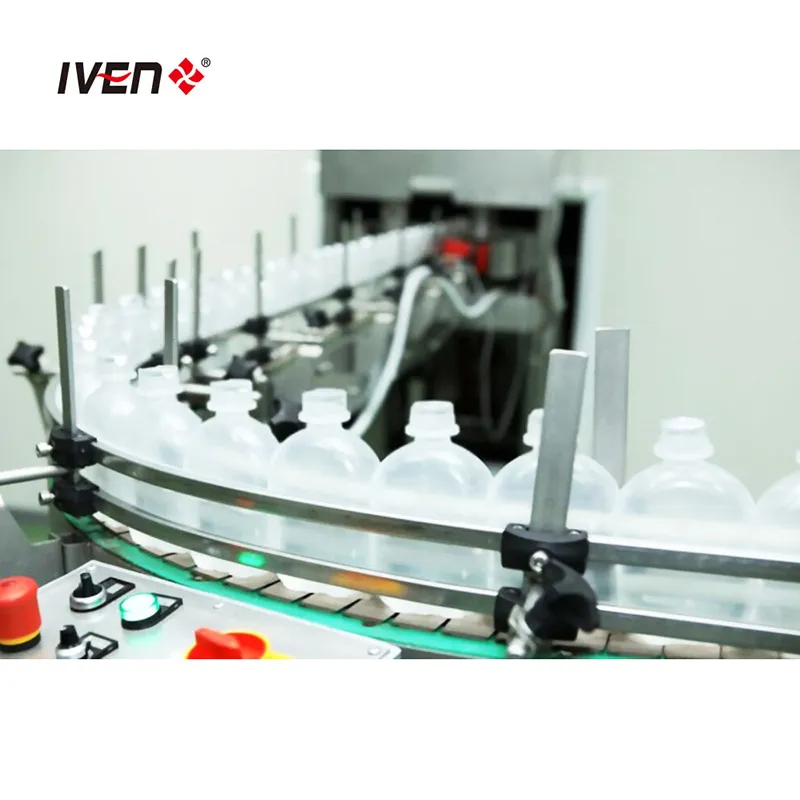

Step 5: Bottle outfeeding station

Sealed bottles are conveyed to the outputting track through the outfeeding station to enter the next process.

Our Advantages

Servo drive ensures stability during high-speed movement and accurate positioning.
Cam clamping fingers eliminate plastic scrap and powder to ensure product quality.
High production capacity: range from 4,000 to 15,000 bottles per hour.
Closed integral chain structure prevents foreign objects from entering, ensuring easy maintenance.
Zero-leak sealing improves blowing efficiency and shortens bottle forming time.

Key Features

Compatible with production of different sizes (100ml - 1000ml).

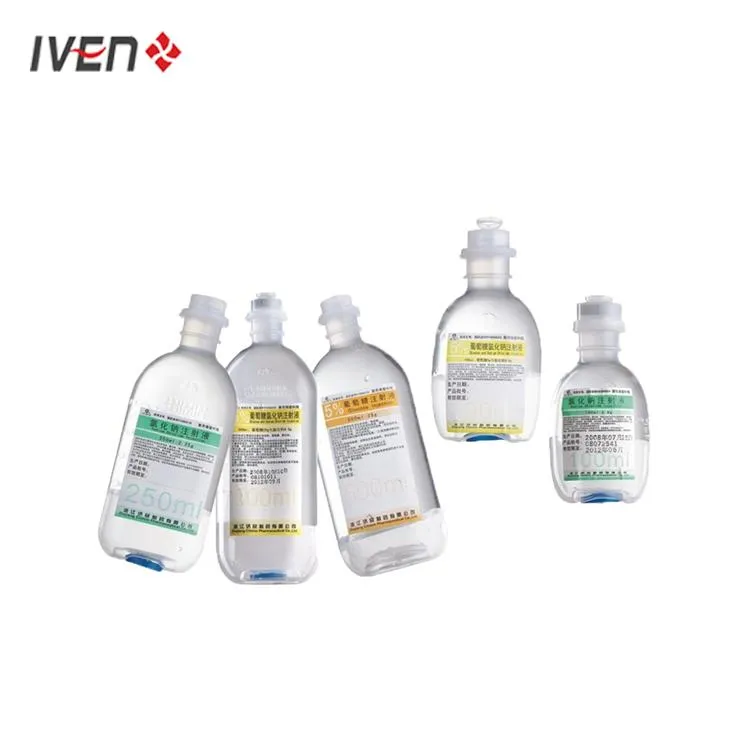

Applied for both Standard PP bottles and Self-collapsed soft PP bottles.
Applicable to various container shapes: round, oval, irregular, etc.
The wasted raw material for the production of one 500ml PP bottle is 0%.

Product Parameters

Item		CPS 4	CPS 6	CPS 8	CPS 10	CPS 12
Capacity	500ml	4000 BPH	6000 BPH	8000 BPH	10000 BPH	12000 BPH
Max Height	mm	240				230
Preform Ht.	mm	120				95
Air (8-10bar)	m³/min	3	3	4.2	4.2	4.5
Air (20bar)	m³/min	2.5	2.5	4.5	6.0	10-12
Chilled Water	m³/h	4	4	7.87	7.87	8-10
Weight	T	7.5	11	13.5	14	15

Manufacturing Facility

Frequently Asked Questions

What bottle sizes can this production line handle?

The machine is versatile and can meet the production requirements for various sizes ranging from 100ml to 1000ml.

Is it compatible with soft PP bottles?

Yes, the production line is designed to work with both standard PP bottles and self-collapsed soft PP bottles.

What is the maximum production capacity?

Depending on the specific model selected (from CPS 4 to CPS 12), the production capacity ranges from 4,000 to 12,000 bottles per hour for 500ml containers.

How does the machine ensure bottle cleanliness?

The machine uses a specialized ionic air washing station that overturns the bottle and uses compressed air to clean while simultaneously sucking out any particulates.

Does the machine support non-round bottle shapes?

Yes, the system is highly flexible and can handle various container shapes including round, oval, and irregular designs.

What are the maintenance requirements?

Thanks to its servo-driven system and closed integral chain structure, the machine is highly durable and designed for quick and simple maintenance with low operational costs.
