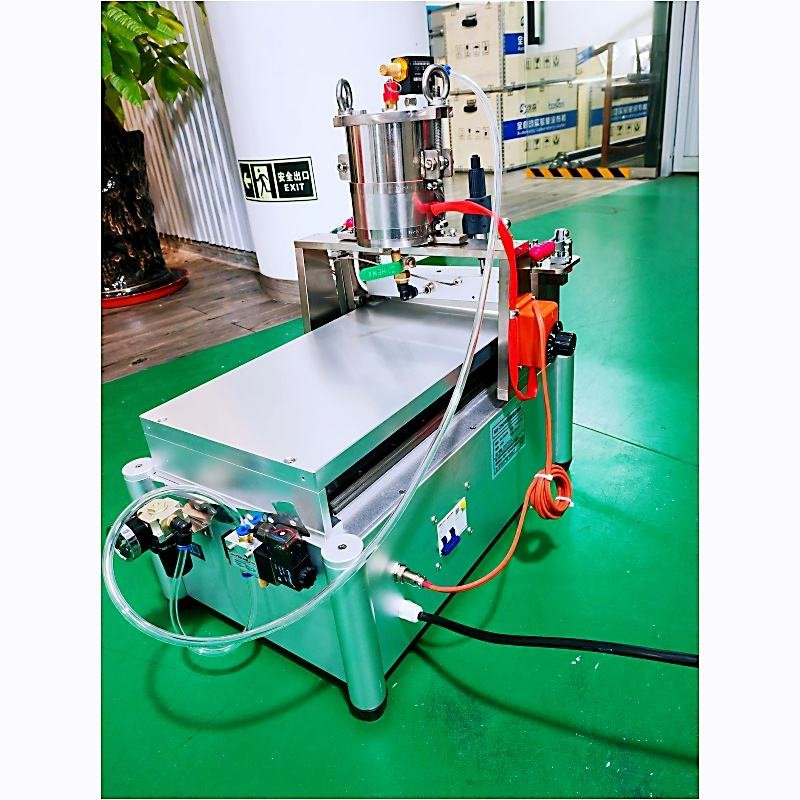

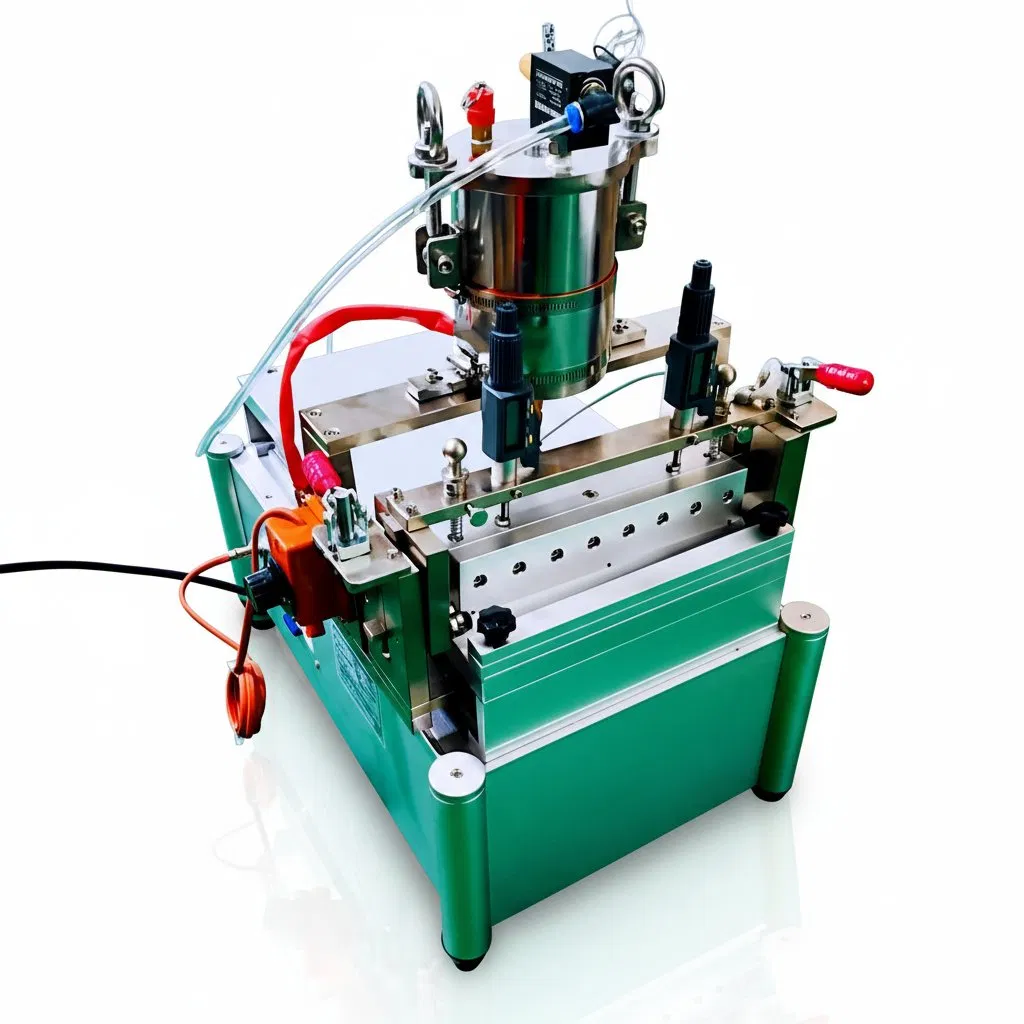

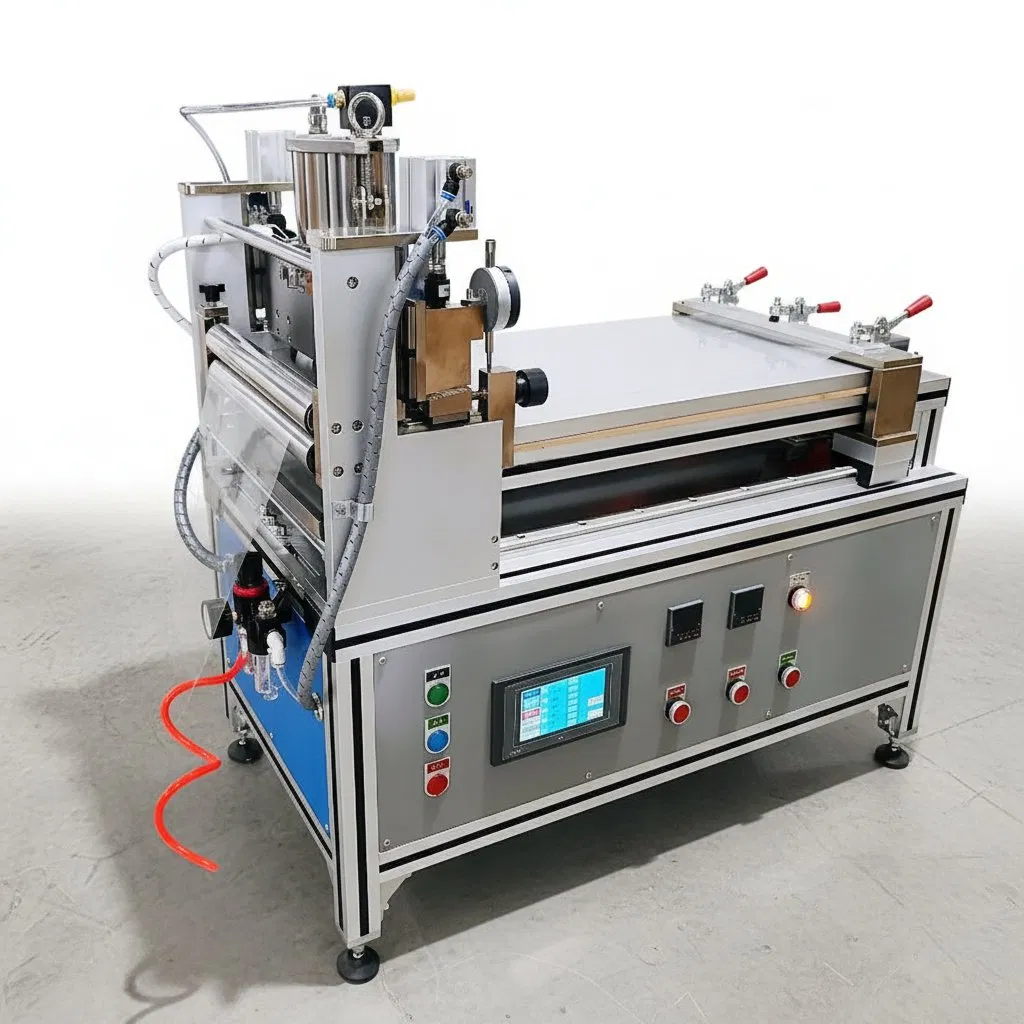

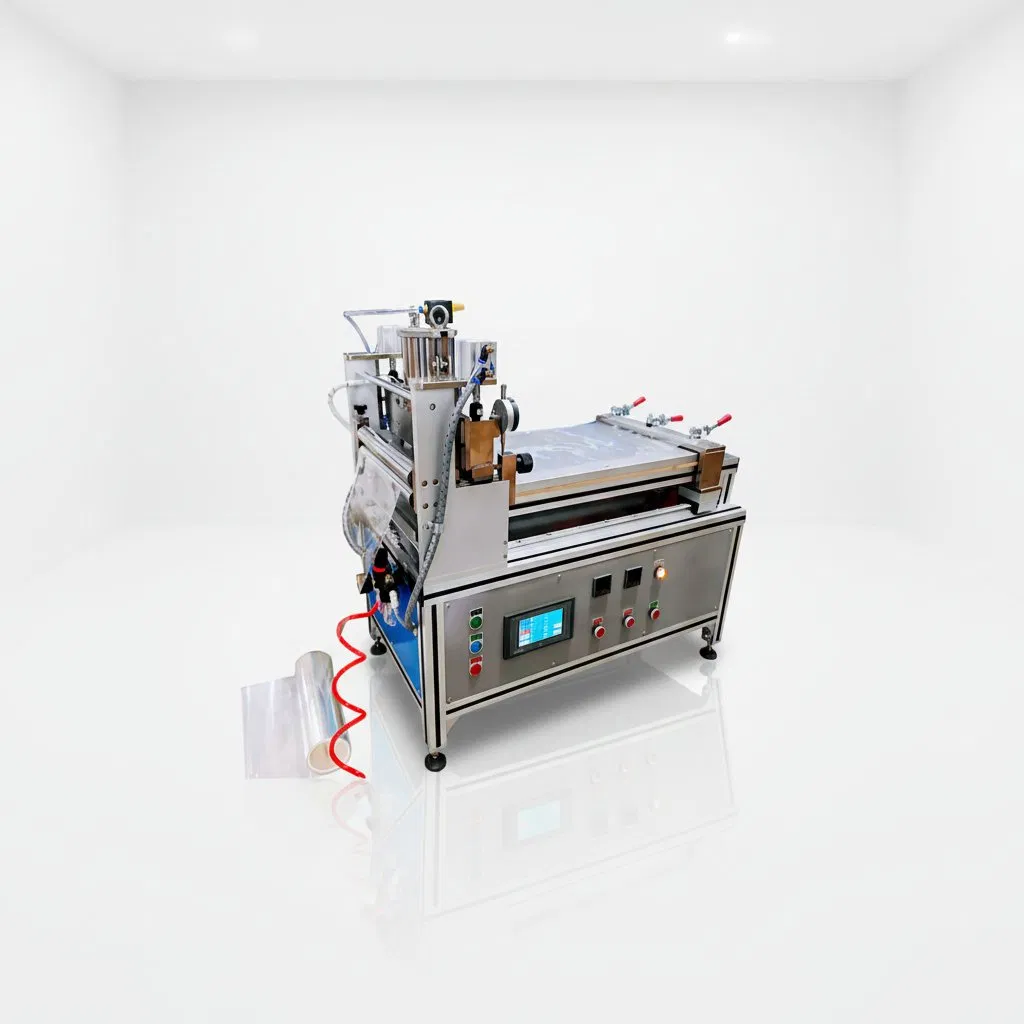

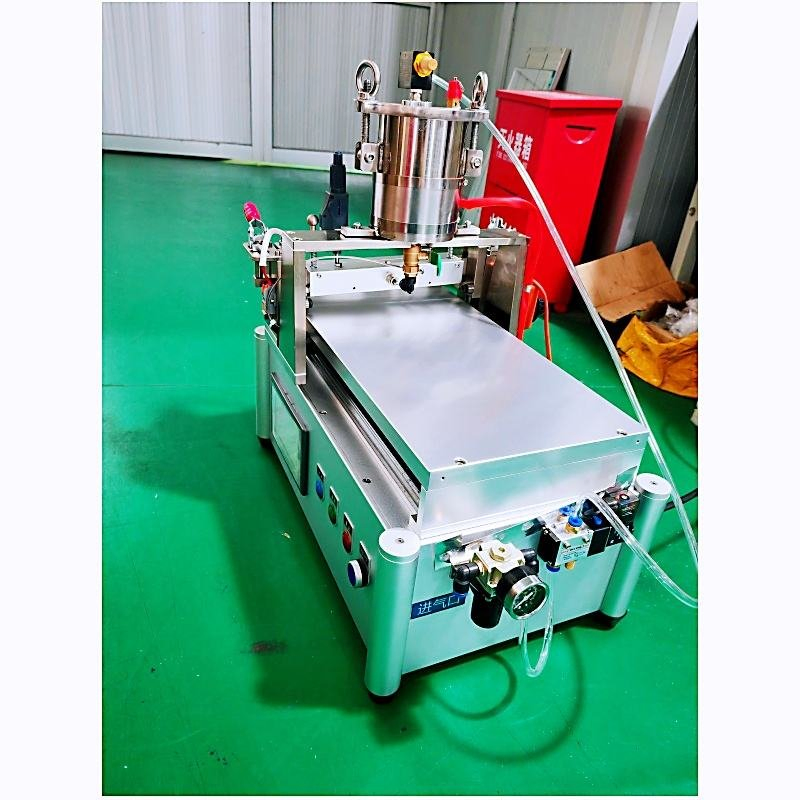

Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
1 / 5
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating
Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating

Hot Melt Adhesive Coating Machine for Pet/Pi Laboratory Small-Scale Sample Coating

Customization: Available
Certification: CE
Coating Application: Aerospace Industry, Automotive Industry, Construction Industry, Electronics Industry
Send Inquiry

Product Description

Basic Information
Model NO.
GN-K251
Coating Color
White
Warranty
1 Year
Coating Thickness
0.005-3 mm Wet Film
Coating Uniformity
±6μm
Coating Width
200X250mm
Heating Temp
Ambient to 100℃
Package
Wood Package
Product Description
Hot Melt Adhesive Coating Machine
⚙️
FEATURES-1: Versatile Coating Suitable for full-width and strip coating, using domestic or imported coating heads, accurate glue coating amount; can be coated on both sides, can have composite function.
💻
FEATURES-2: Smart Control It can use microcomputer control technology, glue spraying rate, and production speed to keep synchronization automatically.
🎯
FEATURES-3: High Precision Adopt advanced sol coating system, or online glue making system, glue making and coating at the same time, high-precision double-layer gear pump synchronous control.
🔥
FEATURES-4: Temperature Control The glue-making system adopts an electric heating system or heat transfer oil circulation heating. Accurate temperature control with isolation insulation type.
🔄
FEATURES-5: Stable Operation Rewinding and unwinding adopt manual or automatic correction, automatic tension control system; inverter stepless speed regulation, stable operation.
Technical Specifications
Control System5-inch PLC touch screen
Coating Thickness0.005-3 mm wet film
Coating Uniformity±6
Power Supply220V, 50Hz
Power Consumption2000W
Equipment Speed0.5-3 m/min (digitally preset)
Coating Width200x250mm
Heating TemperatureAmbient to 100℃
Coating MethodExtrusion scraper (metal plating + heating pipe)
Heating and Melting Tank1L with heating (air pressure glue supply)
Packaging WeightApproximately 70 kg
Product Gallery
Sample Coating 1
Sample Coating 2
Sample Coating 3
Sample Coating 4
Sample Coating 5
Sample Coating 6
Detail View 1
Detail View 2

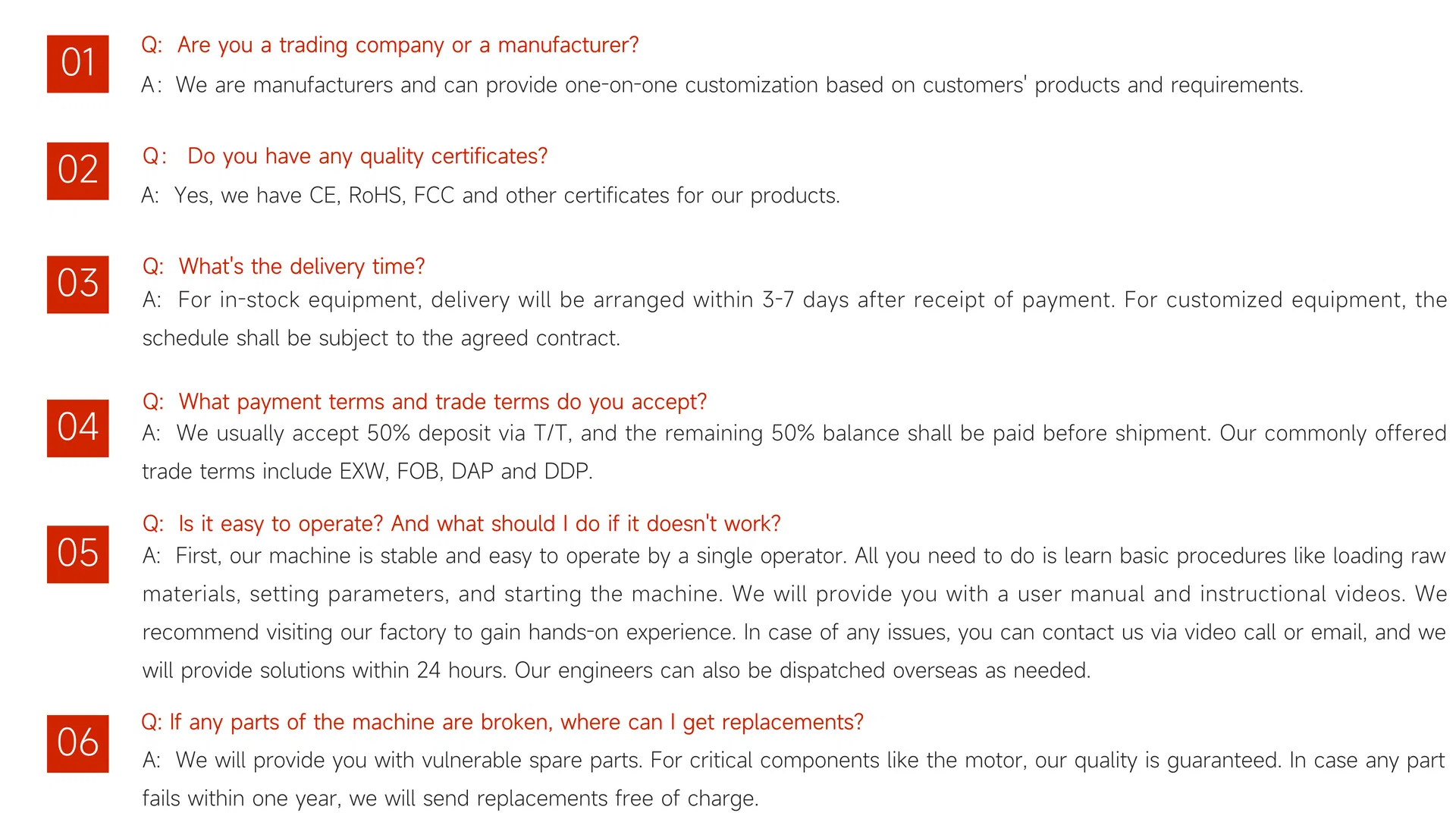

Detail View 3
Frequently Asked Questions
What is the coating thickness range for this machine?
The machine supports a wet film coating thickness ranging from 0.005 mm to 3 mm.
What is the maximum heating temperature?
The heating system can reach temperatures from ambient up to 100℃ with constant temperature settings.
How is the coating uniformity ensured?
The machine utilizes a high-precision extrusion scraper and synchronous gear pump control to achieve a coating uniformity of ±6μm.
Is the production speed adjustable?
Yes, the equipment speed can be digitally preset between 0.5 and 3 meters per minute.
What kind of control system does the machine use?
It is equipped with a 5-inch PLC touch screen for easy operation and microcomputer control technology.
What are the power requirements for installation?
The machine requires a standard 220V, 50Hz power supply and has a power consumption of 2000W.
