Cost Reduction Solution: Replaces manual inspection with high-speed automated sorting for OK and NG products.
Equipped with automatic vibration disk and hoist fastener vision inspection. Uses artificial intelligence visual inspection software and 7 CCD industrial cameras. Detects key dimensions (outer diameter, height) and appearance defects (slag blockage, missing teeth).
Accuracy: ± 0.01mm | Speed: 400pcs/min

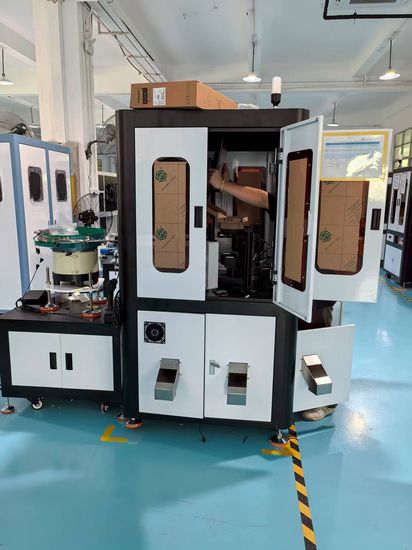

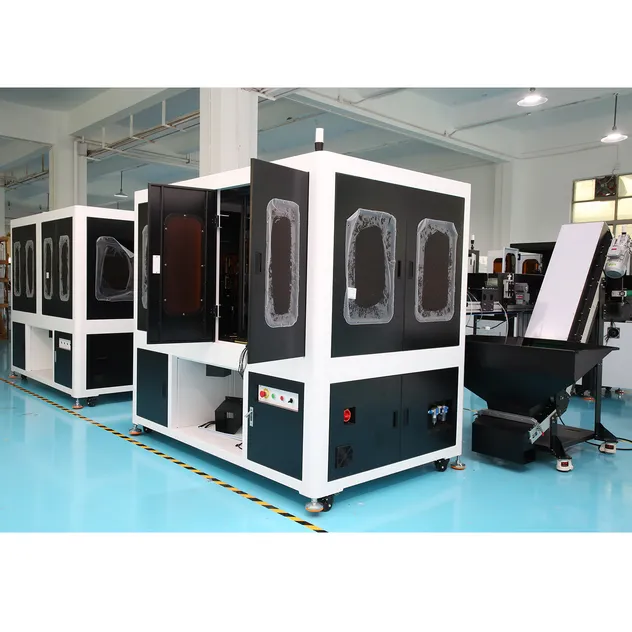

Machine with feeding device

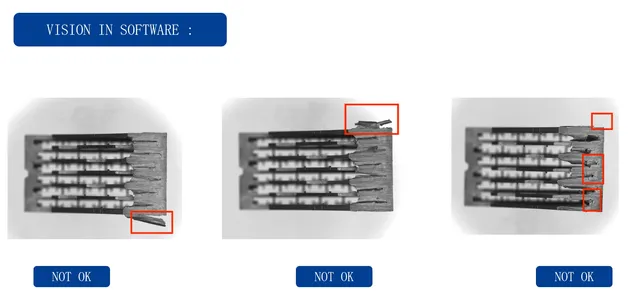

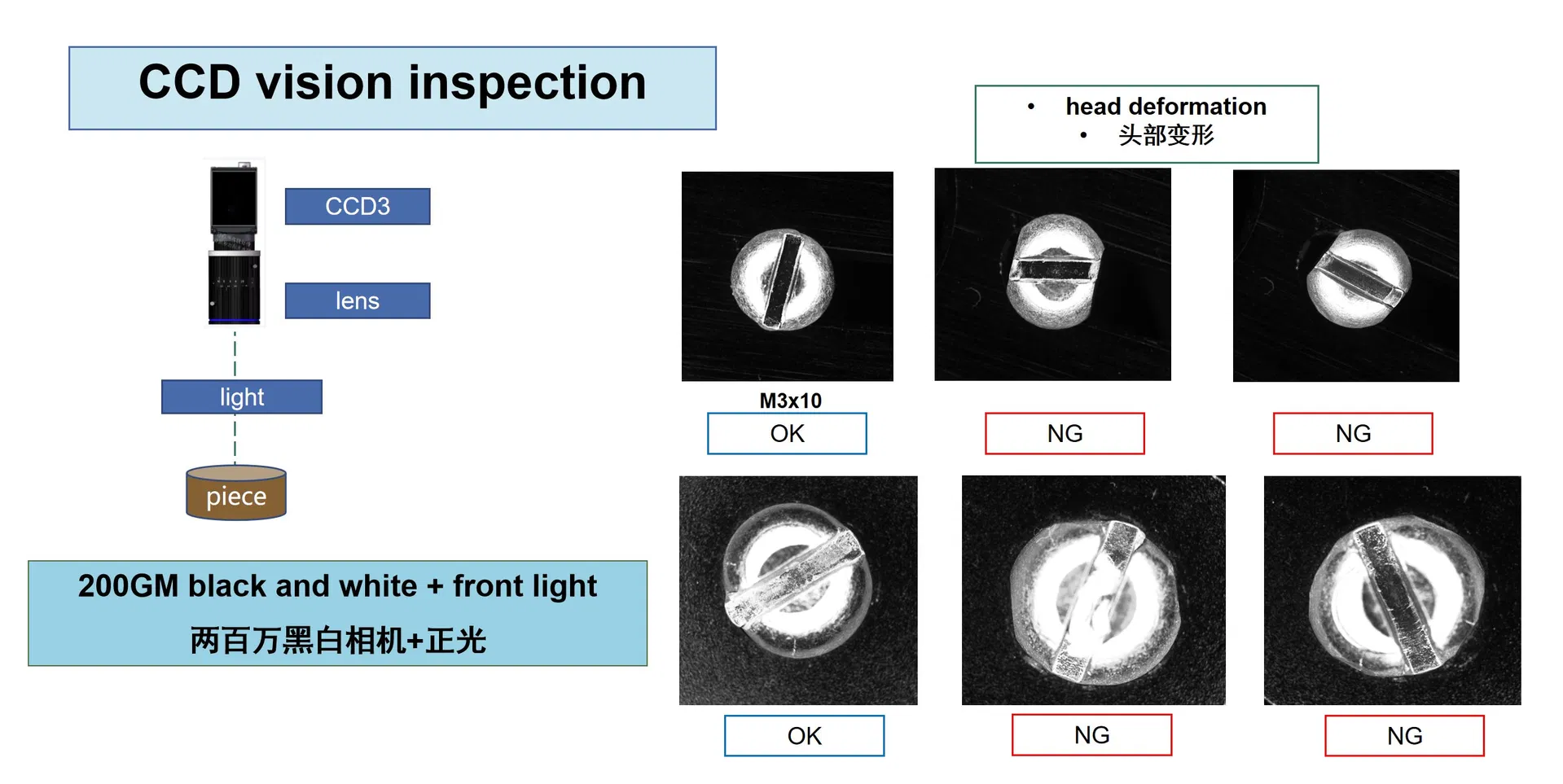

CCD Detection effect

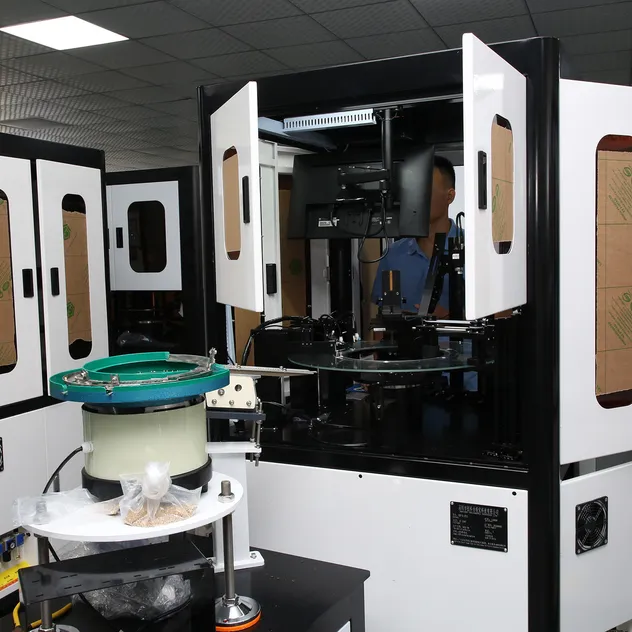

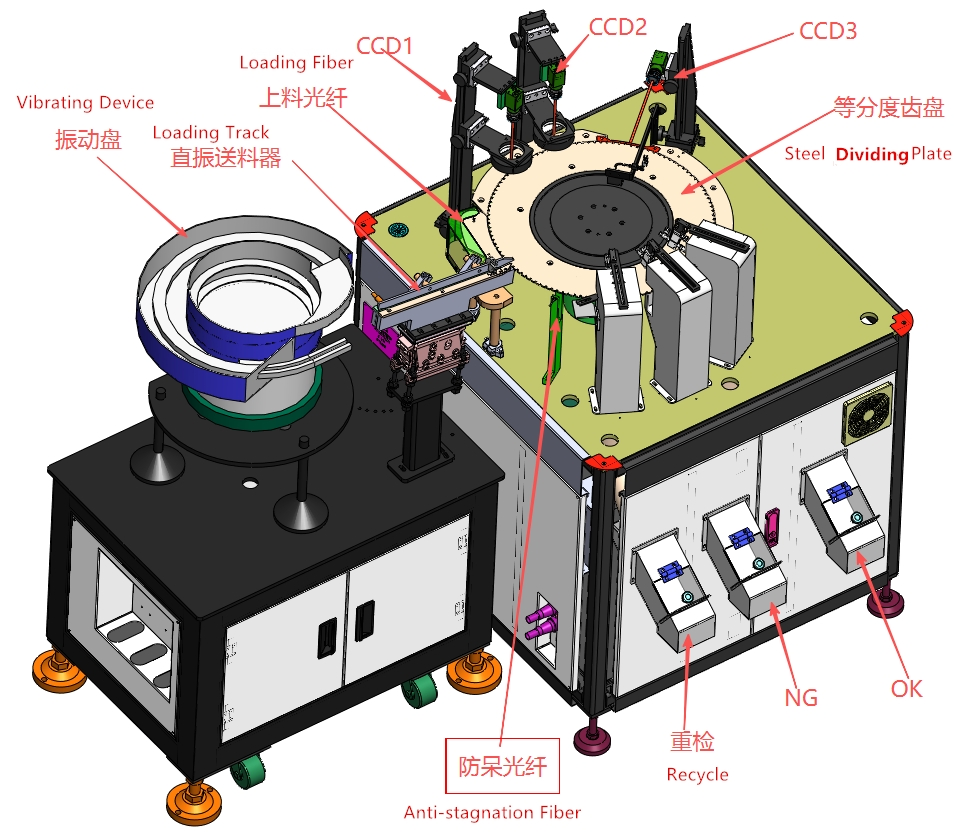

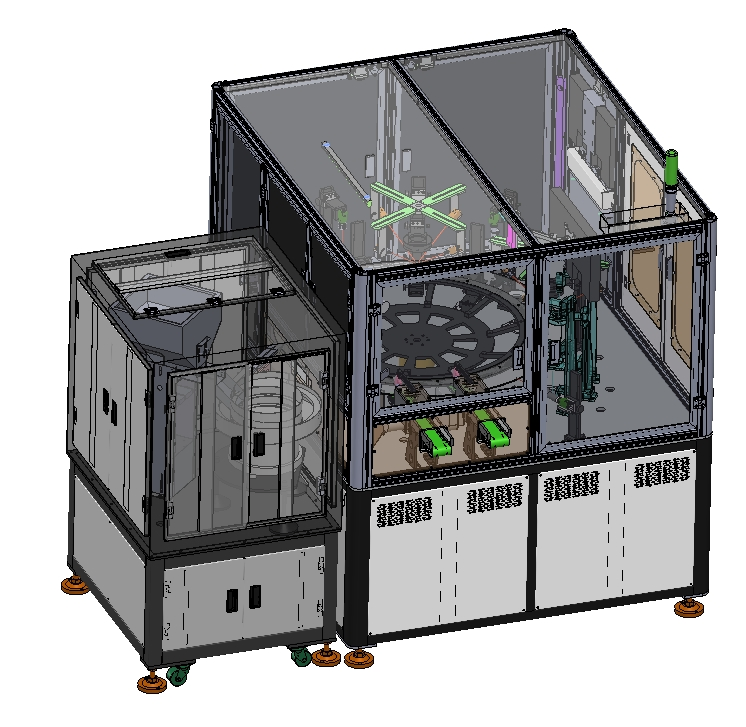

Assemble design
| No. | Component | Specification Details | Qty | Function |
|---|---|---|---|---|
| 1 | Main device | L1350*W1100*H1800 | 1 | Inspection |
| 2 | Solenoid valve | American MAC- 24VDC | 1 | Blowing Out-let |
| 3 | Optical sensor | Japan Keyence | 1 | Sensor system |
| 4 | HD CCD Camera | Basler | 7 | Vision Detect |
| 5 | Camera Lens | Original Industry Lens | 7 | Automatic detect |
| 6 | LED Source | 50*50MM light source | 7 | Lighting |
| 7 | DD MOTOR | High accuracy motor | 1 | Drive System |
| 8 | IC CARD | Gugao IO card | 1 | Control system |
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
