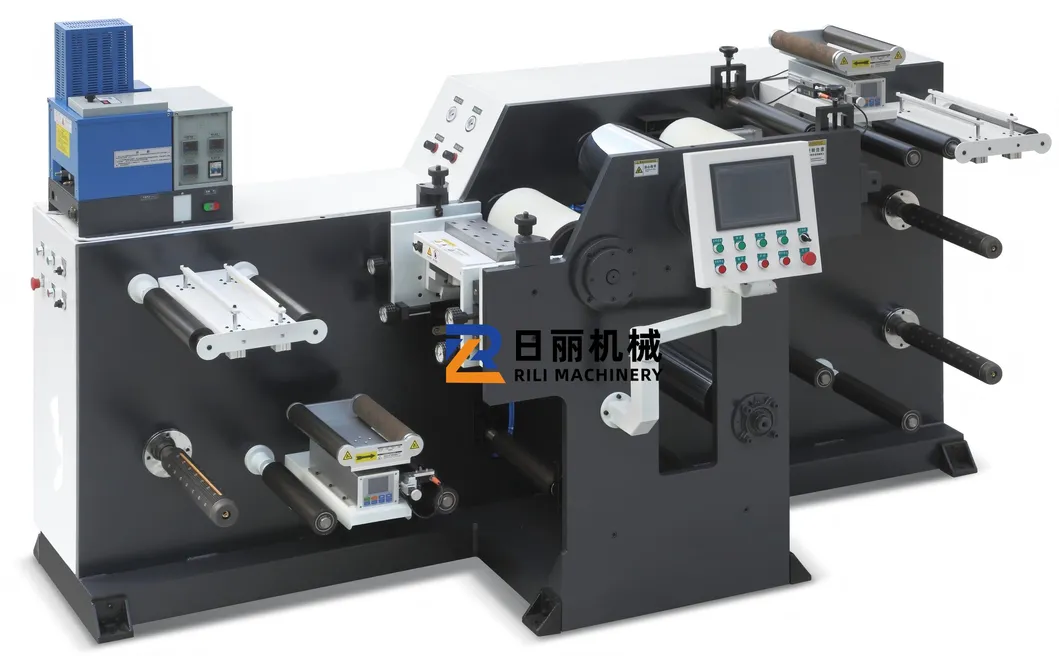

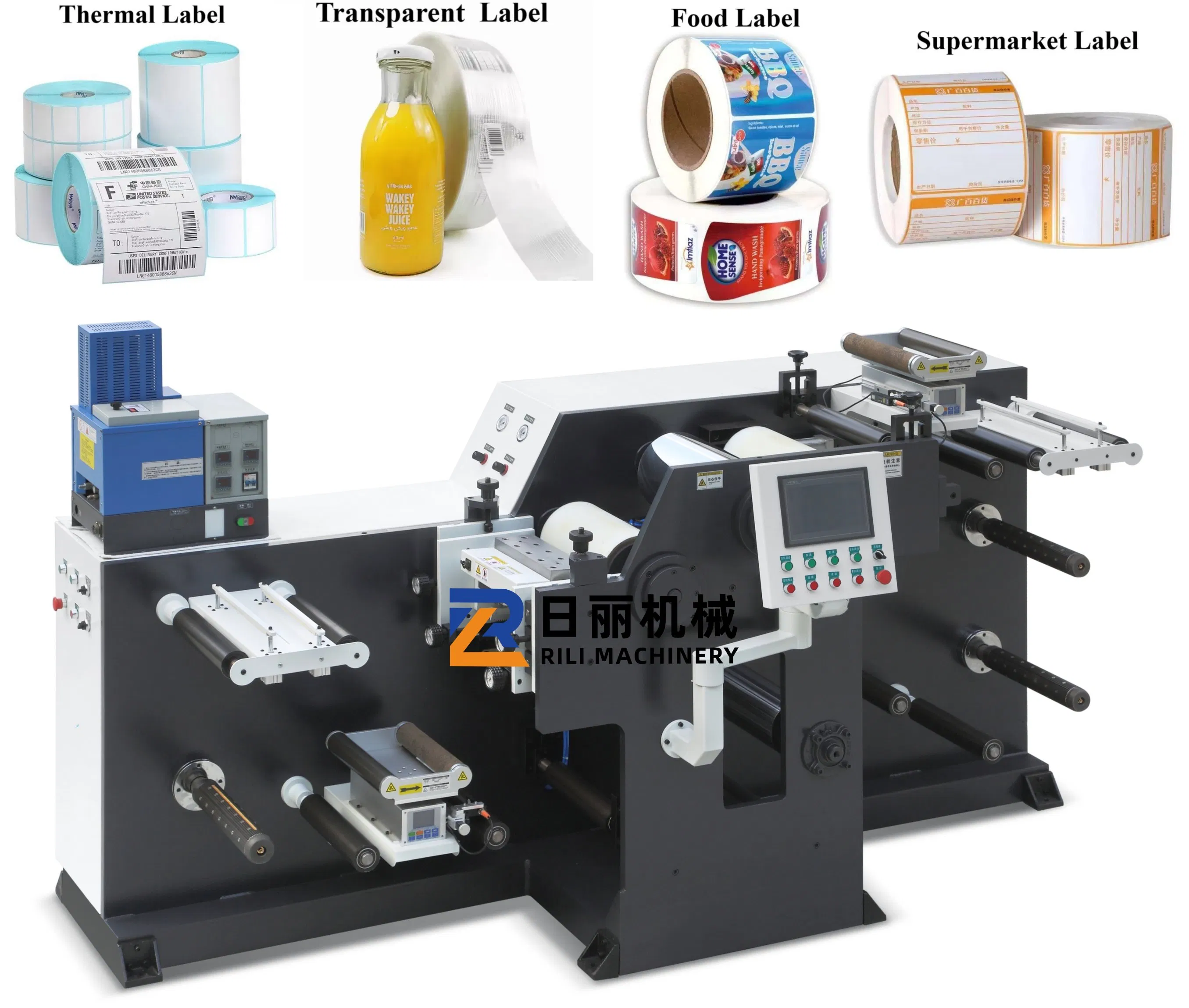

Mini Type Narrow Material Compact Multi-Function Hot Melt Self-Adhesive Labels Slot Die Coating and Laminating Machine for Labs

1 / 5

Mini Type Narrow Material Compact Multi-Function Hot Melt Self-Adhesive Labels Slot Die Coating and Laminating Machine for Labs

Customization:	Available
After-sales Service:	Online Guidance, Engineer Can Be Dispatched Abroad
Warranty:	One Year

Send Inquiry

Product Description

Overview - Basic Info

Model NO.

RL-SY

Type

Slot Die Coater

Driven Type

Electric

Automatic Grade

Semi-Automatic

Packaging Material

Plastic

Packaging Type

Film Package

Application

Electronics, PE, Shoes, Fabric, Food Labels/Wine Lables/Medicine Lables

Unwinder

Single-Station Manual Splicing Unwinding

Rewinder

Single-Station Manual Splicing Rewinding

HS Code

8479899990

Mini Type Narrow Material Compact Multi-Function Hot Melt Self-Adhesive Labels Slot Die Coating and Laminating Machine for Labs

Main Features

✔
This machine is a small hot melt adhesive coating machine.
✔
Adopt PLC touch screen integrated control system to accurately control each link.
✔
The equipment is compact and easy to operate.
✔
Ideal for labs to apply adhesive, test adhesive strength, and obtain accurate data.
✔
Perfect coating equipment for narrow width and small batch production.
✔
Versatile use: double-sided adhesive tape, cloth base tape, medical auxiliary materials, low-temperature hot-melt films, and various compositions like non-woven fabrics.

Advantages

★
Equipped with advanced hardware from international top companies for high manufacturing accuracy.
★
All core parts are manufactured independently to ensure quality control.
★
Cost-efficient solutions for high-quality Hot Melt Adhesive application systems.
★
Customizable designs and angles to suit specific application requirements.

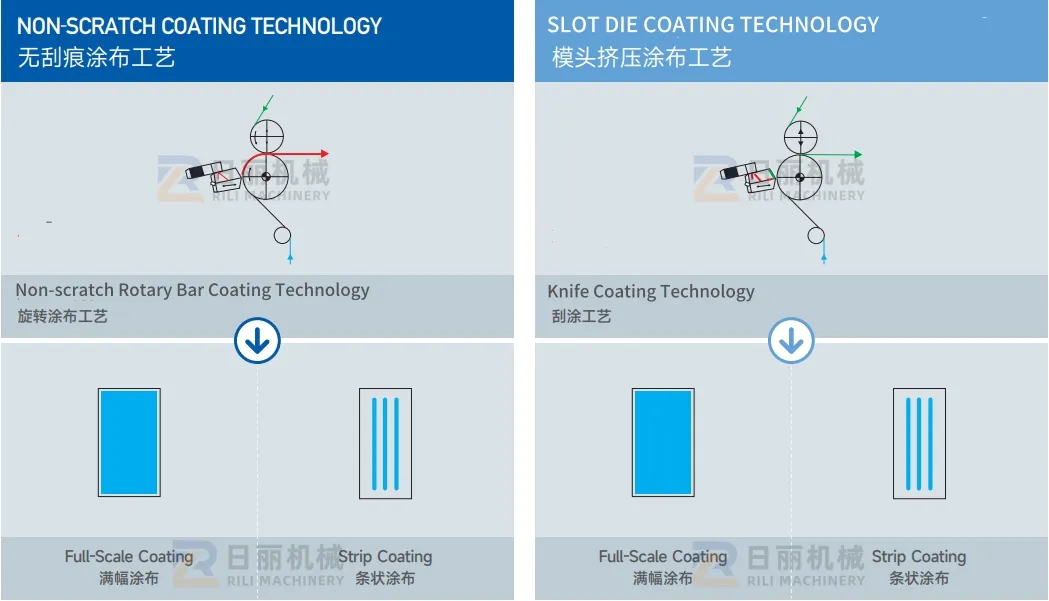

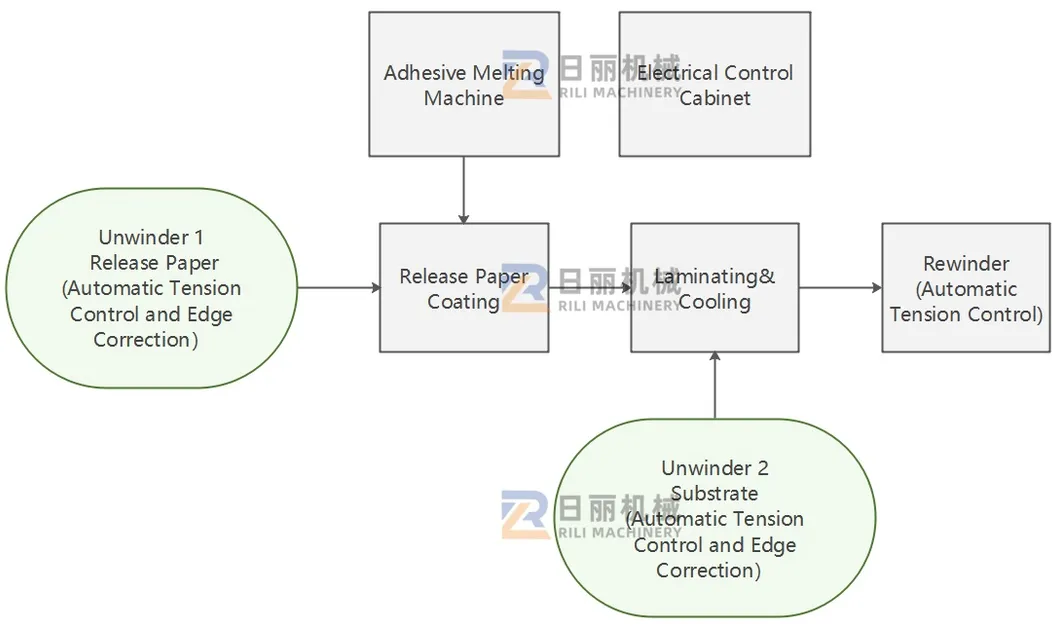

Process Description

Main Technical Parameters

Model	RL-SY
Coating Method	Slot Die Coating
Coating Width	100-350mm
Coating Amount	8-60g/m²
Coating Speed	10-80m/min
Max. Unwinding Diameter	Ø600mm
Max. Rewinding Diameter	Ø400mm
Coating Precision	30g/m² ≤ ±1g

Machine Details

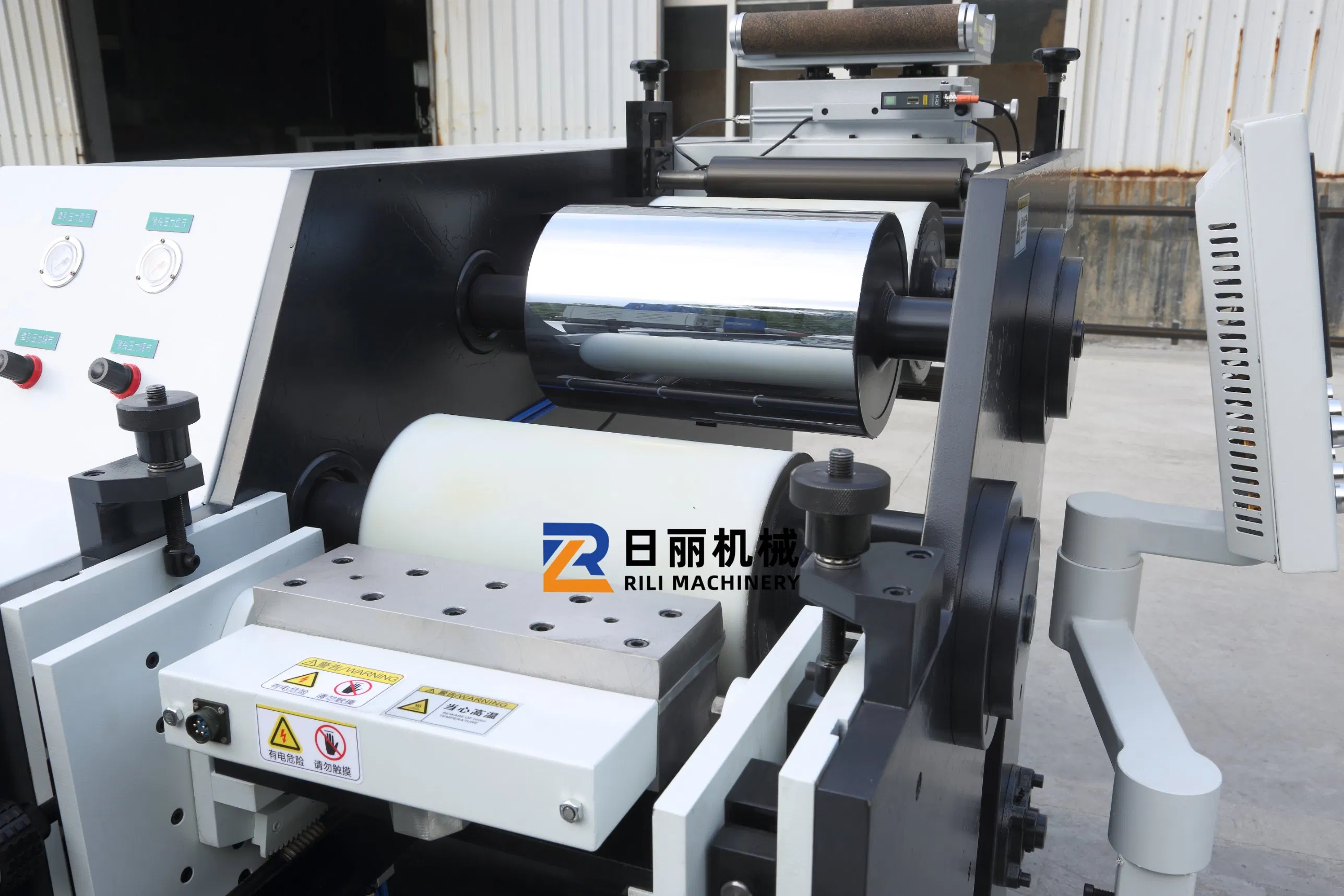

Slot Die Coating System

The die body is made of special wear-resistant and high-temperature resistant 8433 die steel, with the lip made of imported alloy steel. The internal flow channel design ensures delicate and even flow distribution.

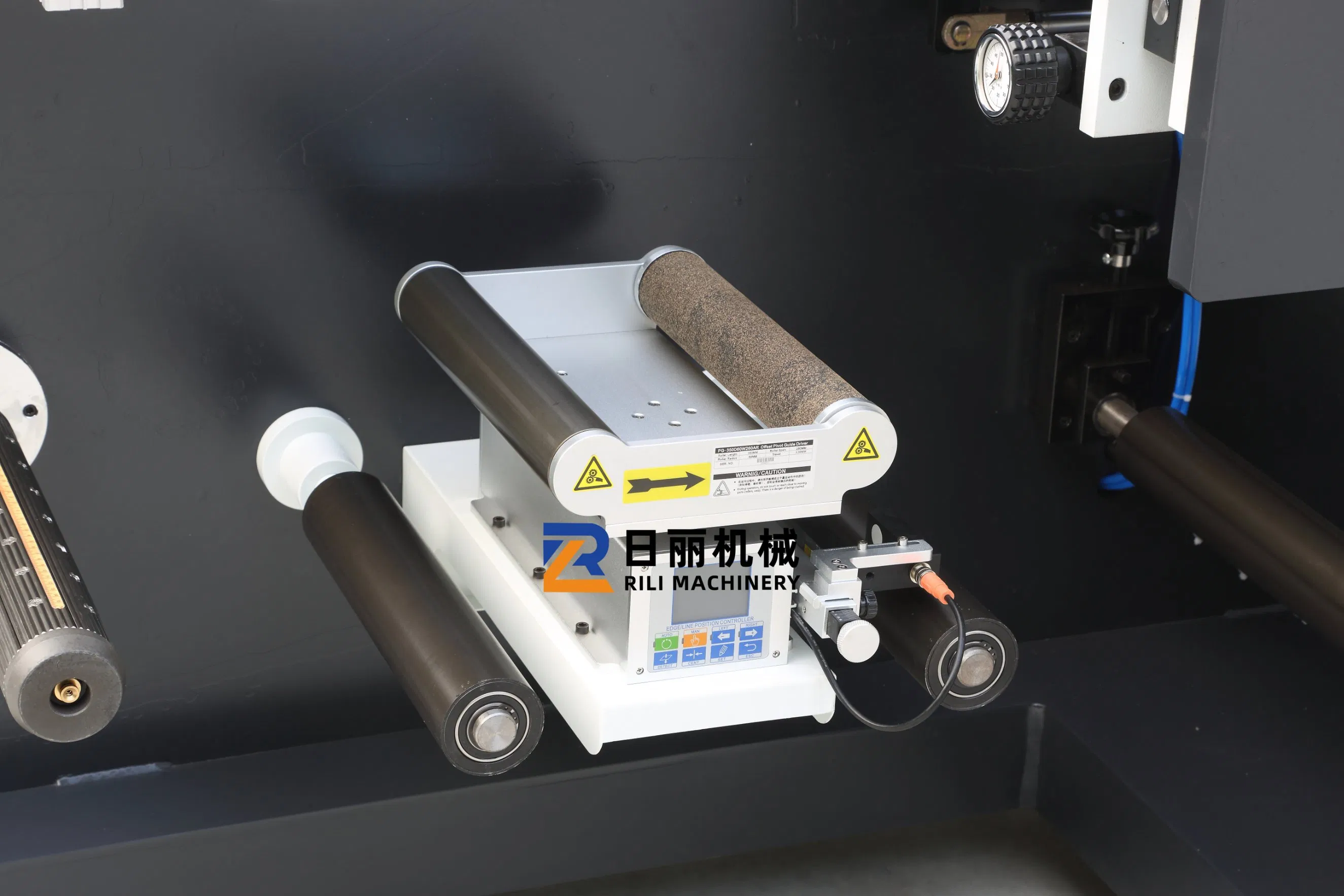

Ultrasonic Servo Center Correction

High-precision correction device ensures the material remains centered during the high-speed coating process for maximum stability.

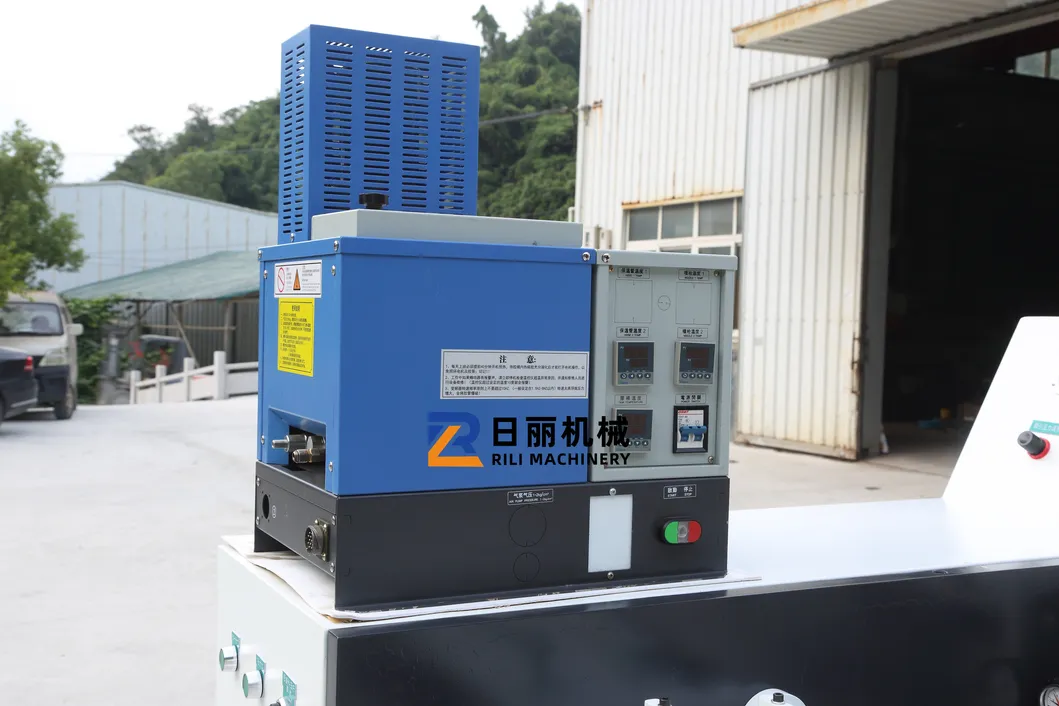

Hot Melt Adhesive Melting Machine

Cast with aluminum alloy and coated with Teflon anti-sticking layer. Features a PID system for independent heating control and an automatic over-temperature alarm power-off system. Max temp: 230ºC.

Applications

Printing Industry: Paper and plastic film coating.

Packaging Industry: Functional coatings for oil/water resistance and label production.

Electronics: Lithium batteries, solar panels, and conductive pastes.

Textiles: Waterproofing and antibacterial coatings for fabrics.

Construction: Waterproof membranes and fireproof coatings.

Automotive: Soundproofing and decorative finishes.

Medical: Medical tapes, band-aids, and wound dressings.

New Energy: Electrode materials and separator films for batteries.

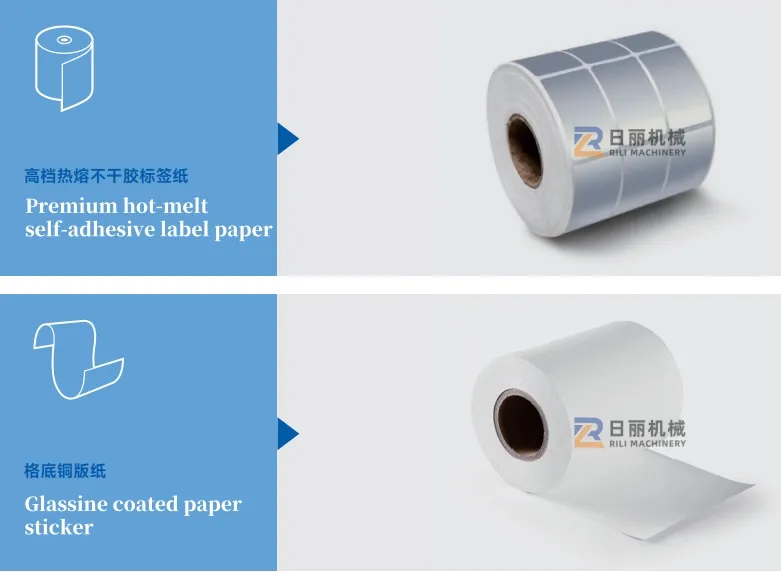

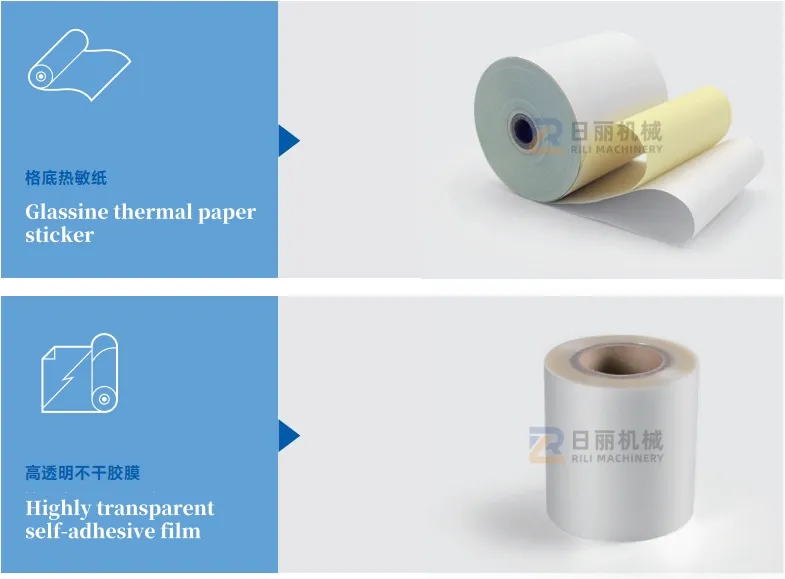

Product Samples

Frequently Asked Questions

What materials can be processed with this machine?

It is compatible with a wide range of materials, including films, fabrics, foams, papers, and more.

How does the coating process work?

Solid hot melt adhesive is melted and applied to the material surface using precision coating methods like slot-die coating, rollers, or spray.

What industries commonly use this machine?

It is widely used in packaging, textiles, automotive, electronics, furniture, and the medical industry.

Is this machine suitable for laboratory use?

Yes, its compact design and precise control system make it ideal for labs to test adhesive strength and obtain production data.

Can the machine be customized?

Yes, the machine can be customized with various angles and designs according to different application requirements.

How can I get a quote or provide my specific requirements?

You can contact us with your product details such as substrate, adhesive material, coating width, and required production speed for an exact customization quote.
