Pharmaceutical & Medical 2000-15000 BPH Turnkey Project PP Bottle IV Solution Production Line

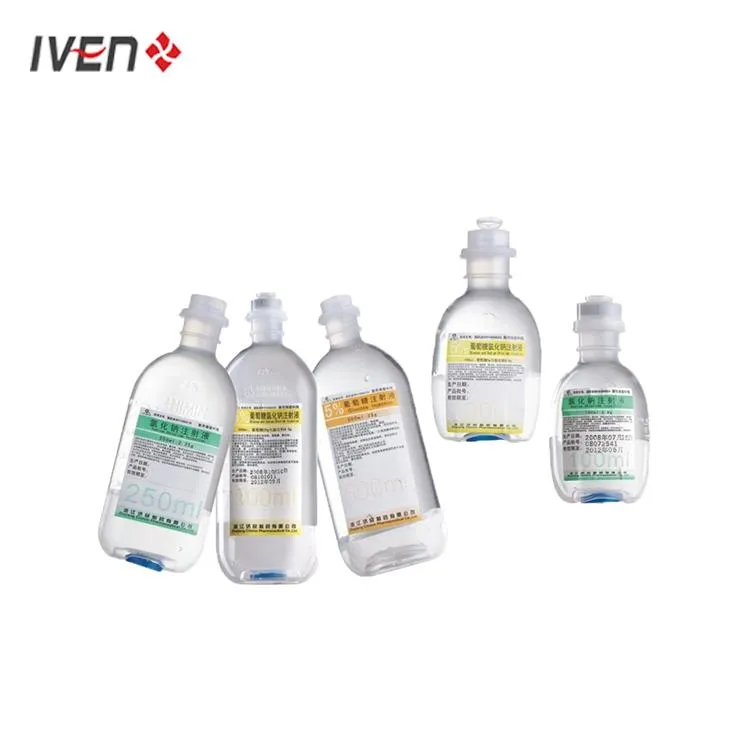

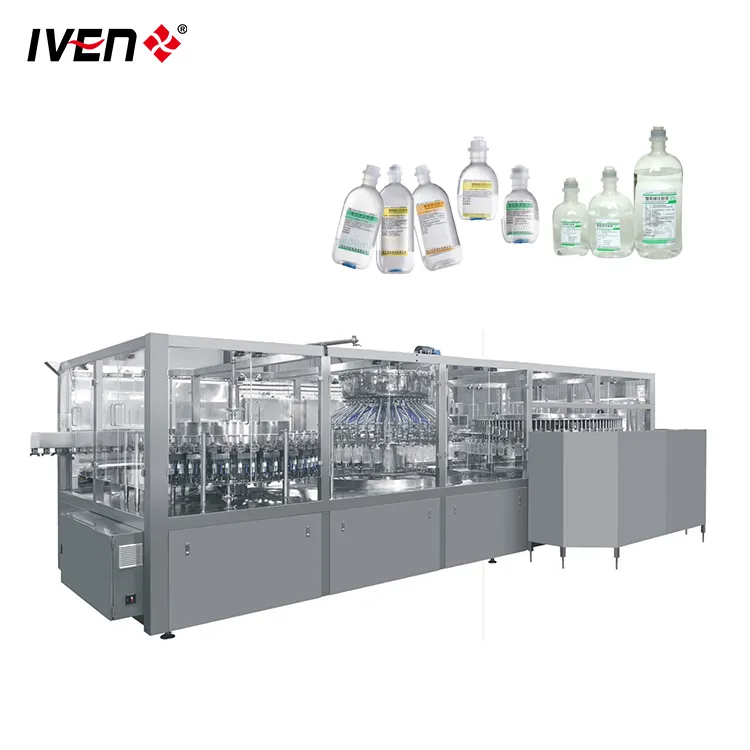

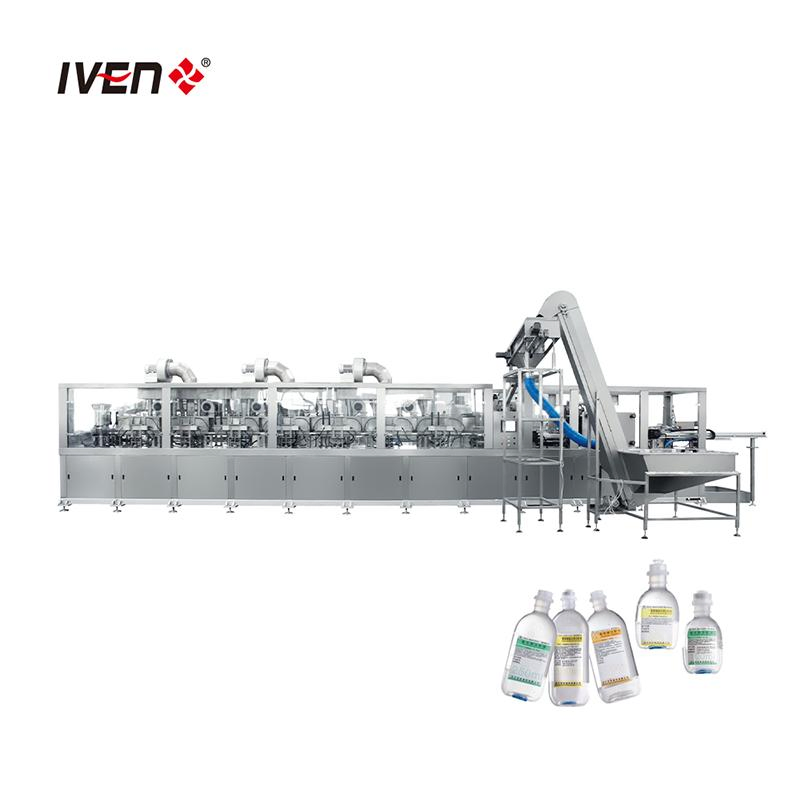

Automatic PP bottle IV solution production line includes 3 set equipment: Preform/Hanger Injection machine, Bottle blowing machine, and Washing-Filling-Sealing machine. The production line features automatic, humanized, and intelligent operation with stable performance and simple maintenance. It offers high production efficiency and low production cost, making it the ideal choice for IV solution plastic bottles.

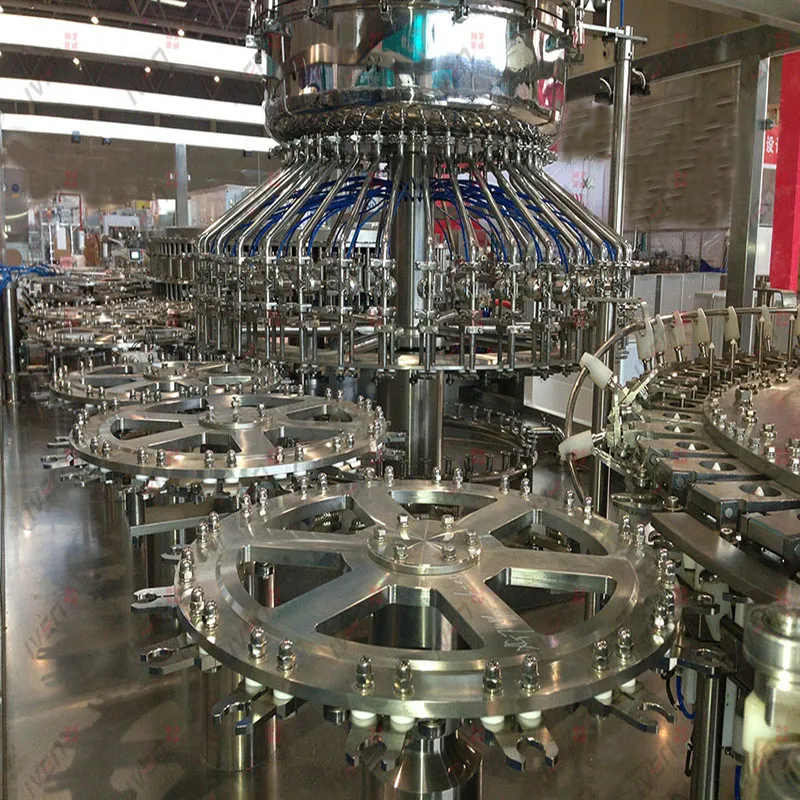

It adopts a direct link between the conveying track and bottle feeding dial wheel, clamps the bottleneck to convey, and uses clean compressed air to accelerate delivery without scratching.

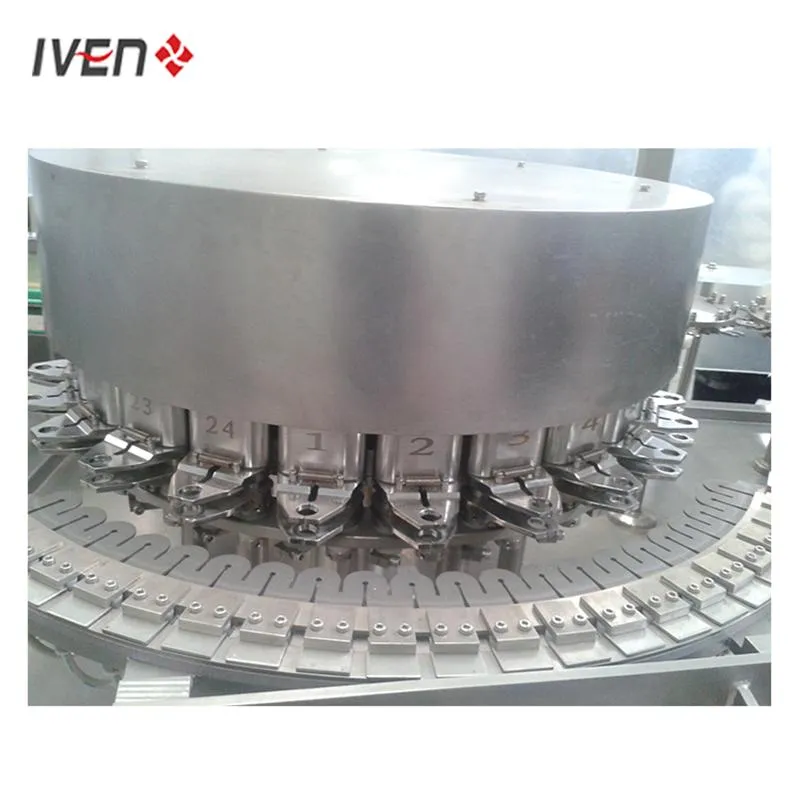

The cleaning process involves overturning the bottle while the suction pipe and ionic air pipe rise to cover the mouth. Compressed air cleans the interior, simultaneously sucking particles out of the bottle.

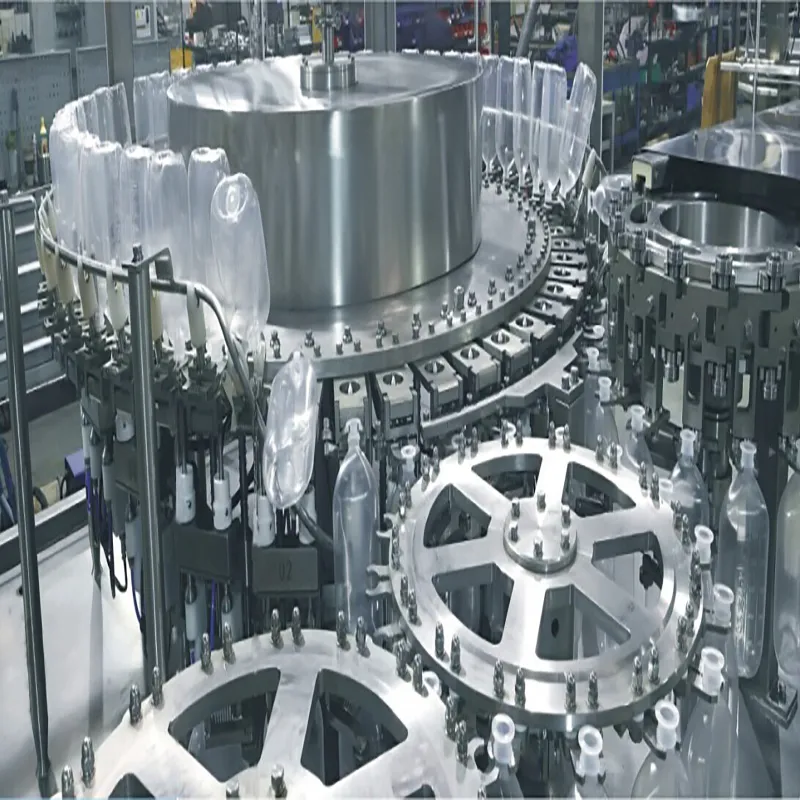

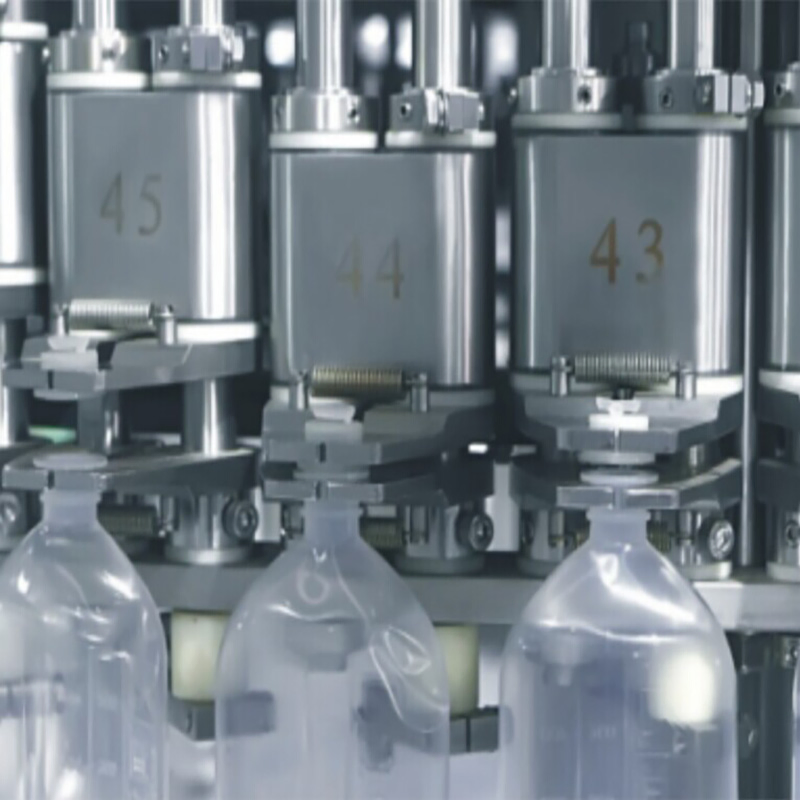

Washed plastic bottles are conveyed to the filling station by a manipulator. The filling nozzle traces the bottles for precise filling. A constant-pressure liquid balance tank ensures accurate volume control.

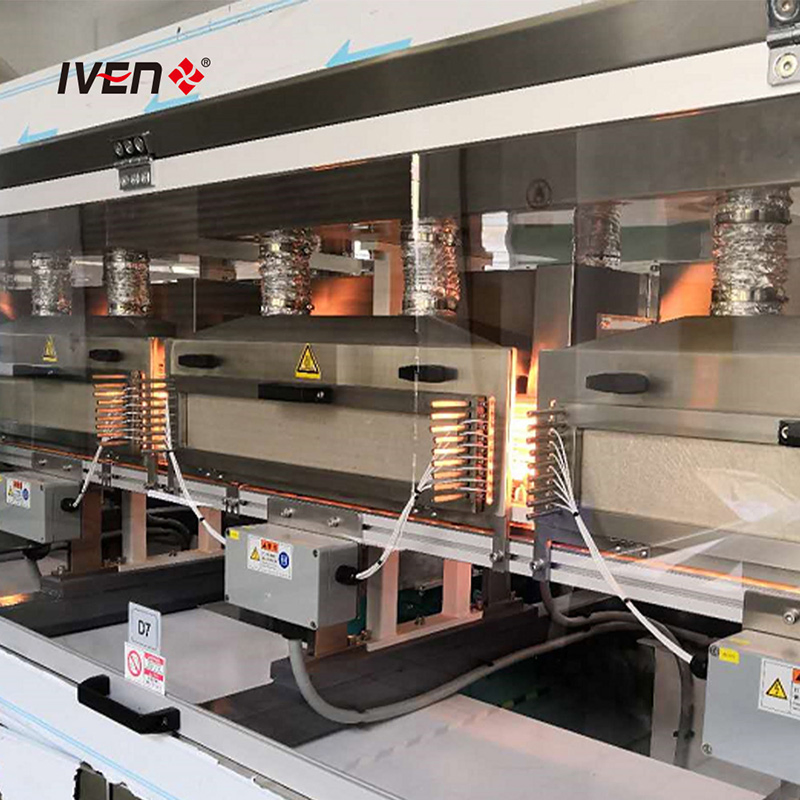

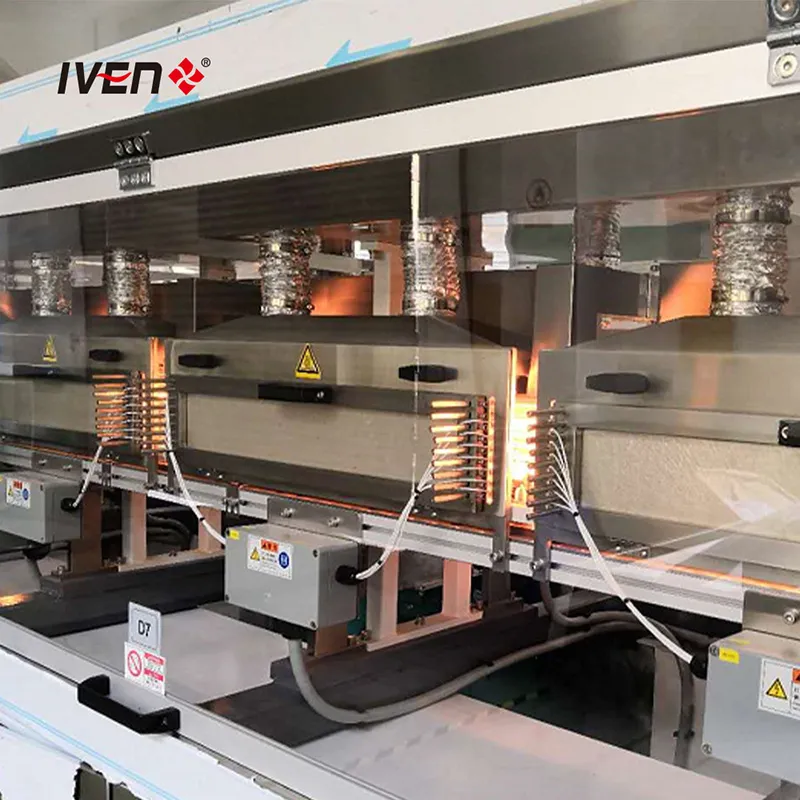

Used to weld-seal the cap after filling. It adopts double heating plates to heat caps and bottle ports separately in a non-contact hot-melt type. Temperature and time are fully adjustable.

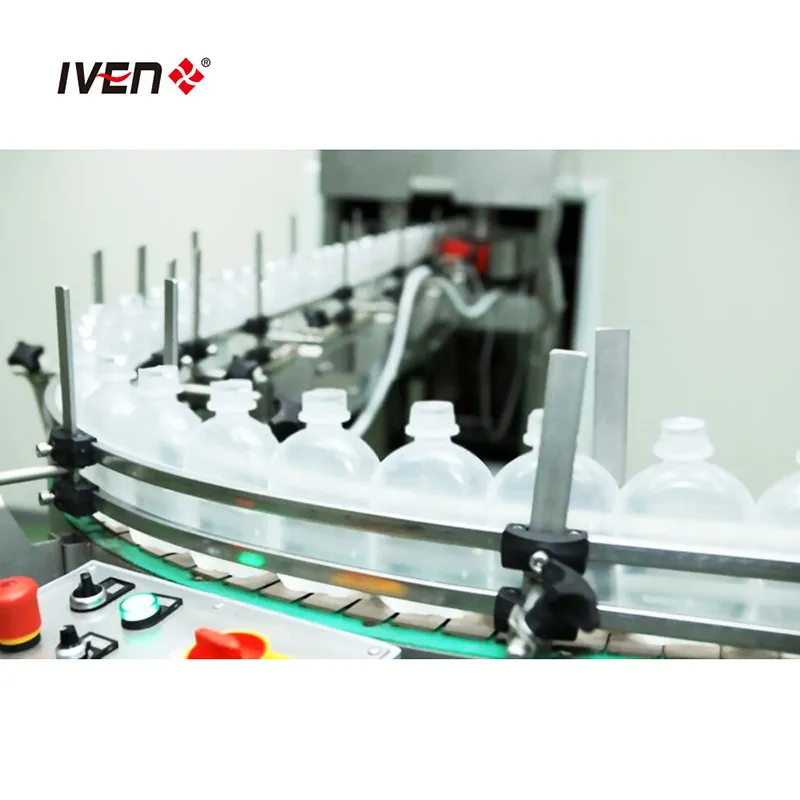

The sealed bottles are conveyed to the outputting track through the outfeeding station and enter the next process in the production line.
| Item | Model | CPS 4 | CPS 6 | CPS 8 | CPS 10 | CPS 12 |
|---|---|---|---|---|---|---|
| Production Capacity | 500ml | 4000 BPH | 6000 BPH | 8000 BPH | 10000 BPH | 12000 BPH |
| Max Bottle Height | mm | 240 | 240 | 240 | 240 | 230 |
| Compressed Air | 8-10 bar | 3 m³/min | 3 m³/min | 4.2 m³/min | 4.2 m³/min | 4.5 m³/min |
| Chilled Water | 10°C | 4 m³/h | 4 m³/h | 7.87 m³/h | 7.87 m³/h | 8-10 m³/h |
| Machine Weight | Tons | 7.5 | 11 | 13.5 | 14 | 15 |
