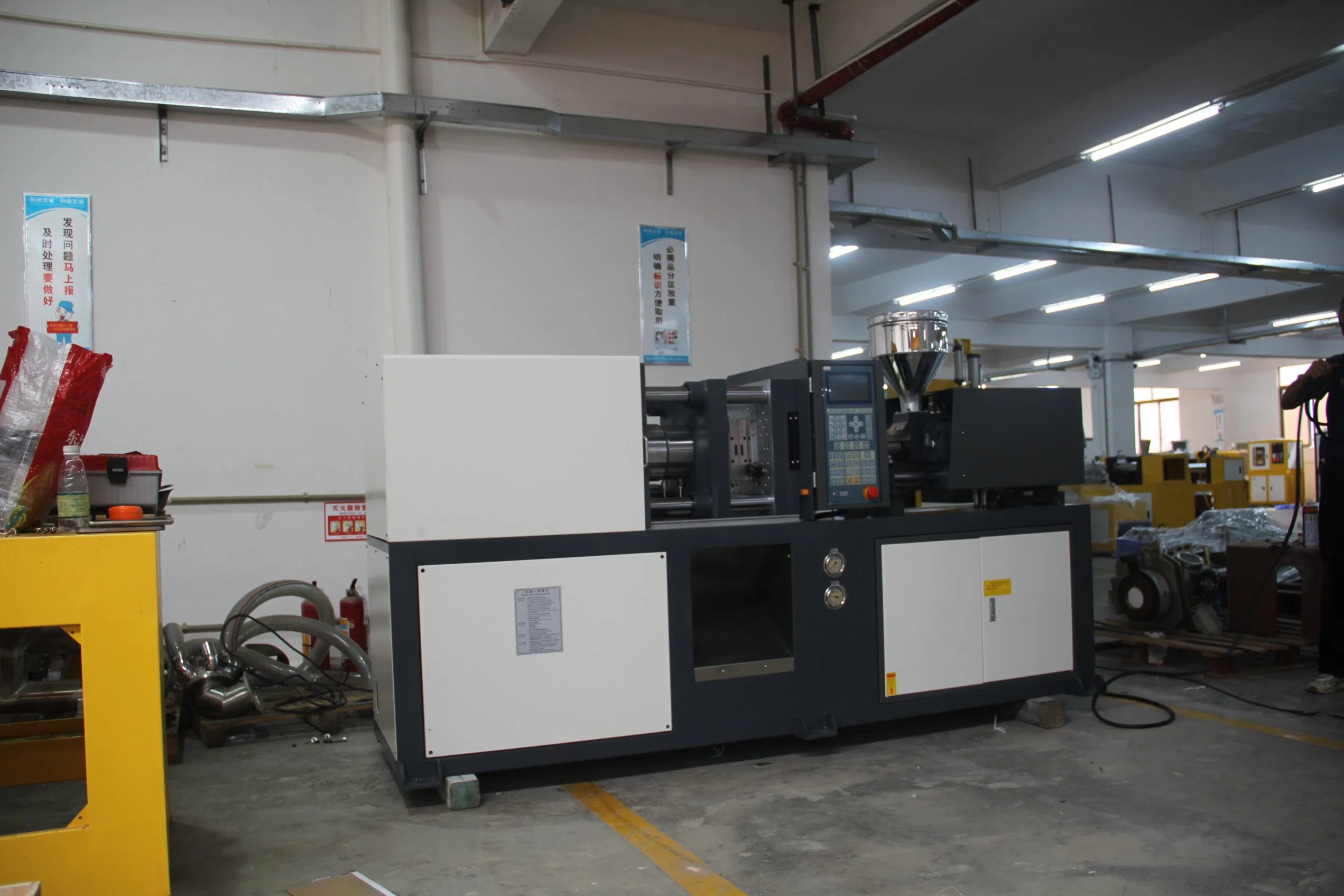

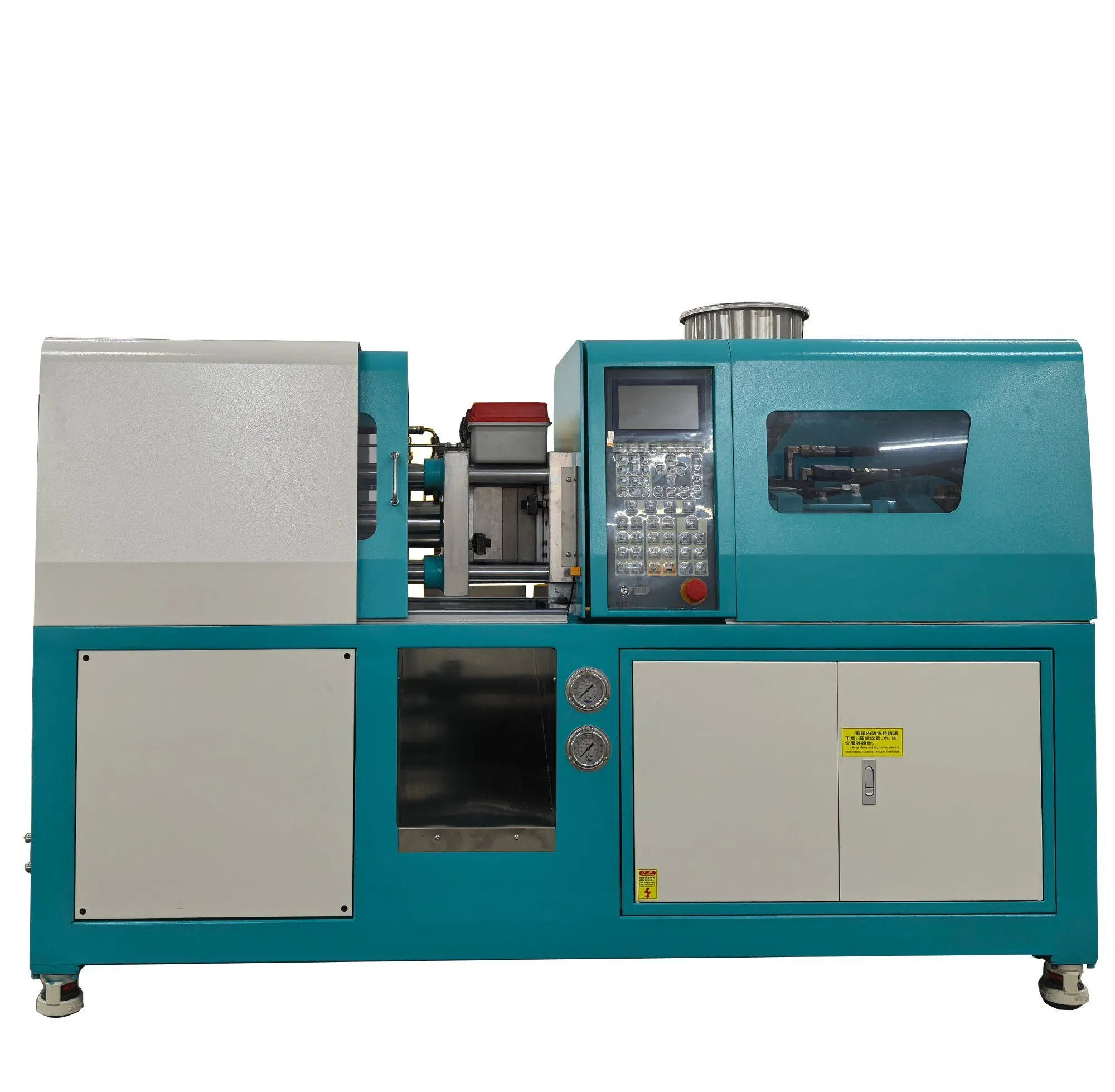

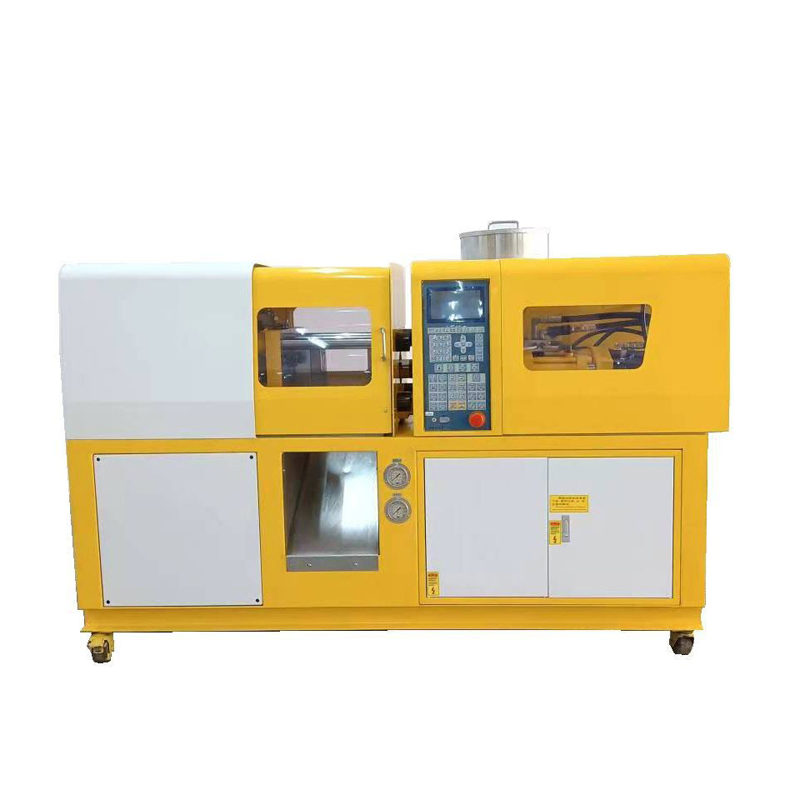

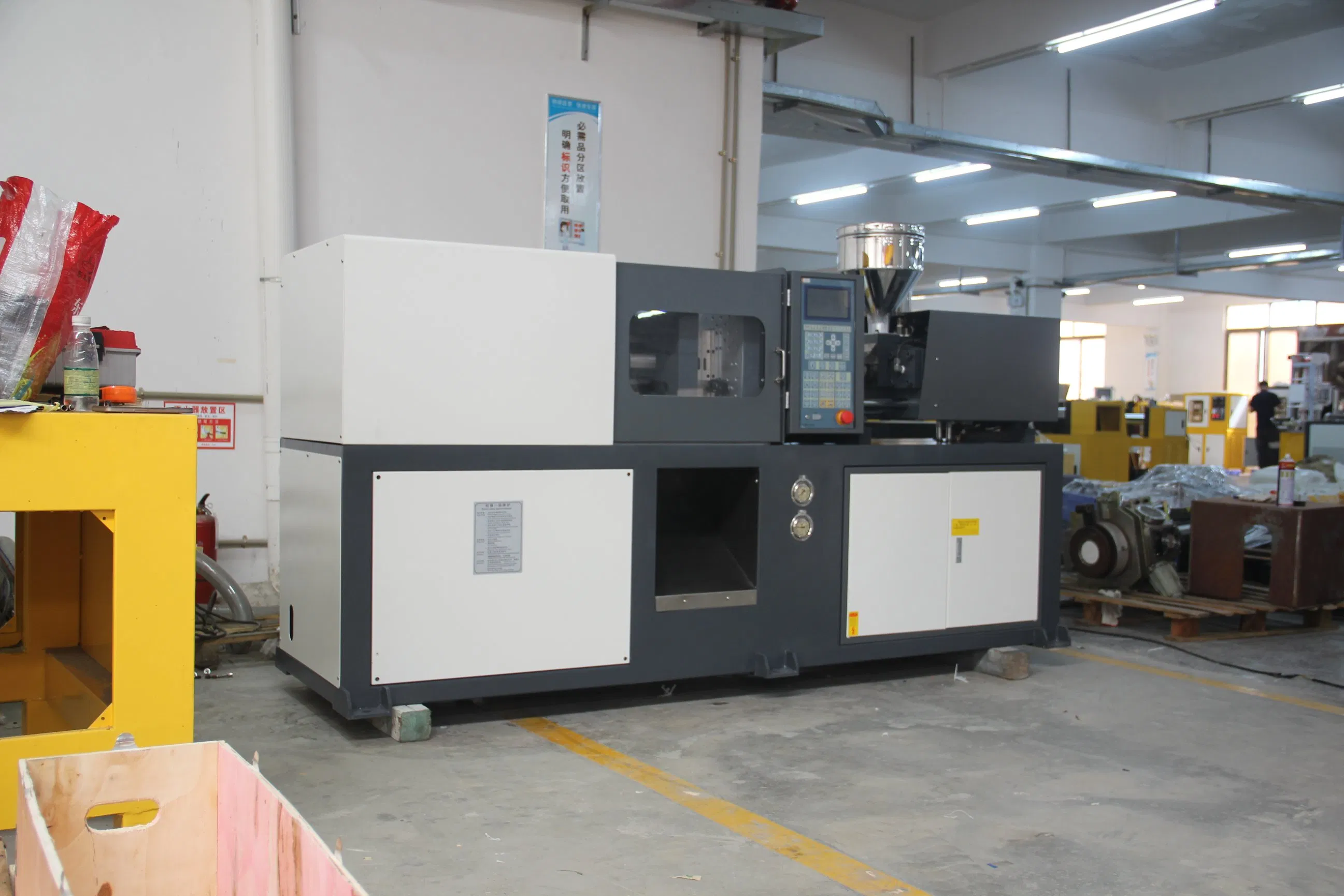

Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
1 / 5
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine
Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine

Plastic, Rubber & Hot Melt Adhesive Molding Servo-Energy-Saving Small Injection Molding Machine

Customization: Available
After-sales Service: 24-Hour Online Technical Support
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.
WX
Type
Small Injection Molding Machine
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Raw Materials
Engineering Plastics
Typical Product
Electrical Appliance Casing
Drive Type
Servo Motor Drive
Control Function
Multiple Injections
Package Size
260.00cm * 70.00cm * 150.00cm
Gross Weight
1000.000kg
Product Description

WX-436 Small Injection Molding Machine

  • The servo system moves fast and smooth.
  • Good control repetition, super energy saving.
  • The product can be automatically dropped, automatic forming.
  • Low fuselage, convenient material supply, easy to maintain.
  • No high restrictions on the resettlement site.

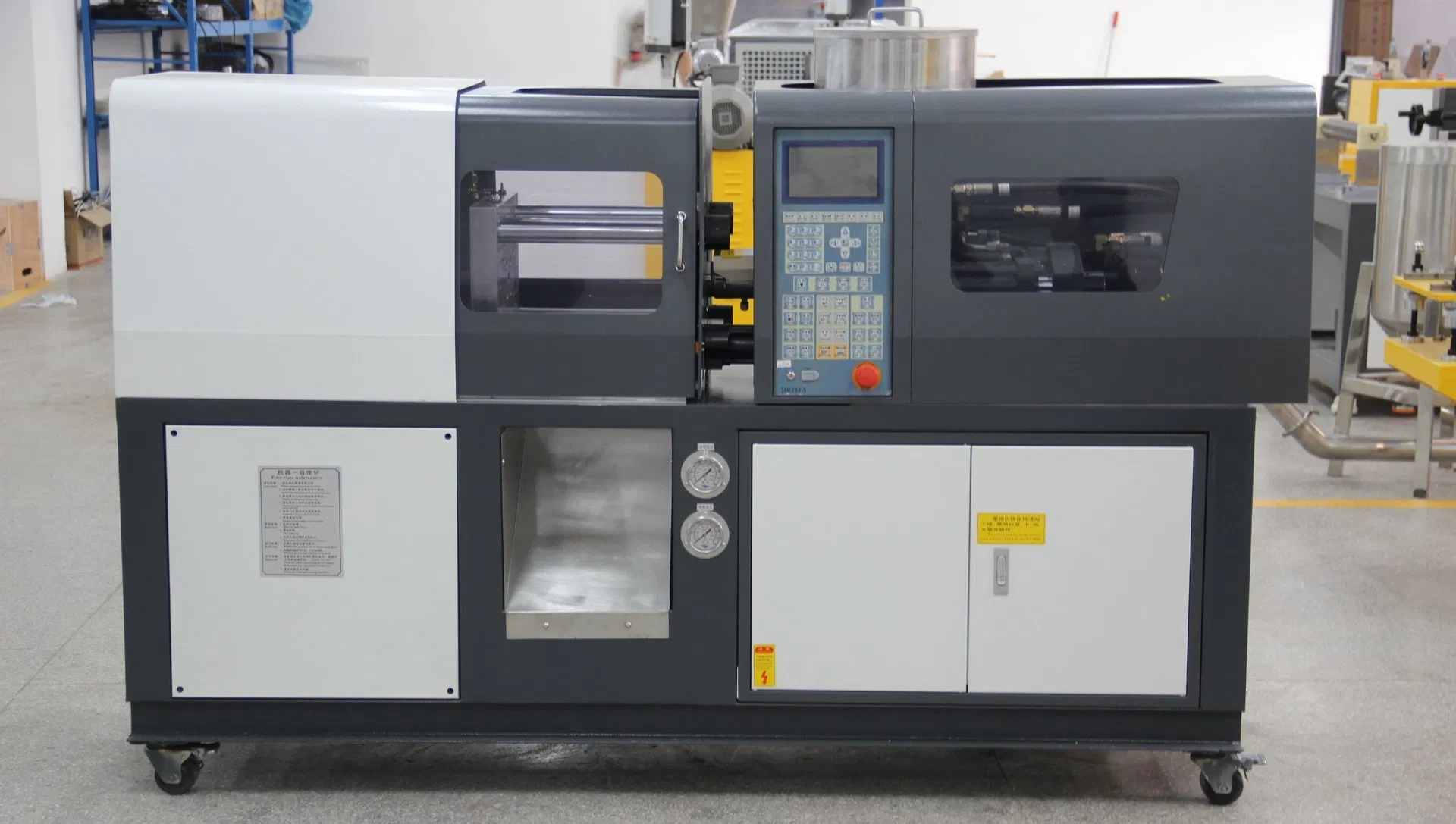

Injection Molding Machine View 1

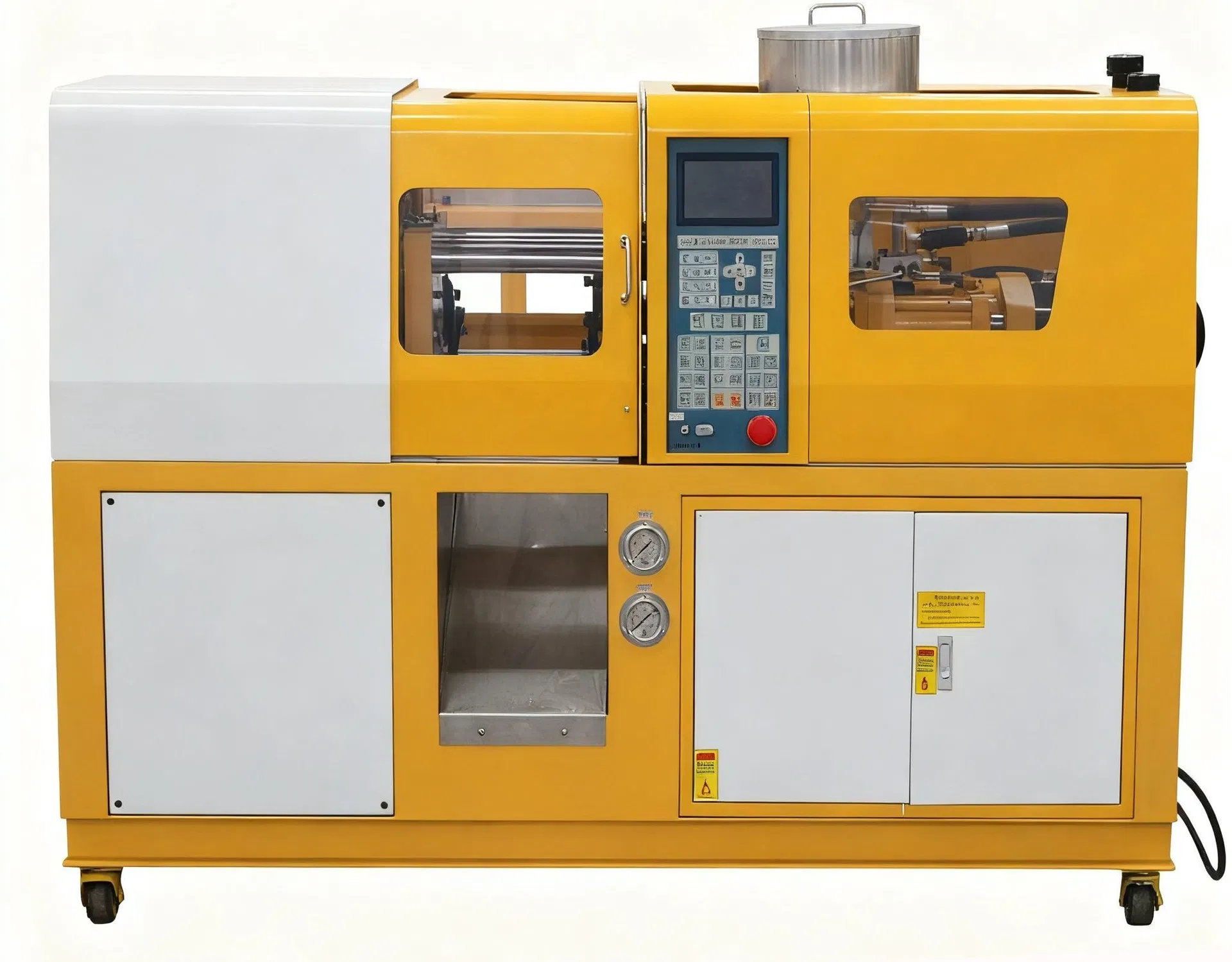

Injection Molding Machine View 2
Technical Specifications
Specification Unit 20T 25T 40T 60T
Screw Diameter mm 22 22 25 28
Injection Pressure kg/cm² 2170 2170 1960 2170
Injection Quantity G/OZ 40/1.4 40/1.4 64/2.2 80/2.8
Clamping Force Tons 20 25 40 60
Platen Size mm 380×290 380×290 430×430 470×470
Total Power KW 4(5HP) 4(5HP) 4(5HP) 7.5(10HP)
Machine Weight kg 1000 1000 1500 2000

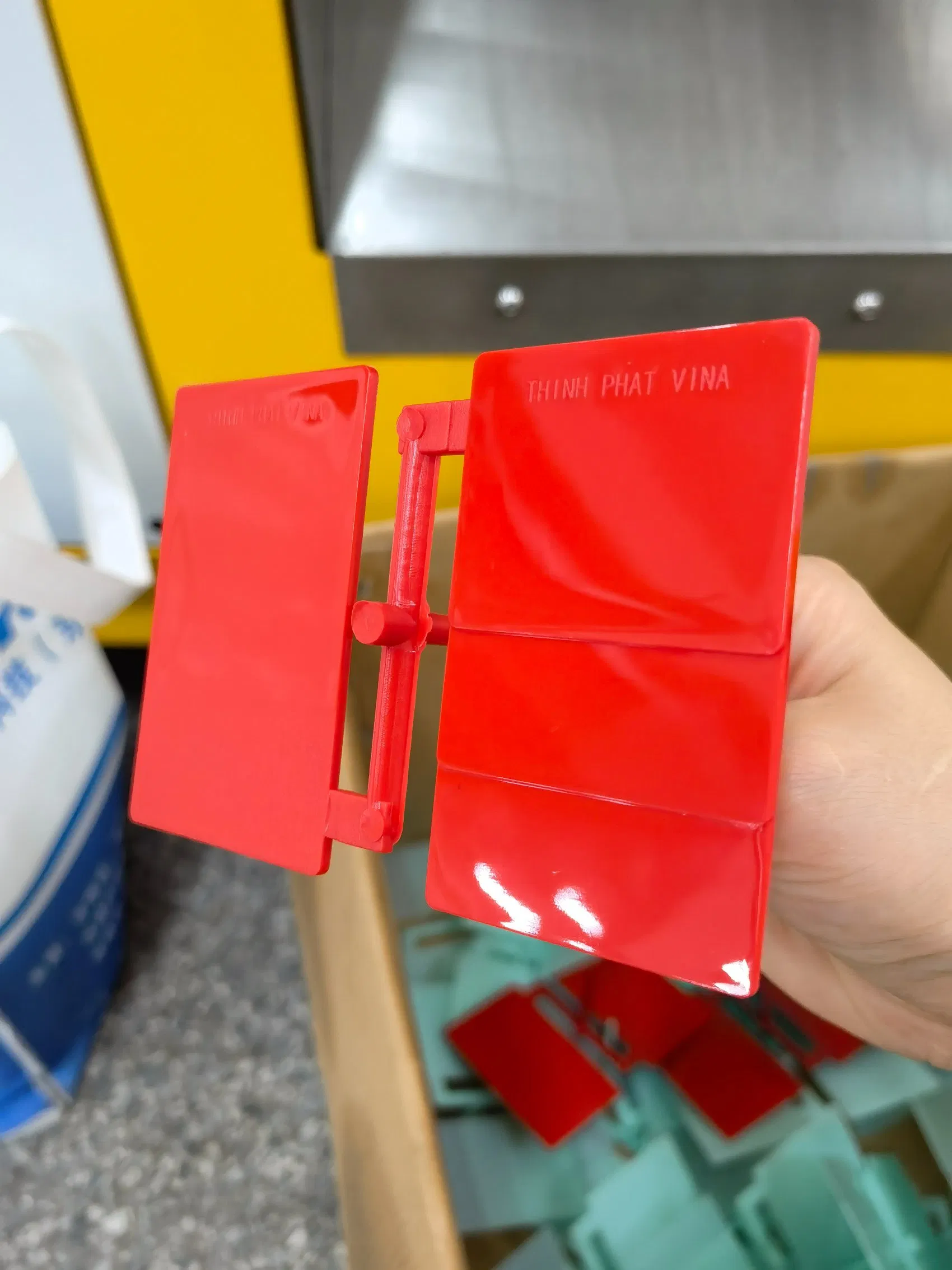

Machine Detail 1

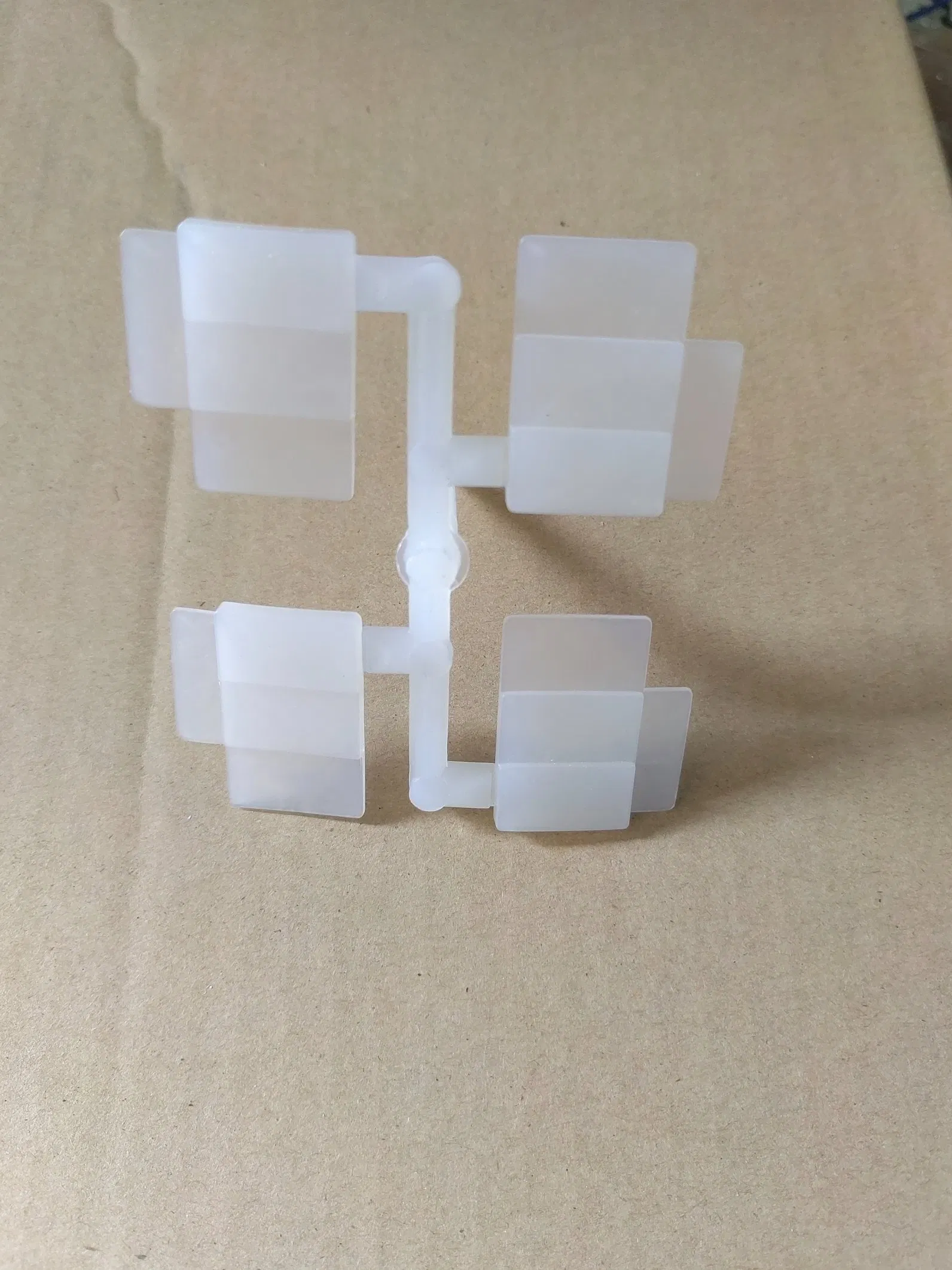

Machine Detail 2

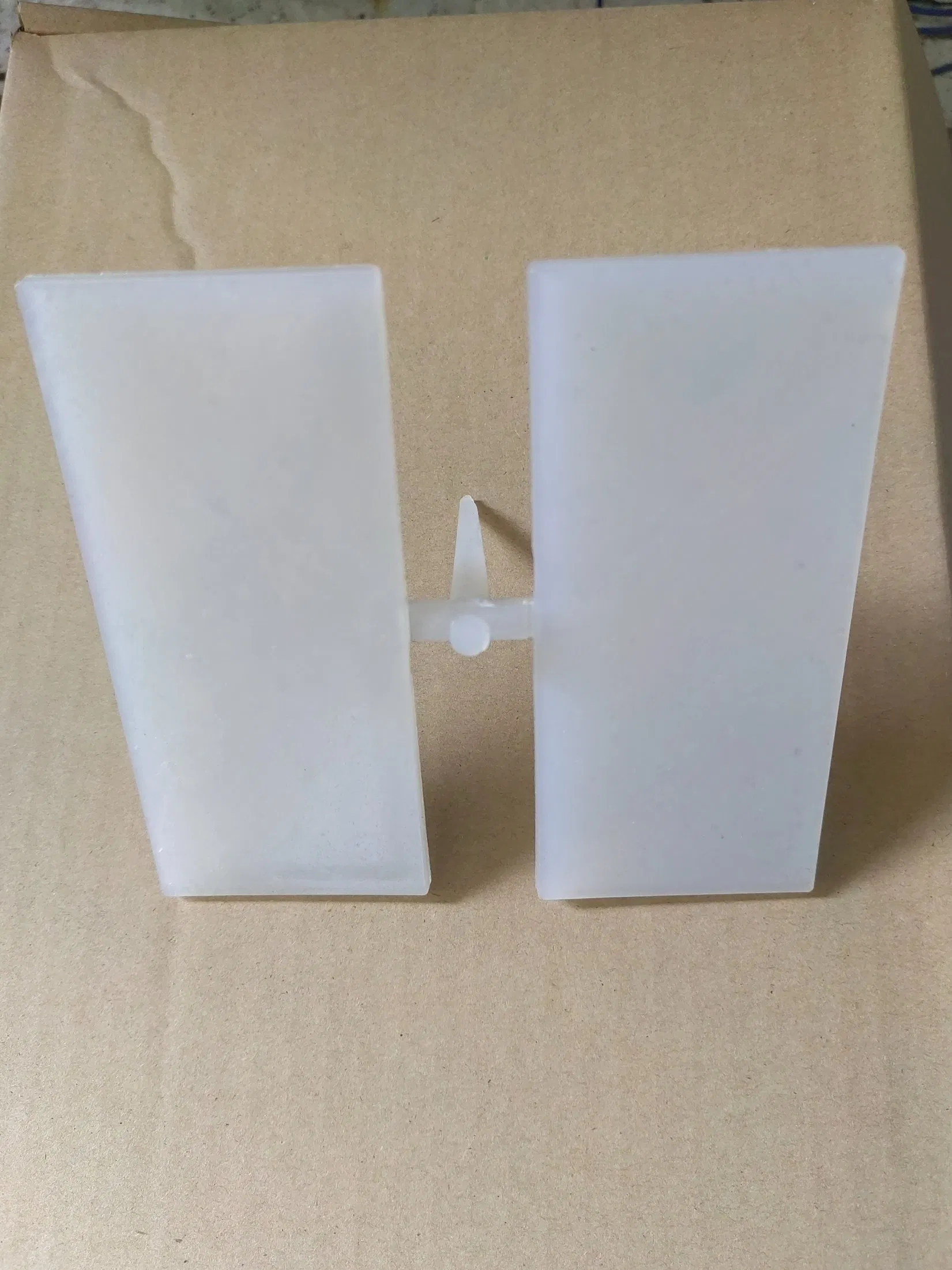

Machine Detail 3
Production Process
Internal Components
Frequently Asked Questions
How to select the most suitable machinery?
Our engineering team provides tailor-made solutions based on your technical parameters and equipment specifications to ensure optimal performance for your production needs.
What is the warranty period for your machines?
All equipment comes with a 1-year comprehensive warranty. We guarantee prompt technical support and response within 24 hours for any issues.
What are the payment terms?
We typically require a 50% deposit upfront, with the remaining balance paid before shipment via T/T, L/C, or other negotiable options.
What types of raw materials can this machine process?
This machine is designed for Engineering Plastics and various Thermoplastic materials.
Is the machine fully automatic?
Yes, the machine is computerized and fully automatic, featuring automatic forming and product dropping functions.
What are the typical products made by this machine?
It is ideal for producing small precision parts such as electrical appliance casings and other engineering plastic components.
