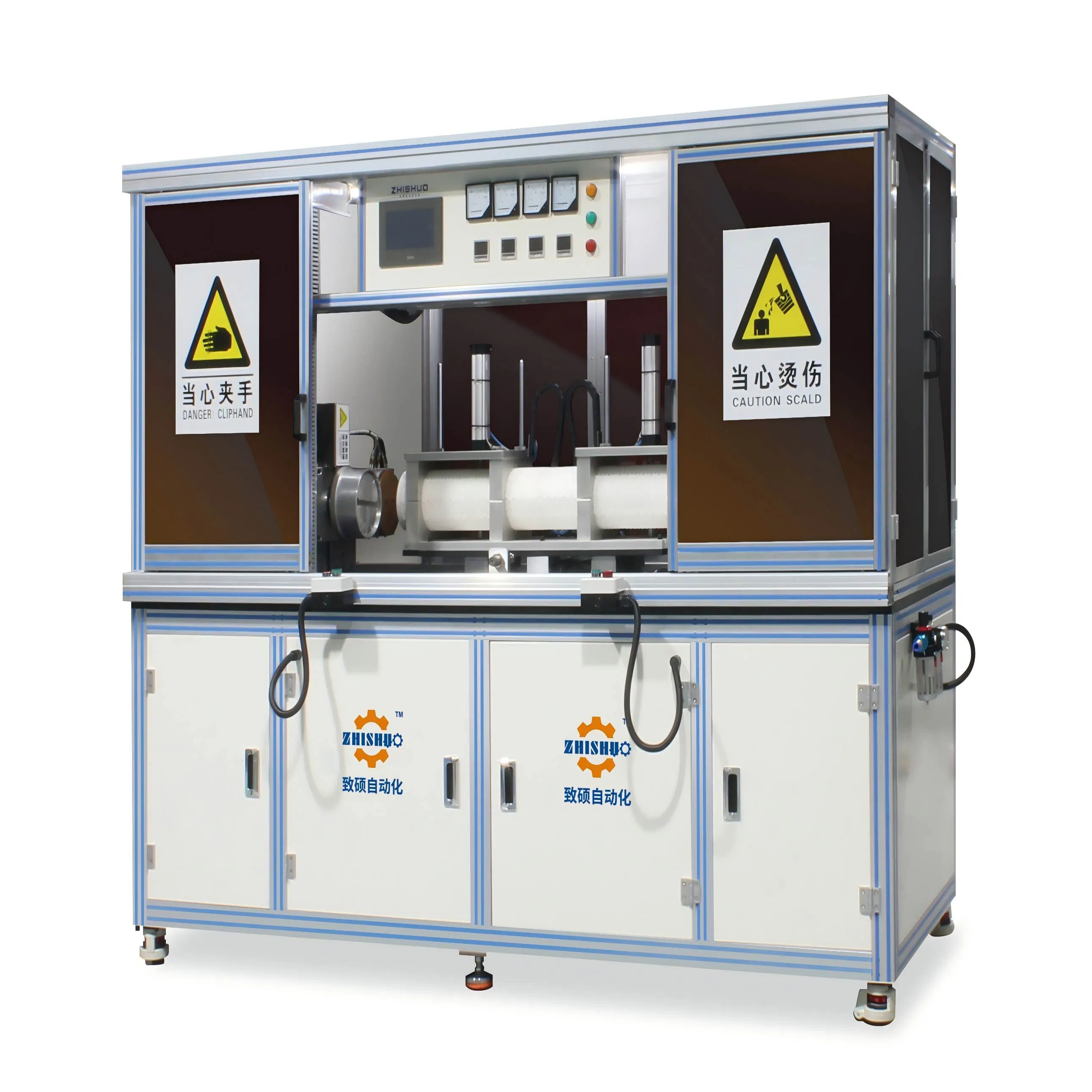

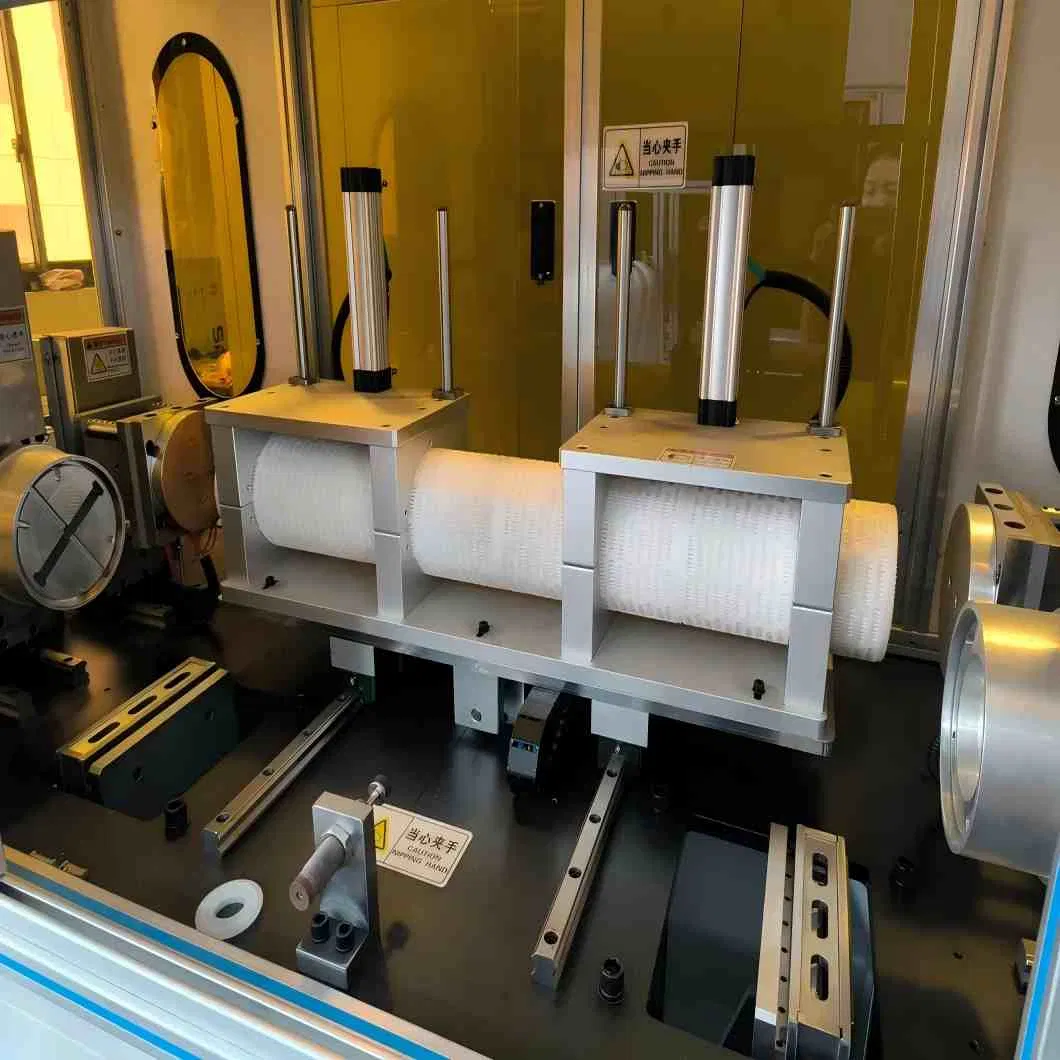

Large Flow Filter Element End Cover Pneumatic Welding Machine

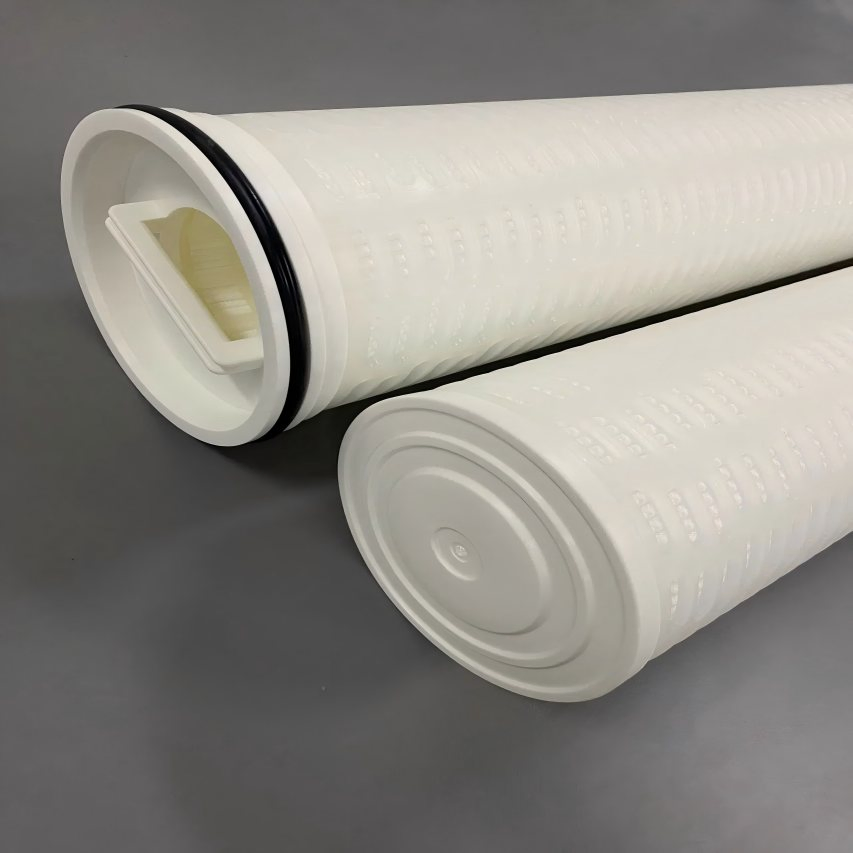

1. The end cap hot melt welding equipment is specially designed for large flow 40 inches filter elements, which is used to weld the end cap of the filter element with the filter material (such as PP, PFA, PES, PVDF, melt-blown, folded filter paper, etc.).
2. Equipment advantages: It adopts a precise temperature control system to ensure that there is no gap between the welding surface of the end cap and the filter material, prevent liquid leakage, and is resistant to high pressure. The servo pressure system or pneumatic pressurization has uniform and adjustable pressure to avoid deformation of the filter material or loose welding.
3. Welding size: 40 inches in length.
| Model | ZS-DRJ158 |
| Specifications (L×W×H) | 2400×1050×1850mm |
| Capacity | 25-33sec/pcs |
| Production | 60-80per/hour |
| Power Supply | 220VAC/380VAC 50/60HZ |
| Power | 10.7KW |
| Air pressure | 0.6-0.8Mpa |
| Heating Accuracy | ±2ºC |
| Heating materials | PP, PBT, etc. |

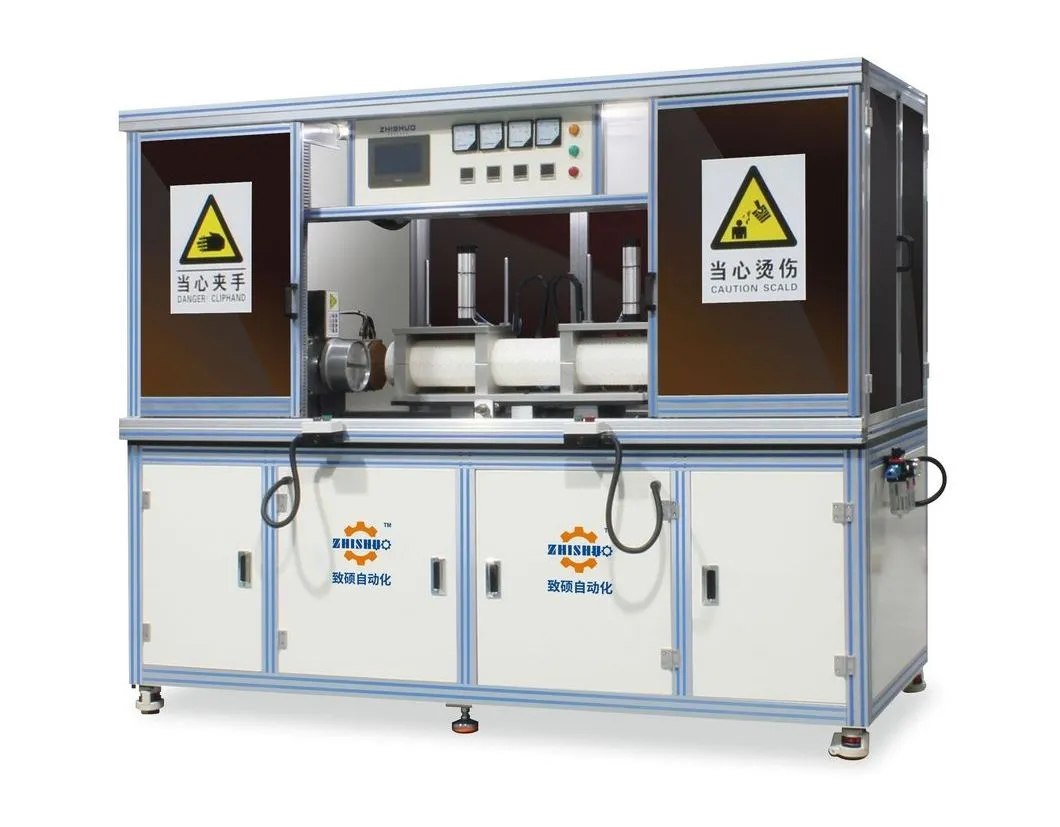

Large Filter Element End Cover Welding Machine can be customized to a size of 40 inches

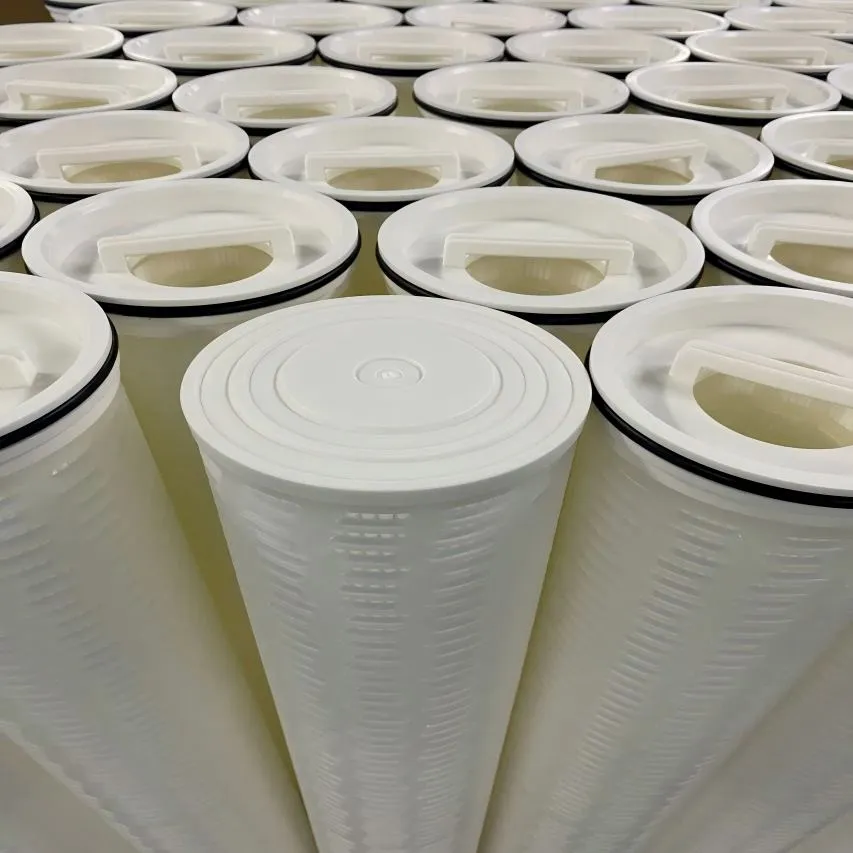

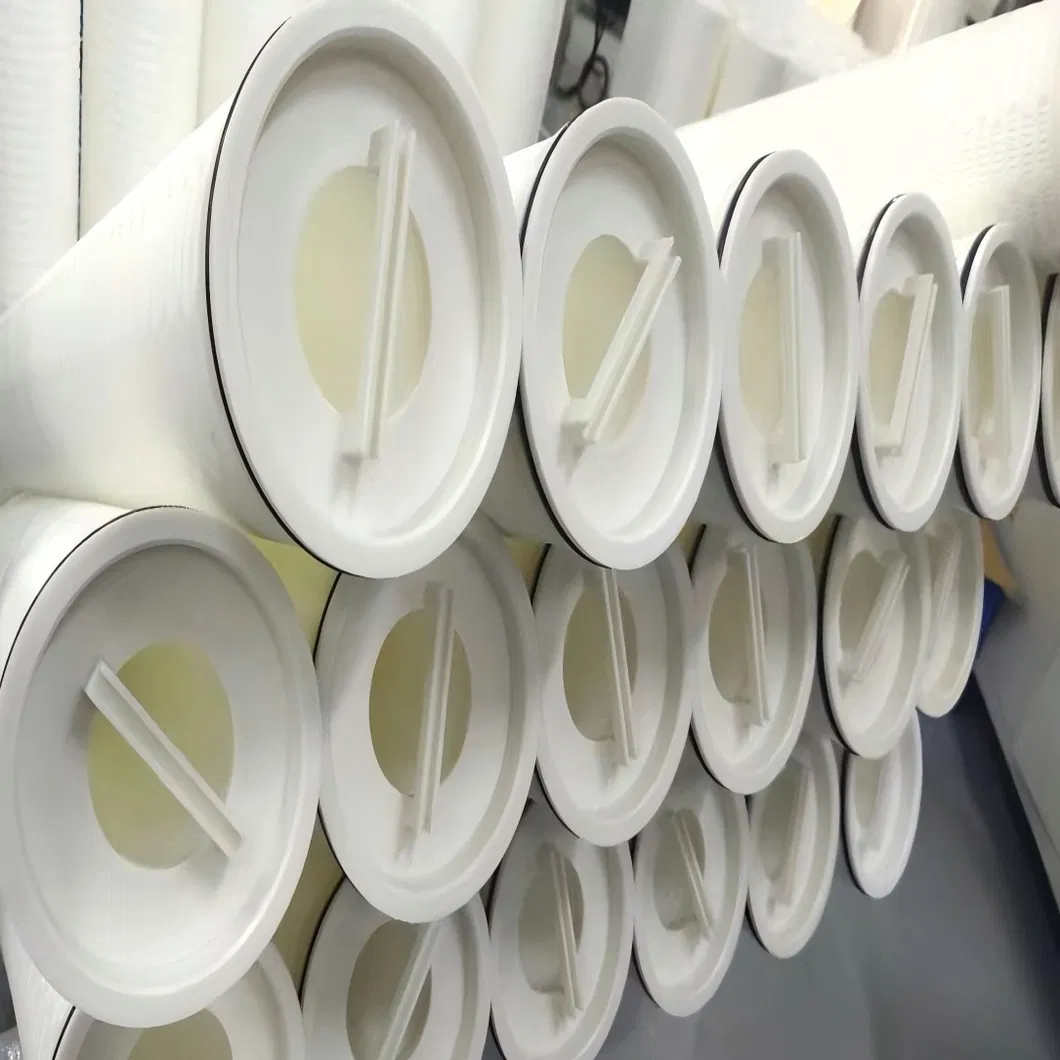

1. Water treatment industry: End cap seals for RO reverse osmosis filter elements, ultrafiltration elements, and softening water filter elements.
2. Petrochemicals: Production of fuel filters, lubricating oil filters, and chemical liquid filters.
3. Food and pharmaceuticals: Welding of sterile filter elements in compliance with FDA/GMP requirements.
4. Industrial fields: Manufacturing of high-pressure filter elements such as hydraulic oil filter elements.
