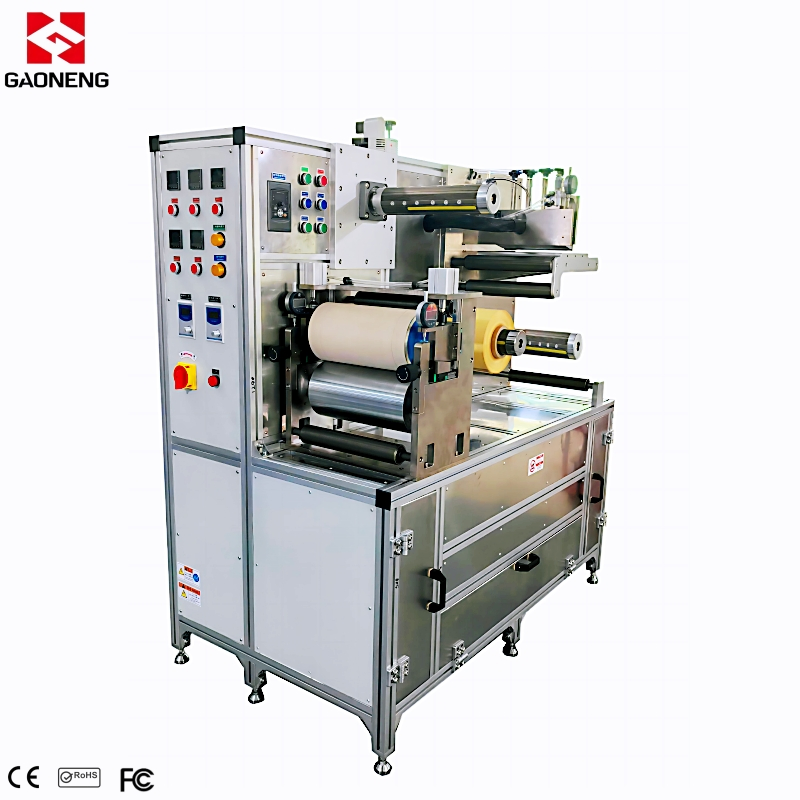

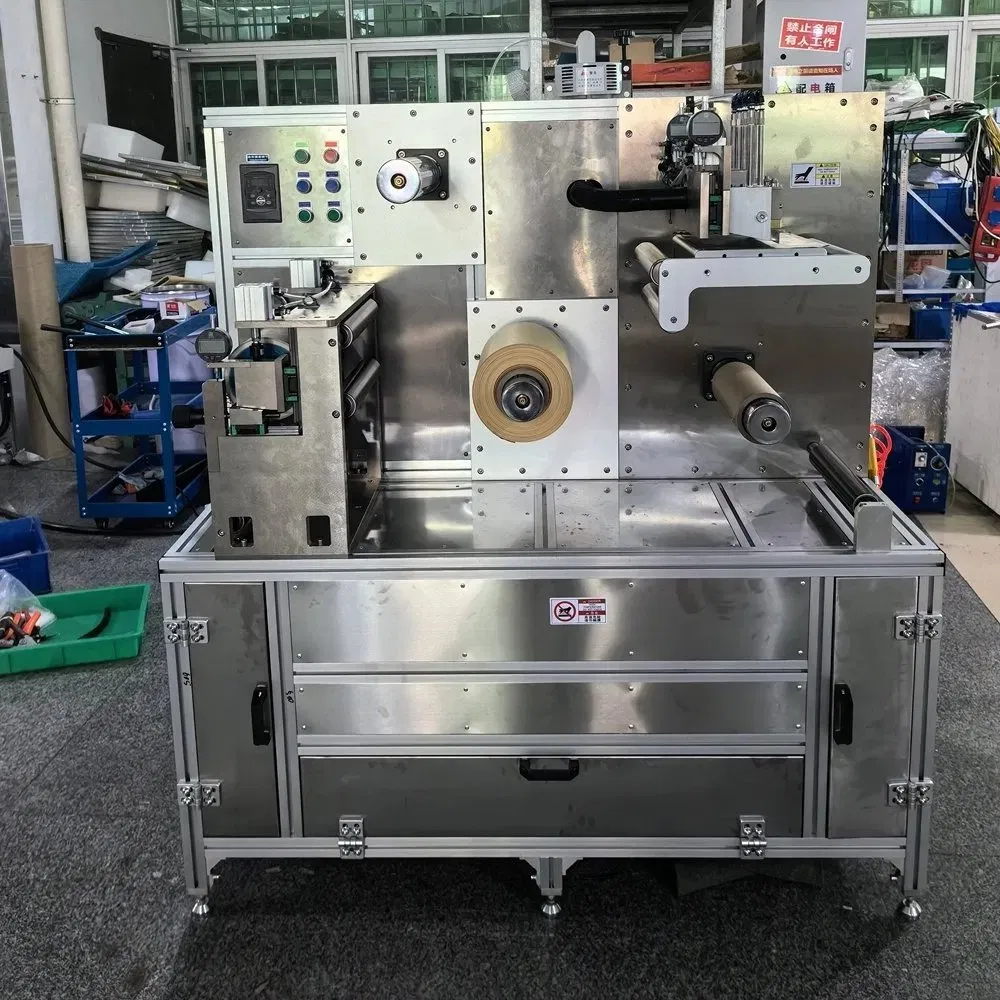

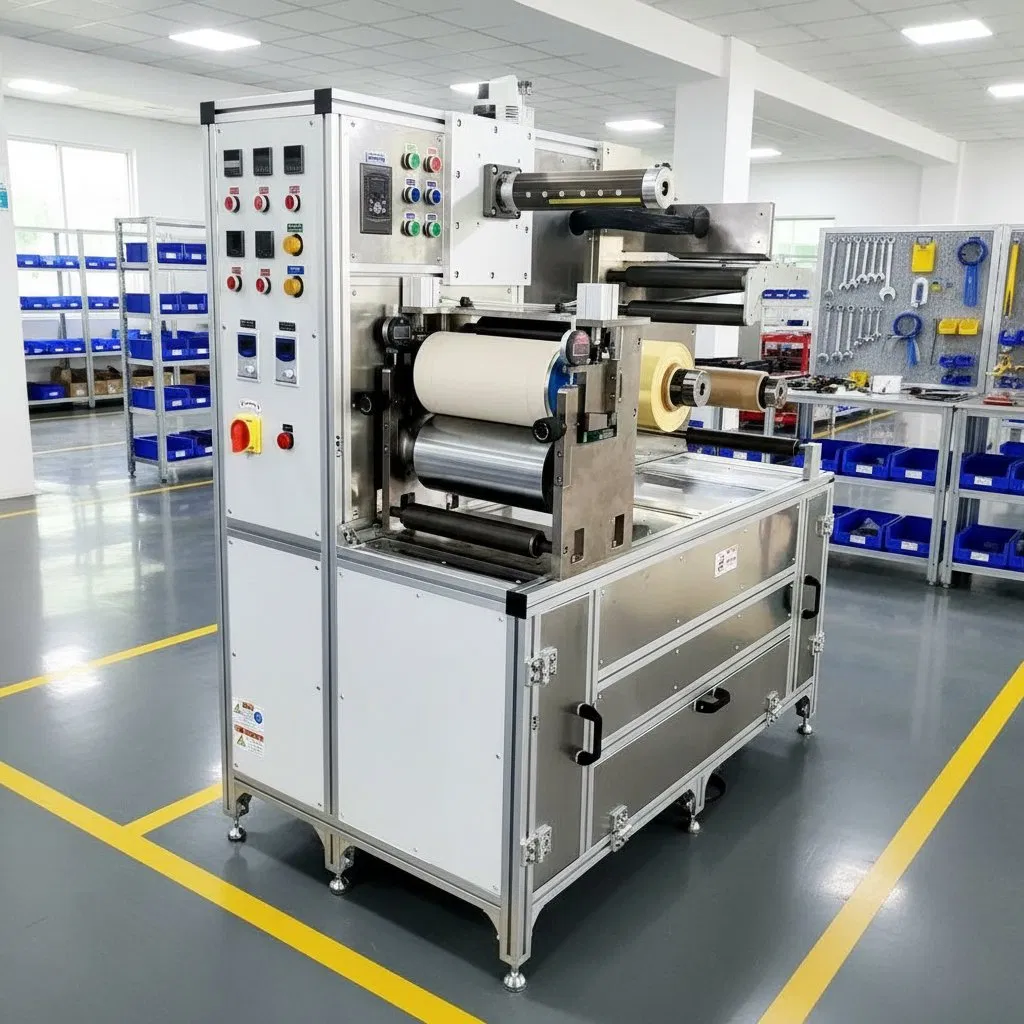

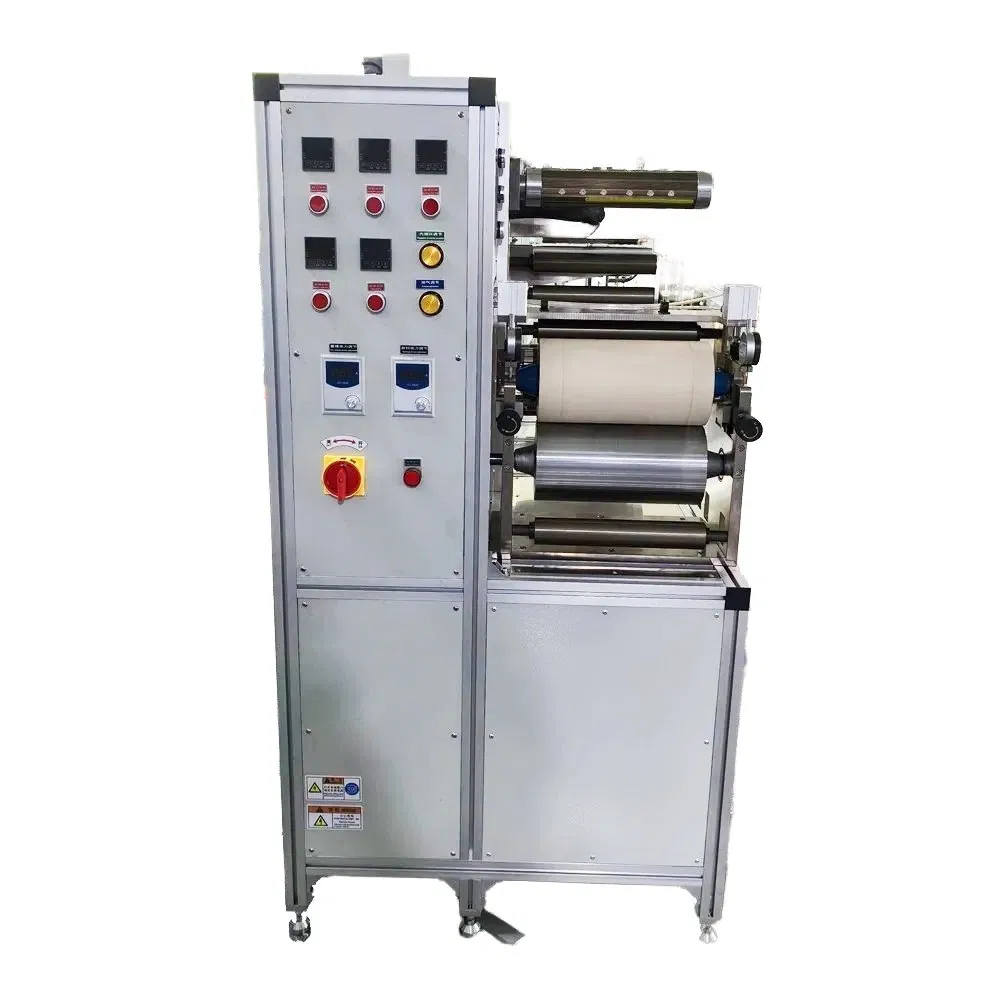

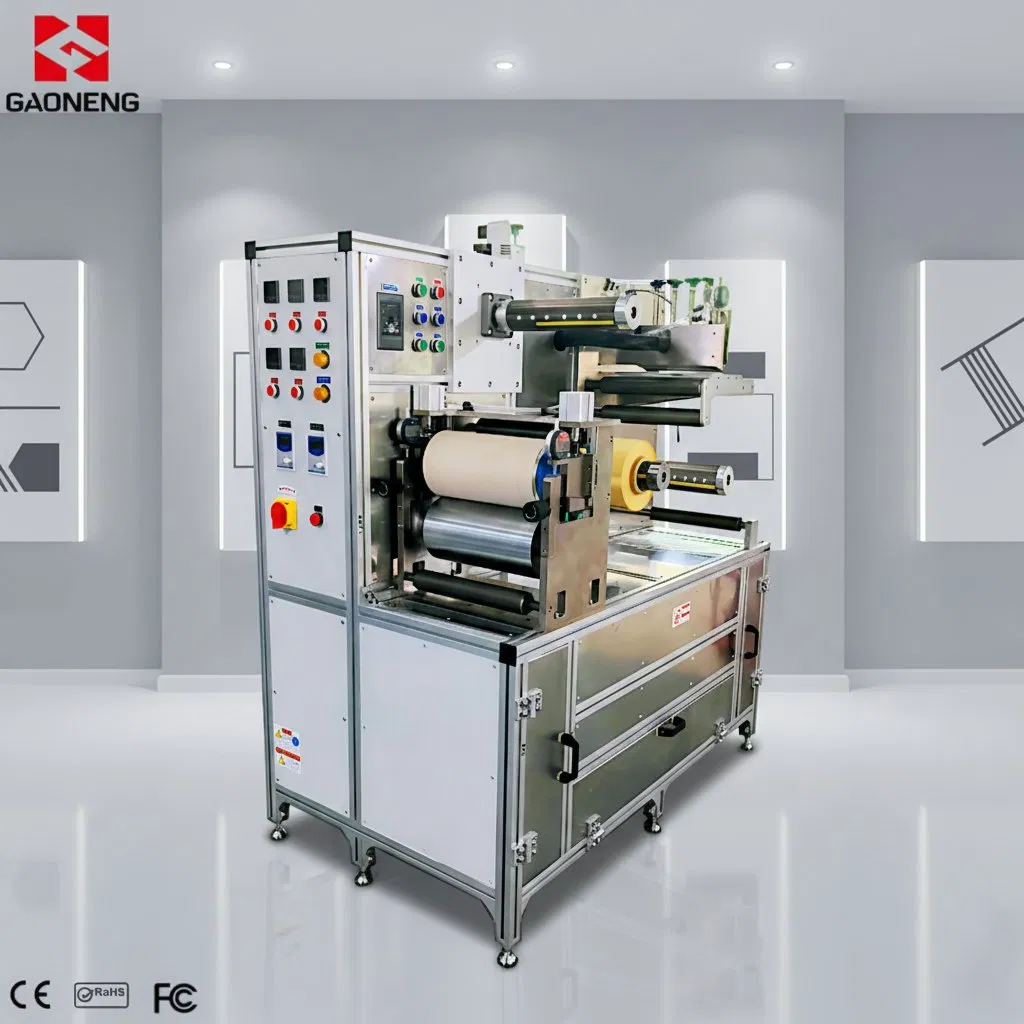

Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
1 / 5
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine
Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine

Small Laboratory Hot Melt Adhesive Polyethylene Coating Machine

Customization: Available
Certification: CE
Coating Application: Automotive Industry, Electronics Industry, Medical Industry
Send Inquiry

Product Description

Basic Specifications
Model NO.
GN-K1
Coating Color
Black, Blue, White
Warranty
1 Year
Coating Width
300mm
Coating Thickness
0.01-1mm
Glue Container
1L
Adjustment Method
Micrometer
Transport Package
Wood Package
Specification
90*120*110
Origin
China

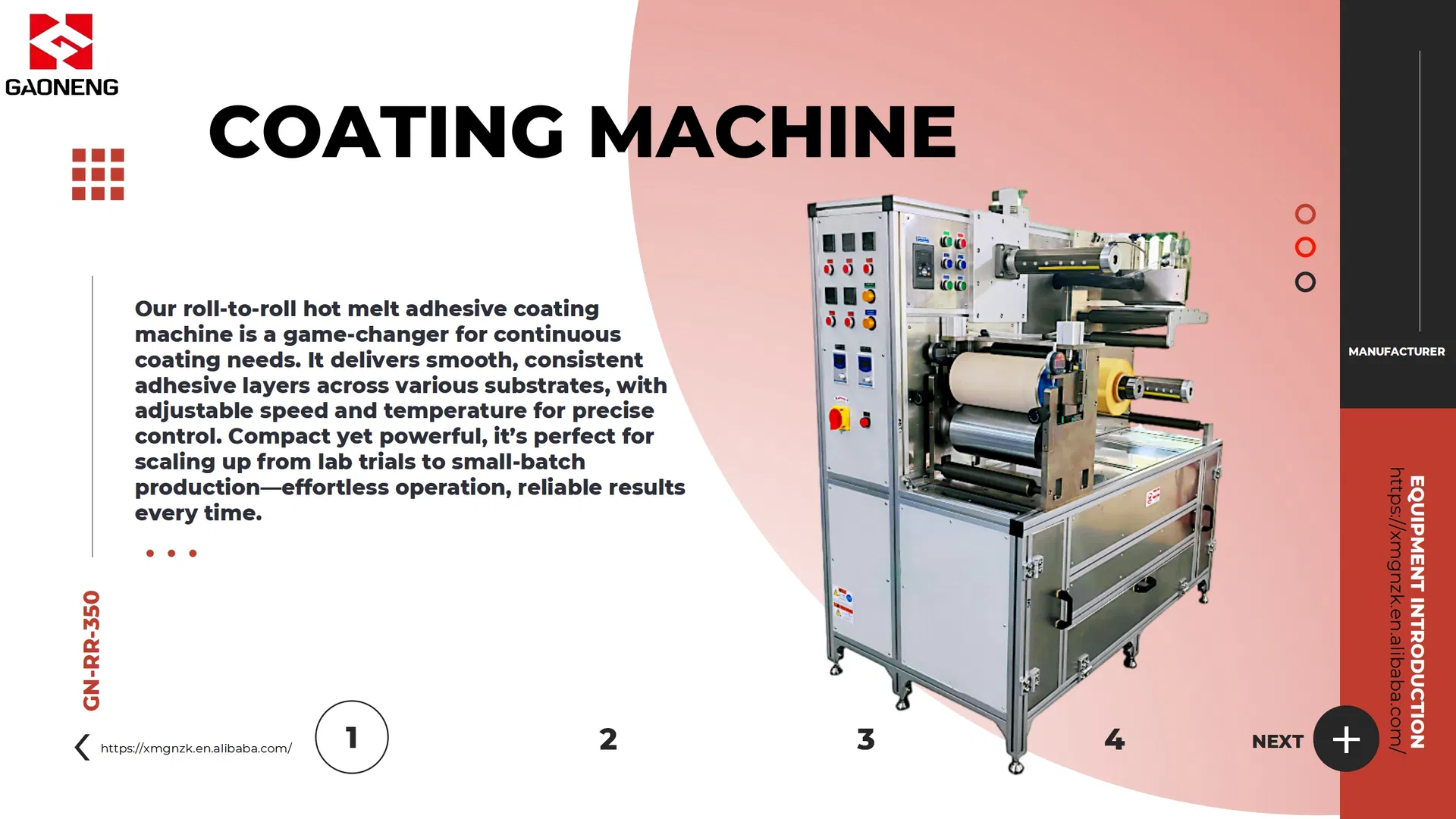

Laboratory Hot Melt Adhesive Coating Machine
Key Product Advantages
1
Versatile Coating Options Suitable for full-width and strip coating, using high-precision coating heads for accurate glue application. Supports double-sided coating and composite functions.
2
Synchronized Control Utilizes advanced microcomputer control technology to automatically synchronize glue spraying rates with production speeds.
3
High-Precision System Features an advanced sol coating system with high-precision double-layer gear pumps for simultaneous glue making and coating.
4
Intelligent Heating Equipped with electric or heat transfer oil circulation heating systems. The output system ensures accurate temperature control with professional insulation.
5
Stable Operation Automatic tension control and correction systems combined with inverter stepless speed regulation ensure stable, continuous operation.

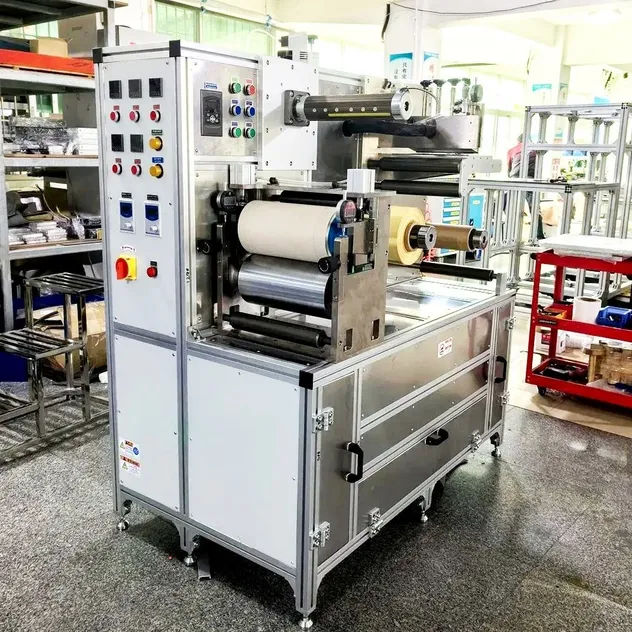

Detail Image 1

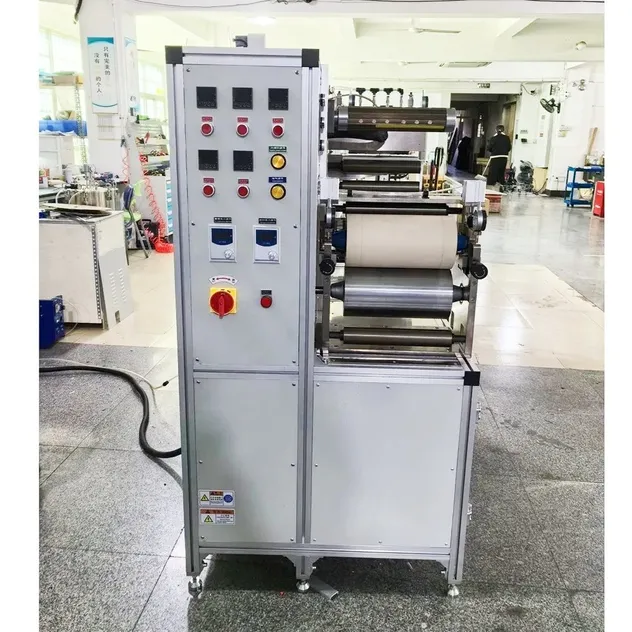

Detail Image 2
Detail Image 3
Technical Parameters
Control SystemPLC with Touchscreen
Coating Width300mm
Coating MethodHot Melt Adhesive Extrusion Head
Coating Thickness0.01-1mm
Adjustment MethodMicrometer
Blade Base PlateHeated (Room Temp to 180°C)
Tension ControlAdjustable Tension
Laminating DeviceAutomatic Laminating
Laminating RollersRubber Roller + Steel Rod
Glue Supply SystemAutomatic Glue Supply
Equipment Speed1-10 Meters/Minute (Adjustable)
Power SupplyAC 220V
Peak Power8000W
Machine Overview
Operation Detail
Component View
Internal Structure
Technical Layout
Process Flow
Structure Diagram
Final Assembly
Frequently Asked Questions
What is the maximum coating width for this machine?
The GN-K1 model supports a standard coating width of up to 300mm.
How precise is the coating thickness adjustment?
The machine uses a high-precision micrometer adjustment method, allowing for coating thicknesses between 0.01mm and 1mm.
Can this machine handle double-sided coating?
Yes, the machine is designed to be suitable for both single and double-sided coating, and it includes composite functionality.
What is the temperature range for the heating system?
The blade base plate features a constant temperature heating system that can be adjusted from room temperature up to 180 degrees Celsius.
Is the production speed adjustable?
Yes, the equipment speed is adjustable from 1 to 10 meters per minute based on your specific glue coating requirements.
Does the machine support automatic material laminating?
Yes, it is equipped with an automatic laminating device featuring rubber rollers and steel rods for efficient production.
