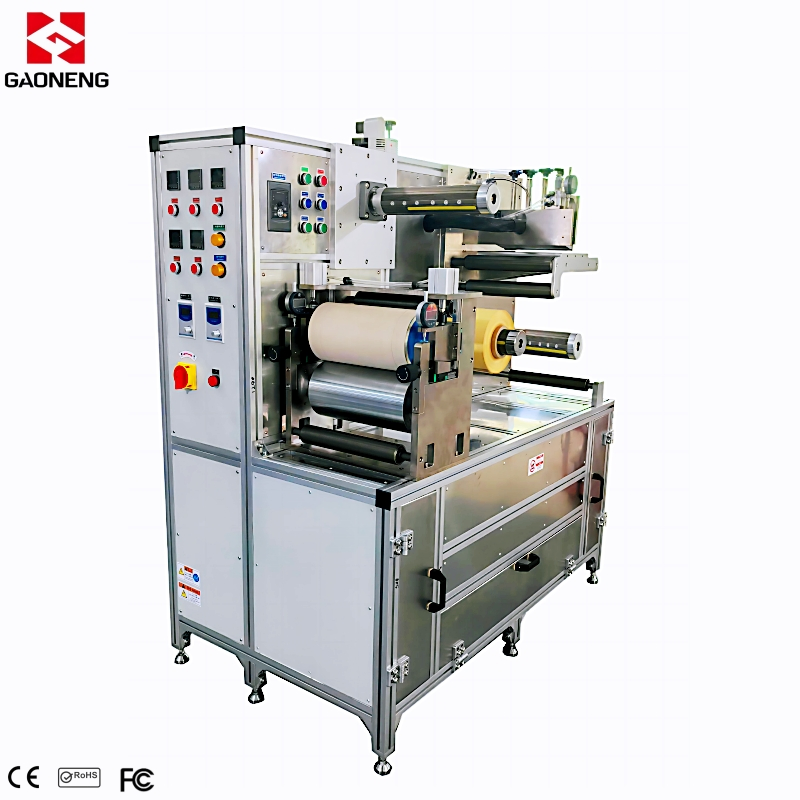

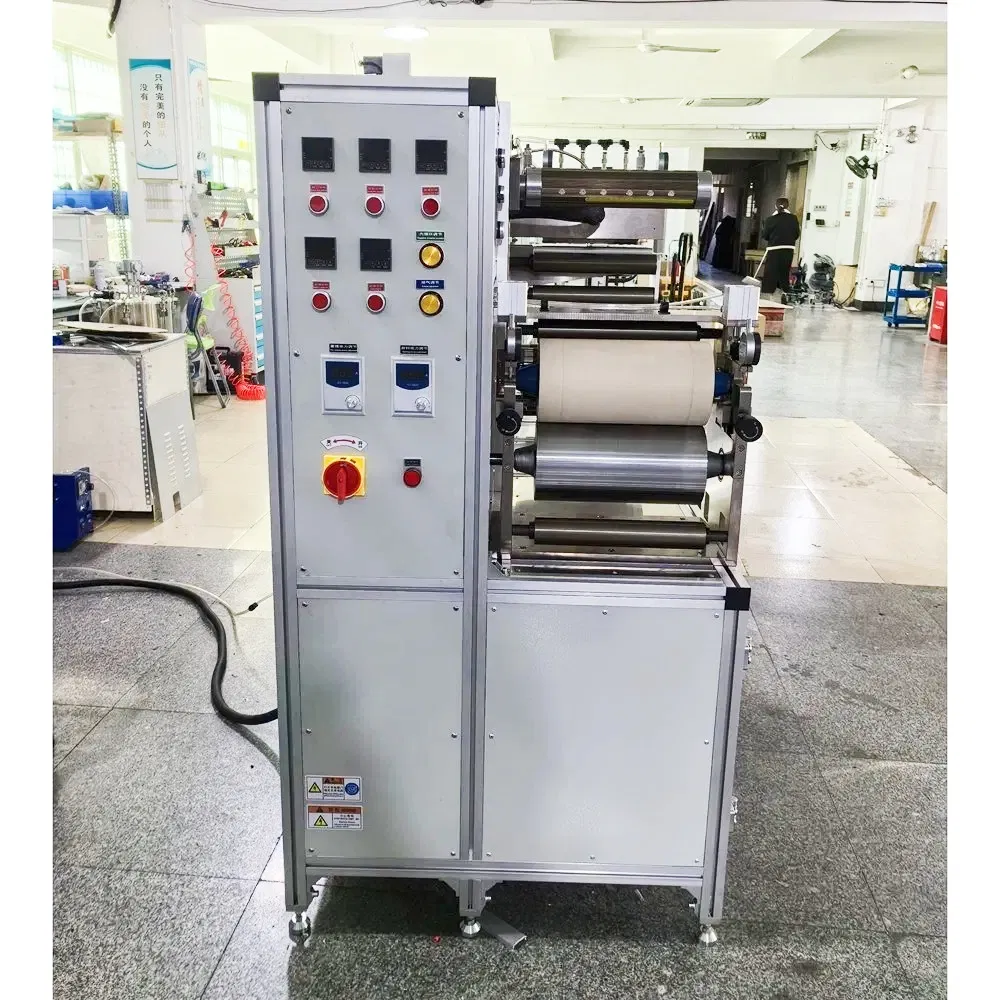

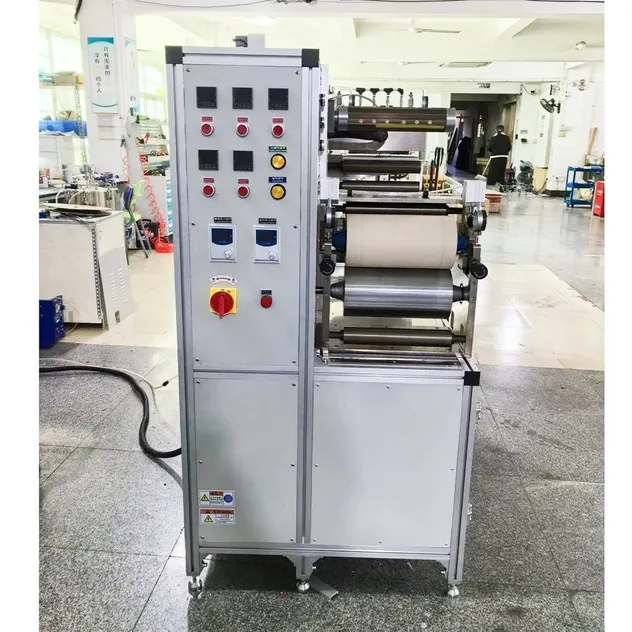

Small-Scale Laboratory Coating Machine for Hot-Melt Pressure-Sensitive Adhesive

1 / 5

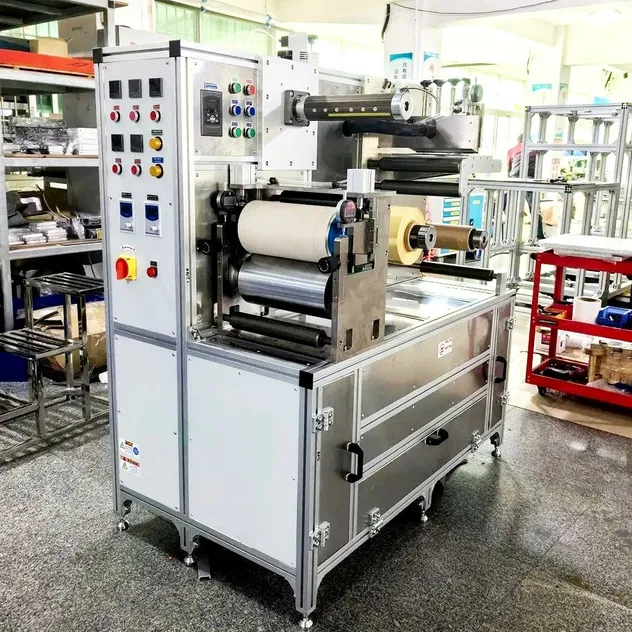

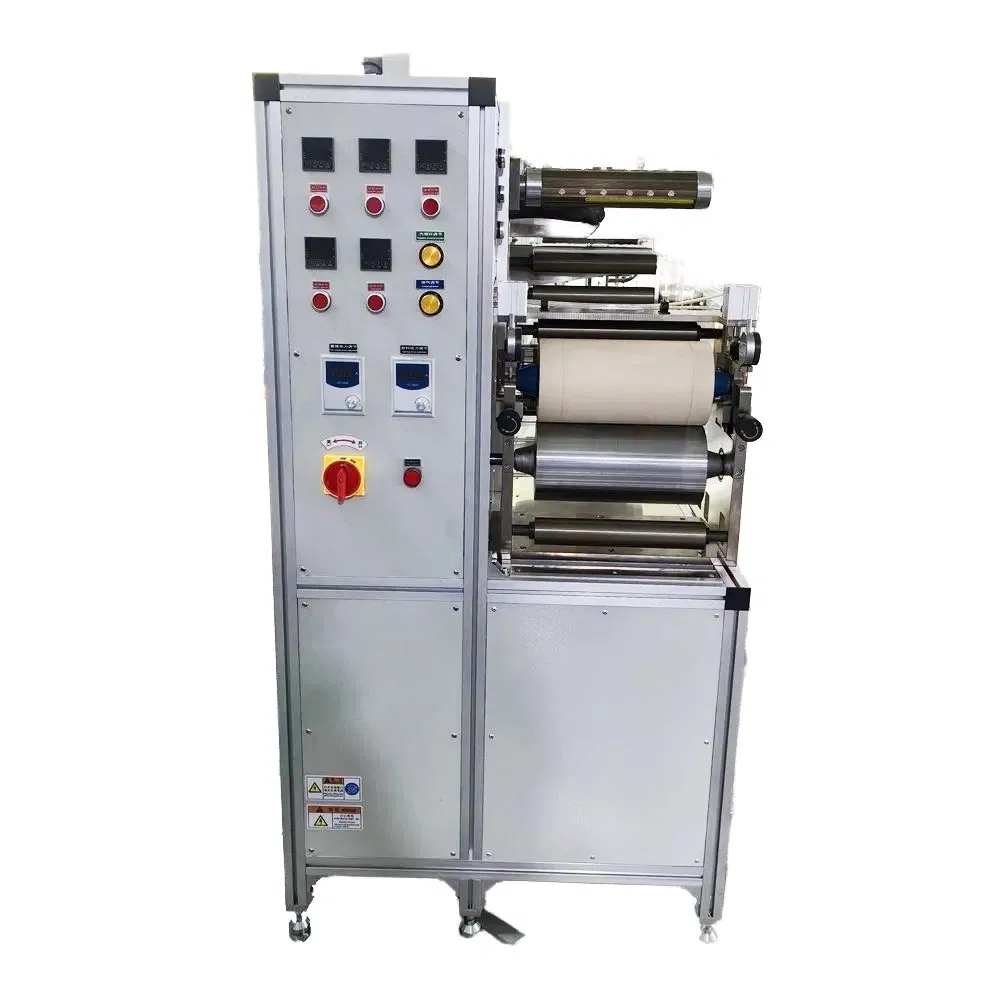

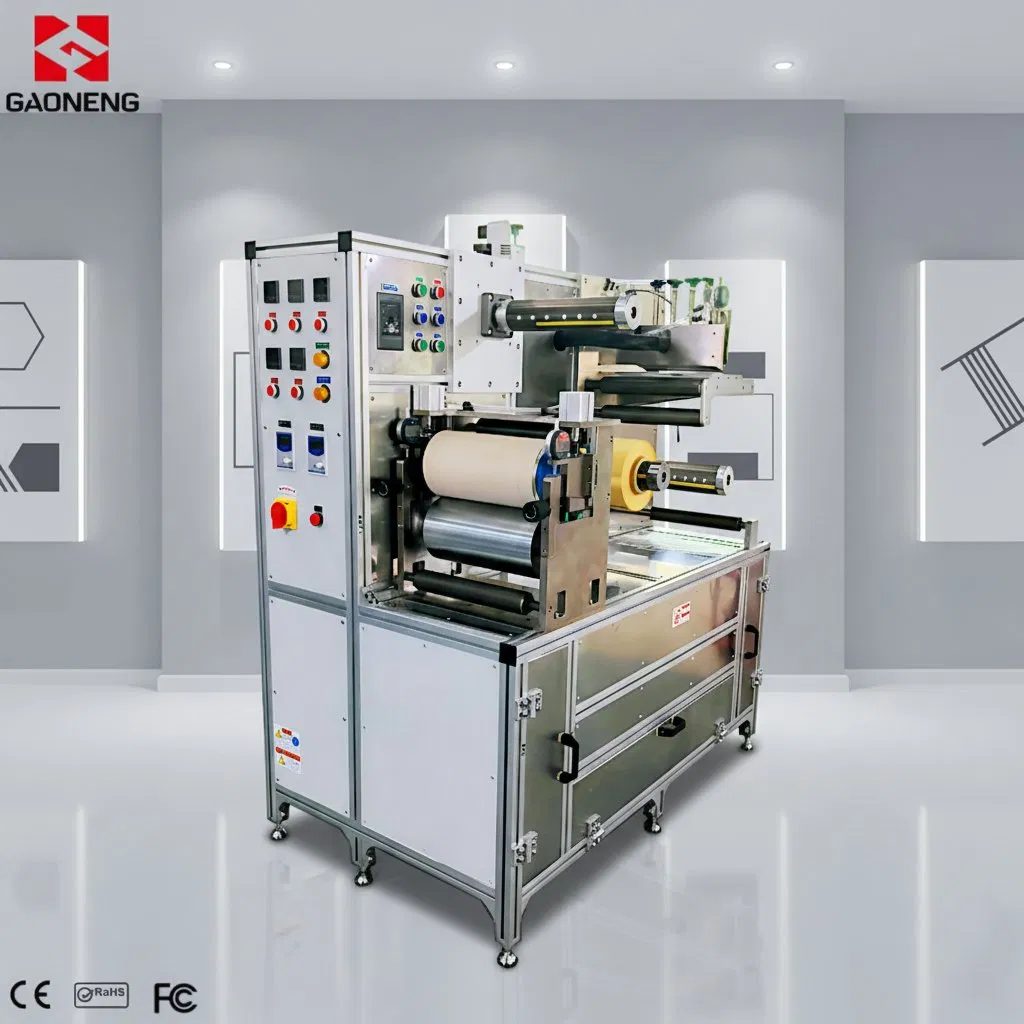

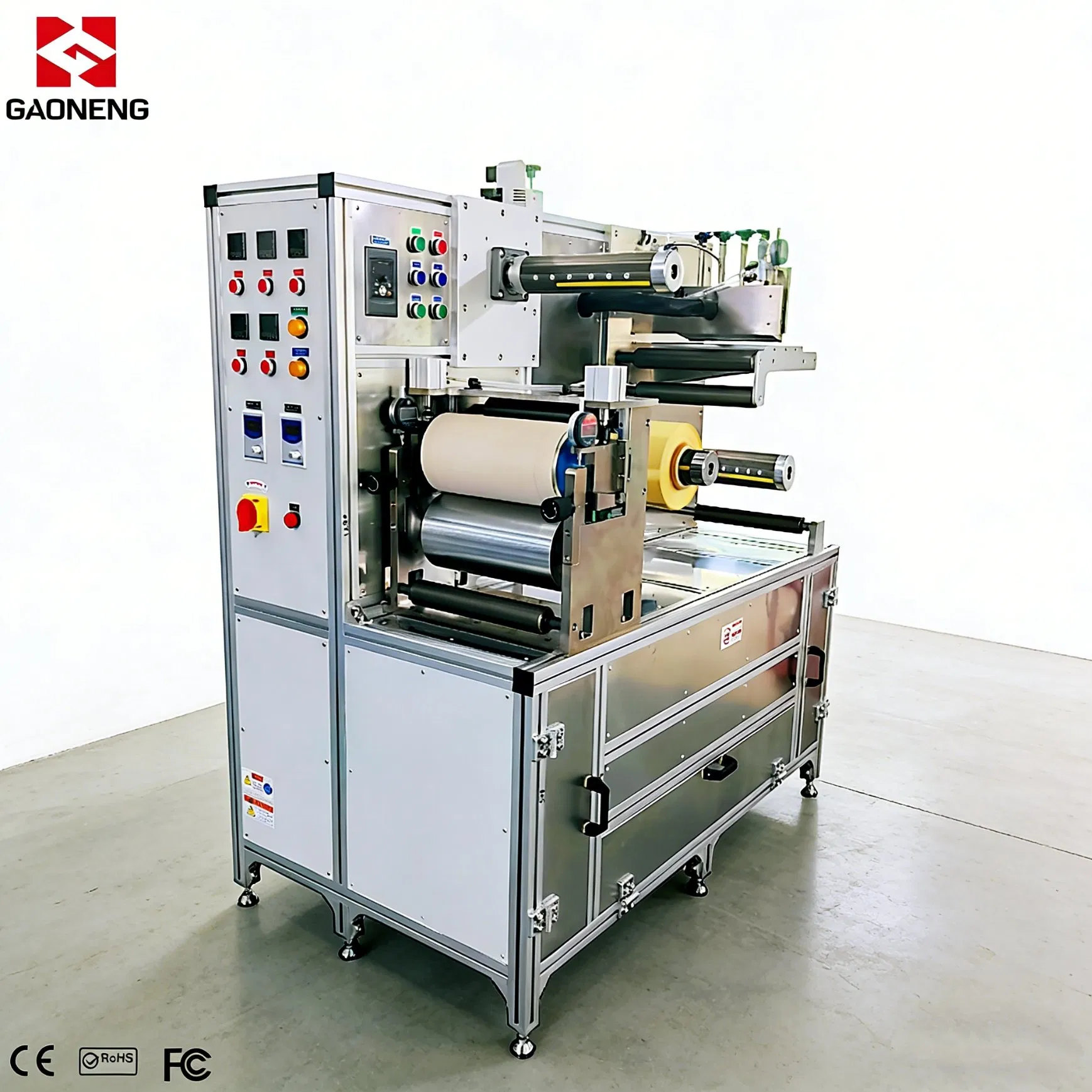

Small-Scale Laboratory Coating Machine for Hot-Melt Pressure-Sensitive Adhesive

Customization:	Available
Certification:	CE
Coating Application:	Automotive Industry, Electronics Industry, Medical Industry

Send Inquiry

Product Description

Basic Information

Model NO.

GN-K302

Coating Color

Black, Blue, White

Warranty

1 Year

Coating Width

300mm

Coating Thickness

0.01-1mm

Glue Container

Adjustment Method

Micrometer

Transport Package

Wood Package

Specification

90*120*110

Key Advantages

Versatile Coating Options Suitable for full-width and strip coating, using high-quality coating heads for accurate application. Supports double-sided coating and composite functions.

Intelligent Control Utilizes microcomputer control technology to automatically synchronize glue spraying rates with production speeds.

High Precision System Features an advanced sol coating or online glue making system with double-layer gear pump synchronous control for maximum accuracy.

Advanced Heating Equipped with electric or heat transfer oil circulation heating systems. Accurate temperature control with insulated output systems.

Stable Operation Rewinding and unwinding with automatic tension control and correction systems; inverter stepless speed regulation for stable running.

Technical Specifications

Control System	PLC with touchscreen / Microcomputer
Coating Width	300mm
Coating Method	Hot Melt Adhesive Extrusion Head
Coating Thickness	0.01-1mm
Adjustment Method	Micrometer
Blade Base Plate	Heated (RT to 180°C)
Laminating Device	Automatic Laminating
Laminating Rollers	Rubber Roller + Steel Rod
Equipment Speed	1-10 Meters/Minute (Adjustable)
Power Supply	AC 220V / 8000W Peak

Frequently Asked Questions

What is the maximum coating width of this machine?

The machine supports a standard coating width of up to 300mm.

How is the coating thickness adjusted for precision?

The thickness is adjusted using a high-precision micrometer, allowing for a range between 0.01mm and 1mm.

What type of adhesives can be used with the GN-K302?

It is specifically designed for hot-melt pressure-sensitive adhesives using a specialized extrusion head.

Does the machine support automatic temperature control?

Yes, it features an integrated heating system capable of maintaining constant temperatures from room temperature up to 180°C.

What is the production speed of this laboratory coater?

The equipment speed is adjustable between 1 to 10 meters per minute, depending on your specific glue coating requirements.

Is the tension control automated?

The machine includes an adjustable tension control system and can be equipped with an automatic tension control system for stable rewinding and unwinding.
