■ Basic Information
Overall Dimension
3570*3100*1200mm
Transport Package
Wooden Case
Production Capacity
20 Sets/Month
■ Product Description
- Feeding Unit: Features two paper board stacks to hold AB two pieces of paper, significantly improving production efficiency. The air sucking structure at the bottom enhances transport accuracy and efficiency.
- Connecting Unit: Utilizes hot melt adhesive with four-side gauge positioning, ensuring high precision and accurate register.
- Folding Unit: Adopts manual folding to resolve positioning challenges, allowing the overlap margin to be controlled effectively.
- Operation: Designed for a two-person team. One operator stacks papers and collects finished jobs, while the other folds and feeds them into the compressing belt. Easy operation even for beginners.
■ Technical Specifications

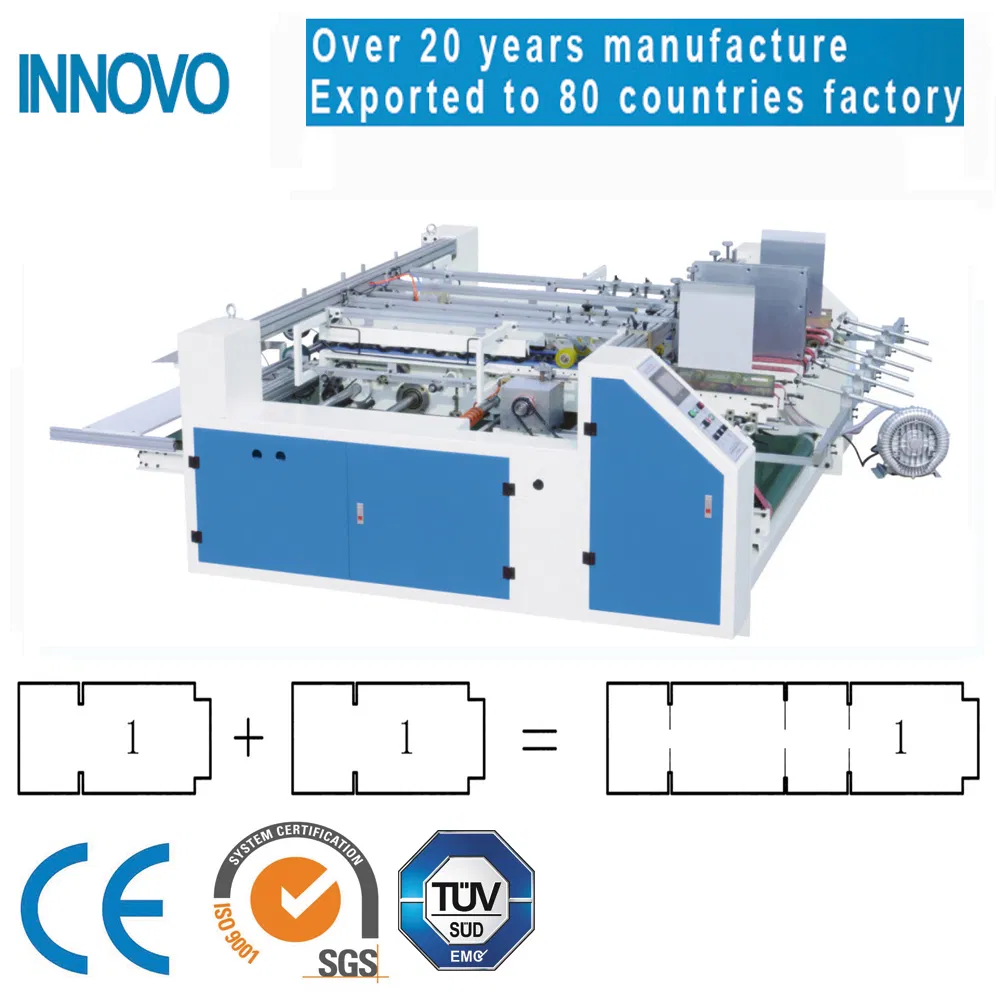

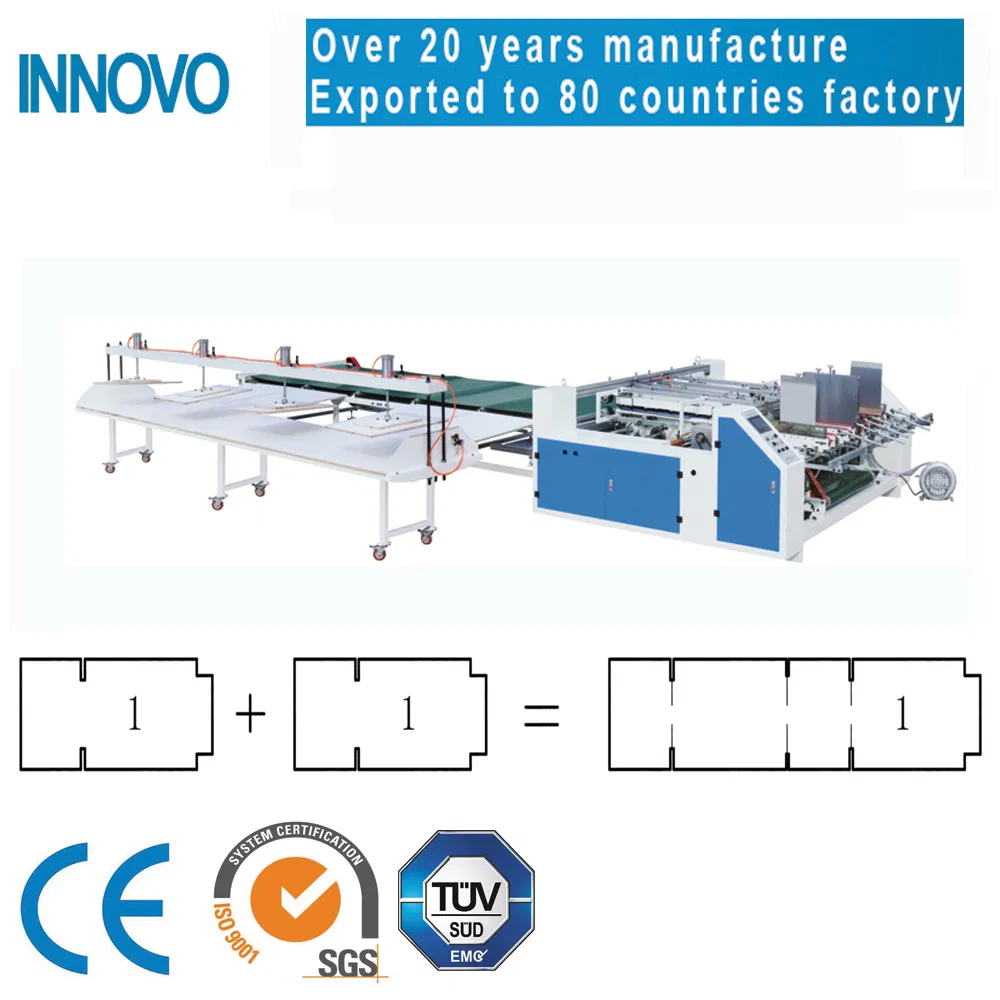

This machine is specifically designed to fold and glue AB papers (2 pieces of corrugated paper) into cartons, resolving high labor intensity and low efficiency issues associated with traditional manual methods.
| Max. Paper Size |
1050*1000mm |
| Min. Paper Size |
520*320mm |
| Total Power |
7.5kw |
| Speed |
0-1500pcs/h |
| Max. Finished Size |
2100*1100mm |
| Min. Finished Size |
700*520mm |
| Power Supply |
380V AC 4p |
| Required Workers |
2 Persons |

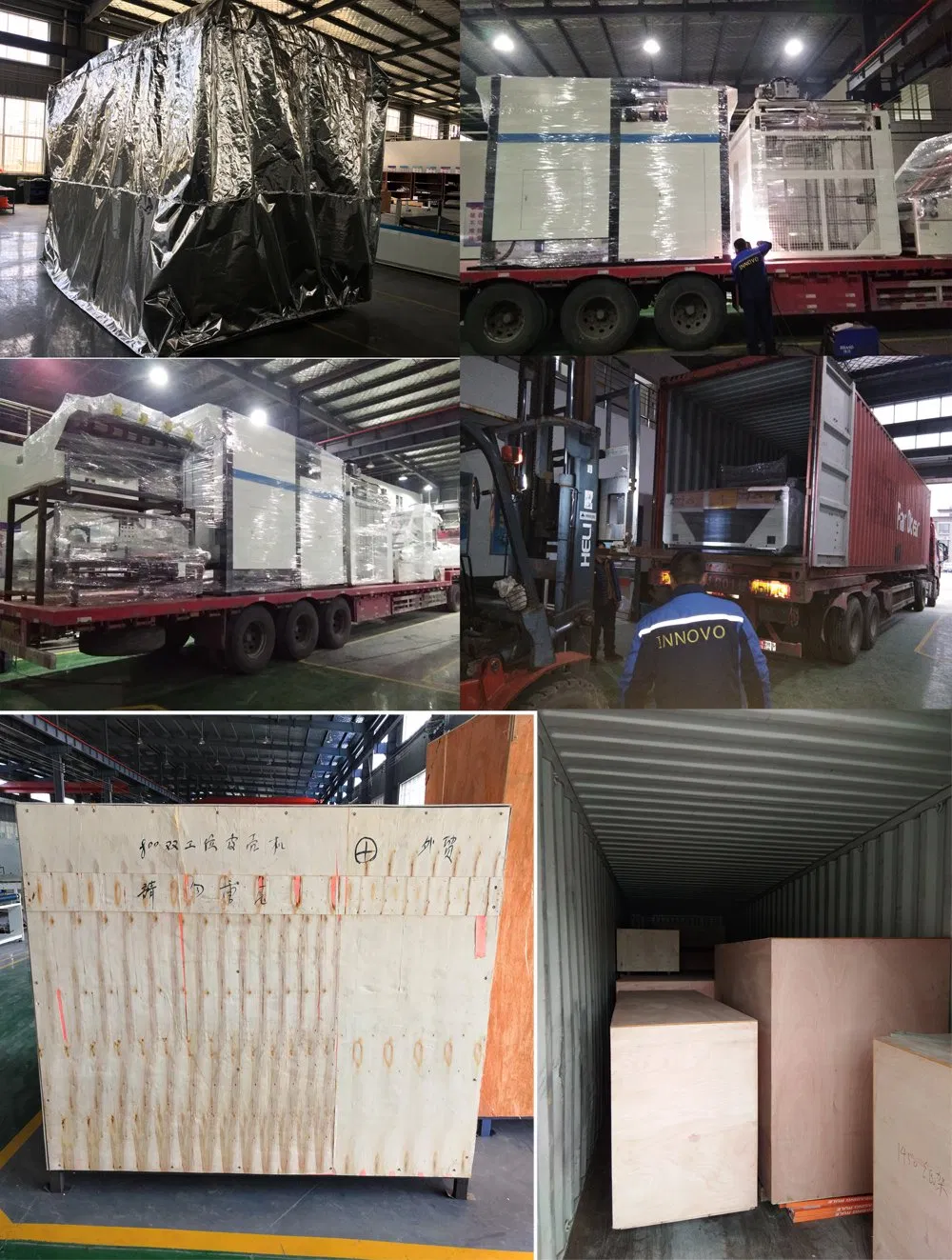

■ Transport and Packing
- Standard export wooden cases (approx. 1cm thickness) for durability.
- Bubble film wrapping for waterproof protection.
- Comprehensive shipping handling services available.
■ Why Choose This Solution
- High Reliability: Shock-resistant bearings and excellent component quality for long-life performance.
- Cost Efficiency: Direct manufacturer pricing and increased production speed result in significant cost savings.
- Global Reach: Proven performance in over 70 countries across Europe, South America, and Southeast Asia.
- Technical Support: Professional assistance and overseas machinery service available to meet customer needs.
■ Frequently Asked Questions
What is the main application of this machine?
The machine is specially designed to fold and glue AB papers (two separate pieces of corrugated paper) into complete carton boxes with high precision.
How many operators are required for the production line?
The machine is designed for easy operation and typically requires only two persons: one for stacking and collecting, and one for folding and feeding.
What is the standard warranty period?
We provide a 12-month warranty from the shipping date. During this period, we supply spare parts for any non-accidental or non-misuse issues.
How do you ensure the machine is not damaged during shipping?
Machines are wrapped in waterproof bubble film and packed in strong, durable export-standard wooden cases to withstand long-distance transport.
Can the machine handle different sizes of cartons?
Yes, it supports a wide range of sizes, with a maximum finished size of 2100*1100mm and a minimum finished size of 700*520mm.
Is technical training provided for new users?
We offer free training sessions at our facility. If on-site training is required at the purchaser's factory, we can send engineers to assist with installation and training.
