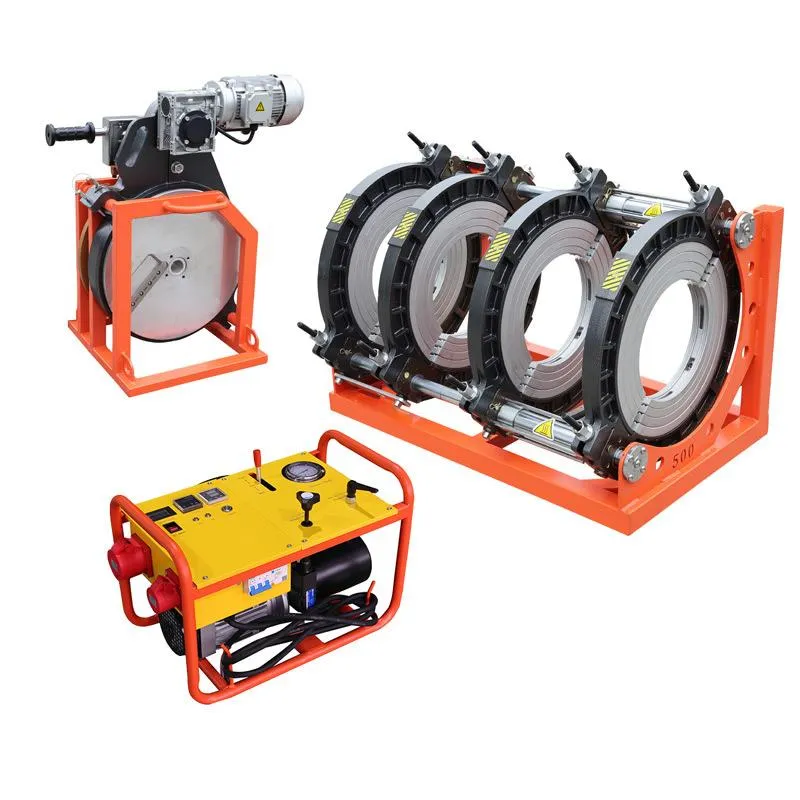

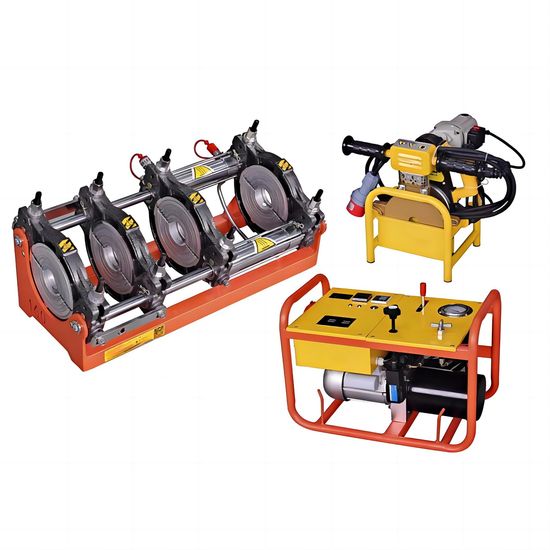

Heat Fusion PE pipe welding machine is mainly used in electronics, instrumentation, pharmaceutical, food, engineering installation, and other industries. It's suitable for all kinds of plastic pipes, such as PE, PPR, PB, and PVDF.
The different types of products allow you to make very high-quality welds in an indoor or outdoor construction environment. As a maintenance and pipeline processing machine, this product has the characteristics of high efficiency and good welding quality.

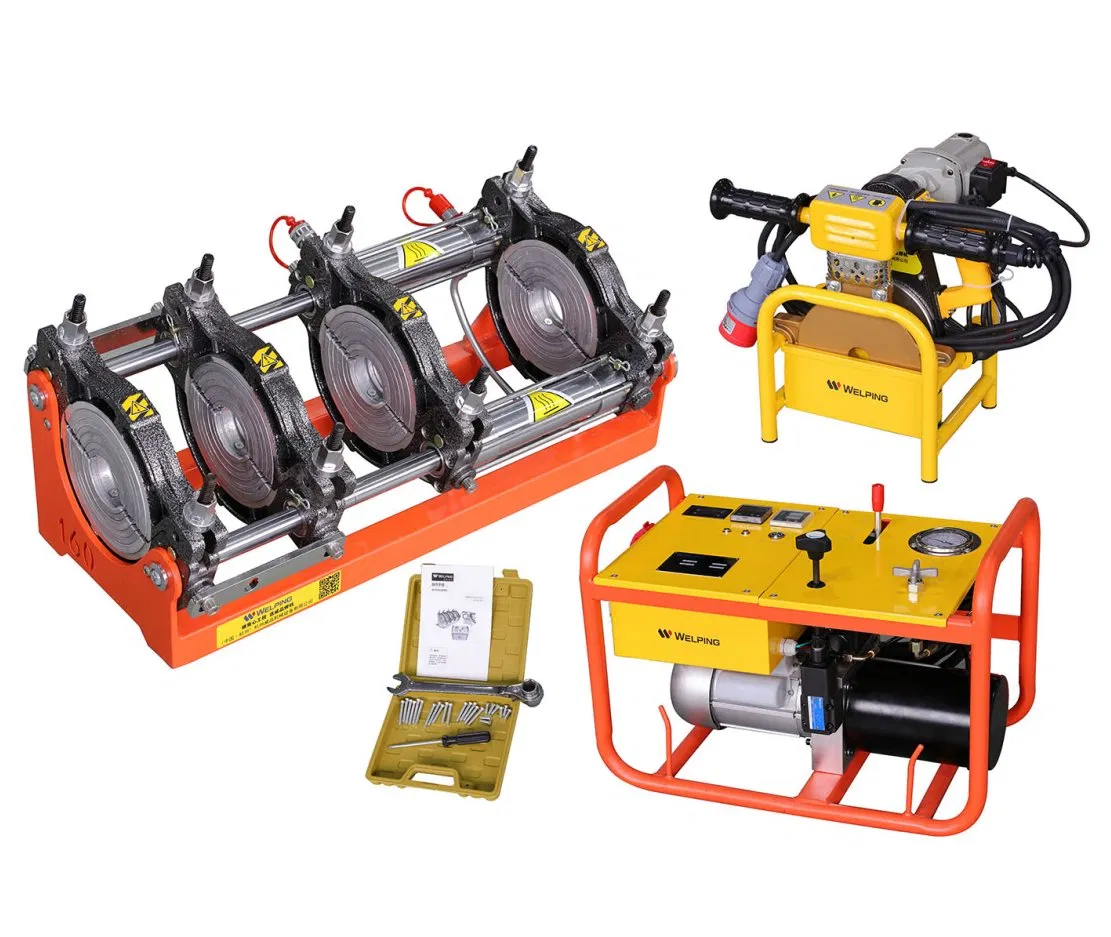

| Parameter | Details (Model 180-500B) |
|---|---|
| Welding range | 180-500mm |
| Heating plate Max. Temp. | 270℃ |
| Operating temperature | 170-250℃ |
| Temperature deviation | ±7℃ |
| Pressure adjustable ranges | 0-16MPa |
| Voltage | 380V/50Hz, 3 PH |
| Total power | 8.7 KW |
| Heating plate power | 6.5 kW |

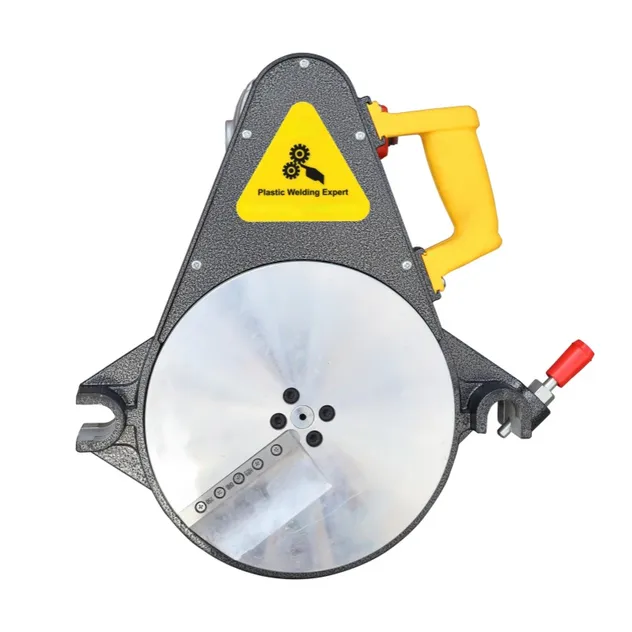

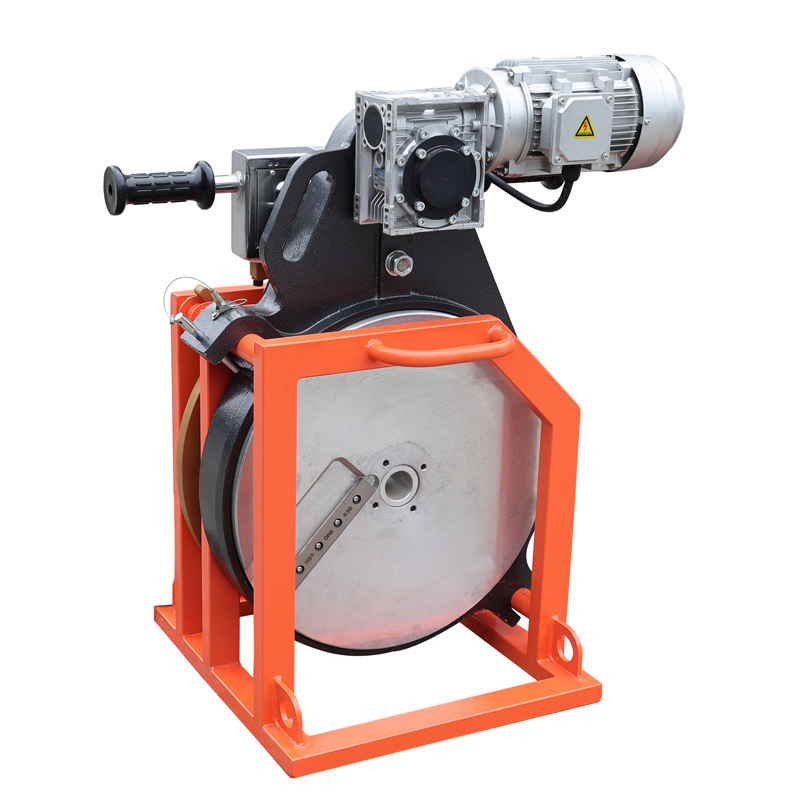

| Milling cutter power | 1.1 kW |
| Weight | 460kg |
| Applicable materials | PE, PPR, PB, PVDF |

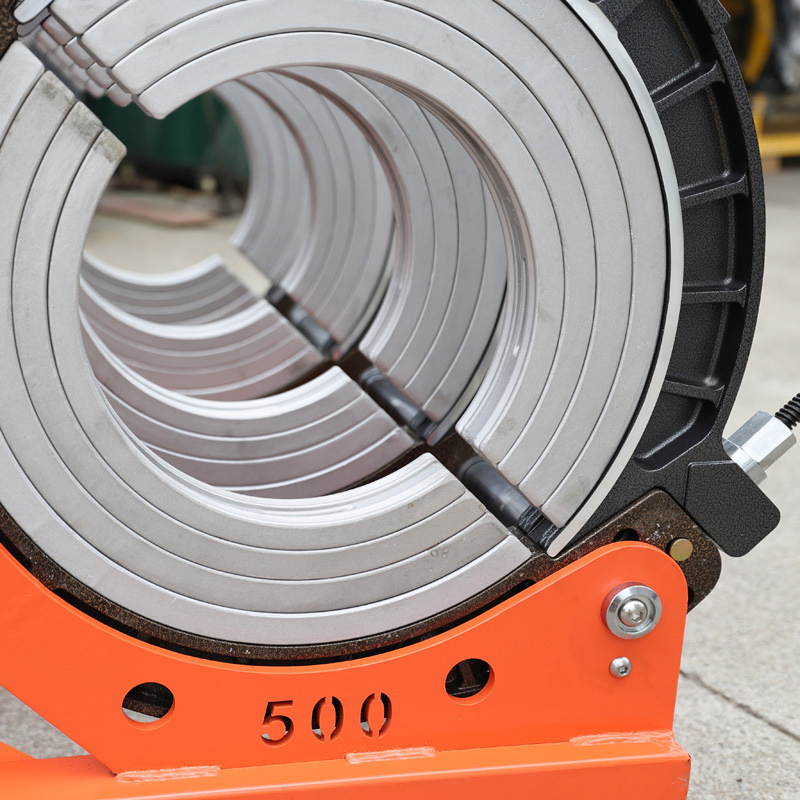

| Standard clamp size | 180mm to 500mm (multiple steps) |

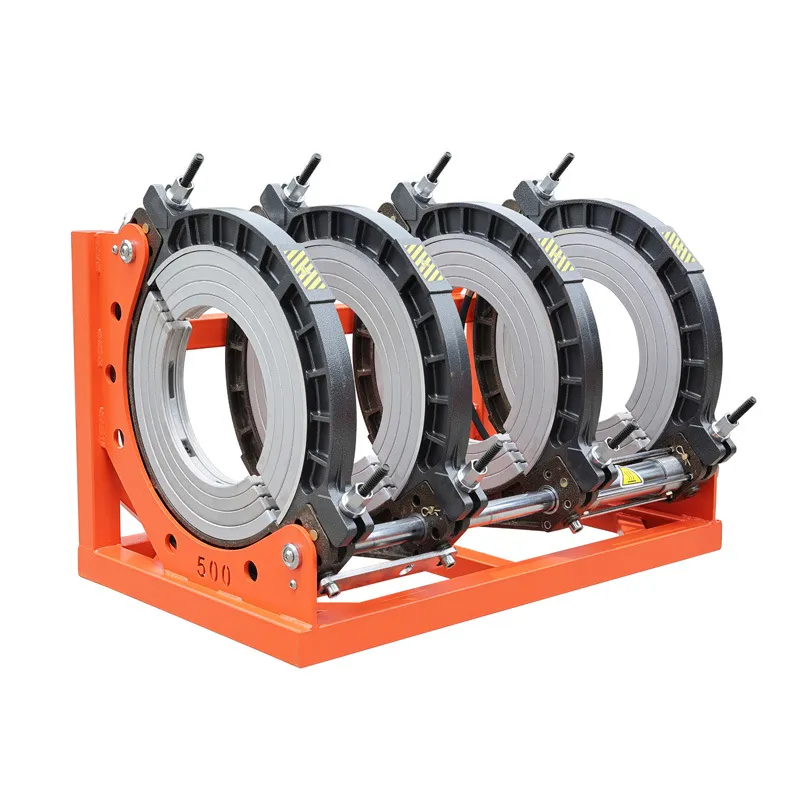

The thickened steel structure is integrated, which shall not deform long-term use. The quick coupling of high quality is durable and oil-tight.

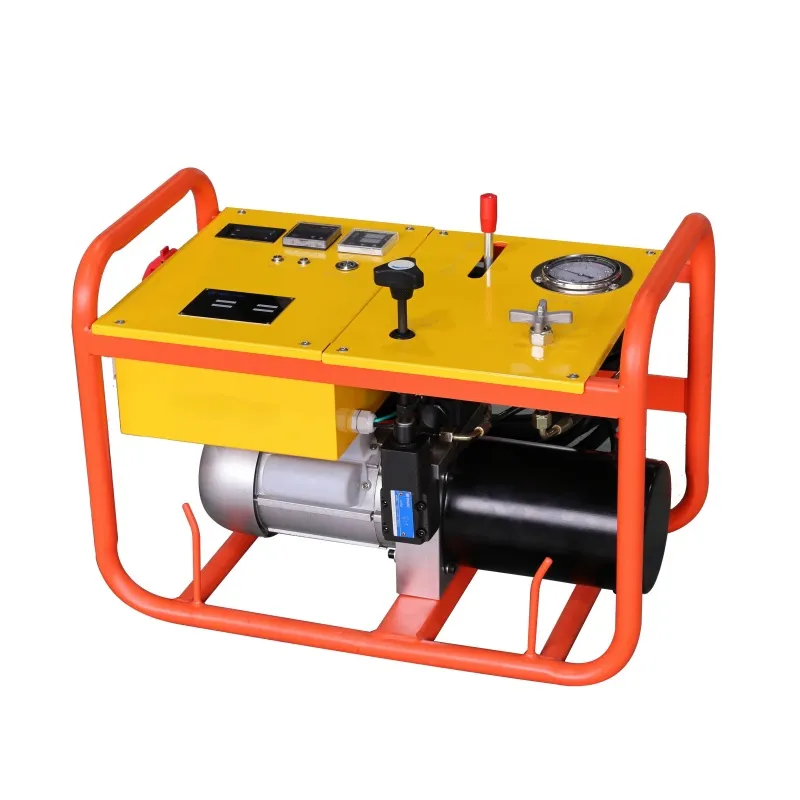

The hydraulic unit is of enclosed structure, which can efficiently prevent sundries from entering. The motor with pure copper coils is stable.
Standard Warranty: 6 to 12 months, depending on the situation.
Extended Warranty: Optional coverage up to 24 months.
Training: Online remote guidance for operation and maintenance.
