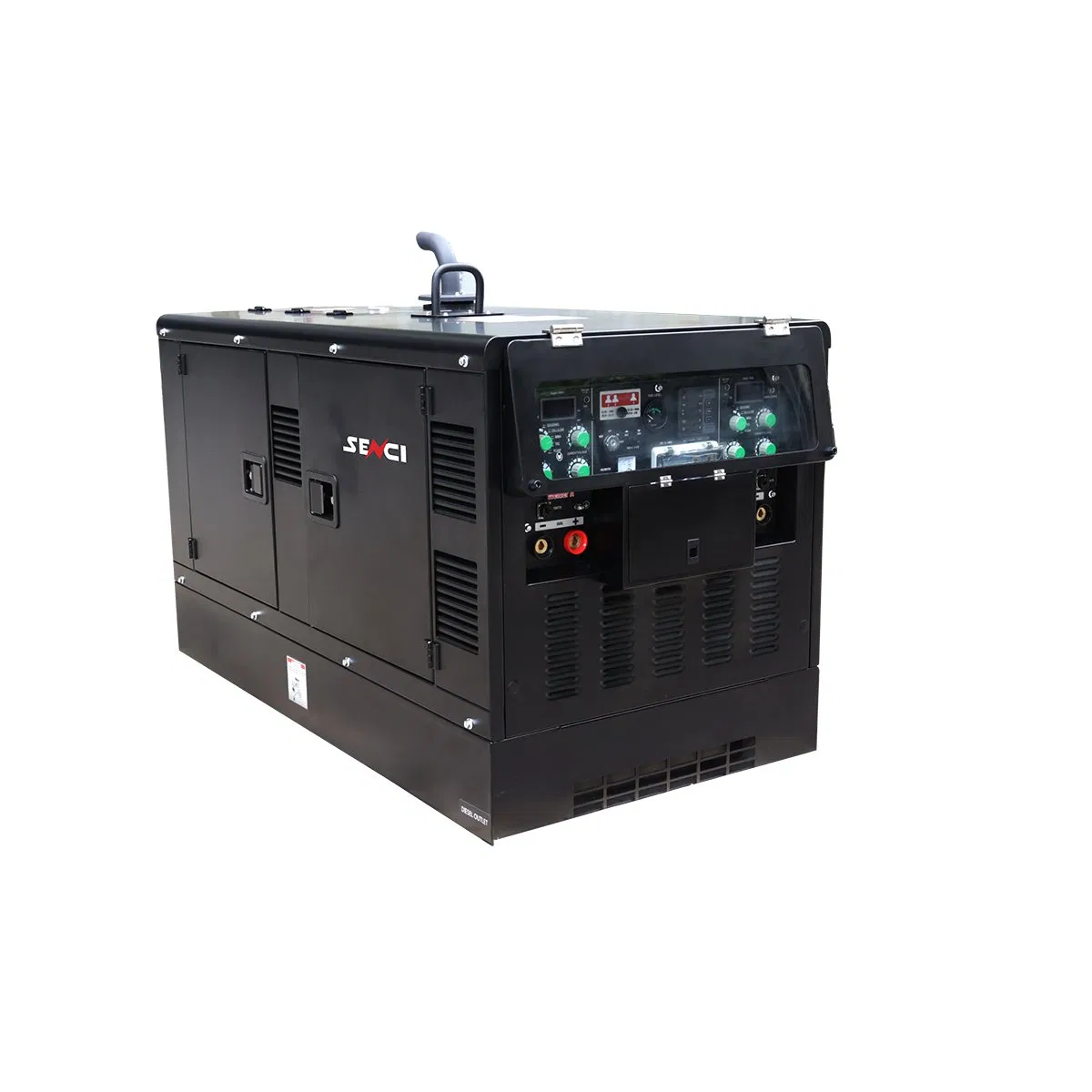

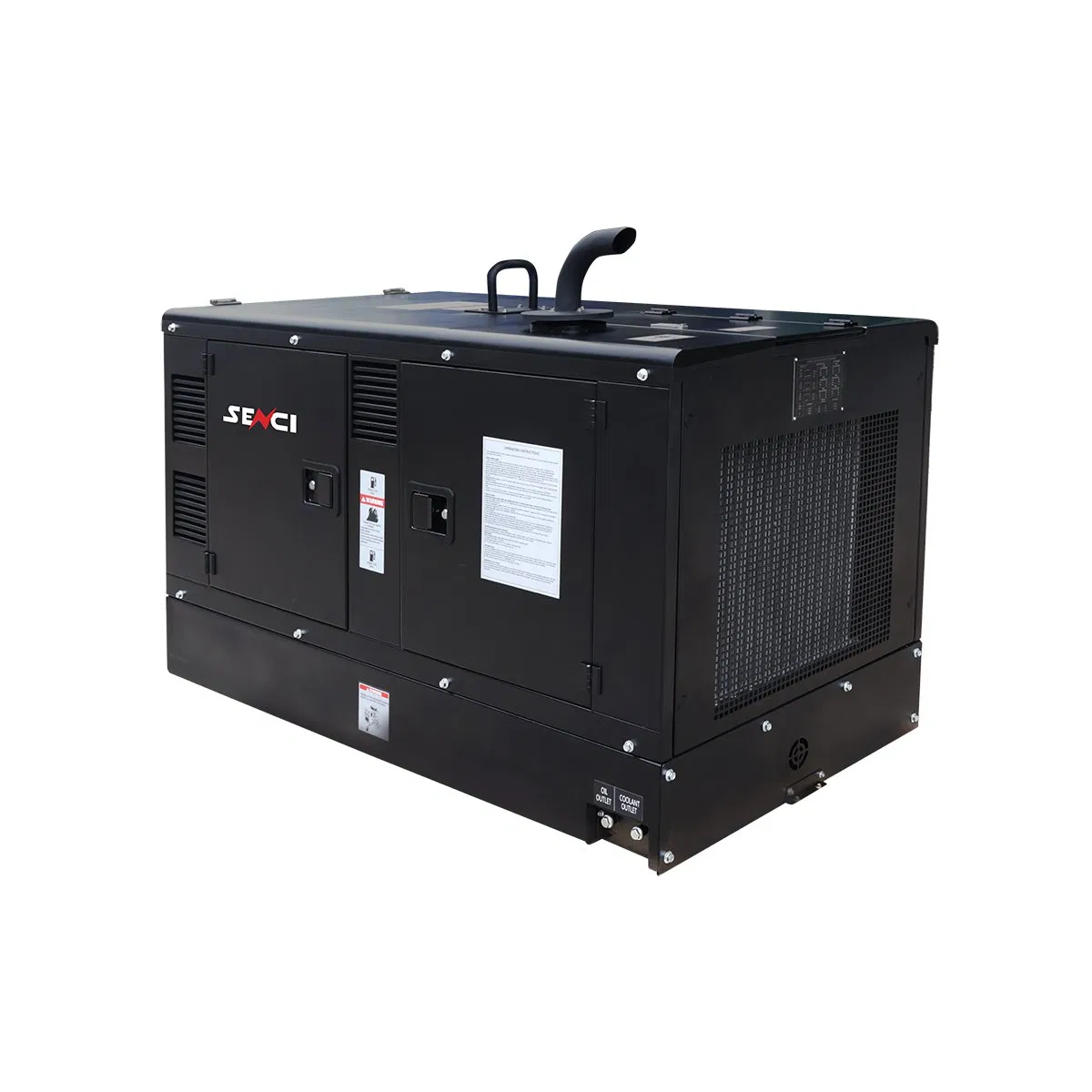

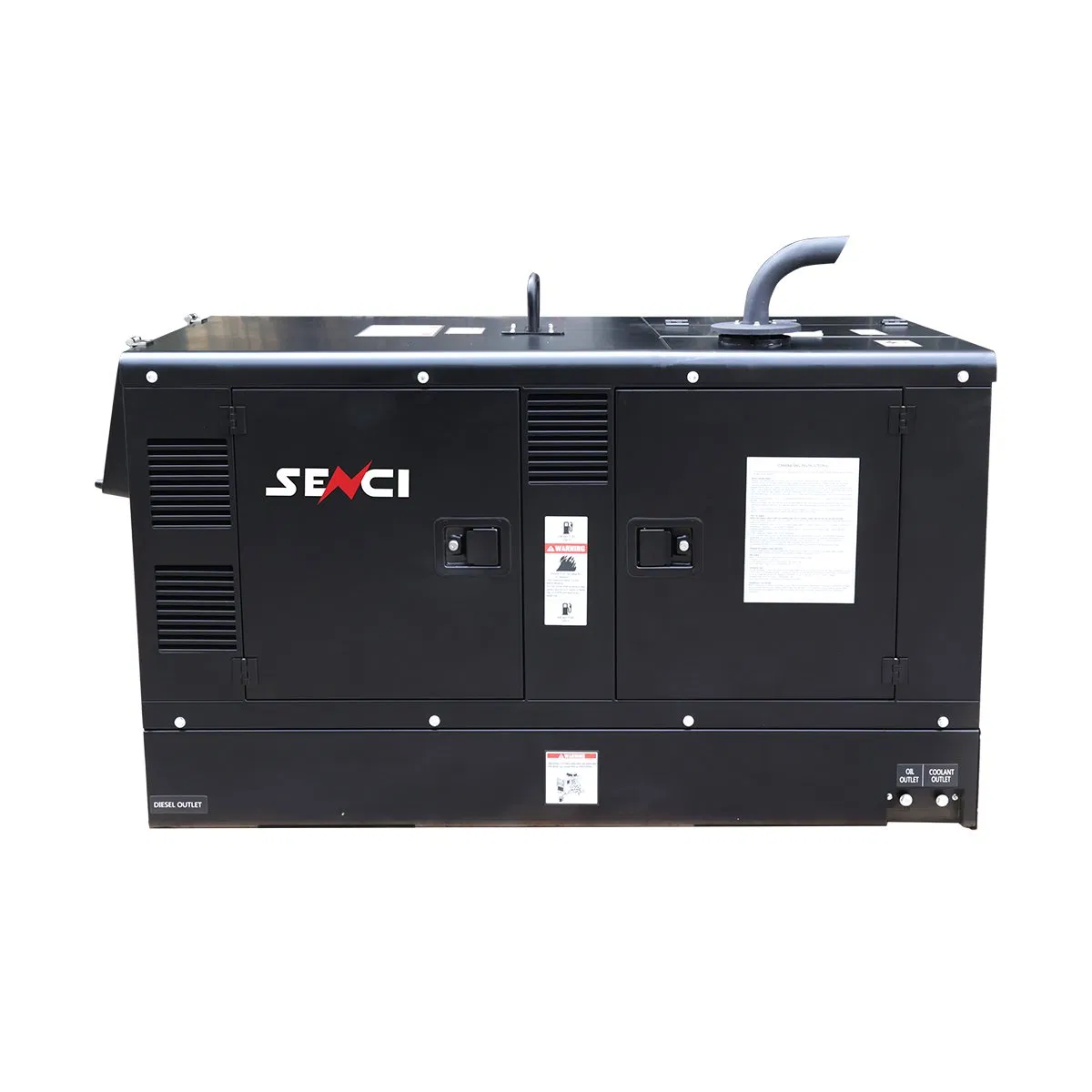

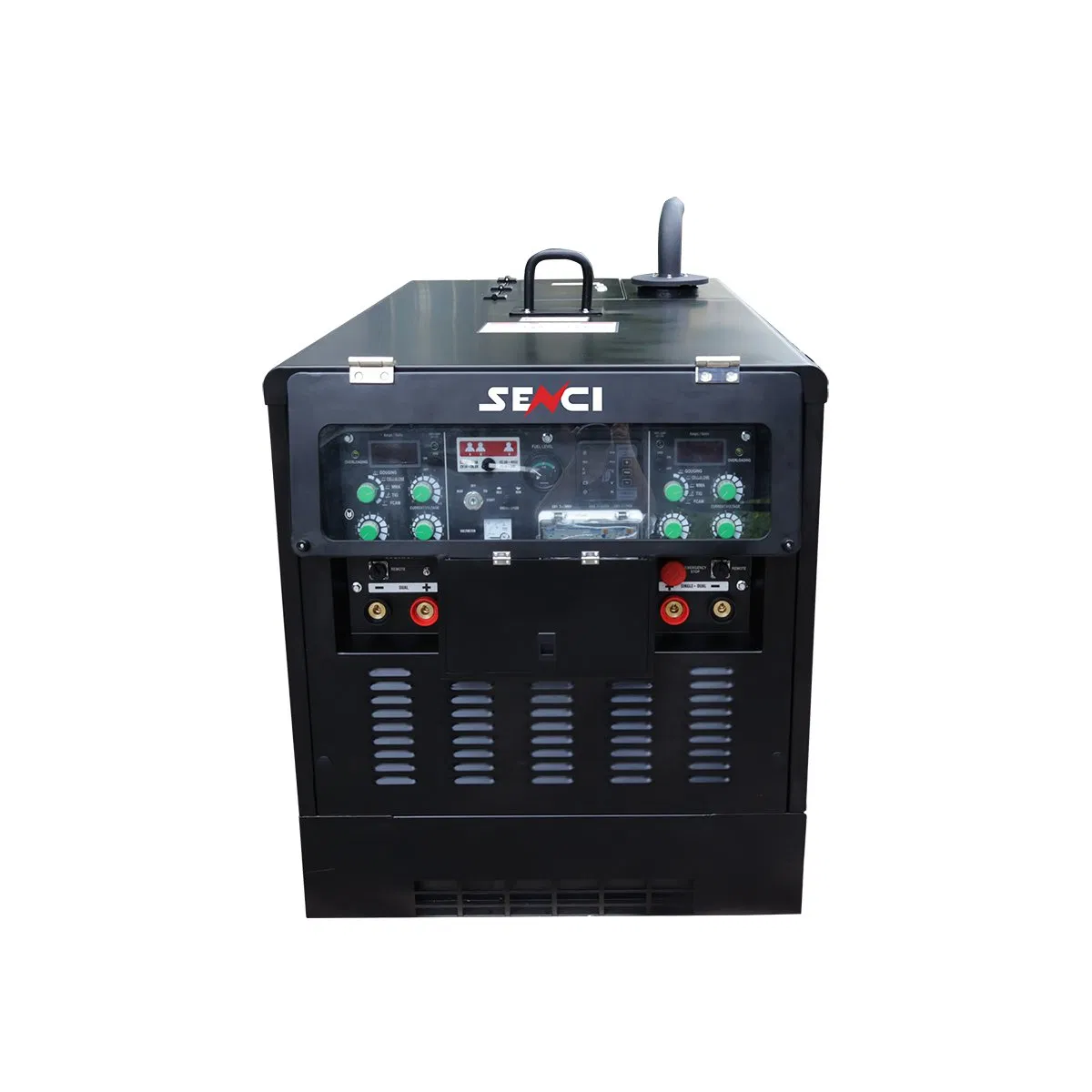

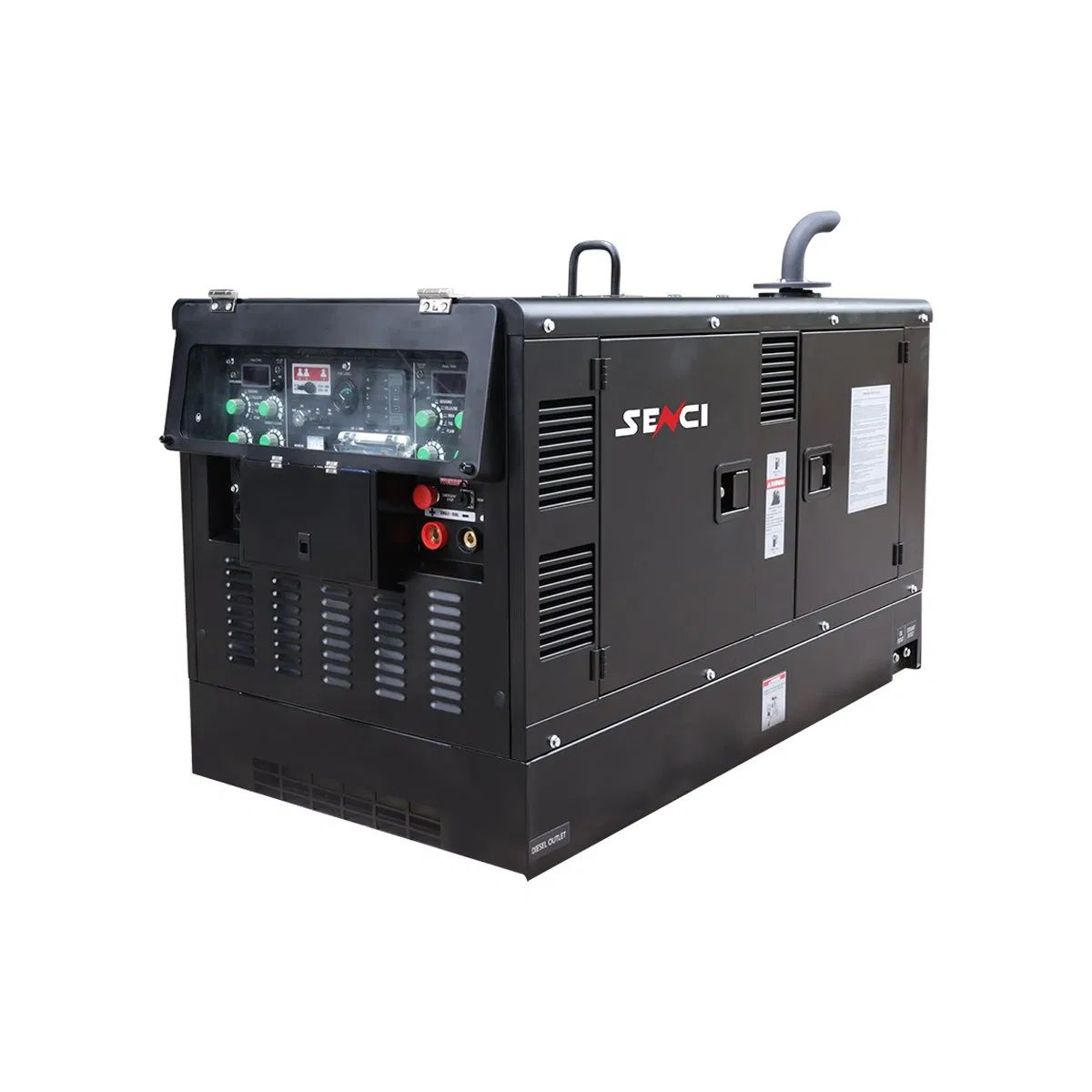

Factory Price 5in1 Super Silent Diesel Engine Driven Welder Used with Kubota Diesel Engine Frequency 50Hz/60Hz 500A

1 / 5

Factory Price 5in1 Super Silent Diesel Engine Driven Welder Used with Kubota Diesel Engine Frequency 50Hz/60Hz 500A

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	SCD500	Type	Micro-Computer Control Automatic Diesel Generator
Output Type	AC Three Phase	Starting System	E-Start
Rated Power	25000W	Max. Power	27500W
Current Range	30A-500A	Fuel Tank	85L
Cooling Method	Air/Water-Cooled	Protection Class	IP23

★

Product Description

Solving outdoor welding problems with the SCD500 5-in-1 diesel engine driven workstation.

✔

Multi-Functional: 5-in-1 diesel engine driven stick welder & AC generator. Supports MMA, TIG, FCAW, gouging, and cellulose welding.

✔

High Power Output: 27,500 peak watts and 25,000 running watts. Equipped with an 85L fuel tank for up to 13.5 hours of runtime.

✔

Premium Engine: Adopts well-known brands (Yuchai, Kubota, Yanmar) with brushless AC generator drive and automatic low oil shut-off.

✔

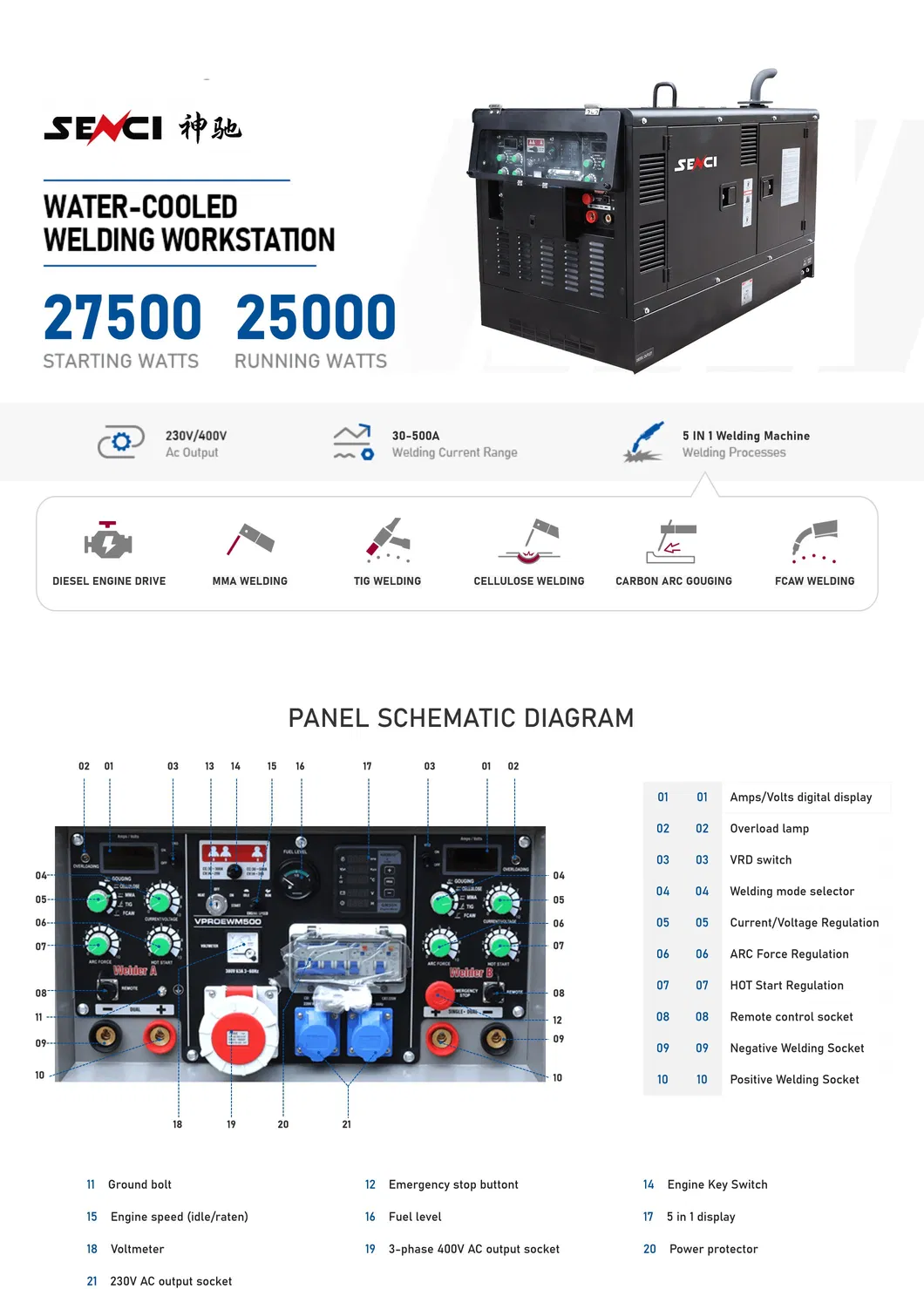

Advanced Control: Features an IGBT inverter power system and a 3-in-1 digital meter for precise regulation in harsh environments.

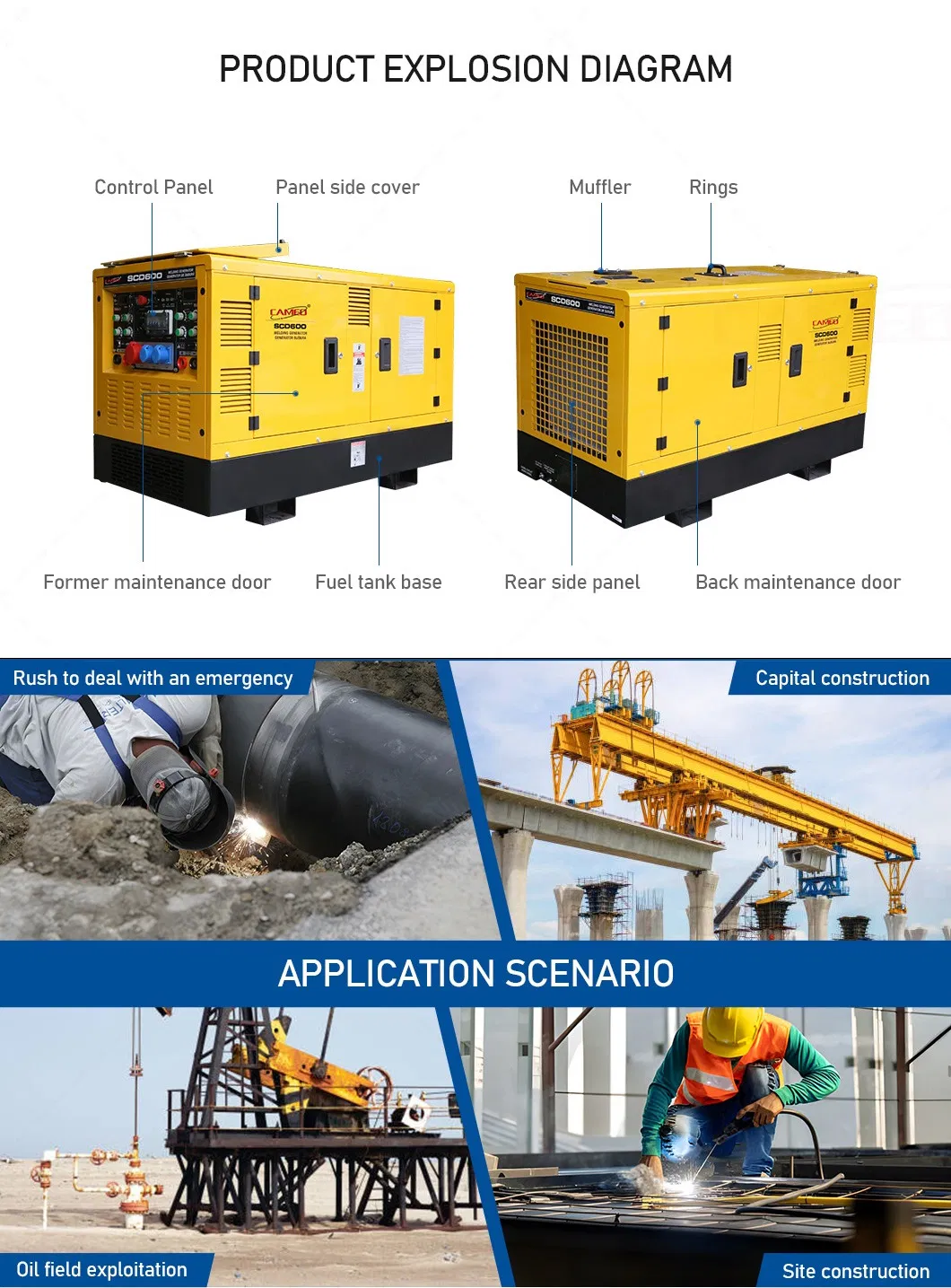

This equipment is designed for simultaneous welding and electricity use, making it ideal for manufacturing, emergency repairs, road maintenance, and construction sites.

⚙

Technical Parameters

Feature		Stick (Handle A/B)	TIG (Handle A/B)	FCAW
Welding Specs	Current Range	30-300A (Dual) / 30-500A (Single)		14-50V
	No-load Voltage	76V (VRD OFF) / 15V (VRD ON)	76V	76V
	Duty Cycle	100% @ 235A / 60% @ 300A			60%
	V-A Curve	Drooping		Flat
Generator Specs	Rated Power	25kW (Max 27.5kW)
	Frequency	50Hz / 60Hz
	AC Output	Three Phase: 400V / 22kW	Single Phase: 230V / 6.9kW
	Excitation	AVR Brushless Excitation

✓

Quality & Certifications

📦

Packaging & Shipping

Package Size	1820.00cm * 940.00cm * 1080.00cm
Gross Weight	830.00kg

Frequently Asked Questions

What are the primary functions of the SCD500 workstation?

The SCD500 is a 5-in-1 multi-functional unit that serves as both a high-capacity diesel engine driven welder (up to 500A) and a powerful AC generator (up to 27.5kW).

Can I use the welding and power generation functions at the same time?

Yes, the unit is designed for simultaneous welding and electricity use, which is perfect for job sites requiring auxiliary power for tools or lighting while welding.

Which welding processes does this machine support?

It supports a wide range of processes including Stick (MMA), TIG, FCAW (wire welding), gouging, and specialized cellulose welding for pipelines.

What is the expected runtime on a full fuel tank?

With its large 85L fuel tank, the SCD500 can operate for up to 13.5 hours, depending on the load and operating conditions.

What types of engines are used in these units?

We utilize high-performance, water-cooled multi-cylinder diesel engines from reputable brands such as Kubota, Yanmar, and Yuchai to ensure reliability.

Is the equipment suitable for harsh outdoor environments?

Absolutely. It features an IP23 protection class, an IGBT inverter power system for stable current, and a super silent enclosure designed for complex outdoor conditions.
