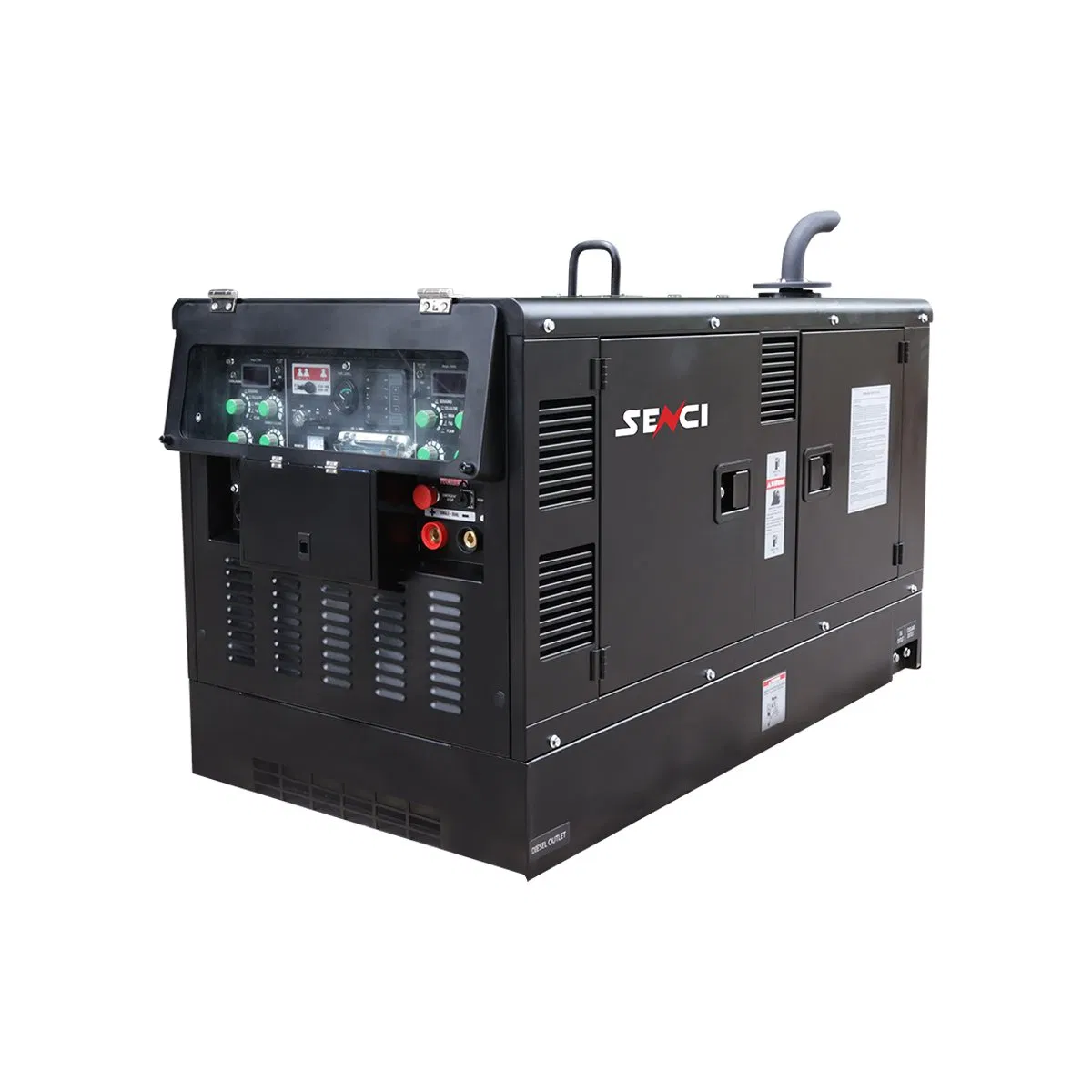

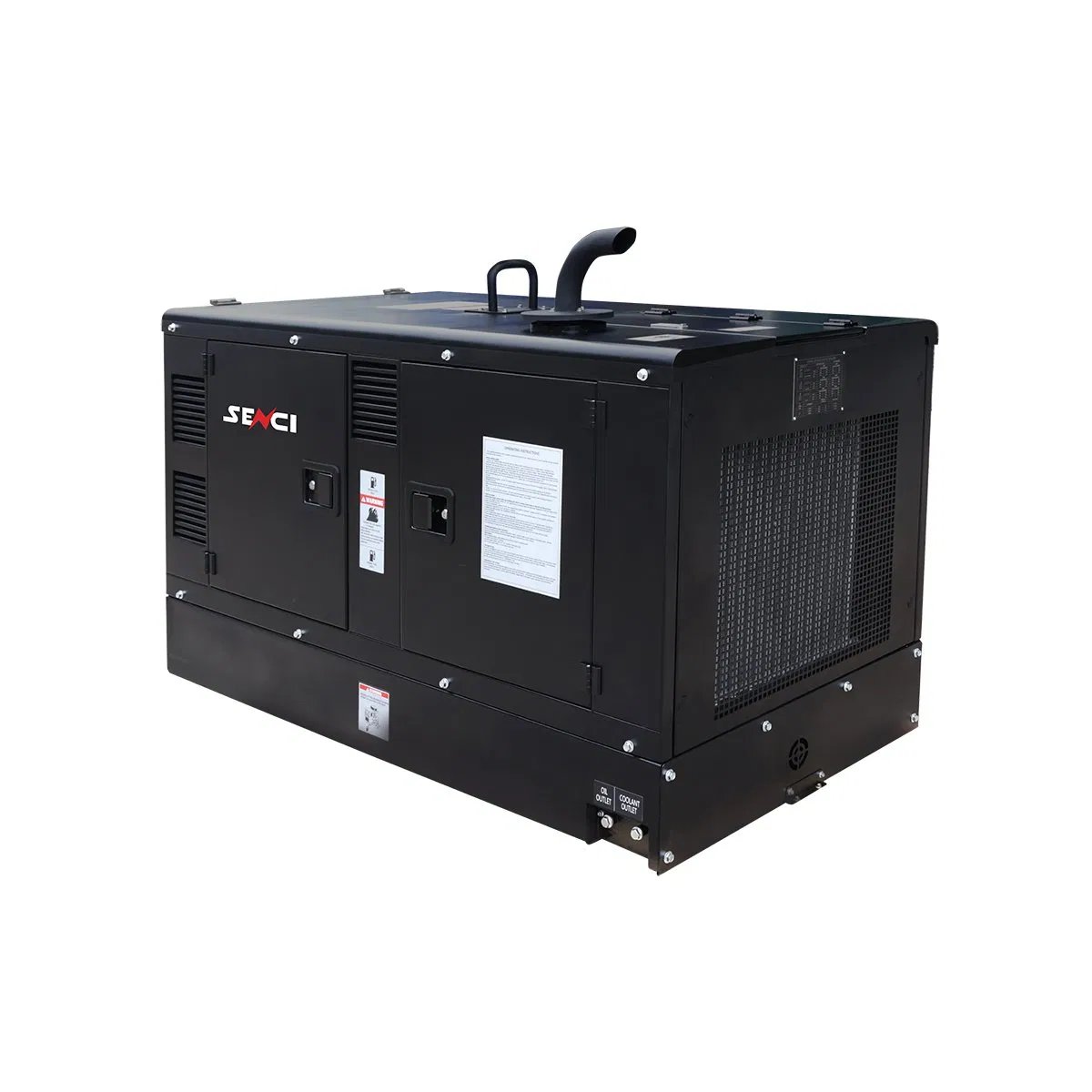

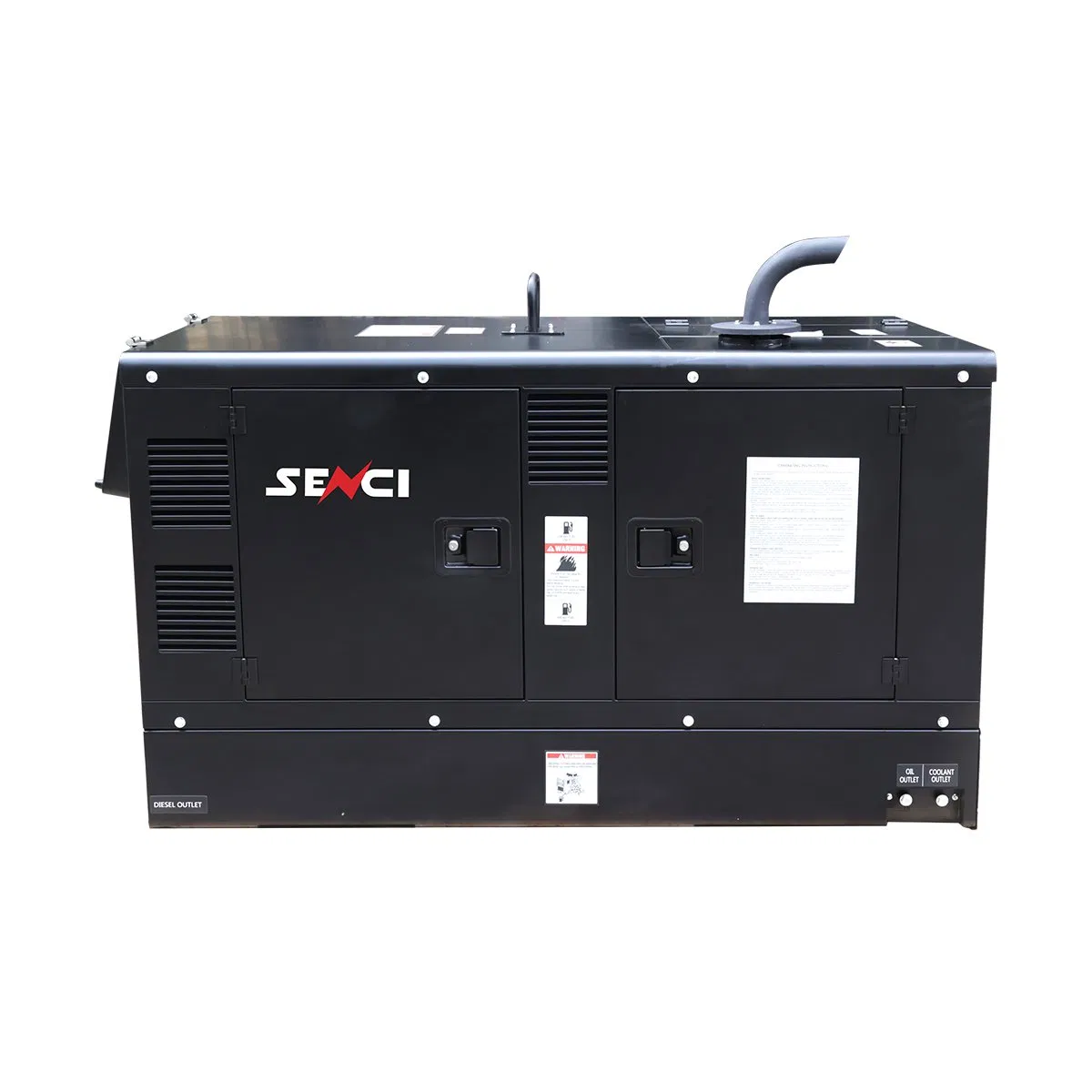

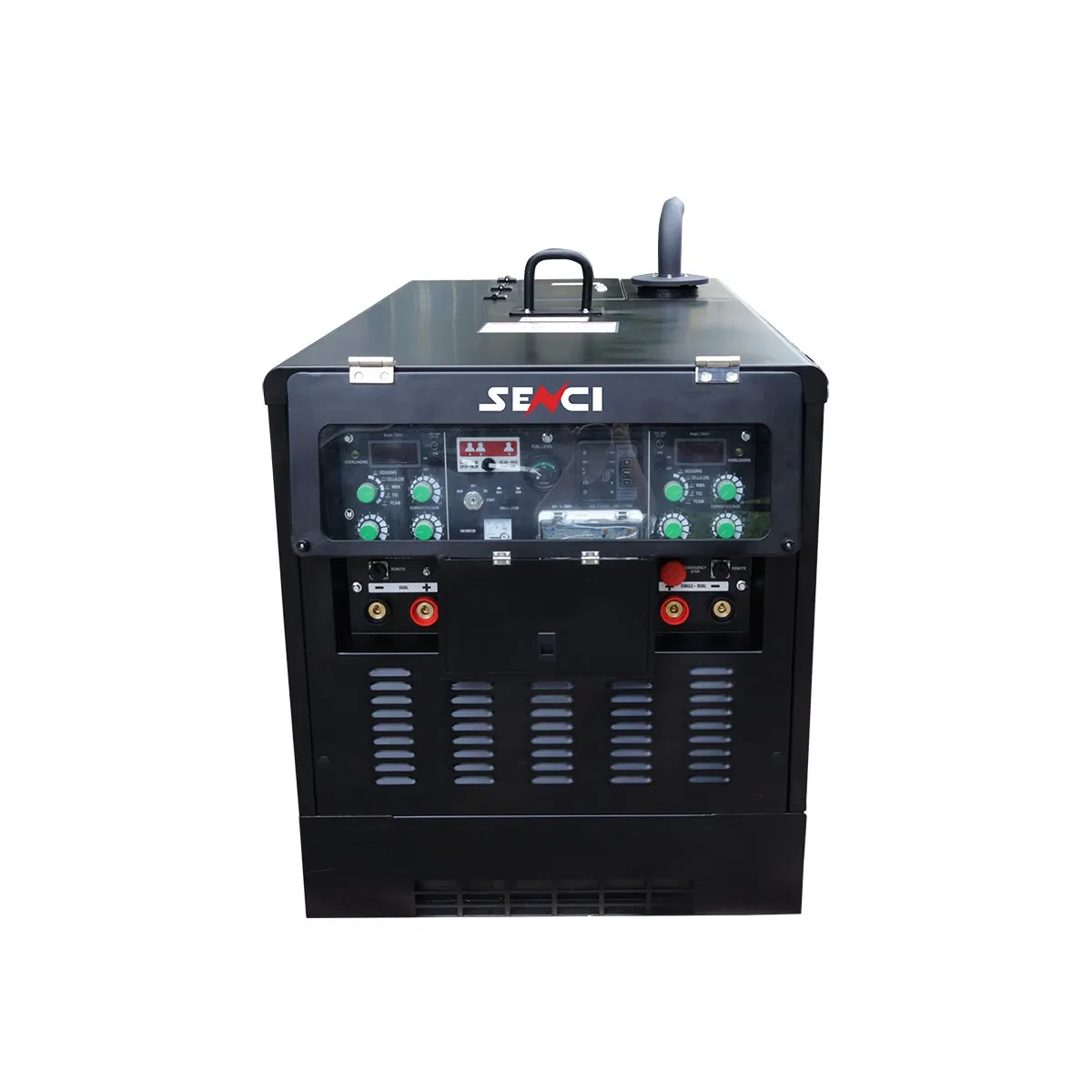

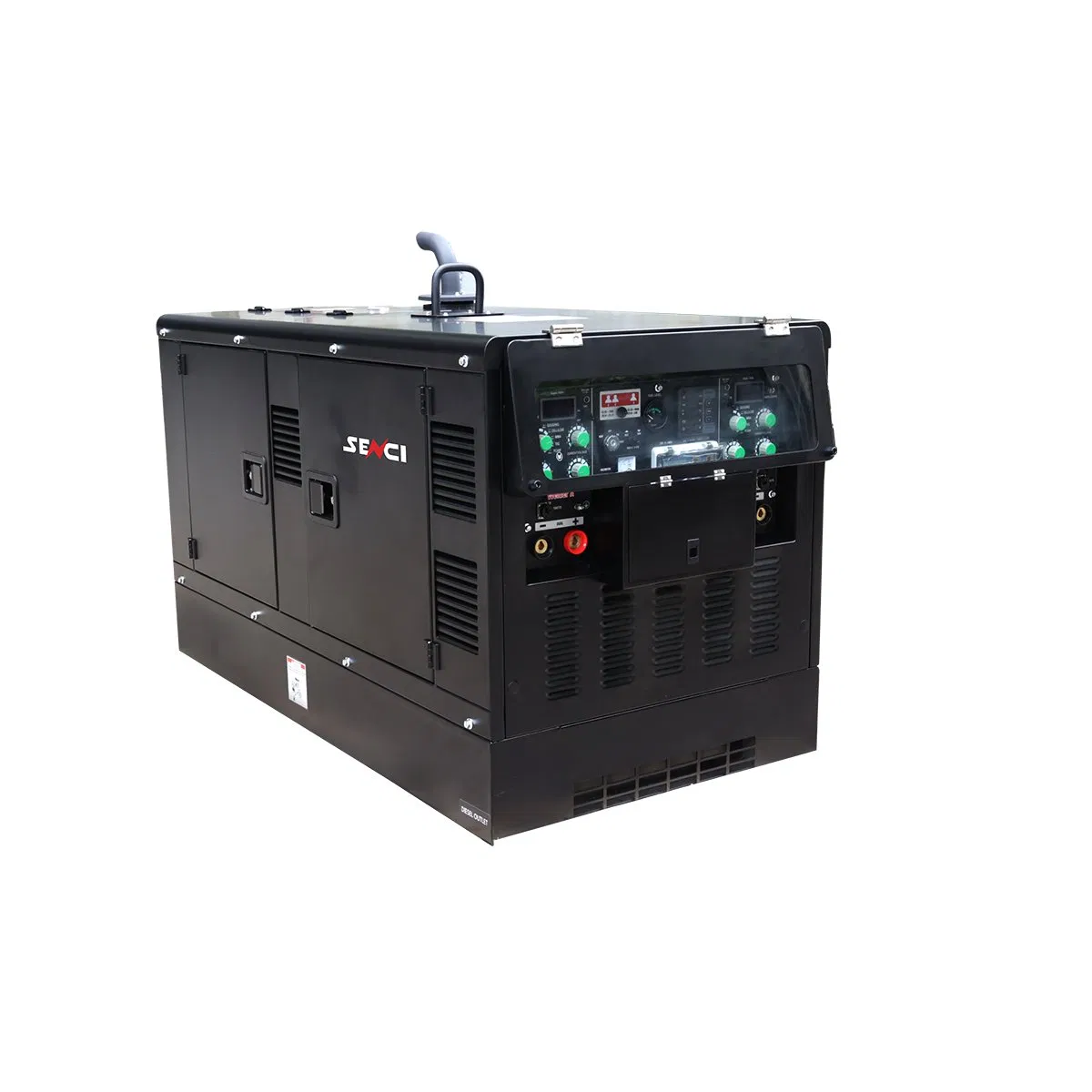

30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
1 / 5
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine
30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine

30A-400A Diesel Engine Driven Welding Generator Workstation 300A 350A 400A 25kw 30kw 35kw 40kw 45kw Welder Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Type
Micro-Computer Control Automatic Diesel Generator
Installation
Fixed
Stroke
Four Stroke
Cooling
Air/Water-Cooled
Output Type
AC Three Phase
Usage
Common, Standby, Emergency
Rated Power
20000W
Max. Power
22000W
Current Range
30A-400A
Fuel Tank
55L / 85L
Protection
IP23
Origin
China
Product Description
Welding Generator Welder Machine Workstation

All-in-one Diesel Engine Driven Welder & AC Generator

  • High Power: 22,000 peak watts, 20,000 running watts.
  • Versatile Welding: Supports MMA, TIG, FCAW, Gouging, and Cellulose welding.
  • Long Endurance: 85L fuel tank providing up to 17 hours of running time.
  • Simultaneous Use: Capable of simultaneous welding and electricity generation.
  • Advanced Control: IGBT inverter power system for precise arc control.

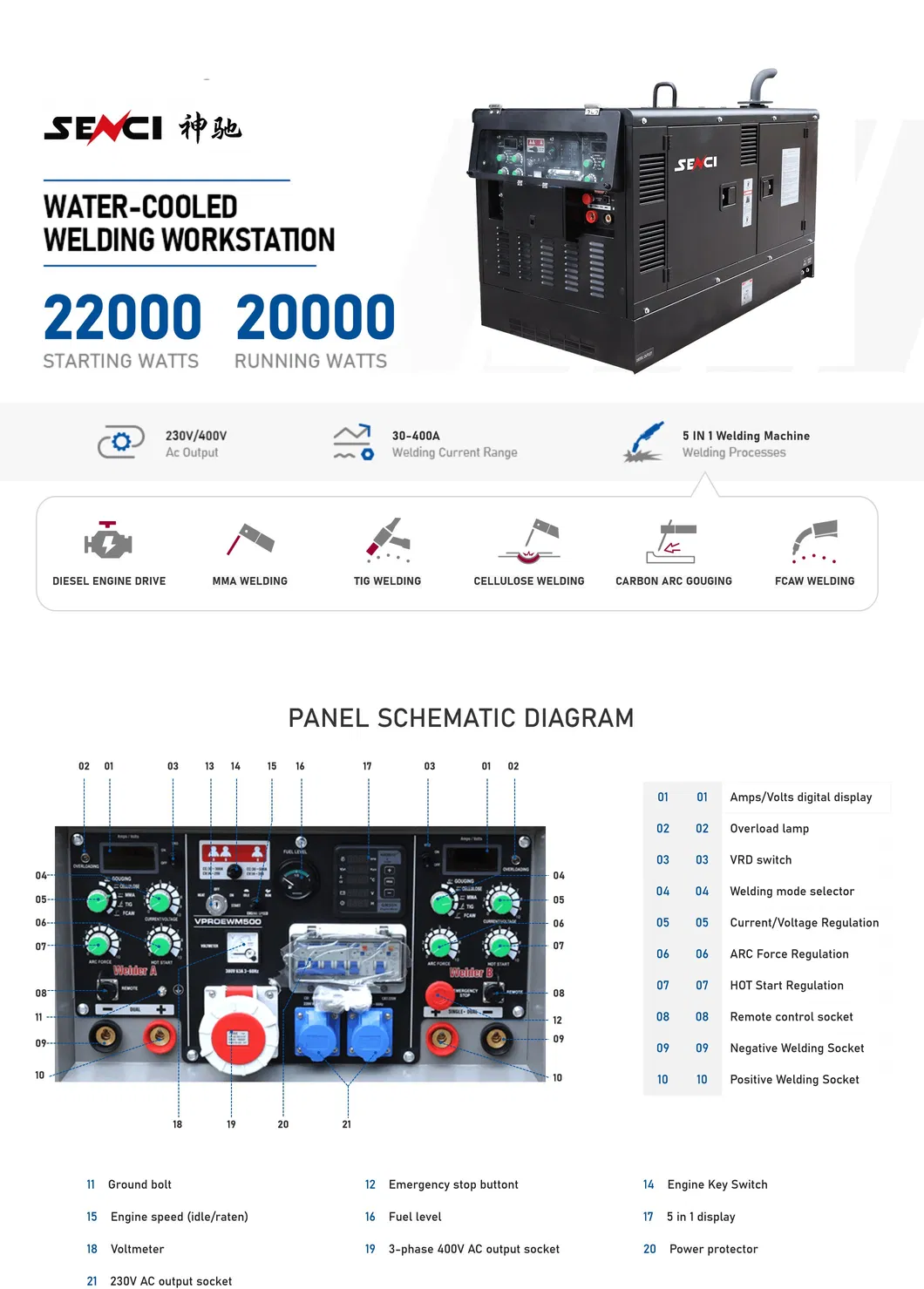

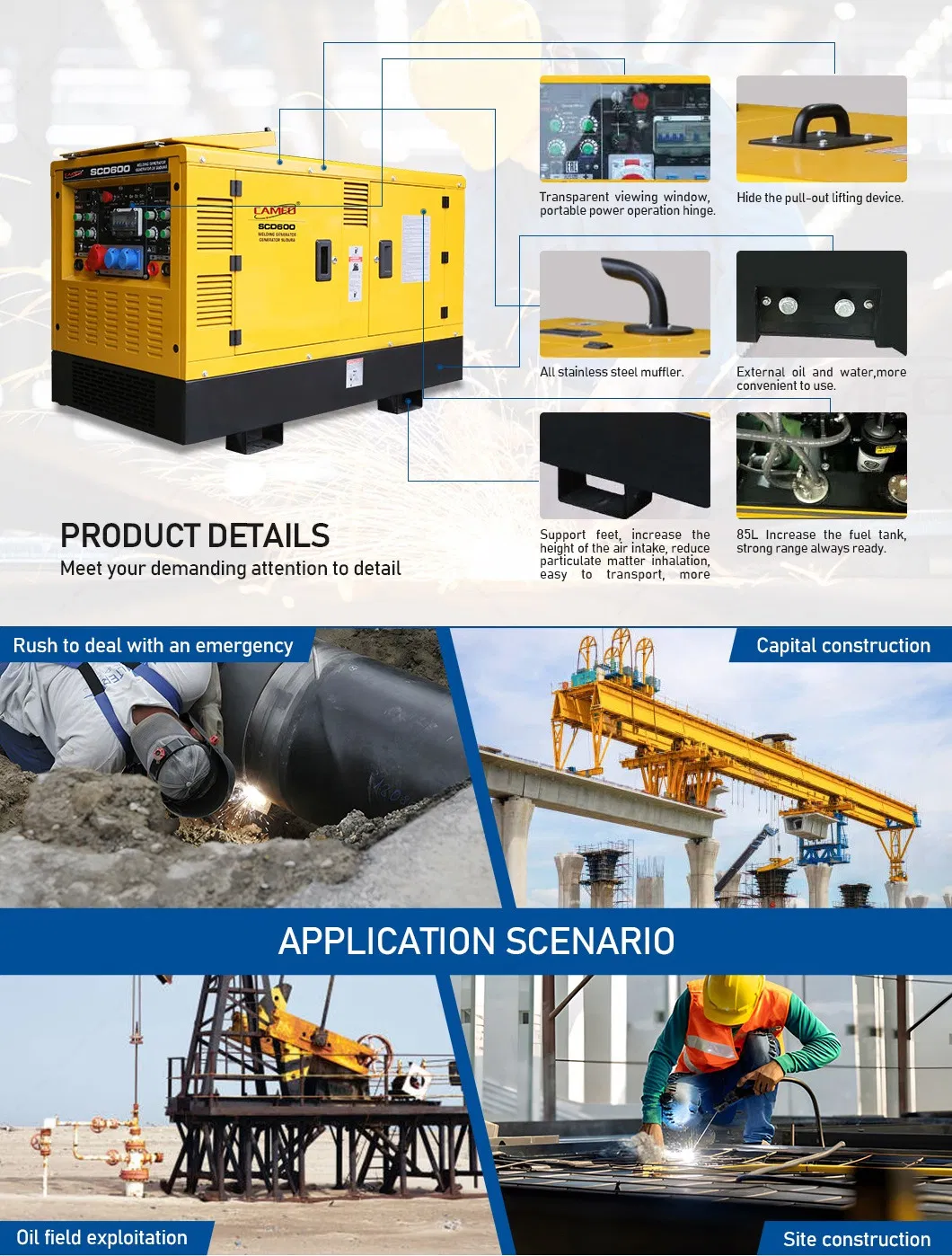

Product Details

This engine-driven welding machine serves not only as a welding current source but also features auxiliary power generation capabilities. It is equipped with an air-cooled or water-cooled diesel engine and an asynchronous three-phase AC generator, ensuring efficient operation under various working conditions.

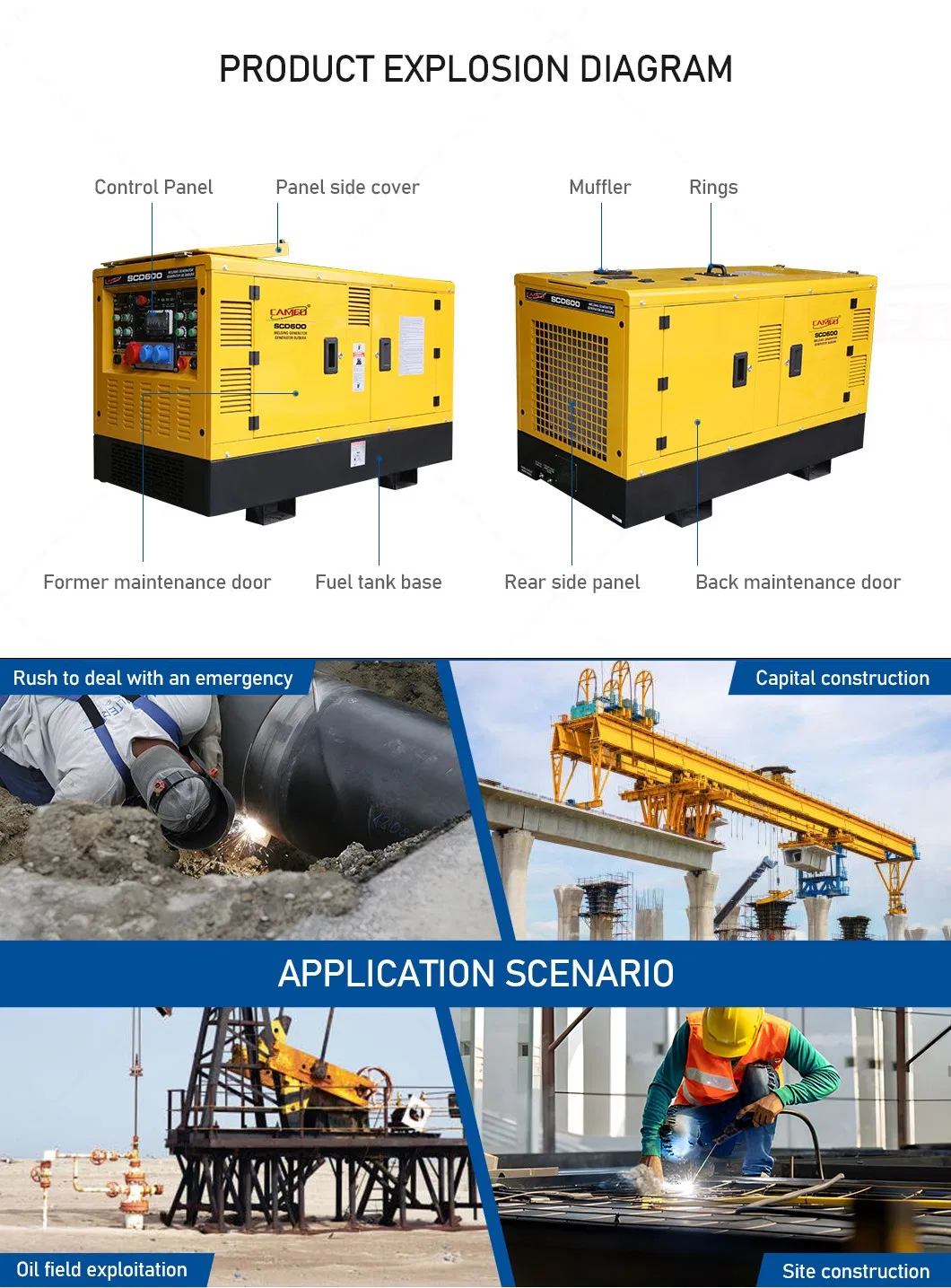

Performance Features
Product Parameters
Model: SCD400 Specifications
Welding Current Range 30A - 400A
Processes Stick, TIG, FCAW
Duty Cycle 60% @ 400A / 100% @ 310A
No-load Voltage 76V
Generator Rated Power 20kW (Max 22kW)
AC Output 400V / 230V
Frequency 50Hz / 60Hz
Engine Fuel Type Diesel
Cooling Method Water-cooled
Rated Speed 1500 - 3000 r/min

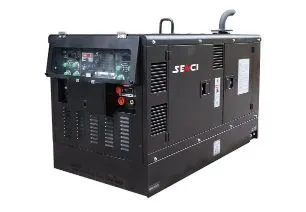

SCD400
Gallery & Production

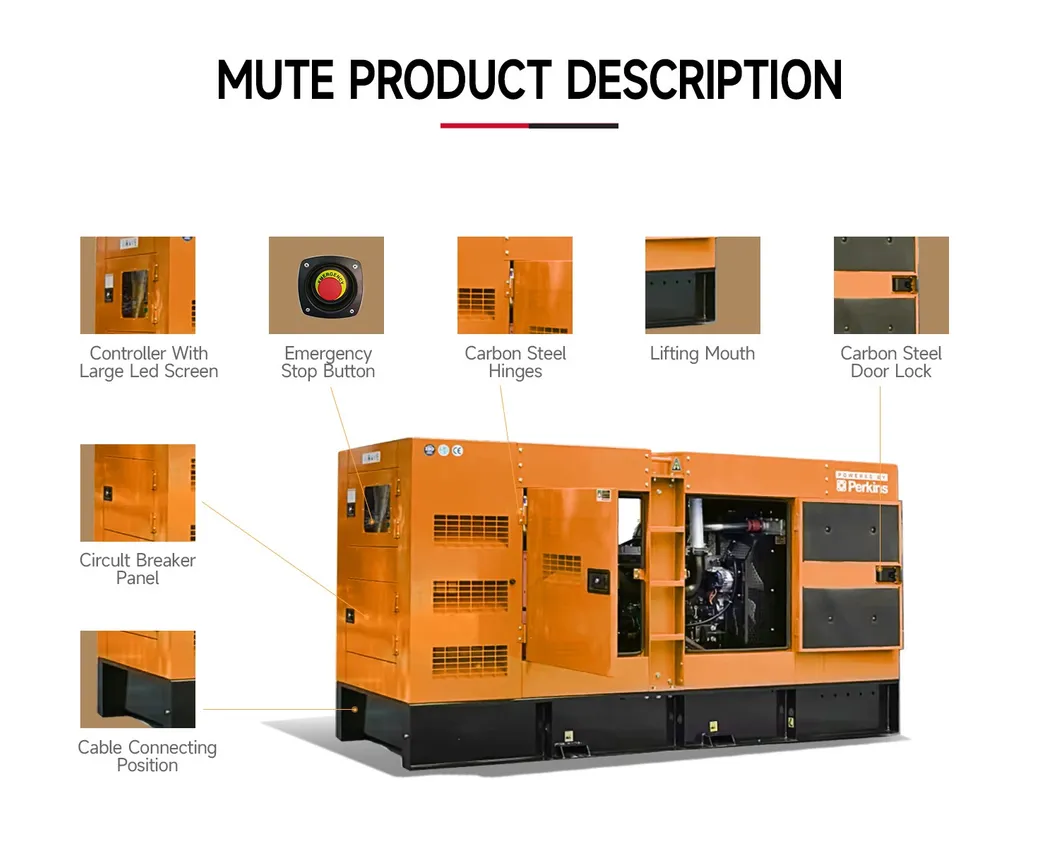

Production 1 Production 2
Factory Workshop
Certifications & Logistics
Cert 1 Cert 2
Packaging Shipping
Frequently Asked Questions
What welding processes can this machine handle?
The SCD400 supports multiple processes including MMA (Stick), TIG, FCAW (Wire), Gouging, and Cellulose welding, making it ideal for pipeline and construction work.
Can I use the generator and welder at the same time?
Yes, this workstation is designed for simultaneous welding and auxiliary power use, allowing you to run tools or lights while welding.
What is the runtime on a full tank?
With its 85L large-capacity fuel tank, the unit can run for up to 17 hours depending on the load.
Is the machine suitable for outdoor environments?
Absolutely. It features an IP23 protection class and is specifically engineered to solve technical challenges in harsh outdoor welding conditions.
What kind of engine powers this unit?
The workstation adopts well-known high-performance engines such as Yuchai, Kubota, or Yanmar, ensuring reliability and easy maintenance.
What is the peak power output for the generator function?
The generator provides a peak output of 22,000 watts (22kW) and a steady running output of 20,000 watts (20kW).
