220kVA Servo Motor Inverter Welding Machine Spot Welder for Metal

1 / 5

220kVA Servo Motor Inverter Welding Machine Spot Welder for Metal

Customization:	Available
Cooling Way:	Water Cooling
Control:	Manual

Send Inquiry

Product Description

Basic Information

Model NO.

DB-220-13005

Style

Vertical

Welding Way

Projection Welding

Type

Intermediate Frequency Inverter Welder

Current

Direct Current

Rated Capacitor

220kVA

Power Supply

380V/3phase/50Hz(Adjustable)

Rated Duty Cycle

20%

Secondary Empty Voltage

11.5V

Throat Depth

540mm

Arms Distance

400mm

Max Working Pressure

12000n

Feature

with Servo Motor

Apply for

Nut Projection Welding

Transport Package

Wooden Case

Specification

CE, CCC, ISO9001

HS Code

85152190

Production Capacity

50-60PCS/Month

Product Description

220KVA Servo Motor Inverter Welding Machine Spot Welder for Metal

Machine dimension(L*W*H): 1263*1931*706mm

Technical Parameters

Rated capacitor	220KVA
Power supply	380V/50Hz/3Phase(adjustable)
Rated duty cycle	20%
Primary current	230A
Secondary empty voltage	11.5V
Throat depth	540mm
Cylinder stroke	100mm
Max. working pressure	12KN
Cooling water consumption	12 L/Min
Motor power	1.5KW
Max. short circuit current	40000A

Core Features

Equipped with a high-precision servo motor to drive the electrode downward instead of a standard air cylinder.
Utilizes servo pressurized welding for more stable welding pressure, allowing real-time monitoring of pressure, displacement, and indentation data.
Employs MFDC inverter technology, specifically optimized for high-quality projection welding applications.

Why Choose This Solution?

Professional manufacturing of resistance welding machines and intelligent metal connection equipment.
Commitment to continuous innovation and green manufacturing philosophies.
Fully certified with ISO9001, CCC, and CE standards.
Extensive application in automobile parts, motors, generators, compressors, and household hardware industries.

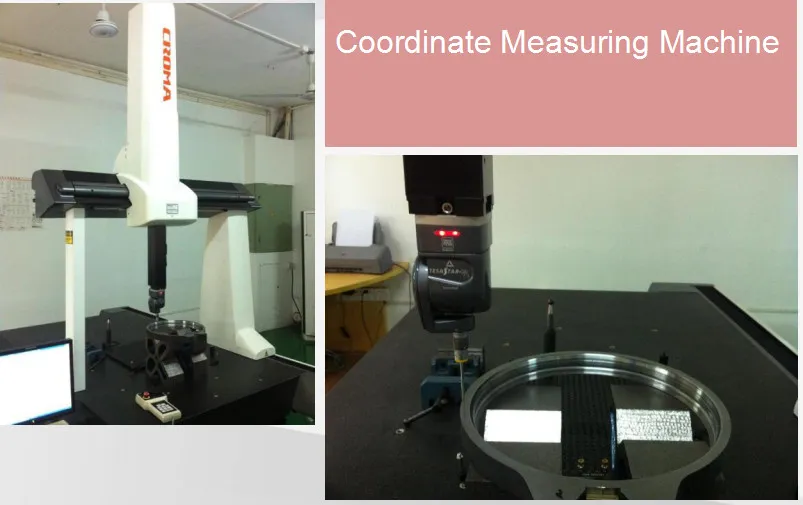

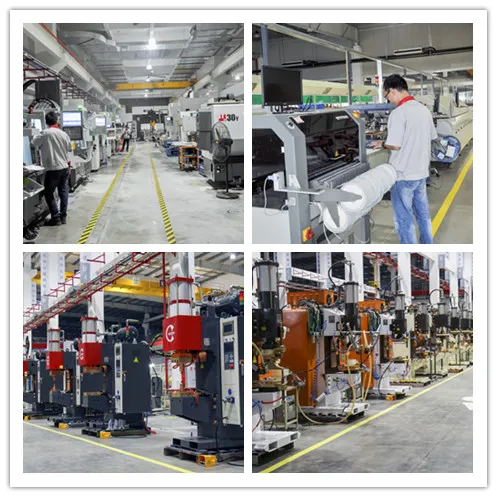

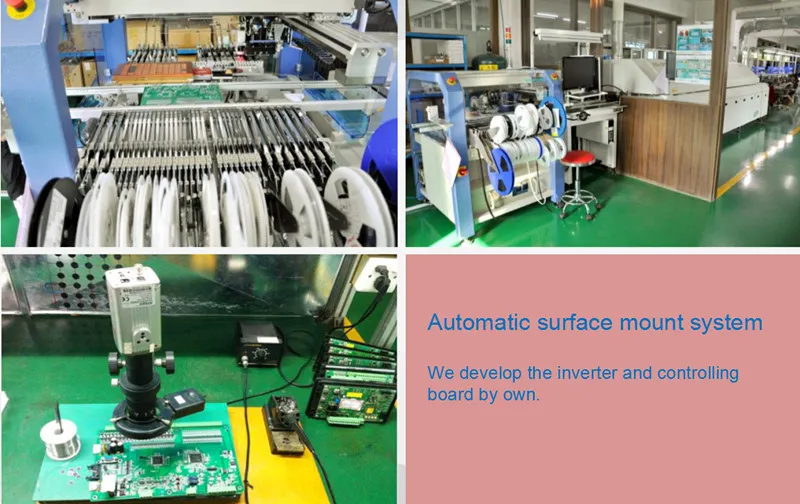

Quality Control & Global Reach

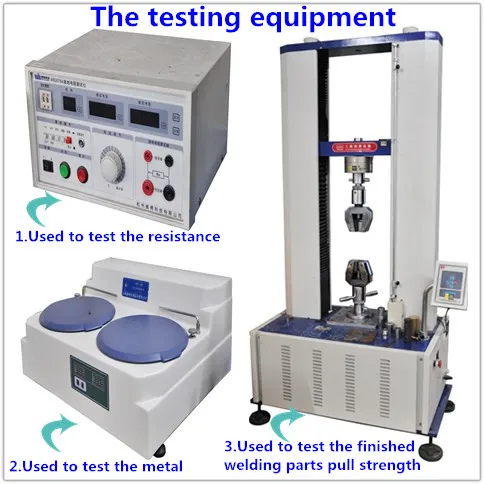

Inspection Process

Packaging

Frequently Asked Questions

Q1: What are the standard trade terms for orders? A: We primarily operate under FOB, EX-Work, and CRF terms.

Q2: What is the typical payment schedule? A: Standard terms are a 30% T/T deposit with the remaining 70% balance due before delivery, or L/C at sight.

Q3: How long is the expected delivery timeframe? A: Delivery usually takes 2-3 months after the receipt of the initial 30% deposit.

Q4: How is the equipment packaged for international shipping? A: All machines are securely packed in robust wooden cases to ensure safety during transit.

Q5: Which ports are commonly used for shipment? A: Most shipments are processed through Guangzhou or Huangpu ports.

Q6: What is the warranty period for this machine? A: We provide a one-year guarantee starting from the date the customer receives the machine (consumables excluded).
