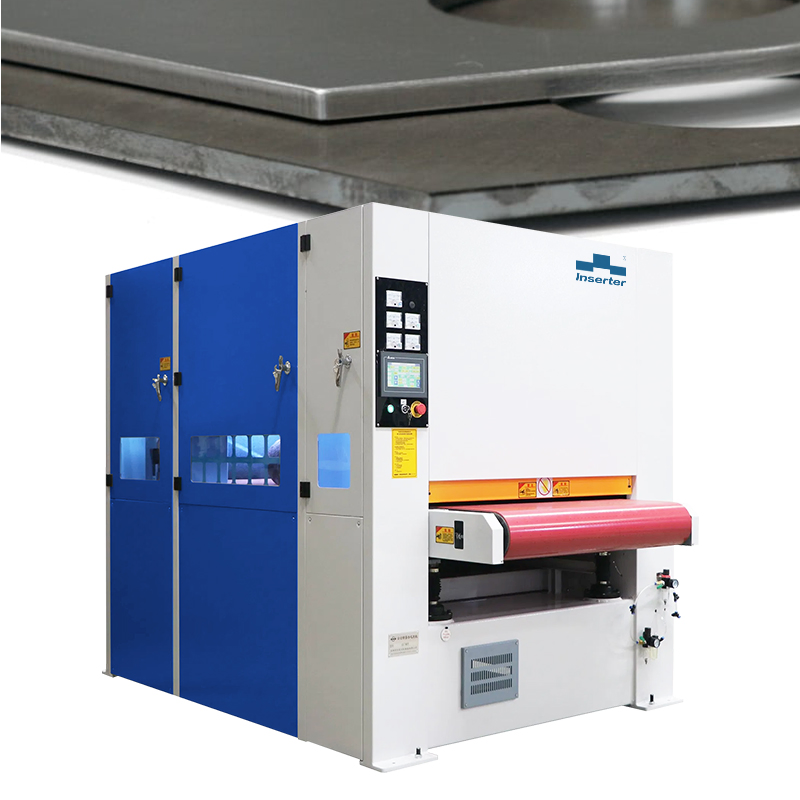

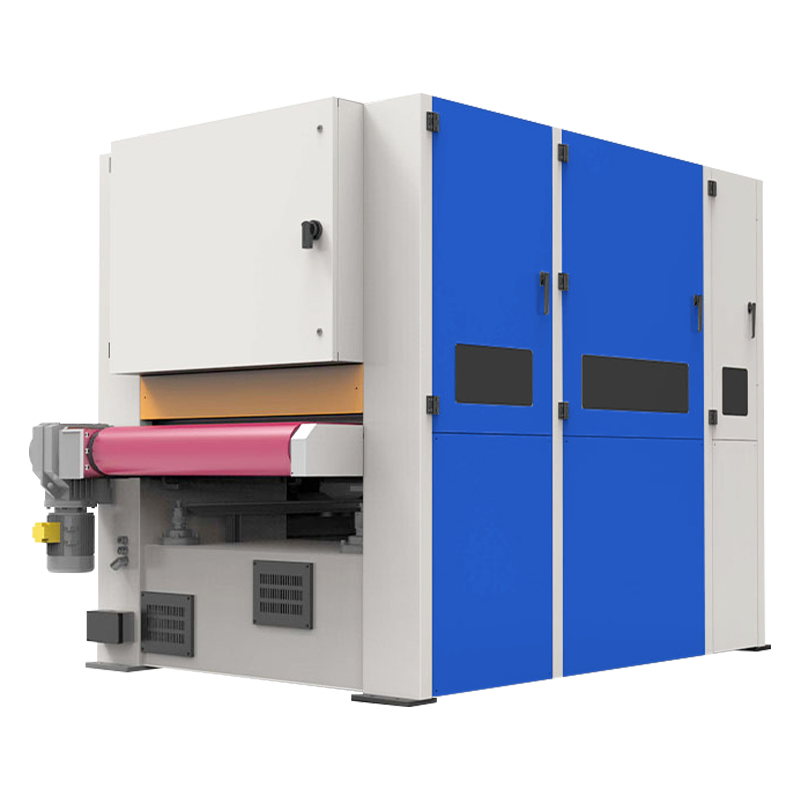

Automatic Grinding Deburring Machine with Flexible Roller Chamfering High Quality

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

Basic Information
Model NO.
1000SRSP
Certification
CE
Condition
New
Voltage
380V
Application
Metal Sheet
Max.Working Width
1000mm
Working Thickness
0.5-50mm
Min. Working Size
50*50mm
Feed Speed
0.5-5m/Min
Whole Head Rotation
1-17r/Min Variable
Brush Spindle Speed
30-1300r/Min
Abrasive Cylinders
4 Units
Dust Extraction
4000m³/H
Trademark
Inserter
Product Description

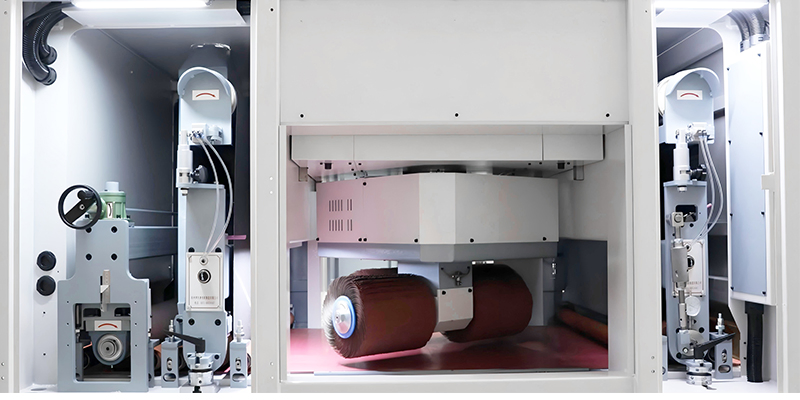

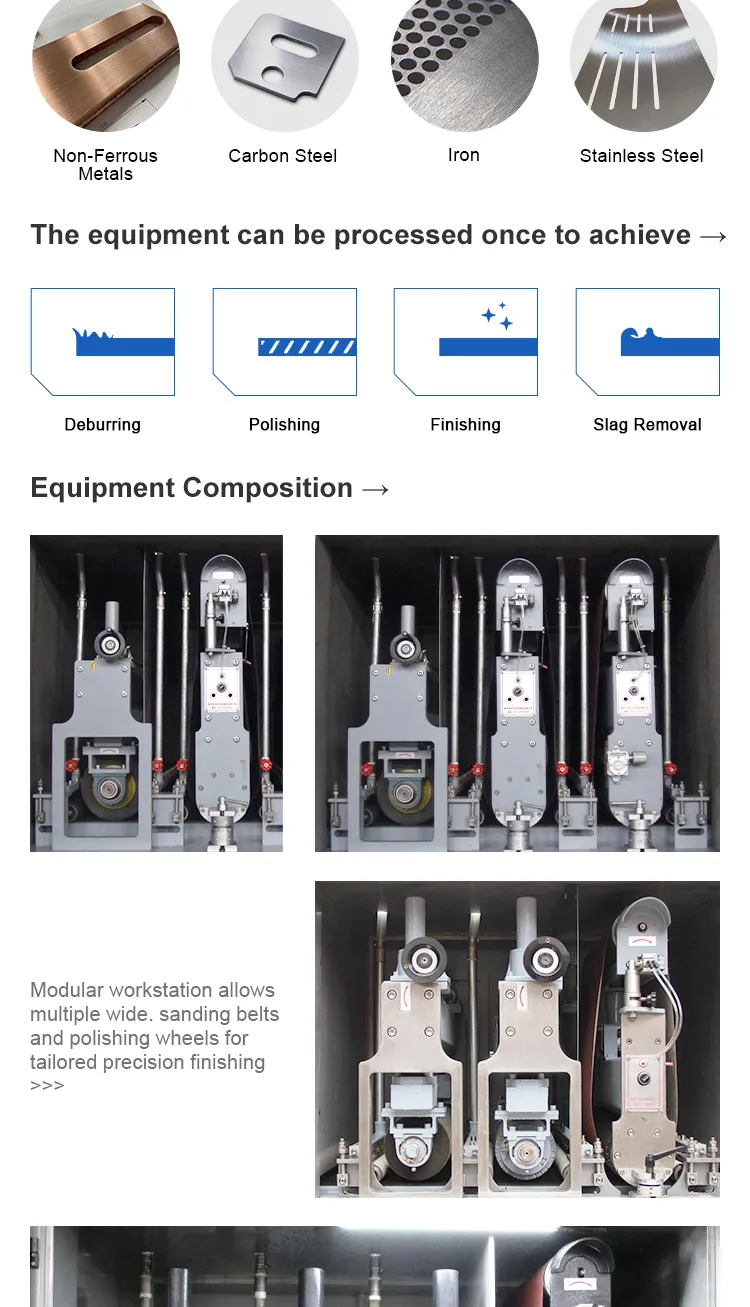

Four rotating brush planetary position. Size: Φ295mmx300mm
Each spins itself while the whole head rotates in the meantime.
Dual abrasive cylinders rotation directions are opposite for even deburring.
Variable speed control for abrasive cylinder, assembly, and conveyor via Delta brand inverters.
Brush drive motor: 5.5KW; Brush assembly oscillation motor: 1.5KW.
Technical Specifications
Model1000SRSP
Max. working width1000mm
Working thickness0.5-50mm
Min. working size50*50mm
Feed speed0.5-5m/min
Speed of whole head rotation1-17r/min variable speed
Speed of brush spindle30-1300r/min
Number of abrasive cylinders4
Size of abrasive cylinderΦ295mmx300mm
Size of wide belt1030*2200mm
Dust extraction4000m³/h
Total power47KW
Weight3800KG
Dimensions3200*2050*2400mm
Product Details
Company Profile

Our company was founded in 2011. Our products cover five key processes—blanking, pre-processing, forming, welding, and assembly—providing customized smart production line solutions to clients in over 80 countries.

With over 160 advanced machines and a 100,000 m² manufacturing base across East and South China, we specialize in R&D and production of sheet-metal lines—including punch presses, press brakes, laser cutters, bending centers, deburring machines, rivet inserters, levelers, and laser-automation systems—and hold more than 130 patents. Our equipment serves industries such as high-speed rail, new energy vehicles, medical devices, and construction machinery.

We employ over 50 top sales professionals, leading technical engineers, and dedicated after-sales staff, supported by a "24-hour response + lifetime maintenance" service standard and an agent network spanning more than 80 countries, offering on-site and local support.

Frequently Asked Questions
1. Which payment terms can you accept?
We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
2. Which shipping way can you provide?
We can provide shipping by sea, by air, by express and etc according to customer requirements.
3. How to place an order?
When you are ready to order, please contact us to confirm the suitable solution, plan, and model. A copy of the purchase order is required to ensure proper processing.
4. Do you have an inspection procedure for the product?
Yes, we have a strict inspection of product quality and packing before shipment.
5. Can we be your agent?
Yes, we are looking for global agents. We help agents improve the market and supply all technical and after-sales services, along with significant discounts and commissions.
6. What is your service standard?
We provide a "24-hour response + lifetime maintenance" service standard to ensure your production lines run smoothly at all times.
