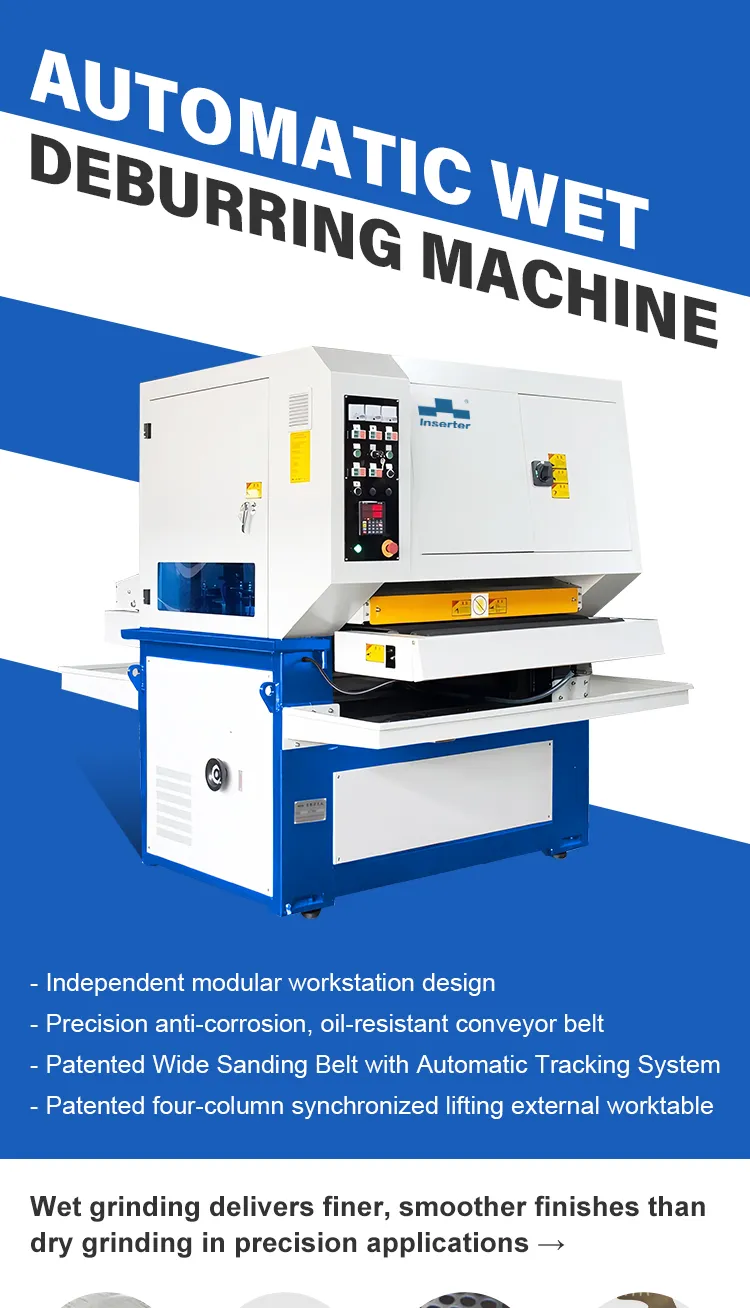

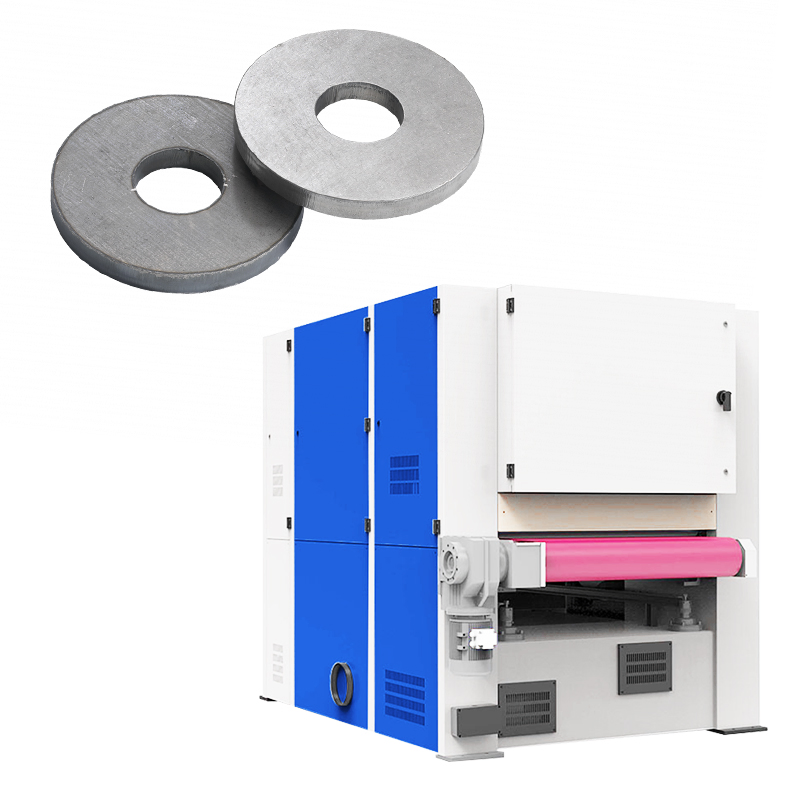

CNC Metal Deburring Machine with Max Working Thickness 50mm Reliable

1 / 5

CNC Metal Deburring Machine with Max Working Thickness 50mm Reliable

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.	1000SRSP
Certification	CE
Condition	New
Voltage	380V

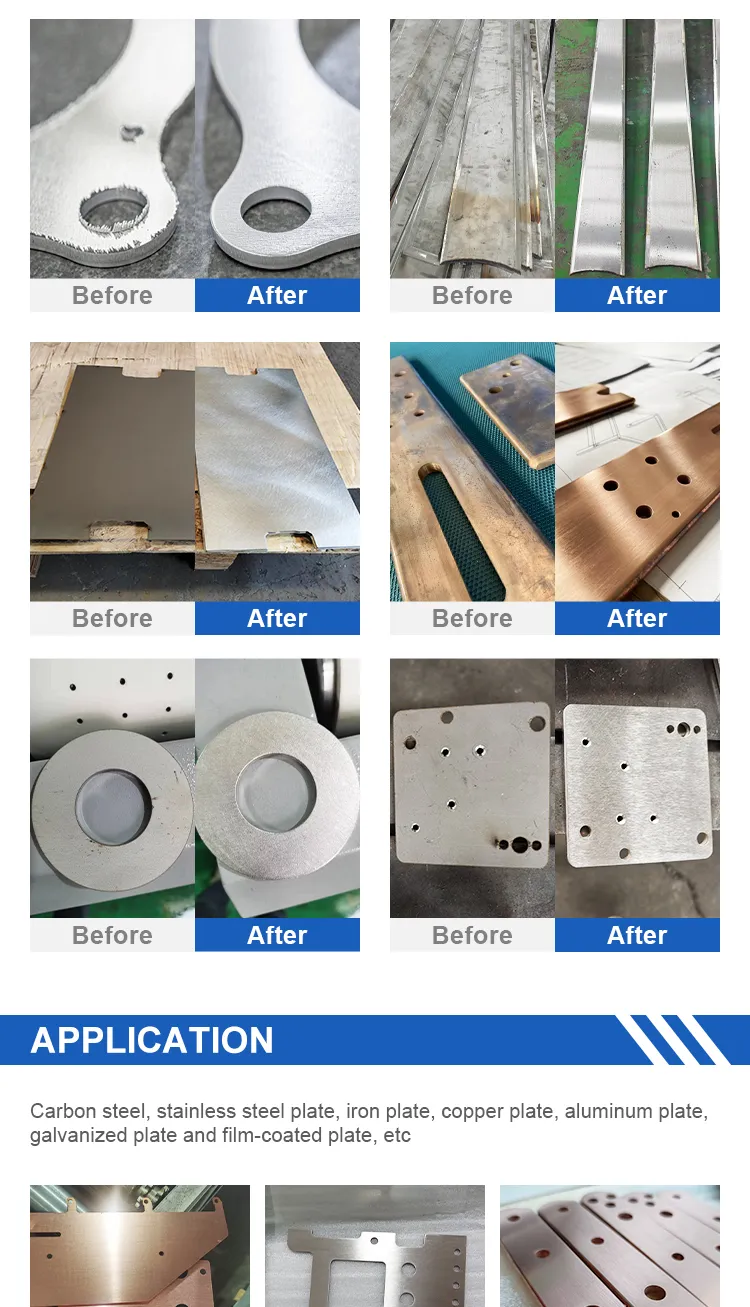

Application	Metal Sheet
Max. Working Width	1000mm
Working Thickness	0.5-50mm
Min. Working Size	50*50mm
Feed Speed	0.5-5m/Min
Production Capacity	50 sets/Year

Product Features

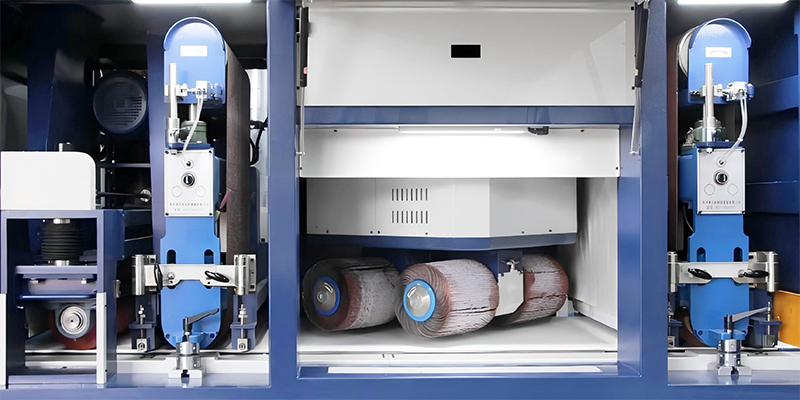

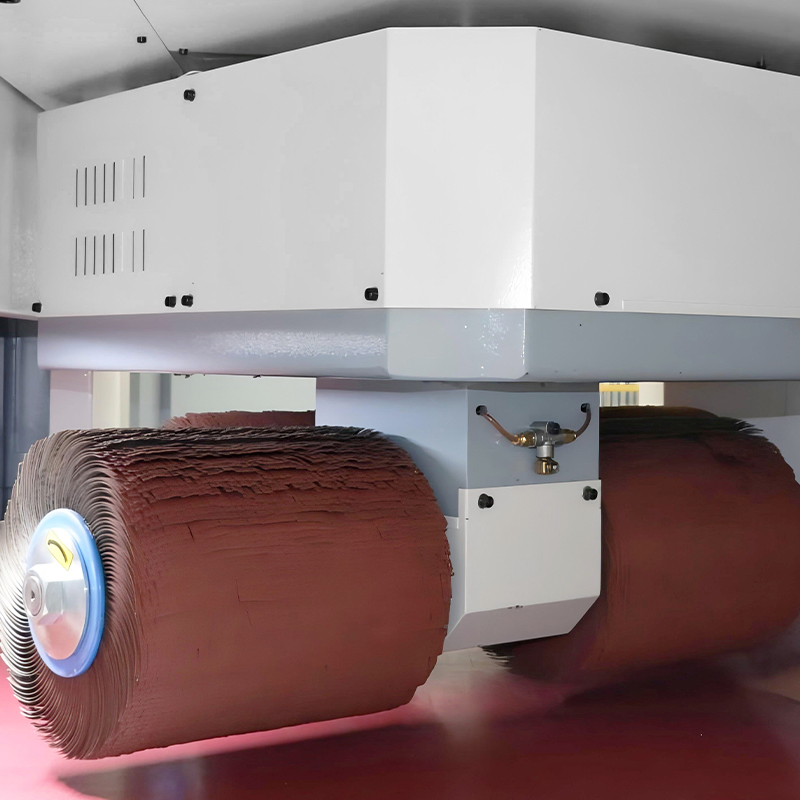

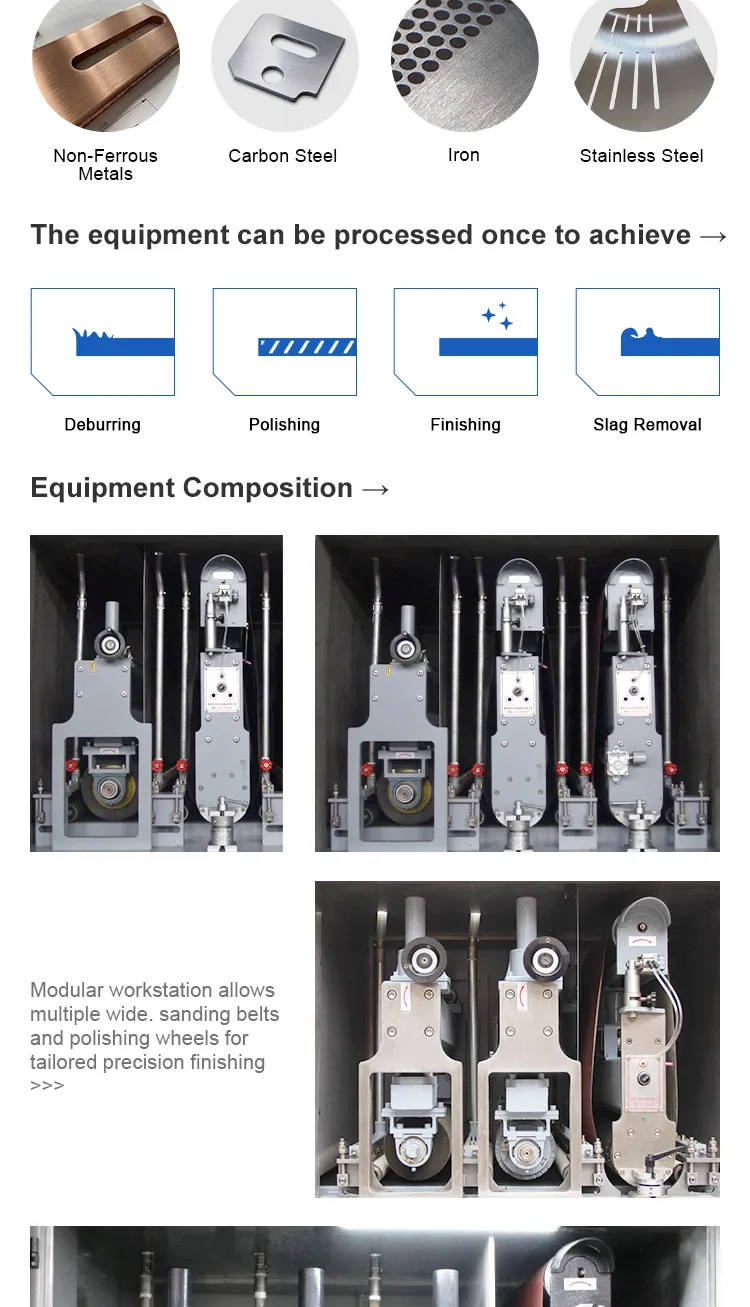

1. Four rotating brush planetary position. Size: Φ295mmx300mm.

2. Each spins itself while the whole head rotates in the meantime.

3. Dual abrasive cylinders rotation directions are opposite for even deburring.

4. Variable speed for abrasive cylinder, assembly, and conveyor via Delta brand inverters.

5. High performance motors: Brush drive 5.5KW, Assembly oscillation 1.5KW.

Technical Specifications

Speed of whole head rotation	1-17r/min variable speed
Speed of brush spindle	30-1300r/min
Number of abrasive cylinders	4
Size of abrasive cylinder	Φ295mmx300mm
Size of wide belt	1030*2200mm
Dust extraction	4000m³/h
Total power	47KW
Weight	3800KG
Machine Size	320020502400mm

Product Details

Professional Manufacturing

Founded in 2011, our production covers five key processes: blanking, pre-processing, forming, welding, and assembly. We provide customized smart production line solutions to clients in over 80 countries.

With over 160 advanced machines and a 100,000 m² manufacturing base, we specialize in R&D and production of sheet-metal lines including punch presses, press brakes, laser cutters, bending centers, deburring machines, and laser-automation systems, holding more than 130 patents.

Our equipment serves industries such as high-speed rail, new energy vehicles, medical devices, and construction machinery, supported by a "24-hour response + lifetime maintenance" service standard.

Frequently Asked Questions

Which payment terms can you accept?

We accept flexible payment options including Bank Transfer (T/T), LC, DP, West Union, Paypal, or combination terms as per negotiation.

Which shipping ways do you provide?

We provide comprehensive shipping solutions by sea, air, and express delivery according to specific customer requirements.

How do I place an order?

Please contact us to confirm the suitable solution, plan, and model. A formal purchase order is required to ensure proper processing.

Do you have inspection procedures for the products?

Yes, we implement a strict inspection protocol for both product quality and packaging integrity before shipment.

Can we become your local agent?

Yes, we are looking for global agents. We provide technical support, after-sales service, and significant discounts/commissions to help agents develop their markets.

What is your after-sales service standard?

We provide a 24-hour response guarantee and lifetime maintenance support for all our equipment through our global service network.
