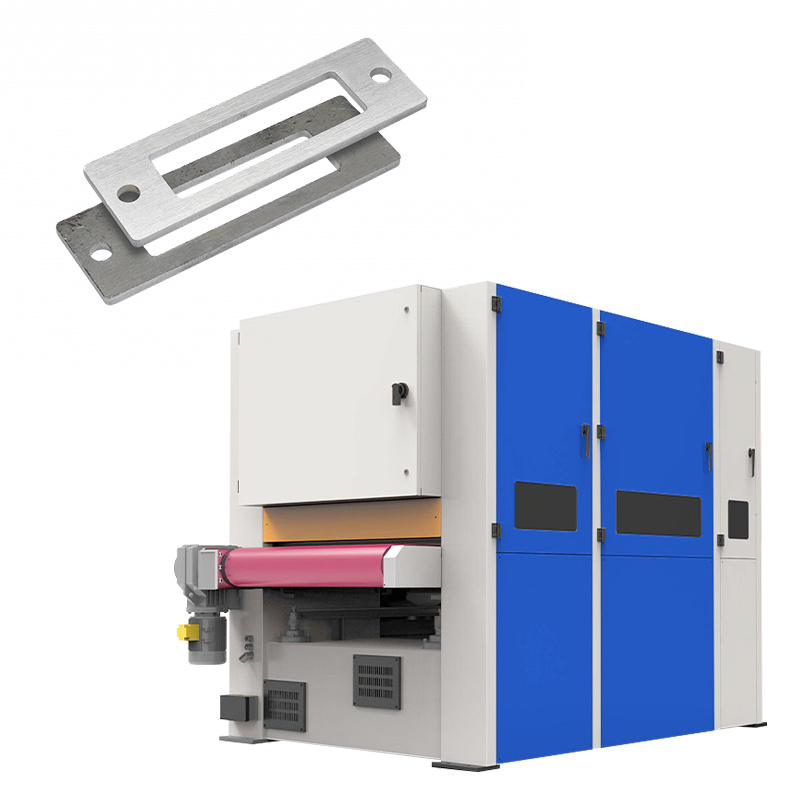

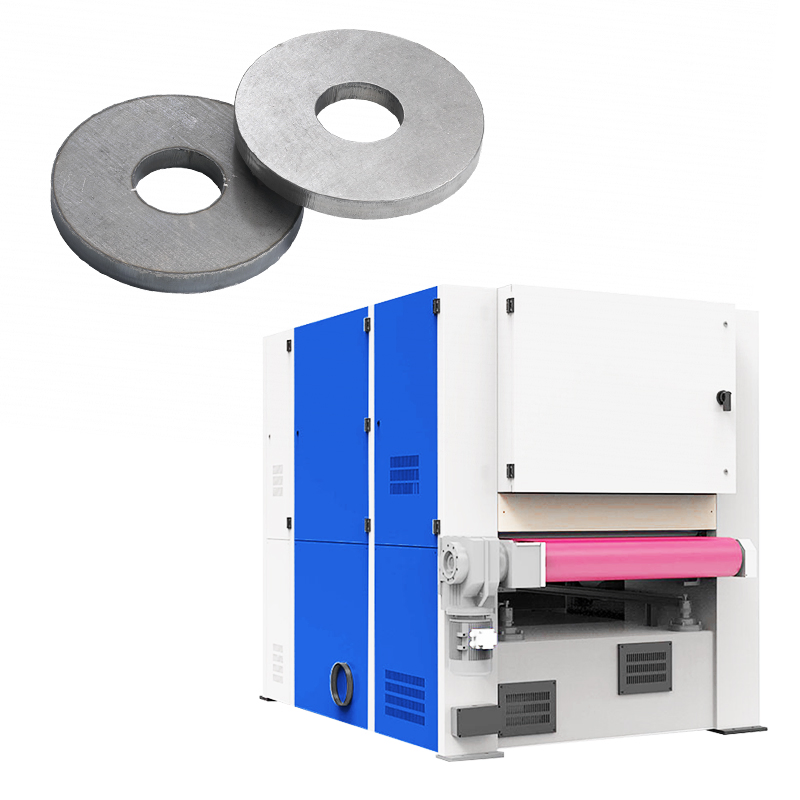

Stainless Steel Sheet Metal Deburring Machine with Wide Belt Grinding

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

📋
Basic Information
Model NO.
1000SRSP
Certification
CE
Condition
New
Voltage
380V
Application

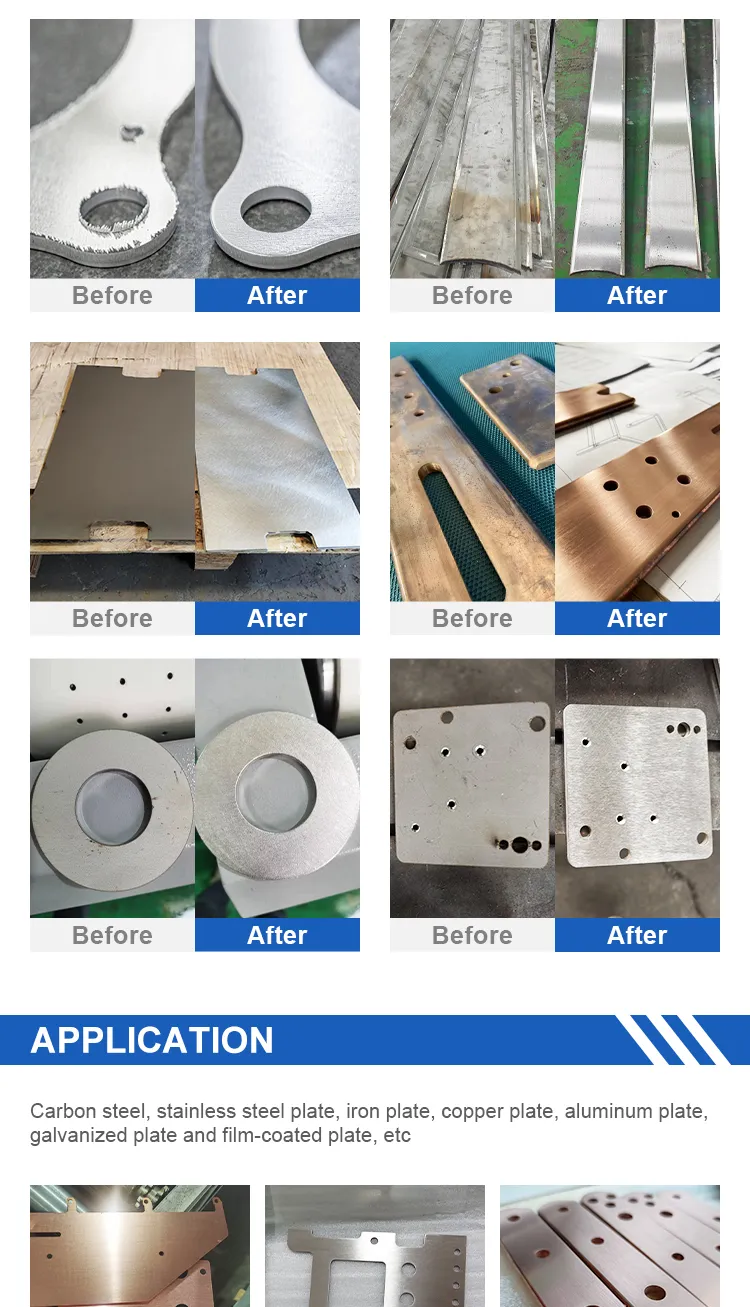

Metal Sheet
Max.Working Width
1000mm
Working Thickness
0.5-50mm
Min. Working Size
50*50mm
Feed Speed
0.5-5m/Min
Production Capacity
50sets/Year
⚙️
Product Description & Features

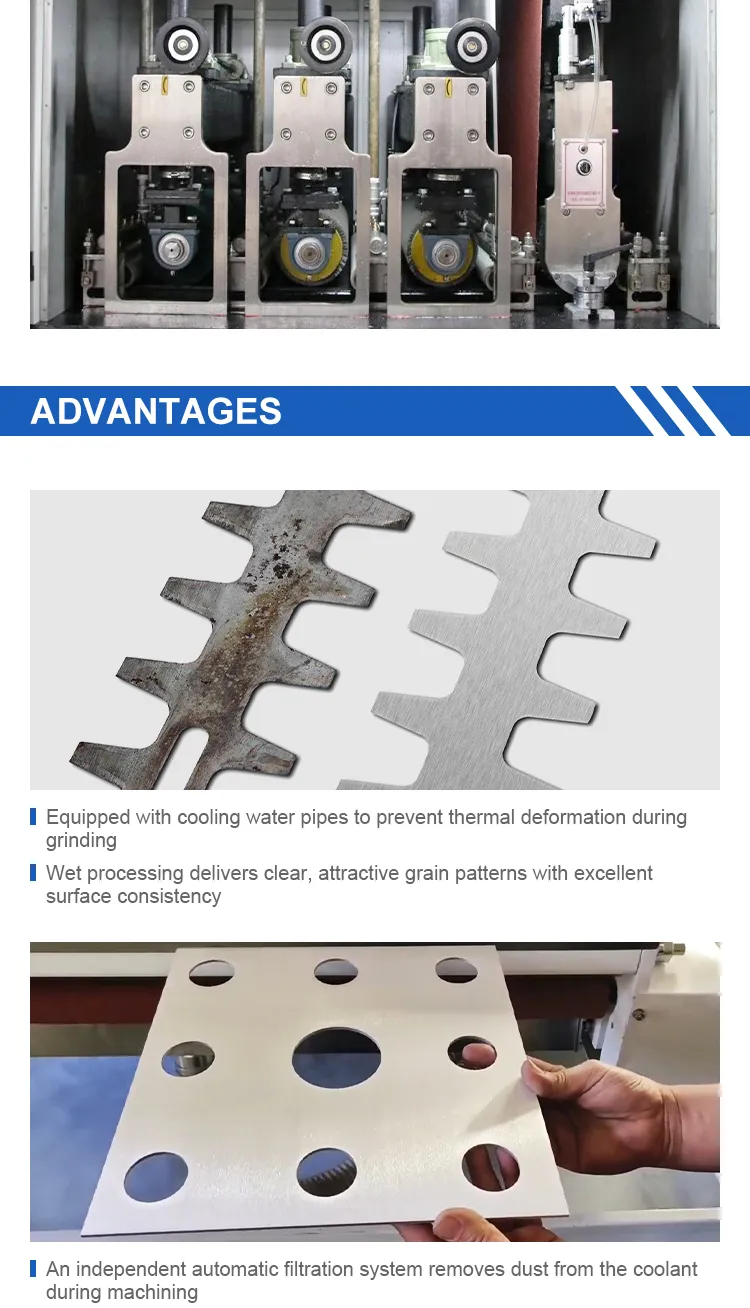

  • Four rotating brush planetary position: Size Φ295mmx300mm.
  • Dual Rotation: Each spins itself while the whole head rotates simultaneously.
  • Even Deburring: Rotation directions of abrasive cylinders are opposite to ensure uniform results.

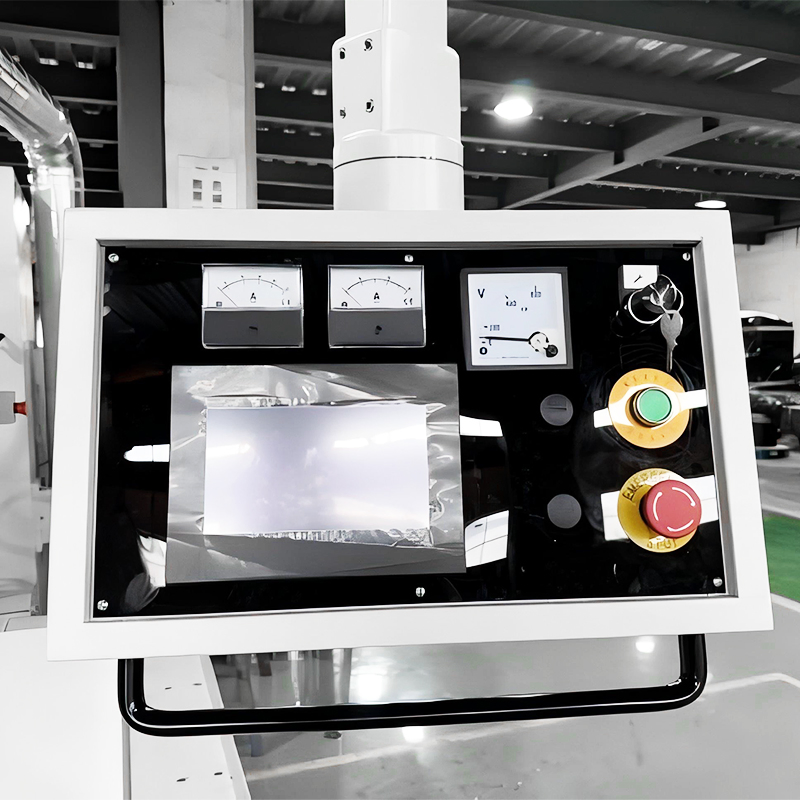

  • Variable Speed Control: Speed of abrasive cylinder, assembly, and conveyor are all variable, controlled by Delta brand inverters.
  • Powerful Drive: Brush drive motor 5.5KW, brush assembly oscillation motor 1.5KW.
📊
Technical Specifications
Model1000SRSP
Max.working width1000mm
Working thickness0.5-50mm
Min. working size50*50mm
Feed speed0.5-5m/min
Speed of whole head rotation1-17r/min variable speed
Speed of brush spindle30-1300r/min
Number of abrasive cylinders4
Size of abrasive cylinderΦ295mmx300mm
Size of wide belt1030*2200mm
Dust extraction4000m³/h
Total power47KW
Weight3800KG
Package Size3200*2050*2400mm
🖼️

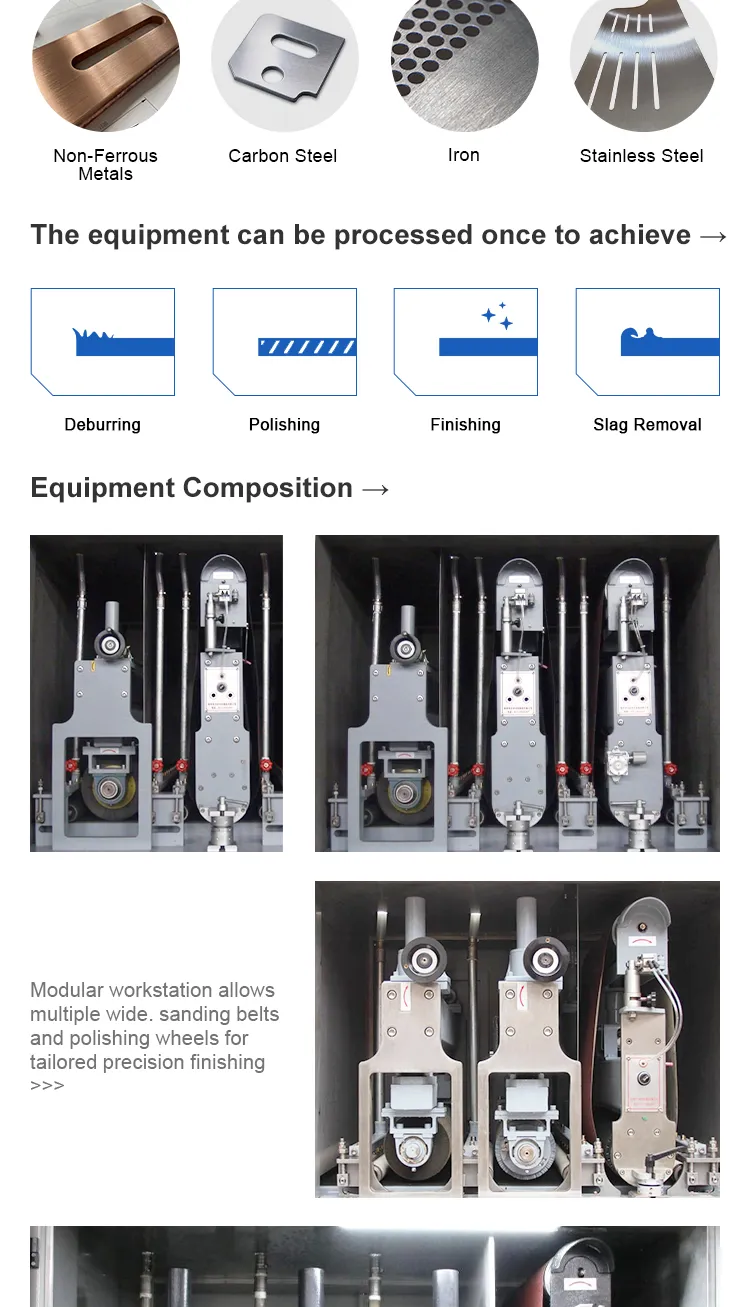

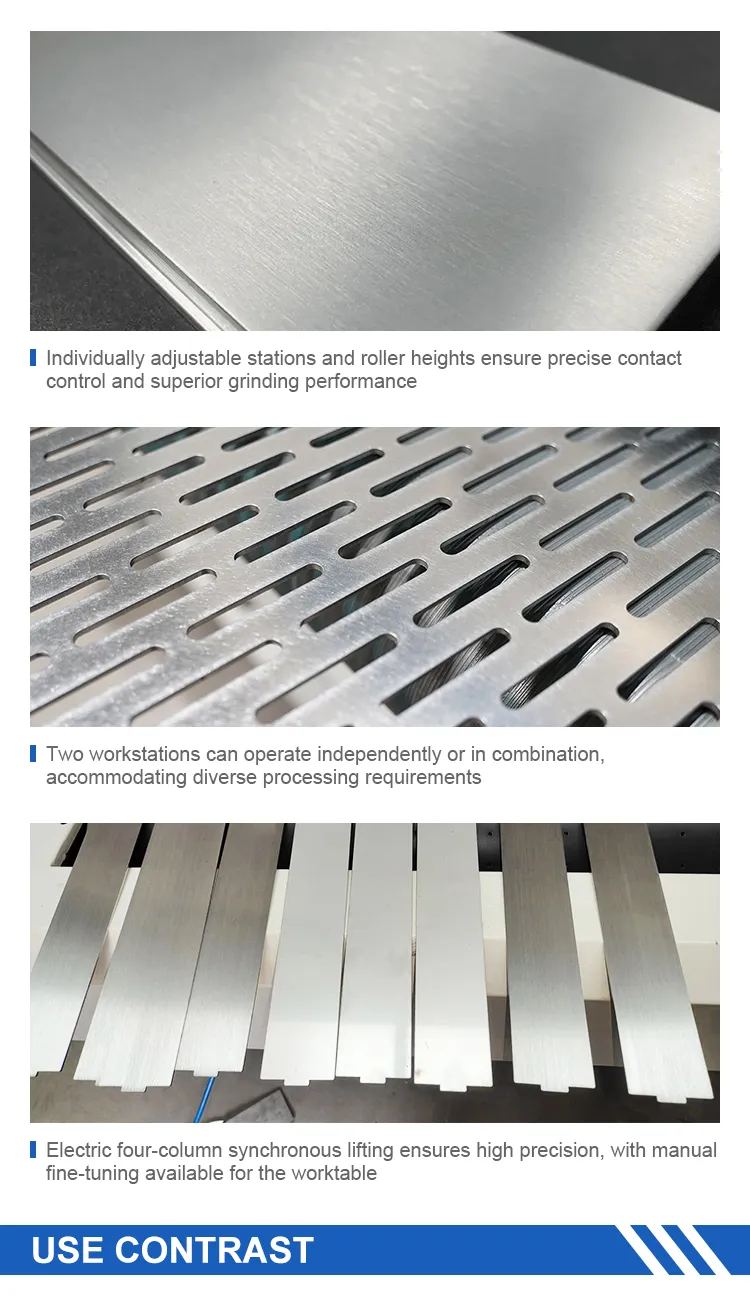

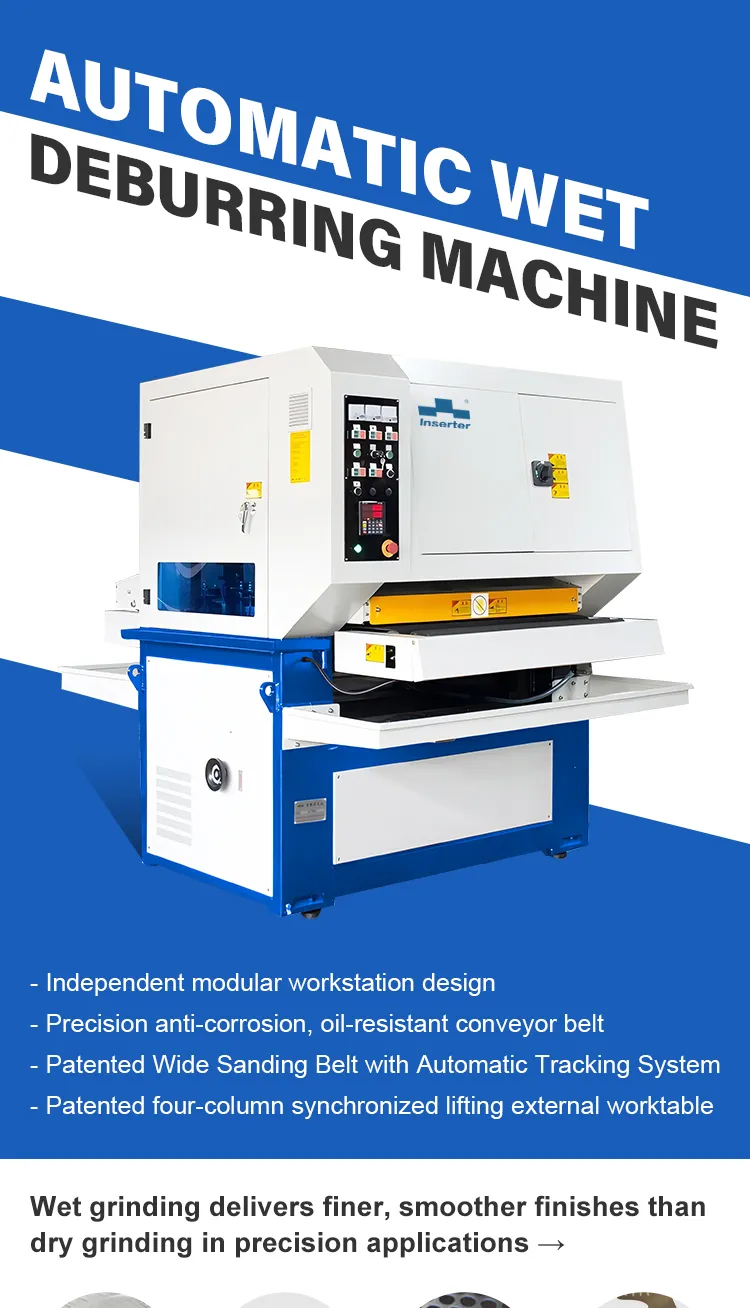

Product Details
🏭
Manufacturing Capabilities

Our products cover five key processes—blanking, pre-processing, forming, welding, and assembly—providing customized smart production line solutions to clients in over 80 countries.

With over 160 advanced machines and a 100,000 m² manufacturing base, we specialize in R&D and production of sheet-metal lines—including punch presses, press brakes, laser cutters, bending centers, deburring machines, rivet inserters, levelers, and laser-automation systems—and hold more than 130 patents. Our equipment serves industries such as high-speed rail, new energy vehicles, medical devices, and construction machinery.

Frequently Asked Questions
Which payment terms can you accept?
We can accept flexible payment including Bank Transfer, LC, DP, West Union, Paypal, or combination terms as negotiation.
Which shipping ways can you provide?
We can provide shipping by sea, by air, by express, etc., according to customer requirements.
How to place an order?
When you are ready to order, please contact us to confirm the suitable solution, plan, and model. A copy of the purchase order is required to ensure proper processing.
Do you have an inspection procedure for the product?
Yes, we have a strict inspection of product quality and packing before shipment.
Can we be your agent?
Yes, we are looking for global agents. We support our agents in market improvement and provide technical and after-sales services, along with significant discounts and commissions.
What is your service standard?
We provide a "24-hour response + lifetime maintenance" service standard, supported by an agent network spanning more than 80 countries for local support.
