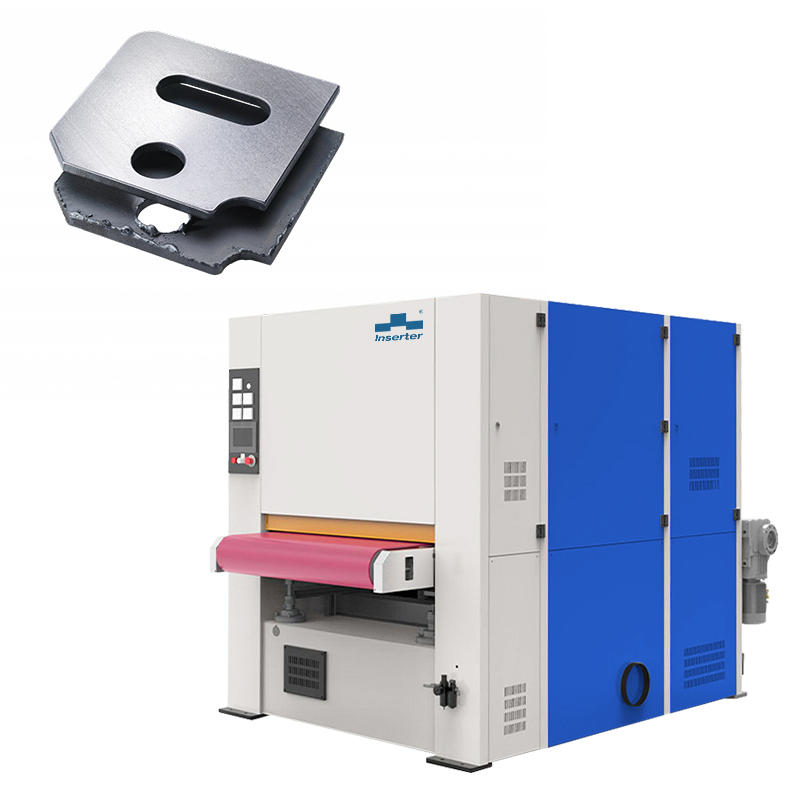

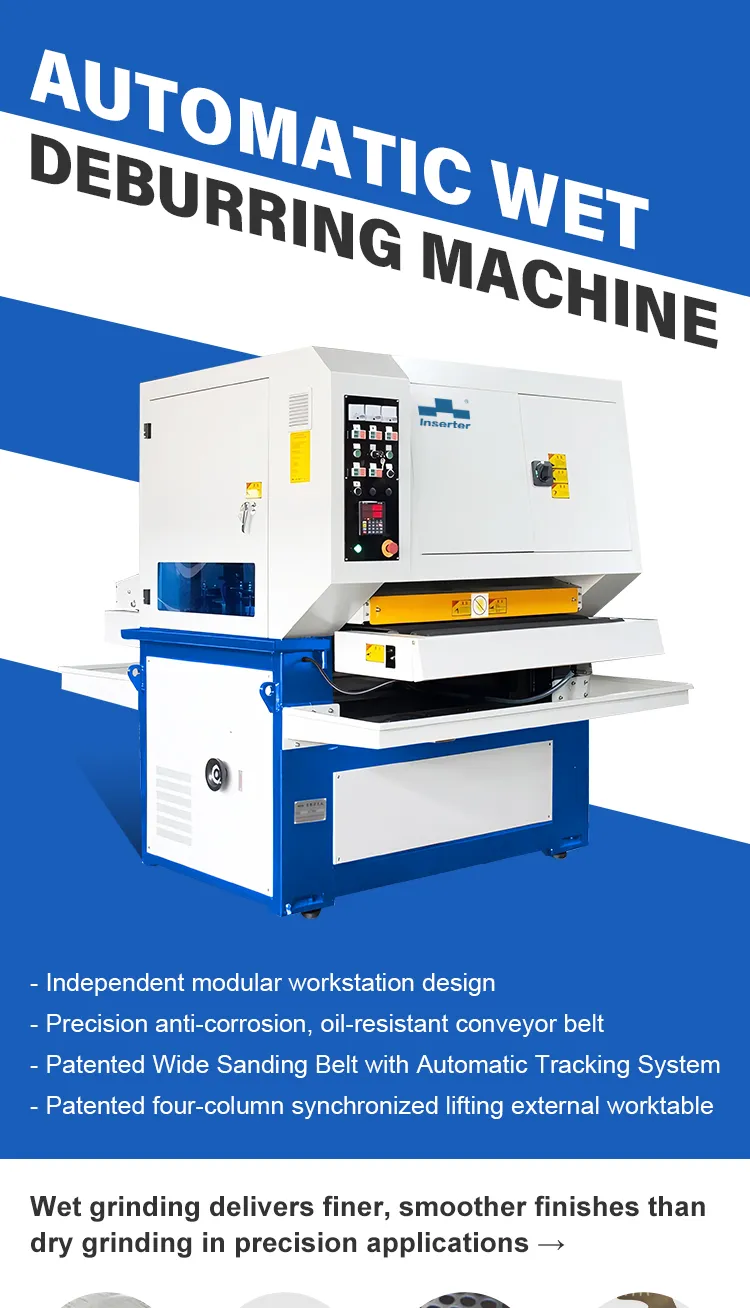

Automatic Metal Surface Grinding Polishing Machine with Long Service Life

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

i

Basic Information

Model NO.
1000SRSP
Certification
CE
Condition
New
Voltage
380V
Application
Metal Sheet
Max.Working Width
1000mm
Working Thickness
0.5-50mm
Min. Working Size
50*50mm
Feed Speed
0.5-5m/Min
Brush Spindle Speed
30-1300r/Min
Abrasive Cylinders
4 Units
Dust Extraction
4000m³/H

Product Features

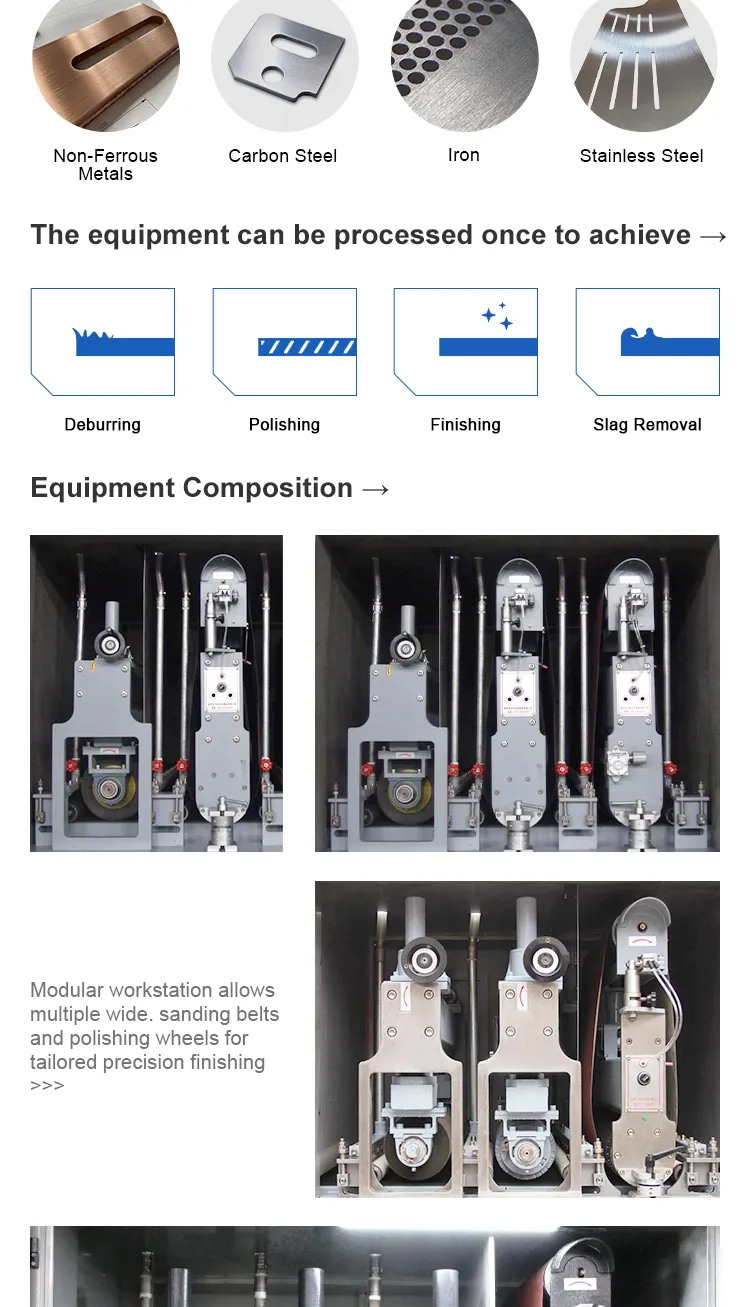

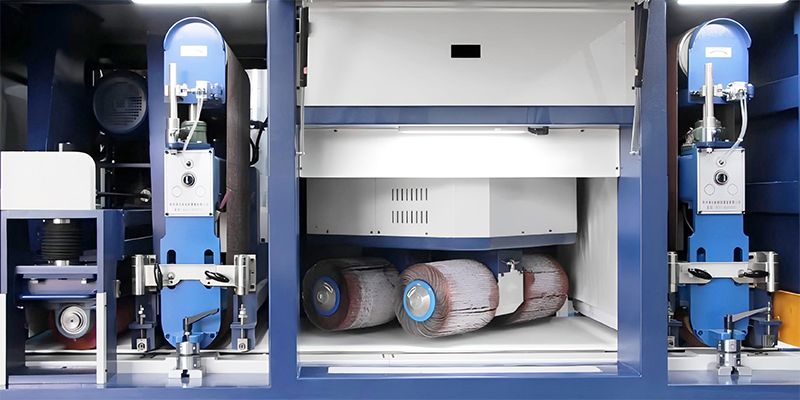

  • Four rotating brush planetary position. Size: Φ295mmx300mm.
  • Each spins itself while the whole head rotates in the meantime.
  • The either two abrasive cylinders rotation directions is opposite for even deburring.

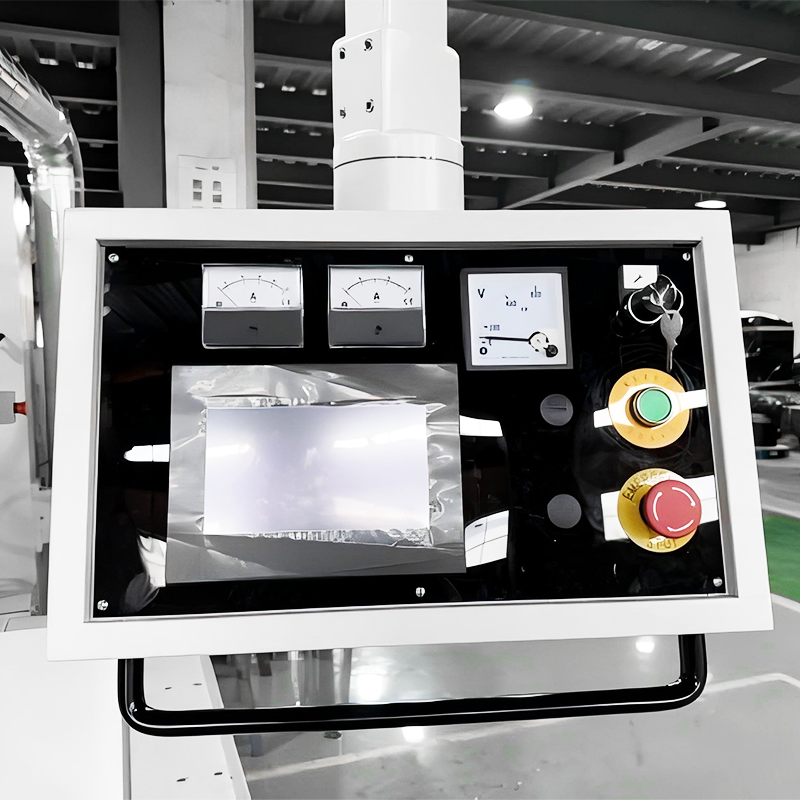

  • Variable speed for abrasive cylinder, whole deburring assembly, and conveyor, controlled by Delta brand inverters.
  • Powerful Brush drive motor (5.5KW) and brush assembly oscillation motor (1.5KW).

Technical Specifications

Model1000SRSP
Max. Working Width1000mm
Working Thickness0.5-50mm
Min. Working Size50*50mm
Feed Speed0.5-5m/min
Whole Head Rotation Speed1-17r/min (Variable)
Brush Spindle Speed30-1300r/min
Abrasive Cylinder SizeΦ295mmx300mm
Wide Belt Size1030*2200mm
Total Power47KW
Machine Weight3800KG
Overall Dimensions3200*2050*2400mm
📷

Product Details

🏢

About Us

Our products cover five key processes—blanking, pre-processing, forming, welding, and assembly—providing customized smart production line solutions to clients in over 80 countries.

With over 160 advanced machines and a 100,000 m² manufacturing base, we specialize in R&D and production of sheet-metal lines—including punch presses, press brakes, laser cutters, bending centers, deburring machines, rivet inserters, levelers, and laser-automation systems—and hold more than 130 patents. Our equipment serves industries such as high-speed rail, new energy vehicles, medical devices, and construction machinery.

We employ top sales professionals, leading technical engineers, and dedicated after-sales staff, supported by a "24-hour response + lifetime maintenance" service standard and an agent network spanning more than 80 countries, offering on-site and local support.

?
