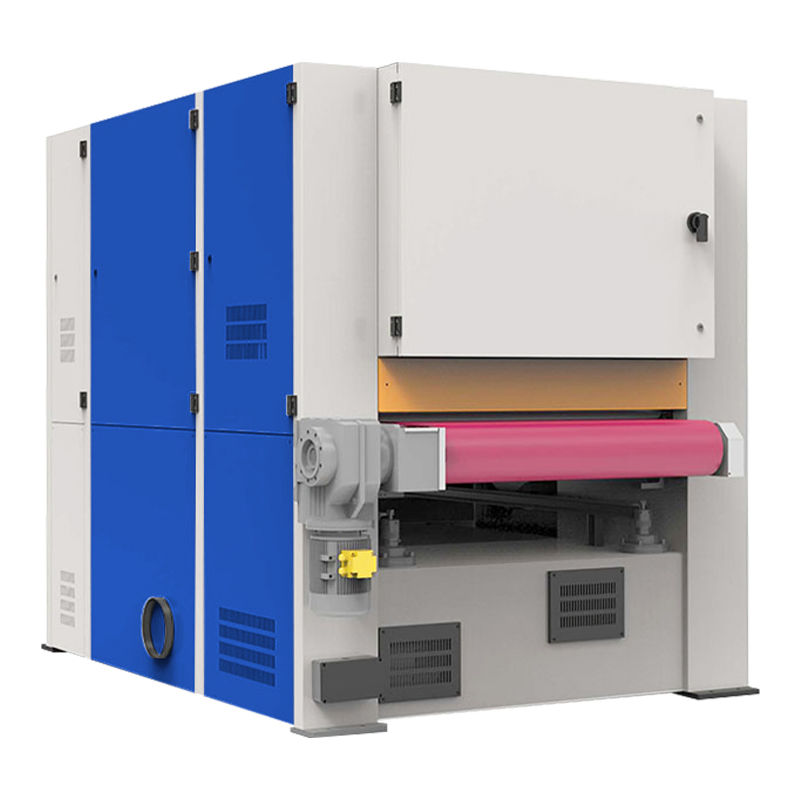

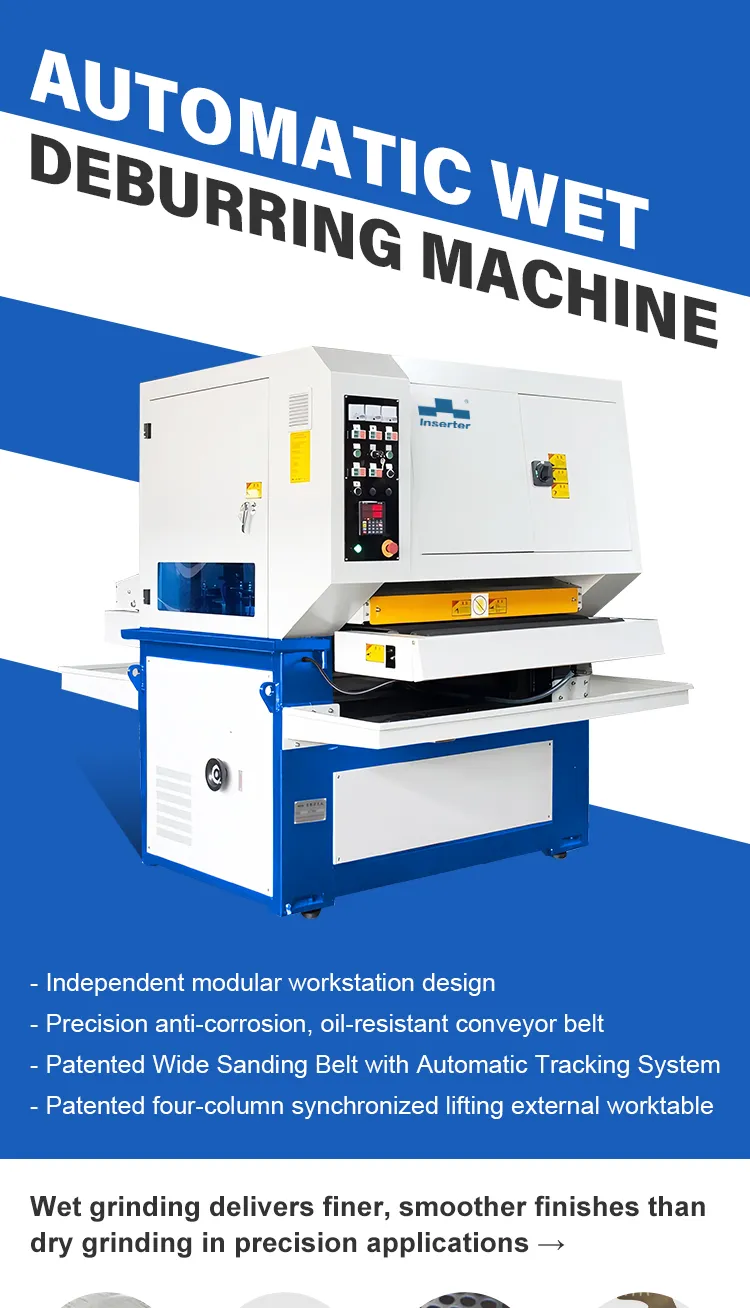

Fully Automatic Surface Polishing Machine with Optional Magnetic Conveyor

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

i

Basic Information

Model NO.

1000SRSP

Certification

CE

Condition

New

Voltage

380V

Application

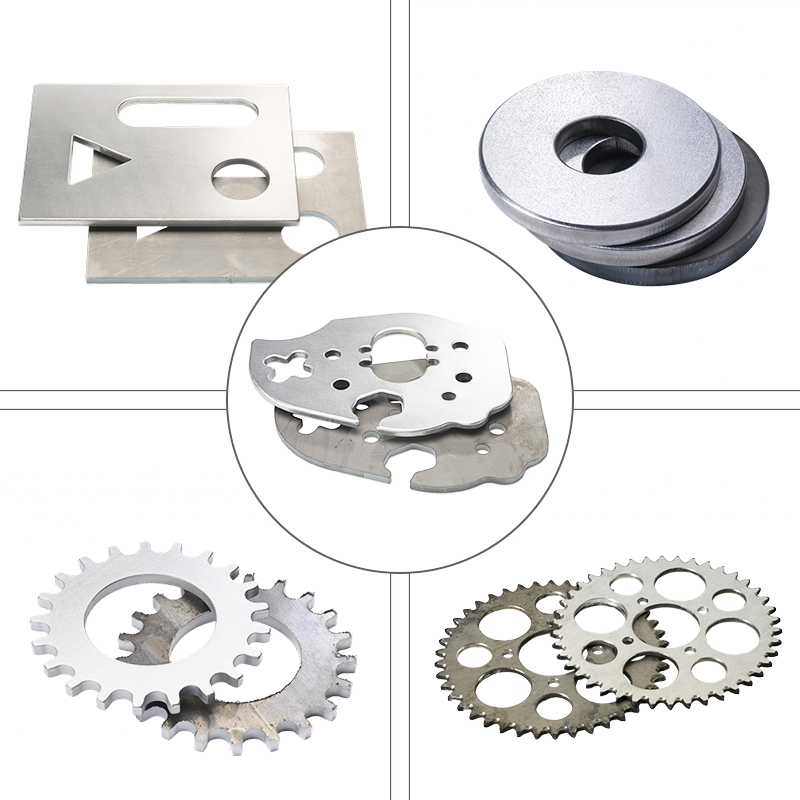

Metal Sheet

Max. Working Width

1000mm

Working Thickness

0.5-50mm

Min. Working Size

50*50mm

Feed Speed

0.5-5m/Min

Abrasive Cylinders

4 Units

★

Product Features

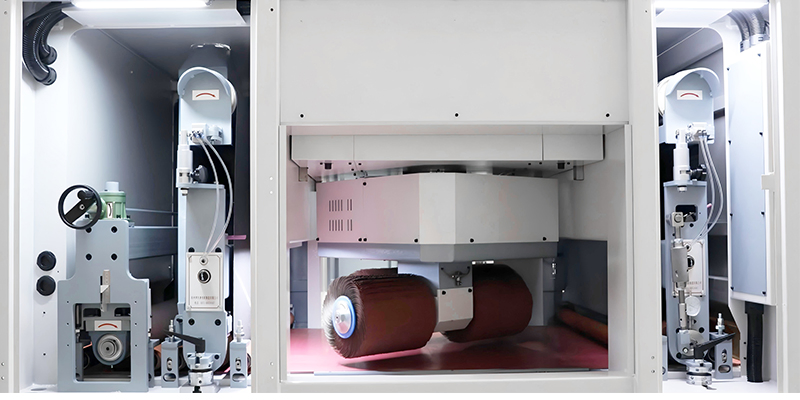

✔ Four rotating brush planetary positions (Size: Φ295mmx300mm) for comprehensive surface treatment.

✔ Independent brush spinning while the entire head assembly rotates simultaneously for optimal results.

✔ Opposite rotation directions of abrasive cylinders ensure consistent and even deburring across the workpiece.

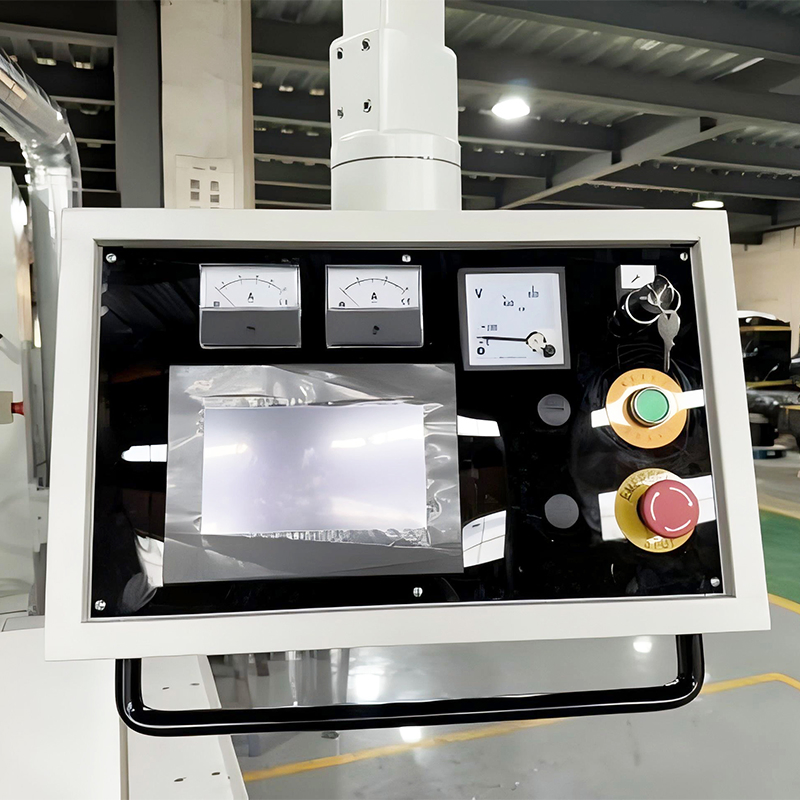

✔ Fully variable speed control for abrasive cylinders, assembly rotation, and conveyor via Delta brand inverters.

✔ High-performance power system: 5.5KW brush drive motor and 1.5KW brush assembly oscillation motor.

⚙

Specifications

Model	1000SRSP
Max. Working Width	1000mm
Working Thickness	0.5-50mm
Min. Working Size	50*50mm
Feed Speed	0.5-5m/min
Whole Head Rotation Speed	1-17r/min (Variable)
Brush Spindle Speed	30-1300r/min
Number of Abrasive Cylinders	4
Abrasive Cylinder Size	Φ295mmx300mm
Wide Belt Size	1030*2200mm

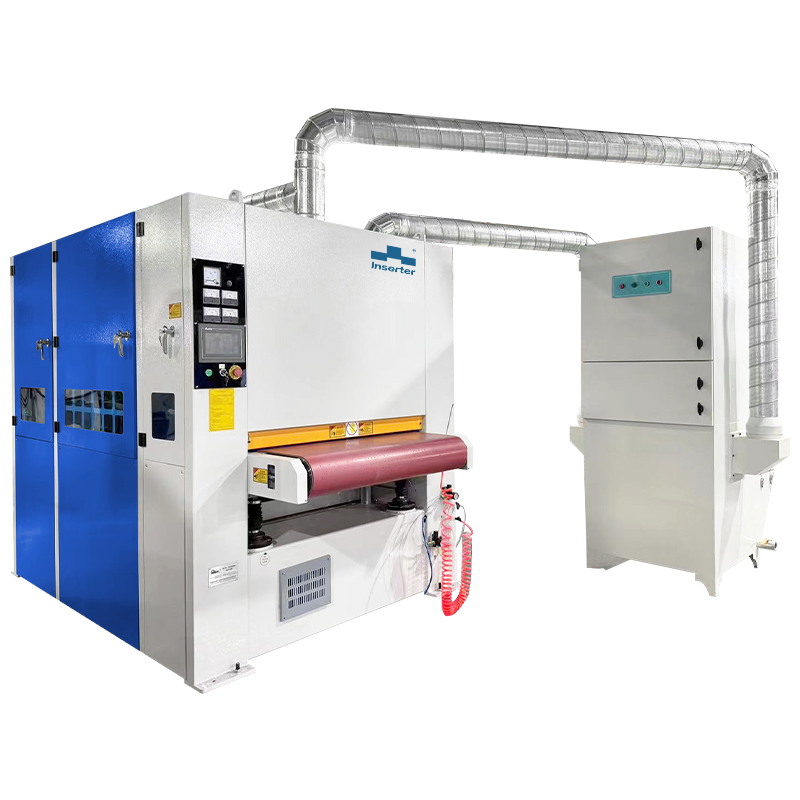

Dust Extraction Capacity	4000m³/h
Total Power	47KW
Machine Weight	3800KG
Dimensions	320020502400mm

📷

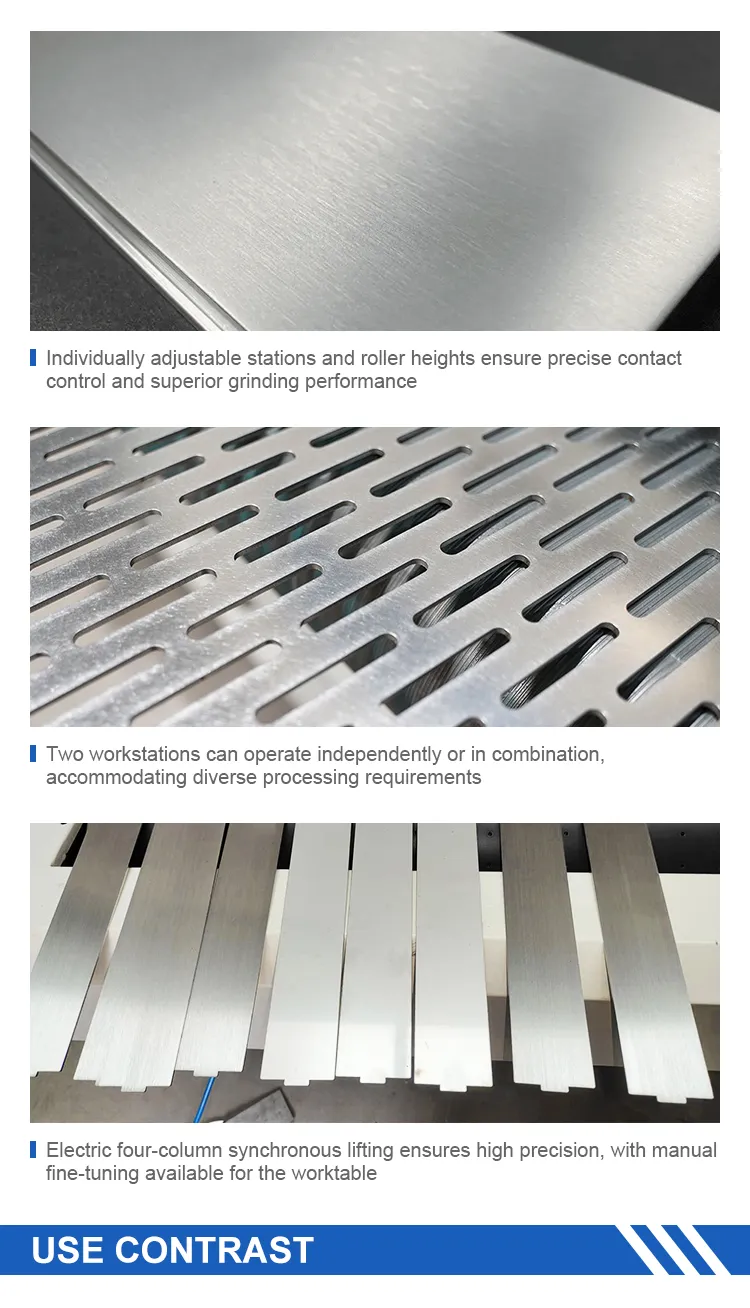

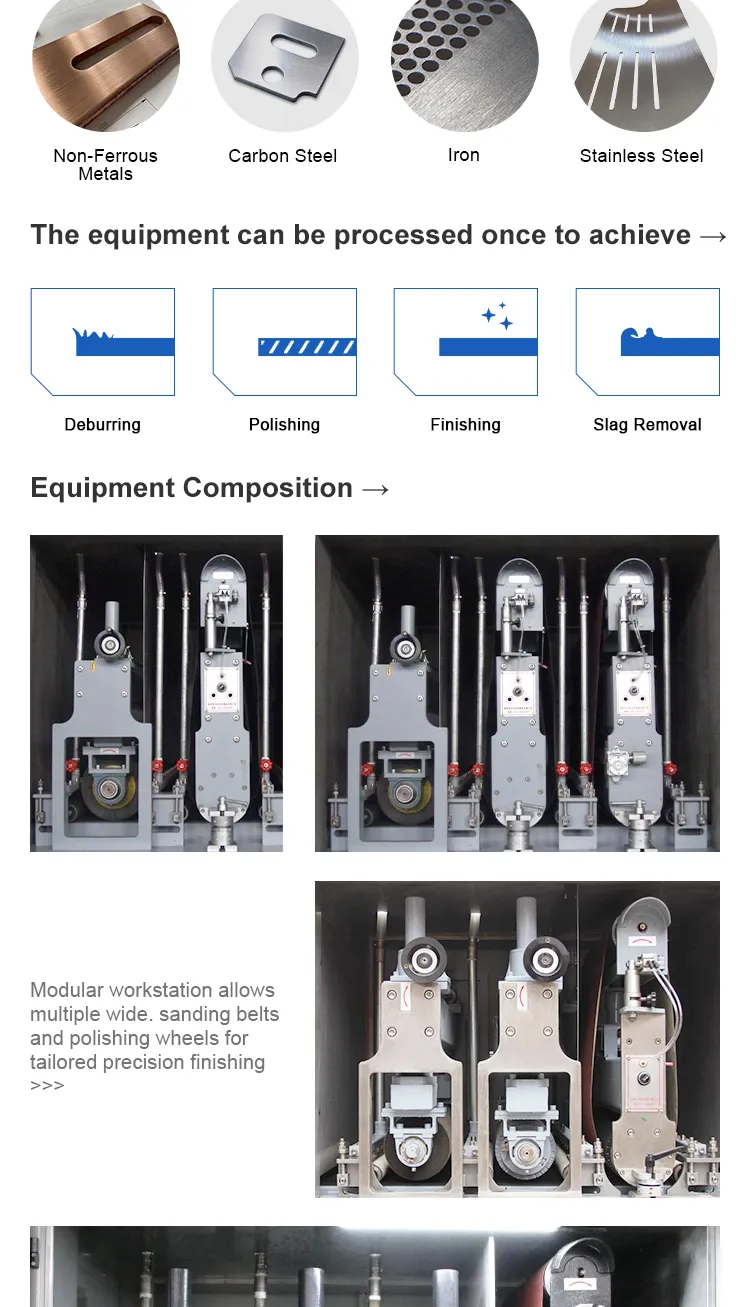

Product Detail Gallery

?

Frequently Asked Questions

Which payment terms can you accept?

We can accept flexible payment options including Bank Transfer, LC, DP, West Union, Paypal, or combined terms as per negotiation.

Which shipping ways can you provide?

We provide shipping by sea, by air, or by express delivery according to specific customer requirements and destination.

How do I place an order?

When you are ready, please contact us to confirm the suitable solution, plan, and model. A copy of the purchase order is required to ensure proper processing.

Do you have an inspection procedure for the product?

Yes, we maintain a strict inspection process for both product quality and packaging to ensure standards are met before shipping.

Can we become your local agent?

Yes, we are actively looking for global agents. We support our agents with market improvement, technical problem solving, and attractive discounts or commissions.

What industries are these machines suitable for?

Our equipment serves industries such as high-speed rail, new energy vehicles, medical devices, and construction machinery manufacturing.
