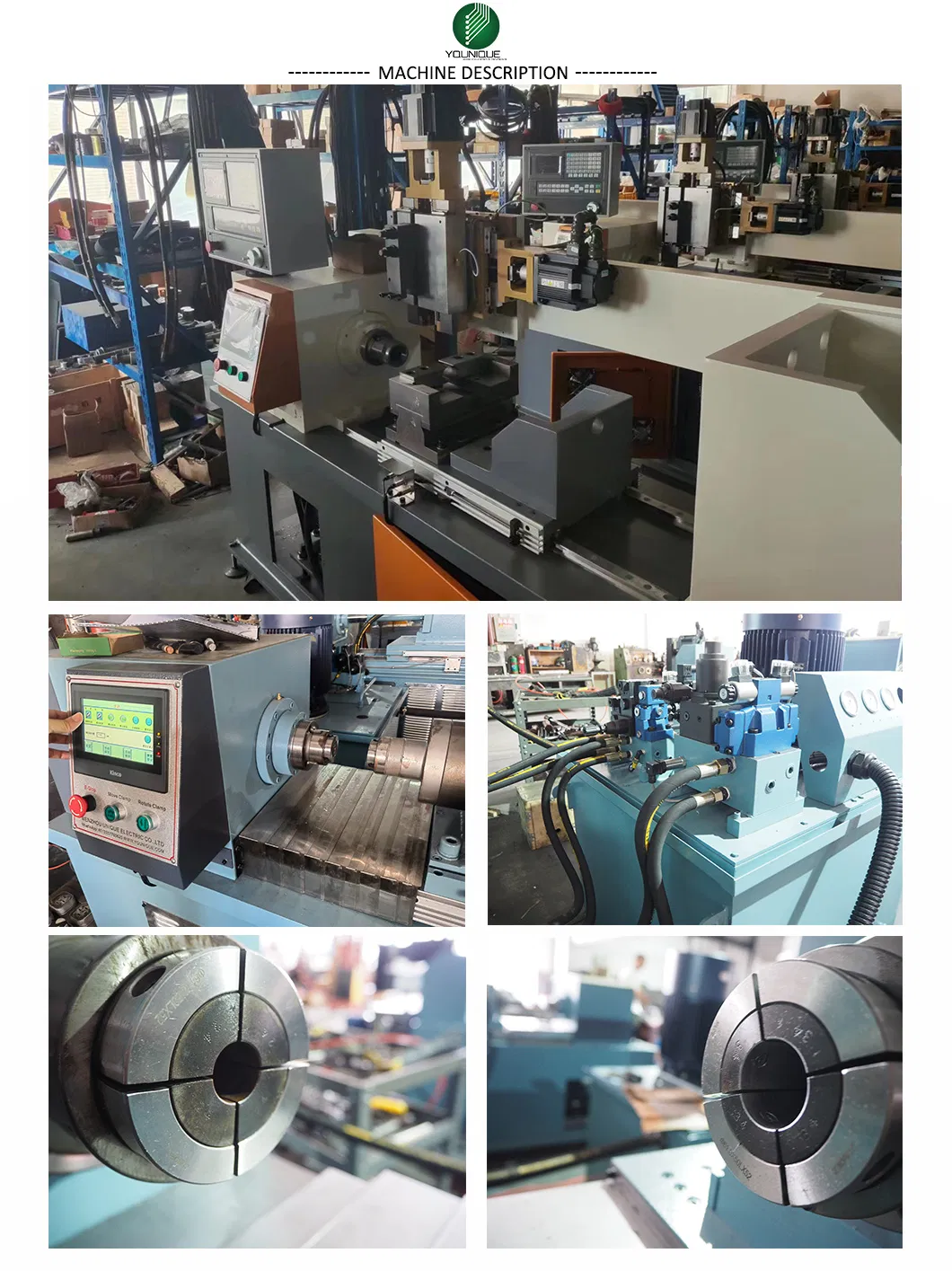

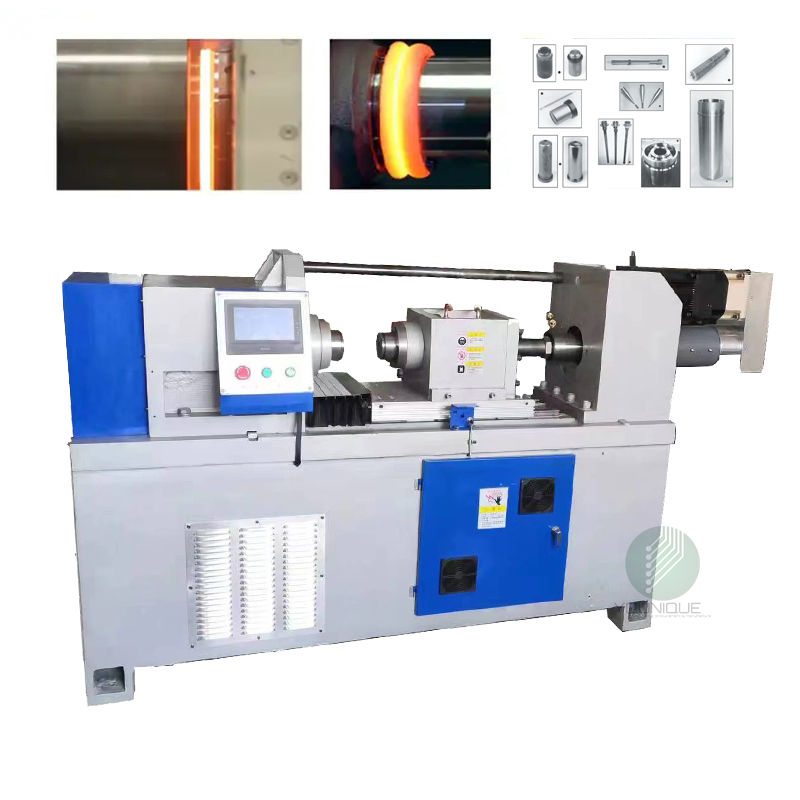

1. Machine Base: High strength steel plate with annealing treatment for durability and welding accuracy.

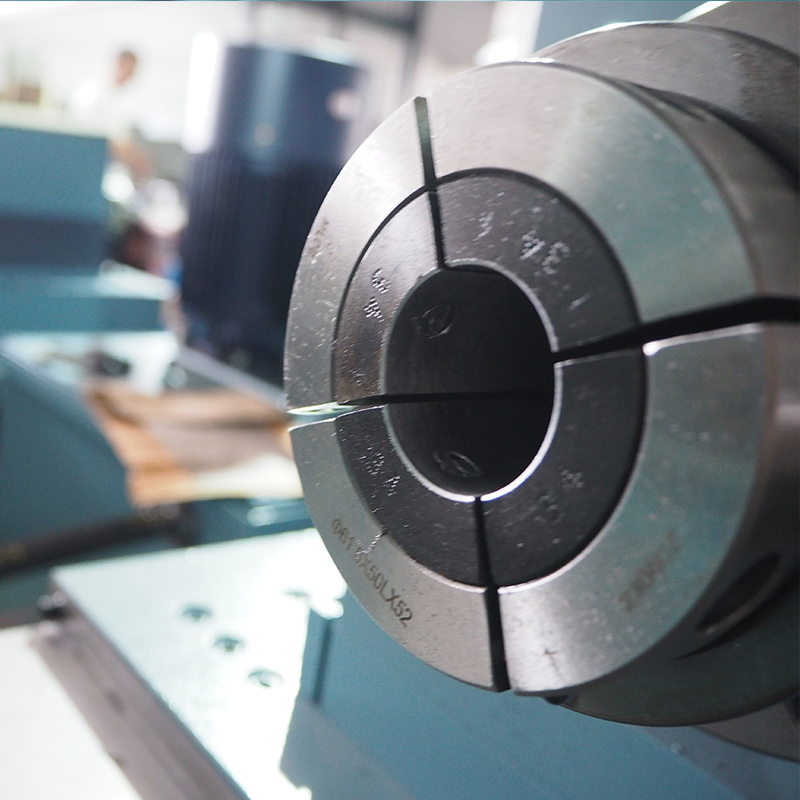

2. Spindle: Unique design to withstand high-speed rotation and high thrust with cast iron body.
3. Sliding Table: Heavy linear guide rail to minimize sliding resistance.
4. Spindle Drive: Servo motor driven with frequency conversion control for arbitrary speed setting.
5. Position Detection: High-precision magnetic scale for numerical input and zero maintenance.

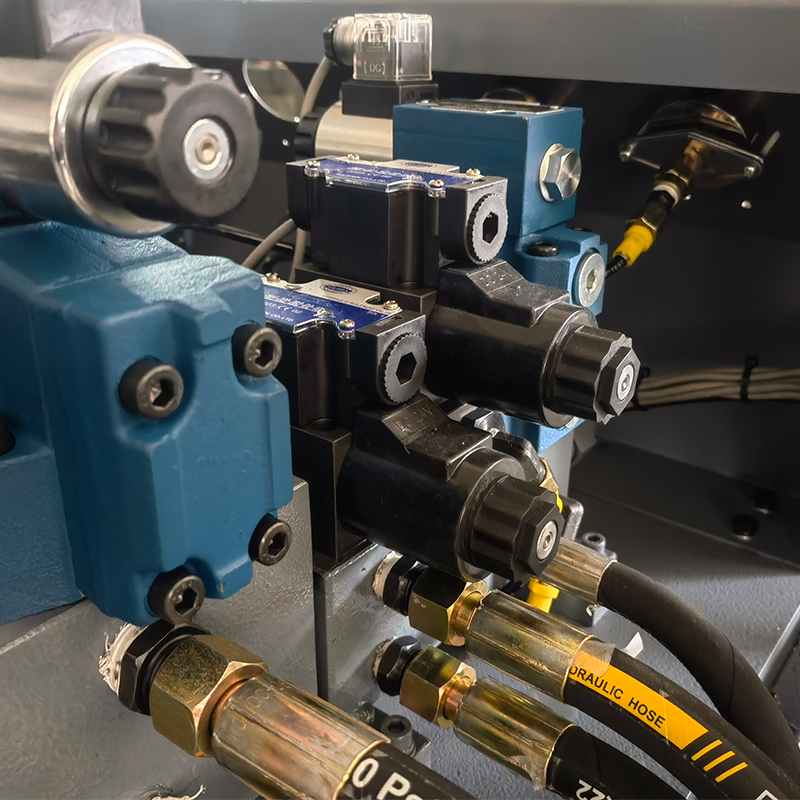

6. Oil Pressure Control: Proportional valve and closed-loop system for high precision joint stability.

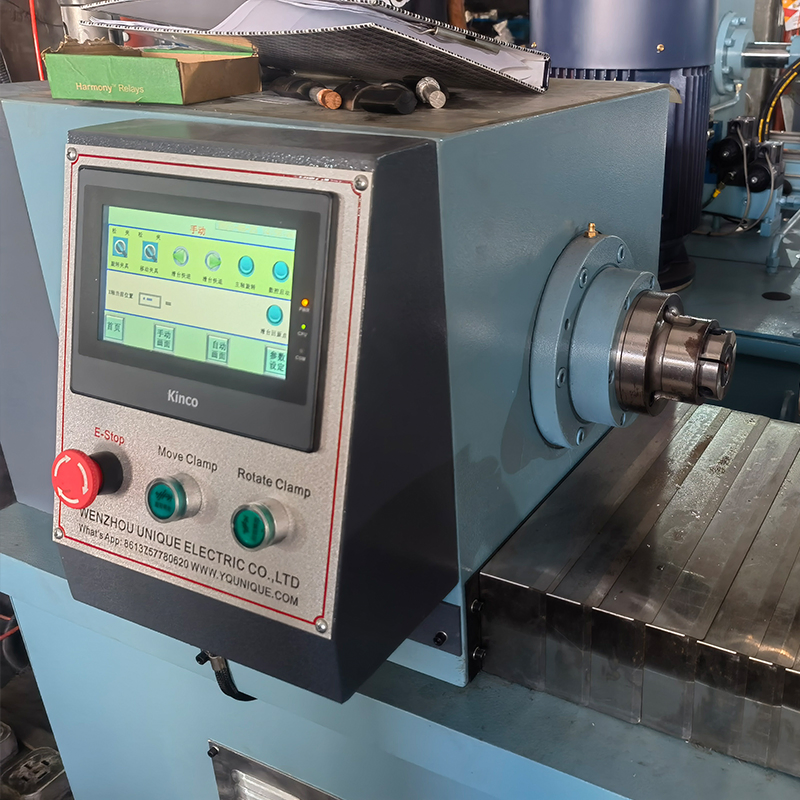

7. Microcomputer Control: Integrated PLC controller ensures product welding stability.
| Model | Max Forging Force (kN) | Max Spindle Speed (RPM) | Weld Diameter (mm) | Clamping Length (mm) | Slide Travel (mm) | Power (kW) | Weight (tons) |
|---|---|---|---|---|---|---|---|
| YE-C2.5S | 25 | 5000 | φ5-φ12 | 25-260 | 300 | 10 | 2 |
| YE-C5S | 50 | 4000 | Φ8-φ20 | 25-260 | 300 | 15 | 2.5 |
| YE-C10S | 100 | 3500 | Φ10-φ26 | 25-260 | 300 | 25 | 4 |
| YE-C20S | 200 | 3000 | Φ12-φ40 | 25-260 | 300 | 38 | 6.5 |
| YE-C32S | 320 | 2000 | Φ18-φ50 | 30-260 | 300 | 66 | 7 |
| YE-C60S | 600 | 1500 | Φ30-φ65 | 30-260 | 300 | 90 | 8.5 |
