Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
1 / 5
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder
Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder

Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder

Customization: Available
Cooling Way: Air Cooling
Style: Hanging
Send Inquiry

Product Description

Basic Specifications
Model NO.
DN1200-3600X6000MM
Frequency Range
Low Frequency
Electric Current
AC
Work Form
Moving-Coil
Type
Submerged-Arc Welder
Diameter
DN600-3600
Pipe Type
Pccp Concrete Pipe
Welder Type
DC-1000 Lincoln Welder
Coil Width
1250mm
Trademark
SMC
Origin
China
HS Code
8480600000
Product Overview
This equipment is designed for Concrete Pipe Machine Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welding. With over 40 years of experience in research, development, and manufacture of cement product machinery, the technology is supported by numerous national patents and ISO9001:2008 certification.

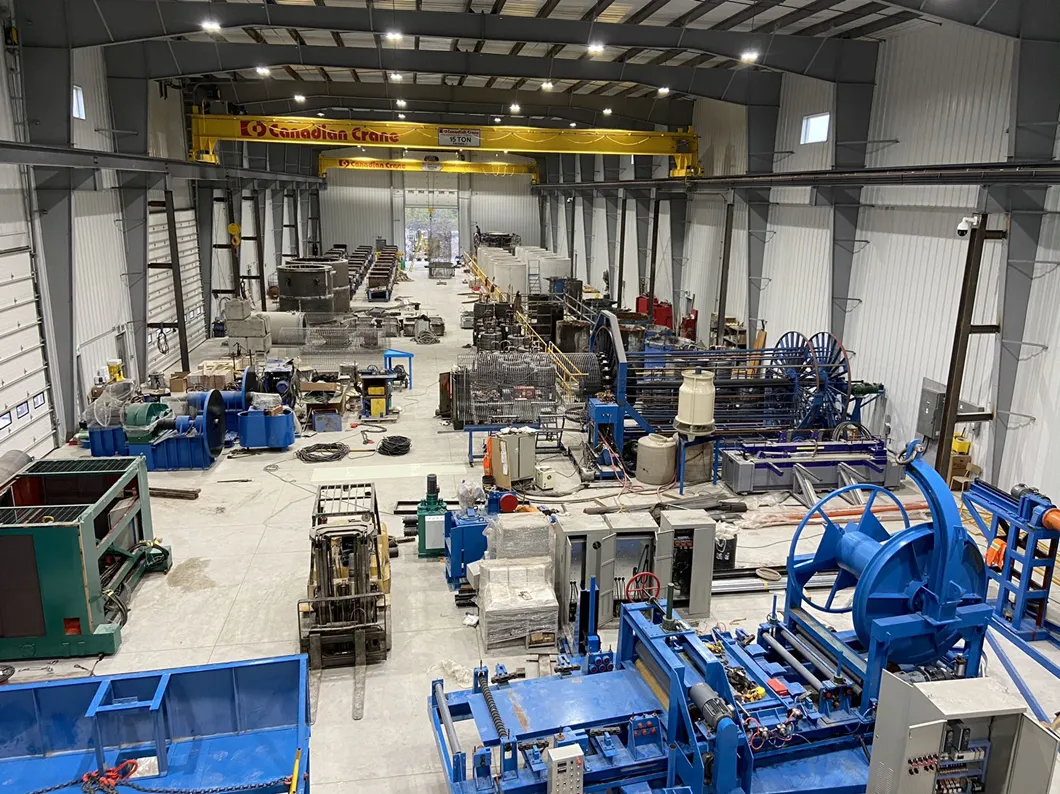

Concrete Pipe Machine
PCCP concrete pipe production line working shop

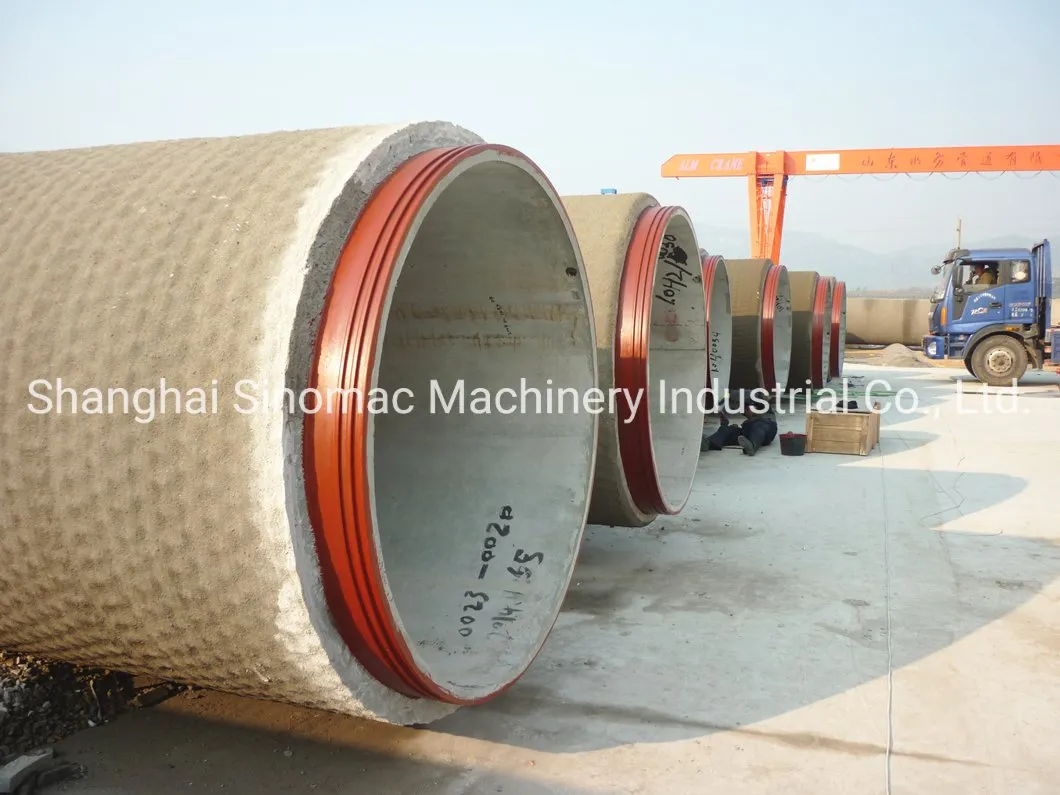

PCCP Pipe in Stock
PCCP pipe in stock

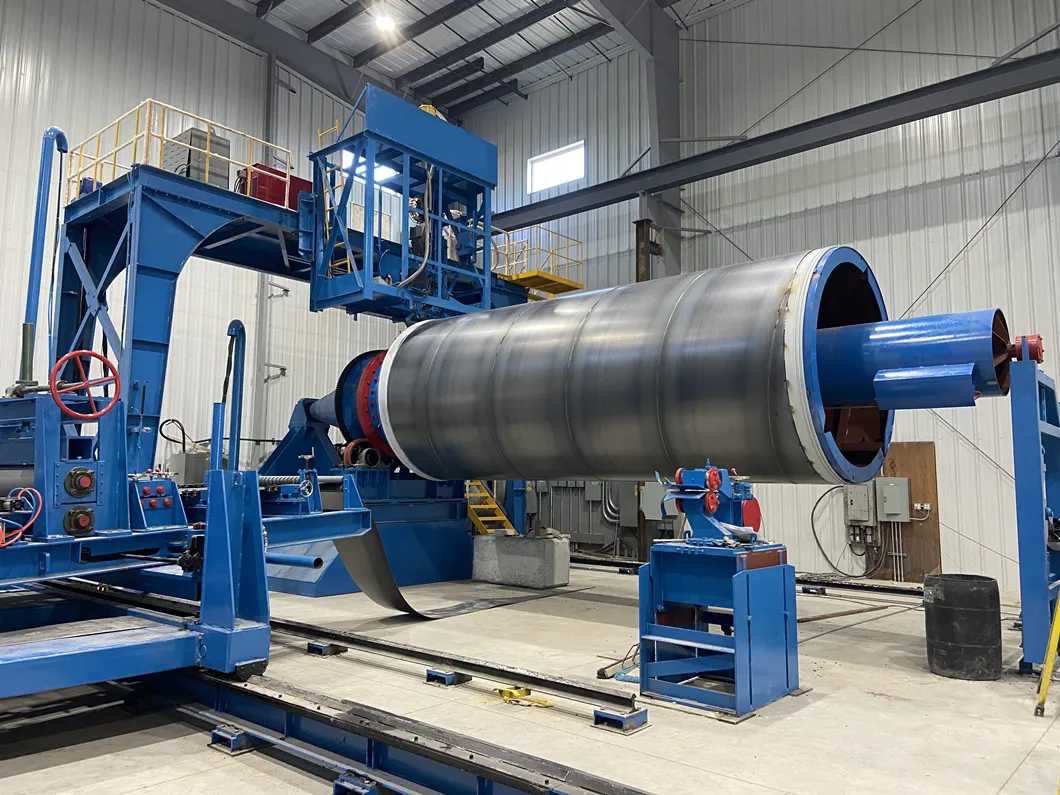

Installation
Steel Cylinder Welder Installation
Main Product Range:
  • DN400-4000mm PCCP Pipe Production Line
  • Concrete Drainage Pipe Production Line
  • Cage Welding Machine
  • Concrete Pipe Mold
Technical Parameters
Model DN600-1600X6000mm DN1800-3600X6000mm
Welding Pipe Diameter 600-1600mm 1800-3600mm
Welding Pipe Length 6000mm 6000mm
Lincoln Welder Type DC-600 DC-1000
Welding Speed 0.5-2.5m/min 0.5-2.5m/min
Coil Standard GB/T5213-2008 standard oil free cold rolled steel plate
Control System PLC control PLC control
Cutting Type Auto Plasma Cutting Auto Plasma Cutting
Production Equipment Gallery

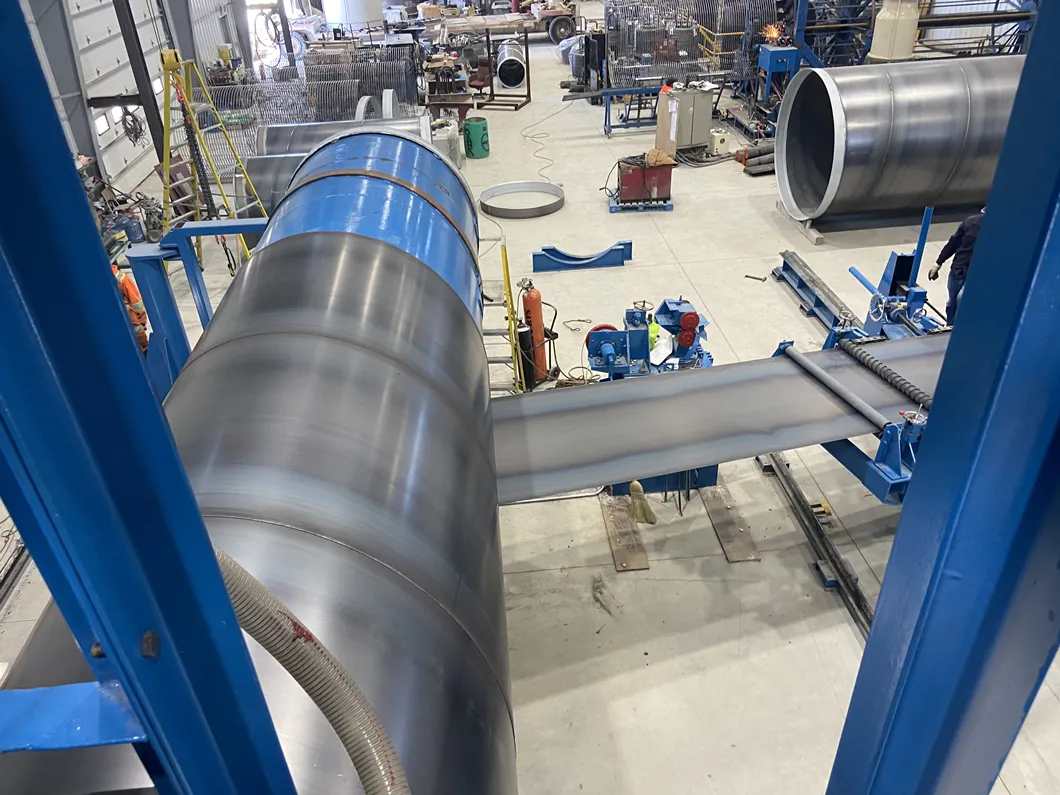

Arc Welder Working
Steel Cylinder Arc Welder Working

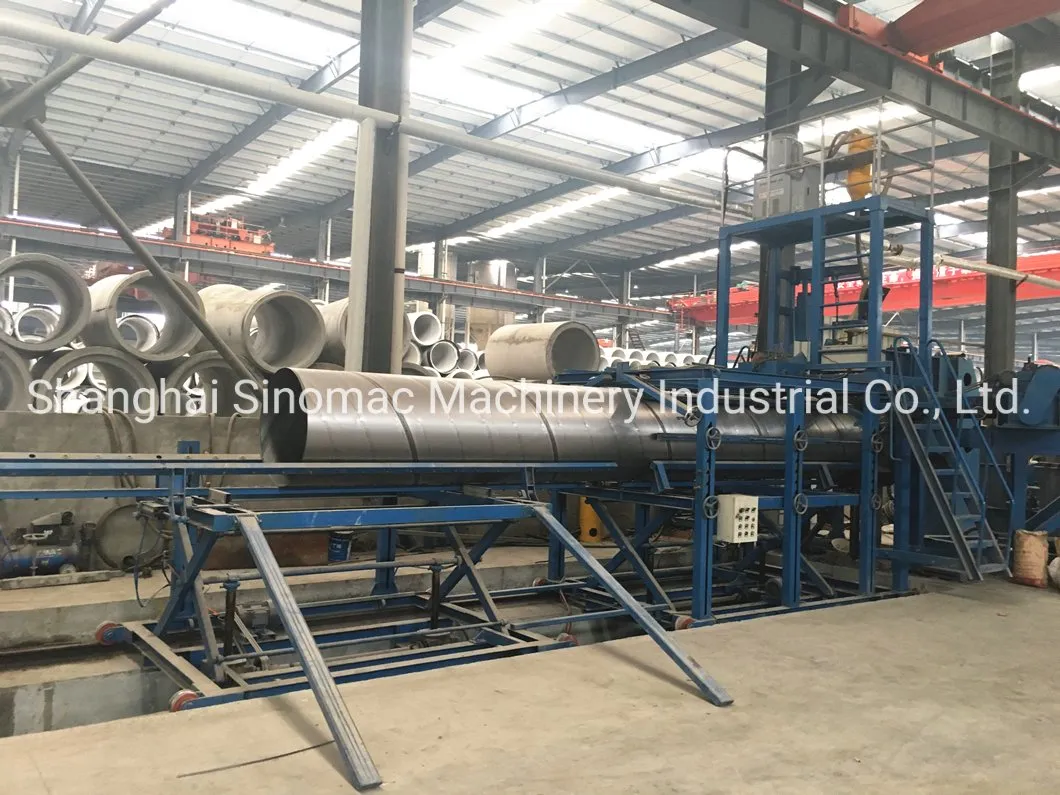

Cylinder Welder
DN600-1600X6000mm Steel Cylinder Welder

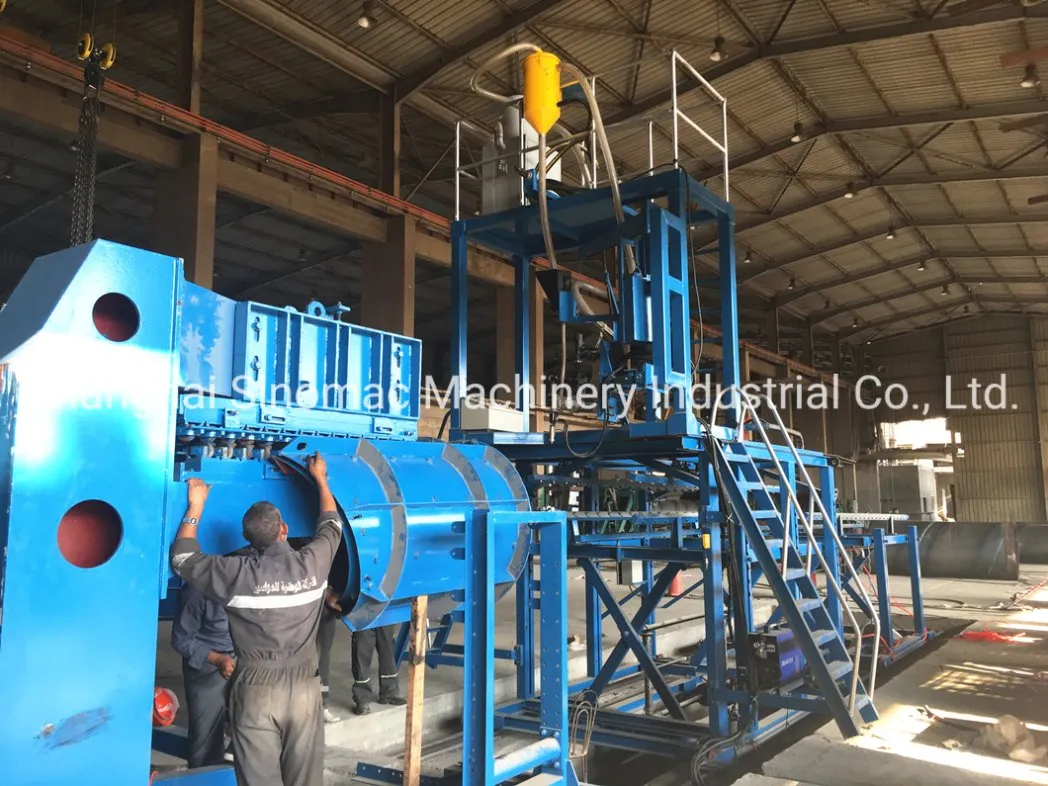

International Installation
Project Installation in Egypt

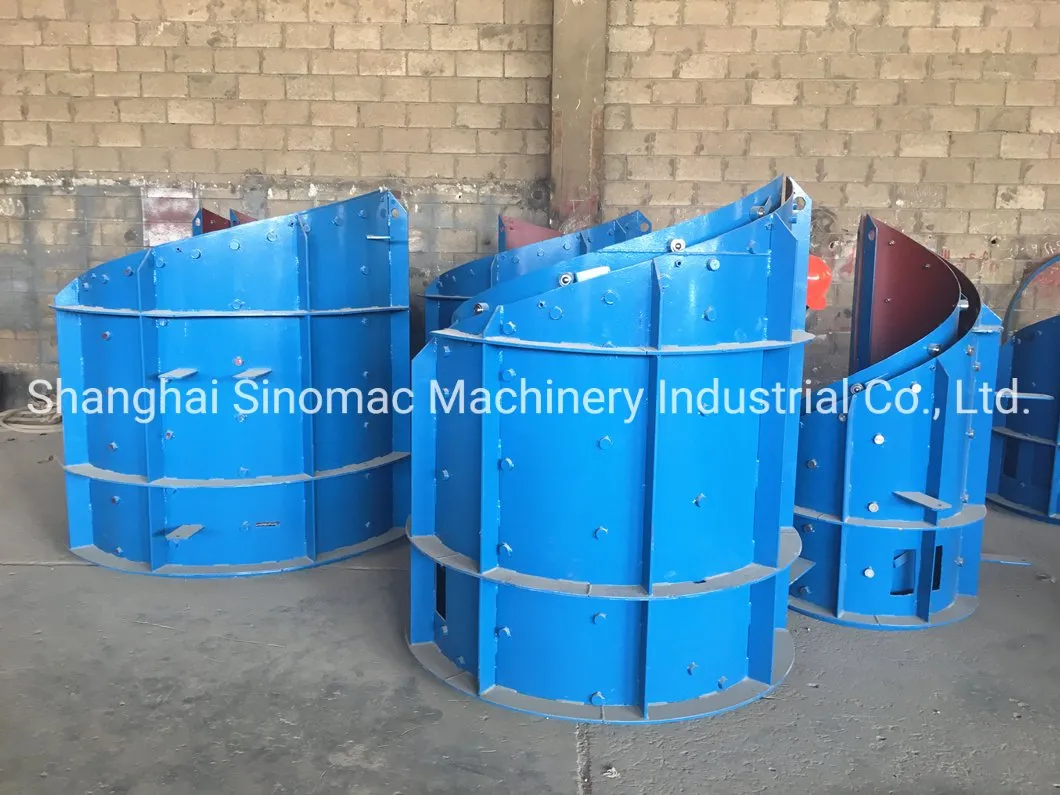

Tube Core
Steel Cylinder Welder Tube Core

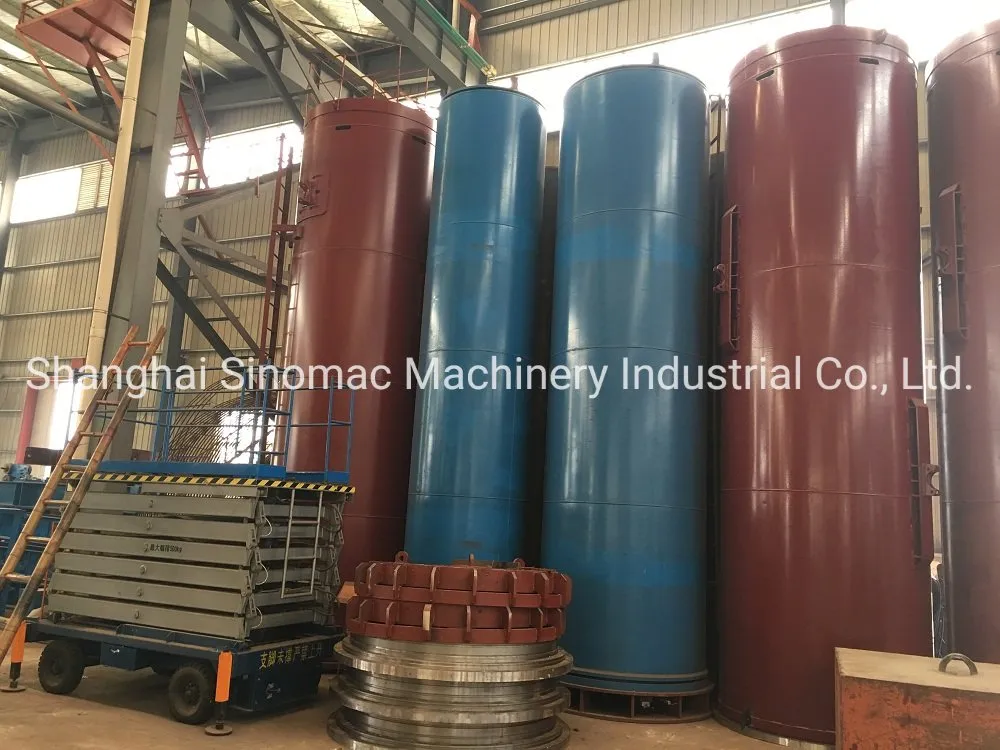

Pipe Mould
PCCP Pipe Mould
Production Process & Flowchart

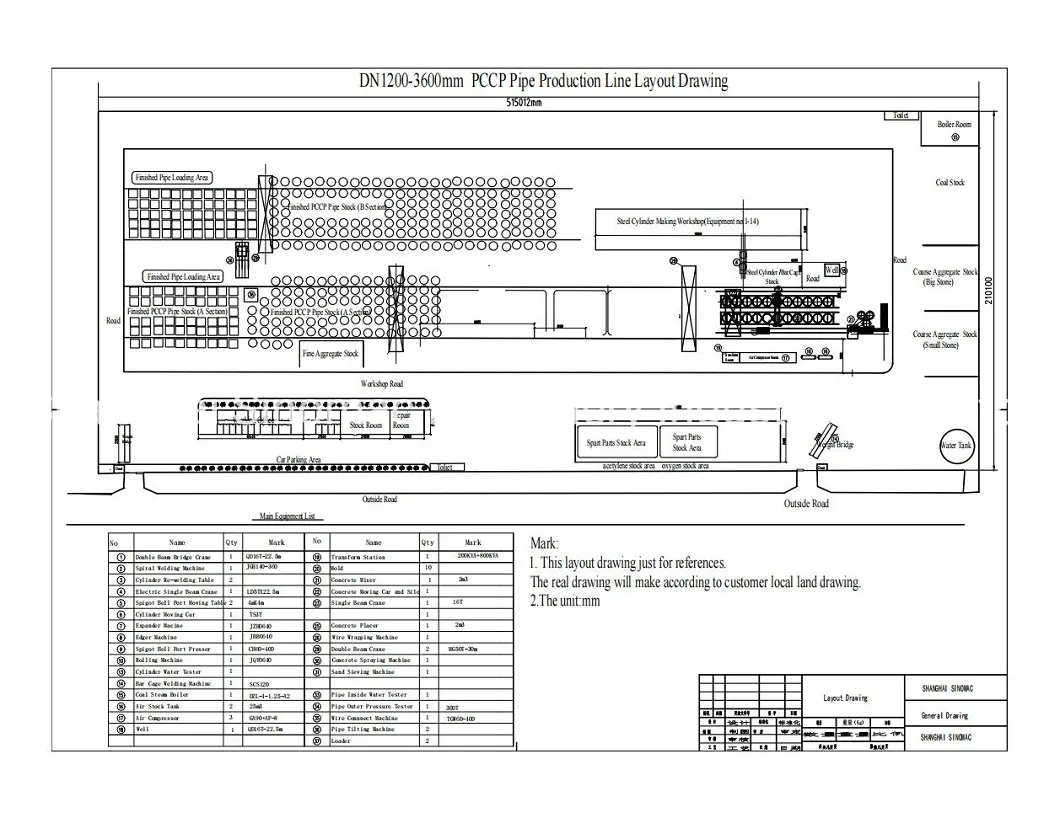

Workflow Chart
PCCP Production Working Flowchart

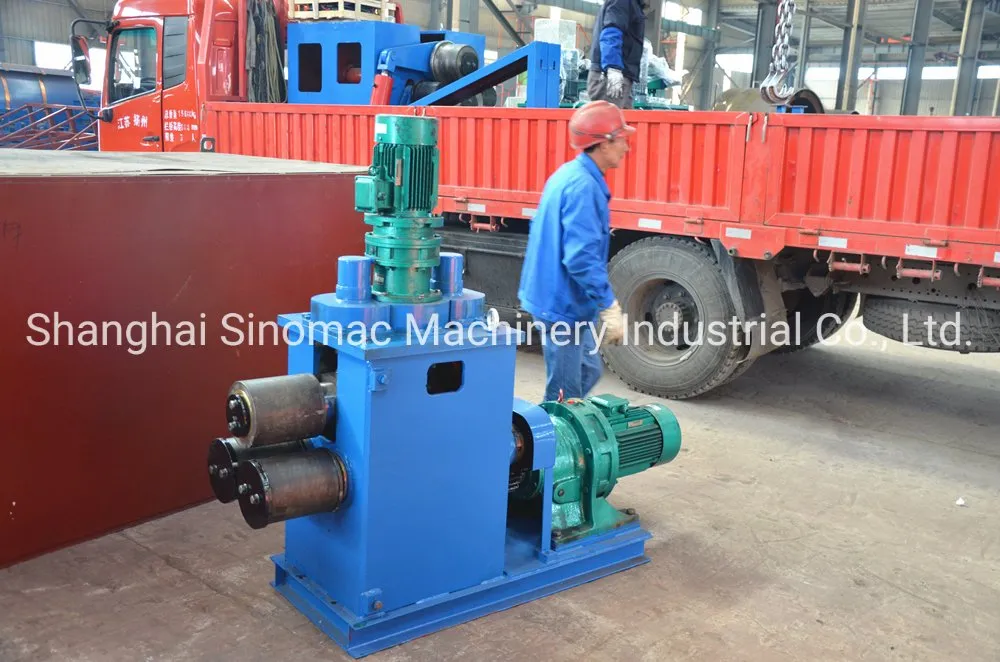

Rolling Machine
Spigot/Bell Ring Rolling Machine

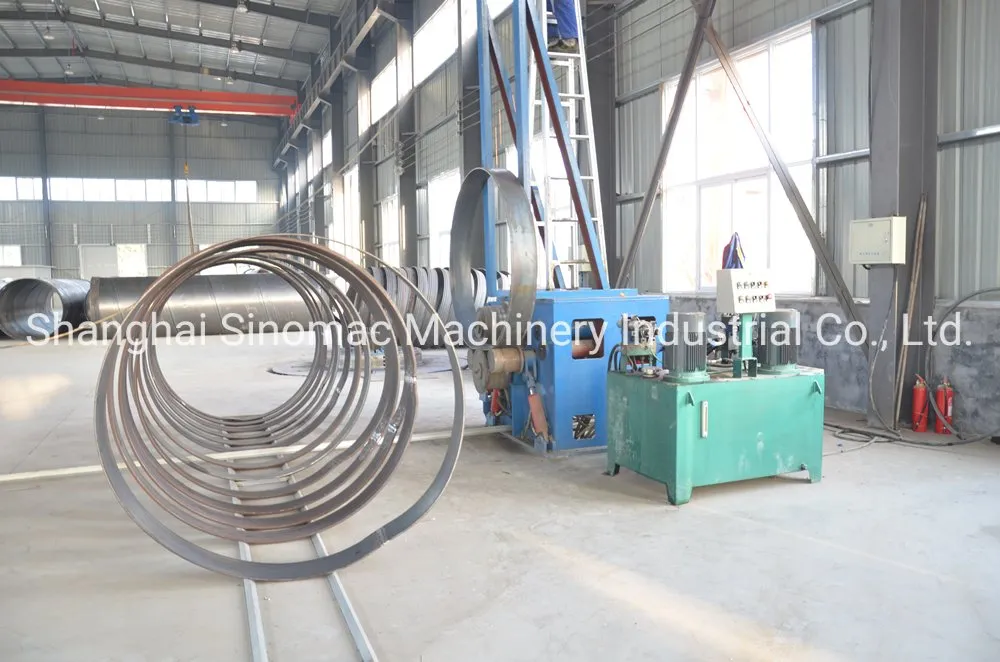

Edge Rolling
Steel Bell Ring Edging Machine

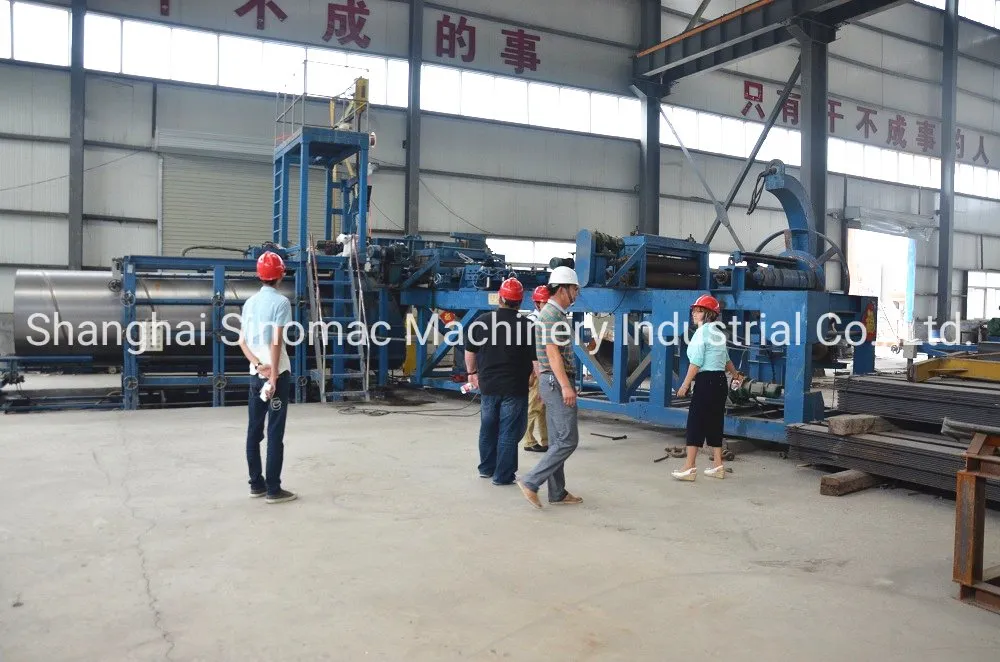

Spiral Welding
Small Steel Cylinder Welding Machine
Big Welder
Big Steel Cylinder Welding Machine

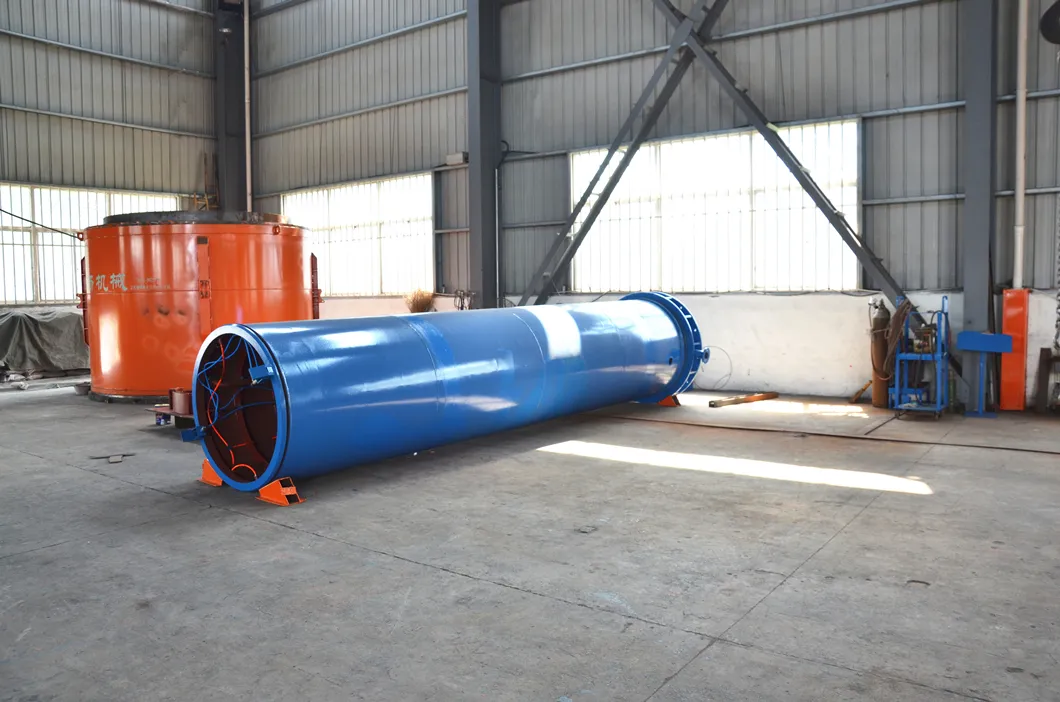

Water Testing
Hydrostatic Pressure Testing Machine

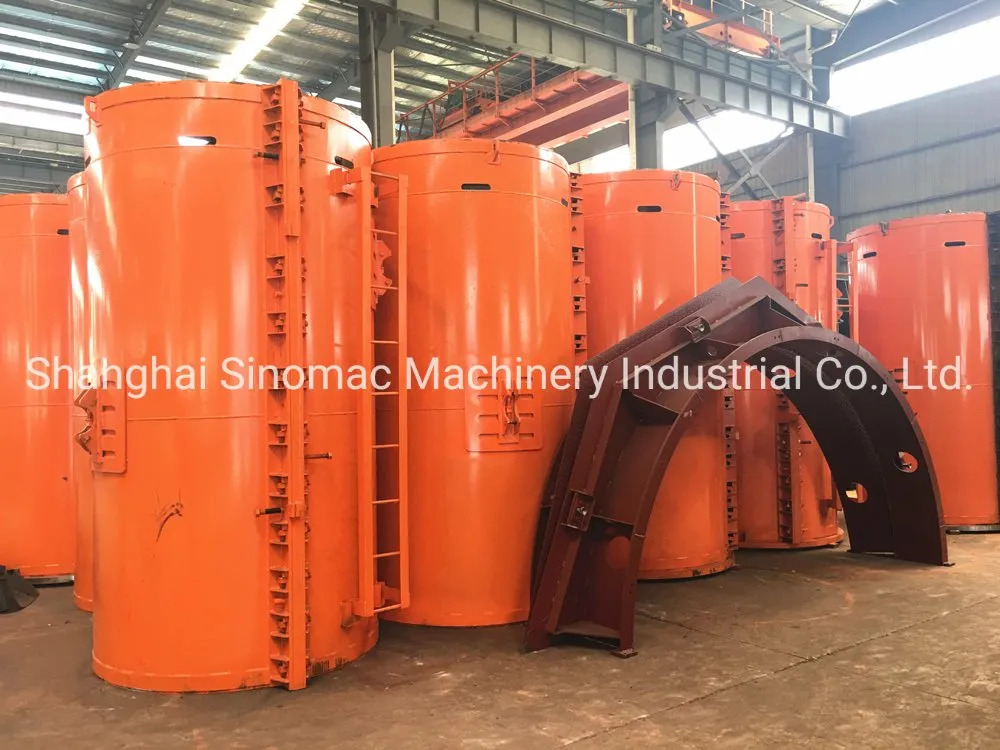

Jacking Mould
Jacking Concrete Pipe Mould
Packaging & Delivery
Package Size
100.00cm * 90.00cm * 80.00cm
Gross Weight
100.000kg
Packing Type
Standard Export Packing
Frequently Asked Questions
What range of pipe diameters can this production line handle?
The complete PCCP pipe production line can produce pipes with diameters ranging from DN400mm up to DN4000mm.
What type of welding technology is utilized in the steel cylinder machine?
The machine utilizes Submerged-Arc Welding technology, featuring high-quality Lincoln Welder units (DC-600 or DC-1000) for reliable performance.
What international quality certifications does the equipment meet?
Our manufacturing processes are ISO9001:2008 quality management system certified and hold multiple national invention patents.
Which countries have these production lines been exported to?
The equipment has been successfully exported to numerous global markets, including Canada, Egypt, India, Indonesia, South America, and Africa.
What are the main components of a full PCCP production line?
A standard line includes spigot/bell ring rollers, expanding machines, steel cylinder welding machines, hydrostatic testing units, concrete placers, wire wrapping machines, and coating machines.
What is the standard production capacity?
The typical production capacity is approximately 100 sets per year, depending on the specific model and configuration.
