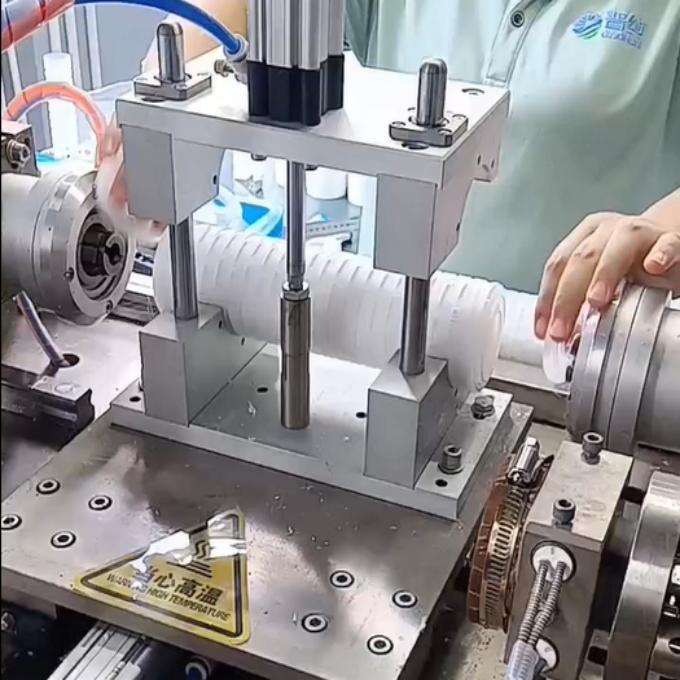

Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
1 / 5
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder
Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder

Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ZS-SGW166
Type
Filter Welding Machine, PP Filter
Application
Industry
Filter Connector
222 Connector
Material
PP
Length
2200mm
Width
1050mm
Height
1850mm
Weight
680kg
Power
6.8kw
Production
2-4PCS/Min
HS Code
8468800000
Product Description

Pneumatic Pleated Filter Element Cartridge Single Station End Cover Welder

  • Central Control Drive: PLC system (brand Huichuan) and pneumatic components (brand Yadeke).
  • Weldable Specifications: Compatible with lengths of 10-40 inches and diameters of 60-80mm.
  • Advanced Heating: The filter cartridge is heated by a high-precision hot plate, while the end cover utilizes an infrared lamp tube.
  • High Efficiency: Simple operation with a production capacity of 2-4 pieces per minute, equipped with two sets of molds.
Technical Parameters
Style
Vertical
Welding Diameter
60-80mm
Power Supply
220VAC/380VAC 50/60HZ
Motive Force
Electric power
Drive System
Huichua Easy320
Air Pressure
0.6-0.8MPa
Key Features

Pneumatic equipment offers low operational costs, excellent pollution resistance, high-speed performance, and integrated overload protection for safe manufacturing.

Detailed Photos

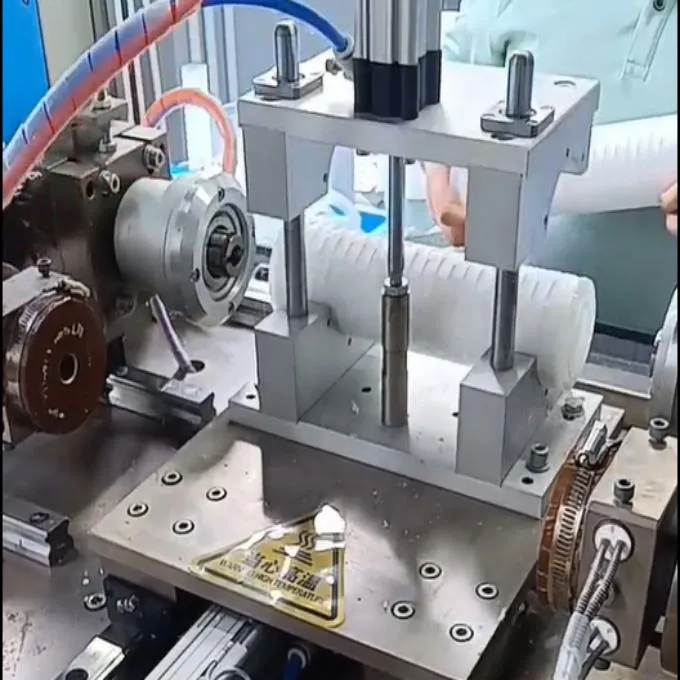

Welder Detail 1
Welder Detail 2

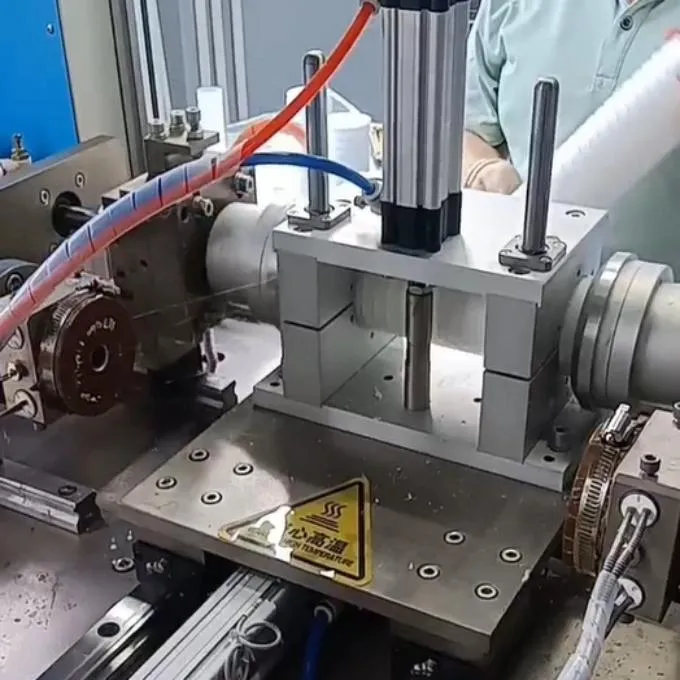

Welder Detail 3

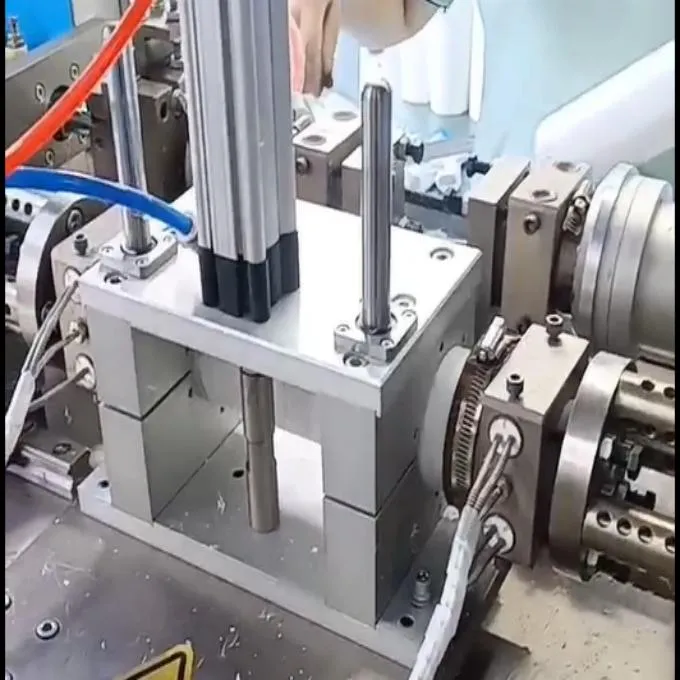

Welder Detail 4
Application Display

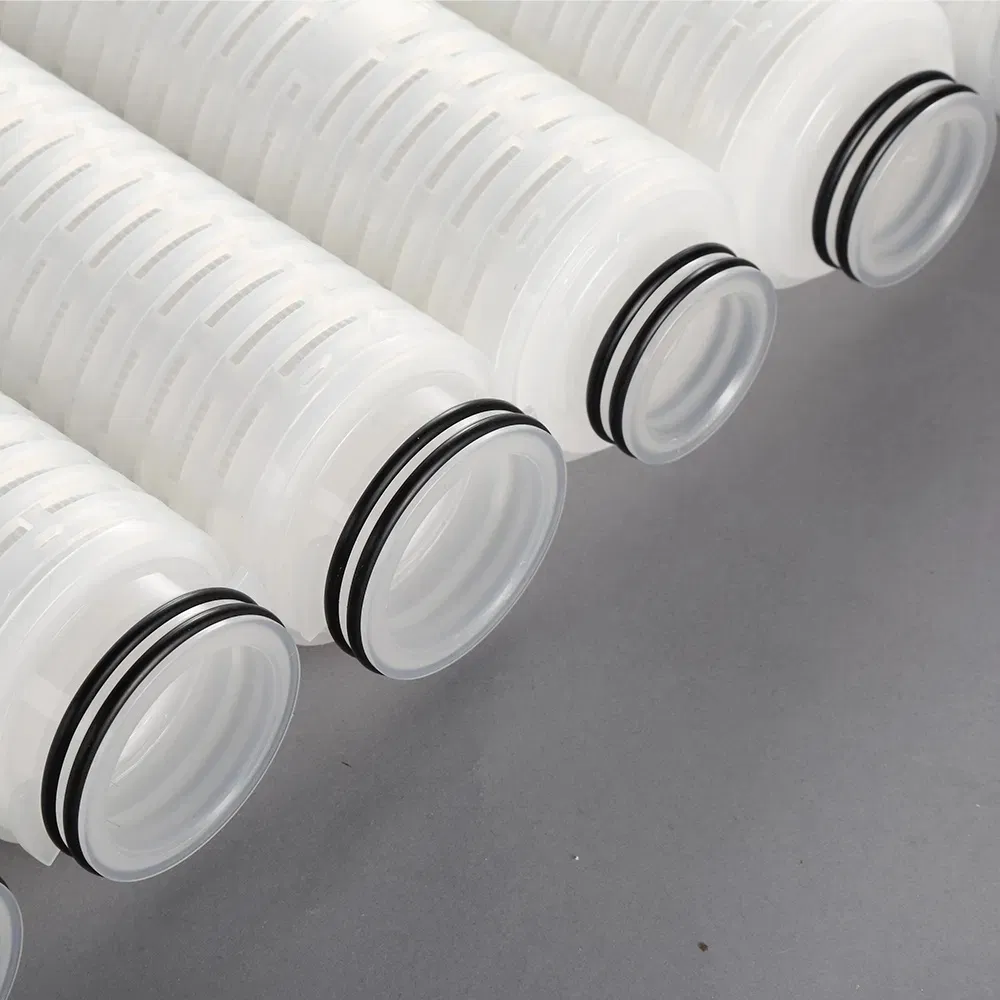

Application 1

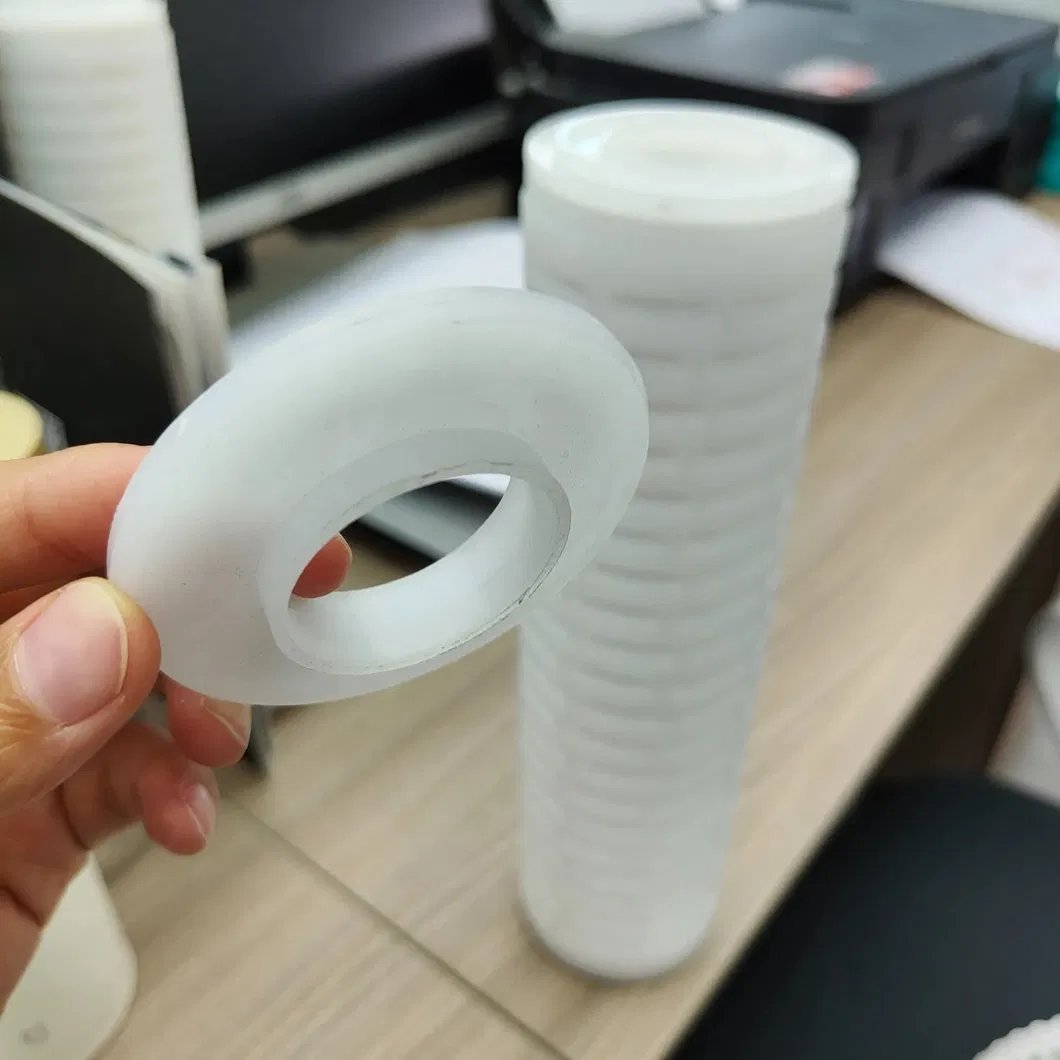

Application 2

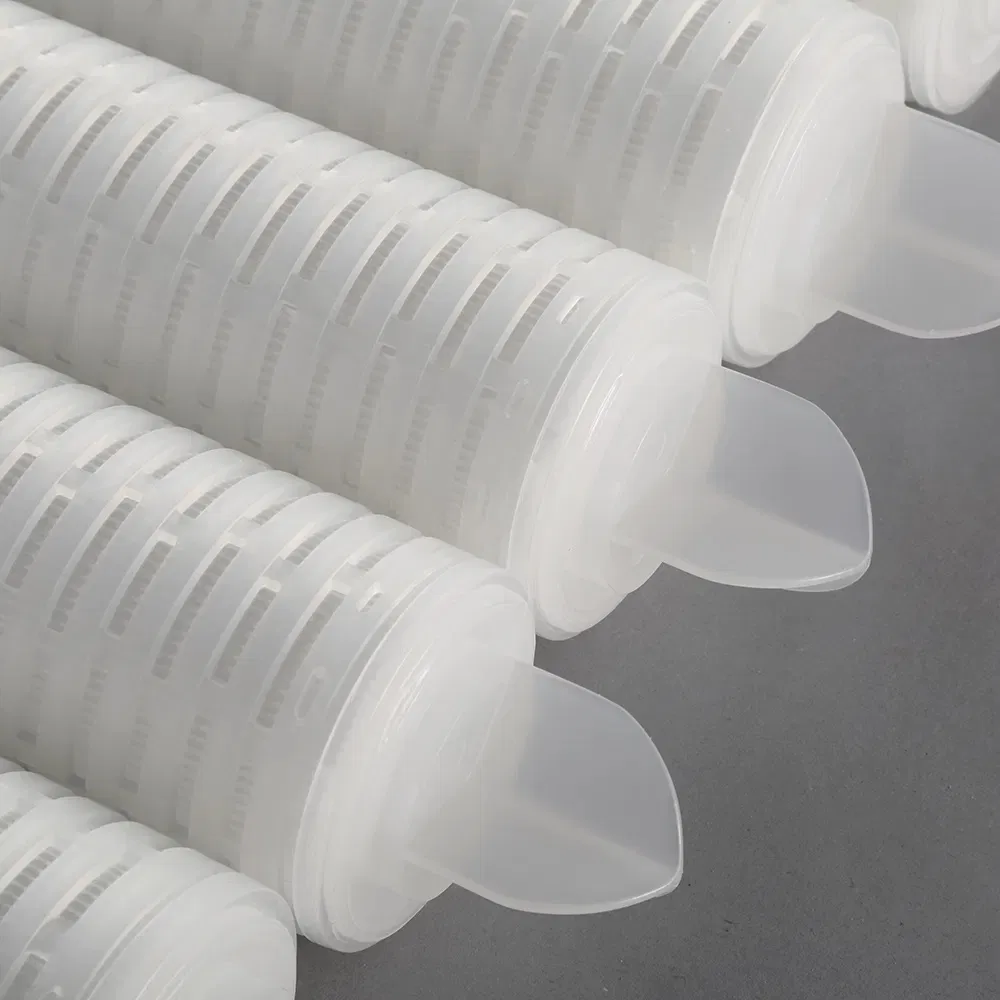

Application 3

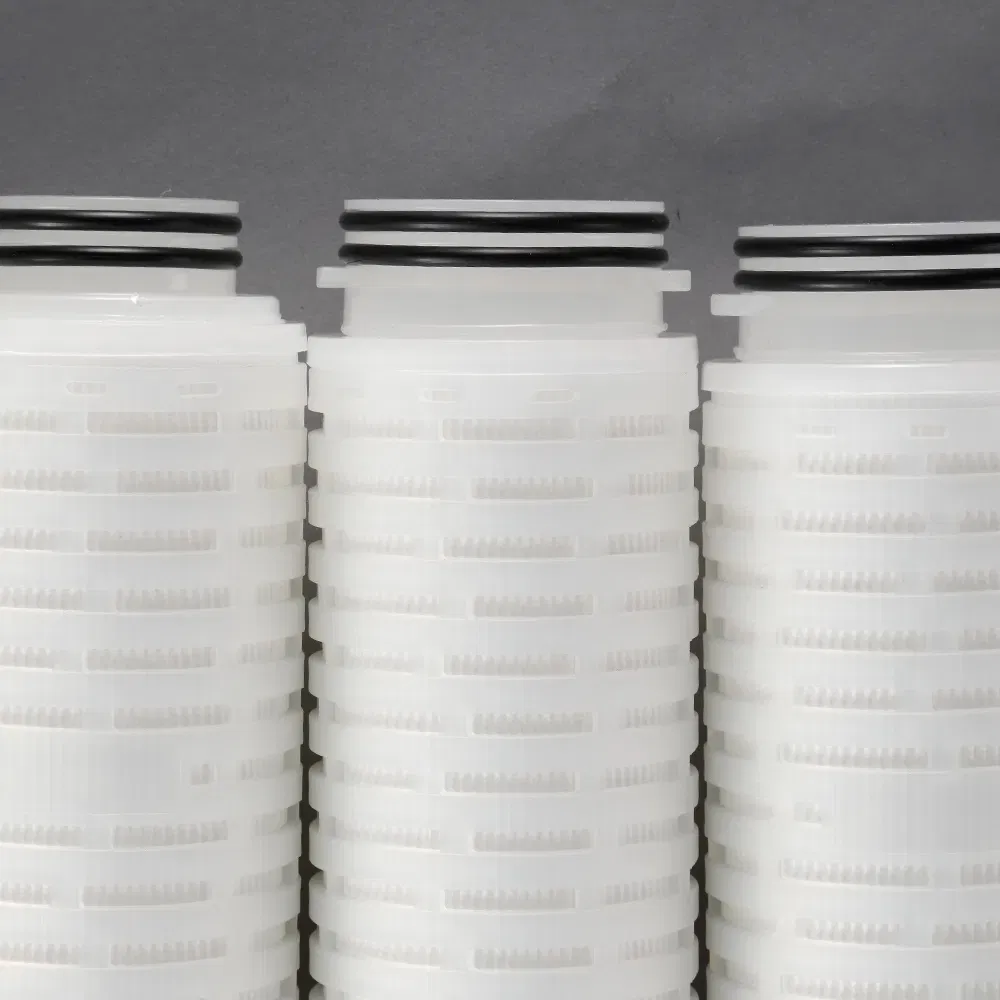

Application 4
Packaging & Shipping
Packaging 1

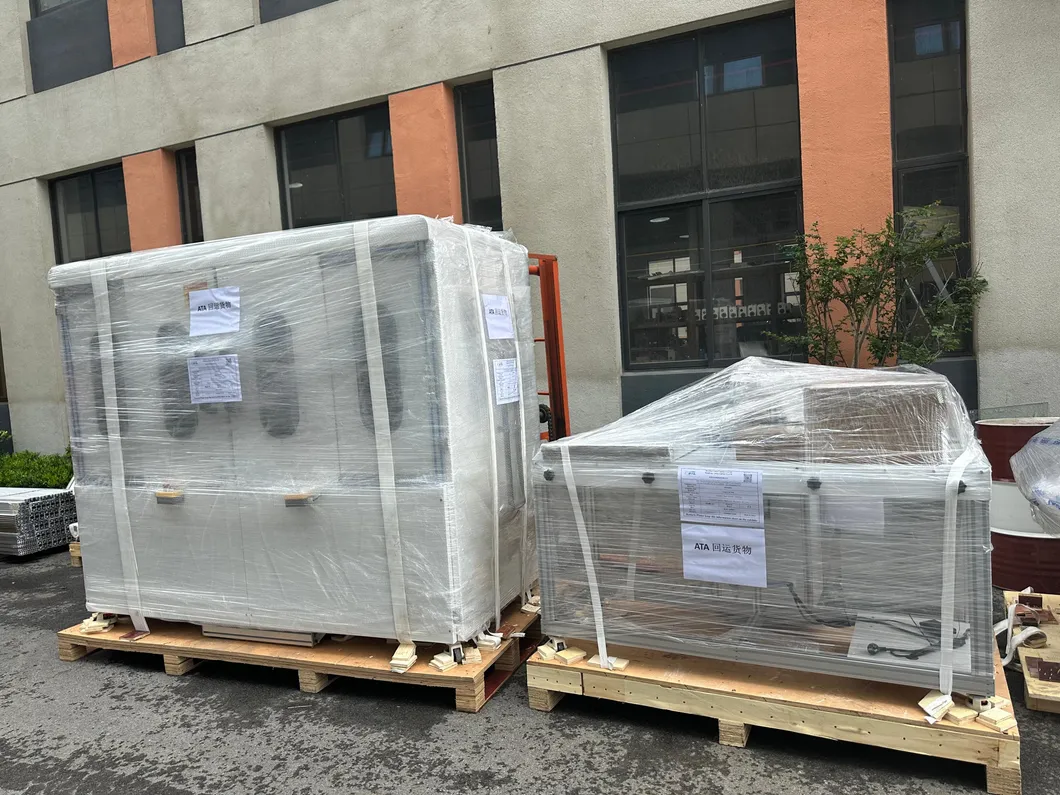

Packaging 2
Frequently Asked Questions
What is the production capacity of the ZS-SGW166 welder?
The equipment is designed for high efficiency, capable of producing 2 to 4 pieces per minute depending on the specific filter requirements.
What sizes of filter elements can this machine handle?
It supports filter lengths ranging from 10 to 40 inches and diameters between 60mm and 80mm.
What heating technology is used for the welding process?
The machine uses a dual heating system: a hot plate for the filter cartridge and an infrared lamp tube for the end cover to ensure a precise and strong weld.
Does the machine require highly skilled operators?
No, the equipment features a central PLC control system that makes operation simple and convenient, with no specialized door frame or technical requirements for operators.
What are the power and air pressure requirements?
The machine operates on 220VAC/380VAC 50/60HZ power supply and requires an air pressure of 0.6-0.8MPa.
How is the equipment packaged for international shipping?
The machine is securely packed in a robust wooden case to ensure protection during transit, with a gross weight of approximately 600-680kg.
