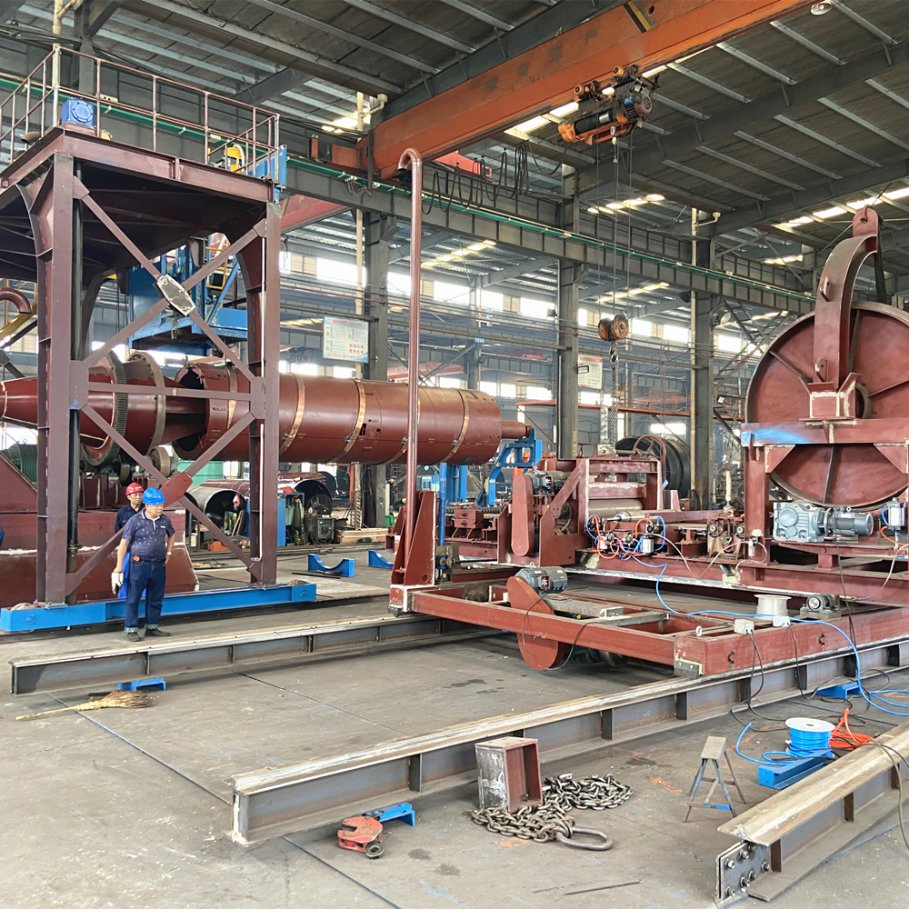

Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
1 / 5
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder
Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder

Pccp Jccp Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder

Customization: Available
Cooling Way: Air Cooling
Style: Hanging
Send Inquiry

Product Description

⚙

Basic Info

Model NO.
DN600-3600X6000MM
Frequency Range
Low Frequency
Electric Current
AC
Work Form
Moving-Coil
Type
Submerged-Arc Welder
Diameter
DN600-3600
Pipe Type
Pccp Concrete Pipe
Welder Type
DC-1000 Lincoln Welder
Coil Thickness
1.5mm
Origin
China
Production Capacity
100set Per Year
📦

Packaging & Delivery

Package Size
100.00cm * 90.00cm * 80.00cm
Package Gross Weight
100.000kg
📝

Product Description

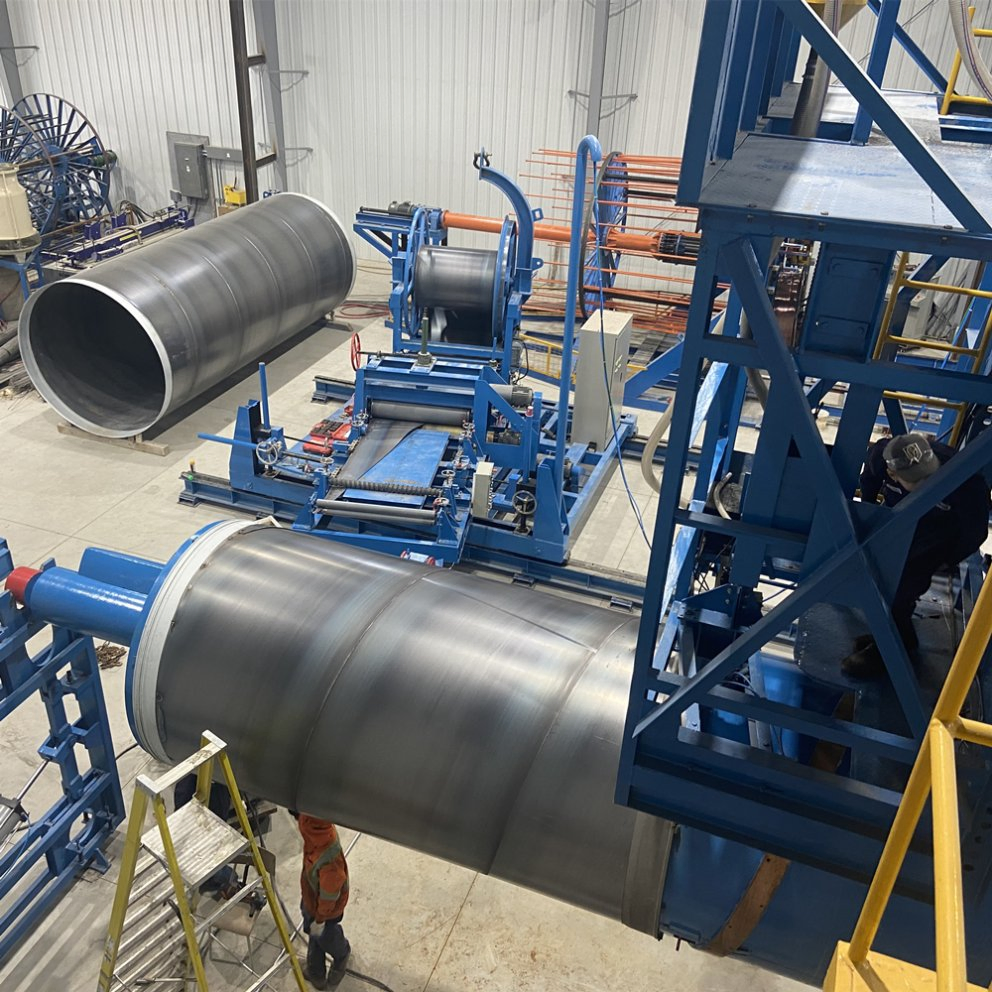

PCCP JCCP Prestressed Concrete Jacking Pipe Steel Cylinder Spiral Submerged Arc Welder

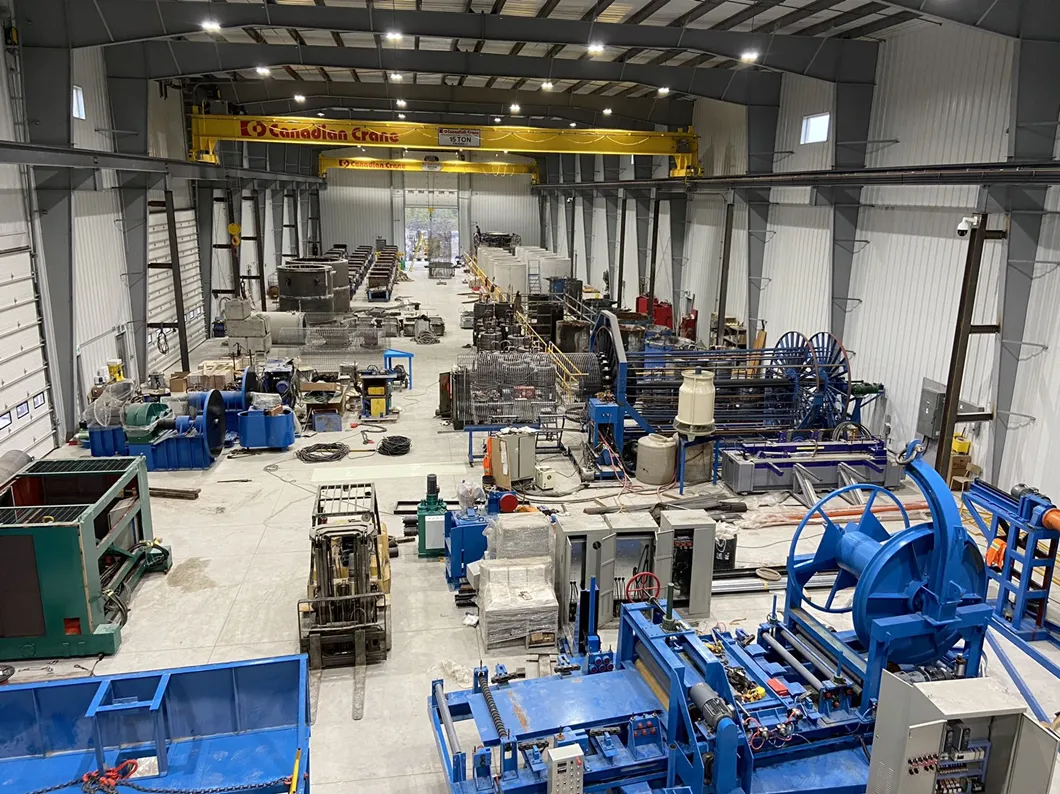

PCCP Production Line

PCCP concrete pipe production line making machine working shop

With more than 40 years of experience in research, development, and manufacture of cement products machinery, our professional facility holds numerous national patents and ISO9001:2008 quality management certification. Our core expertise includes:
  • DN400-4000mm PCCP Pipe Production Line
  • Concrete Drainage Pipe Production Line
  • Cage Welding Machine
  • Concrete Pipe Mold
We have successfully deployed over 60 complete PCCP pipe production lines globally, including markets in Canada, Egypt, India, Indonesia, South America, and Africa.

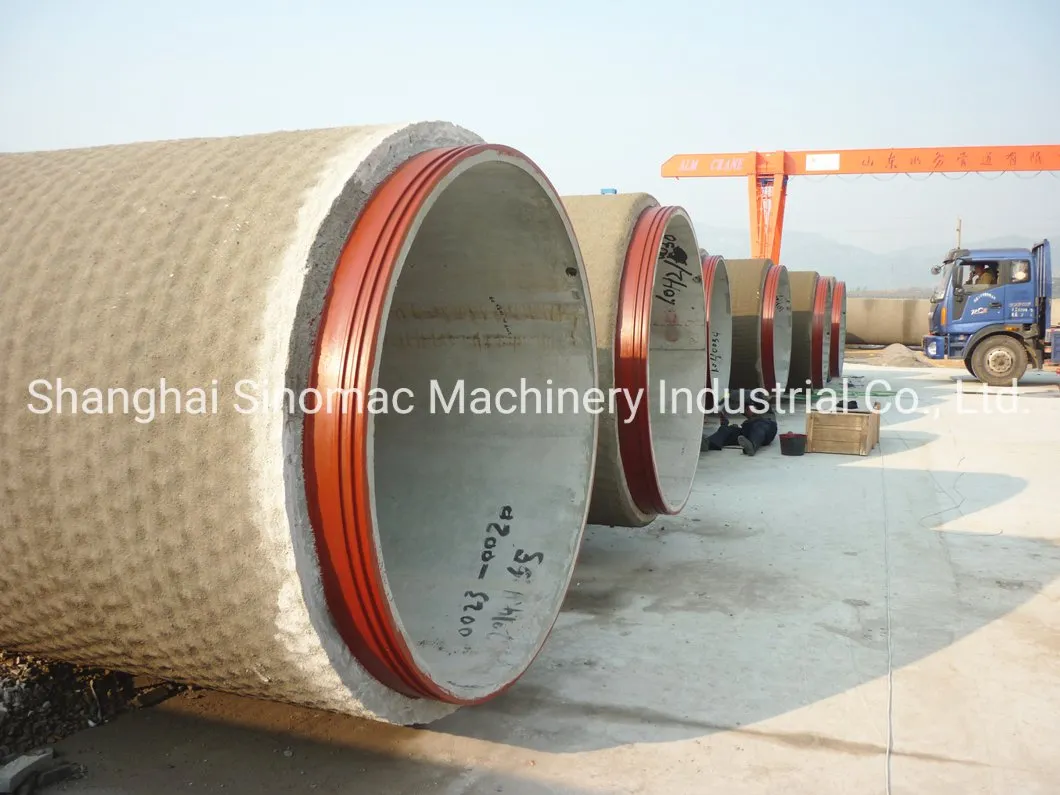

PCCP Pipe Stock

PCCP concrete pipe production line: pipes in stock

📊

Technical Specifications

Model DN600-1600X6000mm DN1800-3600X6000mm
Welding Pipe Diameter600-1600mm1800-3600mm
Welding Pipe Length6000mm6000mm
Lincoln Welder TypeDC-600DC-1000
Welding Speed0.5-2.5m/min0.5-2.5m/min
Coil Width1250mm1250mm
Coil Thickness1.5-2.0mm1.5-2.0mm
Control SystemPLC controlPLC control
Cutting TypeAuto Plasma CuttingAuto Plasma Cutting

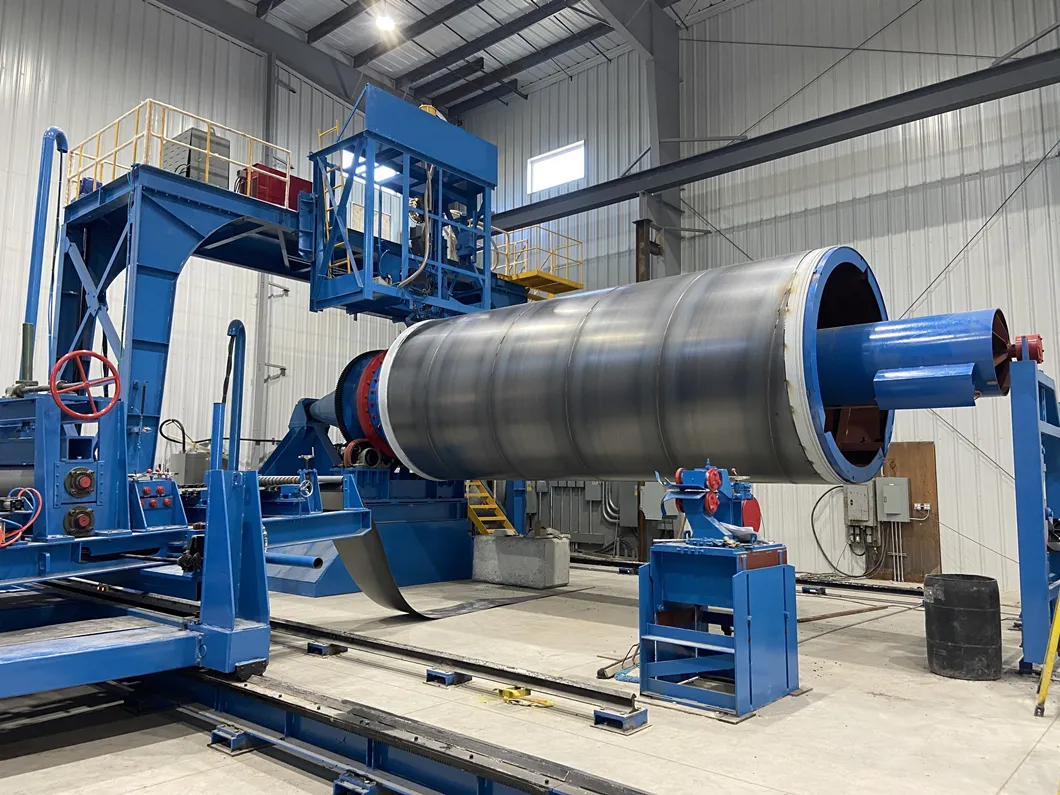

Installation Canada

DN2400X6000mm Steel Cylinder Welder installation in Toronto, Canada

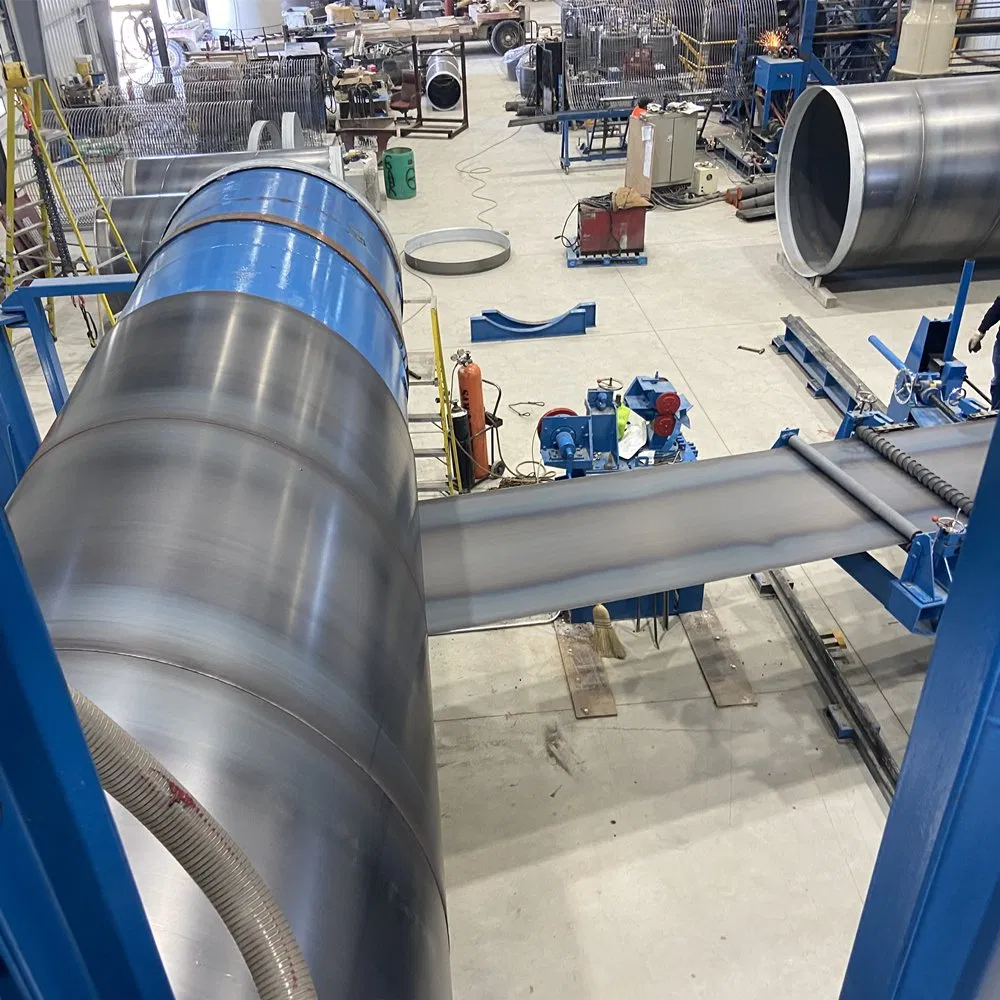

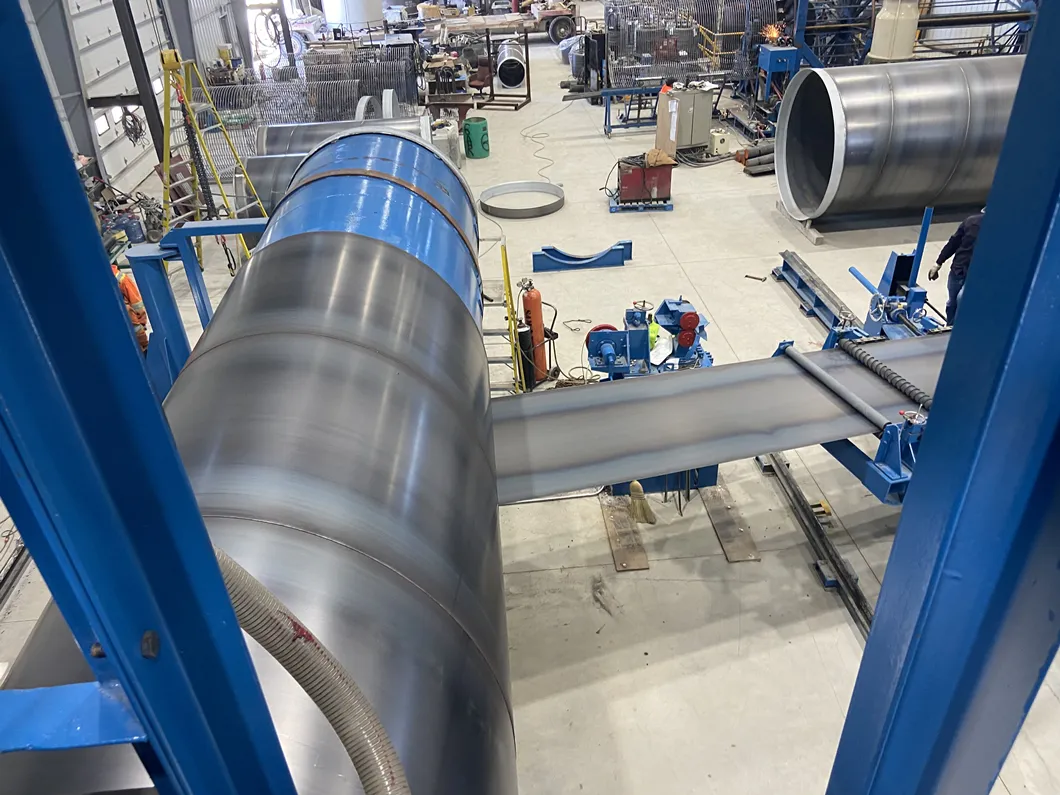

Arc Welder Working

Steel Cylinder Arc Welder working in Toronto, Canada

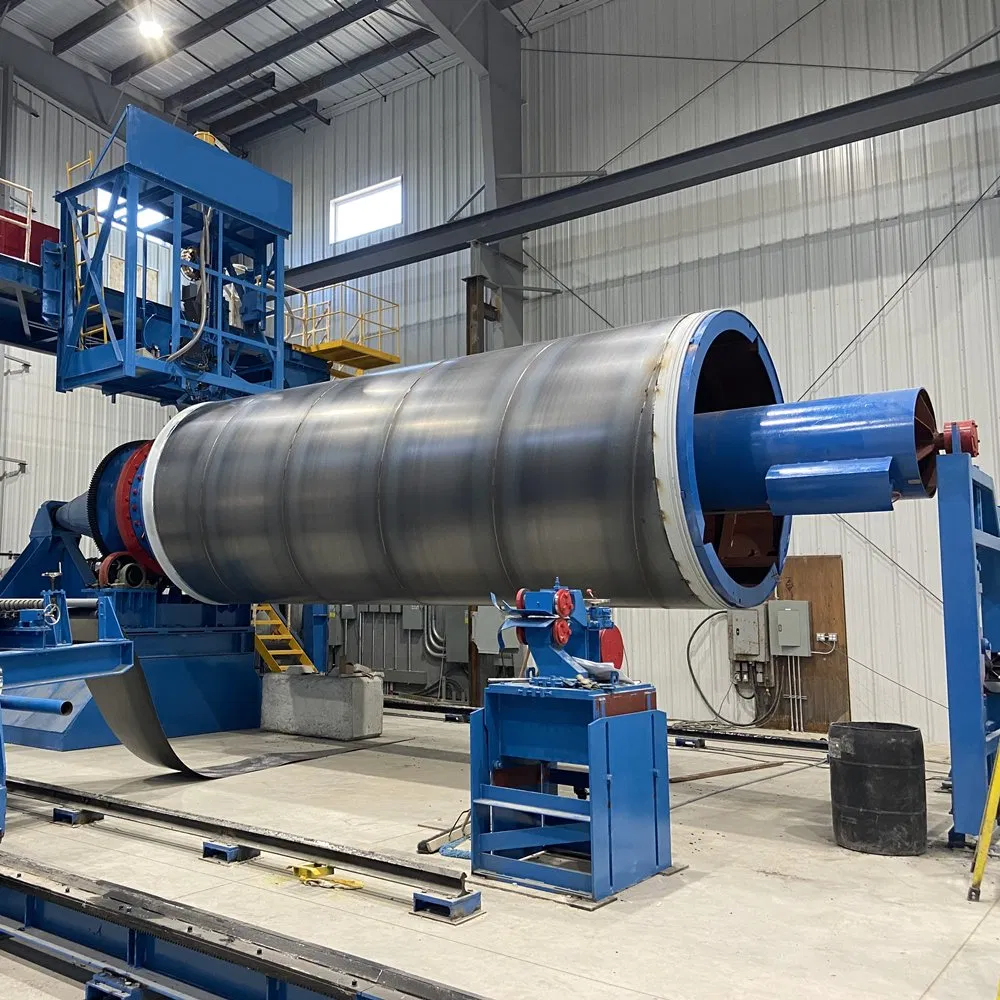

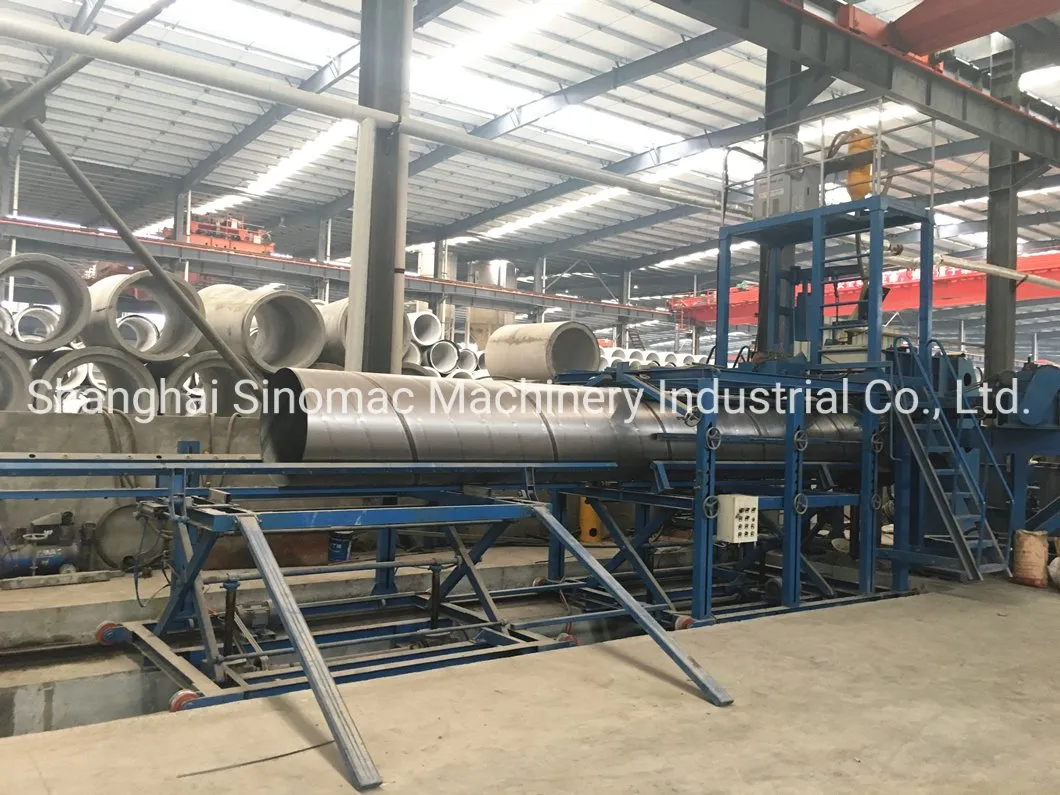

Steel Cylinder Welder

DN600-1600X6000mm Steel Cylinder Welder

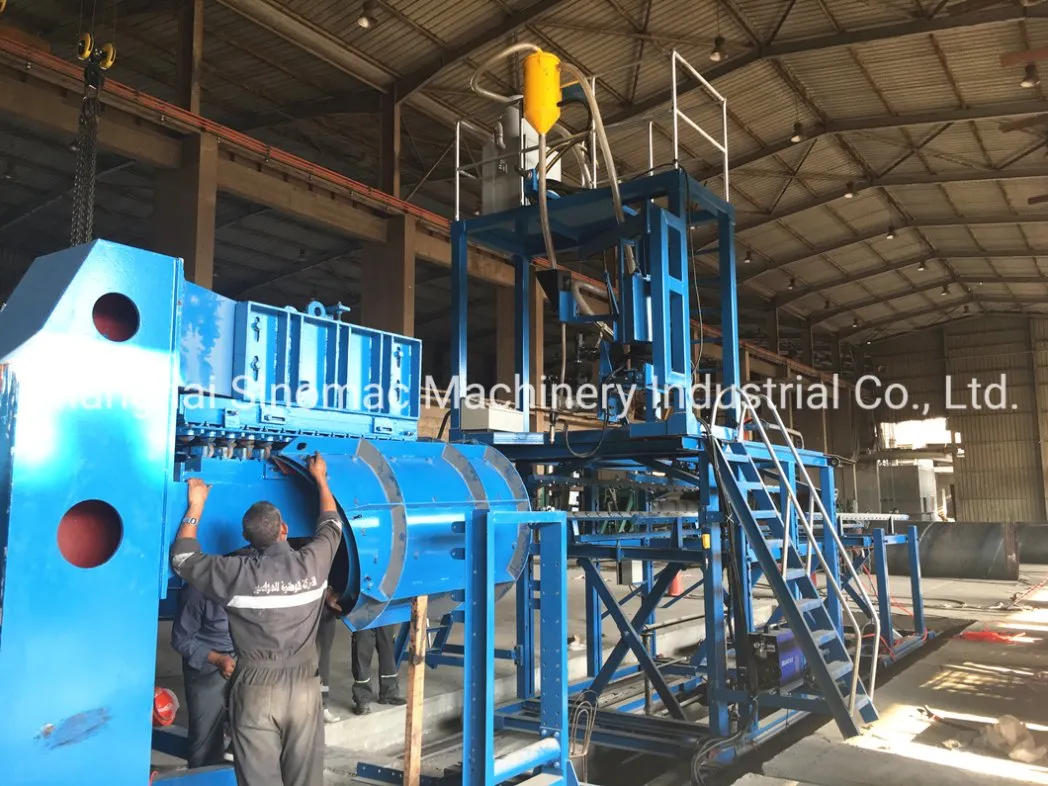

Welder in Egypt

Steel Cylinder Welder in Egypt

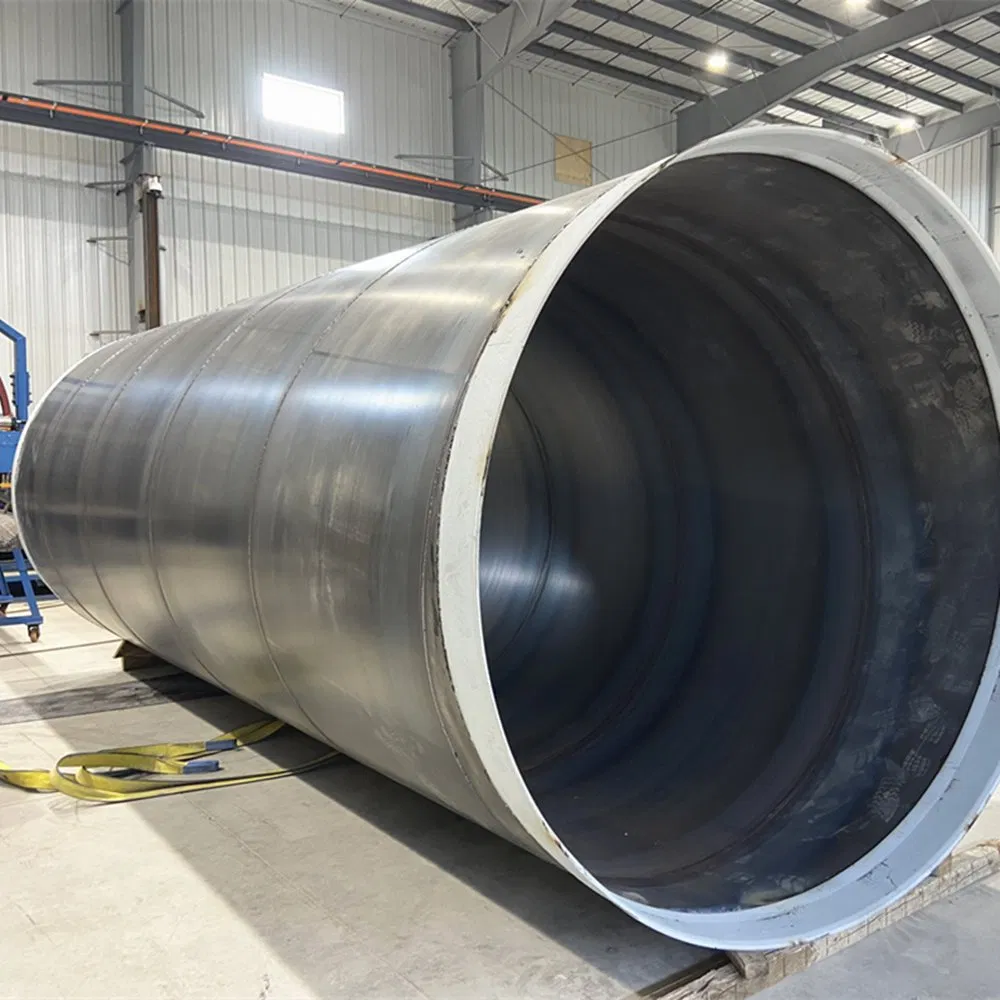

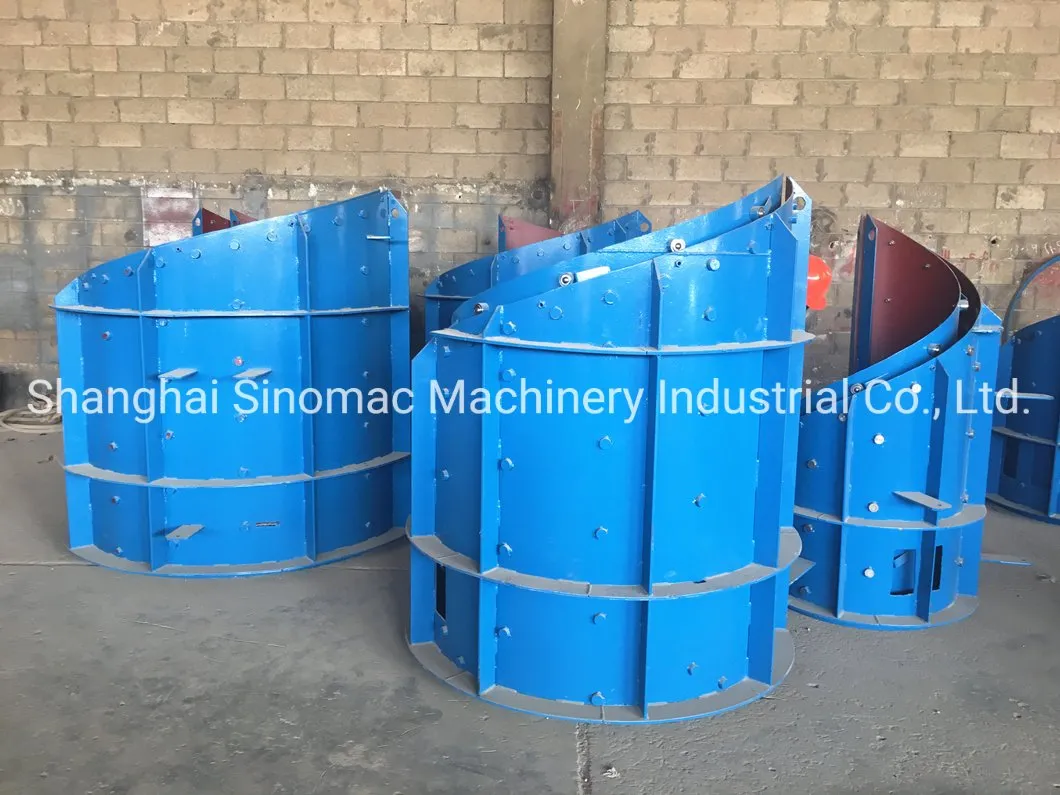

Tube Core

Steel Cylinder Welder Tube Core

🔄

Working Flowchart & Equipment

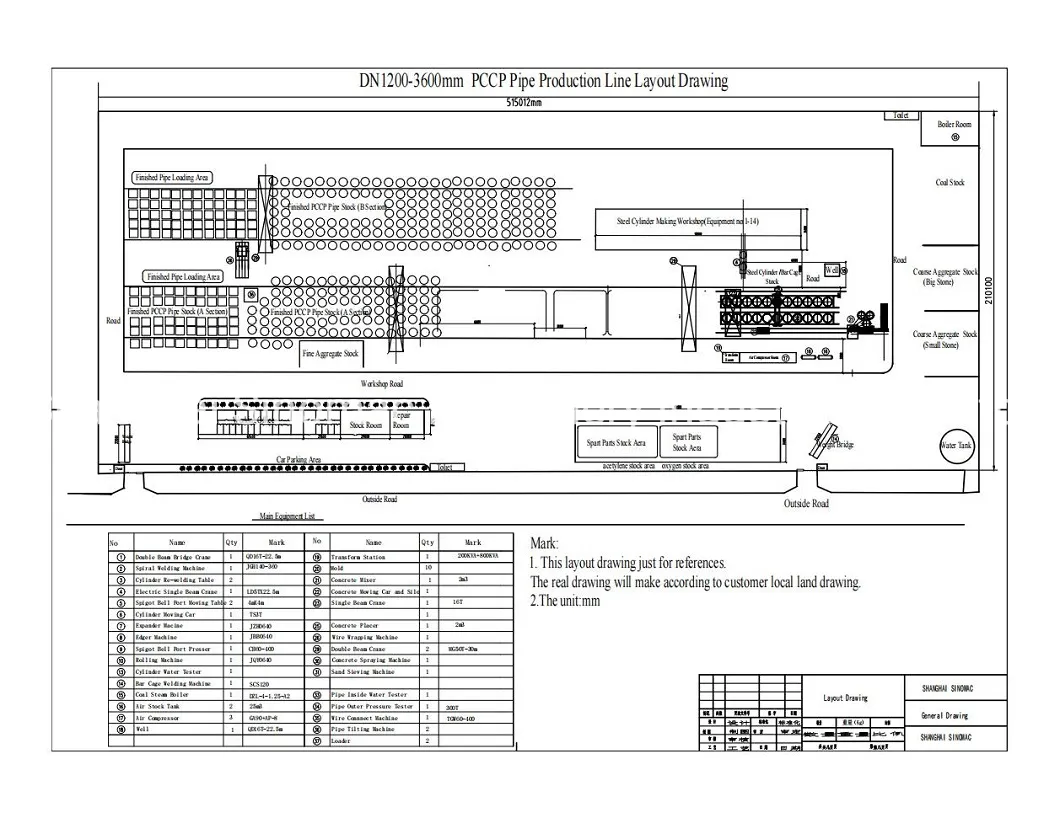

Workflow Chart

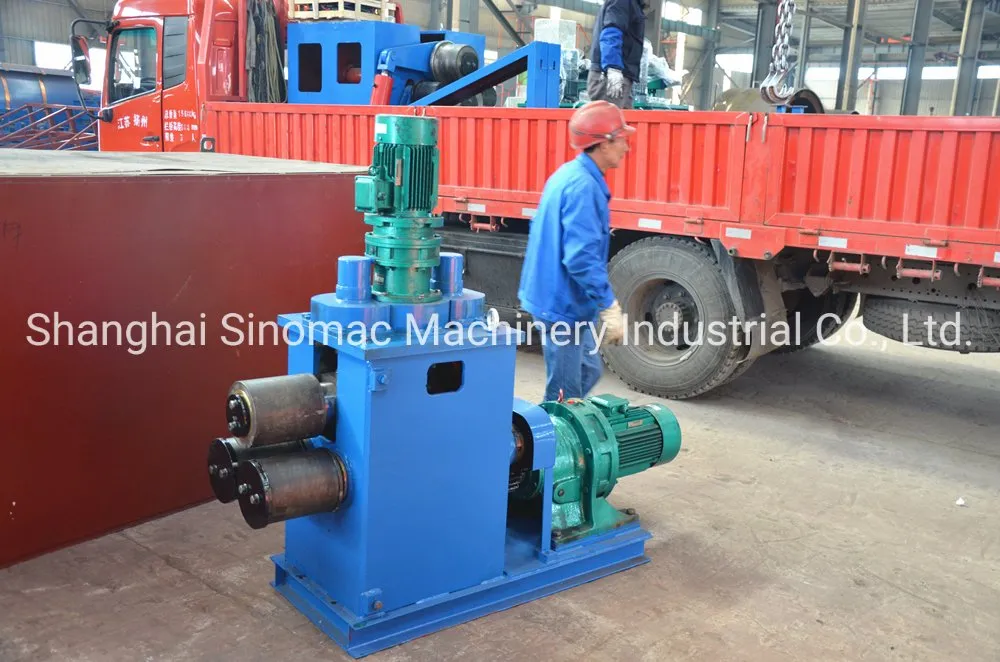

Rolling Machine

Steel spigot/bell ring rolling machine

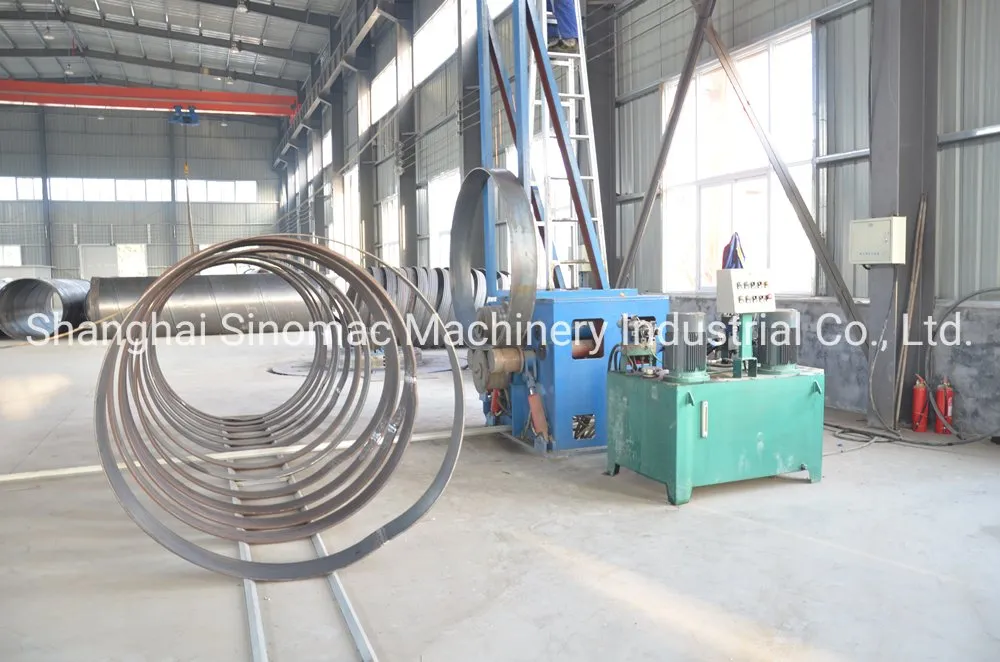

Edging Machine

Steel bell ring edging machine

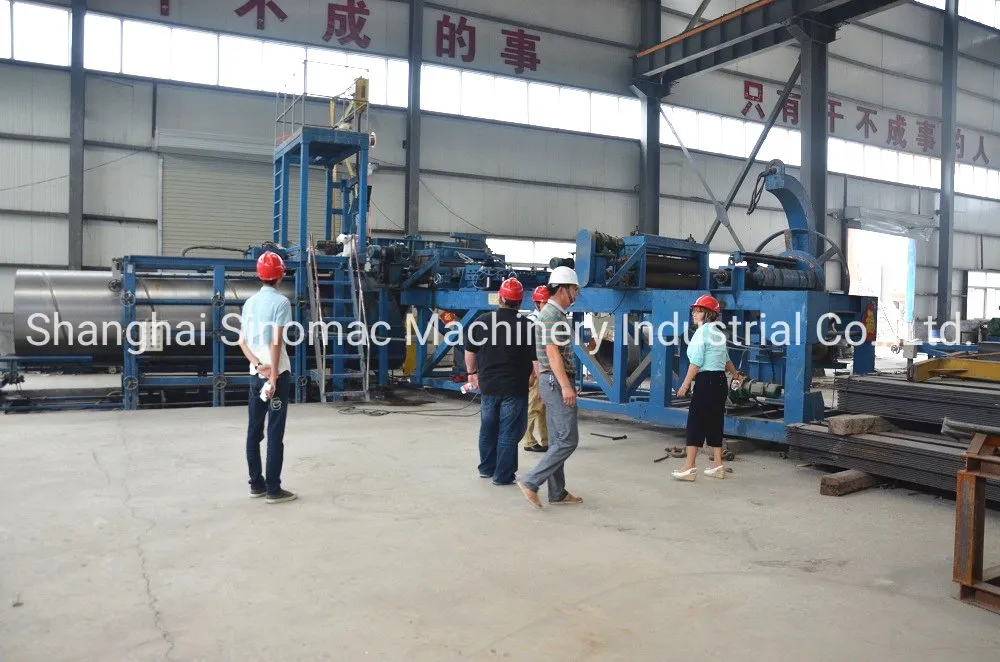

Spiral Welding

Small steel cylinder welding machine

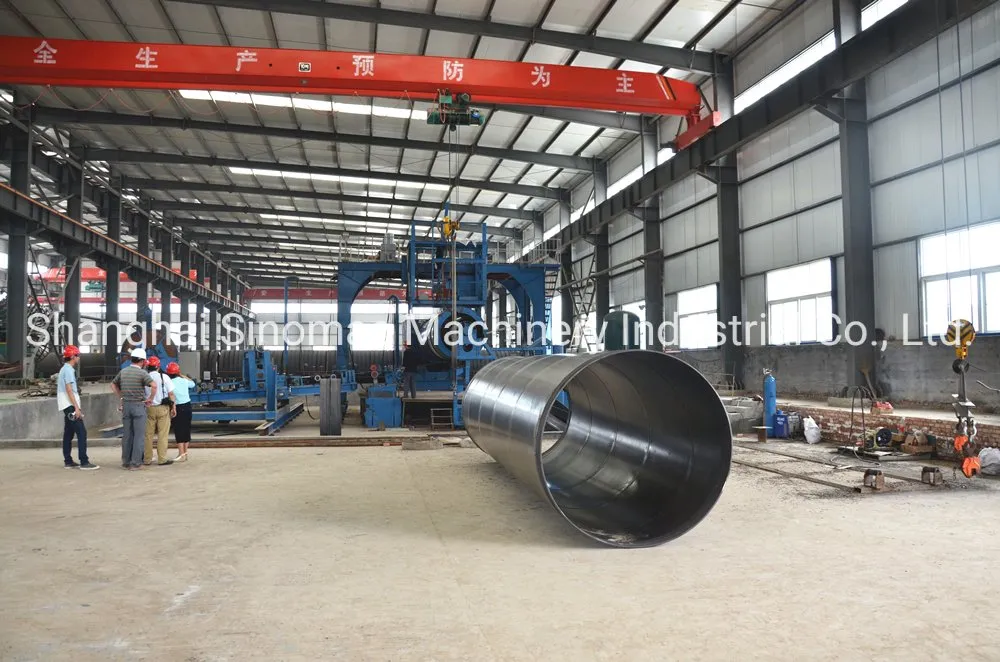

Big Cylinder Welding

Big steel cylinder welding machine

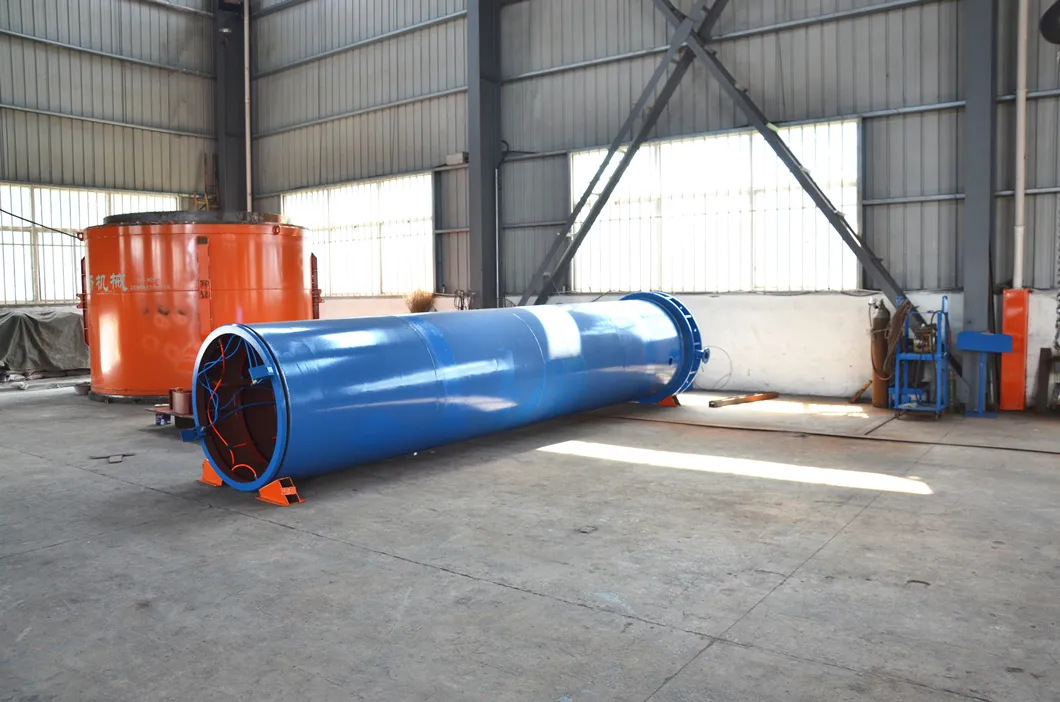

Water Testing

Steel cylinder water pressure testing machine

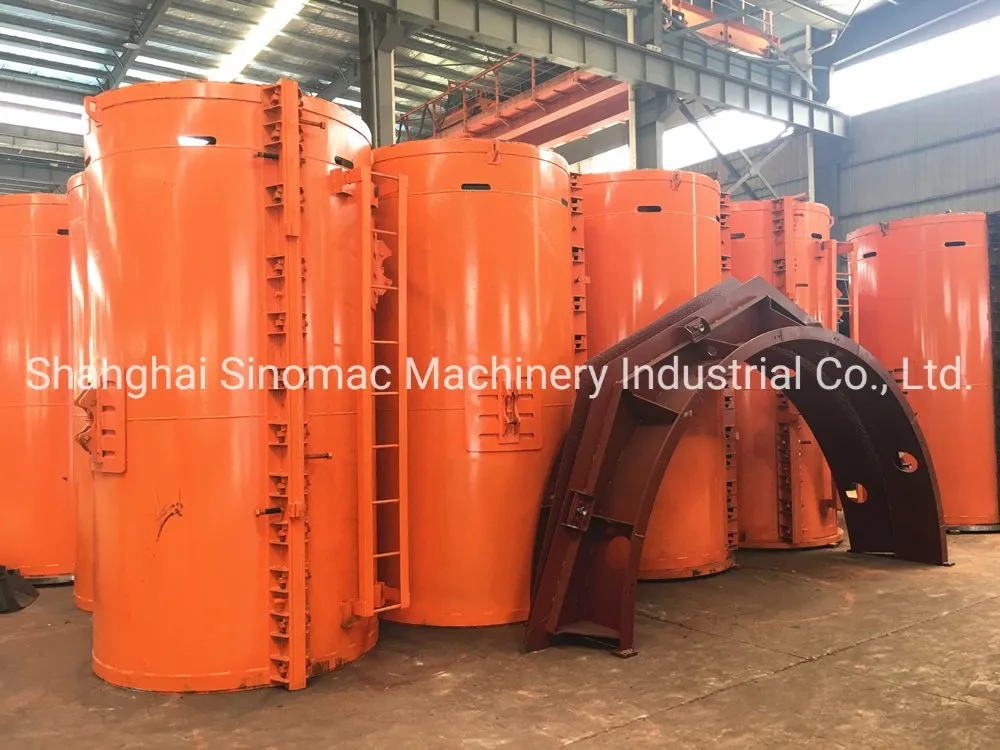

Jacking Pipe Mould

Jacking concrete pipe mould

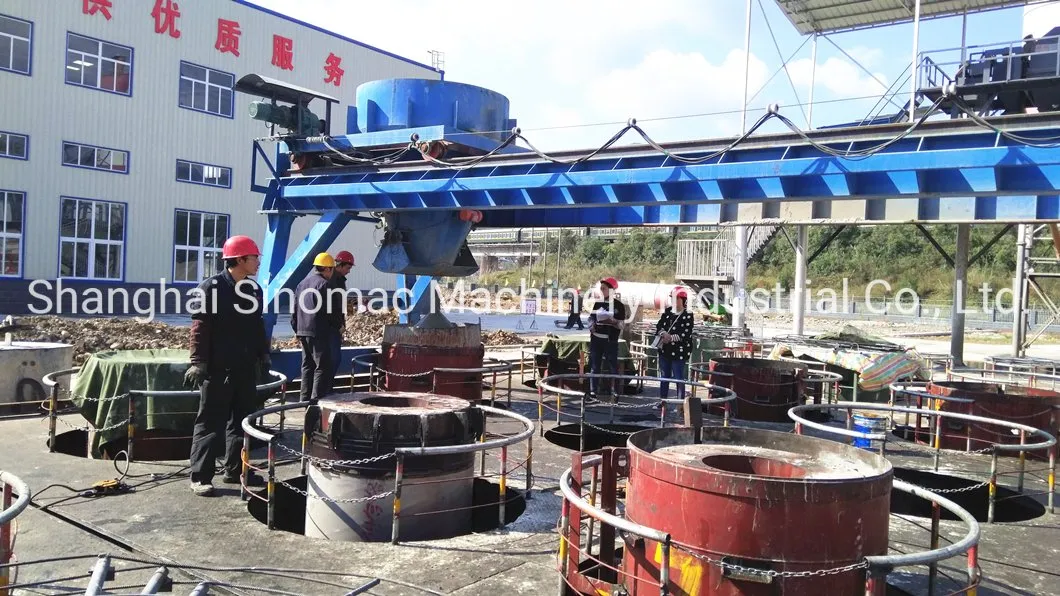

Concrete Casting

PCCP pipe concrete casting machine

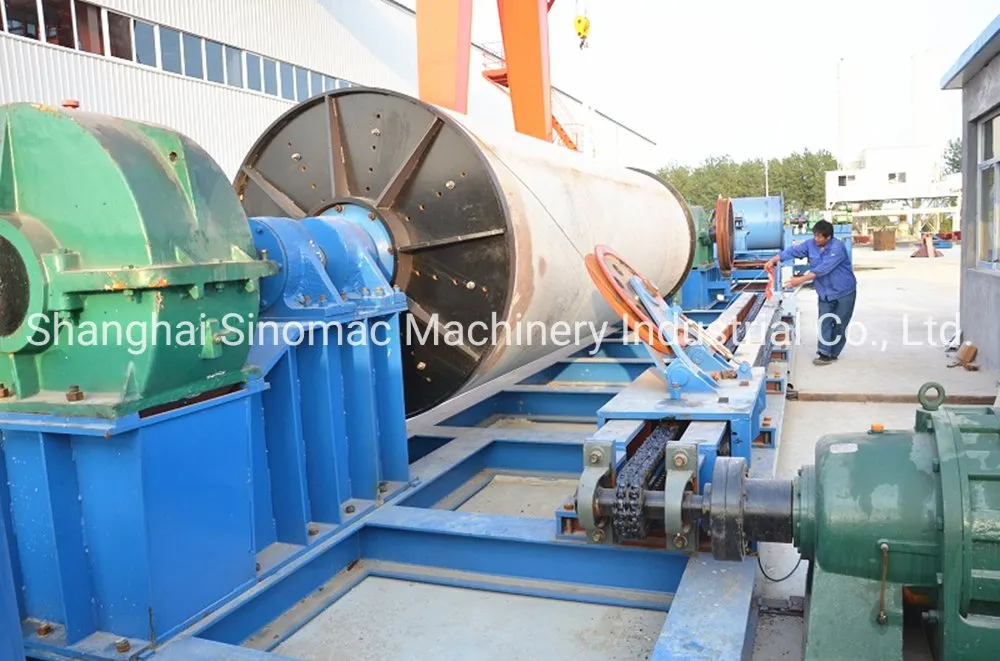

Wire Wrapping

PCCP pipe wire wrapping machine

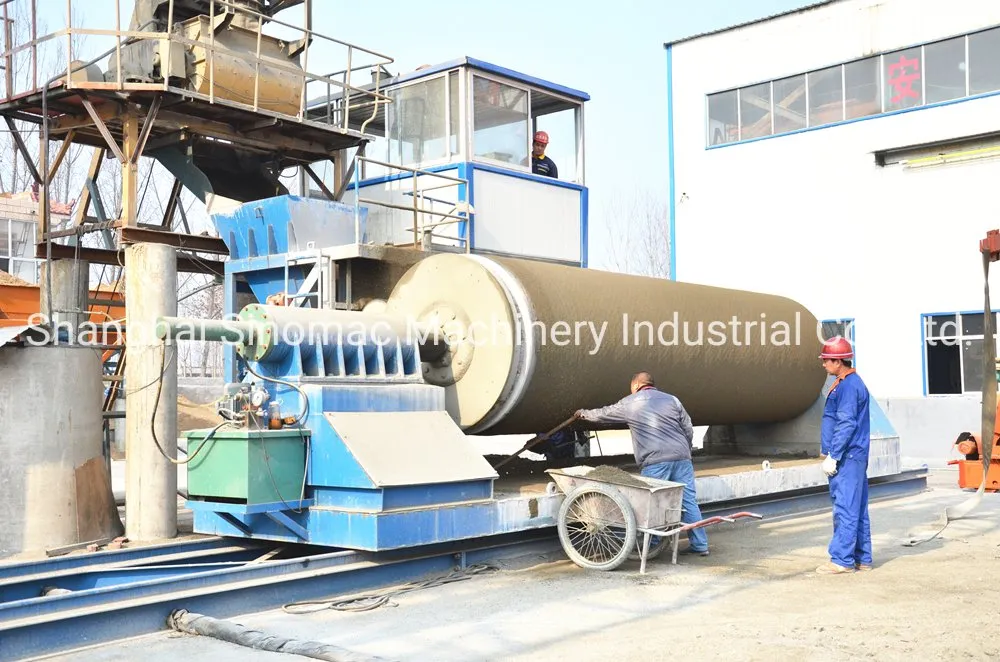

Coating Machine

PCCP concrete pipe coating machine

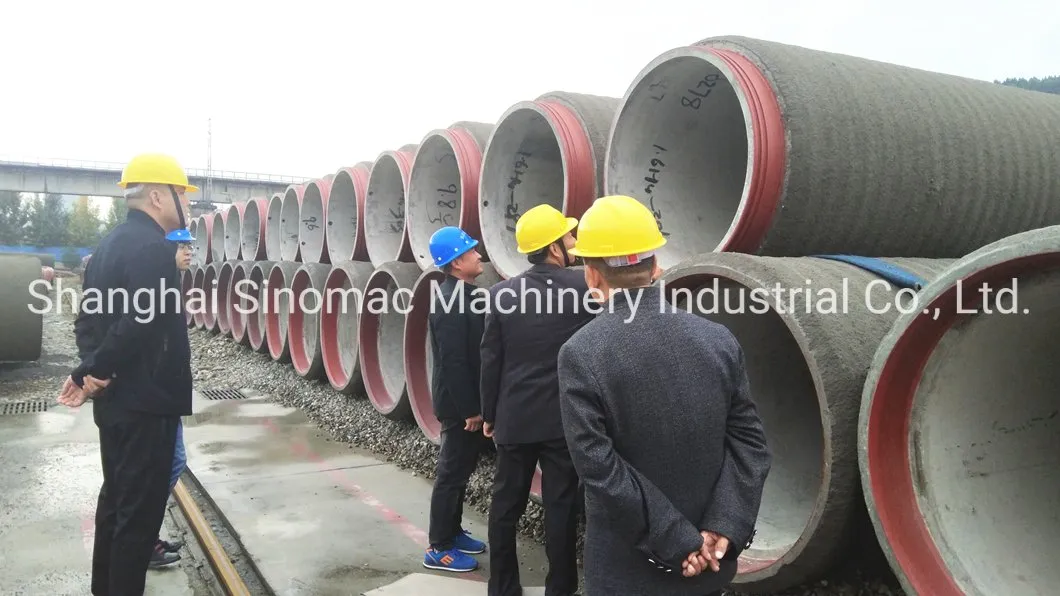

Pipe Checking

Final products: PCCP pipe checking

❓

Frequently Asked Questions

What diameters of PCCP pipes can this production line produce?
The production line is versatile and can be configured to produce pipes with diameters ranging from DN400mm to DN4000mm, with specific models covering DN600-1600mm and DN1800-3600mm.
What type of welding technology is used for the steel cylinders?
The system utilizes advanced Spiral Submerged Arc Welding technology, specifically equipped with high-performance Lincoln Welders (DC-600 or DC-1000 models) for superior weld quality.
Is the production process automated?
Yes, the production line features a PLC control system and includes automatic plasma cutting to ensure high precision and consistent production speeds of 0.5-2.5m/min.
What international quality standards do your machines meet?
The manufacturing facility is ISO9001:2008 certified, and the equipment design incorporates multiple national patents for research and development.
Does the equipment undergo pressure testing?
Absolutely. The production line includes both a Steel Cylinder Water Pressure Testing Machine and a Pipe External Pressure Testing Machine to ensure the structural integrity of every unit produced.
