Customization:	Available
Cooling Way:	Air Cooling
Style:	Hanging

Send Inquiry

Product Description

ⓘ

Basic Specifications

Model NO.

DN1200-3600X6000MM

Frequency

Low Frequency

Current

AC

Work Form

Moving-Coil

Type

Submerged-Arc Welder

Pipe Type

Pccp Concrete Pipe

Diameter

DN600-3600

Length

6000mm

Welder Type

DC-1000 Lincoln Welder

Coil Width

1250mm

Origin

China

HS Code

8480600000

★

Product Description

Concrete Pipe Mold Prestressed Concrete Cylinder Pipe Steel Cylinder Spiral Welder

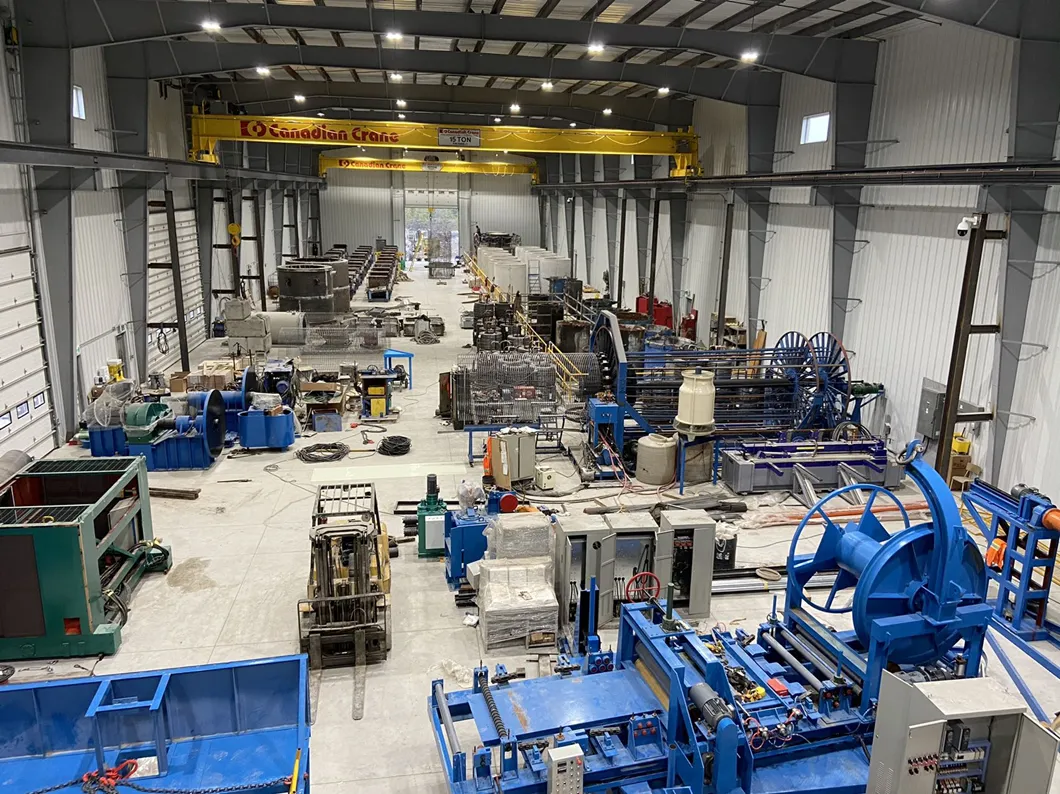

PCCP Production Line

PCCP concrete pipe production line making machine workshop

High-performance equipment for cement products, featuring advanced technology and multiple national patents. Key product offerings include:

DN400-4000mm PCCP Pipe Production Line
Concrete Drainage Pipe Production Line
Cage Welding Machine
Concrete Pipe Mold

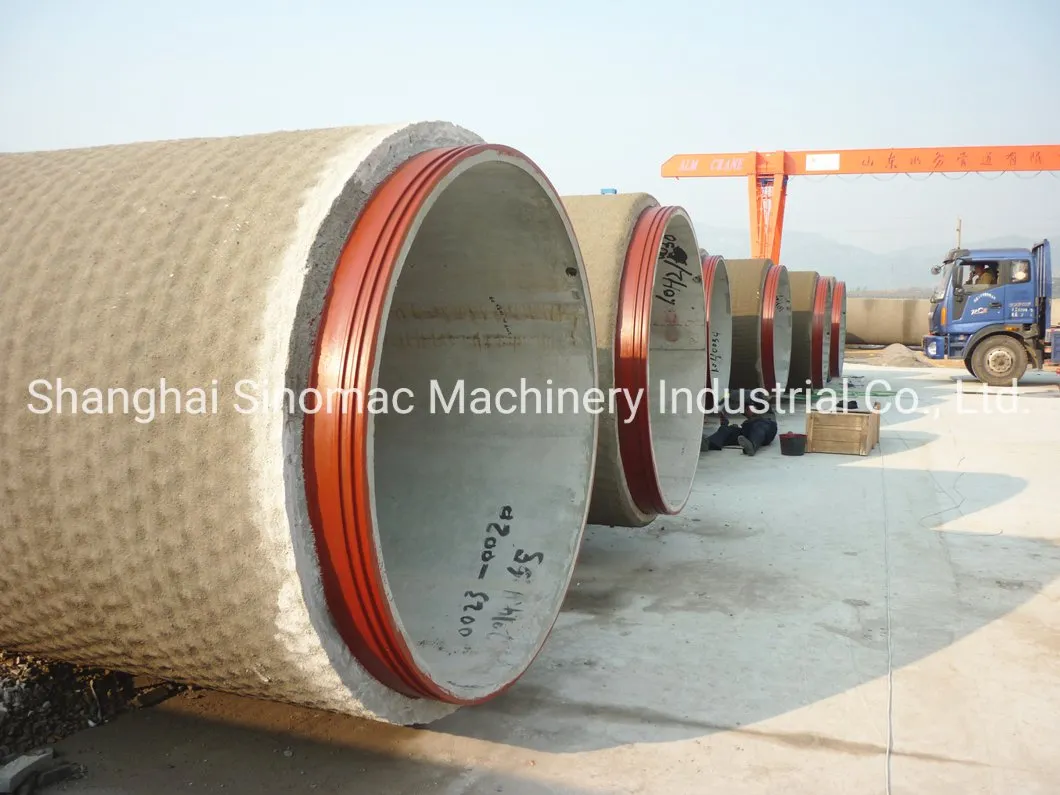

PCCP Pipes

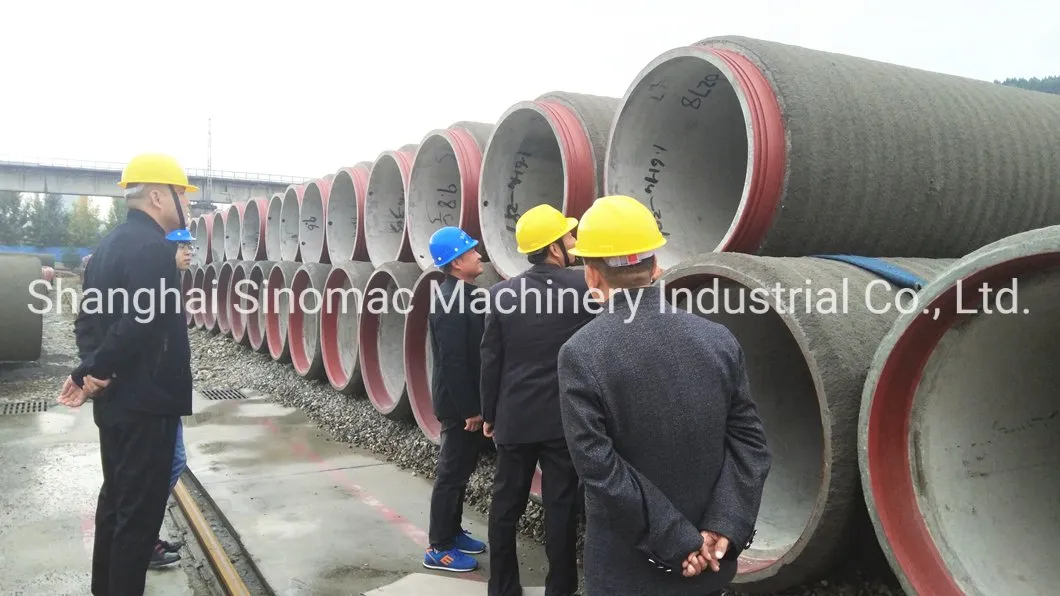

PCCP concrete pipe in stock

⚙

Technical Parameters

Model	DN600-1600X6000mm	DN1800-3600X6000mm
Welding Pipe Diameter	600-1600mm	1800-3600mm
Welding Pipe Length	6000mm	6000mm
Lincoln Welder Type	DC-600	DC-1000
Welding Speed	0.5-2.5m/min	0.5-2.5m/min
Coil Standard	GB/T5213-2008 oil free cold rolled steel plate
Coil Width	1250mm	1250mm
Coil Thickness	1.5-2.0mm	1.5-2.0mm
Control System	PLC control	PLC control
Cutting Type	Auto Plasma Cutting	Auto Plasma Cutting

📷

Equipment Gallery

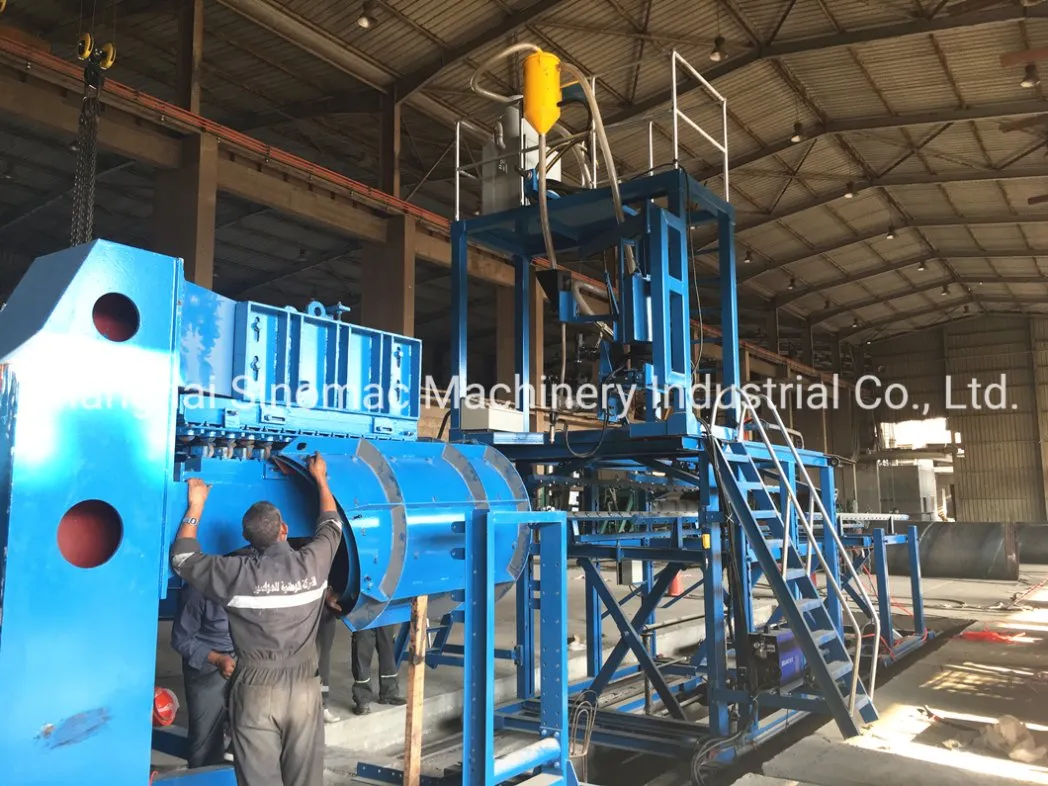

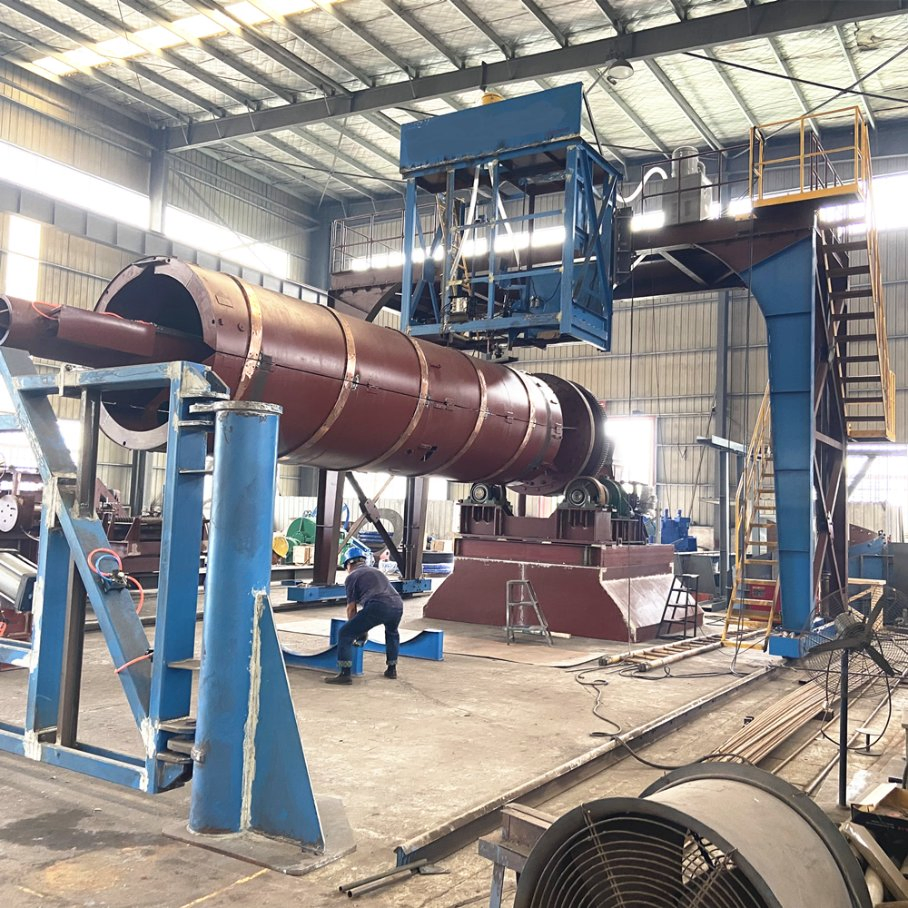

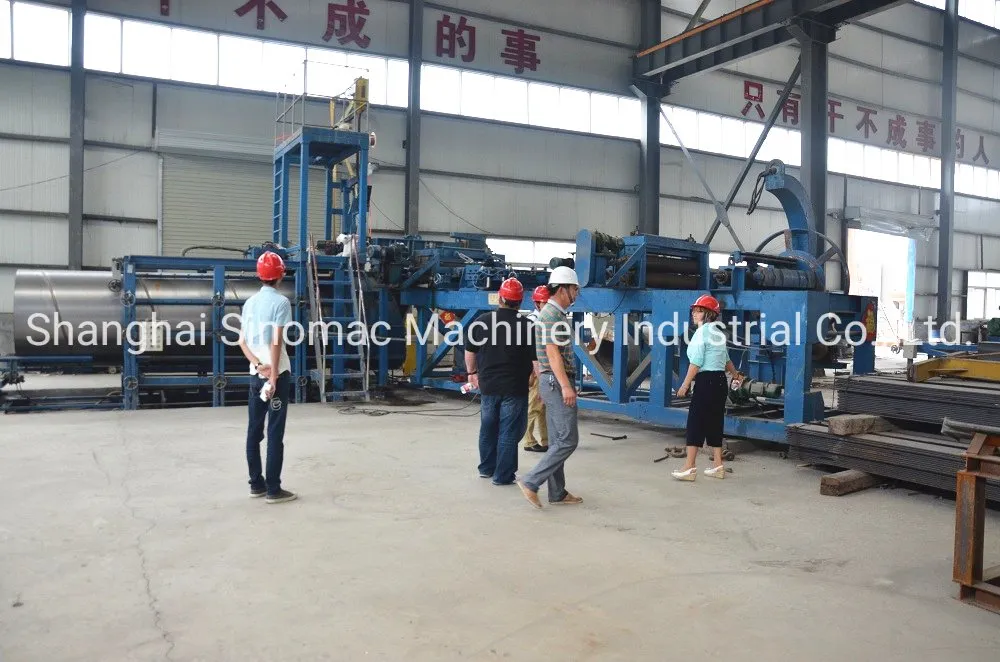

Steel Cylinder Welder Installation

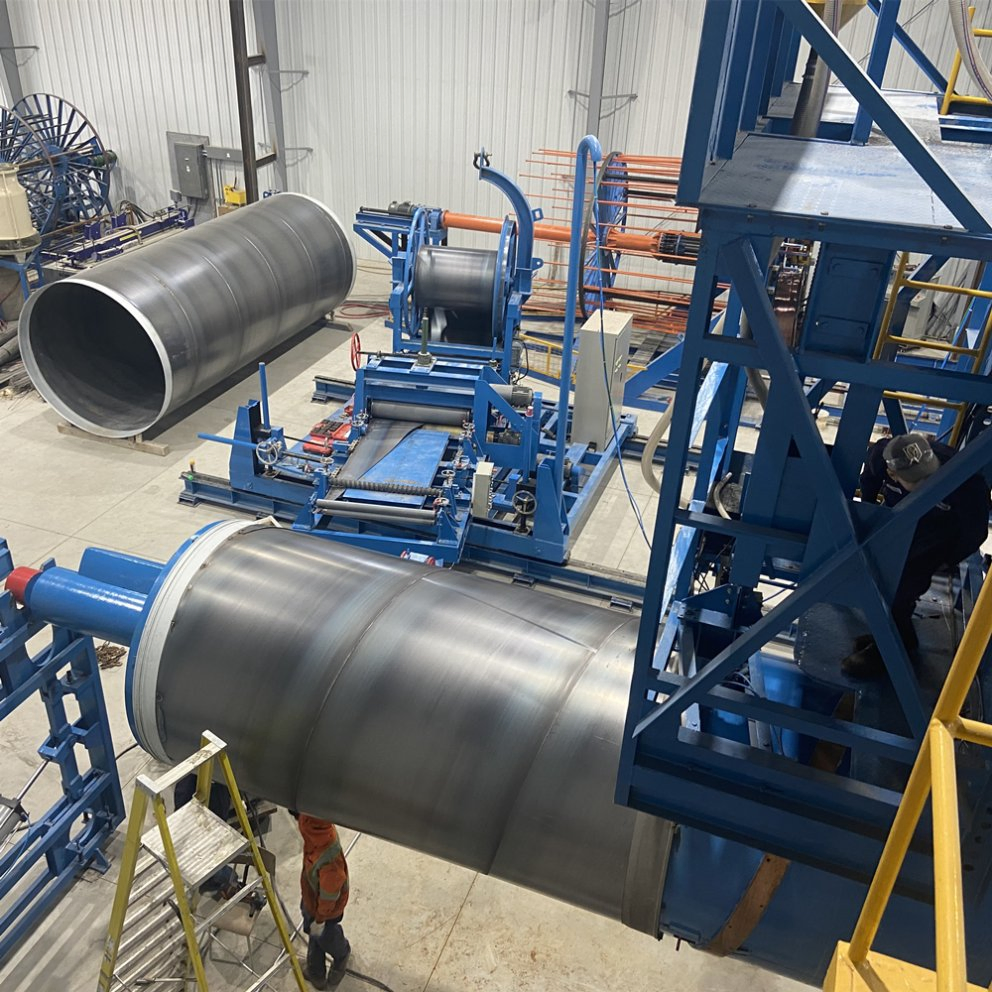

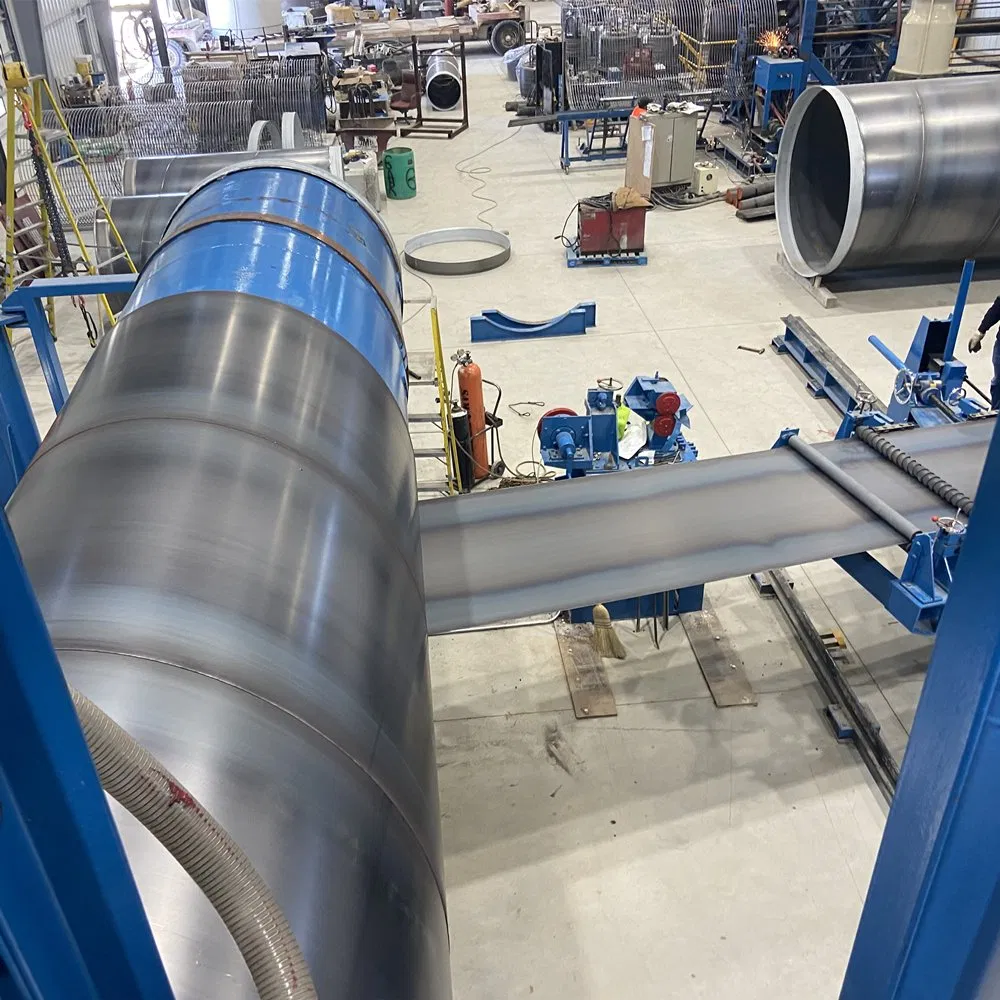

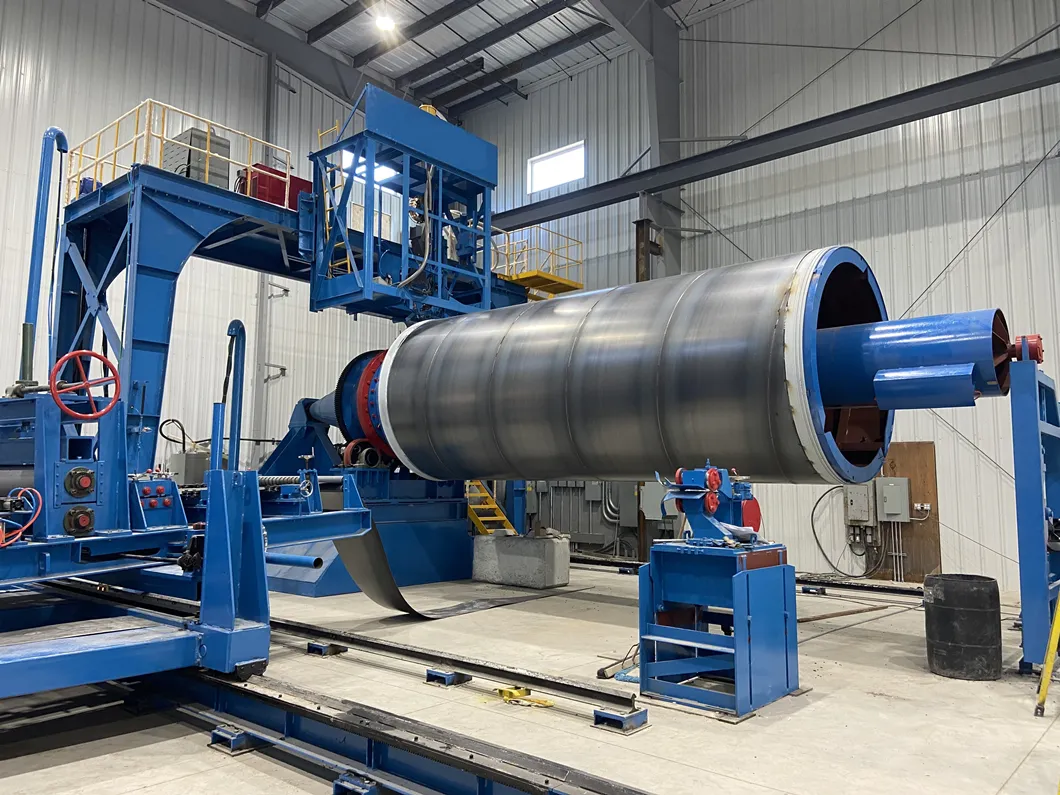

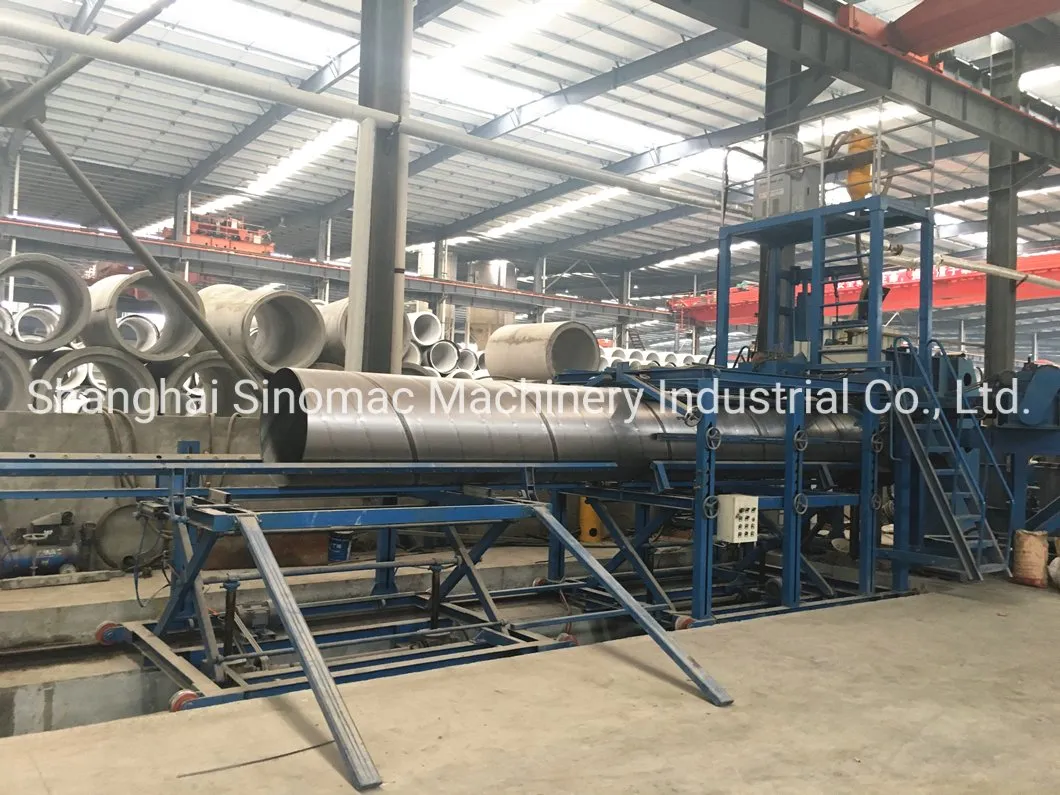

Steel Cylinder Arc Welder Working

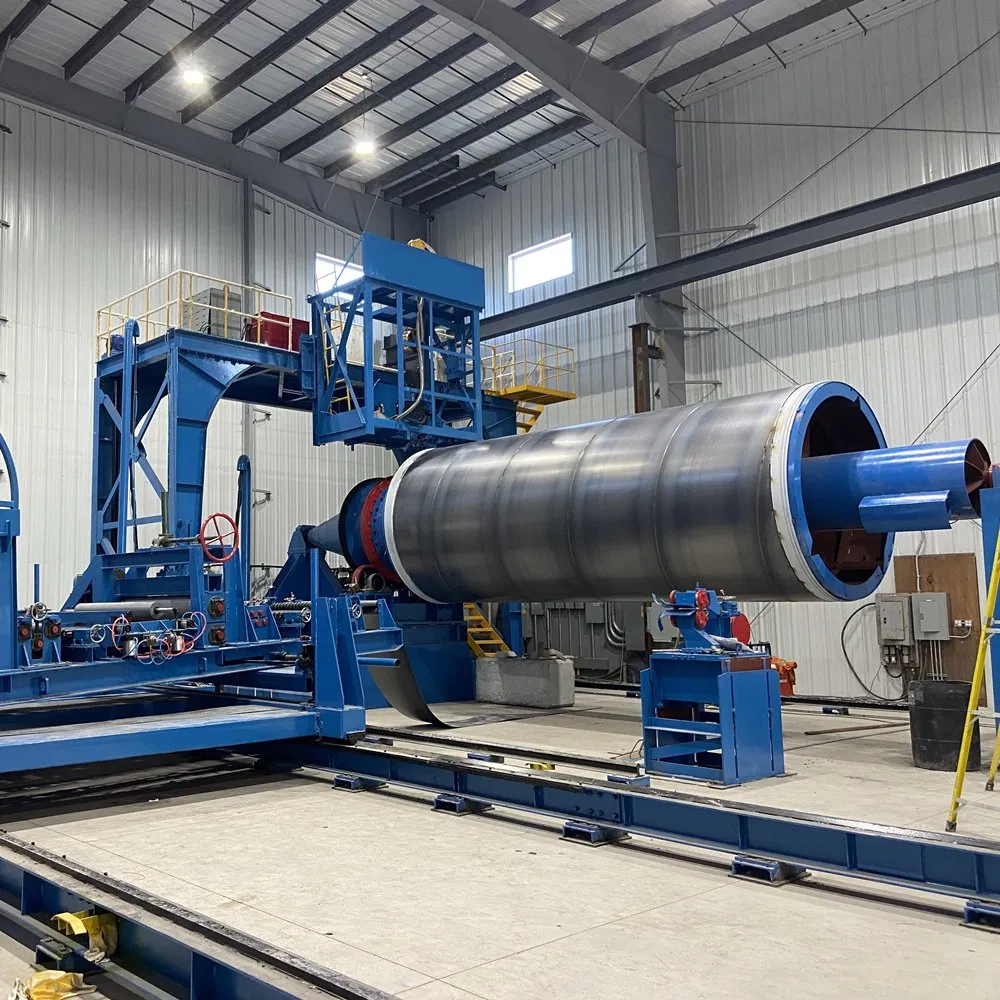

DN600-1600X6000mm Welder

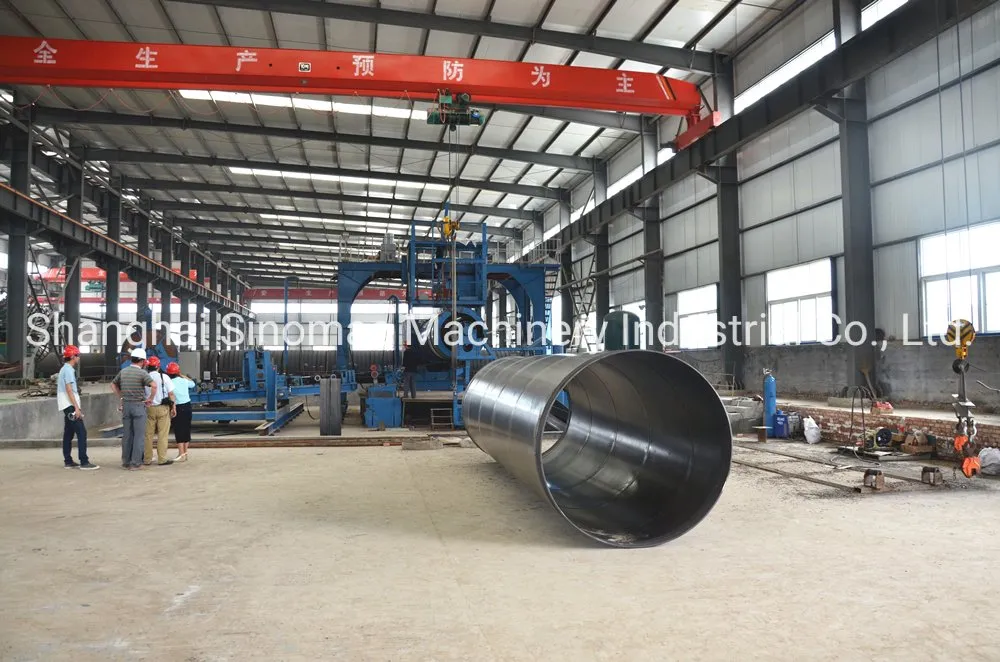

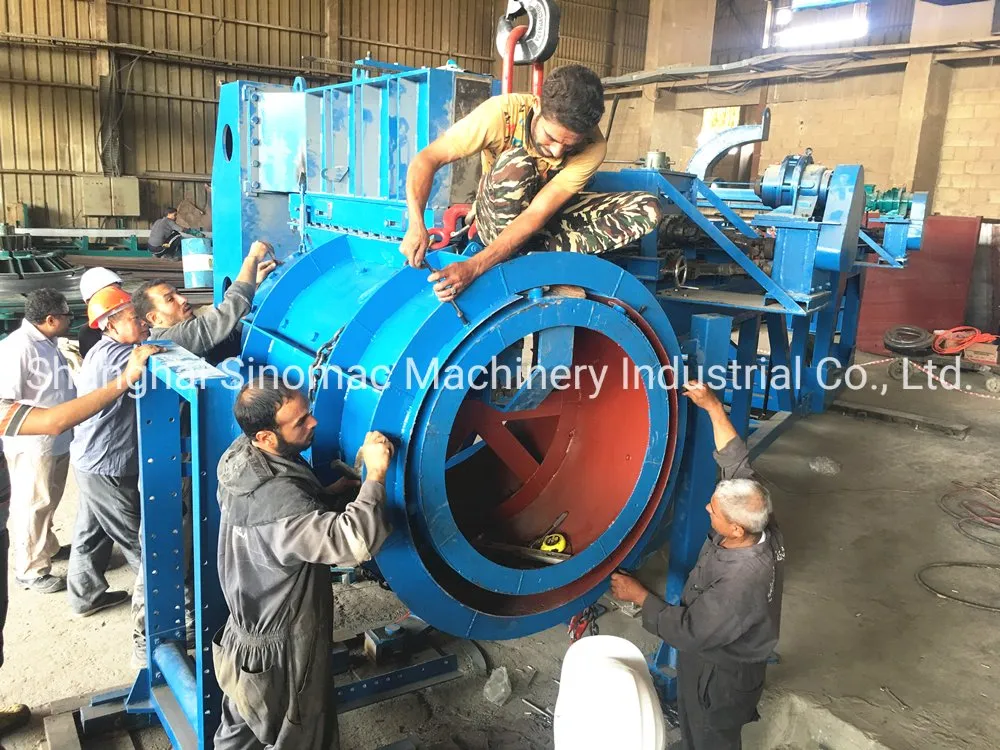

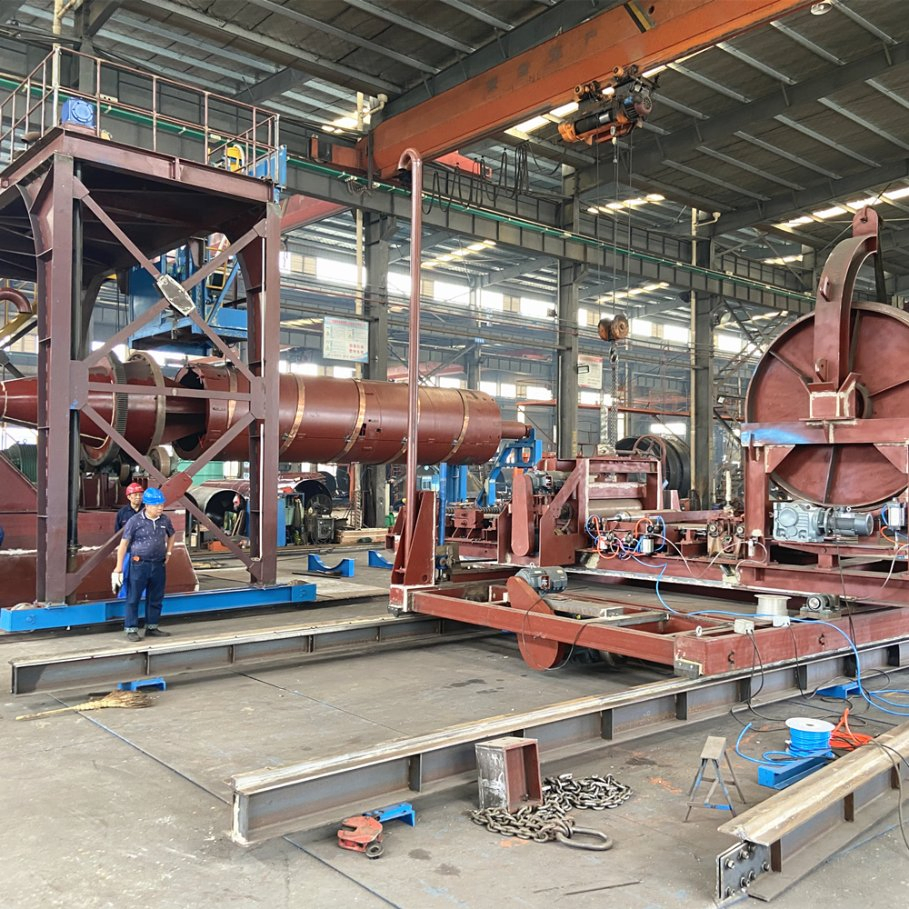

Production Site Setup

Welder Tube Core

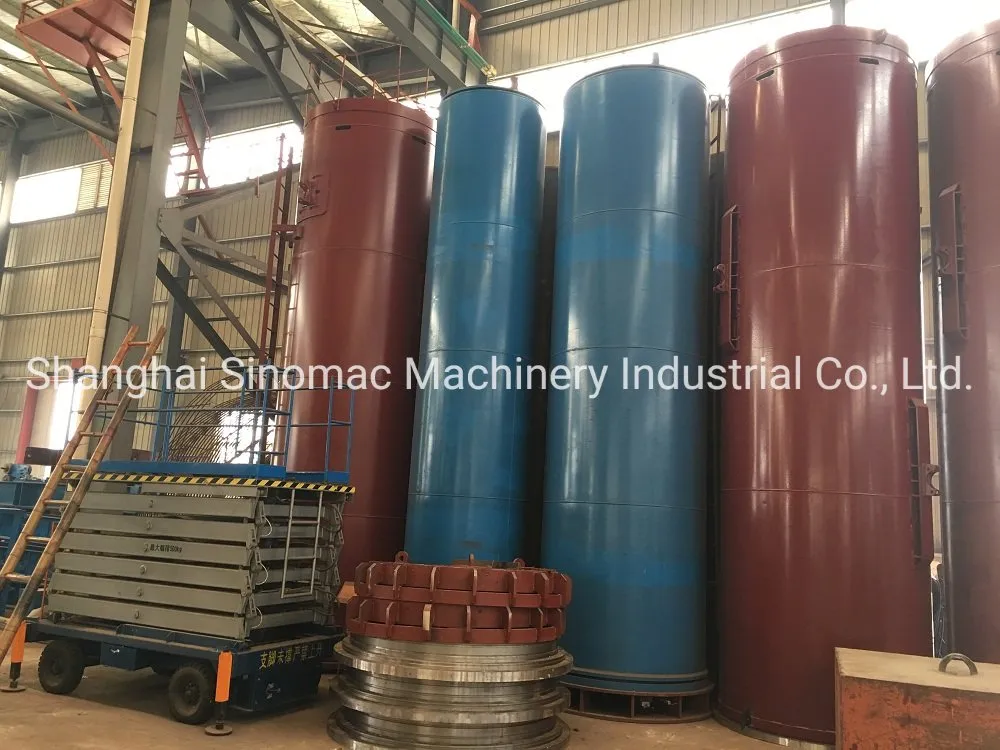

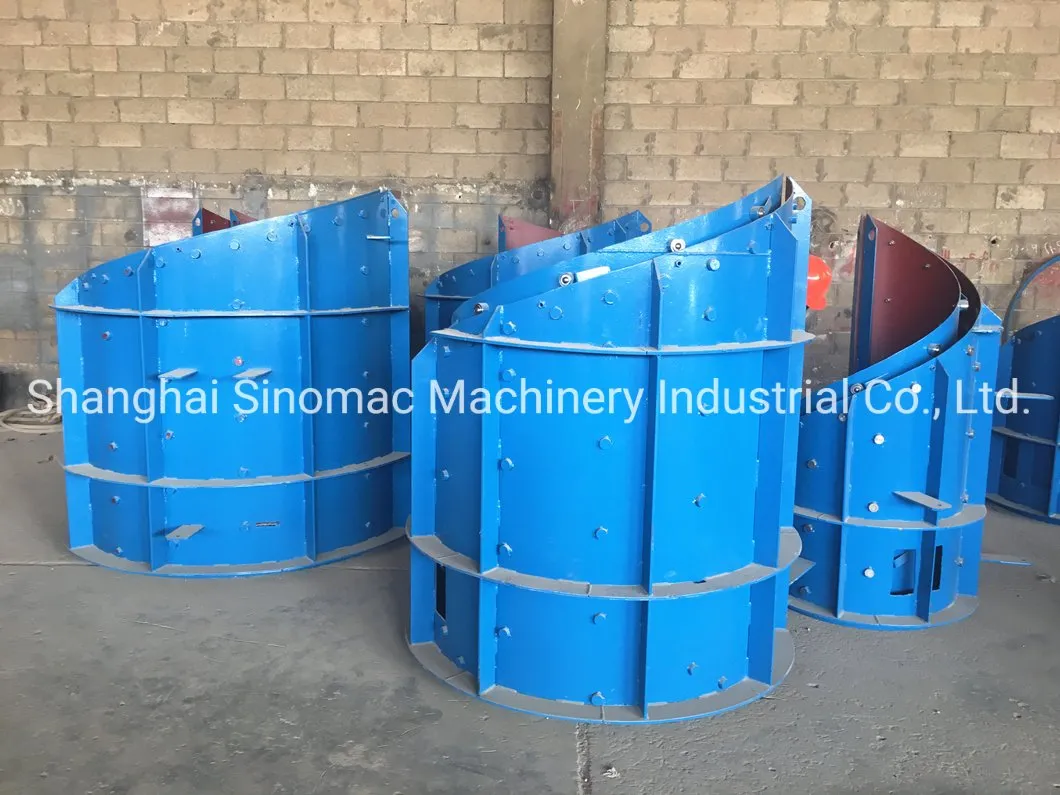

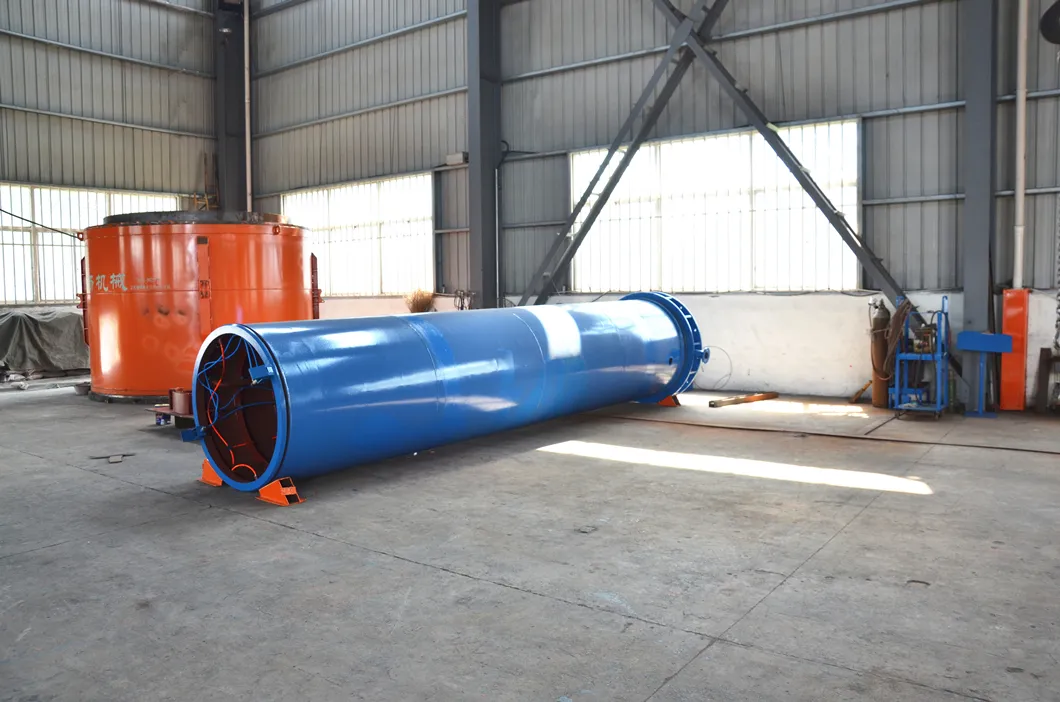

PCCP Pipe Mould

⚒

Working Flow & Main Machines

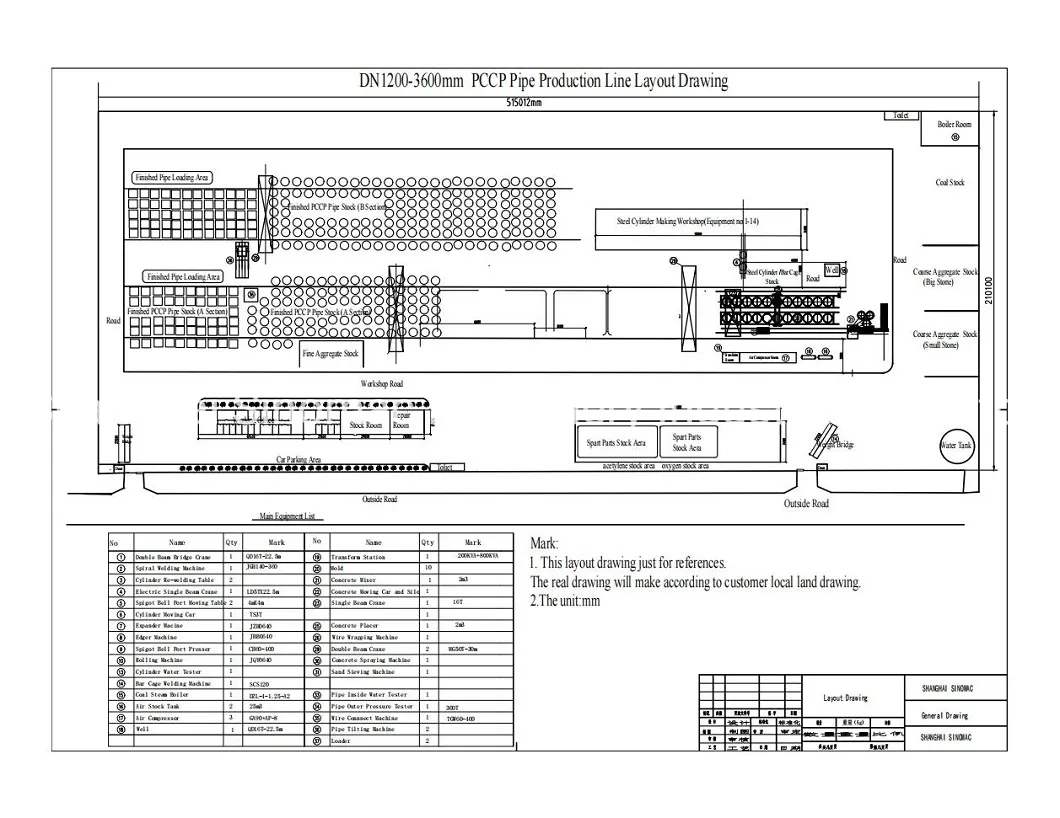

Flowchart

Working Flowchart

Main Equipment List:

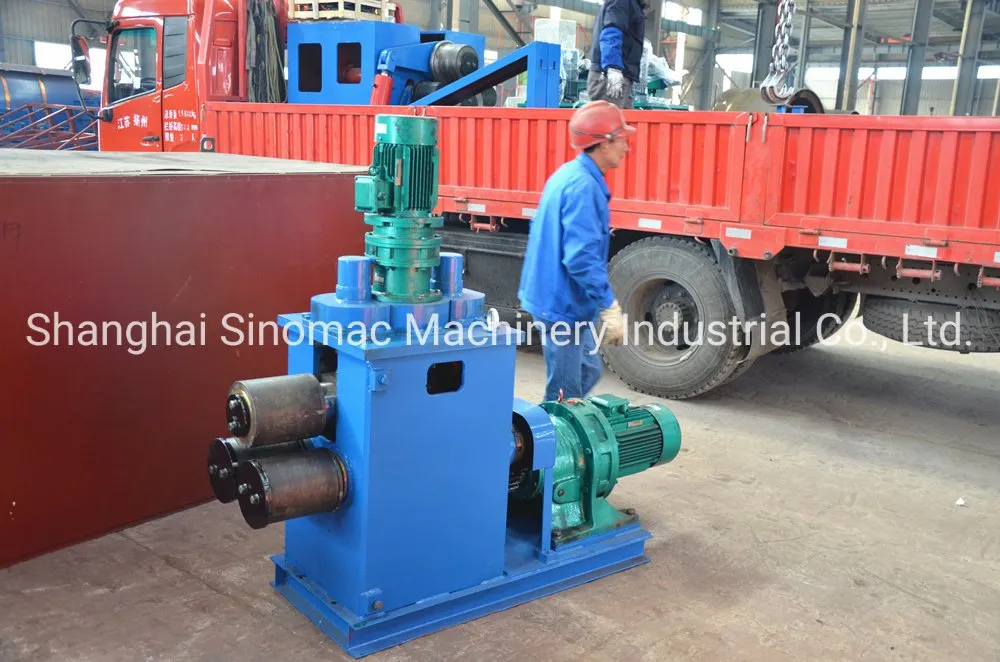

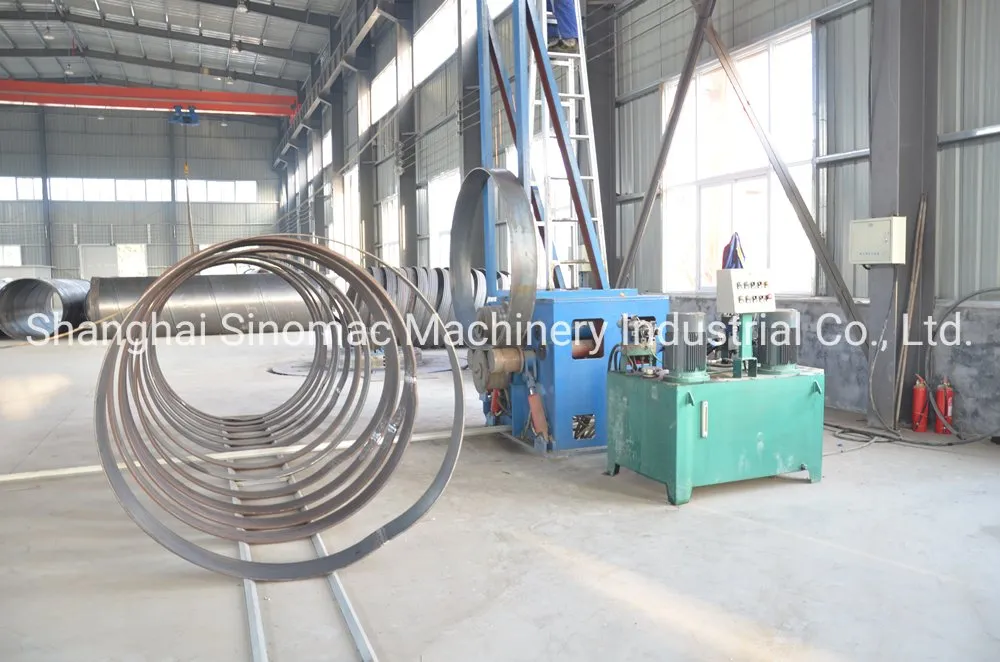

A. Spigot and Bell Port Rolling Machine

Steel spigot/bell ring rolling machine

B. Edge Rolling Machine

Steel bell ring edging machine

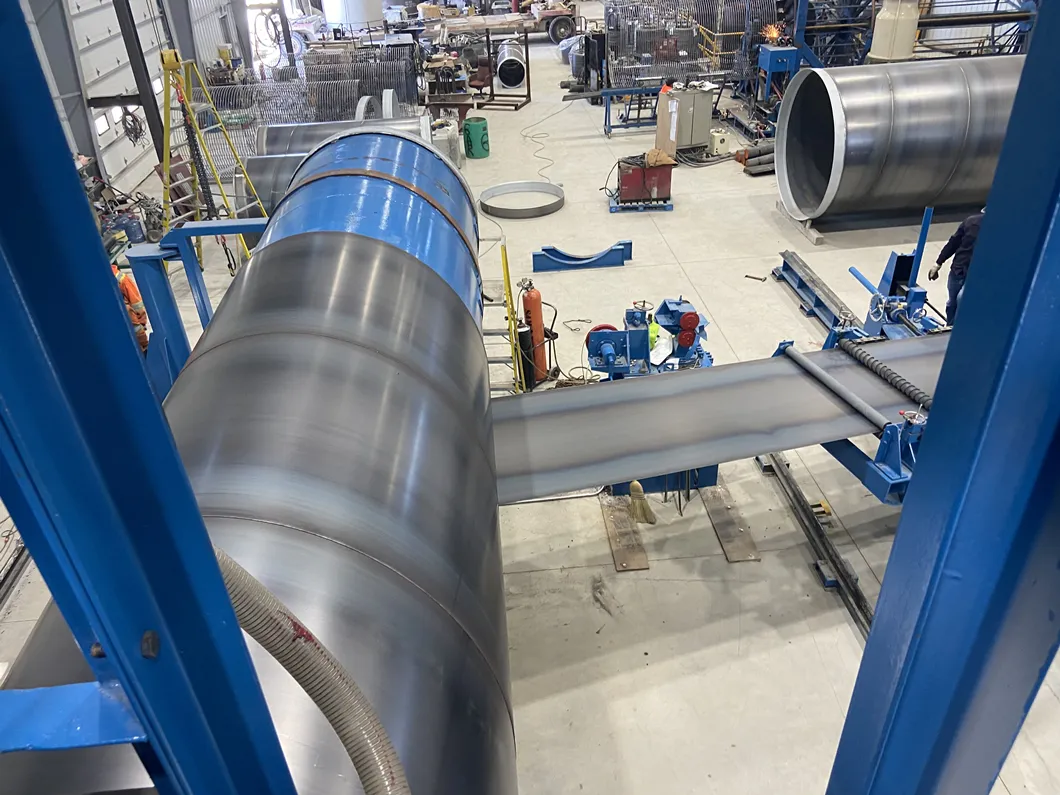

C. Spiral Welding Machines

Small cylinder welding

Big cylinder welding

D. Testing and Coating

Water pressure testing

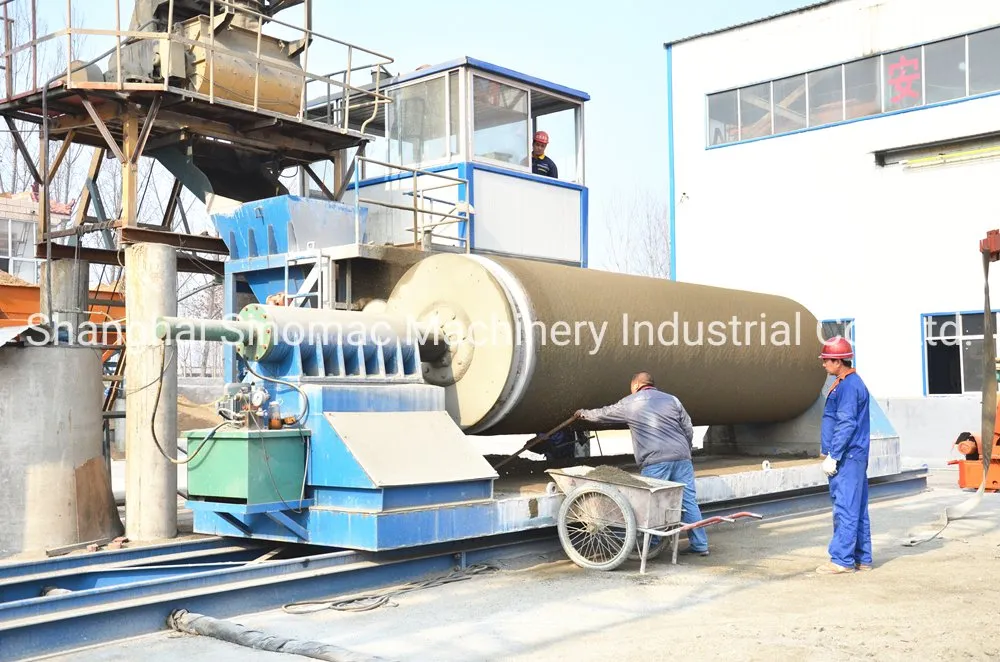

Wire wrapping machine

Coating machine

✔

Final Quality Inspection

?

Frequently Asked Questions

What pipe diameters can the welding machine support?

The equipment supports a wide range of diameters from DN600 up to DN3600, with specialized models for different size ranges.

What is the welding speed of the PCCP steel cylinder machine?

The welding speed is adjustable between 0.5 to 2.5 meters per minute, ensuring precision and efficiency.

Does the machine include a control system?

Yes, the entire production line is equipped with a high-performance PLC control system for automated operation.

What type of welding technology is used?

The system utilizes Lincoln Welder technology (models DC-600 or DC-1000) with automatic plasma cutting for superior joint quality.

What steel standards are required for the coils?

The machine is designed for GB/T5213-2008 standard oil-free cold-rolled steel plates with thicknesses of 1.5mm to 2.0mm.

What are the main components of the full production line?

The full line includes rolling machines, expanding machines, welding units, water pressure testers, wire wrapping machines, and coating machines.
