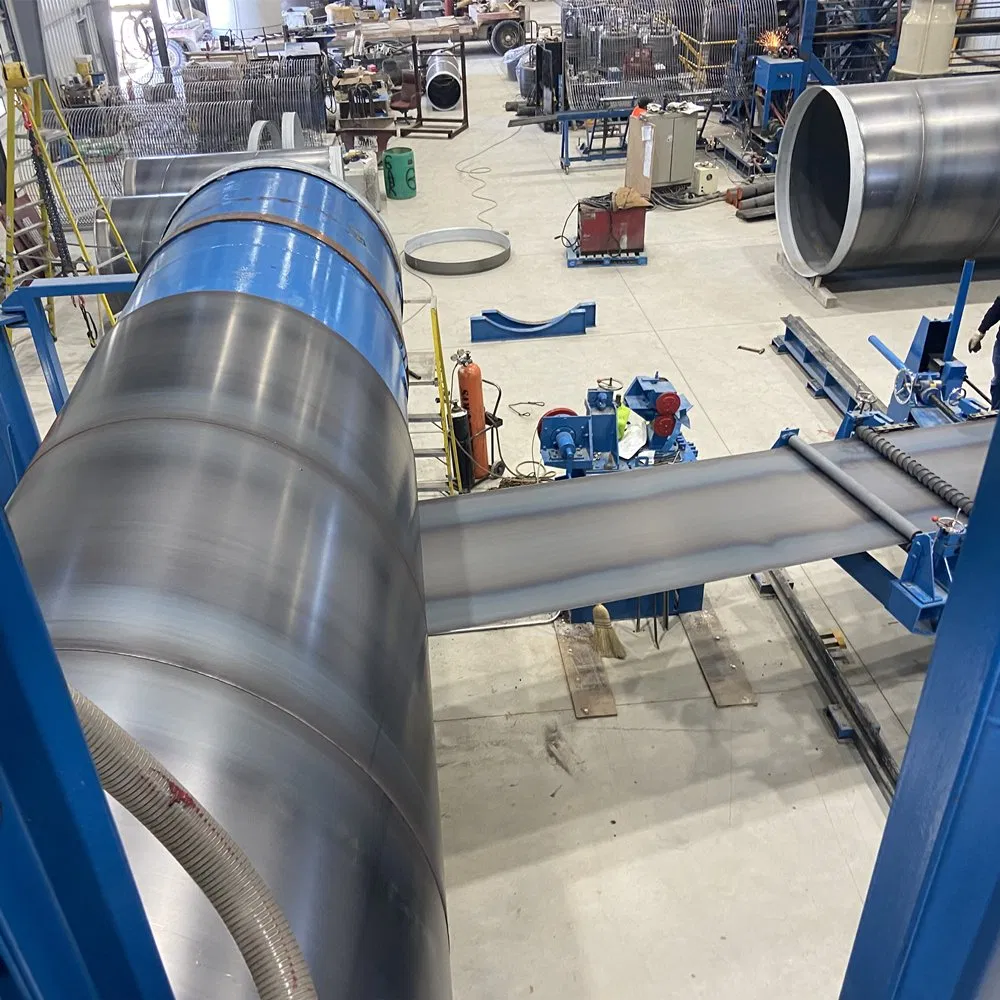

Concrete Cement Pipe Steel Cylinder Spiral Welder
PCCP concrete pipe production line making machine workshop
Our factory is a professional manufacturer of cement products complete sets equipment and molds. It has more than 40 years of experience in research and development, design and manufacture of cement products machinery and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2008 quality management system certification, and obtained a number of national invention patents.
Our Main Products:
We have sold more than 60 sets of complete PCCP pipe production line equipment to domestic and foreign markets. Our PCCP production line equipment has been exported to Canada, Egypt, India, Indonesia, South America, Africa, and more.

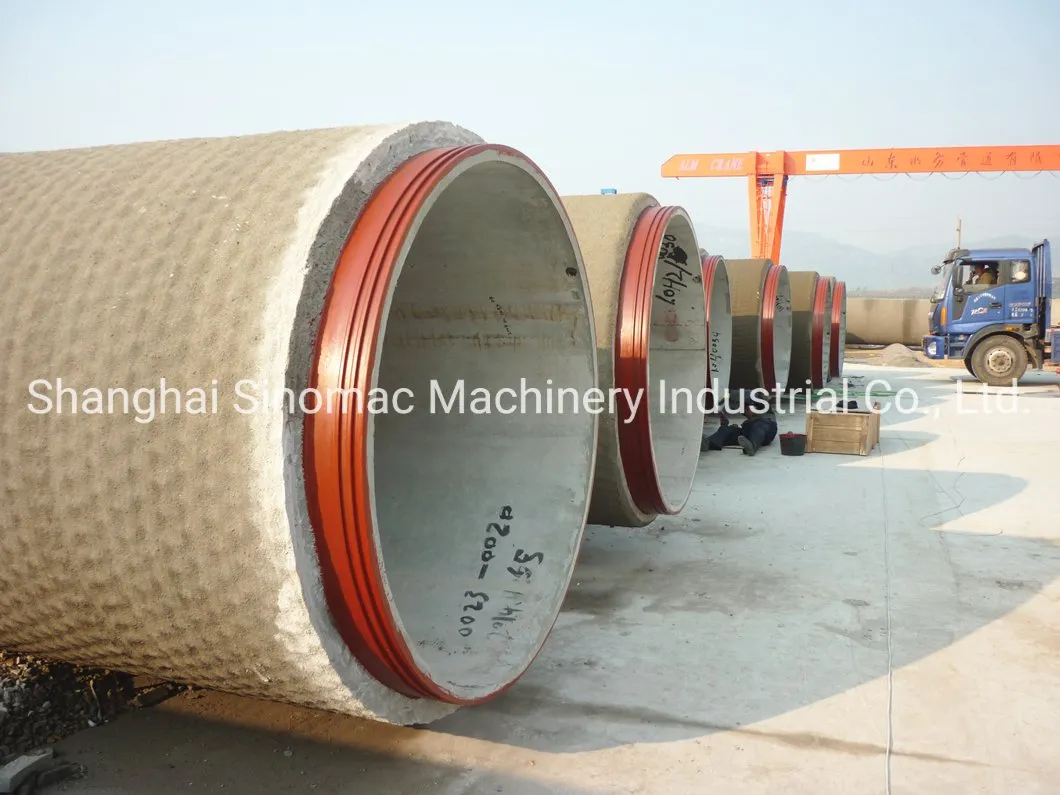

PCCP pipe in stock

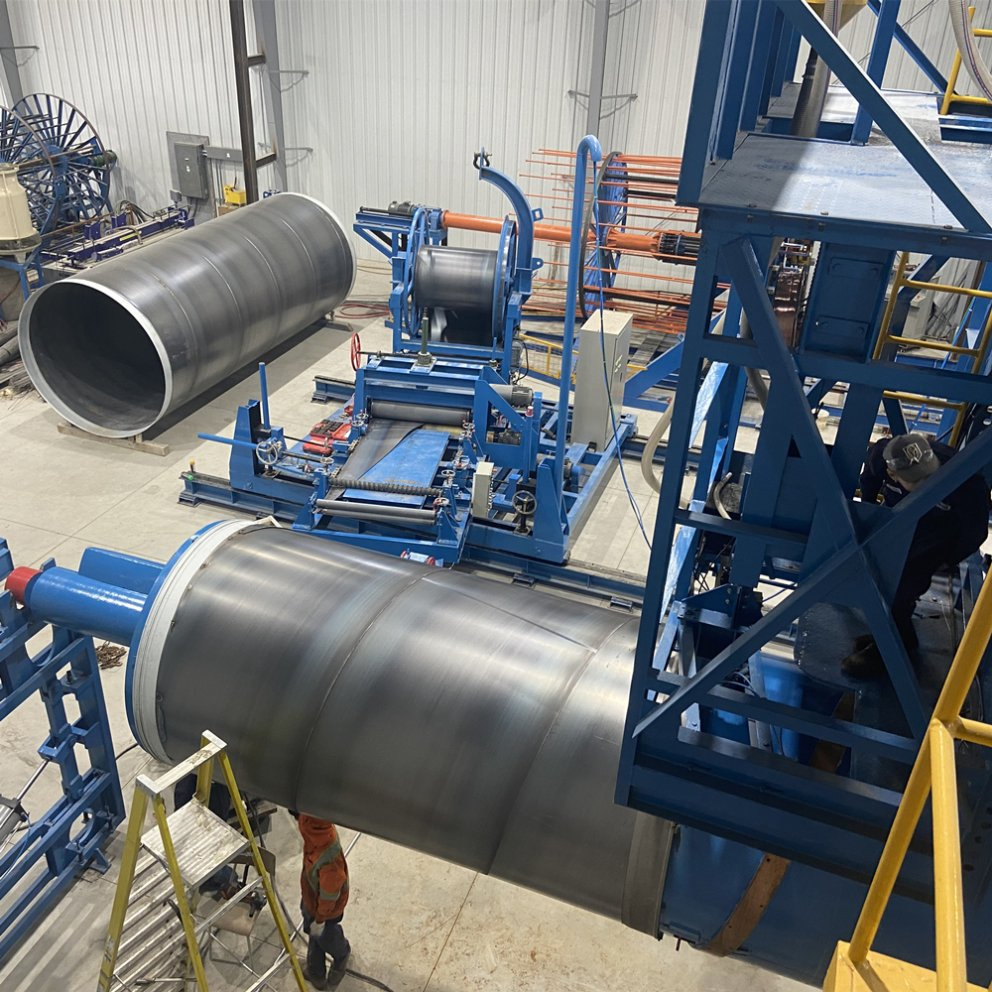

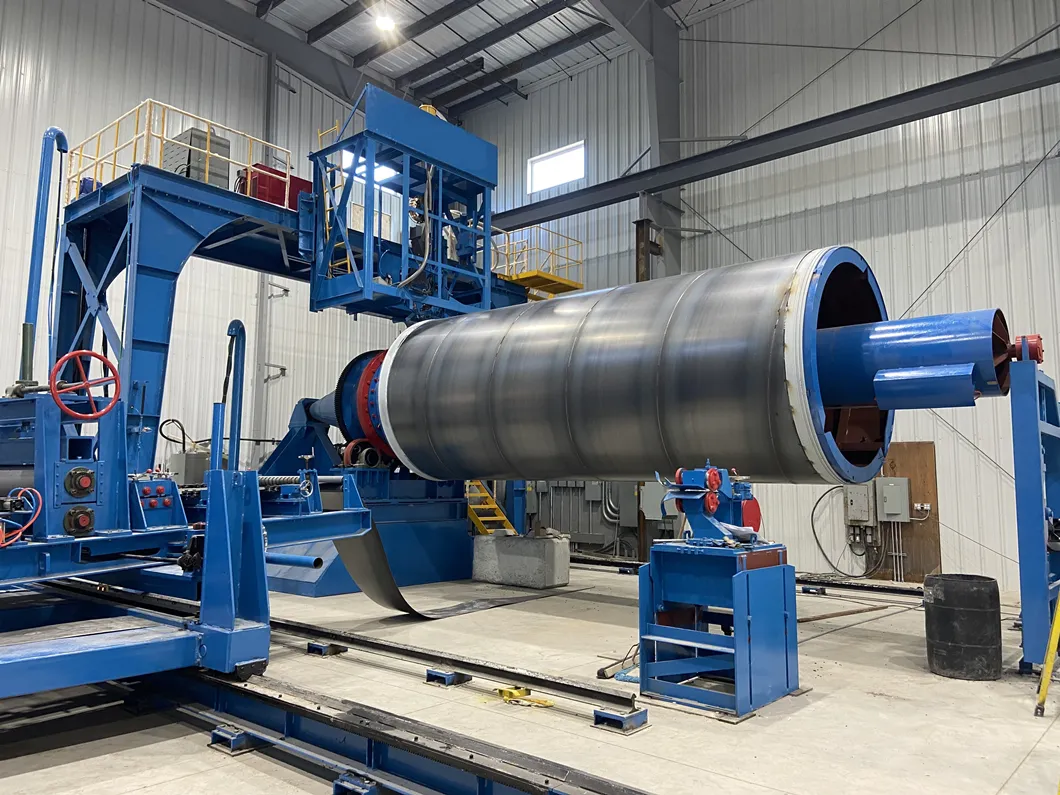

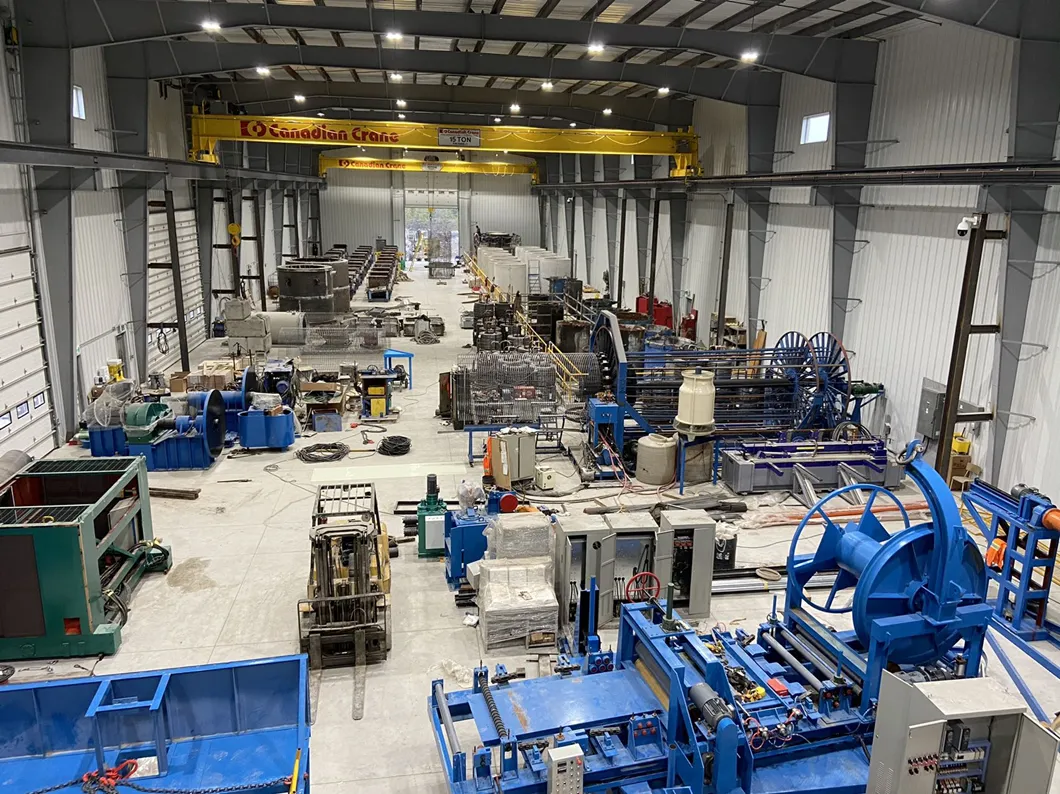

DN2400X6000mm Steel Cylinder Welder installation in Toronto, Canada

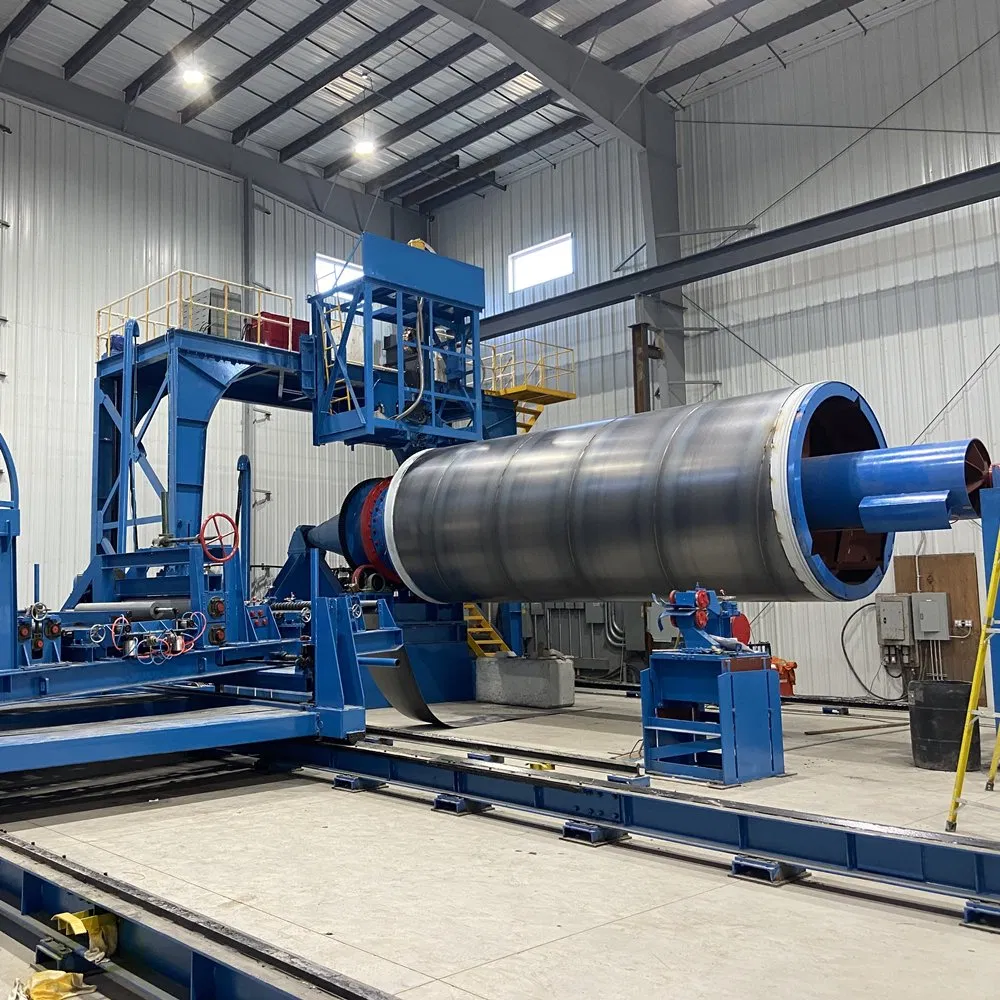

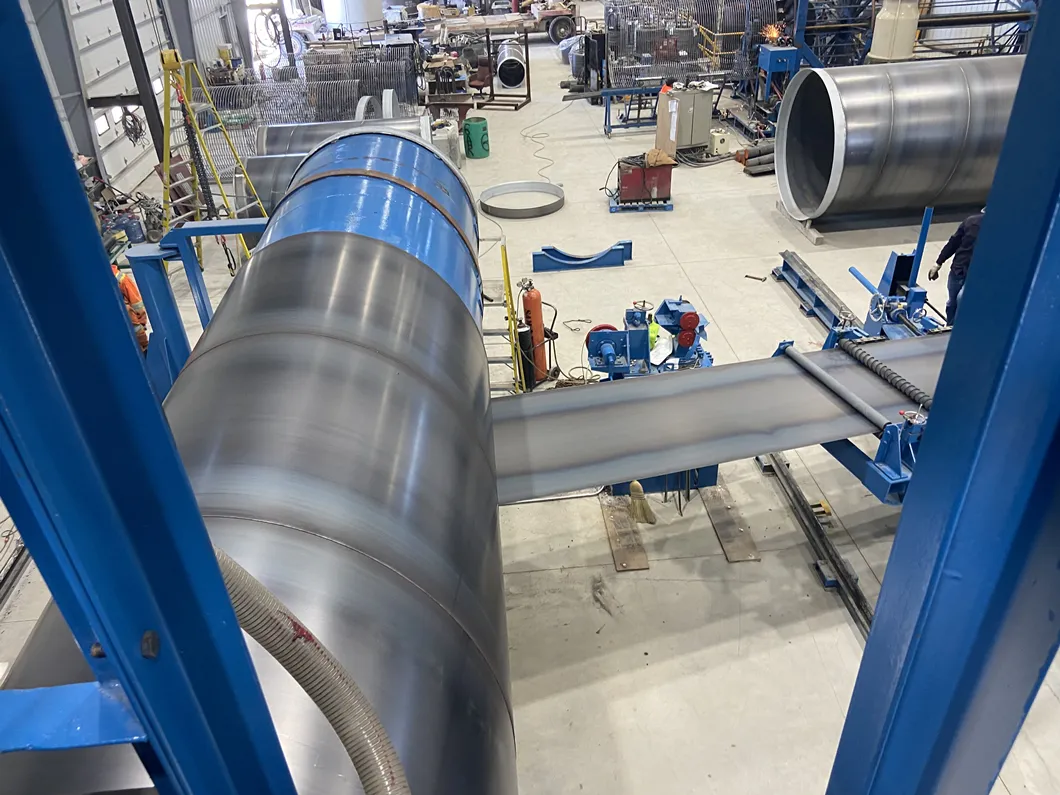

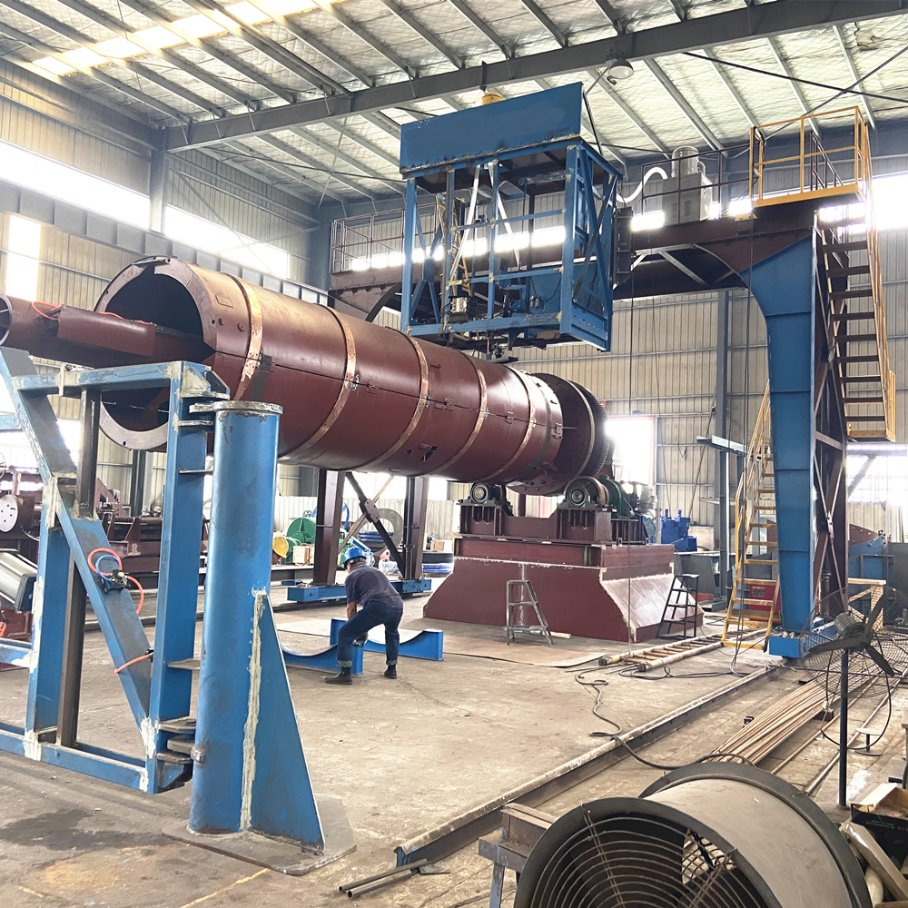

DN2400X6000mm Steel Cylinder Arc Welder working
PCCP Concrete Pipe Steel Cylinder Welding Machine Parameters
| Specification | DN600-1600X6000mm | DN1800-3600X6000mm |
|---|---|---|
| Welding Pipe Diameter | 600-1600mm | 1800-3600mm |
| Welding Pipe Length | 6000mm | 6000mm |
| Lincoln Welder Type | DC-600 | DC-1000 |
| Welding Speed | 0.5-2.5m/min | 0.5-2.5m/min |
| Coil Standard | GB/T5213-2008 standard oil free cold rolled steel plate | |
| Coil Width | 1250mm | 1250mm |
| Coil Thickness | 1.5-2.0mm | 1.5-2.0mm |
| Control System | PLC control | PLC control |
| Cutting Type | Auto Plasma Cutting | Auto Plasma Cutting |

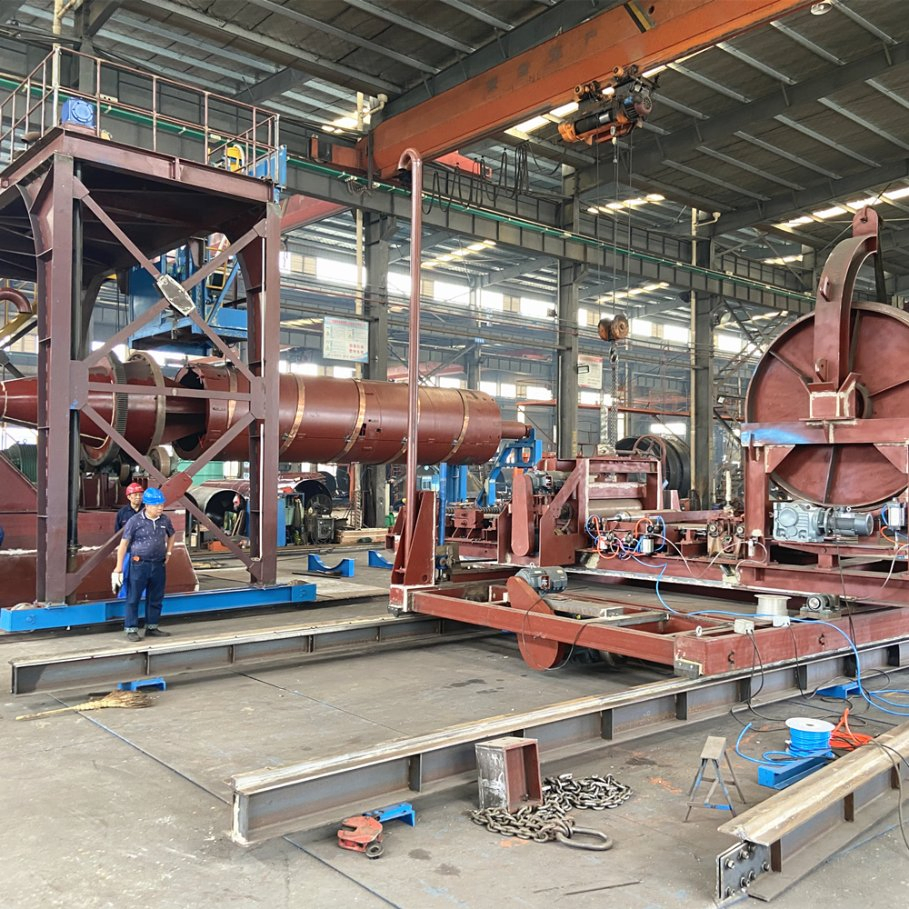

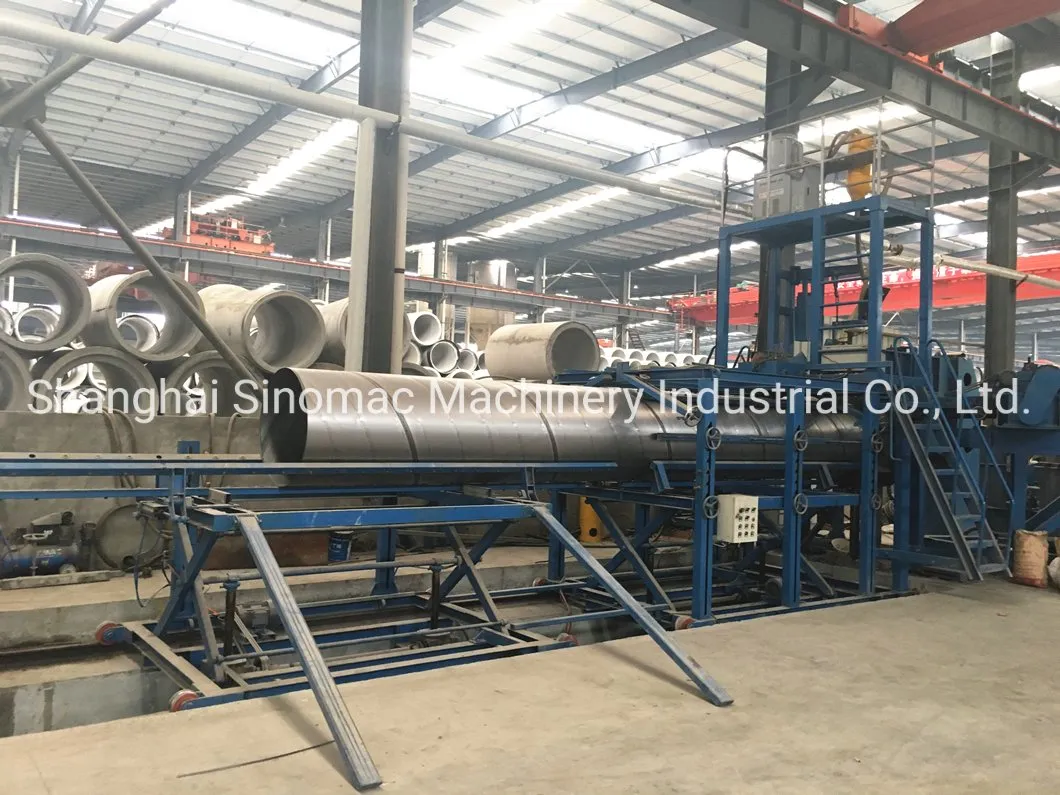

DN600-1600X6000mm Steel Cylinder Welder

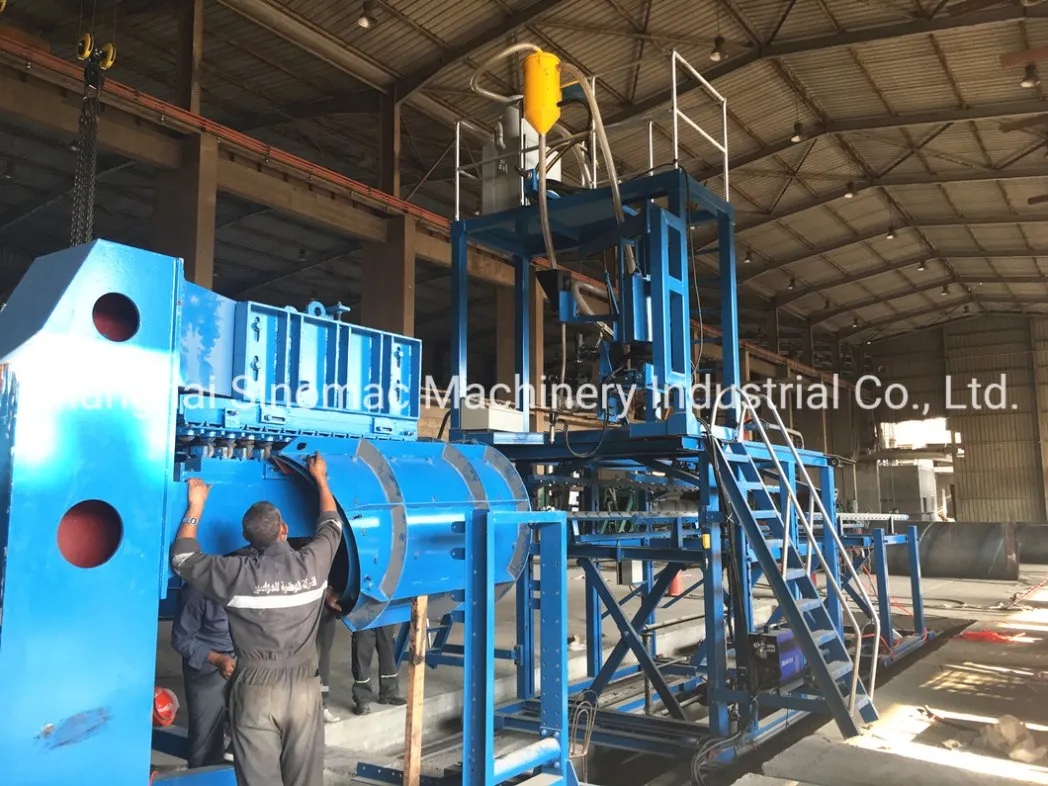

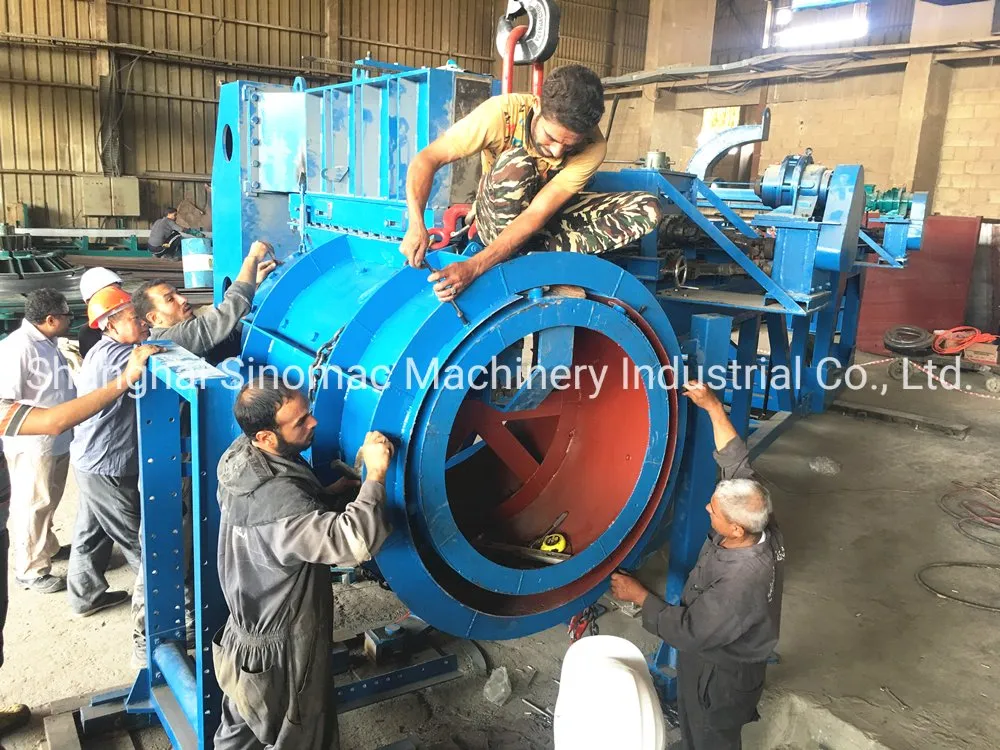

Welder Installation in Egypt

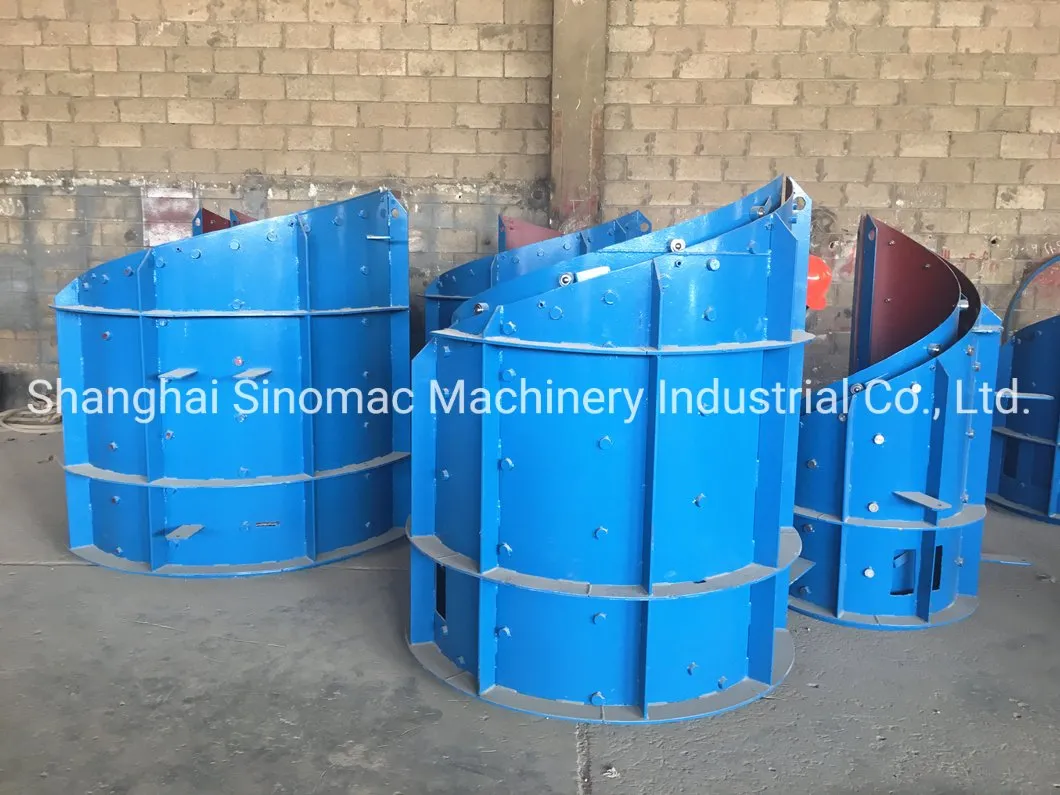

Steel Cylinder Welder Tube Core
| Model Name | Diameter Range | Length | Application |
|---|---|---|---|
| DN600-1600X6000MM | 600 to 1600mm | 6000MM | Water Transfer/Power Plant |
| DN1600-3600X6000MM | 1600 to 3600mm | 6000MM | Water Transfer/Power Plant |
The full completely DN600-4000mm PCCP Pipe Production Line main equipment includes: Spigot Bell Ring Roller, Bell Plate Edger, Spigot/Bell Ring Expanding Machine, Spigot/Bell Port Assemble Platform, Steel Cylinder Welding Machine, Steel Cylinder Water Pressure Testing Machine, Concrete Placer, Wire Wrapping Machine, Concrete Spraying Machine, PCCP pipe internal/External Pressure Testing Machine, Concrete Molds etc.

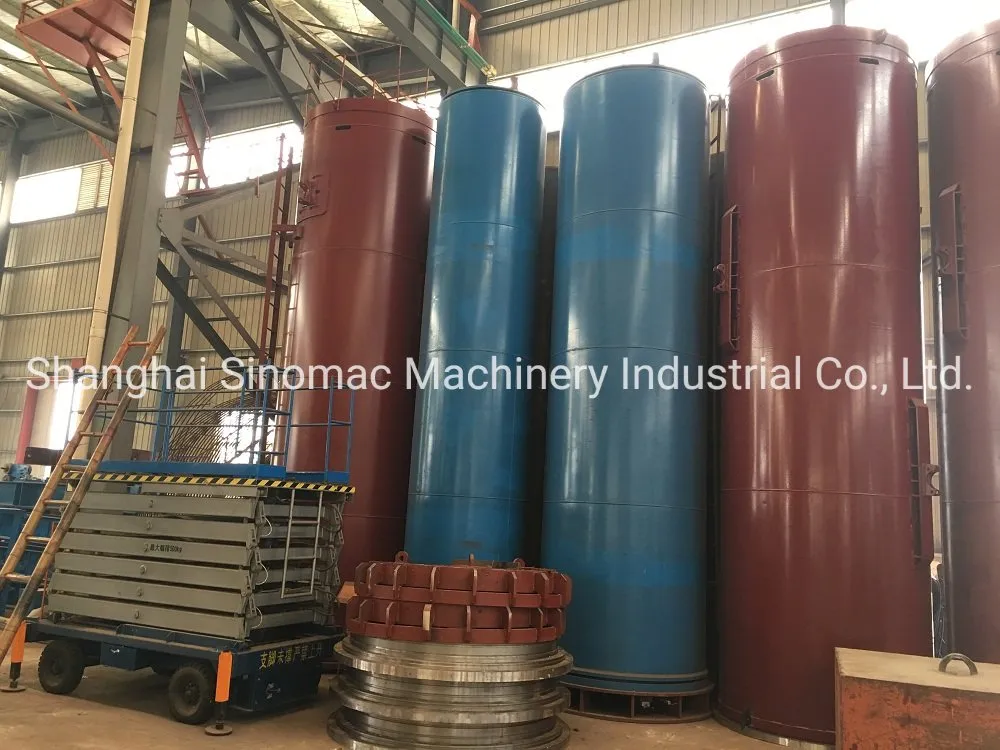

PCCP pipe mould

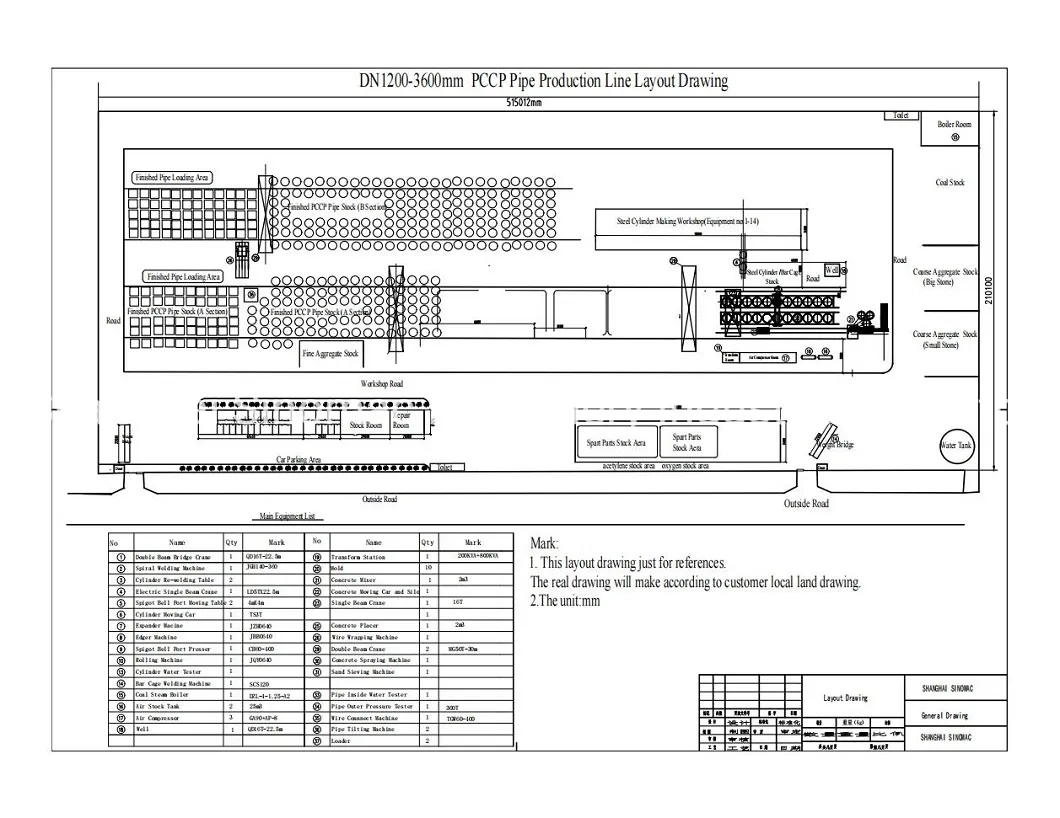

Working Flowchart
Main Making Machine Details:

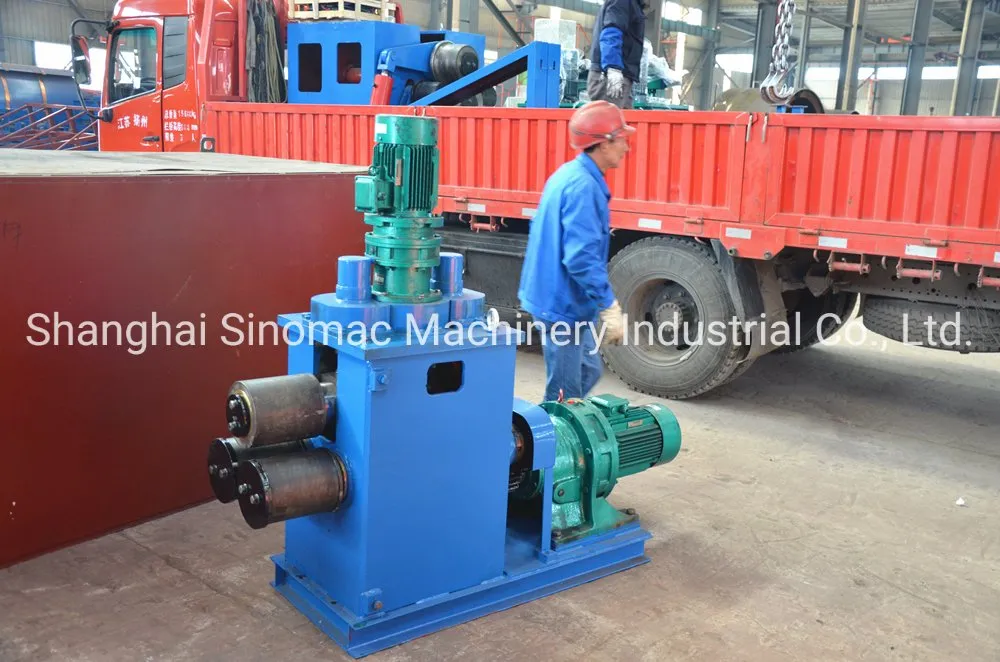

Steel spigot/bell ring rolling machine

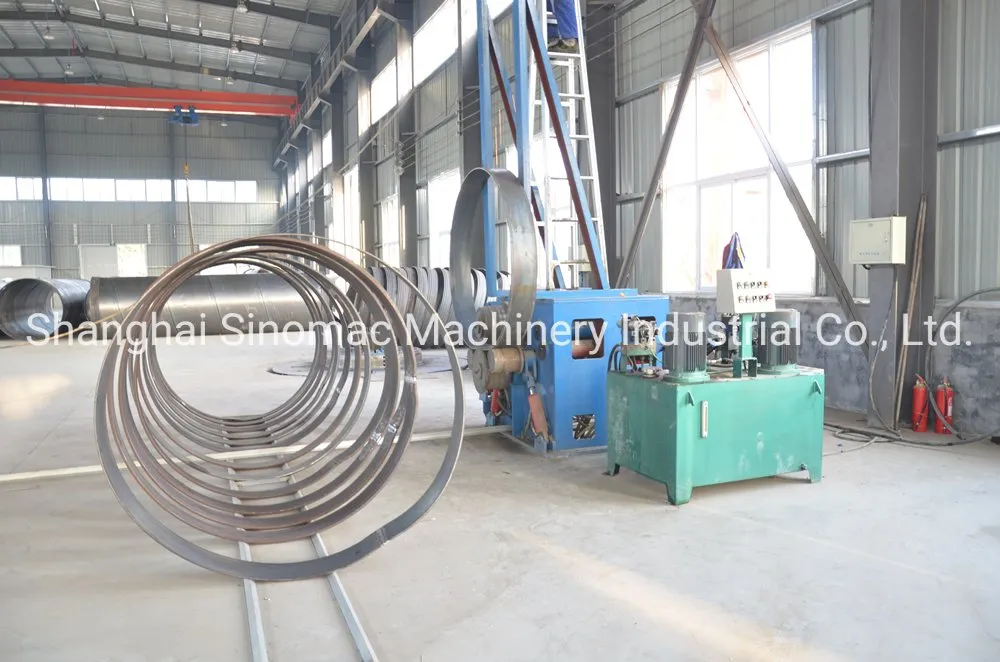

Steel bell ring edging machine
Small Spiral Welding Machine: Used for continuous winding, rolling, welding, and automatic cutting to produce the required length cylinder.

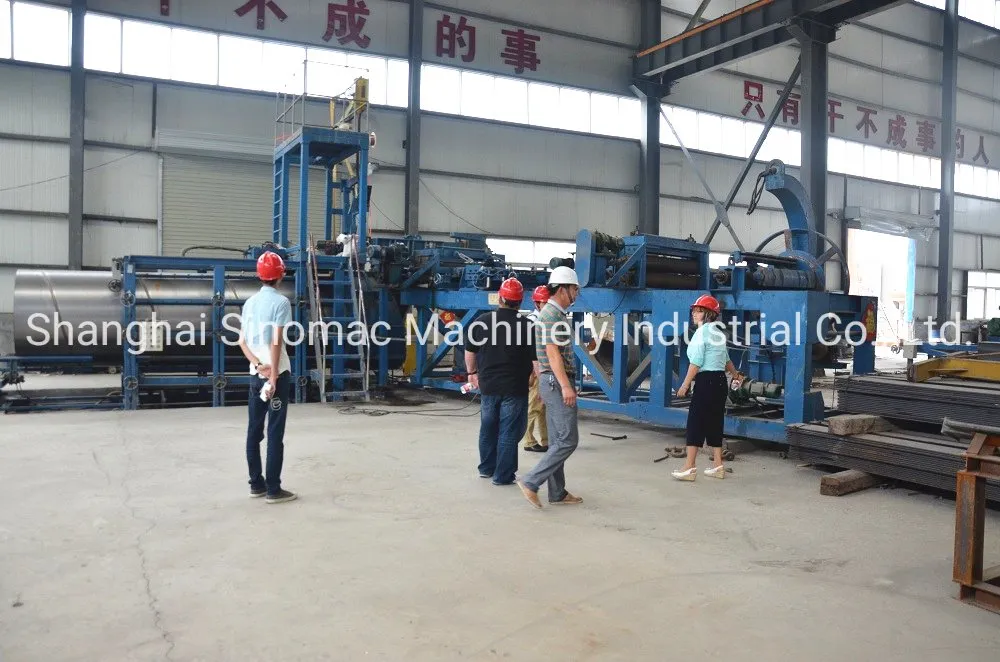

Small steel cylinder welding machine

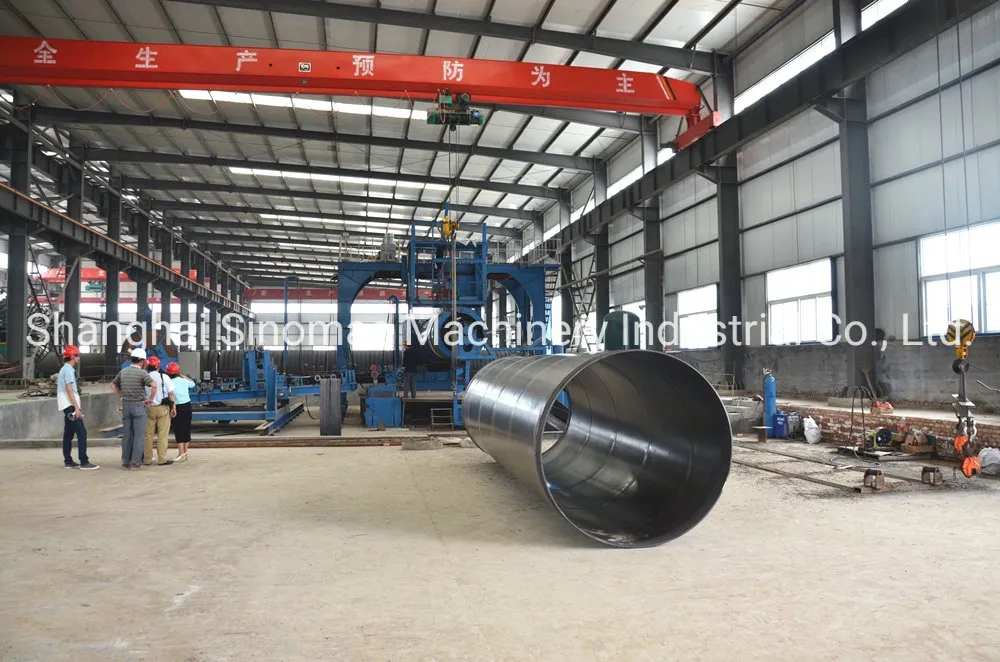

Big steel cylinder welding machine

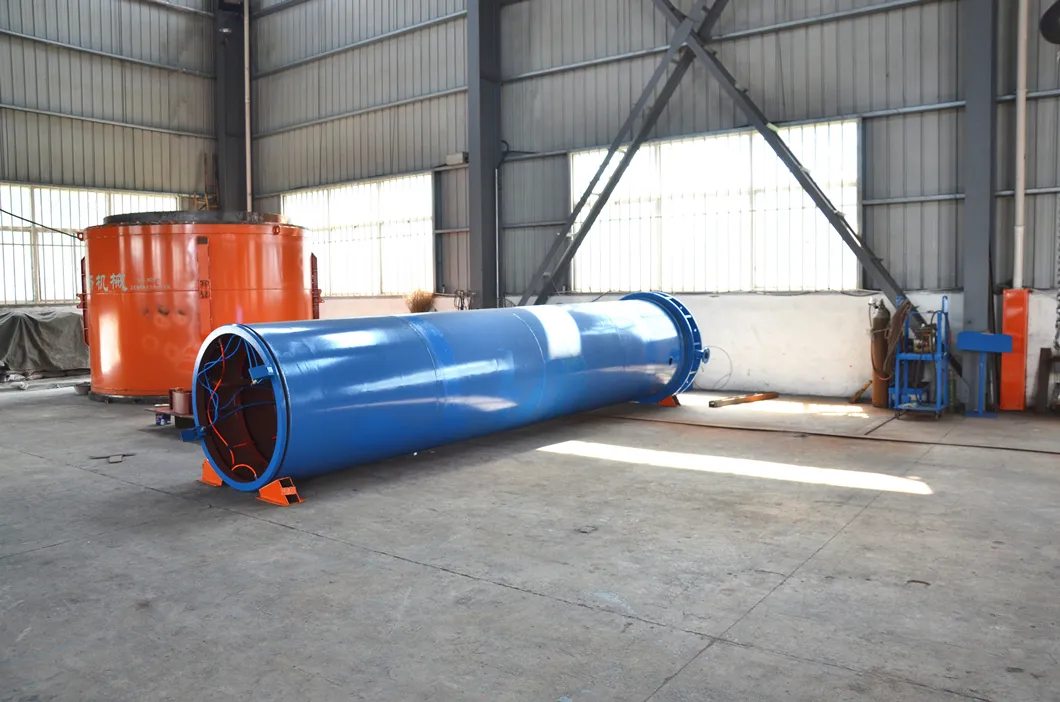

Steel cylinder water pressure testing machine
Horizontal Cylinder Water Testing Machine: Specifically designed for pressure testing of the finished steel cylinders.

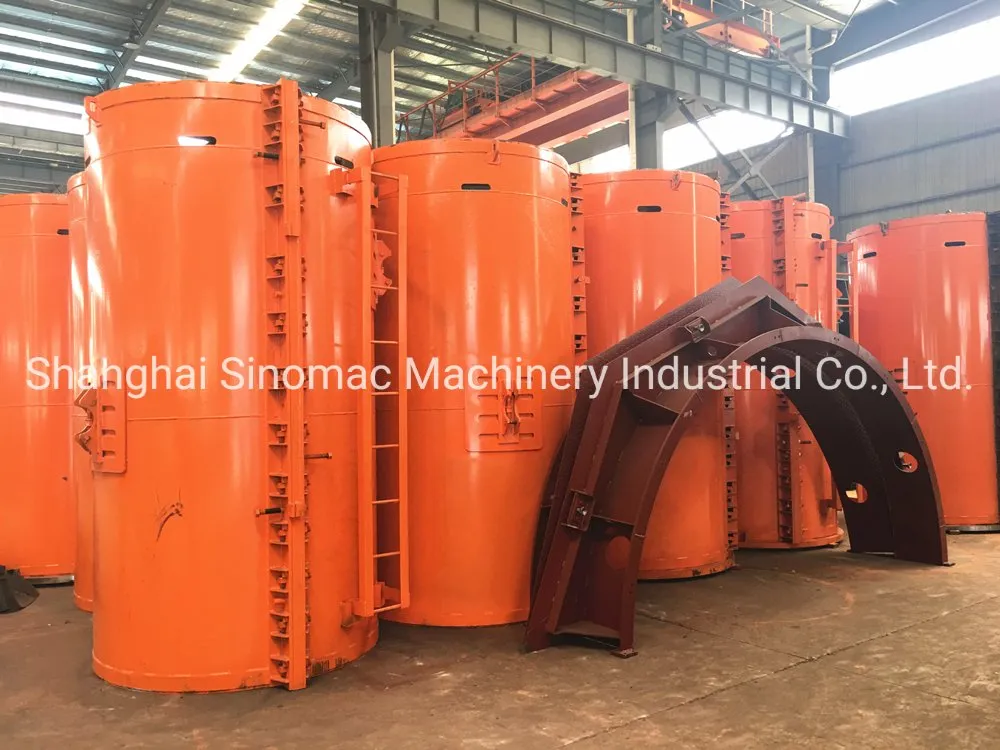

Jacking concrete pipe mould

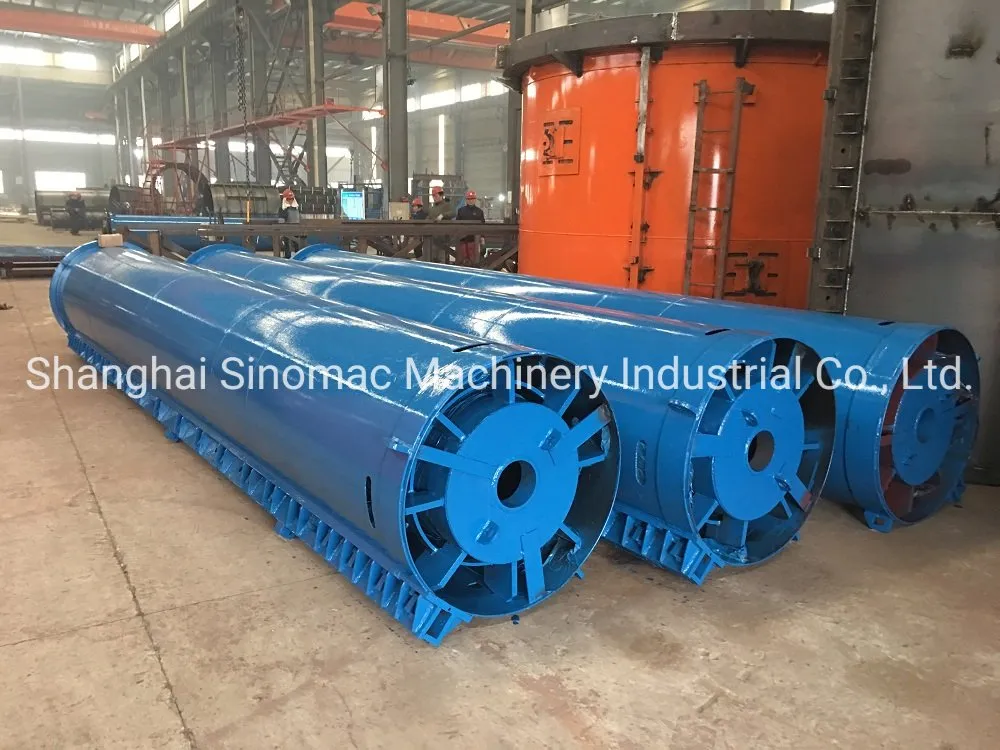

DN600x6000mm PCCP pipe mold

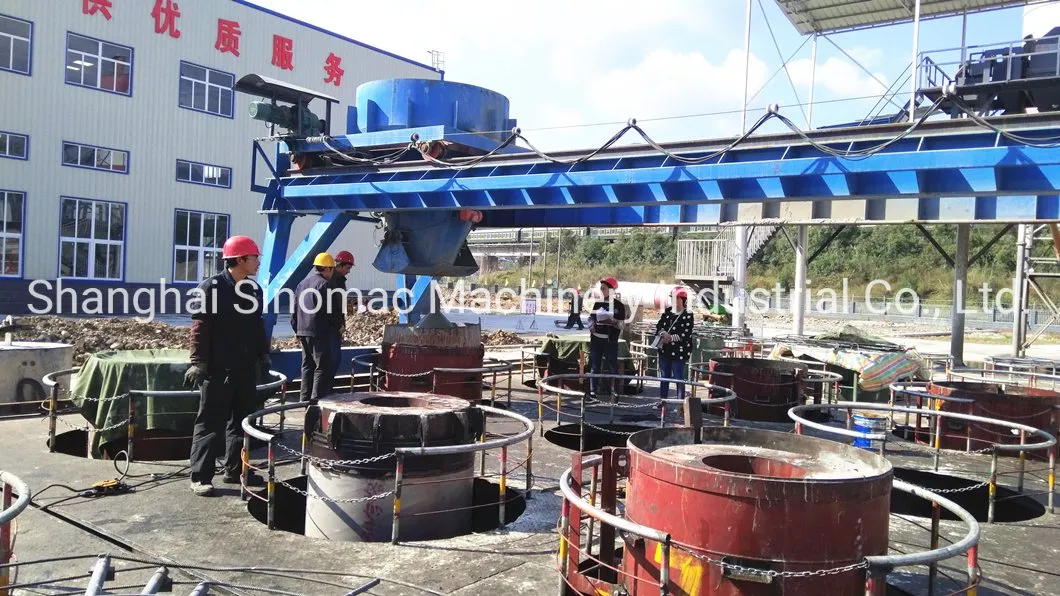

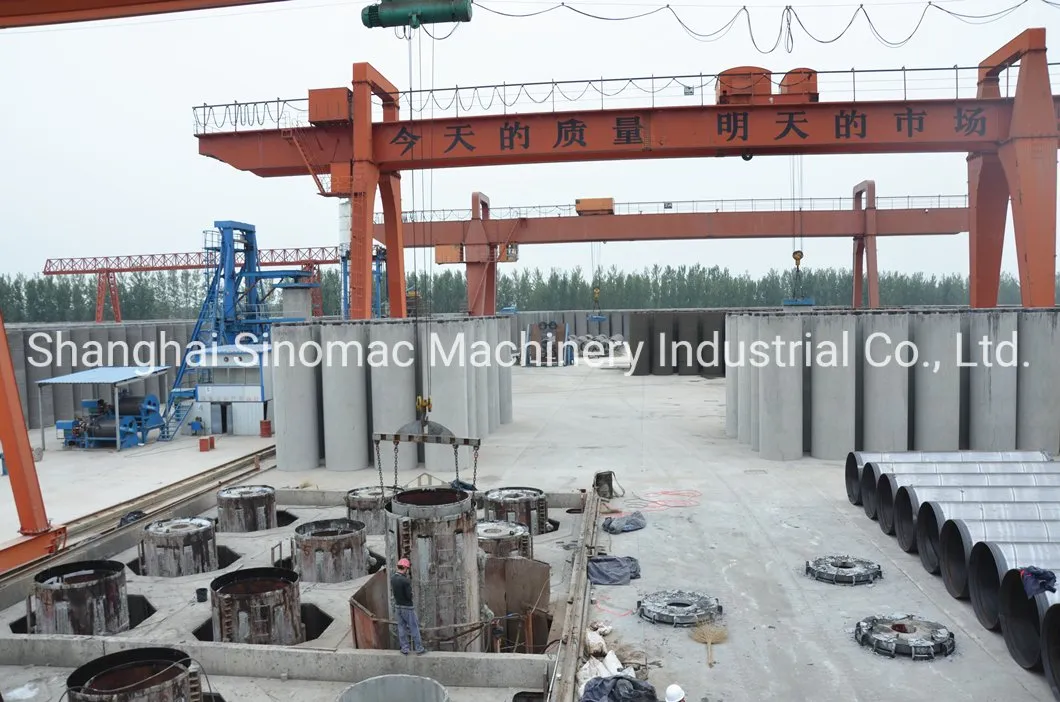

PCCP pipe concrete casting machine
Concrete casting machine overview

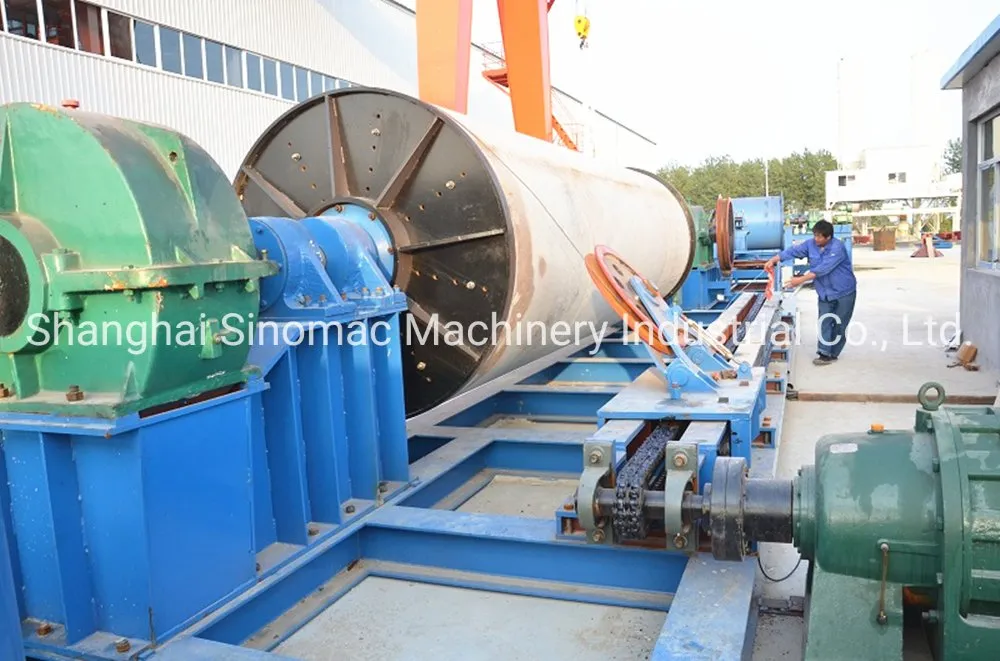

PCCP pipe wire wrapping machine

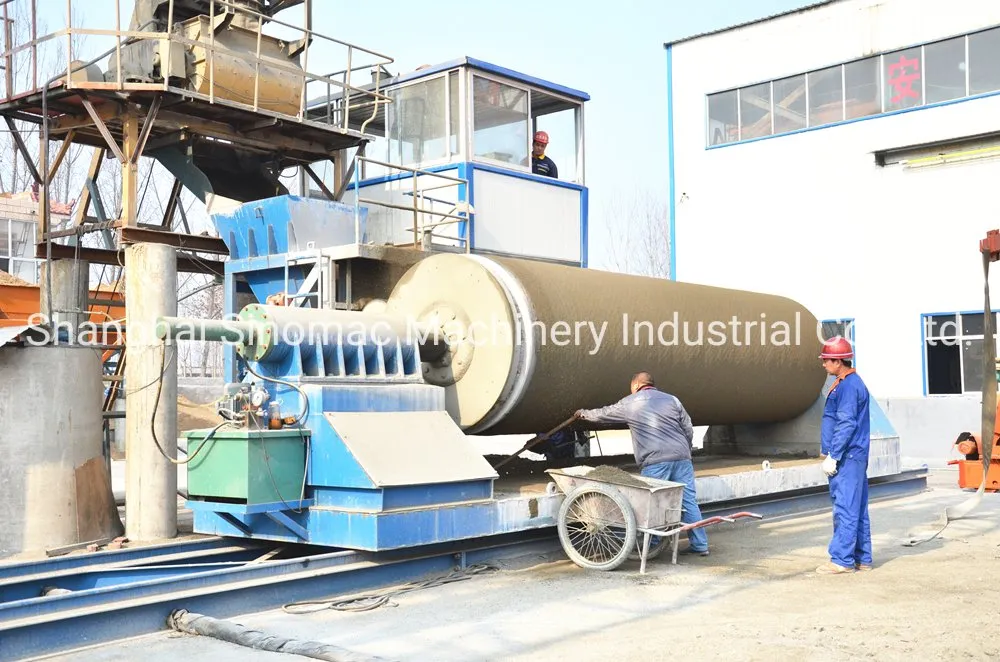

PCCP concrete pipe coating machine

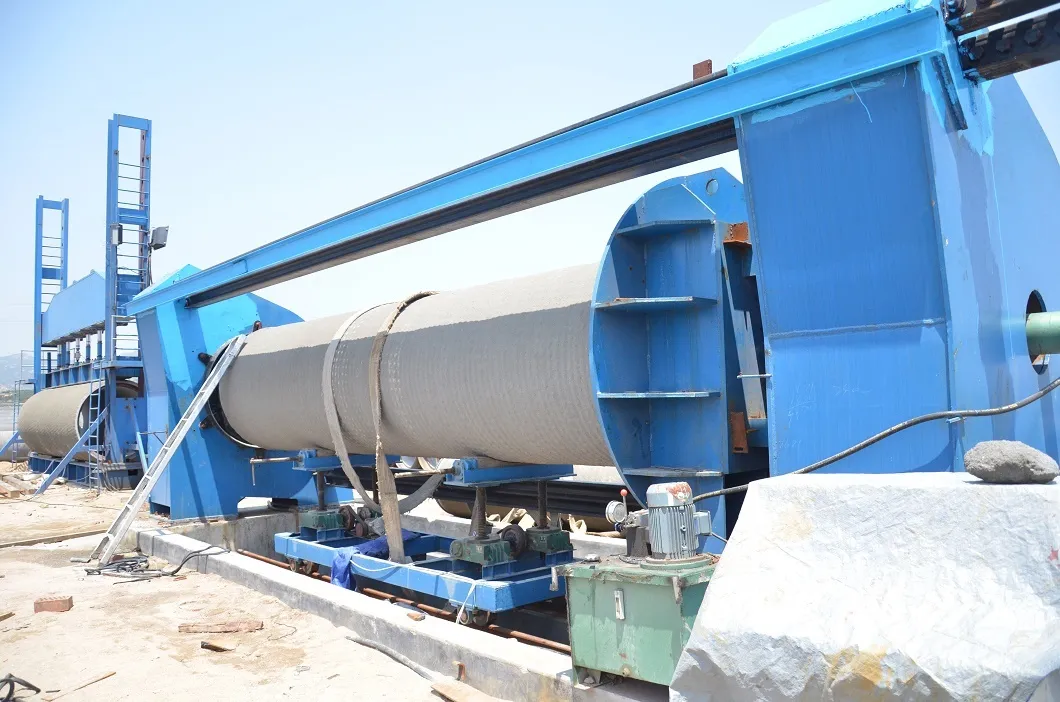

PCCP pipe outer pressure testing machine

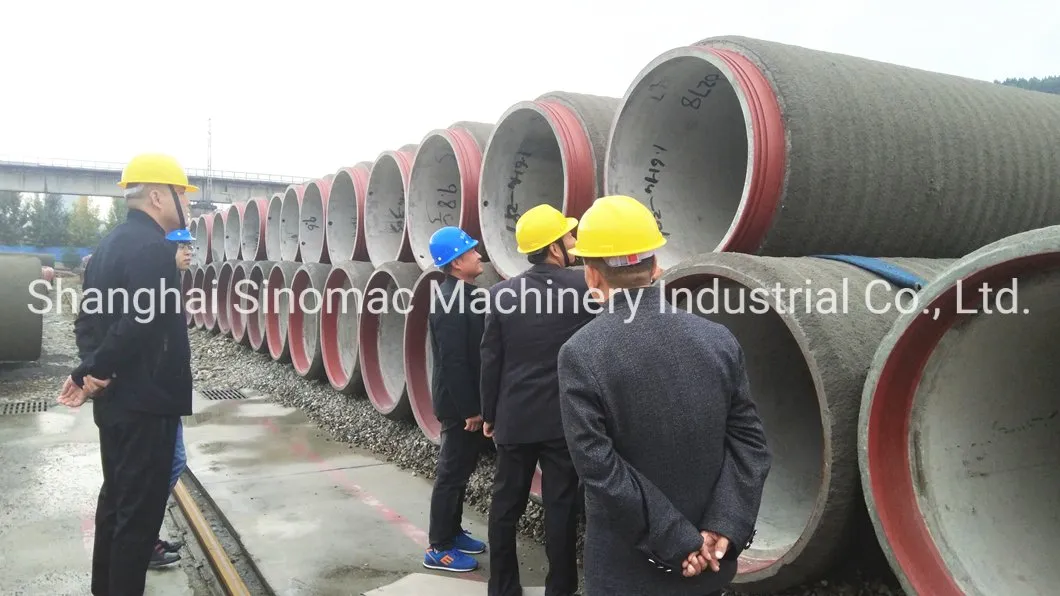

Final PCCP pipe checking
Installation in Egypt NPC

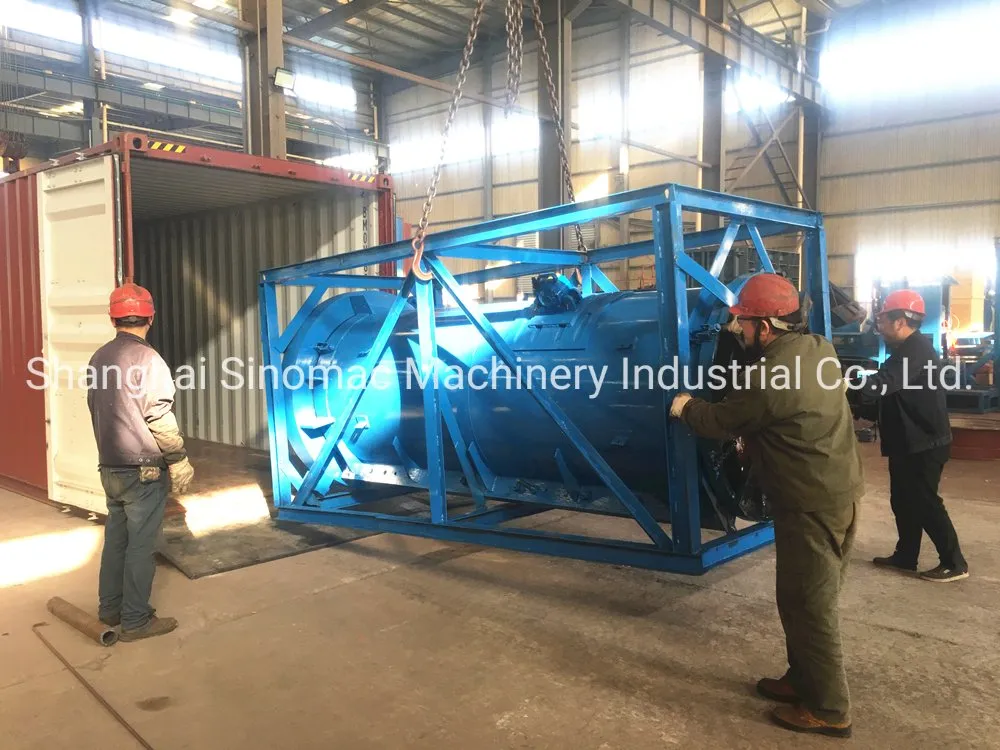

Jacking concrete pipe mold loading for Canada

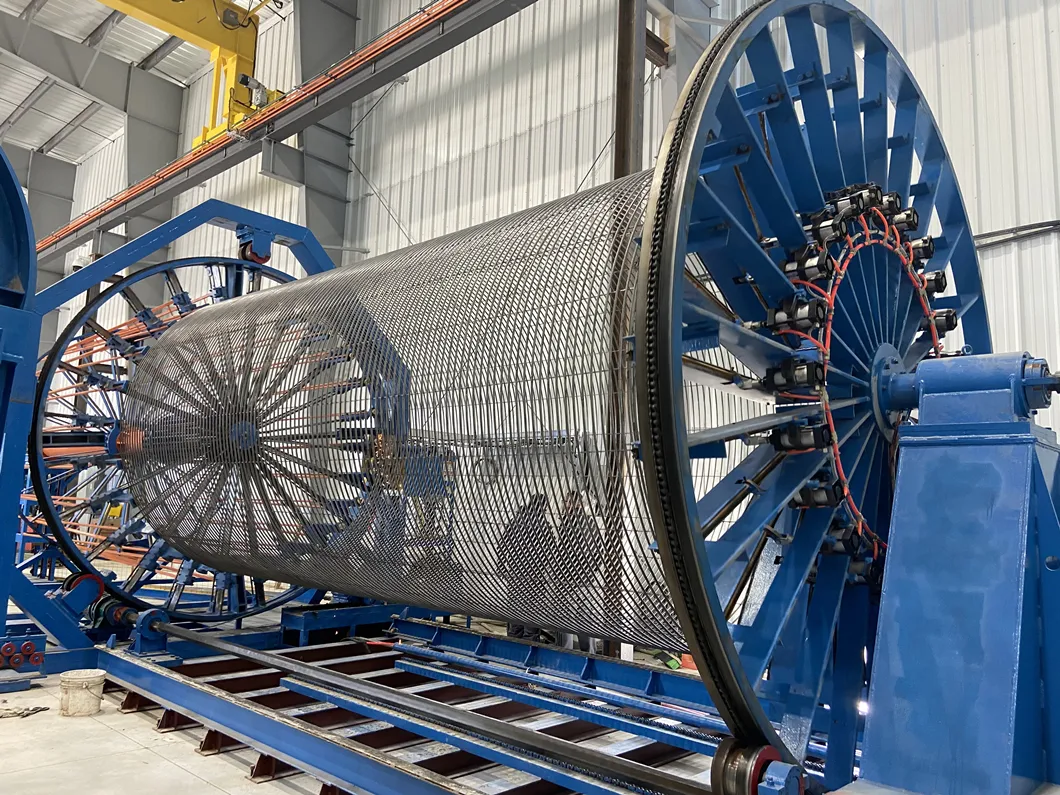

DN800-2400X6000MM cage welding machine in Toronto
Welcome to visit our factory and PCCP Pipe Production Line Working Site.
