Basic Information
Model NO.
Corflute Sheet Welding machine
Frequency
High Frequency / 15KHZ
Machine Type
Ultrasonic Welding Machine
Product Description & Advantages
- Usable weld throat depth up to 500mm as standard.

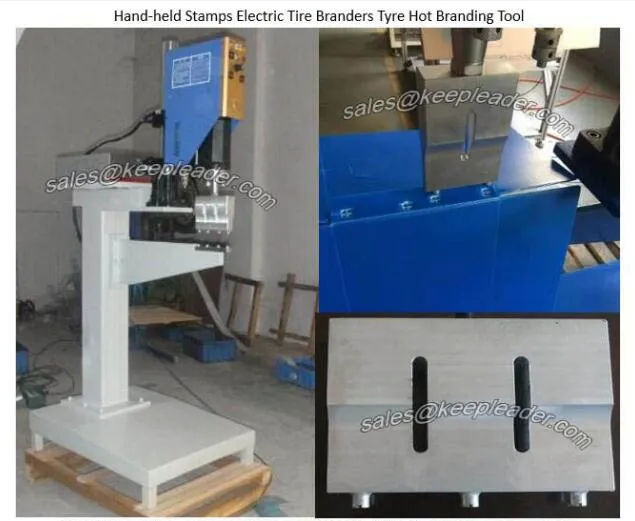

- Stable pedestal with robust column to achieve max loading height of 1300mm.
- Generator mounted next to press for convenient operator viewing and setup.
- Strong, welded steel extension arm with universal fixture pad.
- Flexible mounting slot to install fixtures for versatile production sizes.
- Adjustable welding depth, power, time, and pressure.
- IC circuit precision control with automatic overload protection system.
- Adopting digital switch with 1/100 precision re-set control.
| Technical Parameters |
| Model | KLC-2615L |
| Input Power | 2600W |
| Frequency | 15KHZ |
| Input Voltage | 110V/220V |
| Horn Stroke Distance | 70mm |
| Oscillation System | Auto-stimulating |
| Output Time | 0.01-99S |
| Pressure Range | 1-7 bar |
| Welding Area | 200mm |
| Net Weight | 100kg |
Machine Applications

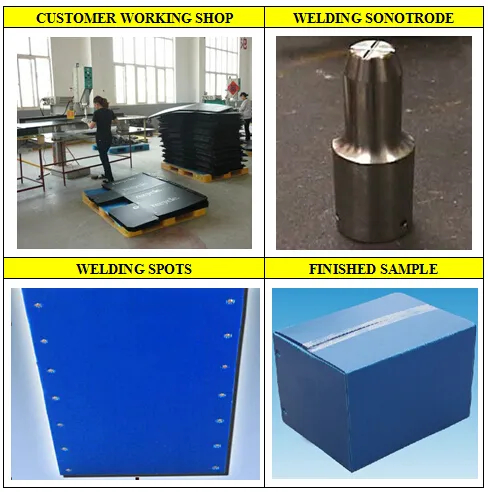

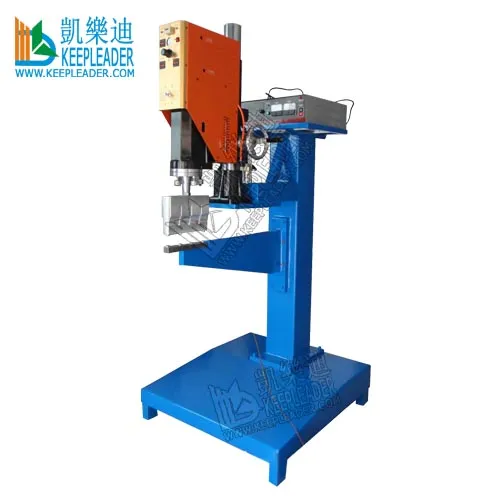

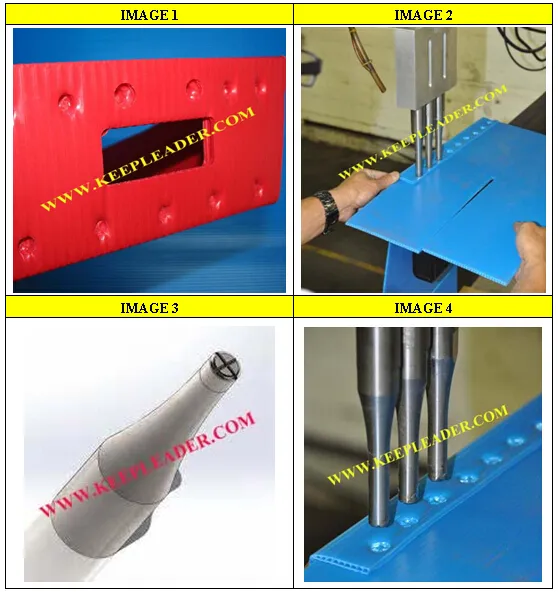

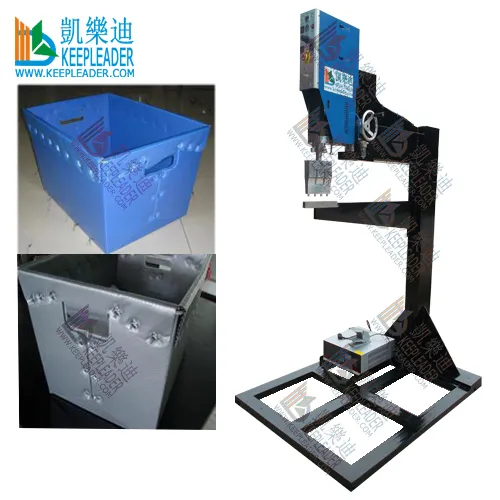

This Ultrasonic Spot Welder integrates a robust column with a stable pedestal to form an ideal loading depth for corrugated box manufacturing. It is specifically designed for spot bonding of correx boxes, corflute boxes, coroplast bins, and other corrugated plastic containers used in the logistics packaging industry.
Frequently Asked Questions
What materials can this machine weld?
This machine is specifically designed for PP corrugated sheets, also known as Corflute, Coroplast, or Correx boards, commonly used in making turnover boxes and totes.
Is the welding depth adjustable for different box sizes?
Yes, the welding depth, power, time, and pressure are all fully adjustable to accommodate various production requirements and versatile box sizes.
What is the advantage of using 15KHZ frequency?
The 15KHZ high-power frequency is ideal for larger workpieces and provides strong, stable ultrasonic output for high-precision welding tasks.
Does the machine have safety protection?
Yes, it features an IC circuit precision control system and an automatic overload protection system to ensure safe and stable operation.
What is the maximum loading height of the machine?
The machine features a robust column that can achieve a maximum loading height of up to 1300mm, suitable for deep corrugated containers.
What kind of power supply is required?
The machine supports an input voltage of 110V or 220V and requires a 2HP compressor for pneumatic operation.
