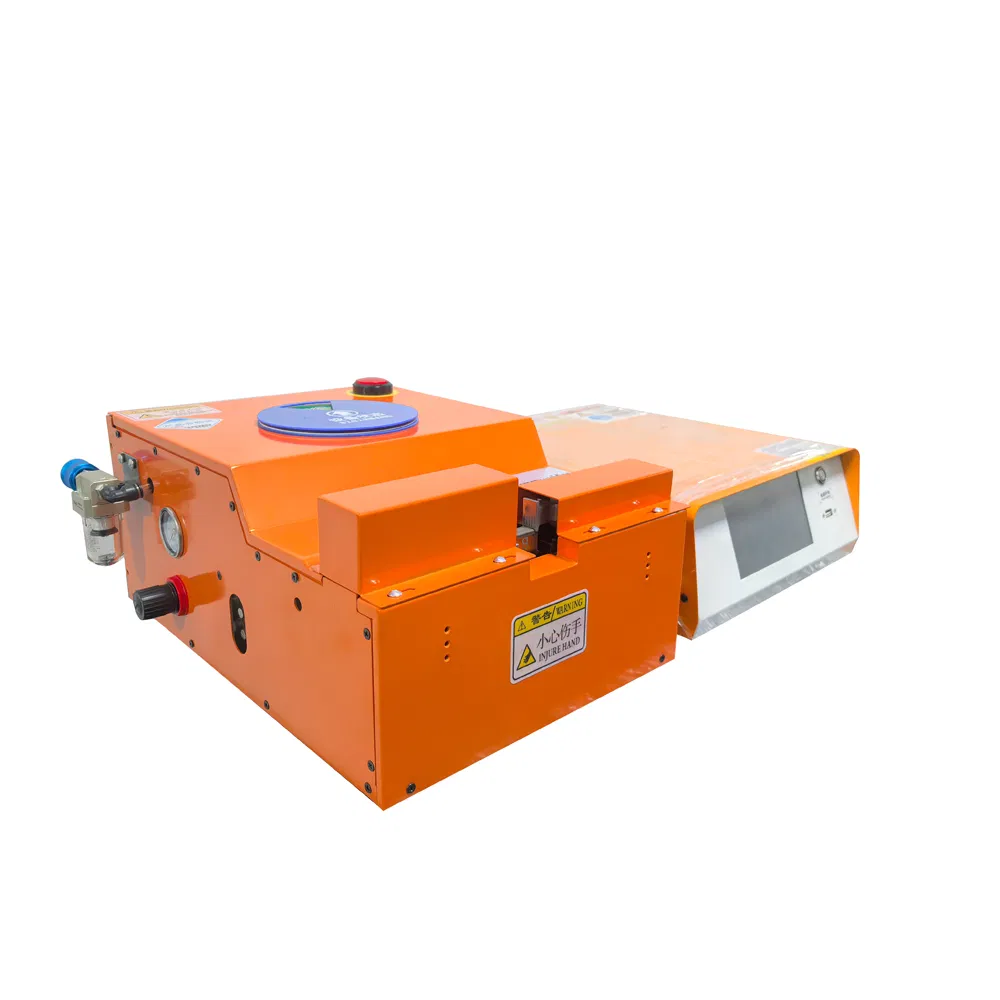

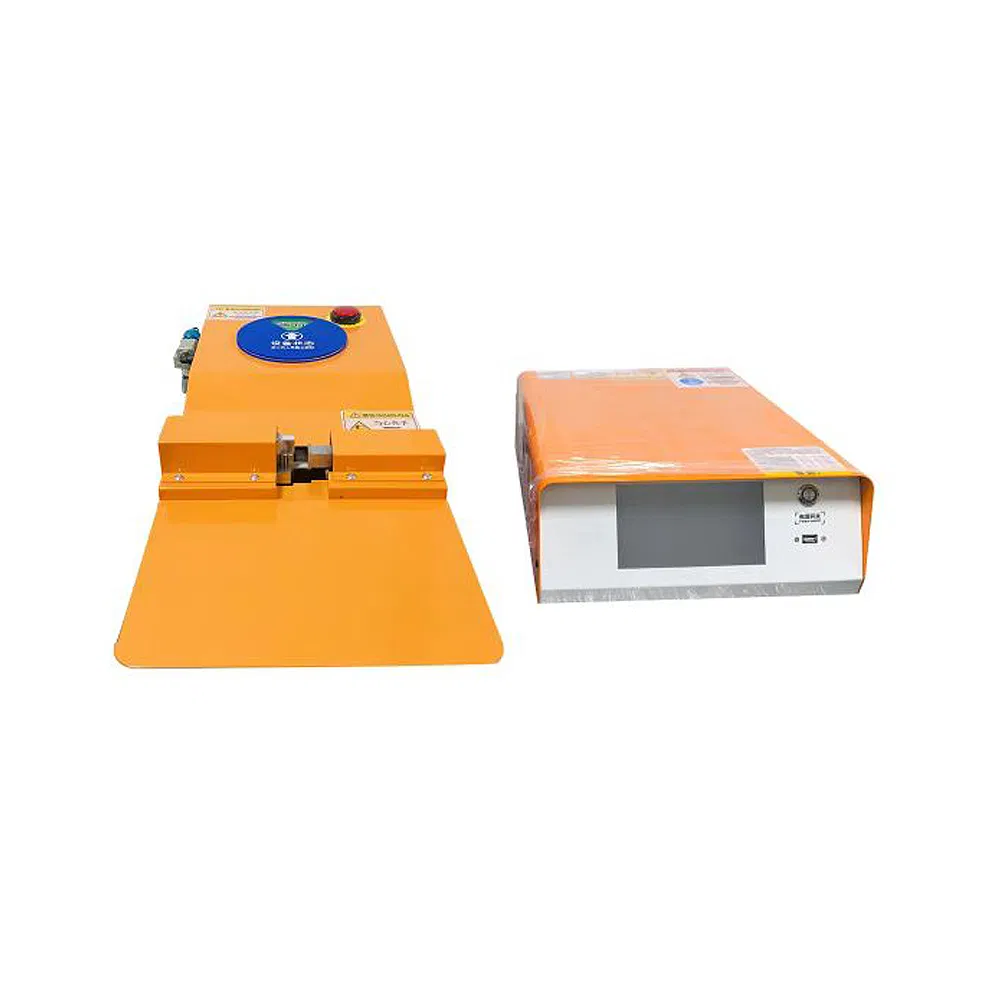

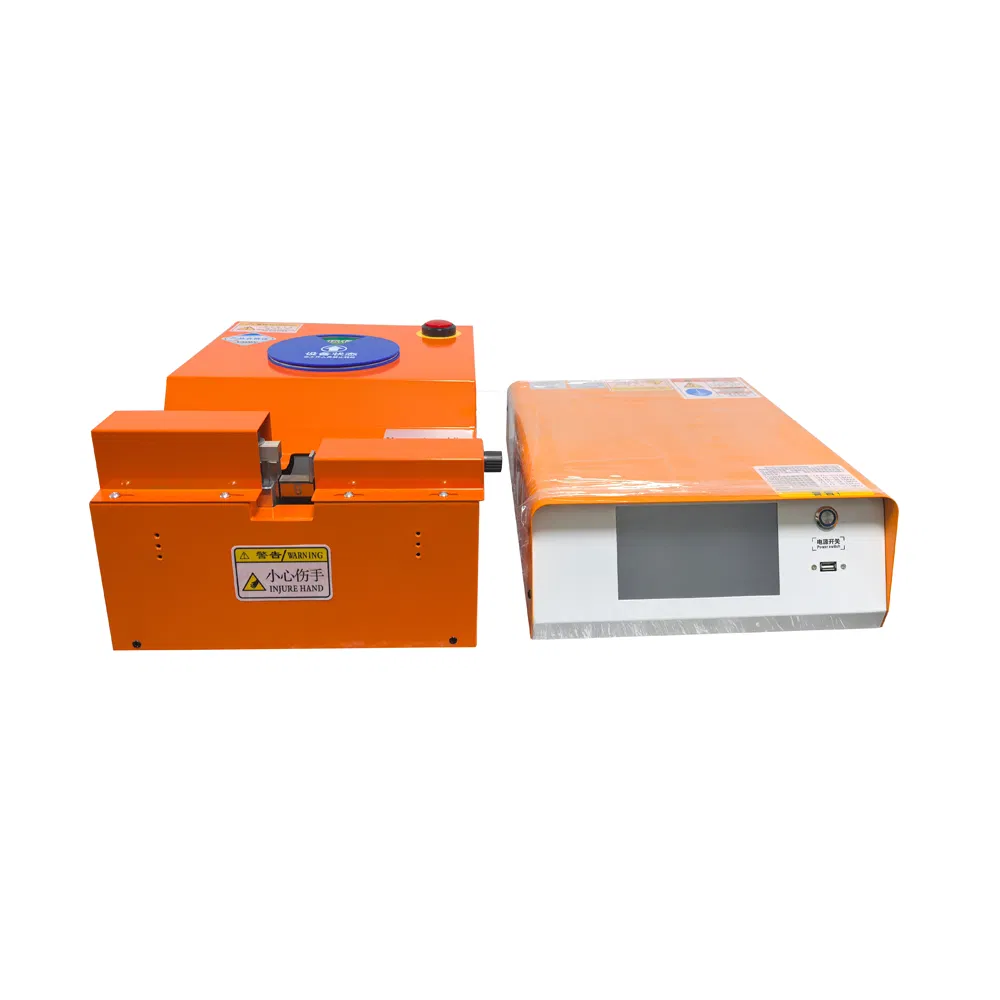

Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
1 / 5
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing
Ultrasonic Wire Welder for Electronic Wire Copper Splicing

Ultrasonic Wire Welder for Electronic Wire Copper Splicing

Customization: Available
Type: Metal
Control Mode: PLC
Send Inquiry

Product Description

i

Basic Information

Model NO.SR-UW20
VoltageAC220V
Output Power2000W
Frequency20K Hz
Control MethodMCU
Oscillation Time0.2~9s
OriginChina
HS Code8479899990
★

Product Description

Ultrasonic Wire Harness Welding Machine

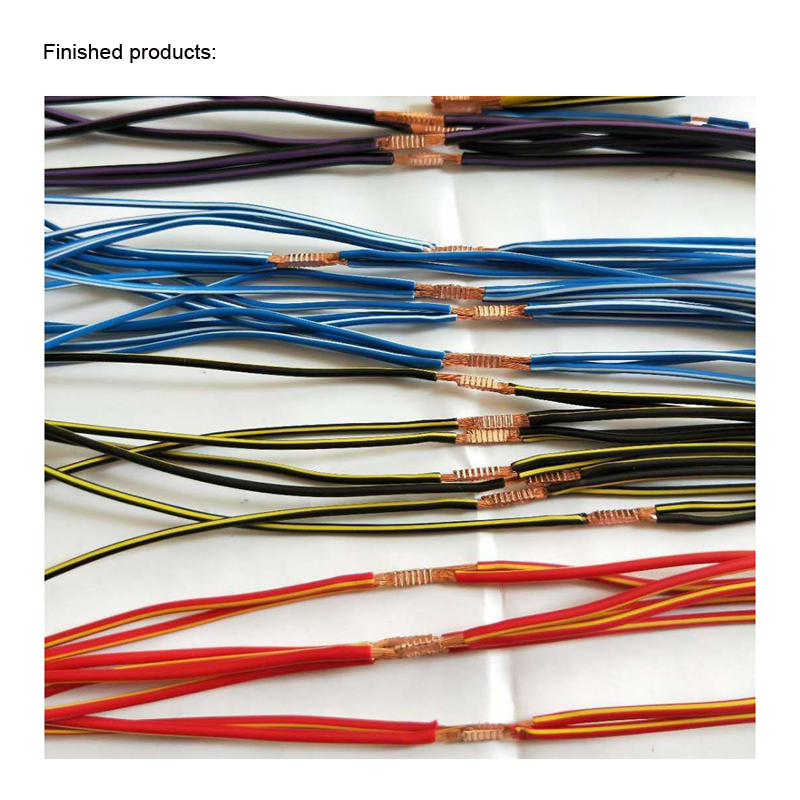

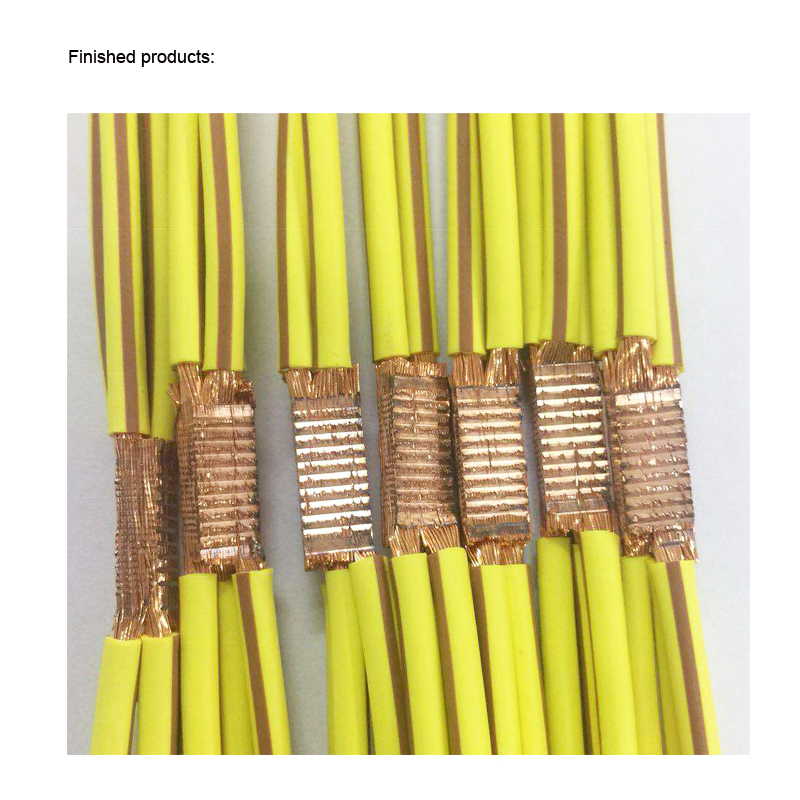

This equipment features automatic tracking of energy, time, and air pressure. Width and amplitude are fully adjustable, making it ideal for wire harness welding splicing. It serves as a superior alternative to copper belt crimping, eliminating the need for copper belts or direct contact.

Welding Capacity Range:
  • 2000W: Max 12sqmm copper wires
  • 4000W: Max 25sqmm copper wires
  • 5000W: Max 35sqmm copper wires
  • 6000W: Max 40sqmm copper wires
⚙

Technical Specifications

Air Pressure0.5KG
Welding Area0.7mm² - 12mm²
Electric Box Size380*290*130mm
Machine Size460*270*150mm
Net Weight38KG
Warranty1 Year
✔

Key Features

1. High Stability All-digital integrated circuit with high-performance anti-jamming processor. Optimized hardware structure with added voltage stabilization for maximum reliability.
2. Auto Frequency Tracking Digital frequency synthesis and phase-locked loop technology eliminate drift caused by temperature, tool wear, or load changes.
3. Powerful Output Utilizes IGBT power modules and other-excited oscillating circuits, delivering 1.5x the power of traditional self-excited circuits.
4. Stepless Amplitude Adjustment Amplitude can be adjusted from 10% to 100% instantaneously, preventing damage to delicate parts and ensuring perfect welds.
5. Intelligent Protection Built-in alarms for high mold current, frequency offset, and output overload. The system stops immediately and prompts the cause for fast troubleshooting.
📷

Product Gallery

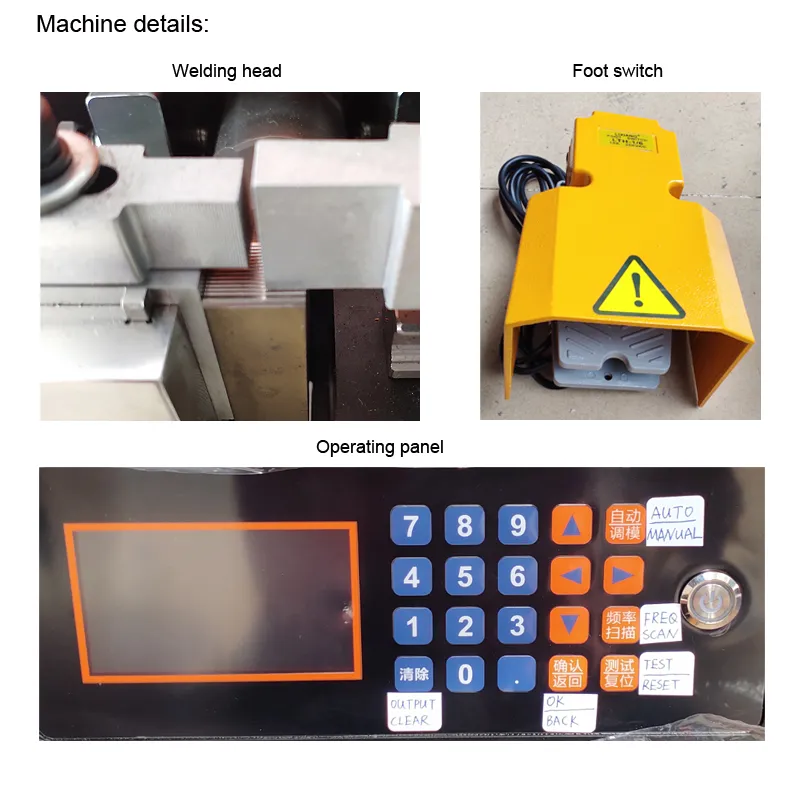

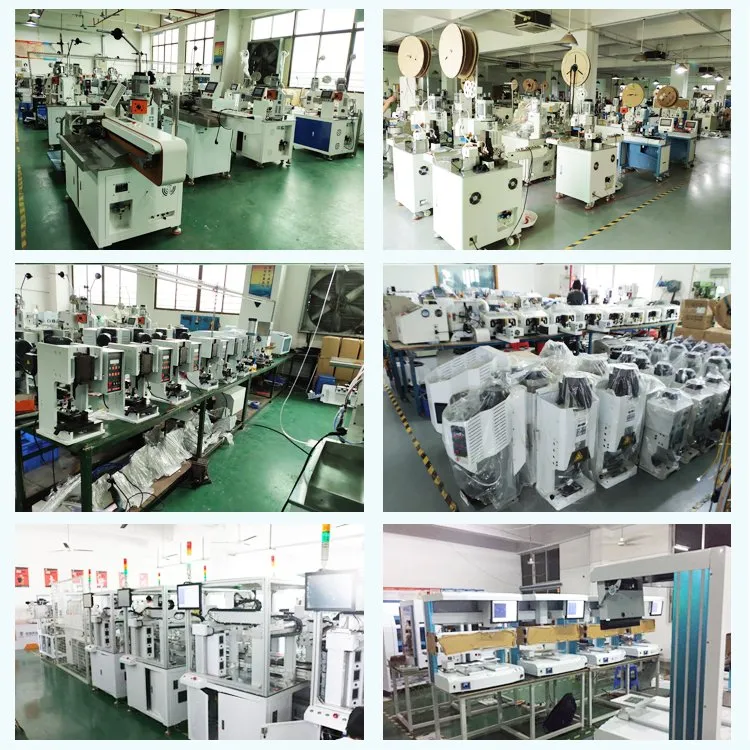

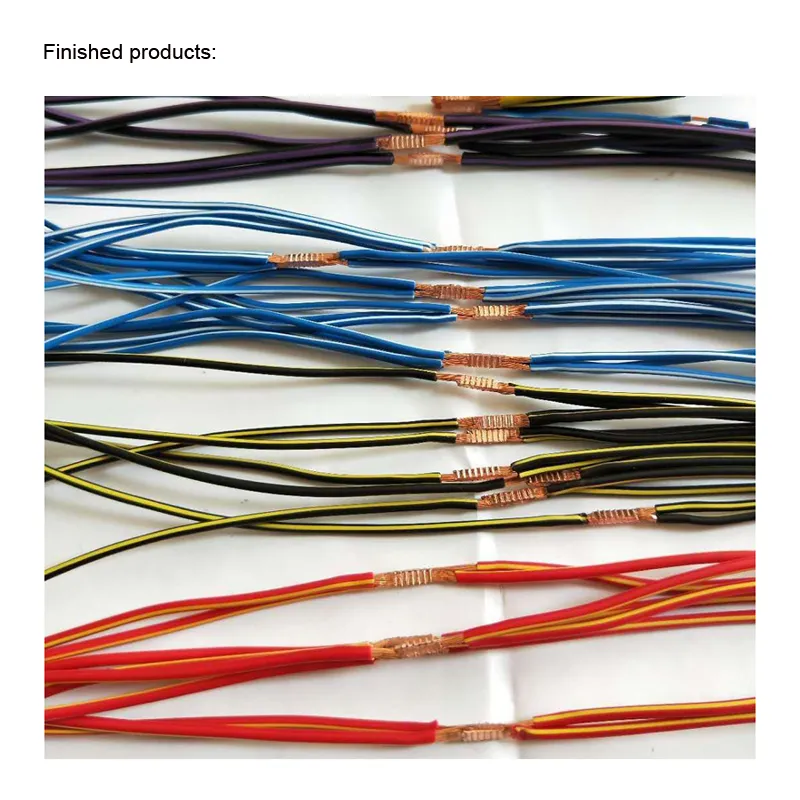

Ultrasonic Wire Welder 1 Ultrasonic Wire Welder 2 Ultrasonic Wire Welder 3 Ultrasonic Wire Welder 4 Ultrasonic Wire Welder 5 Ultrasonic Wire Welder 6
?

Frequently Asked Questions

What are the price terms for the equipment?
Prices are generally based on EXW/FOB. CFR or CIF terms are available upon request based on your specific delivery port.
Can I test the machine with my own samples?
Yes, we encourage sending samples for trial testing to ensure the machine meets your specific quality requirements.
How do I learn to operate the machine?
We provide free technology support at our facility, detailed user manuals with video illustrations, and on-site engineer services if required.
What is the typical lead time for an order?
Standard models ship within 3-7 days. Customized models typically require 10-30 days after sample confirmation and deposit.
What is the warranty period for the welder?
The machine comes with a standard 1-year warranty covering major components and technical reliability.
What is the maximum welding capacity for the 2000W model?
The 2000W model is designed to weld copper wire harnesses up to a maximum cross-section of 12mm².
