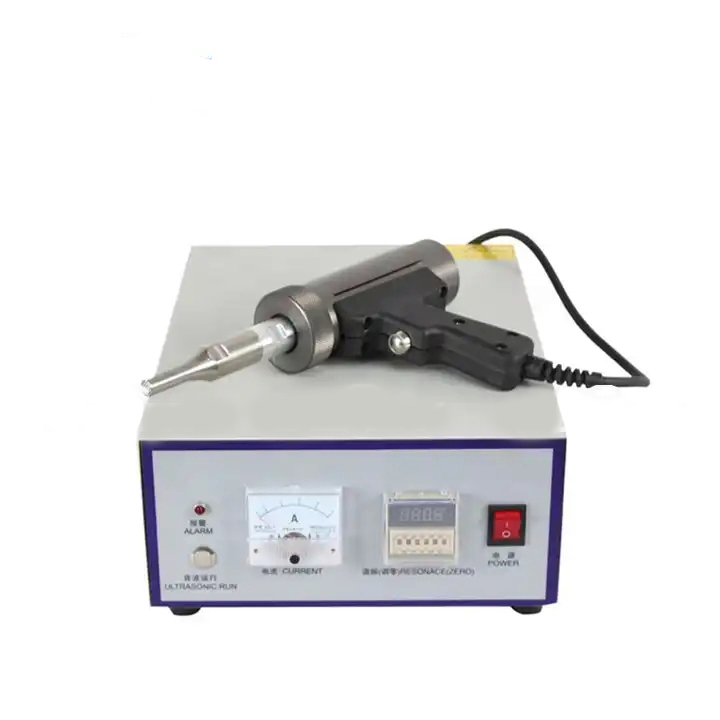

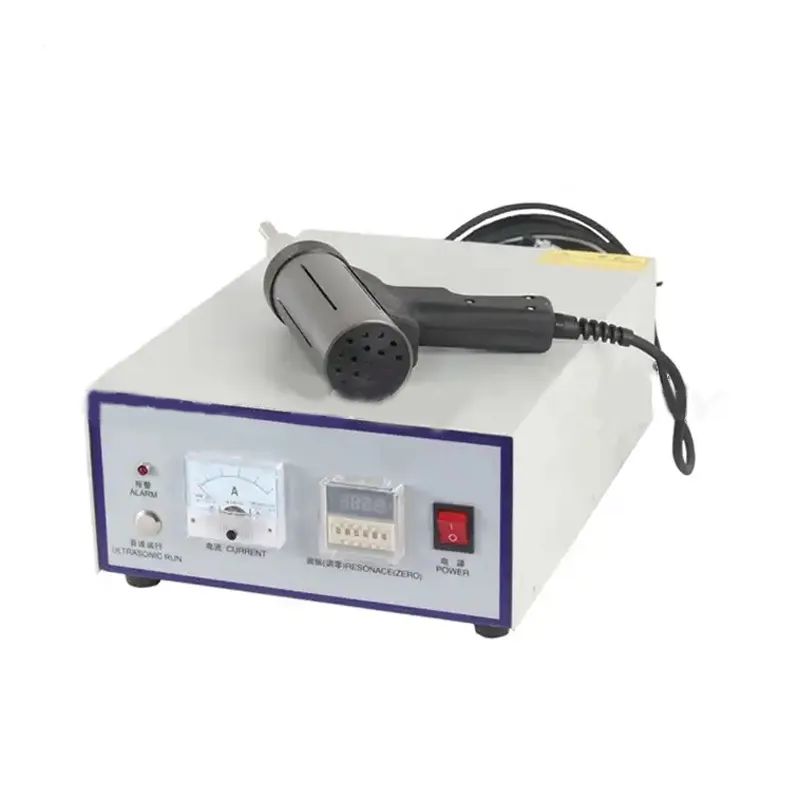

GA-WXP Ultrasonic Welder Gun is a high-performance 28KHz 800W spot welding solution designed for precision plastic welding. It features an automatic earloop welding system suitable for small auto spot welding applications.
Ultrasonic waves are transformed into mechanical vibrations through high-quality transducers. Material selection and manufacturing processes ensure superior transducer performance and service life. This high-power ultrasonic transducer is widely applicable in plastic welding, metal welding, handheld tools, and continuous working ultrasonic emulsifiers.
| System Specification | |
|---|---|
| Power | 1200W |
| Ultrasonic Generator | Analog circuit |
| Operation Interface | Display table |
| Frequency Range | 28KHz |
| Application | Welding generator |
| Language | Pointer table |
| Generator Weight | 14kgs |
| Electric Box Screen | Digital tube display |
| Welding Mode Setting | 1. Time mode 2. Continue mode |
| Welding Amplitude | 10%-100% adjustable |
| No. | Parameter Item | Details |
|---|---|---|
| 1 | Generator Size | 380mm×285mm×140mm |
| 2 | Generator Wet Weight | 14kg |
| 3 | Transducer+Flange+Horn Weight | 6kg |
| 4 | Output Power | 1500W |
| 5 | Output Voltage | 0-3000V |
| 6 | Working Temperature | -20ºC - +65ºC |
| 7 | Sinusoidal Harmonic Parameters | ≤0.2% |
| 8 | Input Power Factor | ≥75% |
| 9 | Working Frequency | 20KHz / 28KHz |
| 10 | Working Power | AC 220V, 50KHz/60KHz |
